JEEP WRANGLER 2013 JK / 3.G Owners Manual

Cavity Cartridge Fuse Mini FuseDescription
J14 40 Amp Green Rear Defroster
J15 40 Amp Green Front Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Blue Powertrain Control Module (PCM) Trans Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp Blue Center High-Mounted Stop Light (CHMSL)/Switch
Stop Lamp Feed
M2 20 Amp YellowRelay Trailer Lighting (Stoplamp)
M3 20 Amp YellowFrt/Rear Axle Locker Relay
M4 ——
M5 25 Amp NaturalPower Inverter – If Equipped
M6 20 Amp YellowPower Outlet #1/Rain Sensor
7
MAINTAINING YOUR VEHICLE 609

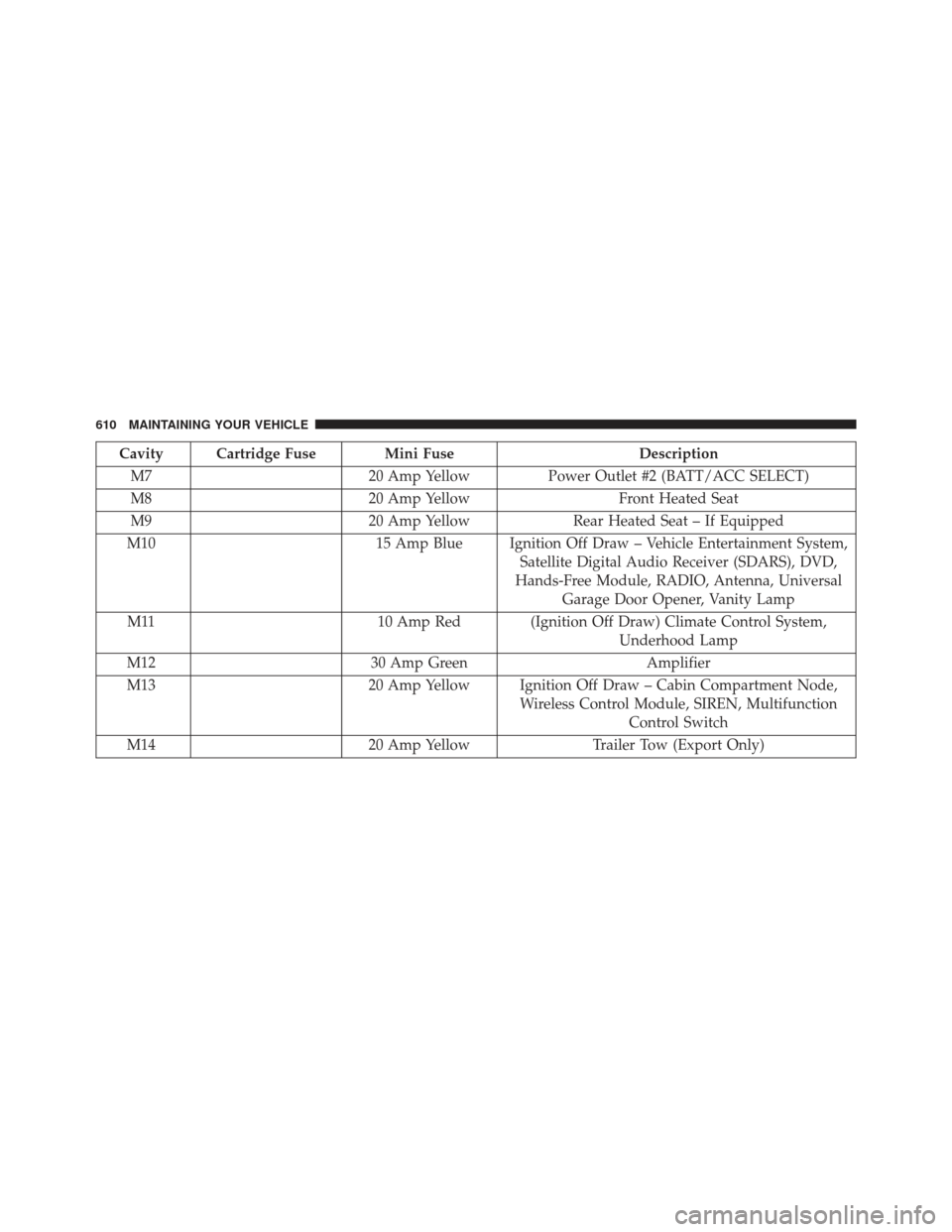

Cavity Cartridge Fuse Mini FuseDescription
M7 20 Amp YellowPower Outlet #2 (BATT/ACC SELECT)
M8 20 Amp Yellow Front Heated Seat
M9 20 Amp YellowRear Heated Seat – If Equipped
M10 15 Amp Blue Ignition Off Draw – Vehicle Entertainment System,
Satellite Digital Audio Receiver (SDARS), DVD,
Hands-Free Module, RADIO, Antenna, Universal Garage Door Opener, Vanity Lamp
M11 10 Amp Red (Ignition Off Draw) Climate Control System,
Underhood Lamp
M12 30 Amp Green Amplifier
M13 20 Amp Yellow Ignition Off Draw – Cabin Compartment Node,
Wireless Control Module, SIREN, MultifunctionControl Switch
M14 20 Amp YellowTrailer Tow (Export Only)
610 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini FuseDescription
M15 20 Amp Yellow Climate Control System, Rear View Mirror, Cabin
Compartment Node, Transfer Case Switch, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only
M16 10 Amp RedAirbag Module
M17 15 Amp BlueLeft Tail/License/Park Lamp
M18 15 Amp BlueRight Tail/Park/Run Lamp
M19 25 Amp NaturalAuto Shut Down (ASD #1 and #2)
M20 15 Amp Blue Cabin Compartment Node Interior Light, Switch
Bank
M21 20 Amp YellowAuto Shut Down (ASD #3)
M22 10 Amp RedRight Horn (HI/LOW)
M23 10 Amp RedLeft Horn (HI/LOW)
M24 25 Amp Natural Rear Wiper
M25 20 Amp Yellow Fuel Pump, Diesel Lift Pump – Export Only
7
MAINTAINING YOUR VEHICLE 611

Cavity Cartridge Fuse Mini FuseDescription
M26 10 Amp Red Power Window Switch, Driver Window Switch
M27 10 Amp RedIgnition Switch Feed, Wireless Module
M28 10 Amp RedPowertrain Control Module
M29 10 Amp Red Powertrain
M30 15 Amp BlueWiper Motor Frt, J1962 Diagnostic Feed
M31 20 Amp Yellow Backup Lamps
M32 10 Amp RedAirbag Controller, TT EUROPE
M33 10 Amp RedPowertrain Controller
M34 10 Amp Red Park Assist, Climate Control System, Headlamp
Wash, Compass
M35 10 Amp RedHeated Mirrors
M36 20 Amp Yellow Power Outlet
M37 10 Amp Red Anti-Lock Brake System, Electronic Stability
Control, Stop Lamp Switch, Fuel Pump Relay
M38 25 Amp Natural Lock/Unlock Motors
612 MAINTAINING YOUR VEHICLE

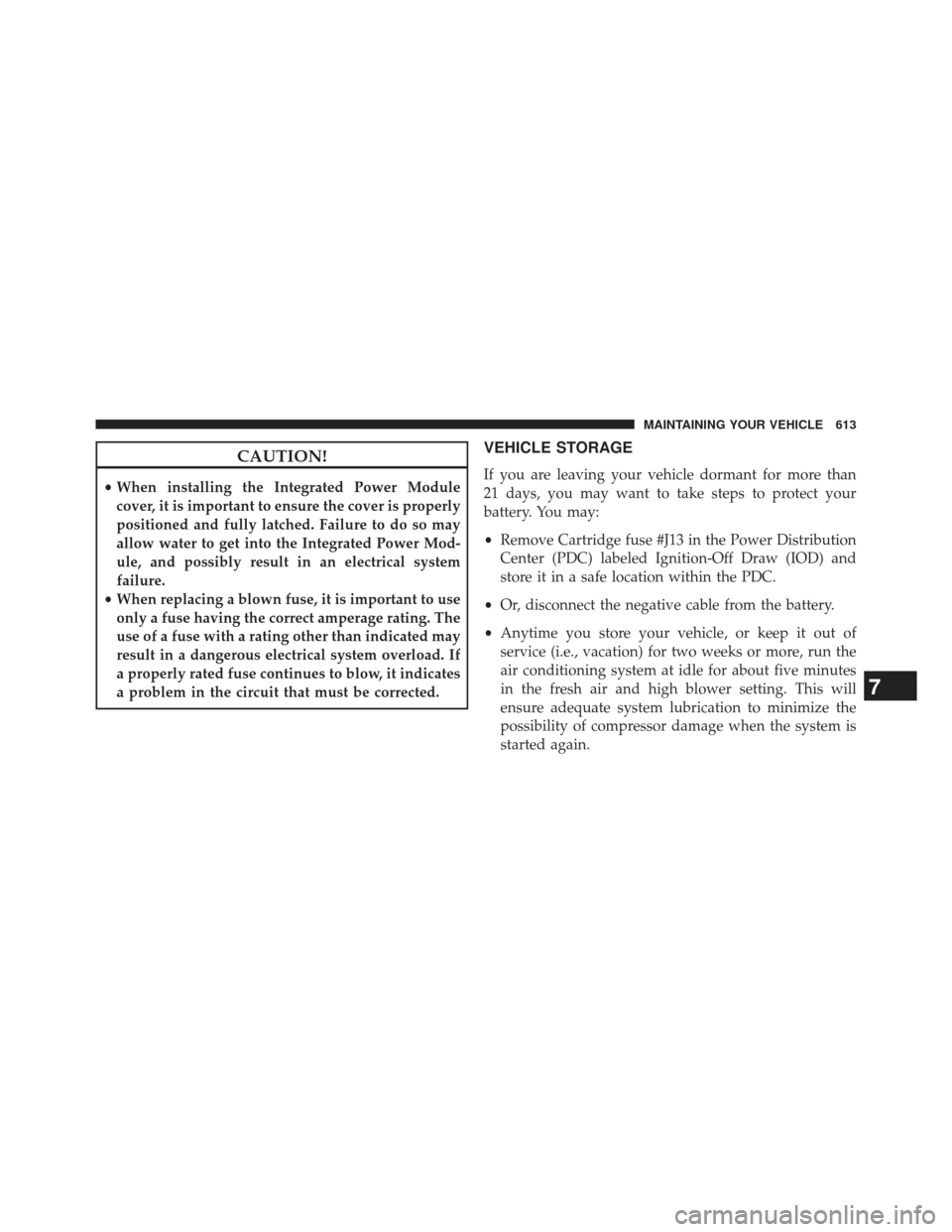

CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated Power Mod-
ule, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may:
• Remove Cartridge fuse #J13 in the Power Distribution
Center (PDC) labeled Ignition-Off Draw (IOD) and
store it in a safe location within the PDC.
• Or, disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 613

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Automatic Transmission Indicator
Lamp 658
Heater Control Lamps (2) 194
Rocker Switch Indicator Lamp
(Rear Window Defogger, and Rear
Wash/Wipe) **
Soundbar Dome Lamp 912
** Bulbs only available from authorized dealer.
Exterior Bulbs
Bulb Number
Headlamps (2) H13
Front Park/Turn Signal Lamps (2) 3157
Front Side Marker Lamps (2) 168
Fog Lamps PSX24W
Rear Stop/Tail/Turn Lamps (2) 3157
Center High-Mounted Stop Lamp L.E.D.
Backup Lamps (2) 3157
License Lamp 194
NOTE:
Numbers refer to commercial bulb types that can be
purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
614 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn clockwise.7
MAINTAINING YOUR VEHICLE 615

Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along thetop 1/4 turn counterclockwise and remove.
2. Pull the bottom of the grille away starting at one side and working toward the other.
3. Turn the socket assembly 1/4 turn counterclockwise and remove from housing. Pull the bulb straight from
the socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the frontside marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn and remove it from the housing. Pull the bulb straight
from the socket to replace.
Front Fog Lamp
1. Reach under the vehicle to access the back of the frontfog lamp.
2. Disconnect the wire harness connector from the front fog lamp connector receptacle.
3. Firmly grasp the bulb by the two latch features and squeeze them together to unlock the bulb from the
back of the front fog lamp housing.
4. Pull the bulb straight out from the keyed opening in the housing and then connect the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
616 MAINTAINING YOUR VEHICLE

Rear Tail, Stop, Turn Signal, And Backup Lamp
1. Remove the two inboard screws attaching the tail lighthousing to the body. DO NOT REMOVE THE
OUTER SCREWS AT ANY TIME.
2. Separate the housing from the body by pushing the lamp inboard while pulling the lamp away from the
body. 3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.
4. Pull the bulb straight from the socket to replace.
Center High-Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in place on the spare tire carrier.
3. Disconnect the wire harness from the back of the LED cover.
7
MAINTAINING YOUR VEHICLE 617

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) — Two Door Models 18.6 Gallons70 Liters
Fuel (Approximate) — Four Door Models 22.5 Gallons85 Liters
Engine Oil with Filter
3.6L Engine 6 Quarts5.6 Liters
Cooling System *
3.6L Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent)10.5 Quarts 9.9 Liters
* Includes coolant recovery bottle filled to MAX level.
618 MAINTAINING YOUR VEHICLE
