fuel filter JEEP WRANGLER 2013 JK / 3.G Owners Manual

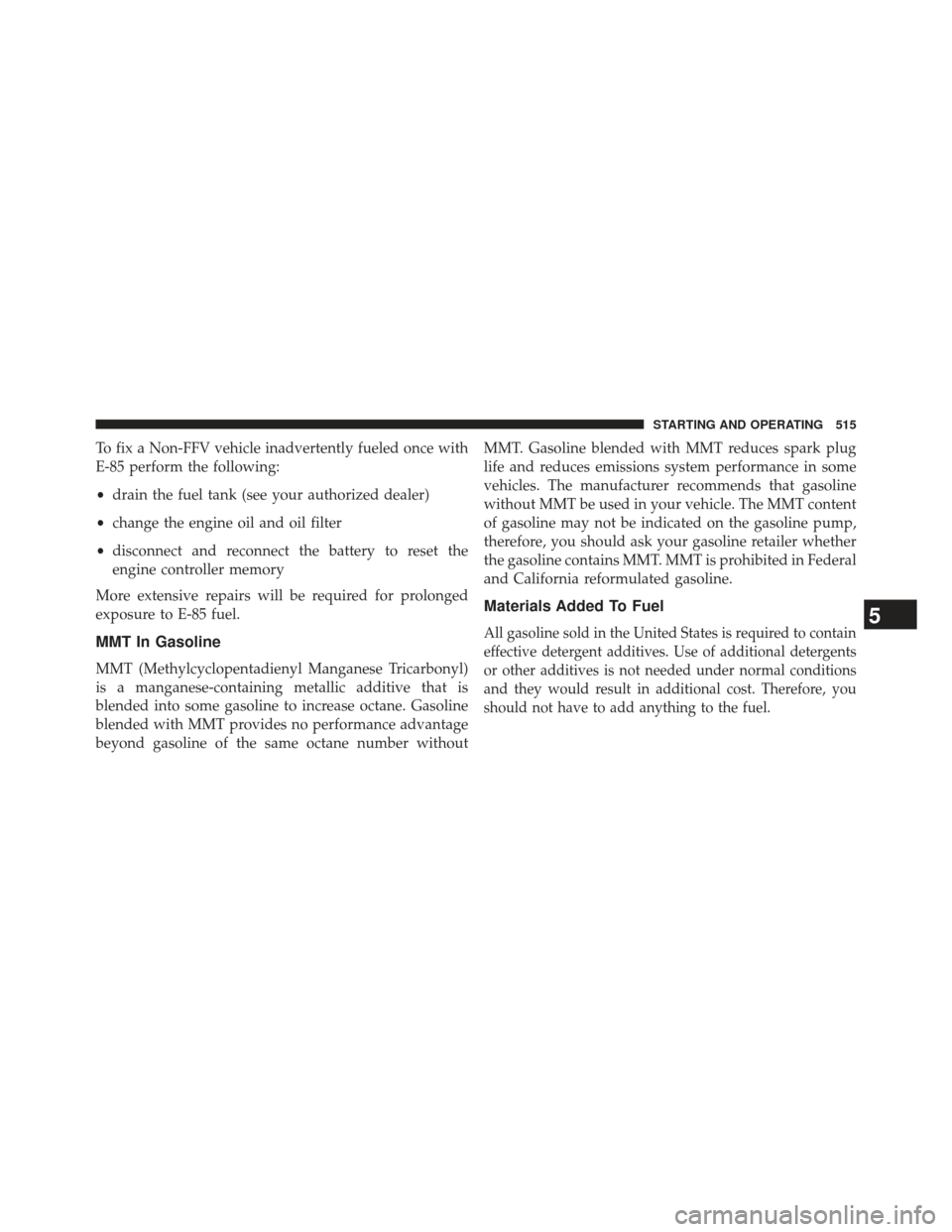

To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
• change the engine oil and oil filter
• disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT (Methylcyclopentadienyl Manganese Tricarbonyl)
is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.
Materials Added To Fuel
All gasoline sold in the United States is required to contain
effective detergent additives. Use of additional detergents
or other additives is not needed under normal conditions
and they would result in additional cost. Therefore, you
should not have to add anything to the fuel.5
STARTING AND OPERATING 515

If you REGULARLY tow a trailer for more than 45
minutes of continuous operation, then change the trans-
mission fluid and filter as specified forpolice, taxi, fleet,
or frequent trailer towing. Refer to the “Maintenance
Schedule” for the proper maintenance intervals.
NOTE: Check the automatic transmission fluid level
before towing.
Electronic Speed Control – If Equipped
• Do not use in hilly terrain or with heavy loads.
• When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
• Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
Cooling System
To reduce potential for engine and transmission over-
heating, take the following actions:
City Driving
When stopped for short periods of time, shift the trans-
mission into NEUTRAL and increase engine idle speed.
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
5
STARTING AND OPERATING 539

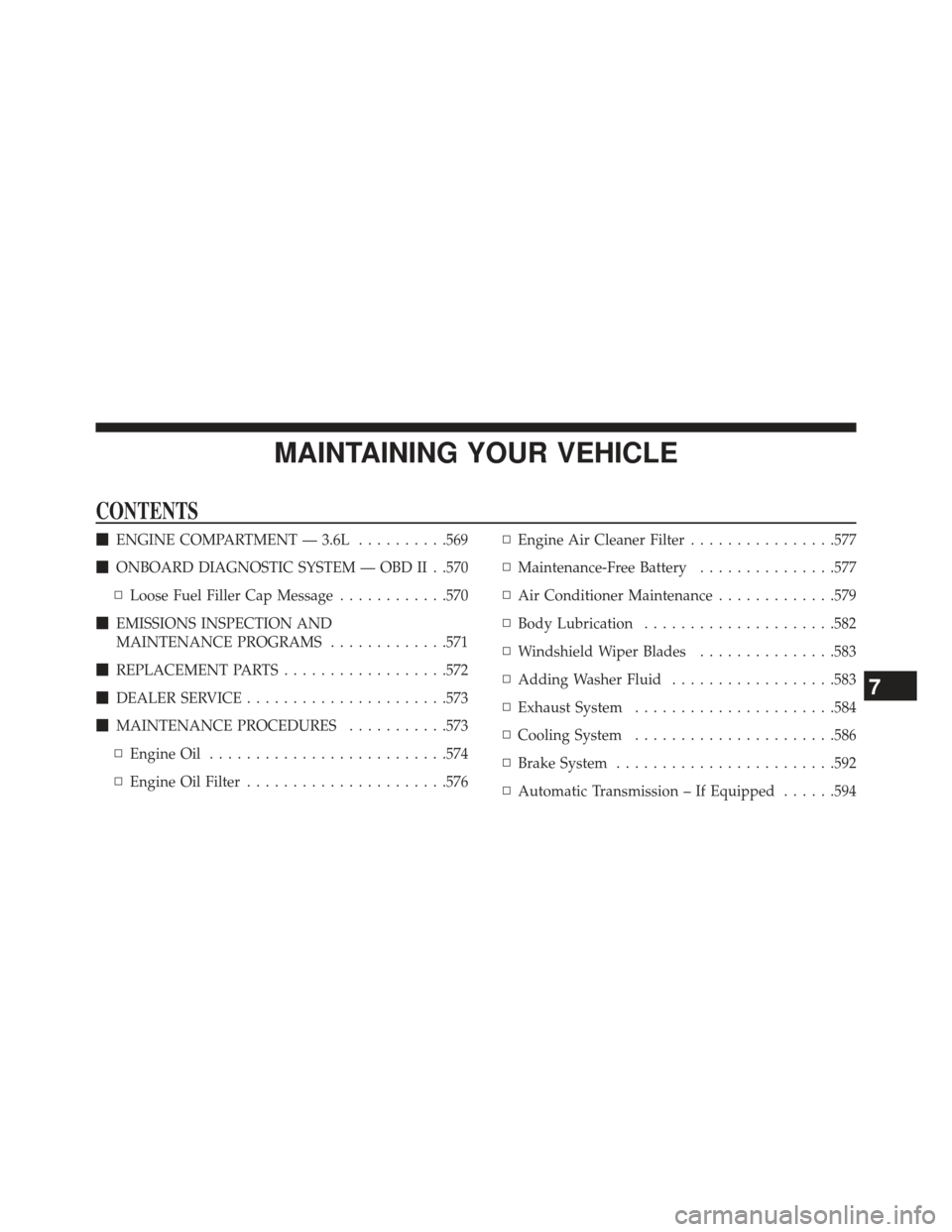

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........569
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .570
▫ Loose Fuel Filler Cap Message ............570
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............571
 REPLACEMENT PARTS ..................572
 DEALER SERVICE ..................... .573
 MAINTENANCE PROCEDURES ...........573
▫ Engine Oil ......................... .574
▫ Engine Oil Filter ..................... .576▫
Engine Air Cleaner Filter ................577
▫ Maintenance-Free Battery ...............577
▫ Air Conditioner Maintenance .............579
▫ Body Lubrication .....................582
▫ Windshield Wiper Blades ...............583
▫ Adding Washer Fluid ..................583
▫ Exhaust System ..................... .584
▫ Cooling System ..................... .586
▫ Brake System ....................... .592
▫ Automatic Transmission – If Equipped ......594
7

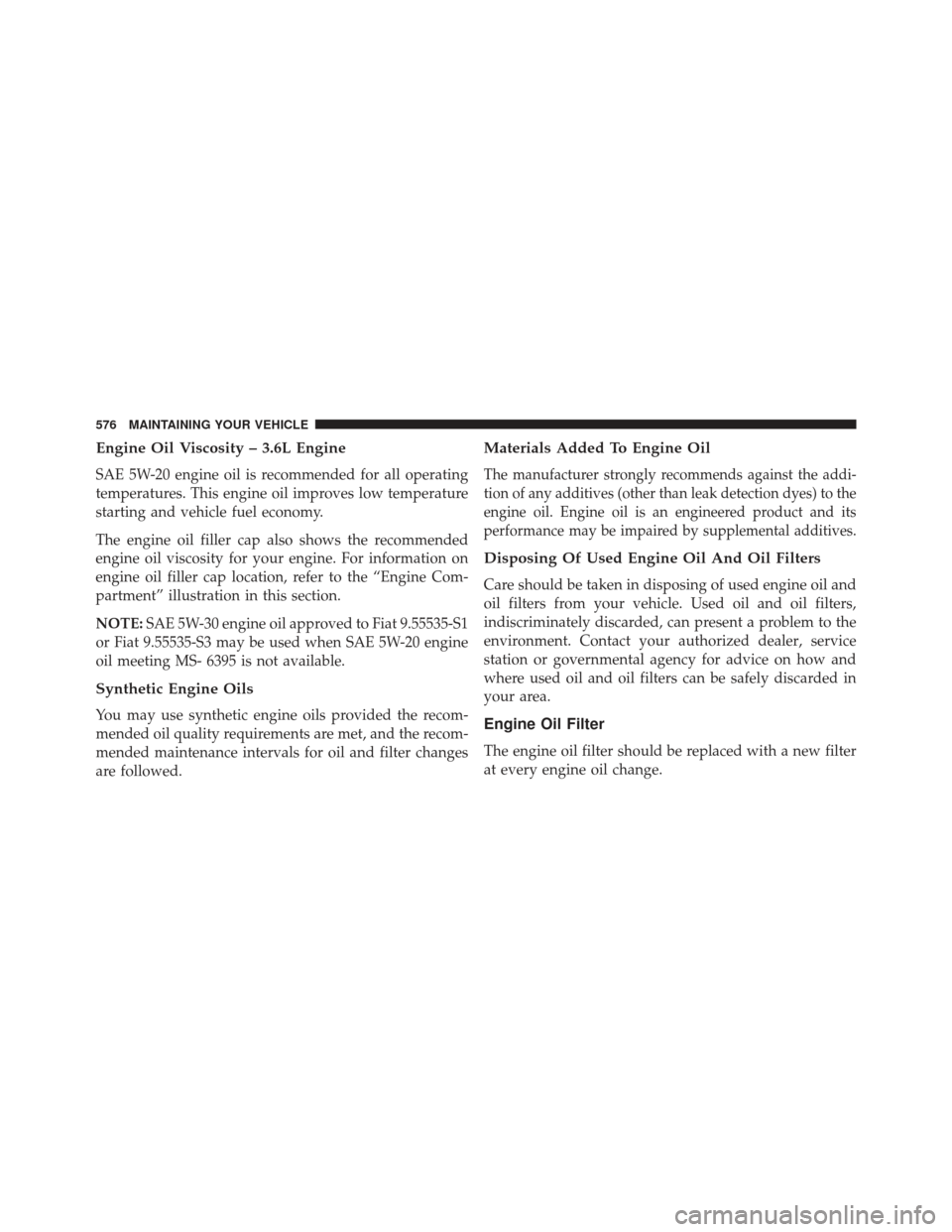

Engine Oil Viscosity – 3.6L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
NOTE:SAE 5W-30 engine oil approved to Fiat 9.55535-S1
or Fiat 9.55535-S3 may be used when SAE 5W-20 engine
oil meeting MS- 6395 is not available.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station or governmental agency for advice on how and
where used oil and oil filters can be safely discarded in
your area.
Engine Oil Filter
The engine oil filter should be replaced with a new filter
at every engine oil change.
576 MAINTAINING YOUR VEHICLE

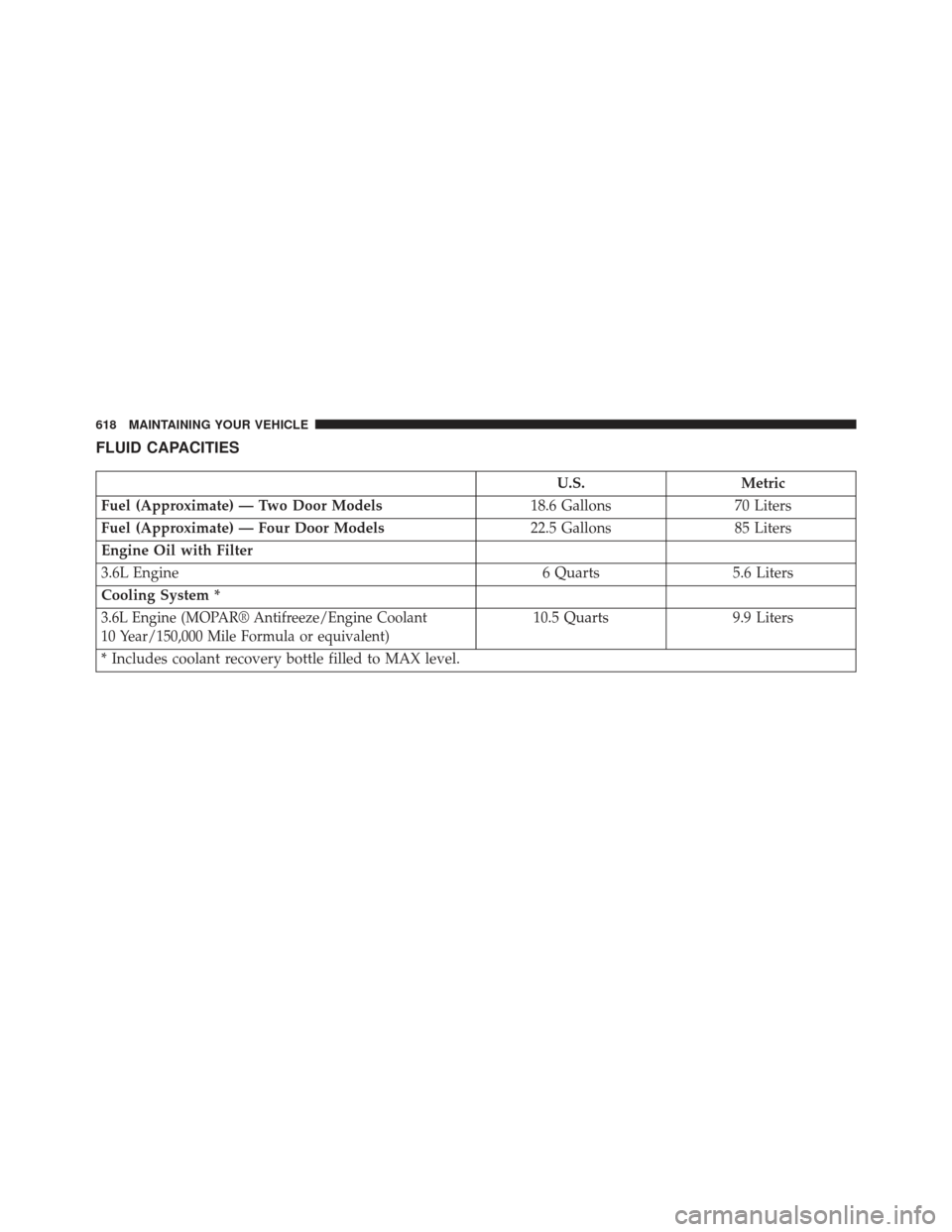

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) — Two Door Models 18.6 Gallons70 Liters
Fuel (Approximate) — Four Door Models 22.5 Gallons85 Liters
Engine Oil with Filter
3.6L Engine 6 Quarts5.6 Liters
Cooling System *
3.6L Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent)10.5 Quarts 9.9 Liters
* Includes coolant recovery bottle filled to MAX level.
618 MAINTAINING YOUR VEHICLE

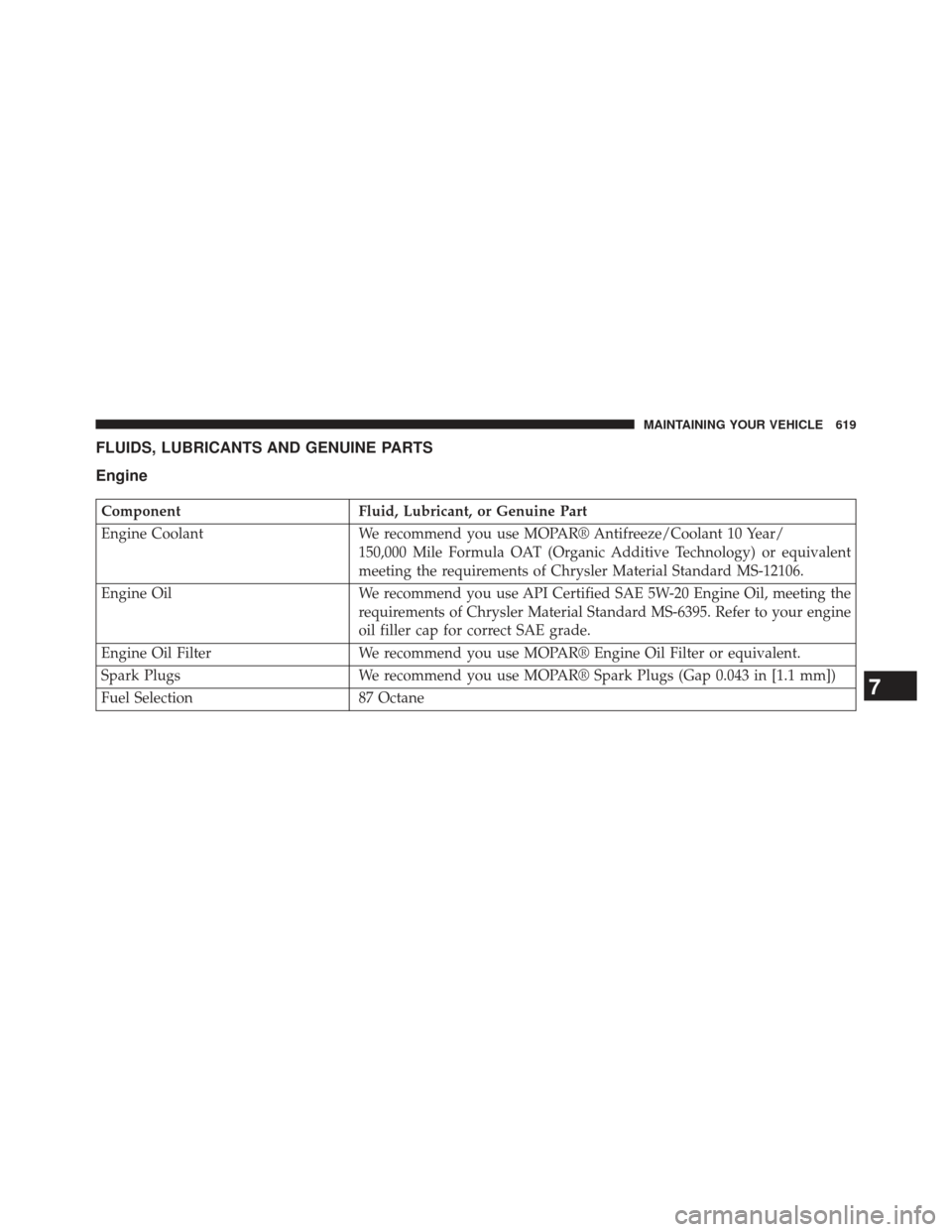

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/
150,000 Mile Formula OAT (Organic Additive Technology) or equivalent
meeting the requirements of Chrysler Material Standard MS-12106.
Engine Oil We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the
requirements of Chrysler Material Standard MS-6395. Refer to your engine
oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR® Engine Oil Filter or equivalent.
Spark Plugs We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
7
MAINTAINING YOUR VEHICLE 619

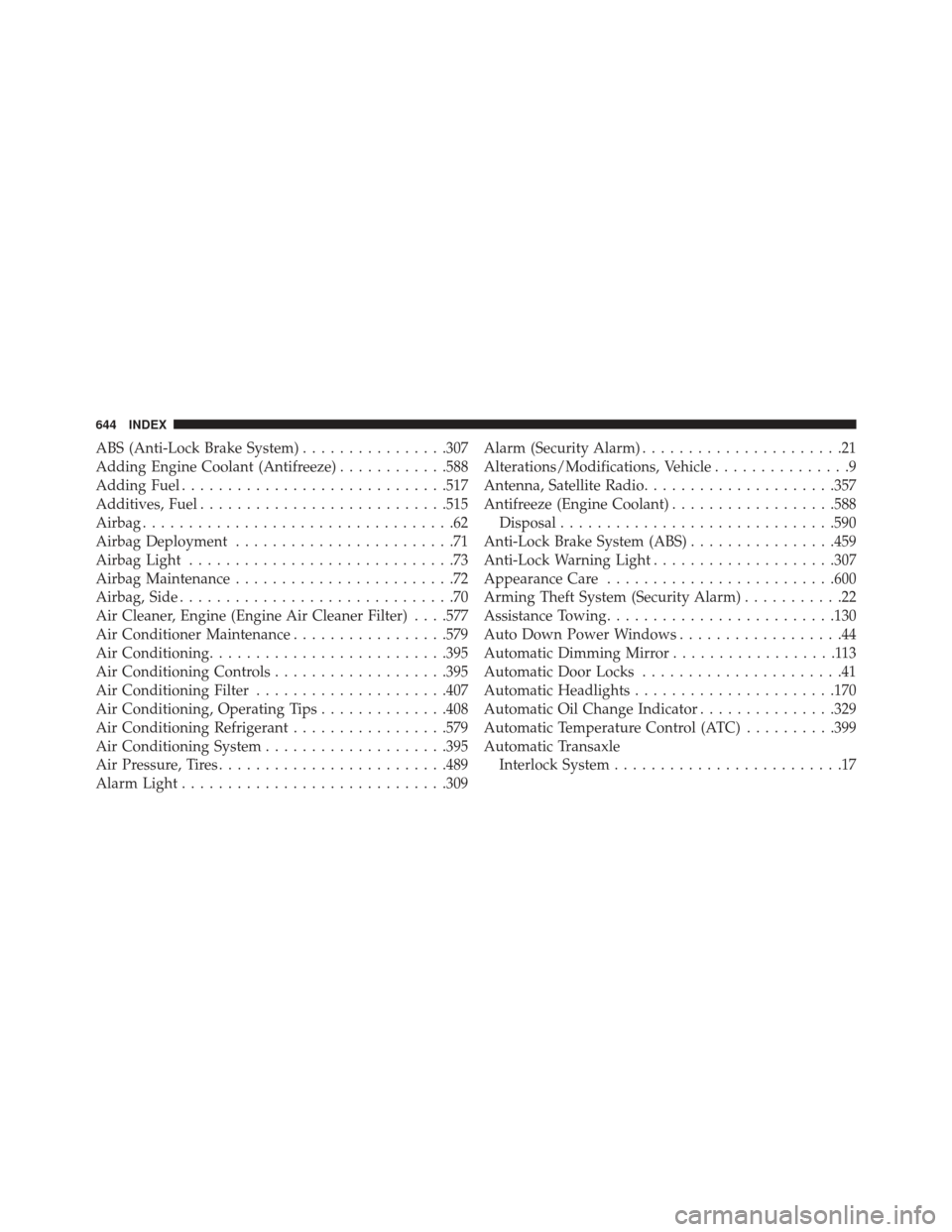

ABS (Anti-Lock Brake System)................307
Adding Engine Coolant (Antifreeze) ............588
Adding Fuel ............................ .517
Additives, Fuel .......................... .515
Airbag ..................................62
Airbag Deployment ........................71
Airbag Light .............................73
Airbag Maintenance ........................72
Airbag, Side ..............................70
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .577
Air Conditioner Maintenance .................579
Air Conditioning ......................... .395
Air Conditioning Controls ...................395
Air Conditioning Filter .....................407
Air Conditioning, Operating Tips ..............408
Air Conditioning Refrigerant .................579
Air Conditioning System ....................395
Air Pressure, Tires ........................ .489
Alarm Light ............................ .309Alarm (Security Alarm)
......................21
Alterations/Modifications, Vehicle ...............9
Antenna, Satellite Radio .....................357
Antifreeze (Engine Coolant) ..................588
Disposal ............................. .590
Anti-Lock Brake System (ABS) ................459
Anti-Lock Warning Light ....................307
Appearance Care ........................ .600
Arming Theft System (Security Alarm) ...........22
Assistance Towing ........................ .130
Auto Down Power Windows ..................44
Automatic Dimming Mirror ..................113
Automatic Door Locks ......................41
Automatic Headlights ..................... .170
Automatic Oil Change Indicator ...............329
Automatic Temperature Control (ATC) ..........399
Automatic Transaxle Interlock System .........................17
644 INDEX

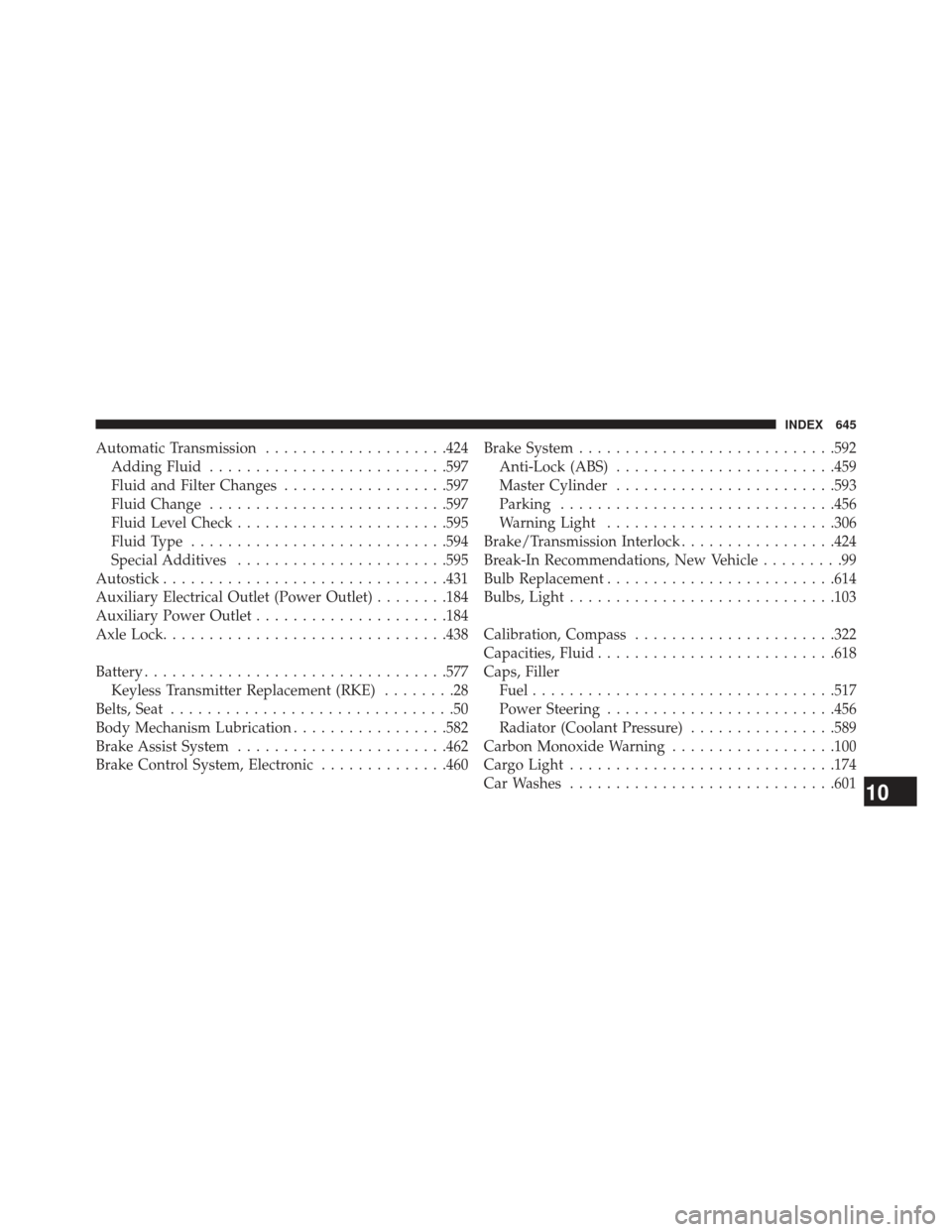

Automatic Transmission....................424
Adding Fluid ......................... .597
Fluid and Filter Changes ..................597
Fluid Change ......................... .597
Fluid Level Check ...................... .595
Fluid Type ........................... .594
Special Additives ...................... .595
Autostick .............................. .431
Auxiliary Electrical Outlet (Power Outlet) ........184
Auxiliary Power Outlet .....................184
Axle Lock .............................. .438
Battery ................................ .577
Keyless Transmitter Replacement (RKE) ........28
Belts, Seat ...............................50
Body Mechanism Lubrication .................582
Brake Assist System ...................... .462
Brake Control System, Electronic ..............460Brake System
........................... .592
Anti-Lock (ABS) ....................... .459
Master Cylinder ....................... .593
Parking ............................. .456
Warning Light ........................ .306
Brake/Transmission Interlock .................424
Break-In Recommendations, New Vehicle .........99
Bulb Replacement ........................ .614
Bulbs, Light ............................ .103
Calibration, Compass ..................... .322
Capacities, Fluid ......................... .618
Caps, Filler Fuel ................................ .517
Power Steering ........................ .456
Radiator (Coolant Pressure) ................589
Carbon Monoxide Warning ..................100
Cargo Light ............................ .174
Car Washes ............................ .601
10
INDEX 645

Extender, Seat Belt.........................61
Exterior Lights .......................... .103
Fabric Care ............................. .603
Fabric Top ............................. .604
Filters Air Cleaner .......................... .577
Air Conditioning ...................... .407
Engine Oil ........................... .576
Engine Oil Disposal .....................576
Flashers Hazard Warning ....................... .546
Turn Signal .......................... .103
Flash-To-Pass ........................... .172
Flooded Engine Starting ....................416
Fluid Capacities ......................... .618
Fluid Leaks ............................ .104
Fluid Level Checks ....................... .599
Engine Oil ........................... .574Manual Transmission
....................598
Power Steering ........................ .456
Fluids, Lubricants and Genuine Parts ...........619
Fog Lights ............................. .172
Fog Light Service ........................ .616
Fold and Tumble Rear Seat ..................163
Folding Rear Seat ........................ .165
Folding Windshield ....................... .290
Four-Way Hazard Flasher ...................546
Four Wheel Drive ........................ .433
Four Wheel Drive Operation .................433
Freeing A Stuck Vehicle .....................559
Front Axle (Differential) .....................599
Fuel .................................. .513
Adding ............................. .517
Additives ............................ .515
Clean Air ............................ .513
Ethanol ............................. .514
Filler

Cap (Gas Cap) .....................517
10
INDEX 649

Maintenance Schedule..................... .622
Malfunction Indicator Light (Check Engine) .......315
Manual, Service ......................... .638
Manual Transmission ..................... .418
Fluid Level Check ...................... .598
Lubricant Selection ..................... .597
Shift Speeds .......................... .419
Master Cylinder (Brakes) ....................593
Methanol .............................. .514
Mini-Trip Computer ...................... .319
Mirrors .................................111
Automatic Dimming .....................113
Electric Powered ........................114
Electric Remote .........................114
Heated ...............................114
Outside ..............................112
Rearview .............................111
Vanity ...............................115
Modifications/Alterations, Vehicle ...............9Modular Hard Top
....................... .206
Monitor, Tire Pressure System ................501
Mopar Parts ............................ .572
MTBE/ETBE ........................... .514
New Vehicle Break-In Period ..................99
Occupant Restraints ........................47
Octane Rating, Gasoline (Fuel) ................513
Odometer .............................. .312
Trip ................................ .310
Oil Change Indicator ...................... .315
Oil Change Indicator, Reset ..................315
Oil, Engine ............................. .574
Capacity ............................ .618
Change Interval ....................... .329
Dipstick ............................. .574
Disposal ............................. .576
Filter ............................... .576
654 INDEX
