UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........302
 INSTRUMENT CLUSTER .................303
 INSTRUMENT CLUSTER DESCRIPTIONS .....304
 COMPASS AND TRIP COMPUTER — IF
EQUIPPED .......................... .319
▫ Control Buttons ...................... .320
▫ Compass/Temperature Display ............321
▫ Trip Conditions ...................... .324
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED ...........325▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... .328
▫ Oil Change Required ..................329
▫ EVIC Main Menu .....................330
▫ Compass Display / ECO (Fuel Saver Mode) —
If Equipped ........................ .330
▫ Average Fuel Economy ..................334
▫ Distance To Empty (DTE) ................334
▫ Elapsed Time ....................... .334
▫ EVIC Units Selection (UNITS IN Display) . . . .335
4

17. Vehicle Security Light — If EquippedThis light will flash at a fast rate for approxi-
mately 15 seconds, when the vehicle security
alarm is arming, and then will flash slowly
until the vehicle is disarmed.
18. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.CAUTION!
Driving with a hot engine cooling system could damage
your vehicle. If the temperature gauge reads “H” pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into
the normal range. If the pointer remains on the “H” and
you hear continuous chimes, turn the engine off imme-
diately and call an authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or others
could be badly burned by steam or boiling coolant. You
may want to call an authorized dealer for service if your
vehicle overheats. If you decide to look under the hood
yourself, see “Maintaining Your Vehicle”. Follow the
warnings under the Cooling System Pressure Cap para-
graph.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 309

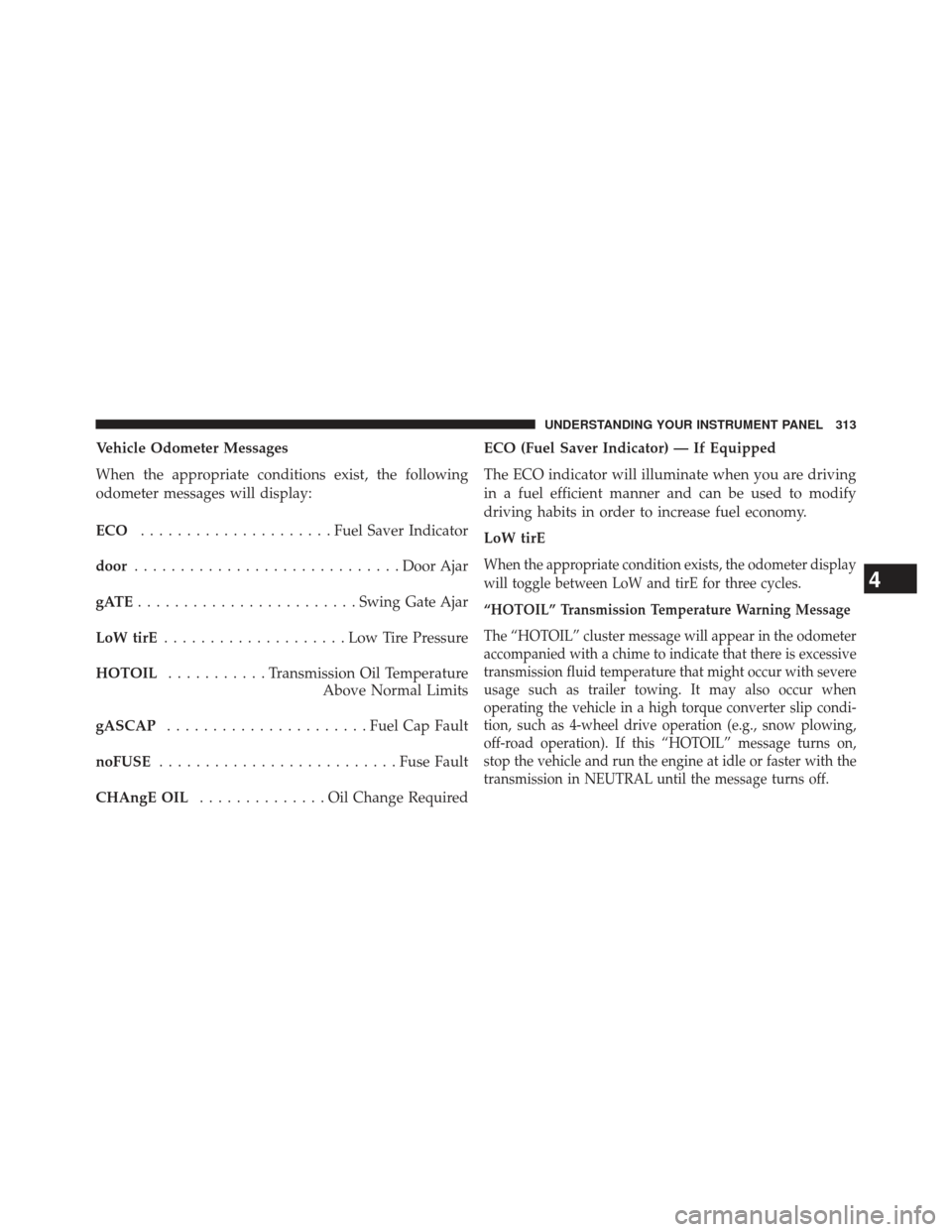

Vehicle Odometer Messages
When the appropriate conditions exist, the following
odometer messages will display:
ECO..................... Fuel Saver Indicator
door ............................. Door Ajar
gATE ........................ Swing Gate Ajar
LoW tirE ....................LowTirePr essure
HOTOIL ...........T ransmission Oil Temperature
Above Normal Limits
gASCAP ...................... Fuel Cap Fault
noFUSE .......................... Fuse Fault
CHAngE OIL ..............Oil Change RequiredECO (Fuel Saver Indicator) — If Equipped
The ECO indicator will illuminate when you are driving
in a fuel efficient manner and can be used to modify
driving habits in order to increase fuel economy.
LoW tirE
When the appropriate condition exists, the odometer display
will toggle between LoW and tirE for three cycles.
“HOTOIL” Transmission Temperature Warning Message
The “HOTOIL” cluster message will appear in the odometer
accompanied with a chime to indicate that there is excessive
transmission fluid temperature that might occur with severe
usage such as trailer towing. It may also occur when
operating the vehicle in a high torque converter slip condi-
tion, such as 4-wheel drive operation (e.g., snow plowing,
off-road operation). If this “HOTOIL” message turns on,
stop the vehicle and run the engine at idle or faster with the
transmission in NEUTRAL until the message turns off.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 313

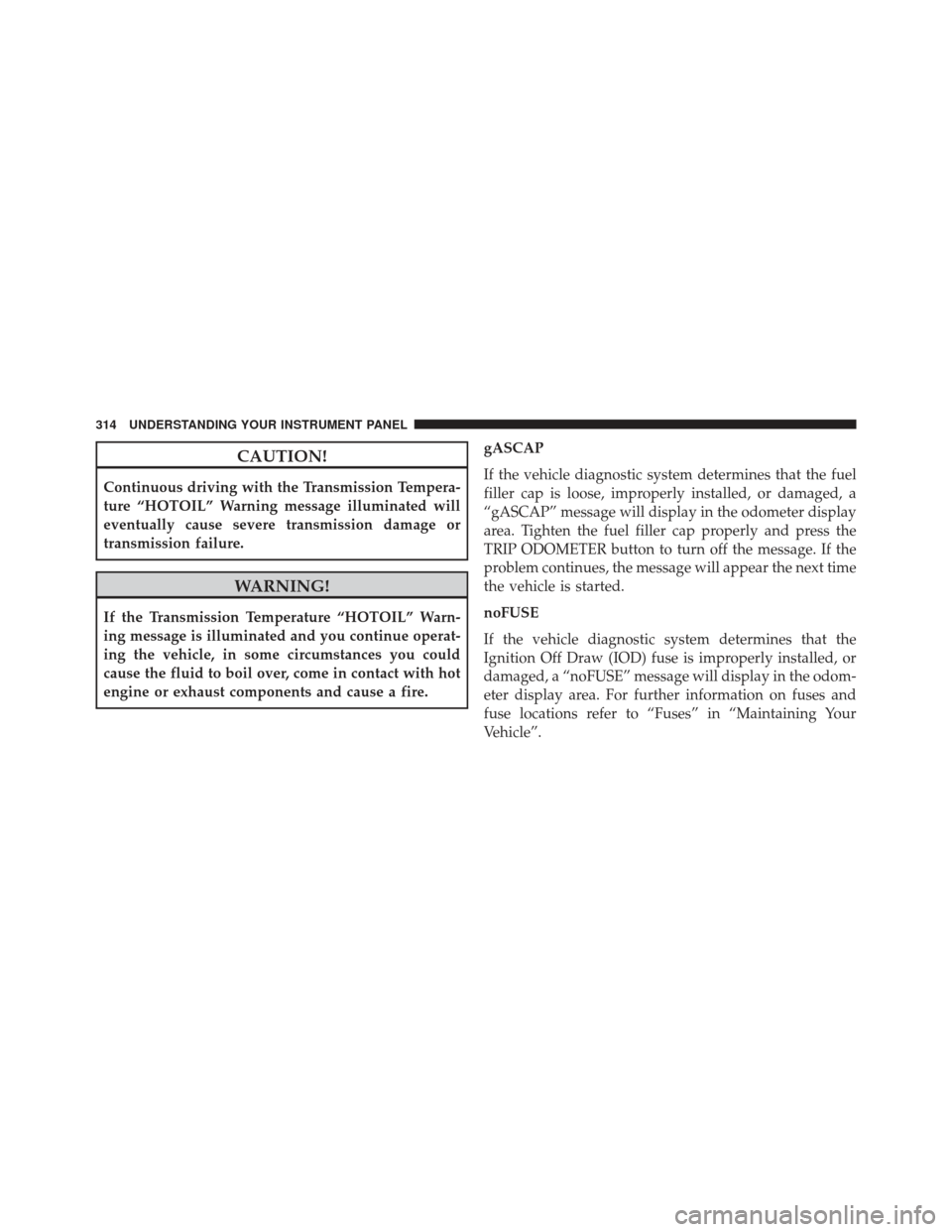

CAUTION!
Continuous driving with the Transmission Tempera-
ture “HOTOIL” Warning message illuminated will
eventually cause severe transmission damage or
transmission failure.
WARNING!
If the Transmission Temperature “HOTOIL” Warn-
ing message is illuminated and you continue operat-
ing the vehicle, in some circumstances you could
cause the fluid to boil over, come in contact with hot
engine or exhaust components and cause a fire.gASCAP
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“gASCAP” message will display in the odometer display
area. Tighten the fuel filler cap properly and press the
TRIP ODOMETER button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
noFUSE
If the vehicle diagnostic system determines that the
Ignition Off Draw (IOD) fuse is improperly installed, or
damaged, a “noFUSE” message will display in the odom-
eter display area. For further information on fuses and
fuse locations refer to “Fuses” in “Maintaining Your
Vehicle”.
314 UNDERSTANDING YOUR INSTRUMENT PANEL

Engine Oil Viscosity – 3.6L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
NOTE:SAE 5W-30 engine oil approved to Fiat 9.55535-S1
or Fiat 9.55535-S3 may be used when SAE 5W-20 engine
oil meeting MS- 6395 is not available.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
station or governmental agency for advice on how and
where used oil and oil filters can be safely discarded in
your area.
Engine Oil Filter
The engine oil filter should be replaced with a new filter
at every engine oil change.
576 MAINTAINING YOUR VEHICLE

Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer (if equipped) is shared. The fluid
reservoir is located in the engine compartment. Be sure to
check the fluid level at regular intervals. Fill the reservoir
with windshield washer solvent only (not radiator anti-
freeze). When refilling the washer fluid reservoir, take
some washer fluid and apply it to a cloth or towel and
wipe clean the wiper blades; this will help blade perfor-
mance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
7
MAINTAINING YOUR VEHICLE 583

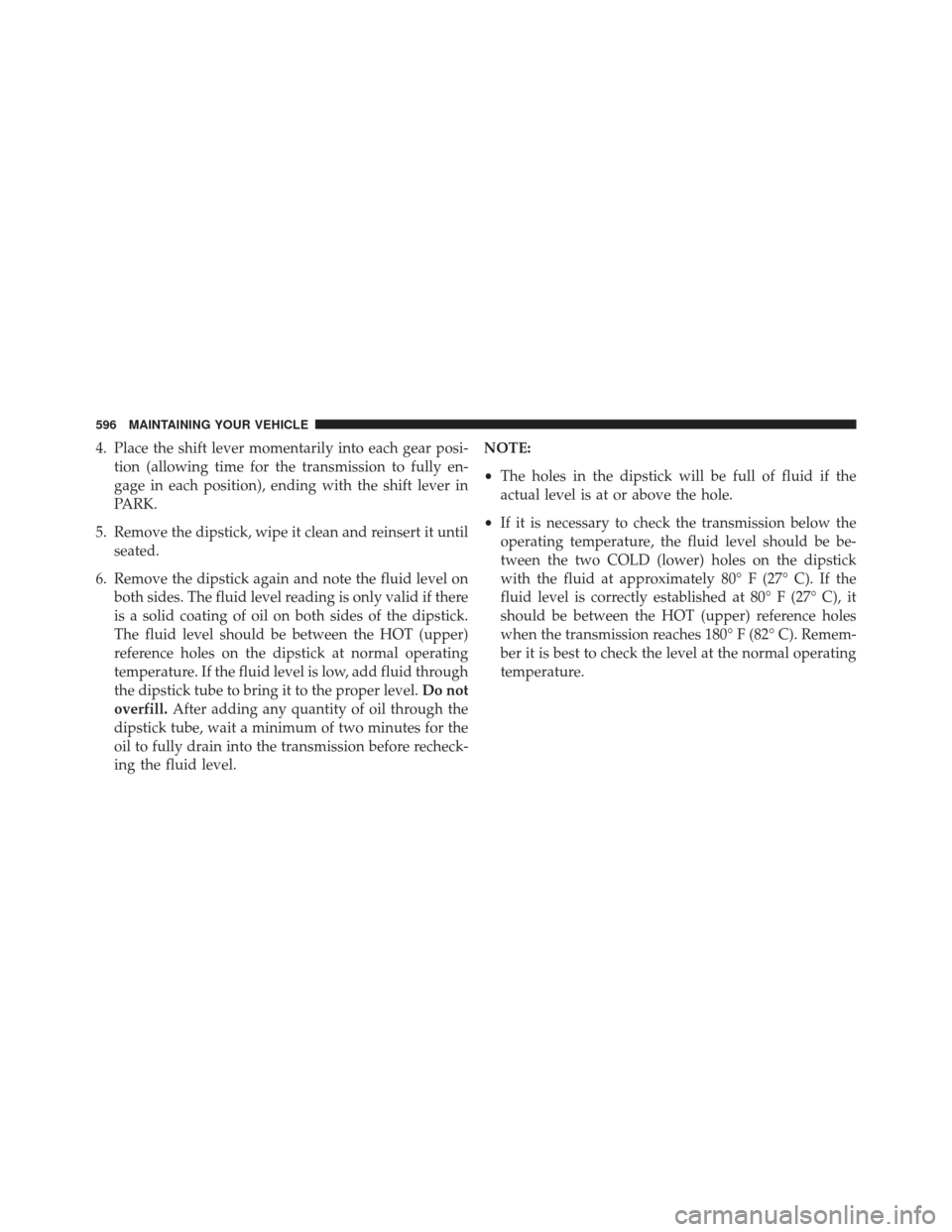

4. Place the shift lever momentarily into each gear posi-tion (allowing time for the transmission to fully en-
gage in each position), ending with the shift lever in
PARK.
5. Remove the dipstick, wipe it clean and reinsert it until seated.
6. Remove the dipstick again and note the fluid level on both sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
The fluid level should be between the HOT (upper)
reference holes on the dipstick at normal operating
temperature. If the fluid level is low, add fluid through
the dipstick tube to bring it to the proper level. Do not
overfill. After adding any quantity of oil through the
dipstick tube, wait a minimum of two minutes for the
oil to fully drain into the transmission before recheck-
ing the fluid level. NOTE:
•
The holes in the dipstick will be full of fluid if the
actual level is at or above the hole.
• If it is necessary to check the transmission below the
operating temperature, the fluid level should be be-
tween the two COLD (lower) holes on the dipstick
with the fluid at approximately 80° F (27° C). If the
fluid level is correctly established at 80° F (27° C), it
should be between the HOT (upper) reference holes
when the transmission reaches 180° F (82° C). Remem-
ber it is best to check the level at the normal operating
temperature.
596 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” or “Oil Change Re-
quired” message is displayed. Severe Operating Condi-
tions can cause the change oil message to illuminate as
early as 3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next 500
miles (805 km).On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S622 MAINTENANCE SCHEDULES

ABS (Anti-Lock Brake System)................307
Adding Engine Coolant (Antifreeze) ............588
Adding Fuel ............................ .517
Additives, Fuel .......................... .515
Airbag ..................................62
Airbag Deployment ........................71
Airbag Light .............................73
Airbag Maintenance ........................72
Airbag, Side ..............................70
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .577
Air Conditioner Maintenance .................579
Air Conditioning ......................... .395
Air Conditioning Controls ...................395
Air Conditioning Filter .....................407
Air Conditioning, Operating Tips ..............408
Air Conditioning Refrigerant .................579
Air Conditioning System ....................395
Air Pressure, Tires ........................ .489
Alarm Light ............................ .309Alarm (Security Alarm)
......................21
Alterations/Modifications, Vehicle ...............9
Antenna, Satellite Radio .....................357
Antifreeze (Engine Coolant) ..................588
Disposal ............................. .590
Anti-Lock Brake System (ABS) ................459
Anti-Lock Warning Light ....................307
Appearance Care ........................ .600
Arming Theft System (Security Alarm) ...........22
Assistance Towing ........................ .130
Auto Down Power Windows ..................44
Automatic Dimming Mirror ..................113
Automatic Door Locks ......................41
Automatic Headlights ..................... .170
Automatic Oil Change Indicator ...............329
Automatic Temperature Control (ATC) ..........399
Automatic Transaxle Interlock System .........................17
644 INDEX

Electronic Speed Control (Cruise Control)........180
Electronic Stability Control (ESC) ..............467
Electronic Throttle Control Warning Light ........318
Electronic Vehicle Information Center (EVIC) ......319
Emergency Brake ........................ .456
Emergency, In Case of Jacking .............................. .547
Jump Starting ......................... .555
Tow Hooks ........................... .561
Emission Control System Maintenance ..........571
Engine Air Cleaner .......................... .577
Block Heater ......................... .418
Break-In Recommendations .................99
Compartment ......................... .569
Compartment Identification ................569
Cooling ............................. .586
Exhaust Gas Caution .....................100
Fails to Start .......................... .416Flooded, Starting
...................... .416
Fuel Requirements ..................... .513
Jump Starting ......................... .555
Oil................................. .574
Oil Change Interval ..................... .329
Oil Selection .......................... .575
Oil Synthetic ......................... .576
Overheating .......................... .546
Starting ............................. .414
Temperature Gauge ..................... .309
Engine Oil Viscosity ...................... .576
Engine Oil Viscosity Chart ...................576
Enhanced Accident Response Feature ............70
Entry System, Illuminated ....................23
Ethanol ............................... .514
Event Data Recorder ........................74
Exhaust Gas Caution ...................... .100
Exhaust System .......................... .100
648 INDEX
