JEEP WRANGLER 2015 JK / 3.G Owners Manual

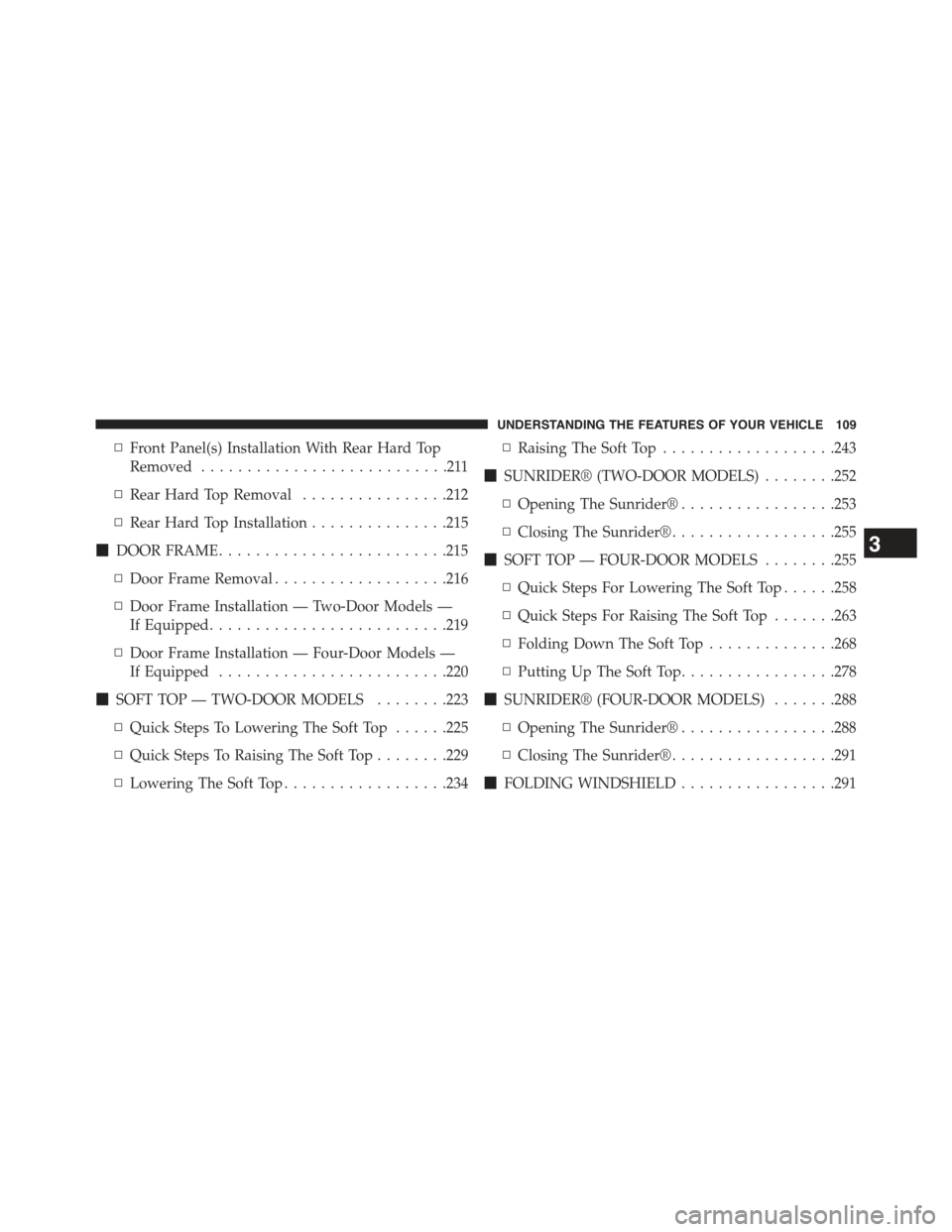

▫Front Panel(s) Installation With Rear Hard Top
Removed...........................211
▫Rear Hard Top Removal................212
▫Rear Hard Top Installation...............215
!DOOR FRAME.........................215
▫Door Frame Removal...................216
▫Door Frame Installation — Two-Door Models —
If Equipped..........................219
▫Door Frame Installation — Four-Door Models —
If Equipped.........................220
!SOFT TOP — TWO-DOOR MODELS........223
▫Quick Steps To Lowering The Soft Top......225
▫Quick Steps To Raising The Soft Top........229
▫Lowering The Soft Top..................234
▫Raising The Soft Top...................243
!SUNRIDER® (TWO-DOOR MODELS)........252
▫Opening The Sunrider®.................253
▫Closing The Sunrider®..................255
!SOFT TOP — FOUR-DOOR MODELS........255
▫Quick Steps For Lowering The Soft Top......258
▫Quick Steps For Raising The Soft Top.......263
▫Folding Down The Soft Top..............268
▫Putting Up The Soft Top.................278
!SUNRIDER® (FOUR-DOOR MODELS).......288
▫Opening The Sunrider®.................288
▫Closing The Sunrider®..................291
!FOLDING WINDSHIELD.................291
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

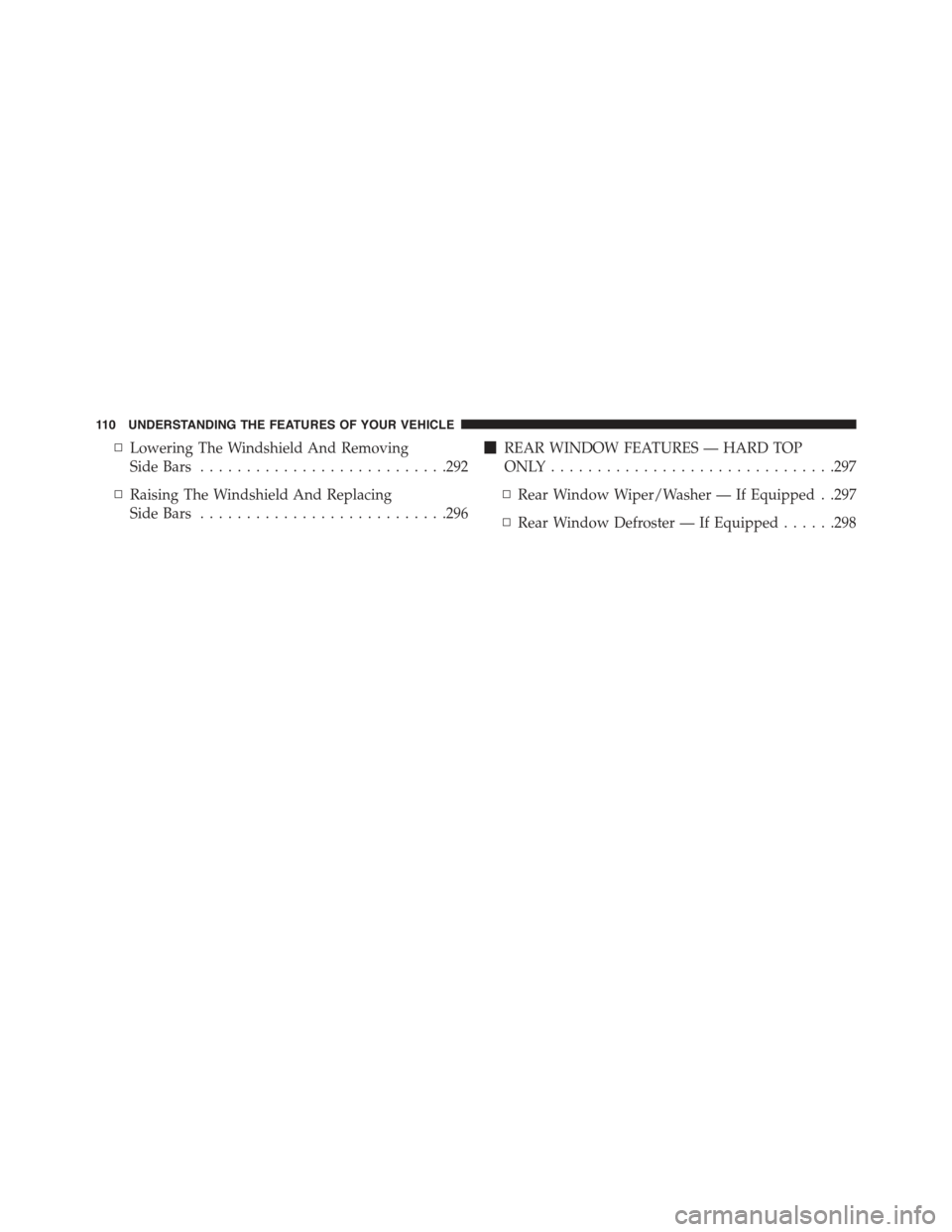

▫Lowering The Windshield And Removing
Side Bars...........................292
▫Raising The Windshield And Replacing
Side Bars...........................296
!REAR WINDOW FEATURES — HARD TOP
ONLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..297
▫Rear Window Wiper/Washer — If Equipped . .297
▫Rear Window Defroster — If Equipped......298
11 0 U N D E R S TA N D I N G T H E F E AT U R E S O F Y O U R V E H I C L E

MIRRORS
Inside Day/Night Mirror — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while the small control under the
mirror is set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
Outside Rearview Mirror
11 2 U N D E R S TA N D I N G T H E F E AT U R E S O F Y O U R V E H I C L E

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Power Mirrors — If Equipped
The power mirror switch is located on the center of the
instrument panel, below the climate controls. A rotary
knob selects the left mirror, right mirror or off position.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Rear
Window Features” in “Understanding The Features Of
Your Vehicle” for further information.
Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.Power Mirror Switch
11 4 U N D E R S TA N D I N G T H E F E AT U R E S O F Y O U R V E H I C L E

Uconnect® PHONE — IF EQUIPPED
Uconnect® Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect® Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”$
“Mike”$“Work” or “Dial”$“248-555-1212”). Your
mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect® Phone.
NOTE:The Uconnect® Phone requires a mobile phone
equipped with the Bluetooth® “Hands-Free Profile,”
Version 0.96 or higher. See the Uconnect® website for
supported phones. For Uconnect® customer support:
•U.S. residents - visitUconnectPhone.com or call
1-877-855-8400.
•Canadian Residents - visitUconnectPhone.com or
call 1-800-465-2001 (English) or 1-800-387-9983
(French).
Uconnect® Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

The Uconnect® Phone is driven through your
Bluetooth® “Hands-Free Profile” mobile phone.
Uconnect® features Bluetooth® technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect® Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect® Phone. The Uconnect® Phone
allows up to seven mobile phones to be linked to the
system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following all applicable
(Continued)
WARNING!(Continued)
laws, including laws regarding phone use. Your at-
tention should be focused on safely operating the
vehicle. Failure to do so may result in a collision
causing serious injury or death.
Uconnect® Phone Button
The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect® Phonebutton and Voice Com-
mandbutton) that will enable you to
access the system. When you push the button you will
hear the word Uconnect® followed by a BEEP. The
beep is your signal to give a command.
NOTE:The driver side upper windshield trim contains
the microphone for the Uconnect® Phone.
11 6 U N D E R S TA N D I N G T H E F E AT U R E S O F Y O U R V E H I C L E

Voice Command Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The Uconnect® Phone can be used with any Hands-Free
Profile certified Bluetooth® mobile phone. See the
Uconnect® website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.
The Uconnect® Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect® Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect® Phone such as “CELL” or caller ID on
certain radios.
Operation
Voice commands can be used to operate the Uconnect®
Phone and to navigate through the Uconnect® Phone
menu structure. Voice commands are required after most
Uconnect® Phone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for the
beep, which follows the “Ready” prompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying “Setup” and then
“Phone Pairing,” the following compound command
can be said: “Setup Phone Pairing.”
•For each feature explanation in this section, only the
compound form of the voice command is given. You
can also break the commands into parts and say each
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

part of the command when you are asked for it. For
example, you can use the compound form voice com-
mand “Phonebook New Entry,” or you can break the
compound form command into two voice commands:
“Phonebook” and “New Entry.” Please remember, the
Uconnect® Phone works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say “Help” following
the beep. The Uconnect® Phone will play all the options
at any prompt if you ask for help.
To activate the Uconnect® Phone from idle, simply push
thebutton and follow the audible prompts for
directions. All Uconnect® Phone sessions begin with a
push of thebutton on the faceplate.
Cancel Command
At any prompt, after the beep, you can say “Cancel” and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) Uconnect® Phone to a Mobile Phone
To begin using your Uconnect® Phone, you must pair
your compatible Bluetooth® enabled mobile phone.
To complete the pairing process, you will need to refer-
ence your mobile phone Owner’s Manual. The
Uconnect® website may also provide detailed instruc-
tions for pairing.
