immobilizer JEEP WRANGLER 2015 JK / 3.G Owners Manual

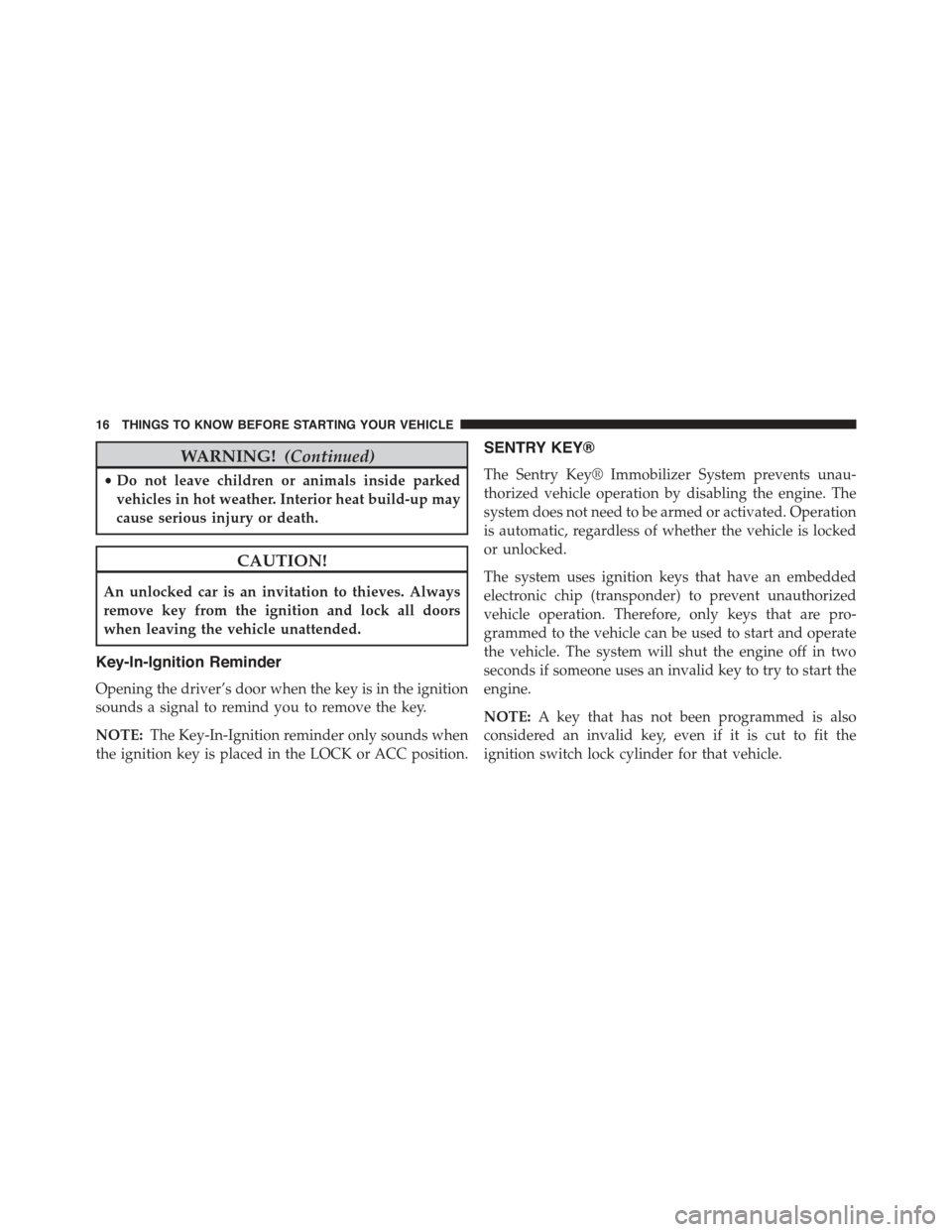

WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE:The Key-In-Ignition reminder only sounds when
the ignition key is placed in the LOCK or ACC position.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

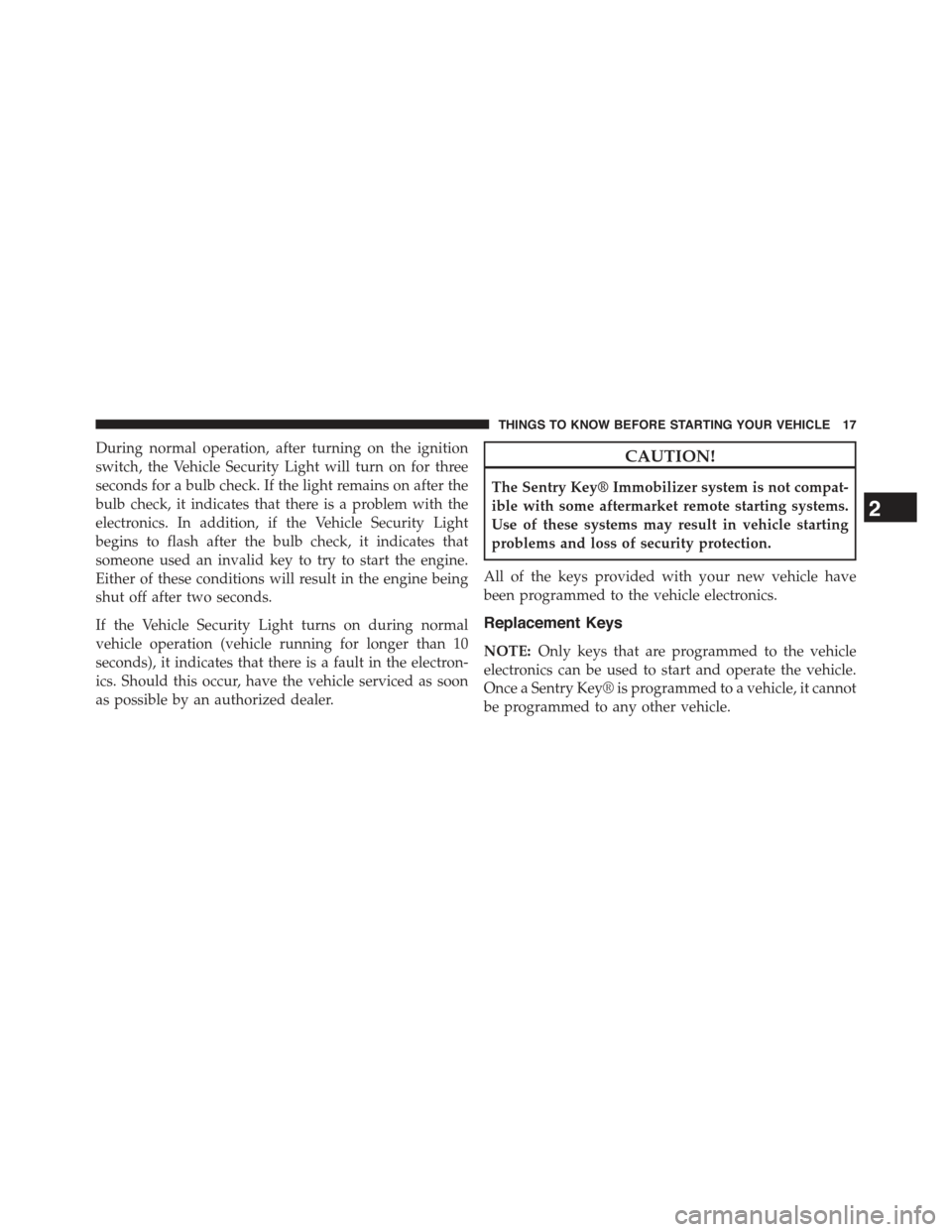

During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key® is programmed to a vehicle, it cannot
be programmed to any other vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

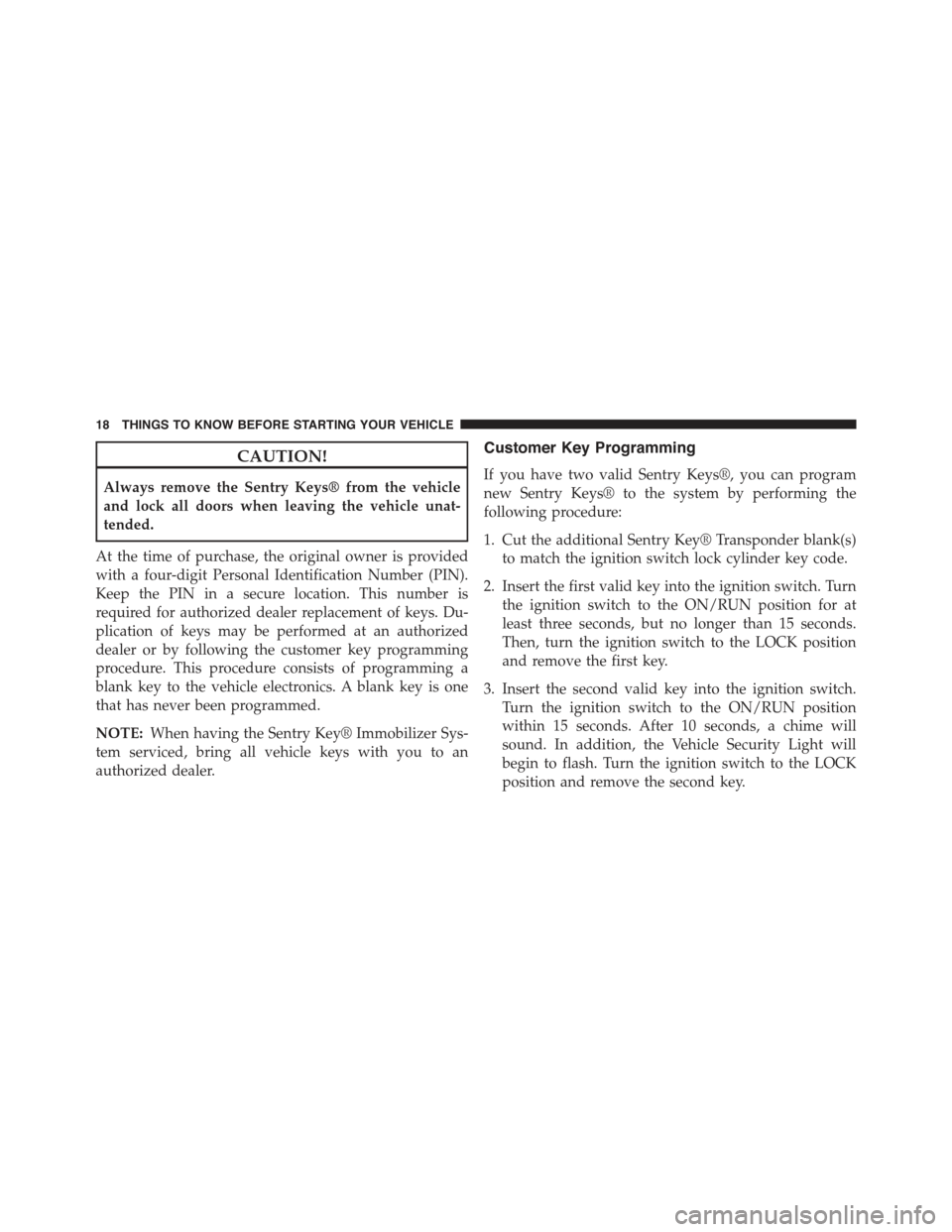

CAUTION!
Always remove the Sentry Keys® from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE:When having the Sentry Key® Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
If you have two valid Sentry Keys®, you can program
new Sentry Keys® to the system by performing the
following procedure:
1. Cut the additional Sentry Key® Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at
least three seconds, but no longer than 15 seconds.
Then, turn the ignition switch to the LOCK position
and remove the first key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position
within 15 seconds. After 10 seconds, a chime will
sound. In addition, the Vehicle Security Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

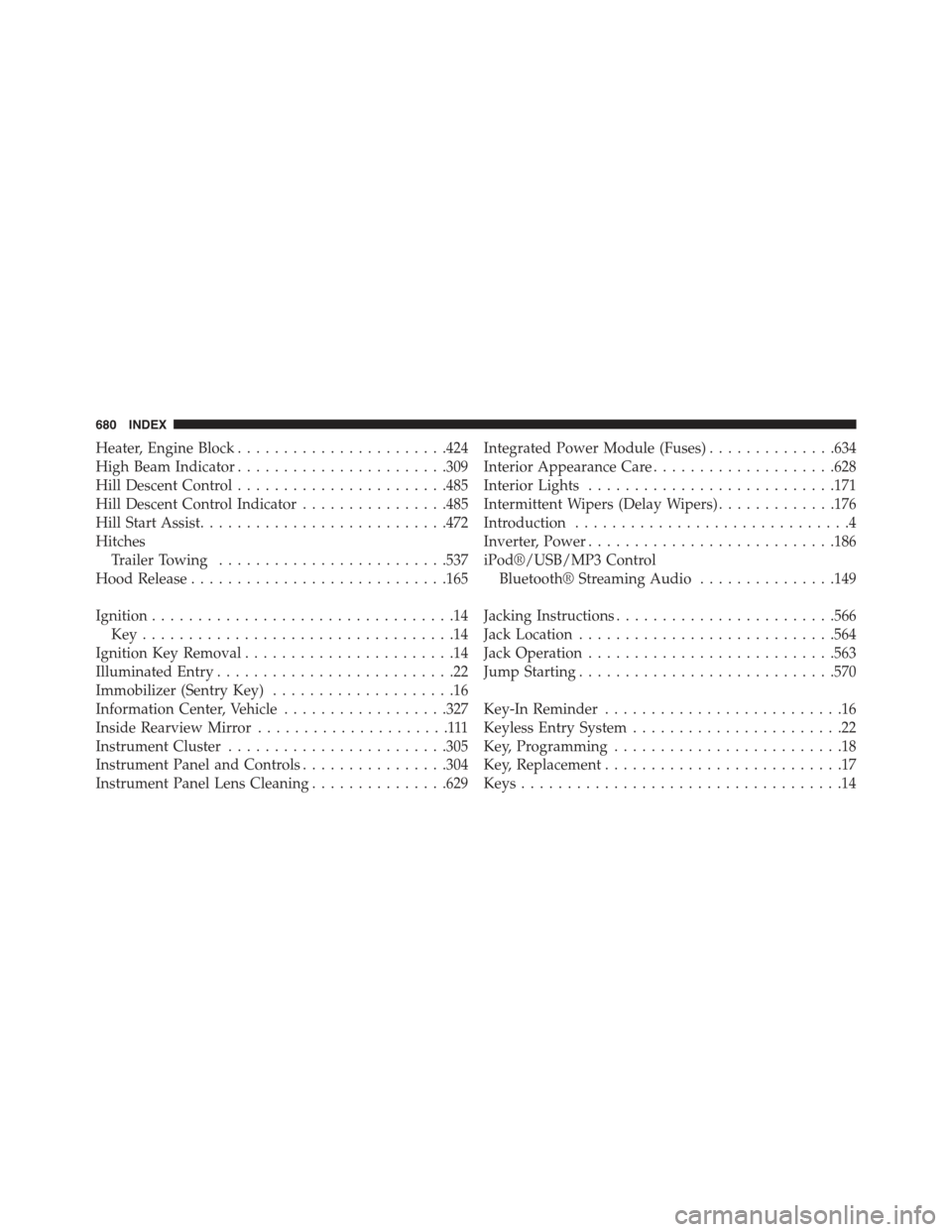

Heater, Engine Block.......................424
High Beam Indicator.......................309
Hill Descent Control.......................485
Hill Descent Control Indicator................485
Hill Start Assist...........................472
Hitches
Trailer Towing.........................537
Hood Release............................165
Ignition.................................14
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Ignition Key Removal.......................14
Illuminated Entry..........................22
Immobilizer (Sentry Key)....................16
Information Center, Vehicle..................327
Inside Rearview Mirror.....................111
Instrument Cluster........................305
Instrument Panel and Controls................304
Instrument Panel Lens Cleaning...............629
Integrated Power Module (Fuses)..............634
Interior Appearance Care....................628
Interior Lights...........................171
Intermittent Wipers (Delay Wipers).............176
Introduction..............................4
Inverter, Power...........................186
iPod®/USB/MP3 Control
Bluetooth® Streaming Audio...............149
Jacking Instructions........................566
Jack Location............................564
Jack Operation...........................563
Jump Starting............................570
Key-In Reminder..........................16
Keyless Entry System.......................22
Key, Programming.........................18
Key, Replacement..........................17
Keys...................................14
680 INDEX

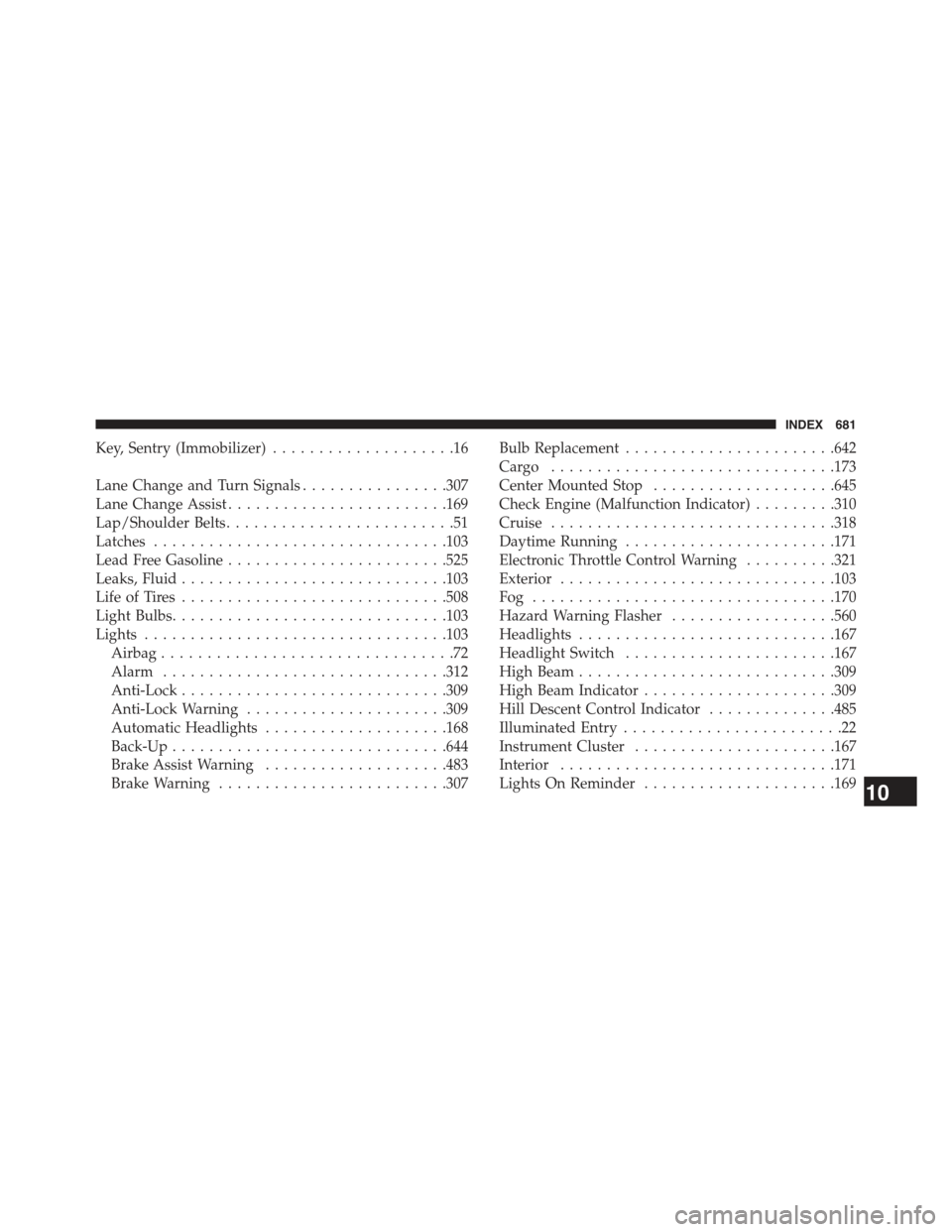

Key, Sentry (Immobilizer)....................16
Lane Change and Turn Signals................307
Lane Change Assist........................169
Lap/Shoulder Belts.........................51
Latches................................103
Lead Free Gasoline........................525
Leaks, Fluid.............................103
Life of Tires.............................508
Light Bulbs..............................103
Lights.................................103
Airbag................................72
Alarm...............................312
Anti-Lock.............................309
Anti-Lock Warning......................309
Automatic Headlights....................168
Back-Up..............................644
Brake Assist Warning....................483
Brake Warning.........................307
Bulb Replacement.......................642
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..173
Center Mounted Stop....................645
Check Engine (Malfunction Indicator).........310
Cruise...............................318
Daytime Running.......................171
Electronic Throttle Control Warning..........321
Exterior..............................103
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..170
Hazard Warning Flasher..................560
Headlights............................167
Headlight Switch.......................167
High Beam............................309
High Beam Indicator.....................309
Hill Descent Control Indicator..............485
Illuminated Entry........................22
Instrument Cluster......................167
Interior..............................171
LightsOn Reminder.....................16910
INDEX 681

Security Alarm............................20
Security System...........................20
Selection of Coolant (Antifreeze)...............647
SENTRY KEY®
FCC General Information..................19
Sentry Key (Immobilizer)....................16
Sentry Key Programming....................18
Sentry Key Replacement.....................17
Service Assistance.........................663
Service Contract..........................665
Service Manuals..........................668
Settings, Personal.........................338
Setting the Clock..........................344
Shifting................................429
Automatic Transmission..................429
Manual Transmission....................424
Transfer Case, Shifting into Transfer Case
Neutral (N)...........................555
Transfer Case, Shifting out of Transfer Case
Neutral (N)...........................556
Shift Lever Override.......................576
Shoulder Belts............................51
Side Window Demisters (Defrosters)............413
Signals, Turn............................103
Snow Chains (Tire Chains)...................510
Snow Tires..............................503
Soft Top................................223
Spare Tire...............................505
Spark Plugs.............................647
Specifications
Fuel (Gasoline).........................647
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..647
Speed Control (Cruise Control)................179
Speedometer.............................306
Starting.................................29
Automatic Transmission..................421
Cold Weather..........................42110
INDEX 687
