tow JEEP WRANGLER 2015 JK / 3.G User Guide

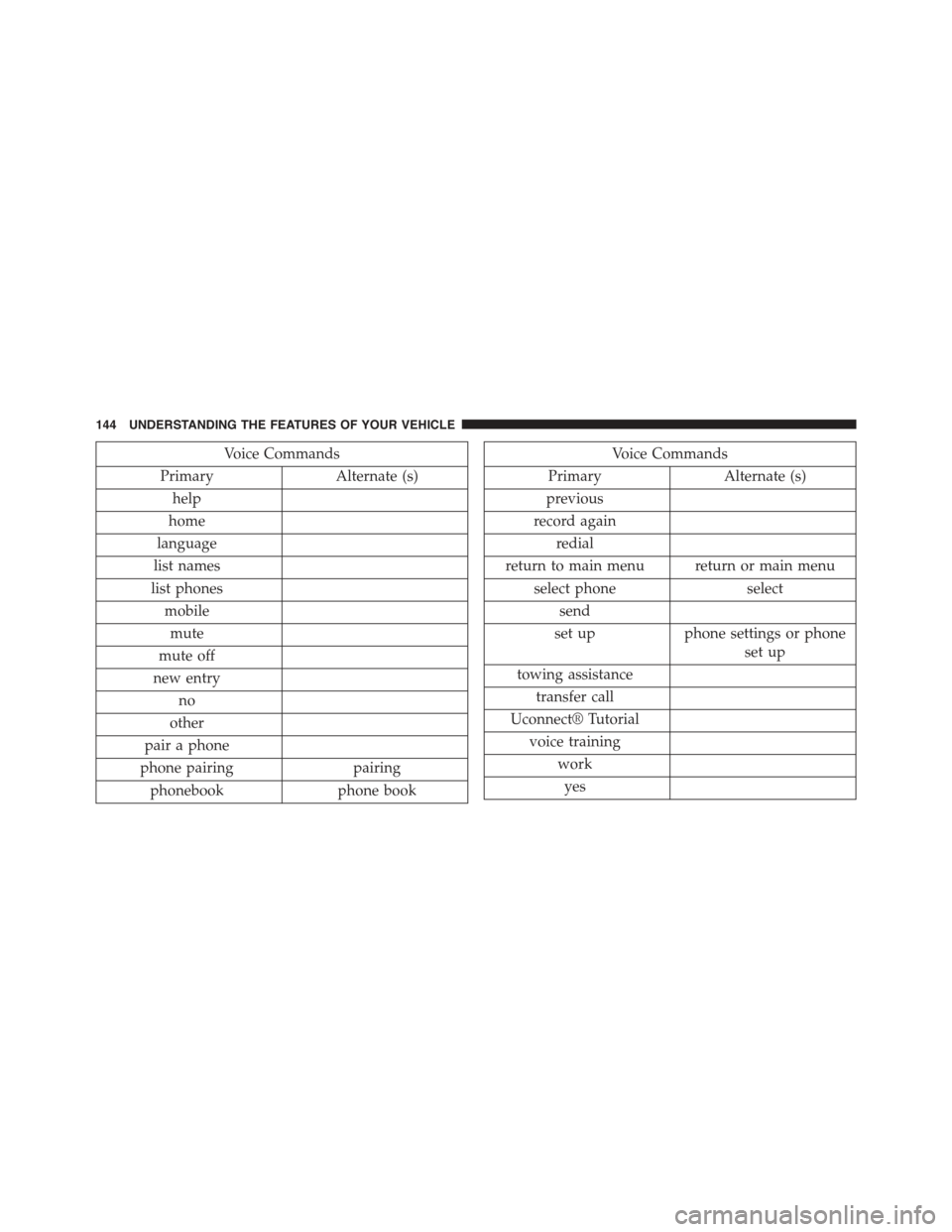

Voice Commands
PrimaryAlternate (s)
help
home
language
list names
list phones
mobile
mute
mute off
new entry
no
other
pair a phone
phone pairingpairing
phonebookphone book
Voice Commands
PrimaryAlternate (s)
previous
record again
redial
return to main menu return or main menu
select phoneselect
send
set upphone settings or phone
set up
towing assistance
transfer call
Uconnect® Tutorial
voice training
work
yes
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

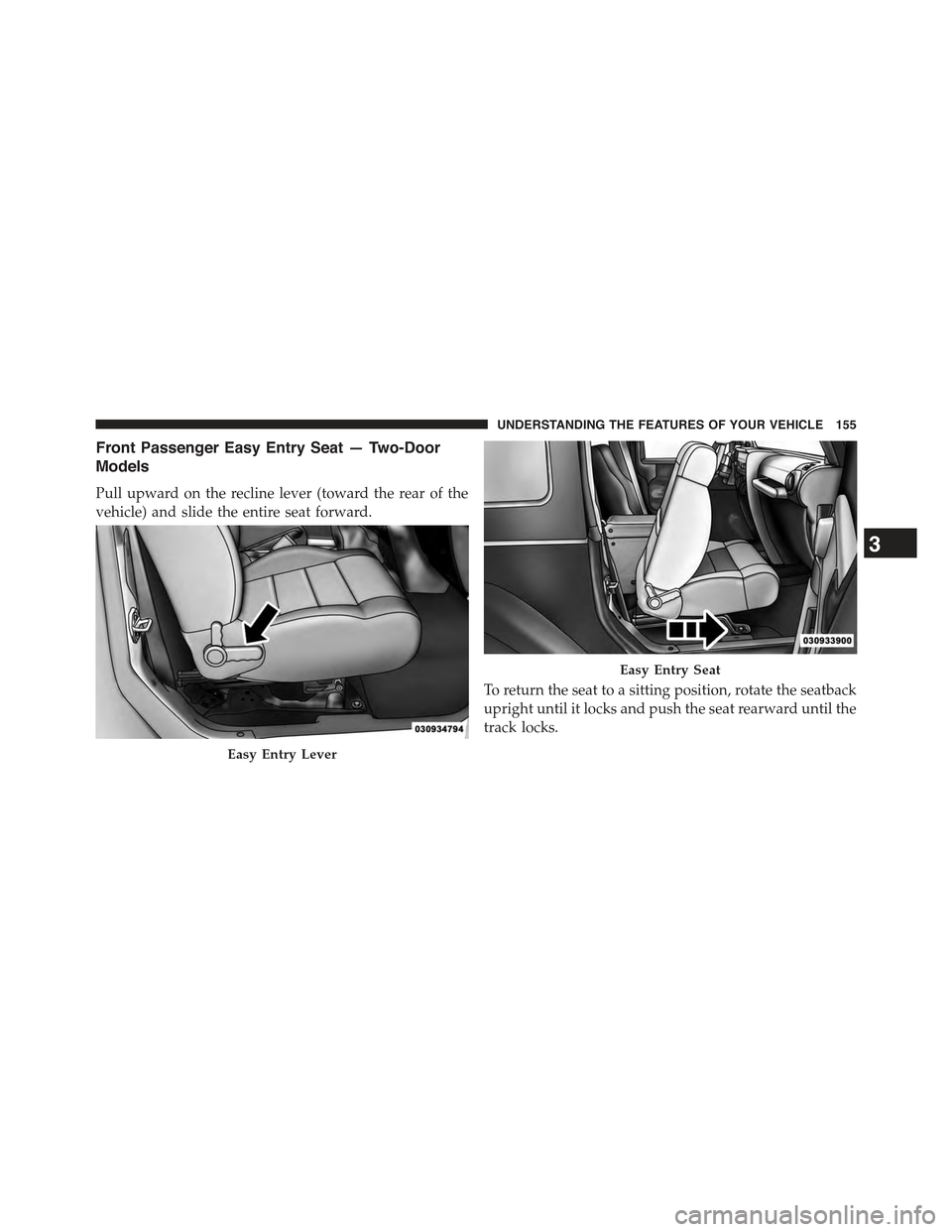

Front Passenger Easy Entry Seat — Two-Door
Models
Pull upward on the recline lever (toward the rear of the
vehicle) and slide the entire seat forward.
To return the seat to a sitting position, rotate the seatback
upright until it locks and push the seat rearward until the
track locks.
Easy Entry Lever
Easy Entry Seat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

NOTE:
•The front passenger seats have a track memory, which
returns the seat to just past the halfway point of the
track regardless of its original position.
•The recliner and easy entry levers should not be used
during the automatic returning of the seat to its sitting
position.

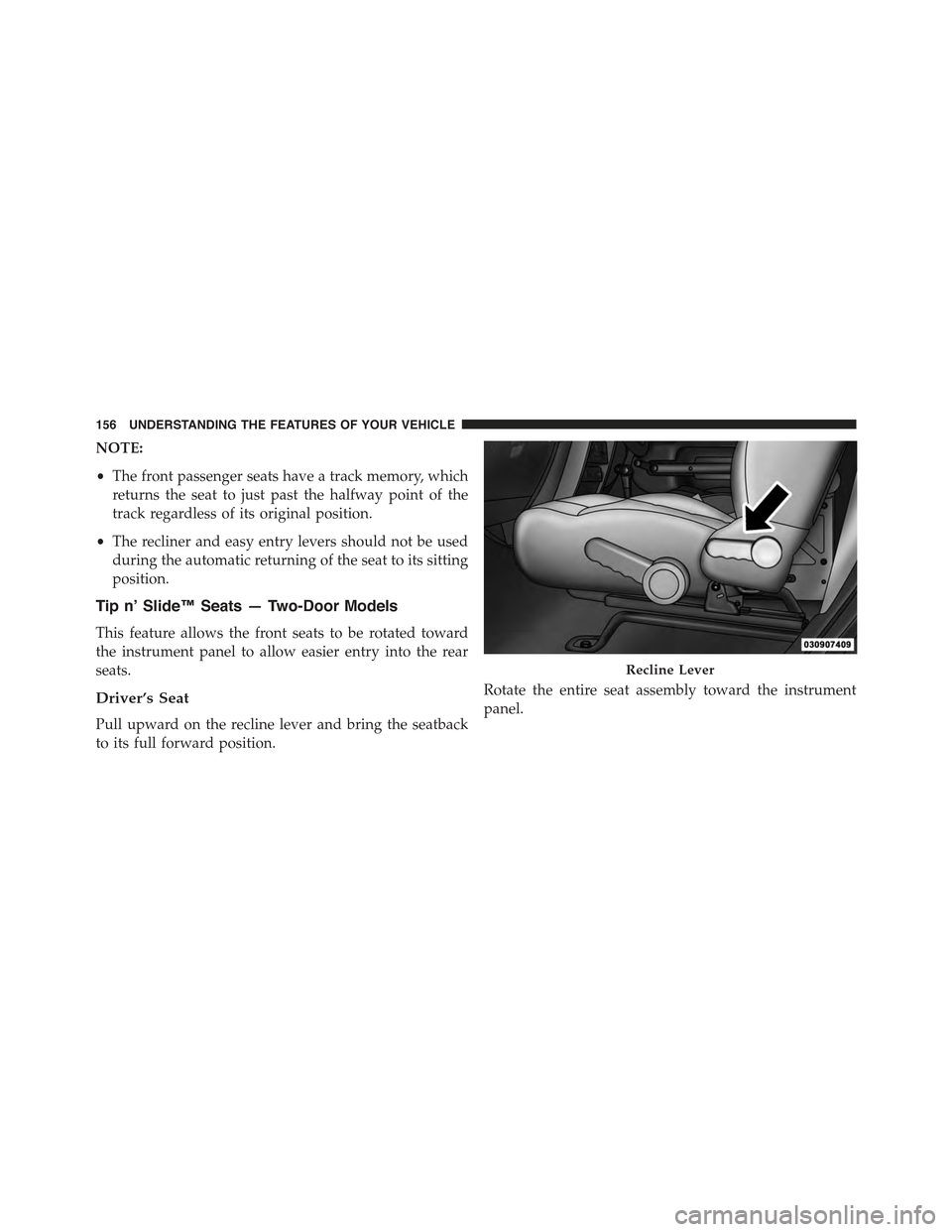

Tip n’ Slide™ Seats — Two-Door Models
This feature allows the front seats to be rotated toward
the instrument panel to allow easier entry into the rear
seats.
Driver’s Seat
Pull upward on the recline lever and bring the seatback
to its full forward position.
Rotate the entire seat assembly toward the instrument
panel.
Recline Lever
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

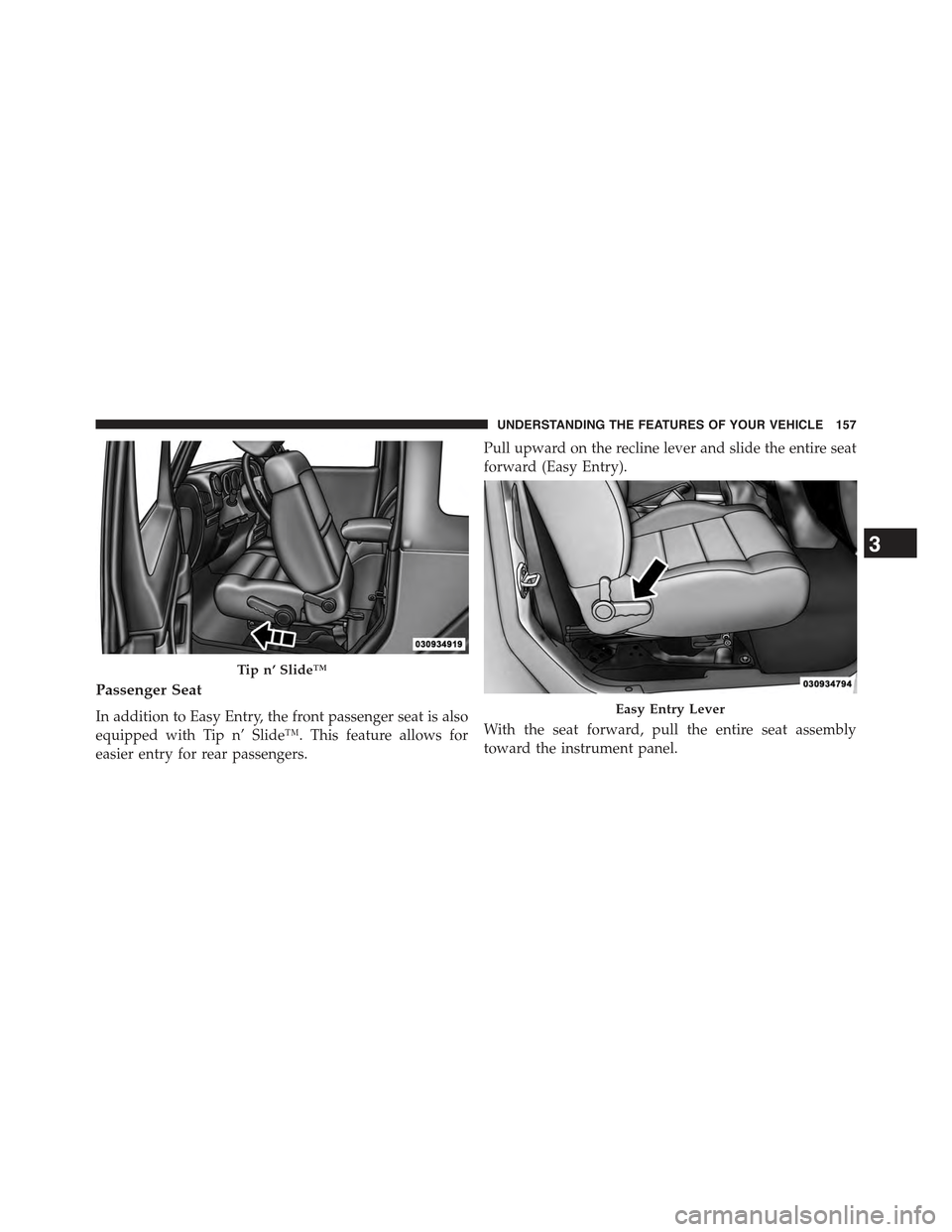

Passenger Seat
In addition to Easy Entry, the front passenger seat is also
equipped with Tip n’ Slide™. This feature allows for
easier entry for rear passengers.
Pull upward on the recline lever and slide the entire seat
forward (Easy Entry).
With the seat forward, pull the entire seat assembly
toward the instrument panel.
Tip n’ Slide™
Easy Entry Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you, to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beams headlights until the lever is
released.
Front Fog Lights
The front fog light switch is located on the multi-
function lever. To activate the front fog lights, turn
on the parking or low beam headlights and pull out the
end of the lever.
NOTE:The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

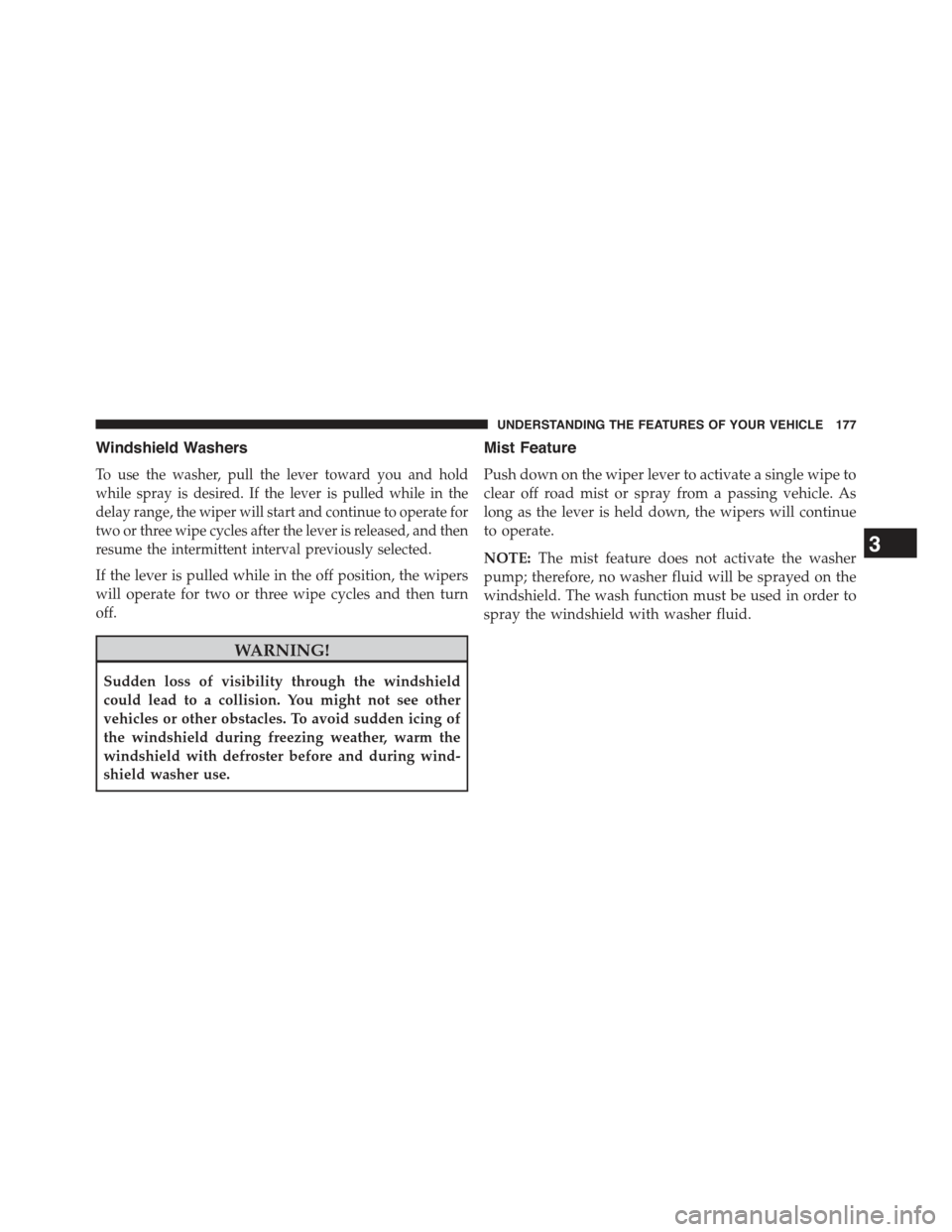

Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will start and continue to operate for
two or three wipe cycles after the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for two or three wipe cycles and then turn
off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
Mist Feature
Push down on the wiper lever to activate a single wipe to
clear off road mist or spray from a passing vehicle. As
long as the lever is held down, the wipers will continue
to operate.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

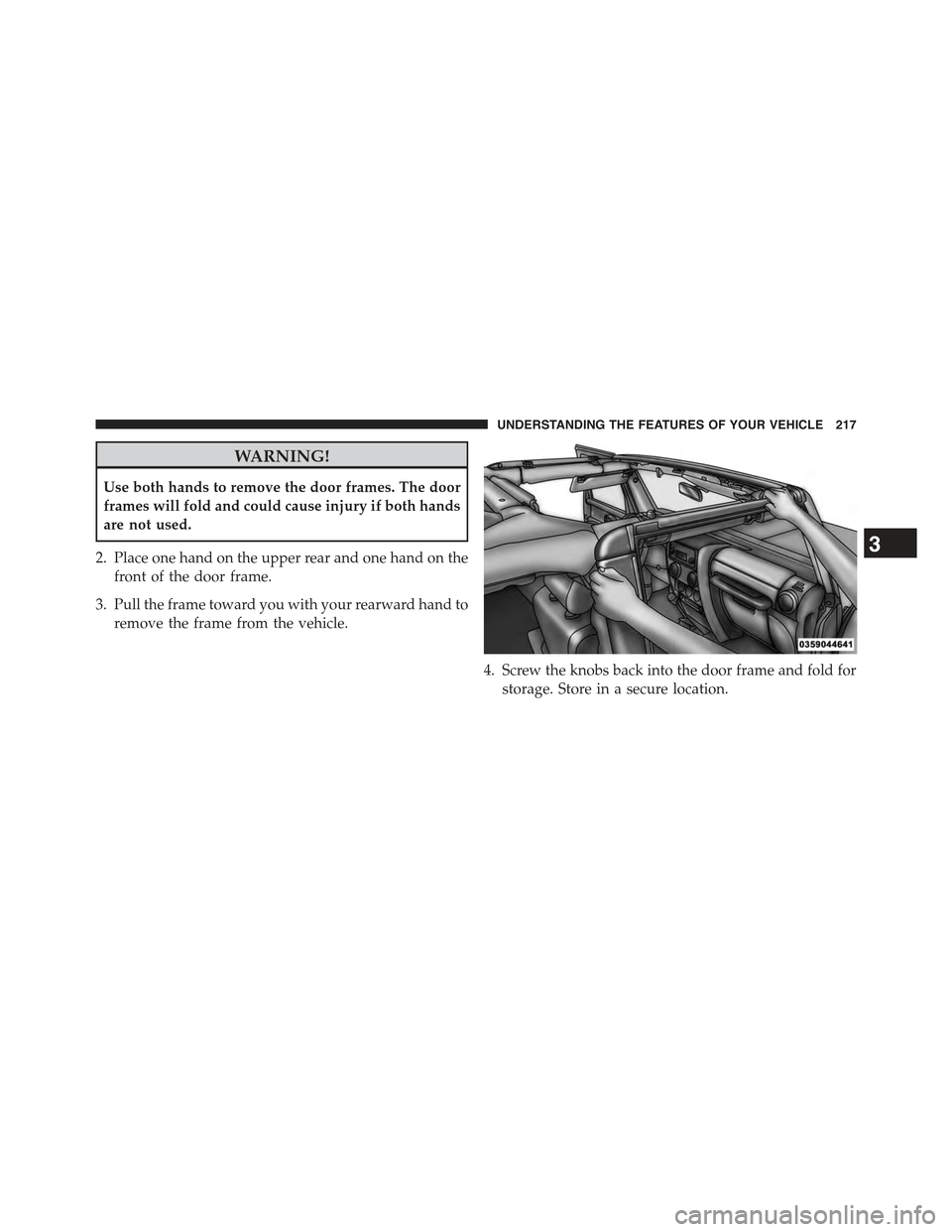

WARNING!
Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.
2. Place one hand on the upper rear and one hand on the
front of the door frame.
3. Pull the frame toward you with your rearward hand to
remove the frame from the vehicle.
4. Screw the knobs back into the door frame and fold for
storage. Store in a secure location.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

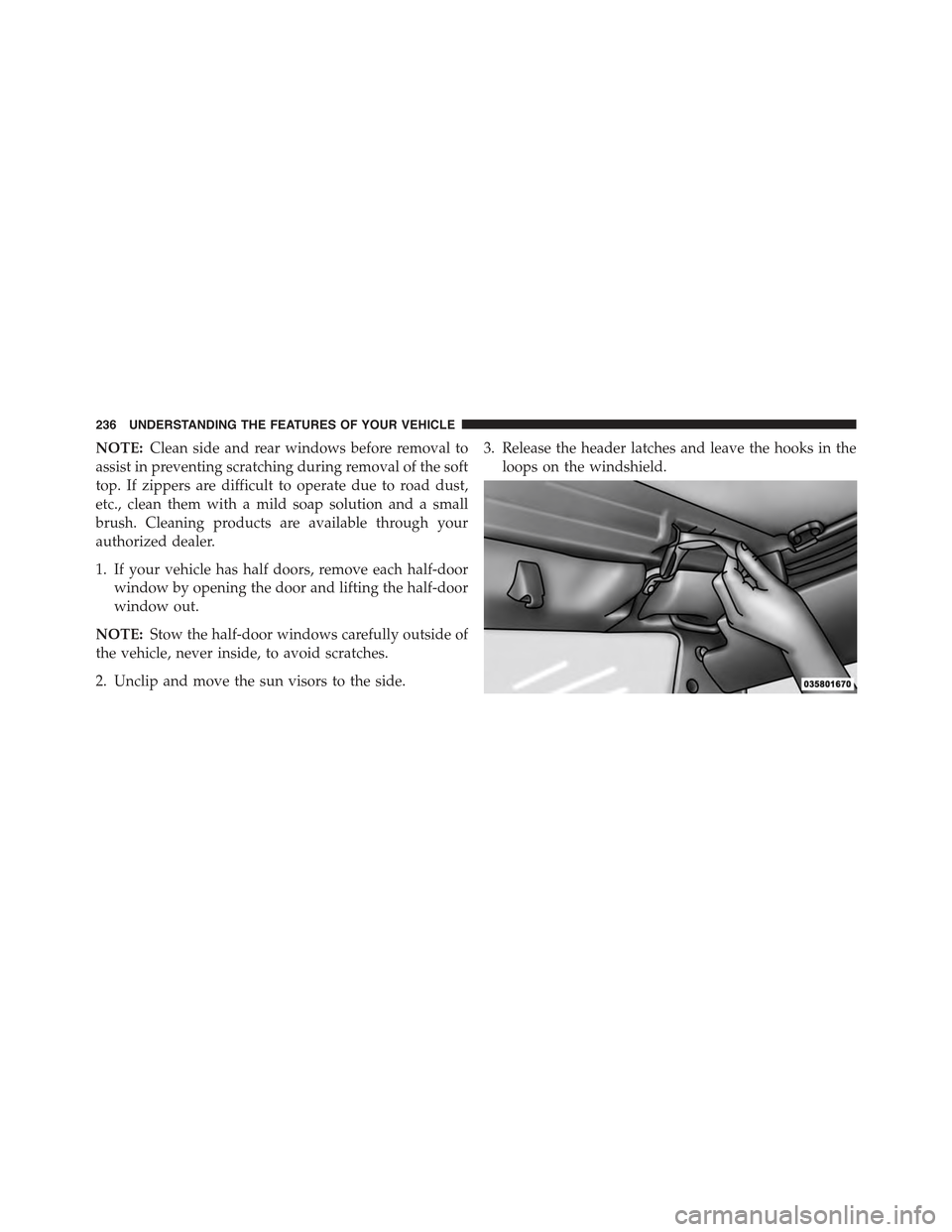

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE:Stow the half-door windows carefully outside of
the vehicle, never inside, to avoid scratches.
2. Unclip and move the sun visors to the side.
3. Release the header latches and leave the hooks in the
loops on the windshield.
236 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

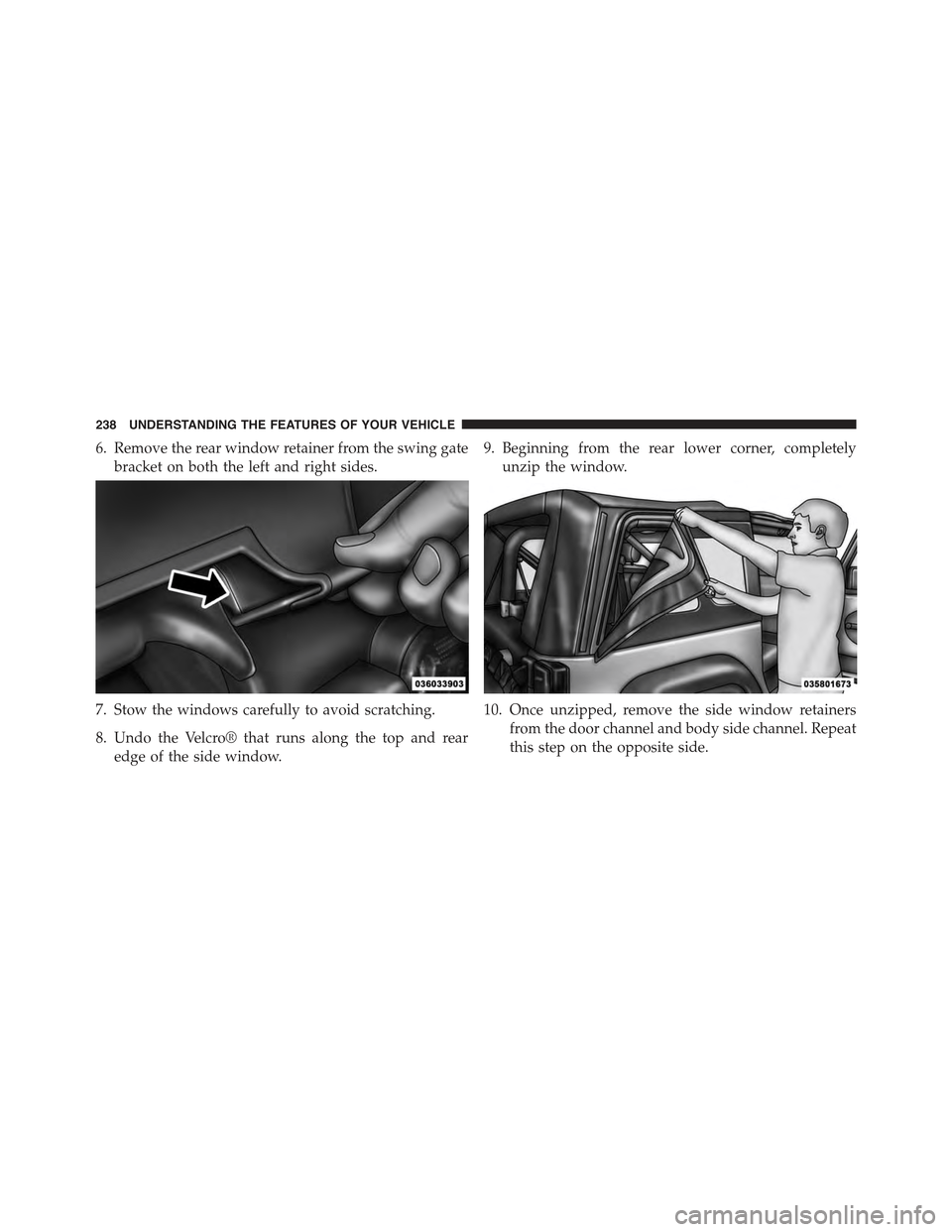

6. Remove the rear window retainer from the swing gate
bracket on both the left and right sides.
7. Stow the windows carefully to avoid scratching.
8. Undo the Velcro® that runs along the top and rear
edge of the side window.
9. Beginning from the rear lower corner, completely
unzip the window.
10. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat
this step on the opposite side.
238 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

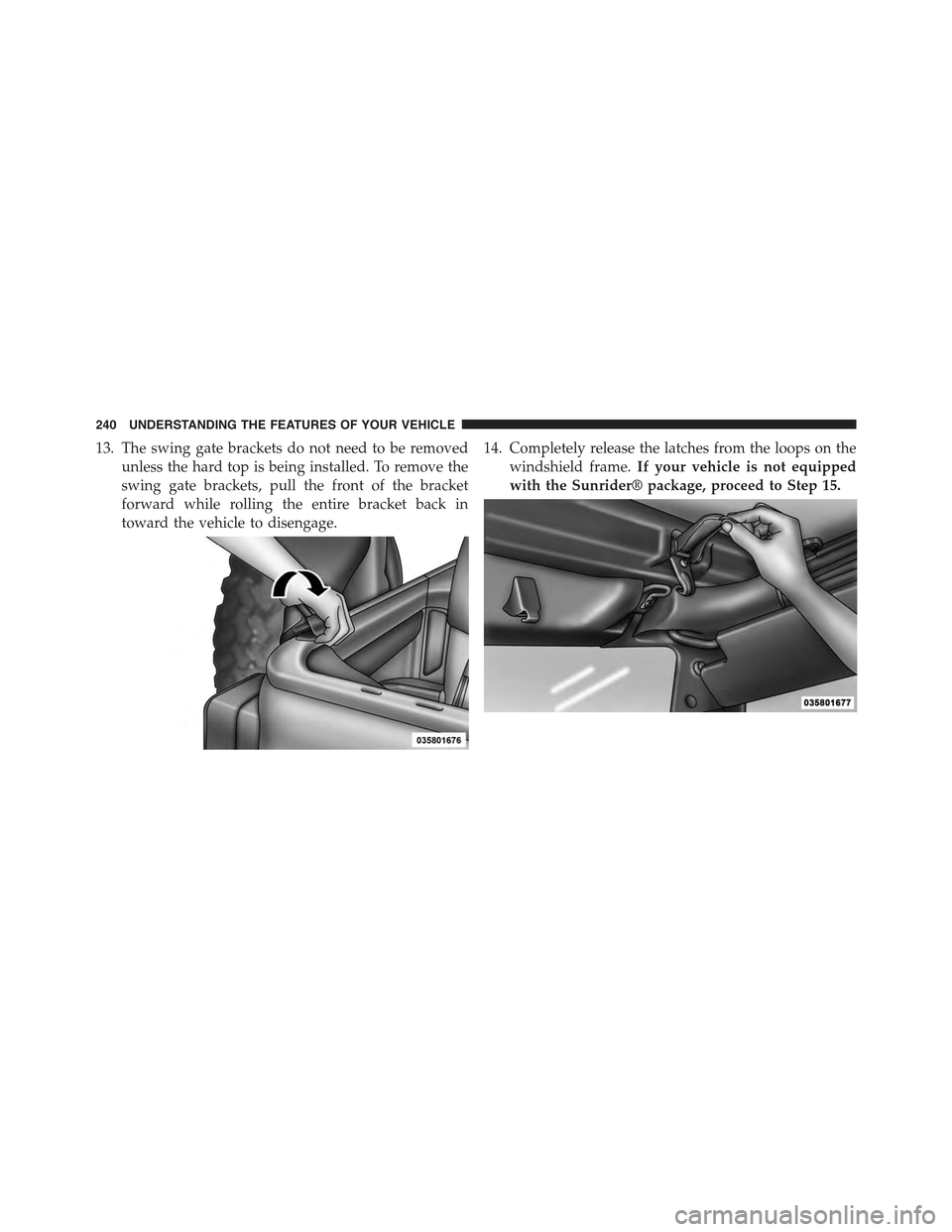

13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket
forward while rolling the entire bracket back in
toward the vehicle to disengage.
14. Completely release the latches from the loops on the
windshield frame.If your vehicle is not equipped
with the Sunrider® package, proceed to Step 15.
