JEEP WRANGLER 2015 JK / 3.G Owners Manual

Refrigerant Recovery And Recycling R134a — If
Equipped
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealer or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.
Refrigerant Recovery And Recycling HFO 1234yf
— If Equipped
HFO 1234yf Air Conditioning Refrigerant is a hydro-
fluorocarbon (HFC) that is endorsed by the Environmen-
tal Protection Agency and is an ozone-saving product
with a low GWP (Global Warming Potential). However,
the manufacturer recommends that air conditioning ser-
vice be performed by authorized dealer or other service
facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.
Air Conditioning Filter Replacement (A/C Air Filter)
WARNING!
Do not remove the A/C air filter while the blower is
operating or personal injury may result.
The A/C air filter is located in the fresh air inlet behind
the glove box. Perform the following procedure to re-
place the filter:
1. Open the glove compartment and remove all contents.
2. Push in on the sides of the glove compartment and
lower the door.
7
MAINTAINING YOUR VEHICLE 599

3. Pivot the glove compartment downward.
4. Disengage the two retaining tabs that secure the two
air filter access doors to the HVAC housing.
1 — Left Retaining Tab2—RightRetainingTab
5. Open the two air filter access doors.
6. Remove the two particulate air filters from the HVAC
air inlet housing. Pull the filter elements straight out of
the housing, one at a time.
Glove Compartment
1—GloveCompartmentTravelStops
2—GloveCompartment
Air Filter Retaining Tabs
600 MAINTAINING YOUR VEHICLE

7. Install the A/C air filter with the air filter position
indicators pointing in the same direction as removal.
CAUTION!
The A/C air filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to properly install the filter will result in the need to
replace it more often.
8. Close A/C Air Filter access doors and secure retaining
tabs.
9. Rotate the glove compartment door back into position.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should
be lubricated periodically with a lithium based grease,
such as MOPAR® Spray White Lube to assure quiet, easy
Air Filter Access Door Open
1—AirConditioningFilterAccessDoor2 — Air Conditioning Air Filter
7
MAINTAINING YOUR VEHICLE 601

operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance problems
are experienced. This inspection should include the fol-
lowing points:
•Wear Or Uneven Edges
602 MAINTAINING YOUR VEHICLE

•Foreign Material
•Hardening Or Cracking
•Deformation Or Fatigue
If a wiper blade or wiper arm is damaged, replace the
affected wiper arm or blade with a new unit. Do not
attempt to repair a wiper arm or blade that is damaged.
Wiper Blade Removal/Installation
CAUTION!
Do not allow the wiper arm to spring back against
the glass without the wiper blade in place or the glass
may be damaged.
1. Lift the wiper arm to raise the wiper blade off of the
glass, until the wiper arm is in the full up position.
Wiper Blade With Release Tab In Locked Position
1—WiperBlade2—WiperArm3 — Release Tab
7
MAINTAINING YOUR VEHICLE 603

2. To disengage the wiper blade from the wiper arm,
press the release tab on the wiper blade and while
holding the wiper arm with one hand, slide the wiper
blade down towards the base of the wiper arm.
3. With the wiper blade disengaged, remove the wiper
blade from the wiper arm.
Wiper Blade With Release Tab In Unlocked Position
1—WiperBlade2—WiperArm3 — Release Tab
604 MAINTAINING YOUR VEHICLE

4. Gently lower the wiper arm onto the glass.
Installing The Front Wipers
1. Lift the wiper arm off of the glass, until the wiper arm
is in the full up position.
2. Position the wiper blade near the hook on the tip of the
wiper arm.
3. Insert the hook on the tip of the arm through the
opening in the wiper blade.
4. Slide the wiper blade up into the hook on the wiper
arm, latch engagement will be accompanied by an
audible click.
5. Gently lower the wiper blade onto the glass.
Rear Wiper Blade Removal/Installation
1. Remove the rear wiper arm pivot cap To access the
wiper arm nut.

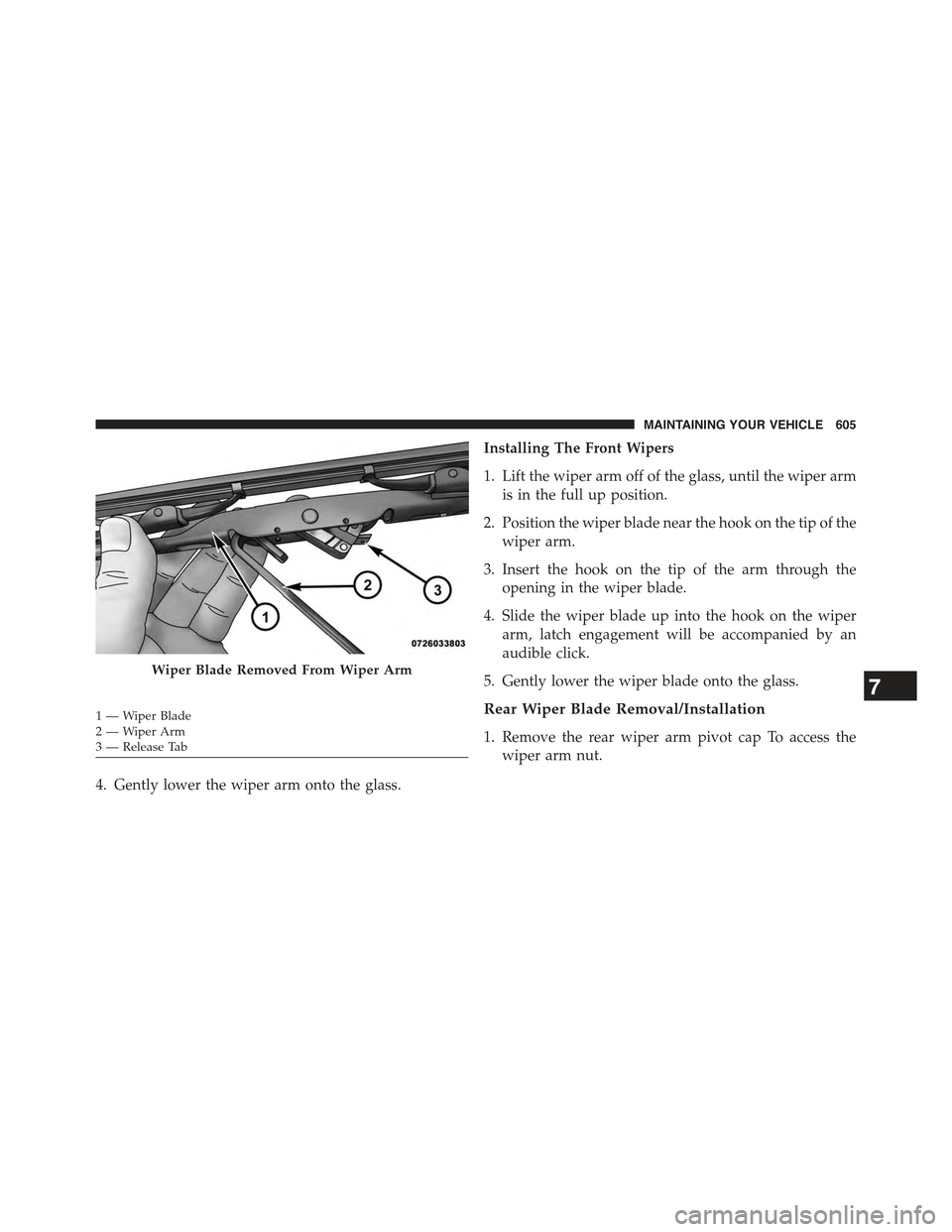

Wiper Blade Removed From Wiper Arm
1—WiperBlade2—WiperArm3 — Release Tab
7
MAINTAINING YOUR VEHICLE 605

2. Remove the wiper arm nut and gently rock the wiper
arm while pulling towards you to remove wiper arm
from the stud.
Rear Wiper Assembly
1—WiperArmPivotCap
2—WiperArm3—WiperBlade
Wiper Arm With Pivot Cap Removed
1—WiperArmPivotCap2—WiperArmNut3—WiperArm
606 MAINTAINING YOUR VEHICLE

3. To remove the wiper blade from the wiper arm, grasp
the wiper blade nearest to wiper arm with your right
hand. With your left hand hold the wiper arm as you
pull the wiper blade away from the wiper arm past its
stop far enough to unsnap the wiper blade pivot pin
from the receptacle on the end of the wiper arm.
NOTE:Resistance will be accompanied by an audible
snap.
4. Still grasping the wiper blade, move the wiper blade
away from the wiper arm to disengage.
Wiper Blade Removed From Wiper Arm
1—WiperArm2—WiperBlade
7
MAINTAINING YOUR VEHICLE 607

Installing The Rear Wiper
1. Insert the wiper blade pivot pin into the opening on
the end of the wiper arm. Grab the bottom end of the
wiper arm with one hand, and press the wiper blade
flush with the wiper arm until it snaps into place.
2. Install wiper assembly back on the wiper stud at it’s
original position and gently tighten nut.
3. Lower the wiper blade onto the glass and snap the
wiper arm pivot cap back into place.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer (if equipped) is shared. The fluid
reservoir is located in the engine compartment. Be sure to
check the fluid level at regular intervals. Fill the reservoir
with windshield washer solvent only (not radiator anti-
freeze). When refilling the washer fluid reservoir, take
Wiper Blade Removed From Wiper Arm
1—WiperBlade2—WiperBladePivotPin3 — Wiper Arm Receptacle4—WiperArm
