Instrument cluster JEEP WRANGLER 2017 JK / 3.G Owners Manual

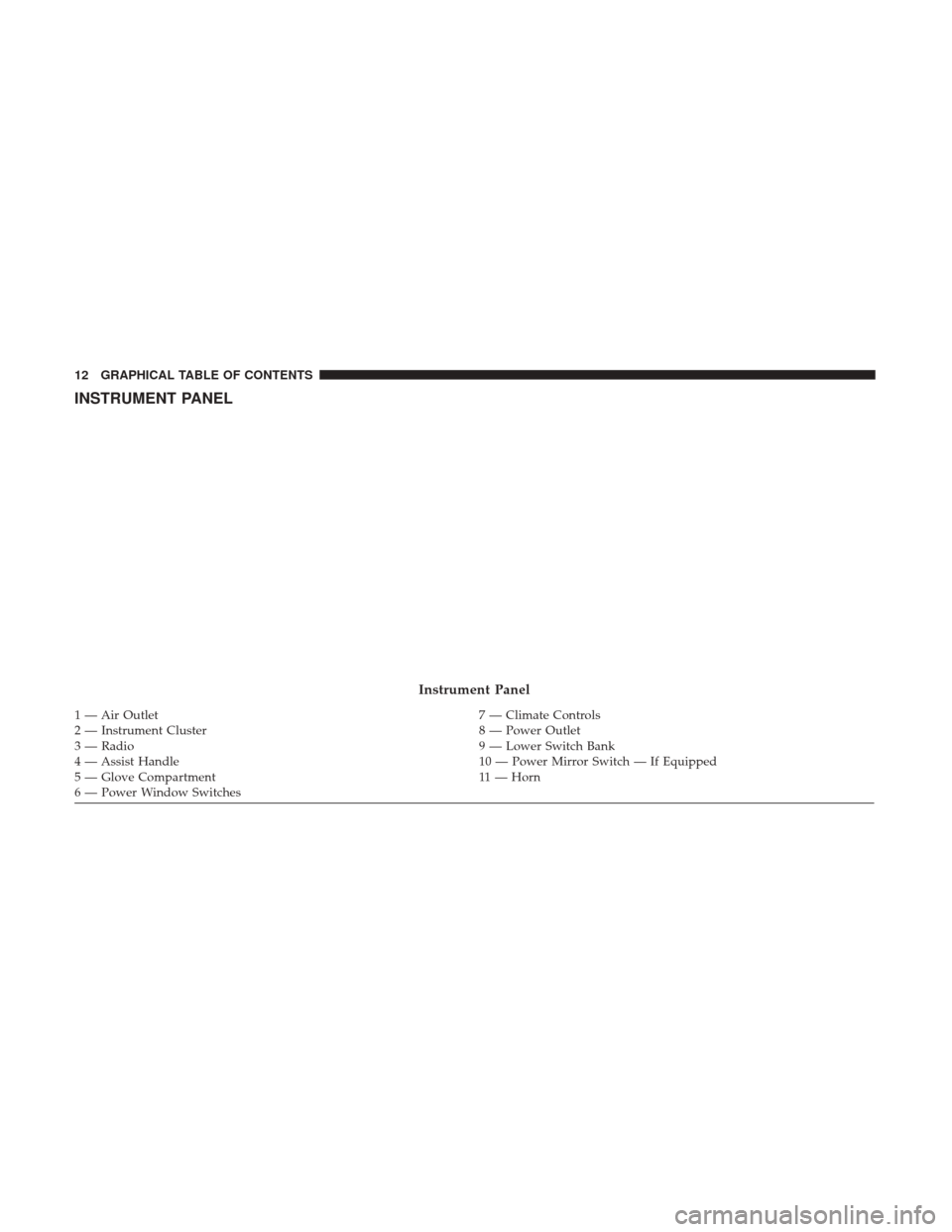

INSTRUMENT PANEL
Instrument Panel
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches 12 GRAPHICAL TABLE OF CONTENTS

WARNING!
•Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into FIRST gear or REVERSE, apply the parking brake,
turn the engine OFF, remove the key fob from the
vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children. A child could oper-
ate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the key fob to start the engine conve-
niently from outside the vehicle while still maintaining
security. The system has a range of approximately 300 ft (91
m).
NOTE:
• The vehicle must be equipped with an automatic trans-
mission to be equipped with Remote Start.
• Obstructions between the vehicle and key fob may
reduce this range.
Remote Start Abort Message
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Open
22 GETTING TO KNOW YOUR VEHICLE

•Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Open
• Remote Start Aborted — System Fault
The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.
To Enter Remote Start
Push and release the remote start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash and the horn will chirp twice (if
programmed). Then, the engine will start and the vehicle
will remain in the remote start mode for a 15-minute cycle.
NOTE:
• The park lamps will turn on and remain on during
remote start mode.
• For security, power window operation is disabled when
the vehicle is in the remote start mode. •
The engine can be started two consecutive times (two
15-minute cycles) with the key fob. However, the igni-
tion switch must be cycled to the ON/RUN position
before you can repeat the start sequence for a third cycle.
Remote start will also cancel if any of the following occur:
• The engine stalls or RPM exceeds 2500.
• Any engine warning lamps come on.
• The hood is opened.
• The hazard switch is pushed.
• The transmission is moved out of PARK.
• The brake pedal is pushed.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the remote start button one time or allow
the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system will
disable the one time push of the remote start button for two
seconds after receiving a valid remote start request.
3
GETTING TO KNOW YOUR VEHICLE 23

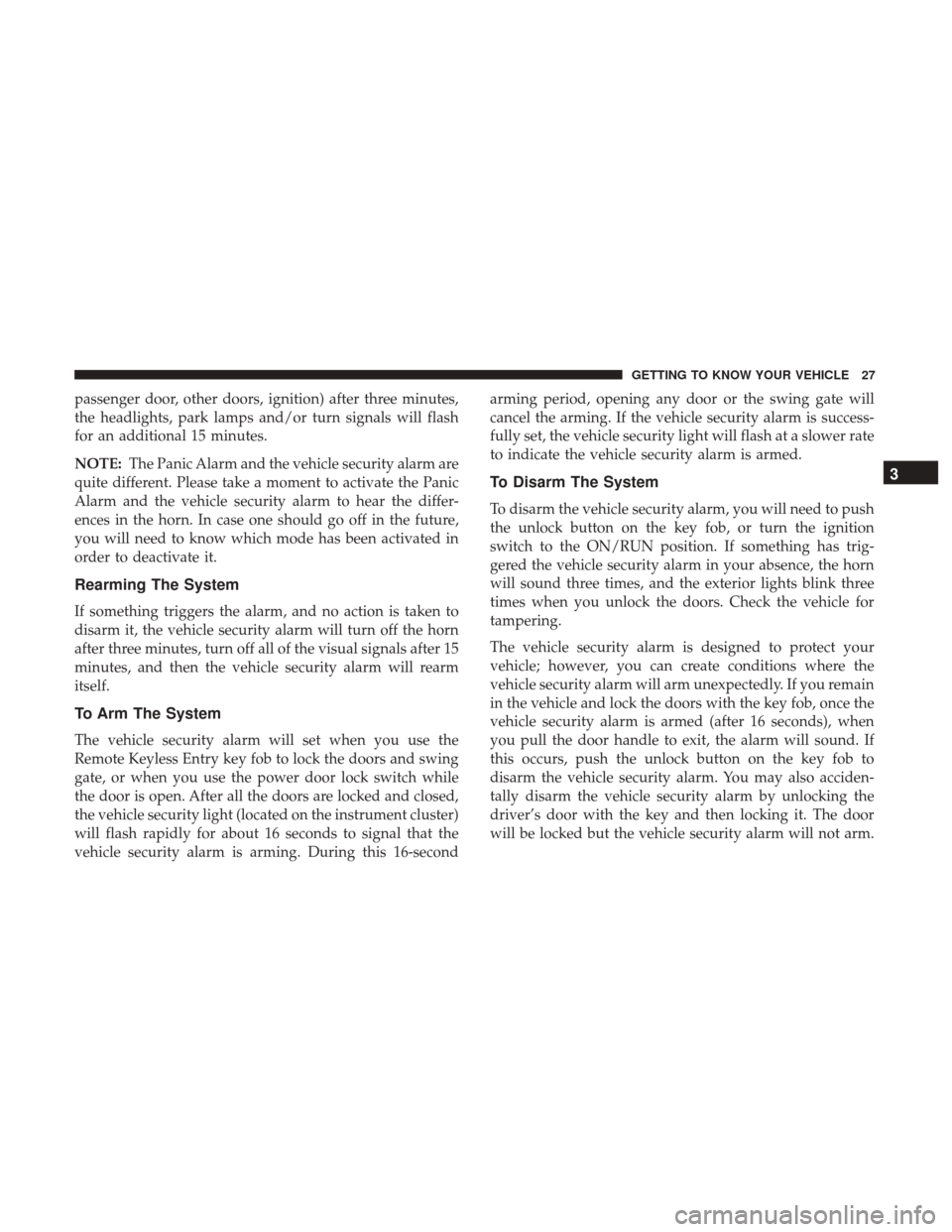

passenger door, other doors, ignition) after three minutes,
the headlights, park lamps and/or turn signals will flash
for an additional 15 minutes.
NOTE:The Panic Alarm and the vehicle security alarm are
quite different. Please take a moment to activate the Panic
Alarm and the vehicle security alarm to hear the differ-
ences in the horn. In case one should go off in the future,
you will need to know which mode has been activated in
order to deactivate it.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the vehicle security alarm will turn off the horn
after three minutes, turn off all of the visual signals after 15
minutes, and then the vehicle security alarm will rearm
itself.
To Arm The System
The vehicle security alarm will set when you use the
Remote Keyless Entry key fob to lock the doors and swing
gate, or when you use the power door lock switch while
the door is open. After all the doors are locked and closed,
the vehicle security light (located on the instrument cluster)
will flash rapidly for about 16 seconds to signal that the
vehicle security alarm is arming. During this 16-second arming period, opening any door or the swing gate will
cancel the arming. If the vehicle security alarm is success-
fully set, the vehicle security light will flash at a slower rate
to indicate the vehicle security alarm is armed.
To Disarm The System
To disarm the vehicle security alarm, you will need to push
the unlock button on the key fob, or turn the ignition
switch to the ON/RUN position. If something has trig-
gered the vehicle security alarm in your absence, the horn
will sound three times, and the exterior lights blink three
times when you unlock the doors. Check the vehicle for
tampering.
The vehicle security alarm is designed to protect your
vehicle; however, you can create conditions where the
vehicle security alarm will arm unexpectedly. If you remain
in the vehicle and lock the doors with the key fob, once the
vehicle security alarm is armed (after 16 seconds), when
you pull the door handle to exit, the alarm will sound. If
this occurs, push the unlock button on the key fob to
disarm the vehicle security alarm. You may also acciden-
tally disarm the vehicle security alarm by unlocking the
driver’s door with the key and then locking it. The door
will be locked but the vehicle security alarm will not arm.
3
GETTING TO KNOW YOUR VEHICLE 27

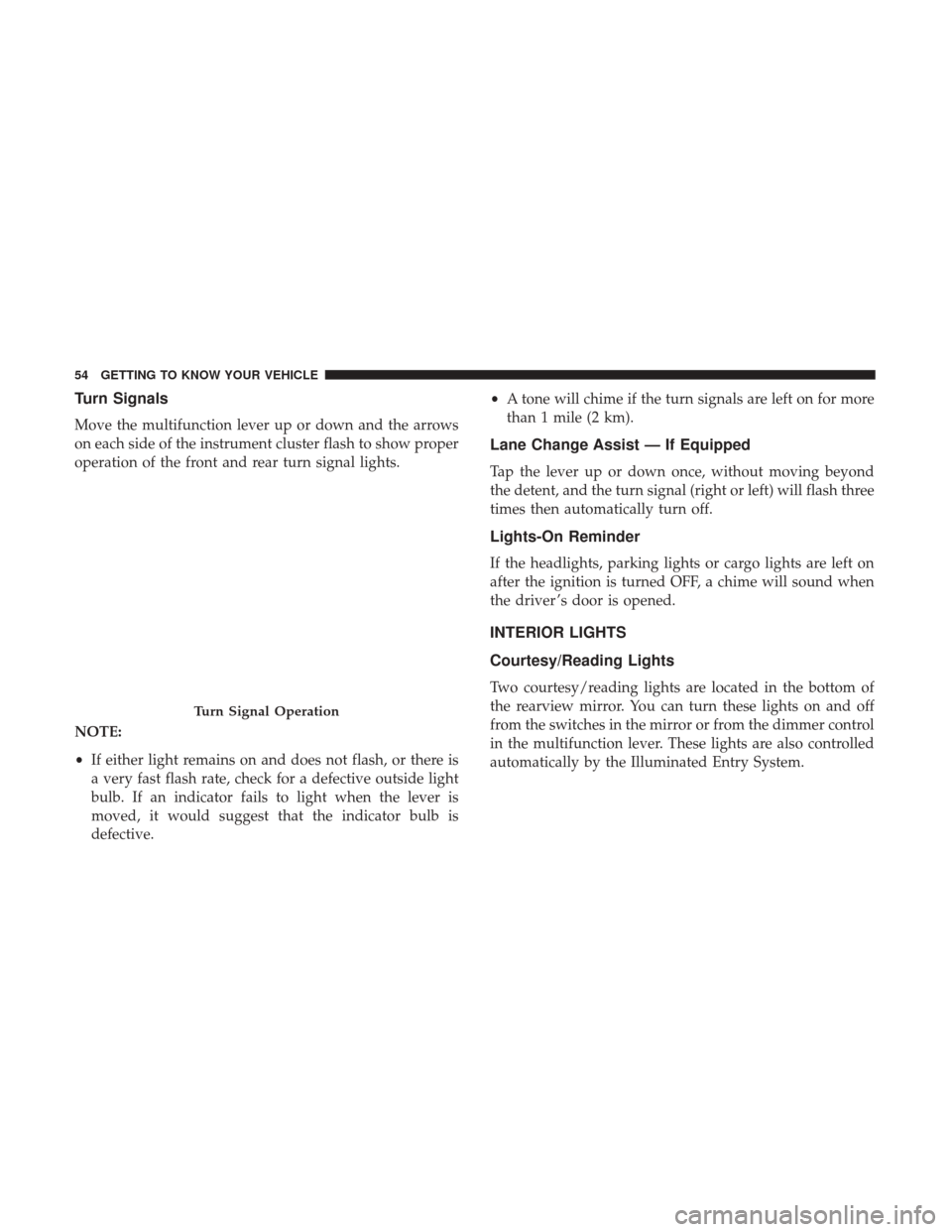

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show proper
operation of the front and rear turn signal lights.
NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective. •
A tone will chime if the turn signals are left on for more
than 1 mile (2 km).
Lane Change Assist — If Equipped
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash three
times then automatically turn off.
Lights-On Reminder
If the headlights, parking lights or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver ’s door is opened.
INTERIOR LIGHTS
Courtesy/Reading Lights
Two courtesy/reading lights are located in the bottom of
the rearview mirror. You can turn these lights on and off
from the switches in the mirror or from the dimmer control
in the multifunction lever. These lights are also controlled
automatically by the Illuminated Entry System.
Turn Signal Operation
54 GETTING TO KNOW YOUR VEHICLE

POWER WINDOWS — IF EQUIPPED
The power window switches are located on the instrument
panel below the radio. Push the switch downward to open
the window and upward to close the window.
The top left switch controls the left front window and the
top right switch controls the right front window.
WARNING!
Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not
leave the key fob in or near the vehicle, or in a location
accessible to children. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or death.NOTE:
•
For vehicles not equipped with the instrument cluster
display, the power window switches will remain active
for 45 seconds after the ignition switch is turned to the
LOCK position. Opening either front door will cancel
this feature.
• For vehicles equipped with the instrument cluster dis-
play, the power window switches will remain active for
up to 10 minutes after the ignition switch is turned to the
LOCK position. Opening either front door will cancel
this feature.
Power Window Switches
3
GETTING TO KNOW YOUR VEHICLE 71

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................182
▫ Instrument Cluster Descriptions ............183
 INSTRUMENT CLUSTER DISPLAY —
IF EQUIPPED .......................... .185
▫ Instrument Cluster Display Location
And Controls ........................ .185
▫ Instrument Cluster Display Menu Items .......187
 WARNING/INDICATOR LIGHTS AND
MESSAGES ........................... .195
▫ Red Telltale Indicator Lights ...............196
▫ Yellow Telltale Indicator Lights .............202▫
Green Telltale Indicator Lights ..............208
▫ White Telltale Indicator Lights ..............209
▫ Blue Telltale Indicator Lights ...............210
 ONBOARD DIAGNOSTIC SYSTEM —
OBDII .............................. .210
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ..........................211
▫ Loose Fuel Filler Cap Message .............211
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS ..............2114

INSTRUMENT CLUSTER
Instrument Cluster
182 GETTING TO KNOW YOUR INSTRUMENT PANEL

Instrument Cluster Descriptions
1.Fuel Gauge
• The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel filler door is located.
2. Speedometer
• Indicates vehicle speed.
3. Tachometer
• Indicates the engine speed in revolutions per minute
(RPM x 1000).
CAUTION!
Do not operate the engine with the tachometer pointer
in the red area. Engine damage will occur.
4. Temperature Gauge
• The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily. •
The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 183

5.Odometer / Trip Odometer Display Area
• The odometer display shows the total distance the
vehicle has been driven. The trip odometer shows
individual trip mileage. Refer to “Odometer/Trip
Odometer/ECO (Fuel Saver Indicator) Button” for
further information.
• U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser
the correct mileage that the vehicle has been driven. If
your odometer needs to be repaired or serviced, the
repair technician should leave the odometer reading
the same as it was before the repair or service. If they
cannot do so, then the odometer must be set at zero,
and a sticker must be placed in the door jamb stating
what the mileage was before the repair or service. It is
a good idea for you to make a record of the odometer
reading before the repair/service, so that you can be
sure that it is properly reset, or that the door jamb
sticker is accurate if the odometer must be reset at zero.
Vehicle Odometer Messages
All messages will display in the instrument cluster display,
if equipped. Refer to “Instrument Cluster Display— If
Equipped” in this section for further information. When the appropriate conditions exist, the following
odometer messages will display:
•ECO — Fuel Saver Indicator
• door — Door Open
• gATE — Swing Gate Open
• LoW tirE — Low Tire Pressure
• HOTOIL — Oil Temperature Above Normal Limits
• gASCAP — Fuel Cap Fault
• noFUSE — Fuse Fault
• CHAngE OIL — Oil Change Required
6. Software Telltales
• Hard and Soft Telltales (Symbols) appear based on
specific behaviors.
7.
Instrument Cluster Display / Compass Mini-Trip Com-
puter Display — If Equipped
• When the appropriate conditions exist, this display
shows the instrument cluster display messages. Refer
to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
•
When the appropriate conditions exist, this display
shows the Mini-Trip Computer messages. Refer to “Mini-
Trip Computer” in “Getting To Know Your Instrument
Panel” for further information.
184 GETTING TO KNOW YOUR INSTRUMENT PANEL
