3. Position the top of the door frame against the metal
sport bar and press onto the side bar making sure not
to pinch the material of the sports bar covers and to
ensure it is properly positioned on the seal above the
front of the rear door. 4. Loosely install the rear knob (long knob) to hold the
door rail in position.
5. Carefully set the front of the front door frame in the
rubber seal at the top of the windshield.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219

6. Clip the front of the door rail over the side bar making
sure that the material for the side bar cover is not
pinched by the door frame.
7. Position the rear of the front door frame to lay on top
of the front of the rear door frame. Ensure the seals are
installed correctly to avoid water leaks. 8. Loosely install both knobs beginning with the front
knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and
screw into the top of the B-pillar.
9. Tighten the front knob, then the rear most knob, and
then the middle knob. Repeat this procedure for the
other side.220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

SOFT TOP — TWO-DOOR MODELS
Please visit the owners section of Jeep.com for instruc-
tional videos.
CAUTION!The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunting,
or camping supplies, and/or luggage, etc. Also, it was
not designed as a structural member of the vehicle and,
thus, cannot properly carry any additional loads other
than environmental (rain, snow, etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top. Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be installed. If the temperature is 41°F
(5°C) or below, do not attempt to put the top down or
roll the rear or side curtains.
CAUTION!• Do not run a fabric top through an automatic car
wash. Window scratches and wax build up may
result.
• Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
• Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
• Do not lower the top with the windows installed.
Window and top damage may occur. (Continued)3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

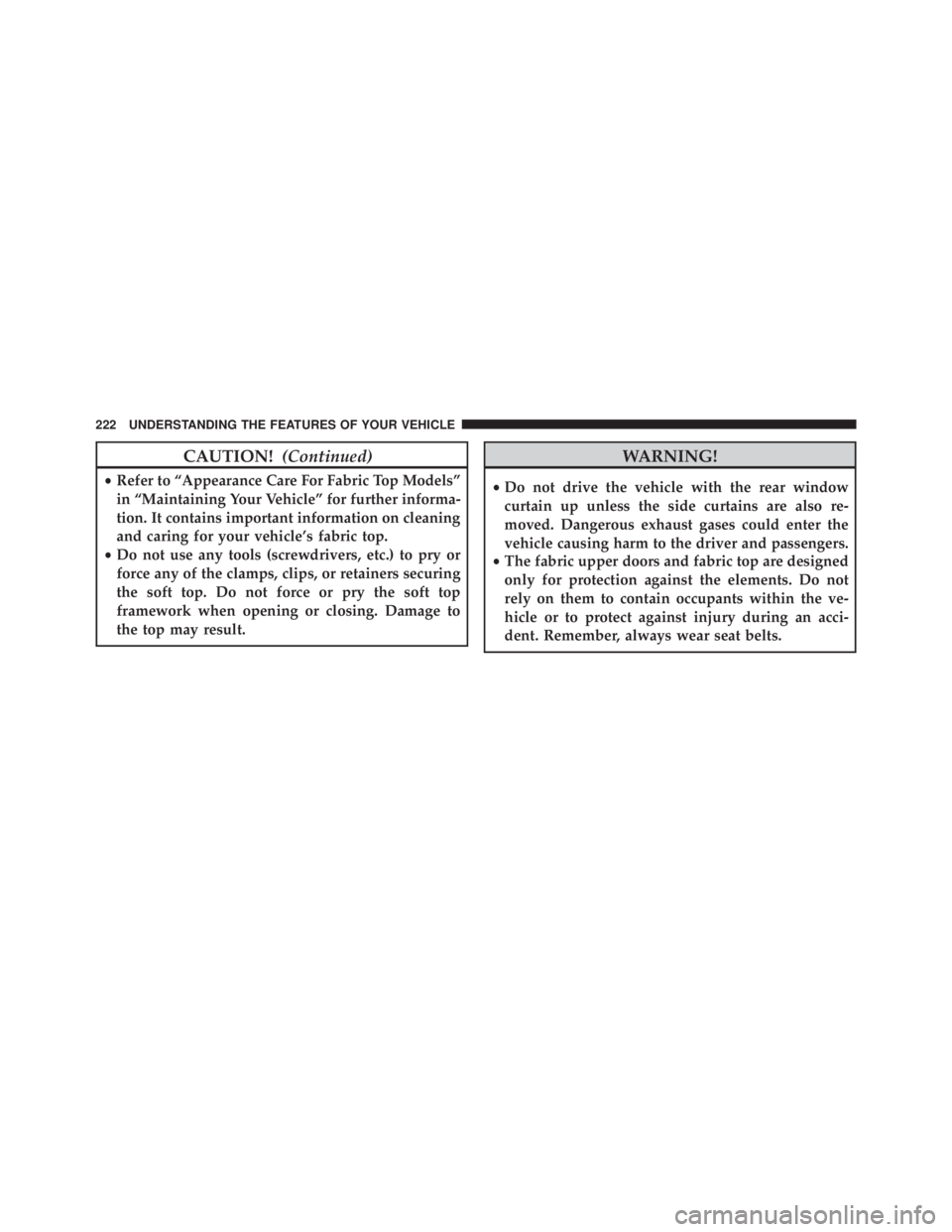

CAUTION! (Continued)• Refer to “Appearance Care For Fabric Top Models”
in “Maintaining Your Vehicle” for further informa-
tion. It contains important information on cleaning
and caring for your vehicle’s fabric top.
• Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result. WARNING!• Do not drive the vehicle with the rear window
curtain up unless the side curtains are also re-
moved. Dangerous exhaust gases could enter the
vehicle causing harm to the driver and passengers.
• The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the ve-
hicle or to protect against injury during an acci-
dent. Remember, always wear seat belts.222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

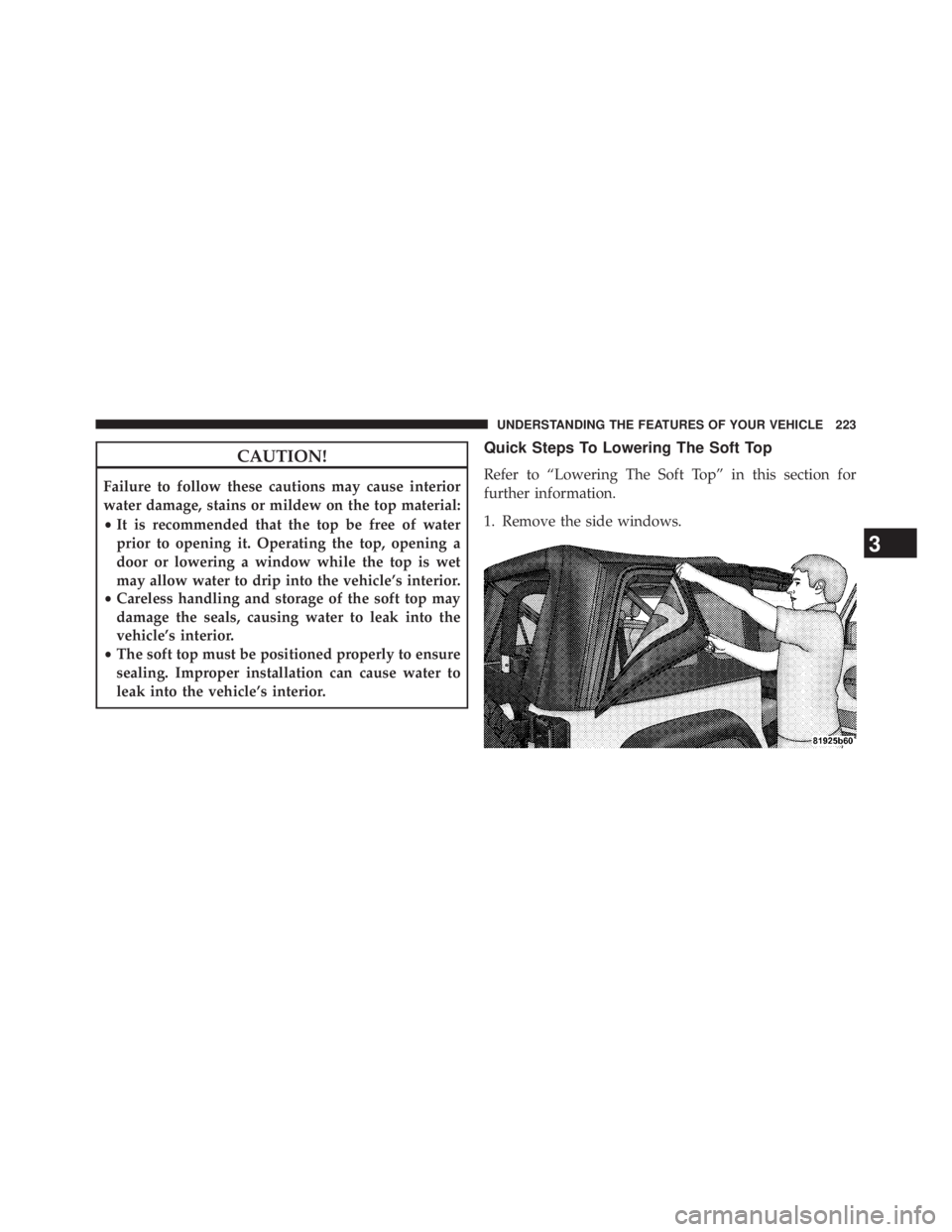

CAUTION!Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
• It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
• Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
• The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior. Quick Steps To Lowering The Soft Top
Refer to “Lowering The Soft Top” in this section for
further information.
1. Remove the side windows.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223

2. Remove the back window. 3. Release header latches from the windshield frame.224 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Release the sail panel retainers from the body side
channel at the rear corners of the vehicle.
NOTE: When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow. 5. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225

6. Release the Sunrider  latch (both sides). 7. Open the swing gate and lower the top.
NOTE: Ensure fabric does not overhang the sides of the
vehicle.226 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Quick Steps To Raising The Soft Top
Refer to “Raising The Soft Top” in this section for further
information.
1. Open the swing gate and raise the top, engaging the
Sunrider  latches (another person may be needed to
help with this operation).
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

2. Engage header latches. 3. Install rear corner panels.228 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
