automatic transmission fluid JEEP WRANGLER UNLIMITED 2013 Owners Manual

WARNING!
Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to ensure accurate fluid level reading. Do
not overfill. Use only manufacturer’s recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids, Lubricants, and Genuine Parts”
in “Maintaining Your Vehicle” for further information.
PARKING BRAKE
Before leaving the vehicle, make sure that the parking
brake is fully applied. Also, be certain to leave an
automatic transmission in PARK, or manual transmission
in REVERSE or first gear.The parking brake lever is located in the center console.
To apply the parking brake, pull the lever up as firmly as
possible. To release the parking brake, pull the lever up
slightly, press the center button, then lower the lever
completely.
Parking Brake
452 STARTING AND OPERATING
,QIRUPDWLRQ3URYLGHGE\

Towing Tips
Before setting out on a trip, practice turning, stopping
and backing the trailer in an area away from heavy
traffic.
If using a manual transmission vehicle for trailer towing,
all starts must be in first gear to avoid excessive clutch
slippage.
Automatic Transmission – If Equipped
The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in this range, use
the Electronic Range Select (ERS) shift control to select a
lower gear range. NOTE: Using a lower gear range while operating the
vehicle under heavy loading conditions will improve
performance and extend transmission life by reducing
excessive shifting and heat buildup. This action will also
provide better engine braking.
If you REGULARLY tow a trailer for more than 45 min-
utes of continuous operation, then change the transmis-
sion fluid and filter as specified for  police, taxi, fleet, or
frequent trailer towing.  Refer to the “Maintenance
Schedule” for the proper maintenance intervals.
NOTE: Check the automatic transmission fluid level
before towing.530 STARTING AND OPERATING

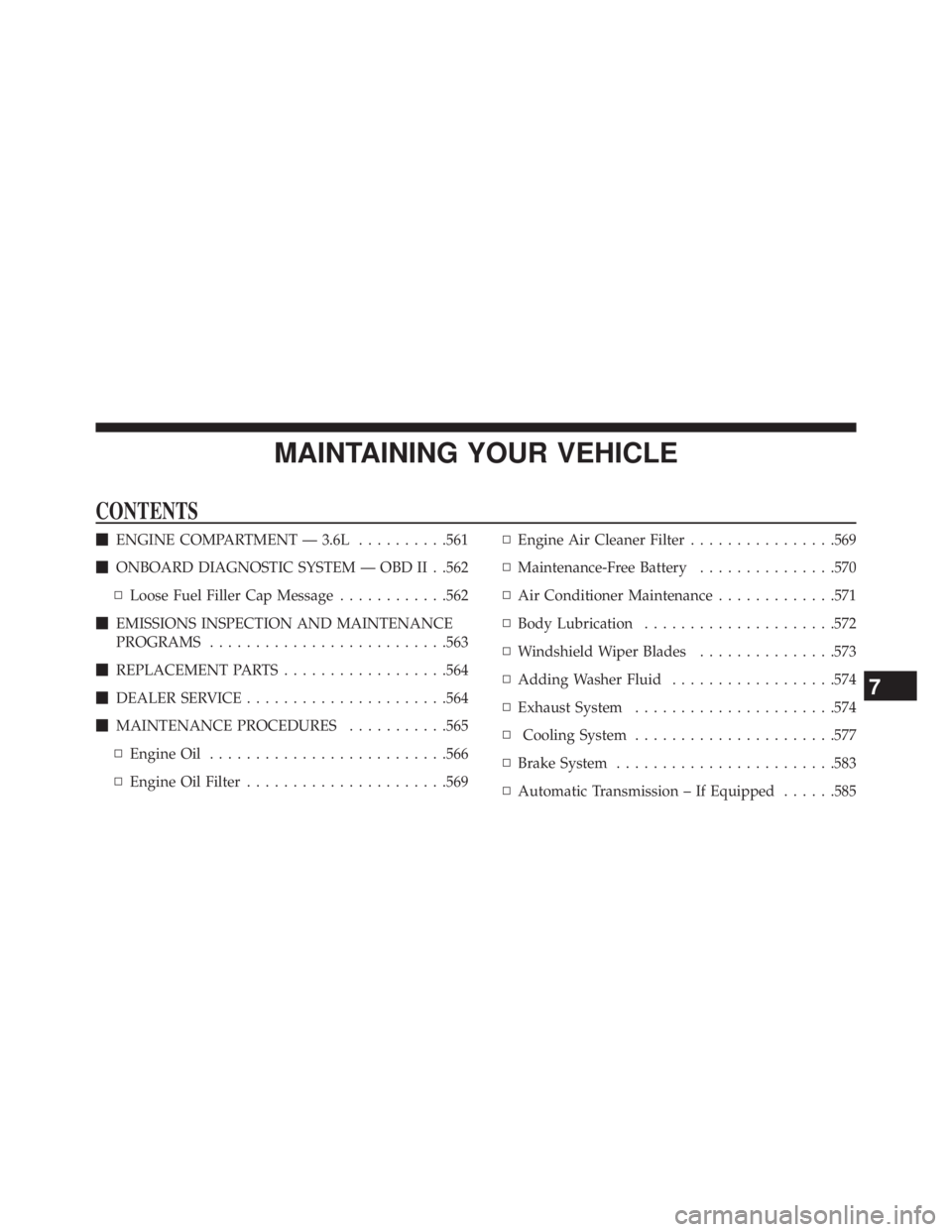

MAINTAINING YOUR VEHICLECONTENTS  ENGINE COMPARTMENT — 3.6L ......... .561
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .562
▫ Loose Fuel Filler Cap Message ........... .562
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .563
 REPLACEMENT PARTS ................. .564
 DEALER SERVICE ..................... .564
 MAINTENANCE PROCEDURES .......... .565
▫ Engine Oil ......................... .566
▫ Engine Oil Filter ..................... .569 ▫ Engine Air Cleaner Filter ............... .569
▫ Maintenance-Free Battery .............. .570
▫ Air Conditioner Maintenance ............ .571
▫ Body Lubrication .................... .572
▫ Windshield Wiper Blades .............. .573
▫ Adding Washer Fluid ................. .574
▫ Exhaust System ..................... .574
▫ Cooling System ..................... .577
▫ Brake System ....................... .583
▫ Automatic Transmission – If Equipped ..... .585
7

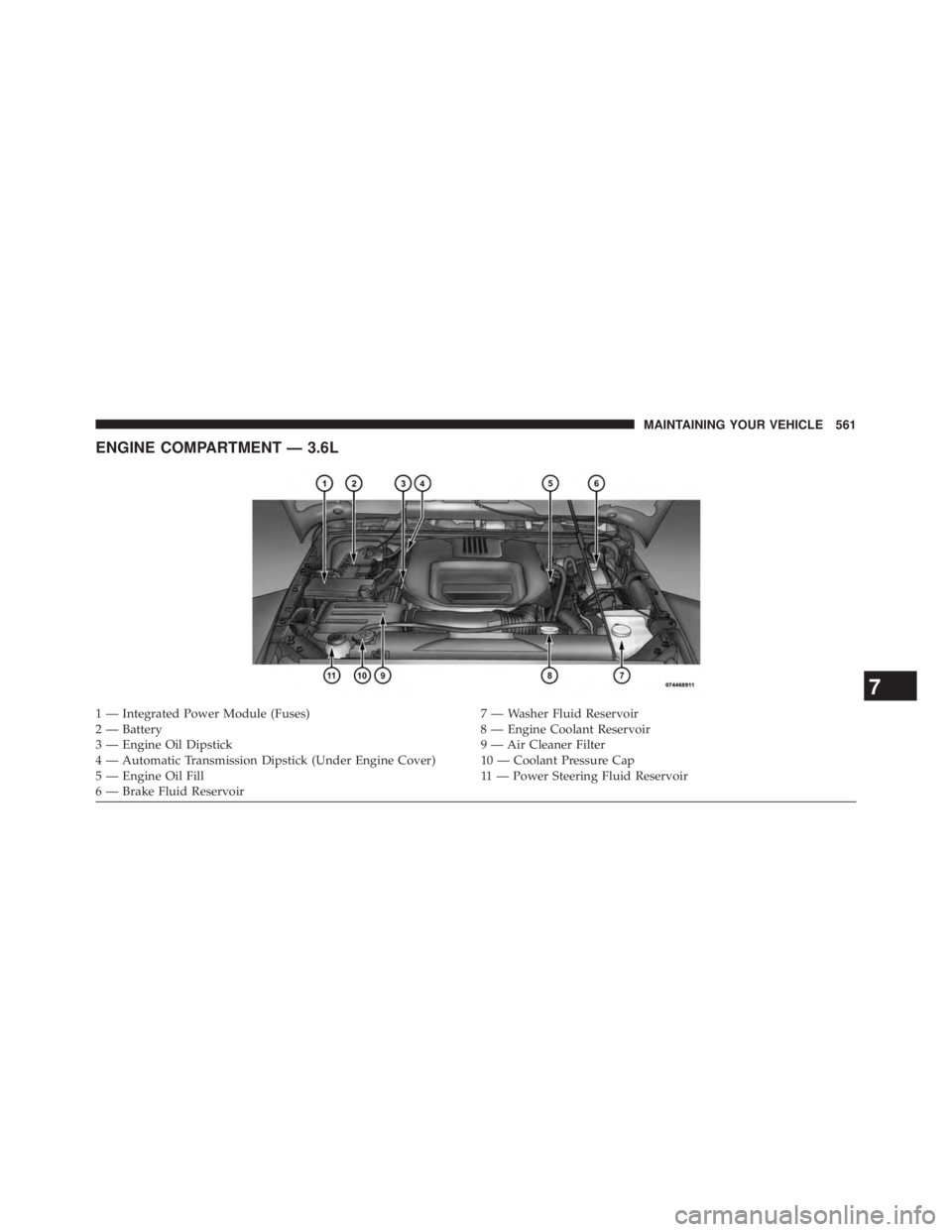

ENGINE COMPARTMENT — 3.6L
1 — Integrated Power Module (Fuses) 7 — Washer Fluid Reservoir
2 — Battery 8 — Engine Coolant Reservoir
3 — Engine Oil Dipstick 9 — Air Cleaner Filter
4 — Automatic Transmission Dipstick (Under Engine Cover) 10 — Coolant Pressure Cap
5 — Engine Oil Fill 11 — Power Steering Fluid Reservoir
6 — Brake Fluid Reservoir
7 MAINTAINING YOUR VEHICLE 561

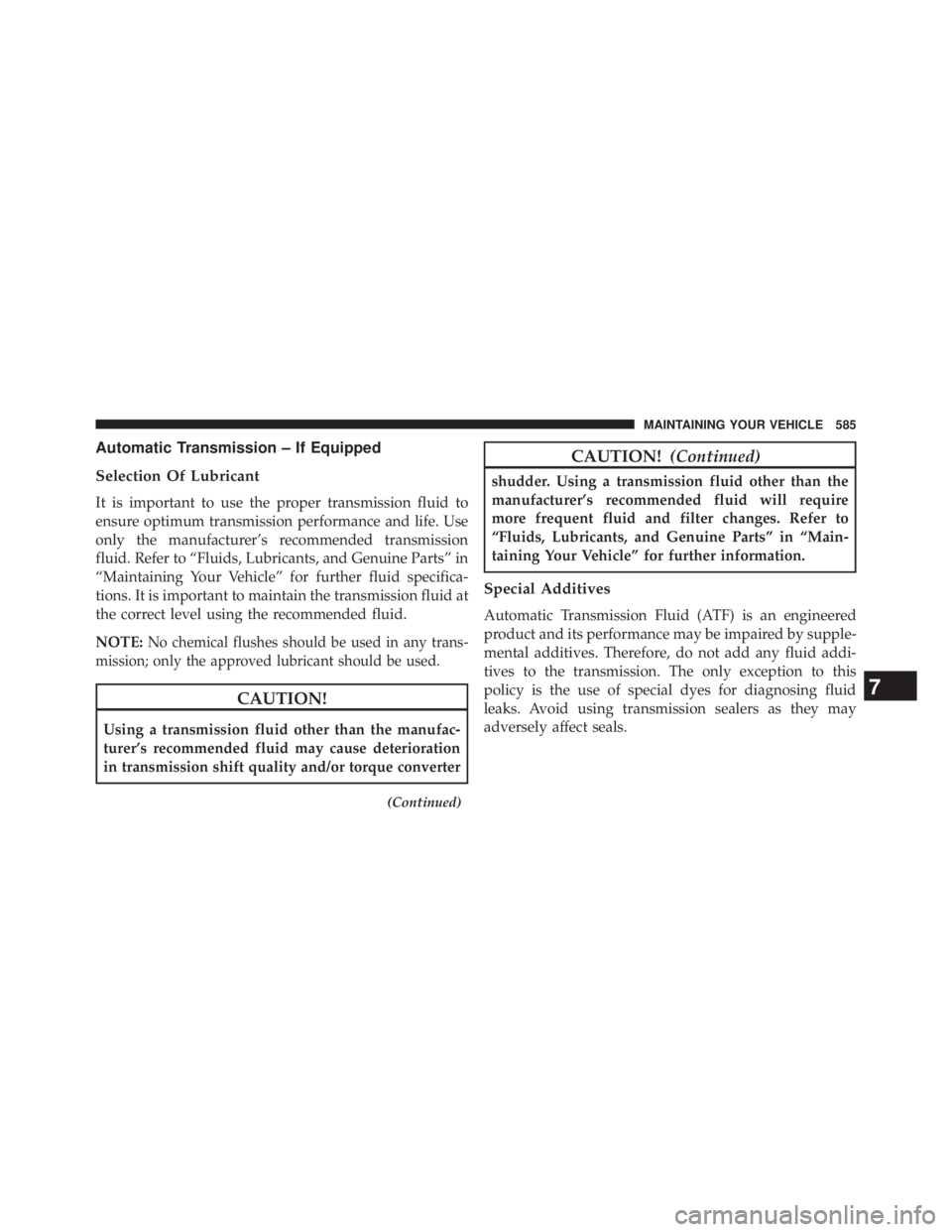

Automatic Transmission – If Equipped
Selection Of Lubricant
It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer’s recommended transmission
fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further fluid specifica-
tions. It is important to maintain the transmission fluid at
the correct level using the recommended fluid.
NOTE: No chemical flushes should be used in any trans-
mission; only the approved lubricant should be used.
CAUTION!Using a transmission fluid other than the manufac-
turer’s recommended fluid may cause deterioration
in transmission shift quality and/or torque converter (Continued) CAUTION! (Continued)shudder. Using a transmission fluid other than the
manufacturer’s recommended fluid will require
more frequent fluid and filter changes. Refer to
“Fluids, Lubricants, and Genuine Parts” in “Main-
taining Your Vehicle” for further information.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes for diagnosing fluid
leaks. Avoid using transmission sealers as they may
adversely affect seals.
7 MAINTAINING YOUR VEHICLE 585

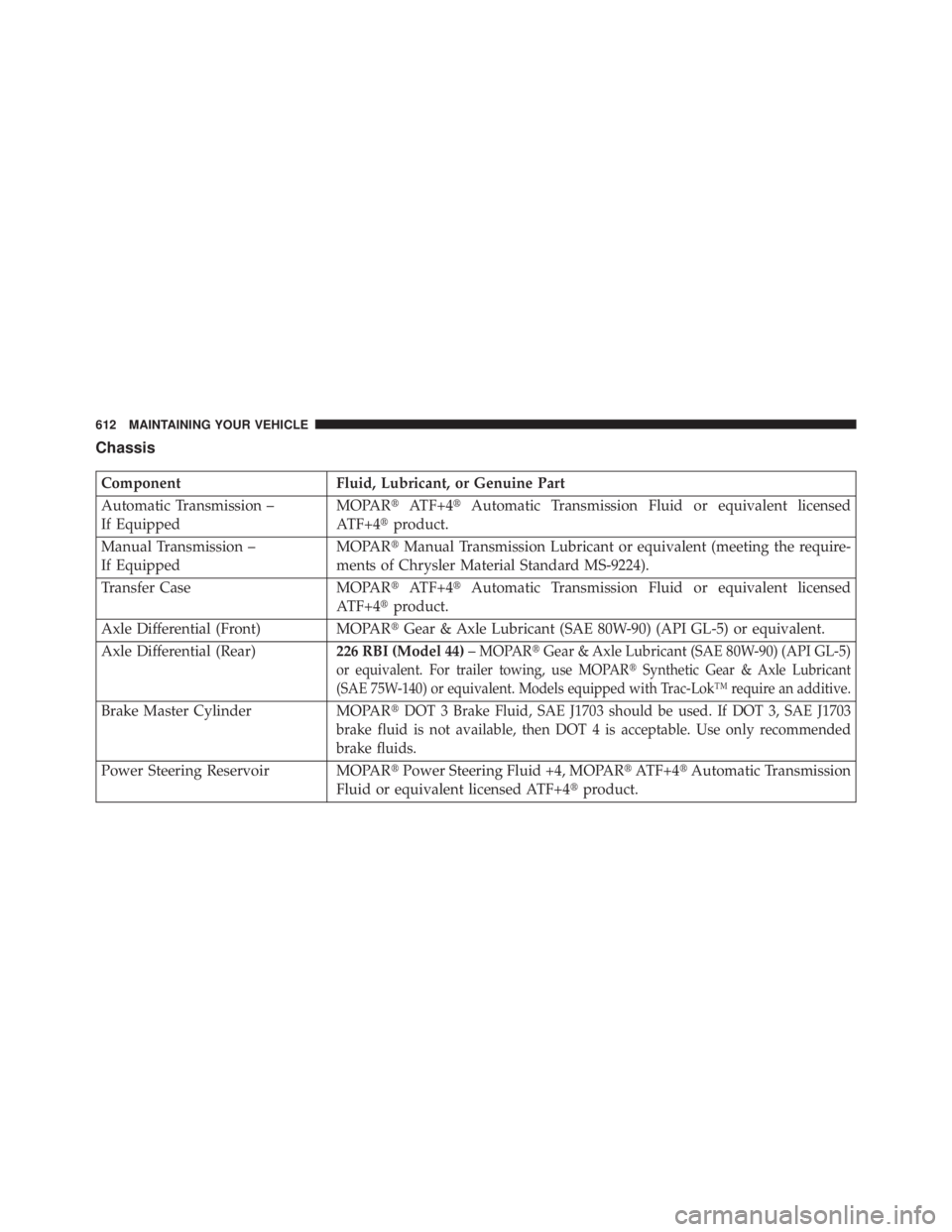

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission –
If Equipped MOPAR  ATF+4  Automatic Transmission Fluid or equivalent licensed
ATF+4  product.
Manual Transmission –
If Equipped MOPAR  Manual Transmission Lubricant or equivalent (meeting the require-
ments of Chrysler Material Standard MS-9224).
Transfer Case MOPAR  ATF+4  Automatic Transmission Fluid or equivalent licensed
ATF+4  product.
Axle Differential (Front) MOPAR  Gear & Axle Lubricant (SAE 80W-90) (API GL-5) or equivalent.
Axle Differential (Rear) 226 RBI (Model 44) – MOPAR  Gear & Axle Lubricant (SAE 80W-90) (API GL-5)
or equivalent. For trailer towing, use MOPAR  Synthetic Gear & Axle Lubricant
(SAE 75W-140) or equivalent. Models equipped with Trac-Lok™ require an additive.
Brake Master Cylinder MOPAR  DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE J1703
brake fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Power Steering Reservoir MOPAR  Power Steering Fluid +4, MOPAR  ATF+4  Automatic Transmission
Fluid or equivalent licensed ATF+4  product.612 MAINTAINING YOUR VEHICLE

Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission as
needed
• Check function of all interior and exterior lights
Required Maintenance Intervals .
Refer to the maintenance schedules on the following
page for the required maintenance intervals. At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
• Change oil and filter
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required
• Inspect automatic transmission fluid if equipped
with dipstick
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake
• Inspect engine cooling system protection and
hoses
• Inspect exhaust system
• Inspect engine air cleaner if using in dusty or
off-road conditions
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 615

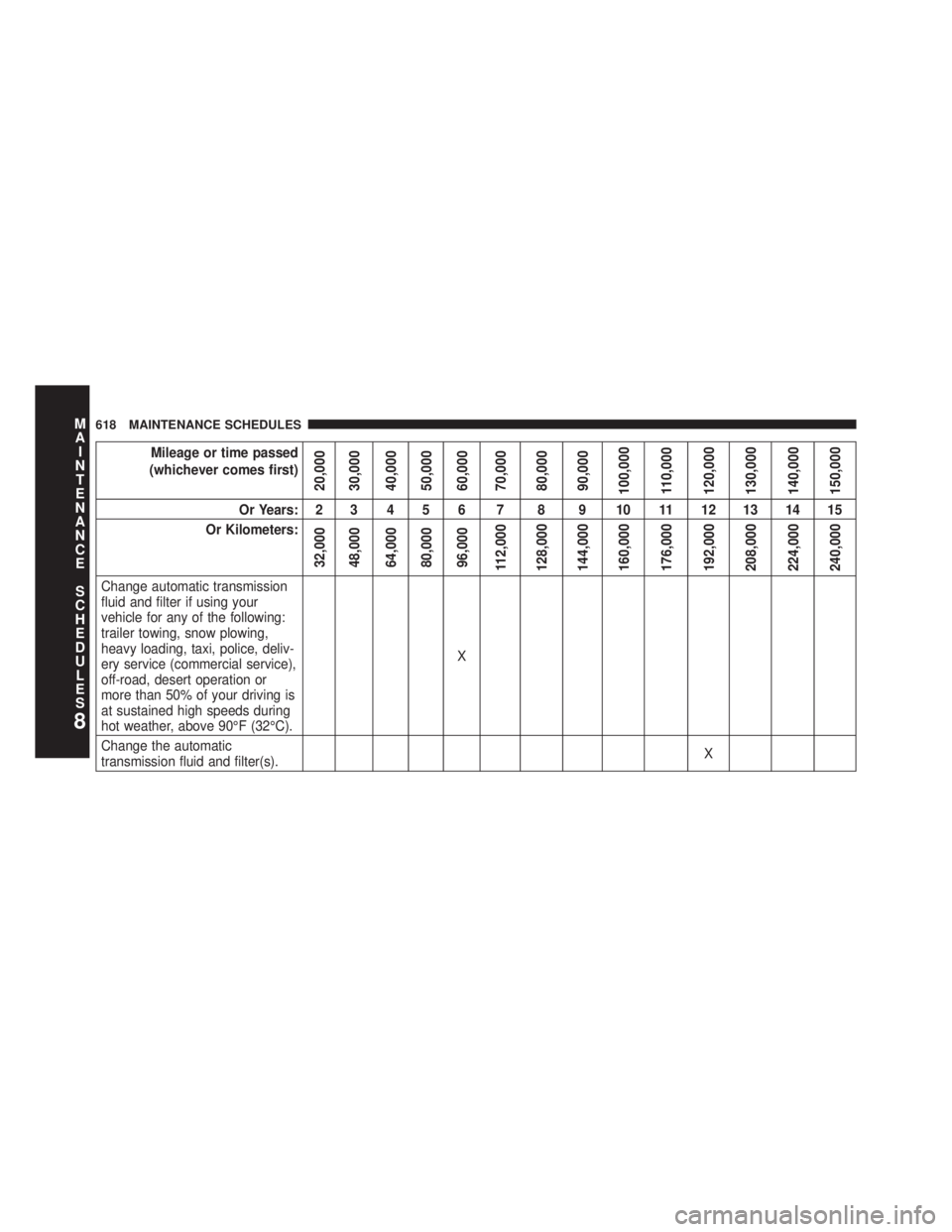

Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000Change automatic transmission
fluid and filter if using your
vehicle for any of the following:
trailer towing, snow plowing,
heavy loading, taxi, police, deliv-
ery service (commercial service),
off-road, desert operation or
more than 50% of your driving is
at sustained high speeds during
hot weather, above 90°F (32°C). X
Change the automatic
transmission fluid and filter(s). X
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S 618 MAINTENANCE SCHEDULES

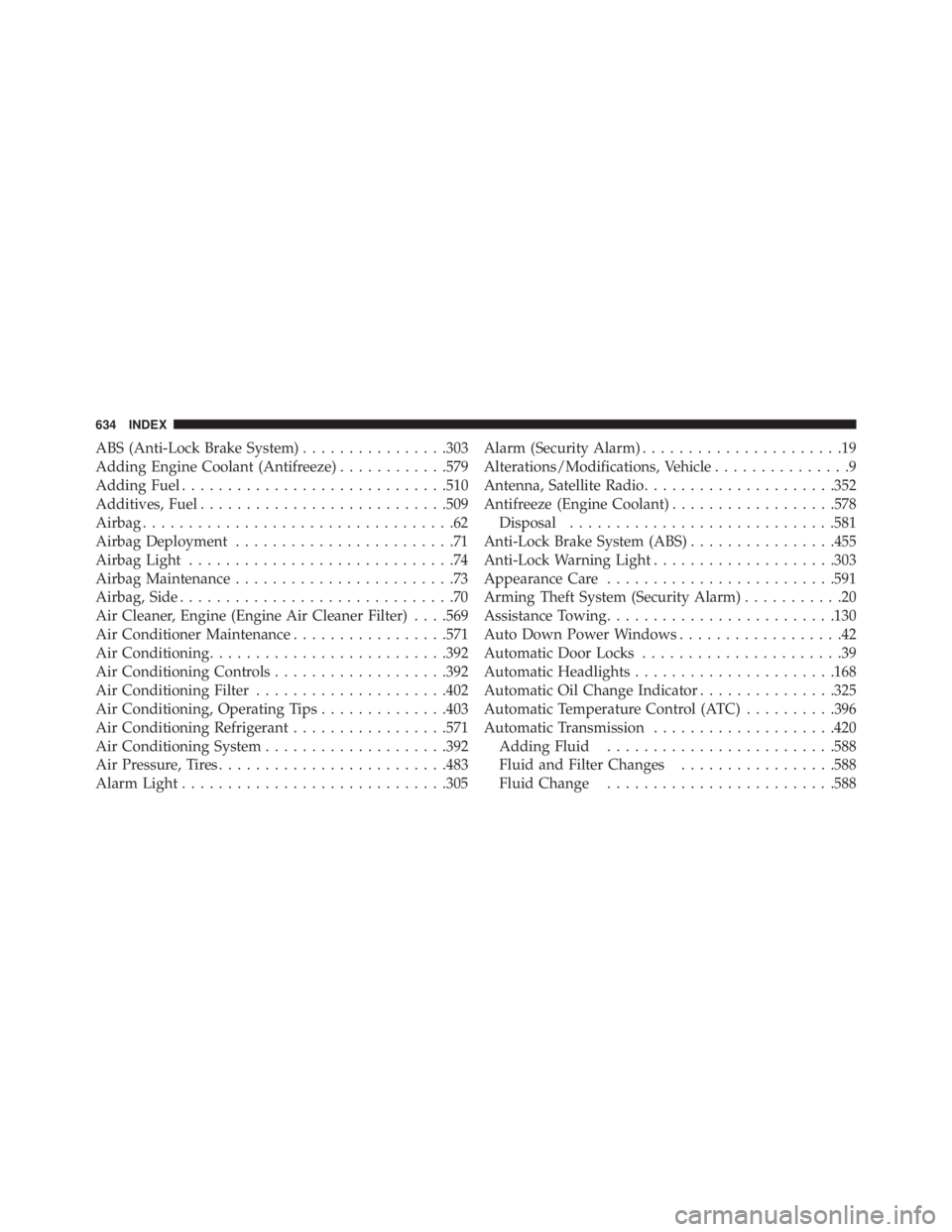

ABS (Anti-Lock Brake System) ............... .303
Adding Engine Coolant (Antifreeze) ........... .579
Adding Fuel ............................ .510
Additives, Fuel .......................... .509
Airbag ..................................62
Airbag Deployment ........................71
Airbag Light .............................74
Airbag Maintenance ........................73
Airbag, Side ..............................70
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .569
Air Conditioner Maintenance ................ .571
Air Conditioning ......................... .392
Air Conditioning Controls .................. .392
Air Conditioning Filter .................... .402
Air Conditioning, Operating Tips ............. .403
Air Conditioning Refrigerant ................ .571
Air Conditioning System ................... .392
Air Pressure, Tires ........................ .483
Alarm Light ............................ .305 Alarm (Security Alarm) ......................19
Alterations/Modifications, Vehicle ...............9
Antenna, Satellite Radio .................... .352
Antifreeze (Engine Coolant) ................. .578
Disposal ............................ .581
Anti-Lock Brake System (ABS) ............... .455
Anti-Lock Warning Light ................... .303
Appearance Care ........................ .591
Arming Theft System (Security Alarm) ...........20
Assistance Towing ........................ .130
Auto Down Power Windows ..................42
Automatic Door Locks ......................39
Automatic Headlights ..................... .168
Automatic Oil Change Indicator .............. .325
Automatic Temperature Control (ATC) ......... .396
Automatic Transmission ................... .420
Adding Fluid ........................ .588
Fluid and Filter Changes ................ .588
Fluid Change ........................ .588634 INDEX

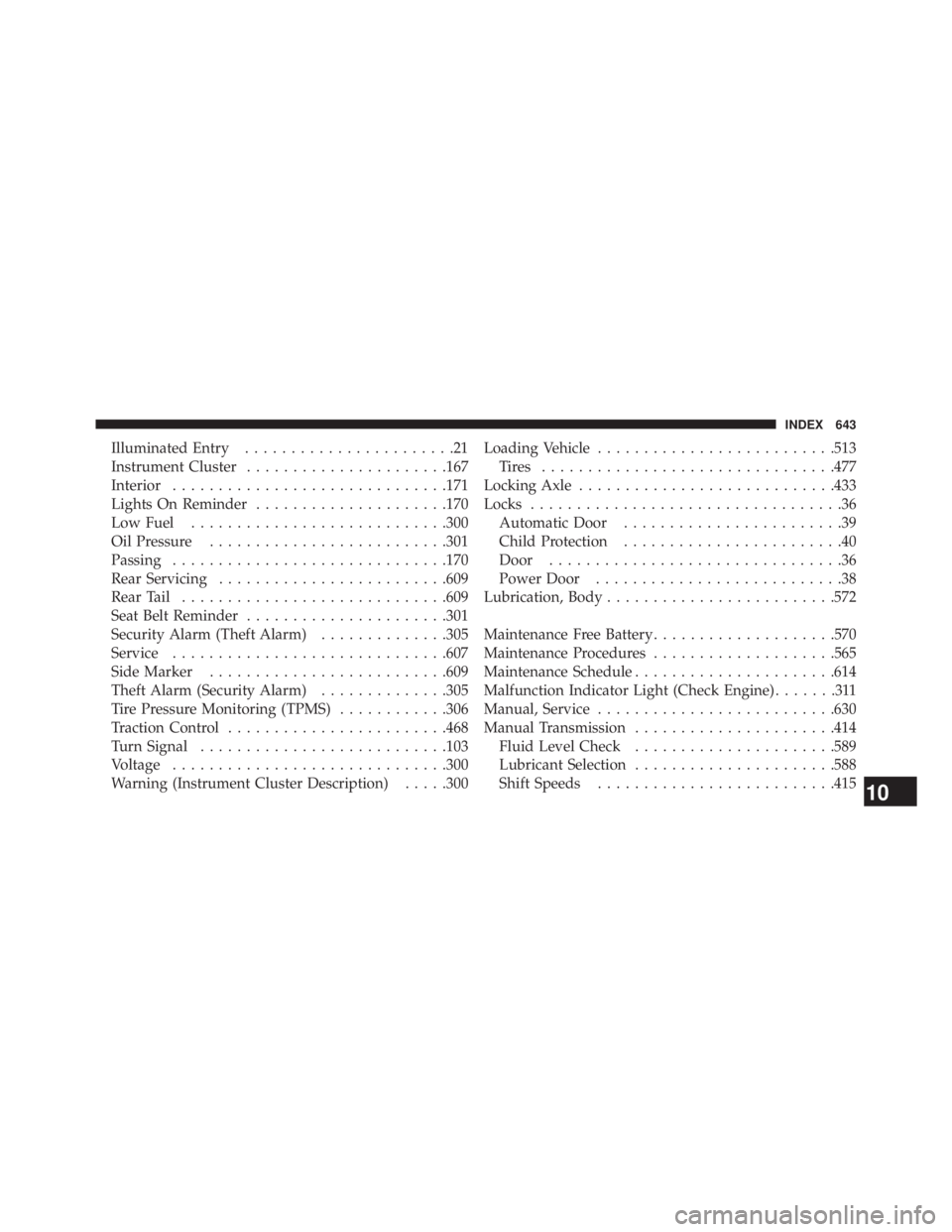

Illuminated Entry .......................21
Instrument Cluster ..................... .167
Interior ............................. .171
Lights On Reminder .................... .170
Low Fuel ........................... .300
Oil Pressure ......................... .301
Passing ............................. .170
Rear Servicing ........................ .609
Rear Tail ............................ .609
Seat Belt Reminder ..................... .301
Security Alarm (Theft Alarm) ............. .305
Service ............................. .607
Side Marker ......................... .609
Theft Alarm (Security Alarm) ............. .305
Tire Pressure Monitoring (TPMS) ........... .306
Traction Control ....................... .468
Turn Signal .......................... .103
Voltage ............................. .300
Warning (Instrument Cluster Description) .... .300 Loading Vehicle ......................... .513
Tires ............................... .477
Locking Axle ........................... .433
Locks ..................................36
Automatic Door ........................39
Child Protection ........................40
Door ................................36
Power Door ...........................38
Lubrication, Body ........................ .572
Maintenance Free Battery ................... .570
Maintenance Procedures ................... .565
Maintenance Schedule ..................... .614
Malfunction Indicator Light (Check Engine) .......311
Manual, Service ......................... .630
Manual Transmission ..................... .414
Fluid Level Check ..................... .589
Lubricant Selection ..................... .588
Shift Speeds ......................... .415
10 INDEX 643
