IN CASE OF EMERGENCY

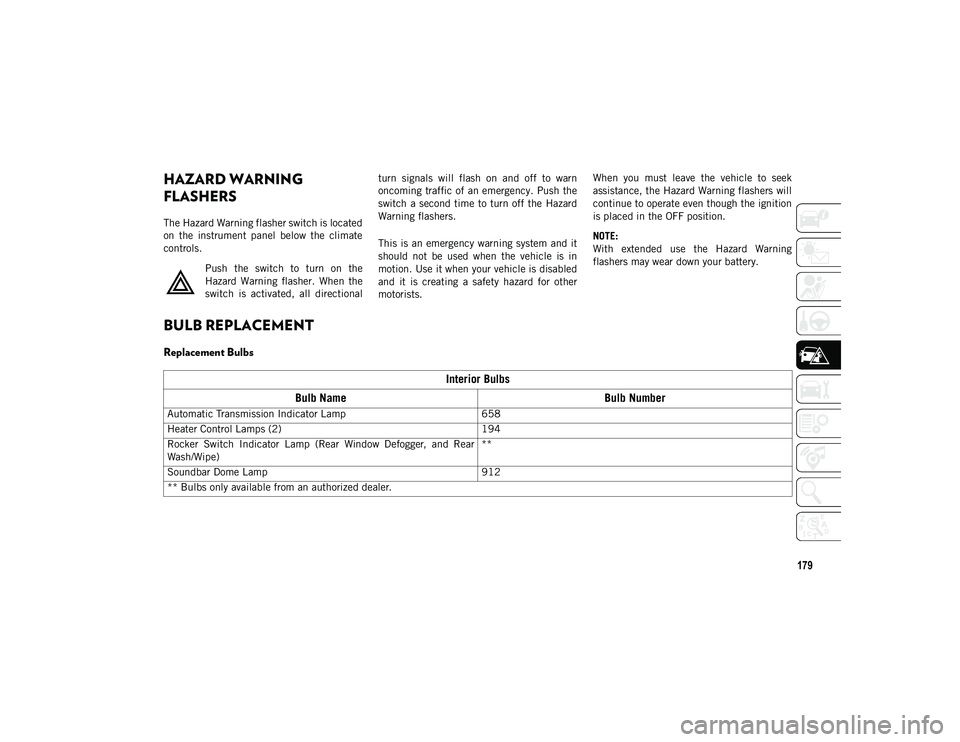

HAZARD WARNING
FLASHERS
The Hazard Warning flasher switch is located
on the instrument panel below the climate
controls.Push the switch to turn on the
Hazard Warning flasher. When the
switch is activated, all directional turn signals will flash on and off to warn
oncoming traffic of an emergency. Push the
switch a second time to turn off the Hazard
Warning flashers.
This is an emergency warning system and it
should not be used when the vehicle is in
motion. Use it when your vehicle is disabled
and it is creating a safety hazard for other
motorists. When you must leave the vehicle to seek
assistance, the Hazard Warning flashers will
continue to operate even though the ignition
is placed in the OFF position.
NOTE:
With extended use the Hazard Warning
flashers may wear down your battery.
BULB REPLACEMENT
Replacement Bulbs
Interior Bulbs
Bulb Name Bulb Number
Automatic Transmission Indicator Lamp 658
Heater Control Lamps (2) 194
Rocker Switch Indicator Lamp (Rear Window Defogger, and Rear
Wash/Wipe) **
Soundbar Dome Lamp 912
** Bulbs only available from an authorized dealer.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 179
Page 182 of 330

IN CASE OF EMERGENCY
180Exterior Bulbs
Bulb Name Bulb Number
Headlamps (2) H4
Premium Head Lamps LED – (Serviced At Authorized Dealer)
Sport Front Park/Turn Signal Lamps (2) 7442NALL
Premium Front Park/Turn Signal Lamps (2) LED – (Serviced At Authorized Dealer)
Base (Sahara/Rubicon) Turn Lamp 7440NA
Base (Sahara/Rubicon) Park DRL Lamp 7443
Front Side Marker Lamps (2) LED – (Serviced At Authorized Dealer)
Base Fog Lamps PSX24W
Premium Fog Lamps LED – (Serviced At Authorized Dealer)
Rear Premium LED Tail Lamps LED – (Serviced At Authorized Dealer)
Rear Base Tail Lamp Stop/Tail Bulb P27/7WK
Rear Base Tail Lamp Turn Signal Bulb WY21W
Rear Base Tail Lamp Backup Bulb W16W
Rear Base Tail Lamp Side Marker LED – (Serviced At Authorized Dealer)
Center High Mounted Stop Lamp LED – (Serviced At Authorized Dealer)
License Lamp W5W
Rear Fog W21W
NOTE:
Numbers refer to commercial bulb types that can be purchased from an authorized dealer. If a bulb needs to be replaced, visit an authorized
dealer or refer to the applicable Service Manual.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 180
Page 183 of 330

181
Bulb Replacement
NOTE:
Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as
atmospheric conditions change to allow the
condensation to change back into a vapor.
Turning the lamps on will usually accelerate
the clearing process.
Halogen Headlamps
NOTE:
We advise referring to an authorized dealer
for service.
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the top a quarter turn
counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Remove the three screws holding the headlamp to the vehicle.
5. Remove lamp from the vehicle.
6. Remove the lamp from the collar. 7. Grasp the bulb and turn a quarter turn
counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the connector locking tab to the
lock position.
12. Reinstall bulb housing. Rotate the bulb a quarter turn clockwise.
Front Park/Turn Signal
NOTE:
We advise referring to an authorized dealer
for service.
1. Remove the front wheel liner fasteners toaccess bulb sockets.
Wheel Liner
2. Turn the socket assembly a quarter turn counterclockwise and remove from
housing. Pull the bulb straight from the
socket to replace.
LED Front Side Marker
Please see an authorized dealer for service.
CAUTION!
Do not touch the new bulb with your
fingers. Oil contamination will severely
shorten bulb life. If the bulb comes in
contact with any oily surface, clean the
bulb with rubbing alcohol.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 181
Page 184 of 330

IN CASE OF EMERGENCY
182

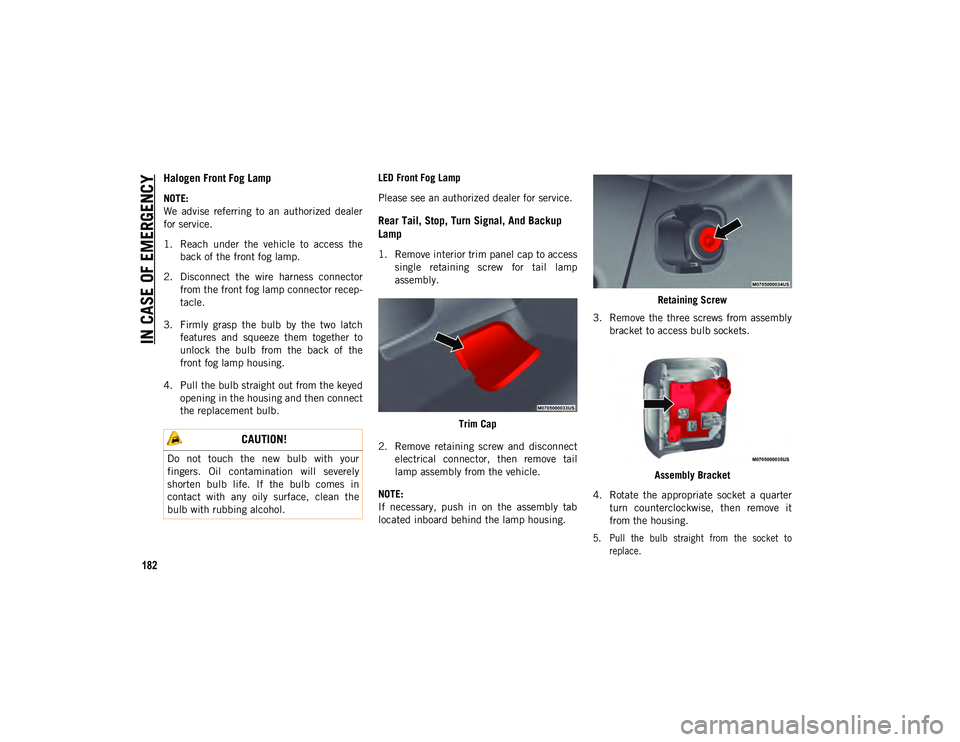

Halogen Front Fog Lamp
NOTE:
We advise referring to an authorized dealer
for service.
1. Reach under the vehicle to access theback of the front fog lamp.
2. Disconnect the wire harness connector from the front fog lamp connector recep -
tacle.
3. Firmly grasp the bulb by the two latch features and squeeze them together to
unlock the bulb from the back of the
front fog lamp housing.
4. Pull the bulb straight out from the keyed opening in the housing and then connect
the replacement bulb. LED Front Fog Lamp
Please see an authorized dealer for service.
Rear Tail, Stop, Turn Signal, And Backup
Lamp
1. Remove interior trim panel cap to access
single retaining screw for tail lamp
assembly.
Trim Cap
2. Remove retaining screw and disconnect electrical connector, then remove tail
lamp assembly from the vehicle.
NOTE:
If necessary, push in on the assembly tab
located inboard behind the lamp housing. Retaining Screw
3. Remove the three screws from assembly bracket to access bulb sockets.
Assembly Bracket
4. Rotate the appropriate socket a quarter turn counterclockwise, then remove it
from the housing.
5. Pull the bulb straight from the socket to replace.
CAUTION!
Do not touch the new bulb with your
fingers. Oil contamination will severely
shorten bulb life. If the bulb comes in
contact with any oily surface, clean the
bulb with rubbing alcohol.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 182
Page 185 of 330

183
(Continued)

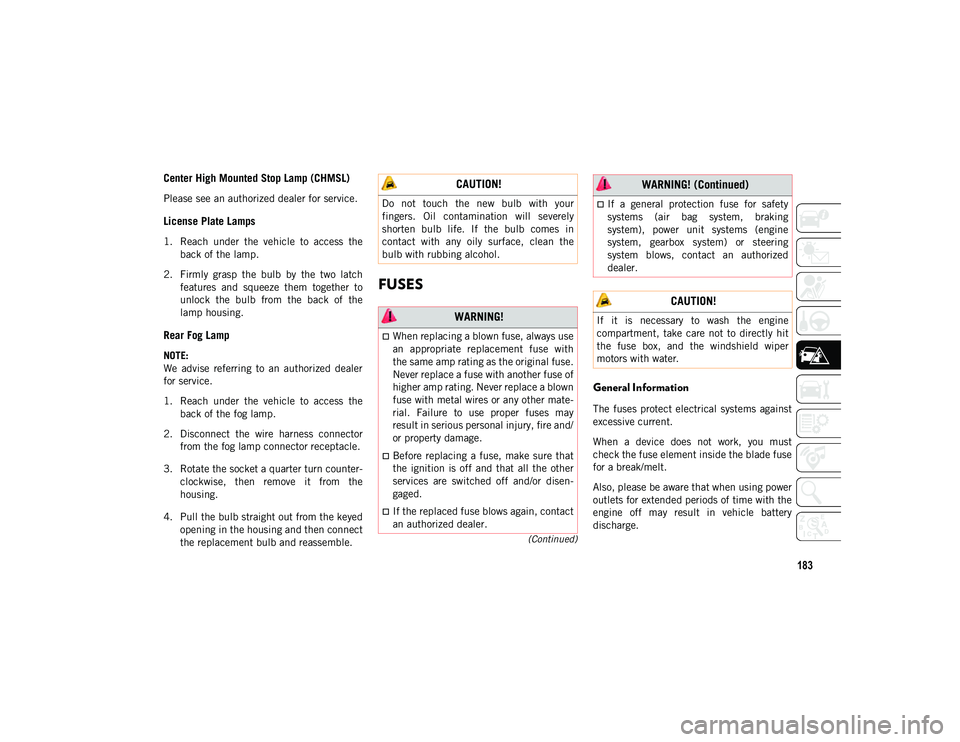

Center High Mounted Stop Lamp (CHMSL)
Please see an authorized dealer for service.
License Plate Lamps
1. Reach under the vehicle to access theback of the lamp.
2. Firmly grasp the bulb by the two latch features and squeeze them together to
unlock the bulb from the back of the
lamp housing.
Rear Fog Lamp
NOTE:
We advise referring to an authorized dealer
for service.
1. Reach under the vehicle to access theback of the fog lamp.
2. Disconnect the wire harness connector from the fog lamp connector receptacle.
3. Rotate the socket a quarter turn counter -
clockwise, then remove it from the
housing.
4. Pull the bulb straight out from the keyed opening in the housing and then connect
the replacement bulb and reassemble.
FUSES
General Information
The fuses protect electrical systems against
excessive current.
When a device does not work, you must
check the fuse element inside the blade fuse
for a break/melt.
Also, please be aware that when using power
outlets for extended periods of time with the
engine off may result in vehicle battery
discharge.
CAUTION!
Do not touch the new bulb with your
fingers. Oil contamination will severely
shorten bulb life. If the bulb comes in
contact with any oily surface, clean the
bulb with rubbing alcohol.
WARNING!
When replacing a blown fuse, always use
an appropriate replacement fuse with
the same amp rating as the original fuse.
Never replace a fuse with another fuse of
higher amp rating. Never replace a blown
fuse with metal wires or any other mate-
rial. Failure to use proper fuses may
result in serious personal injury, fire and/
or property damage.
Before replacing a fuse, make sure that
the ignition is off and that all the other
services are switched off and/or disen -
gaged.
If the replaced fuse blows again, contact
an authorized dealer.
If a general protection fuse for safety
systems (air bag system, braking
system), power unit systems (engine
system, gearbox system) or steering
system blows, contact an authorized
dealer.
CAUTION!
If it is necessary to wash the engine
compartment, take care not to directly hit
the fuse box, and the windshield wiper
motors with water.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 183
Page 186 of 330

IN CASE OF EMERGENCY
184
Power Distribution Center (PDC)
The Power Distribution Center (PDC) is
located in the engine compartment near the
battery. This center contains cartridge fuses,
mini fuses, and relays. The PDC top cover is
labeled with each serviceable fuse/relay loca-
tion, function, and size. NOTE:
Fuses for safety systems (marked with *)
must be serviced by an authorized dealer.
Power Distribution Center
CavityCartridge Fuse Micro Fuse Description
F01– –Spare
F02 40 Amp Green –Starter
(*)
F03 –5 Amp Tan Intelligent Battery Sensor (IBS)
(*)
F04 –20 Amp Yellow Fuel Pump MTR/FPCM
(*)
F05 –5 Amp Tan Security Gateway
(*)
F06 – –Spare
F07 –15 Amp Blue Low Temp Radiator Cooling Pump (LTR) — If Equipped
(*)
F08 –15 Amp Blue Trans Control Module TCM-8HP CYGNUS
(*)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 184
Page 187 of 330

185

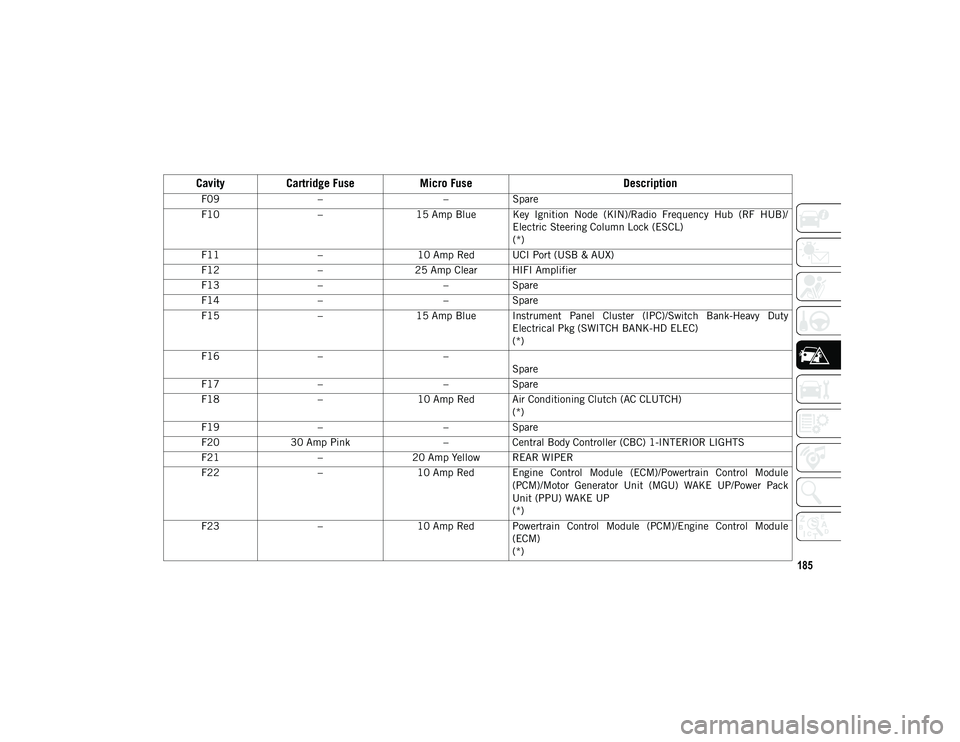

F09– –Spare
F10 –15 Amp Blue Key Ignition Node (KIN)/Radio Frequency Hub (RF HUB)/
Electric Steering Column Lock (ESCL)
(*)
F11 –10 Amp Red UCI Port (USB & AUX)
F12 –25 Amp Clear HIFI Amplifier
F13 – –Spare
F14 – –Spare
F15 –15 Amp Blue Instrument Panel Cluster (IPC)/Switch Bank-Heavy Duty
Electrical Pkg (SWITCH BANK-HD ELEC)
(*)
F16 – –
Spare
F17 – –Spare
F18 –10 Amp Red Air Conditioning Clutch (AC CLUTCH)
(*)
F19 – –Spare
F20 30 Amp Pink –Central Body Controller (CBC) 1-INTERIOR LIGHTS
F21 –20 Amp Yellow REAR WIPER
F22 –10 Amp Red Engine Control Module (ECM)/Powertrain Control Module
(PCM)/Motor Generator Unit (MGU) WAKE UP/Power Pack
Unit (PPU) WAKE UP
(*)
F23 –10 Amp Red Powertrain Control Module (PCM)/Engine Control Module
(ECM)
(*)
CavityCartridge Fuse Micro Fuse Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 185
Page 188 of 330

IN CASE OF EMERGENCY
186

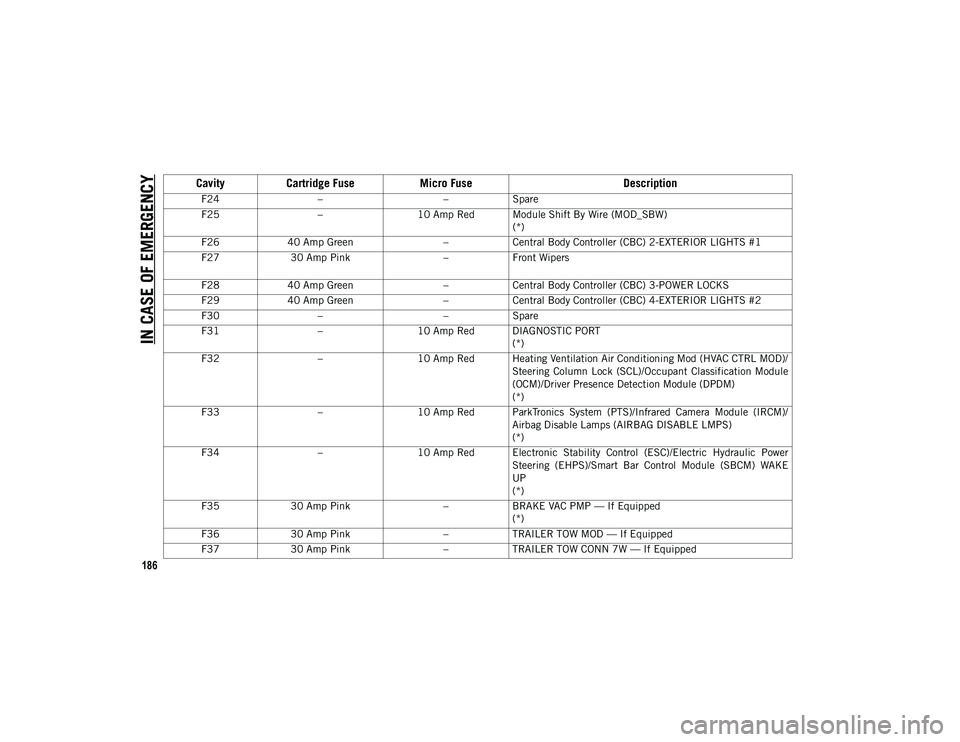

F24– –Spare
F25 –10 Amp Red Module Shift By Wire (MOD_SBW)
(*)
F26 40 Amp Green –Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1
F27 30 Amp Pink –
Front Wipers
F28 40 Amp Green –Central Body Controller (CBC) 3-POWER LOCKS
F29 40 Amp Green –Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2
F30 – –Spare
F31 –10 Amp Red DIAGNOSTIC PORT
(*)
F32 –10 Amp Red Heating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/
Steering Column Lock (SCL)/Occupant Classification Module
(OCM)/Driver Presence Detection Module (DPDM)
(*)
F33 –10 Amp Red ParkTronics System (PTS)/Infrared Camera Module (IRCM)/
Airbag Disable Lamps (AIRBAG DISABLE LMPS)
(*)
F34 –10 Amp Red Electronic Stability Control (ESC)/Electric Hydraulic Power
Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE
UP
(*)
F35 30 Amp Pink –BRAKE VAC PMP — If Equipped
(*)
F36 30 Amp Pink –TRAILER TOW MOD — If Equipped
F37 30 Amp Pink –TRAILER TOW CONN 7W — If Equipped
Cavity Cartridge Fuse Micro Fuse Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 186
Page 189 of 330

187
F38 20 Amp Blue
–Engine Control Module ECM
(*)
F39 – –Spare
F40 –15 Amp Blue DriveTrain Control Module (DTCM)/Axle Lock (AXLE LOC)
FT_RR
(*)
F41 –15 Amp Blue Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP
(*)
F42 –10 Amp Red Power Control Relay Control Feed (Electric Stop/Start)/Spare
(Belt Starter Generator) -- If Equipped
(*)
F43 –20 Amp Yellow PWR OUTLET (CARGO) BATT
(*)
F44 –10 Amp Red InfraRed Camera (IRCAM) HEATERS
(*)
F45 –20 Amp Yellow PWR OUTLET (CARGO) IGN*
(*)
F46 –10 Amp Red AUTO HDLP LVL MOD/LVL MTR/HDLP SW
(*)
F47 – –Spare
F48 – –Spare
F49 –10 Amp Red Occupant Restraint Controller ORC
(*)
F50 –10 Amp Red HD ACC — If Equipped
(*)
CavityCartridge Fuse Micro Fuse Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 187
Page 190 of 330

IN CASE OF EMERGENCY
188
F51–10 Amp Red Digital TV (DSRC)/USB/InSide RearView Mirror (ISRVM)/
Compass Module (CSGM)
F52 –20 Amp Yellow CIGAR LTR
F53 – –Spare
F54 – –Spare
F55 – –Spare
F56 –10 Amp Red IN-CAR TEMP SENSOR
F57 –20 Amp Yellow Frt Drvr Htd Seat
F58 –20 Amp Yellow Frt Pass Htd Seat
F59 – –Spare
F60 –15 Amp Blue Comfort Steering Wheel Module (CSWM) (HTD STR WHEEL)
F61 –10 Amp Red Left Blind Spot Sensor (LBSS)/Right Blind Spot Sensor
(RBSS)
(*)
F62 – –Spare
F63 –10 Amp Red Occupant Restraint Controller (ORC)
(*)
F64 – –Spare
F65 – –Spare
F66 40 Amp Green –HVAC BLOWER MTR FRT
(*)
F67 – –Spare
F68 – –Spare
Cavity Cartridge Fuse Micro Fuse Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 188
