JEEP WRANGLER UNLIMITED 2020 Owner handbook (in English)

249

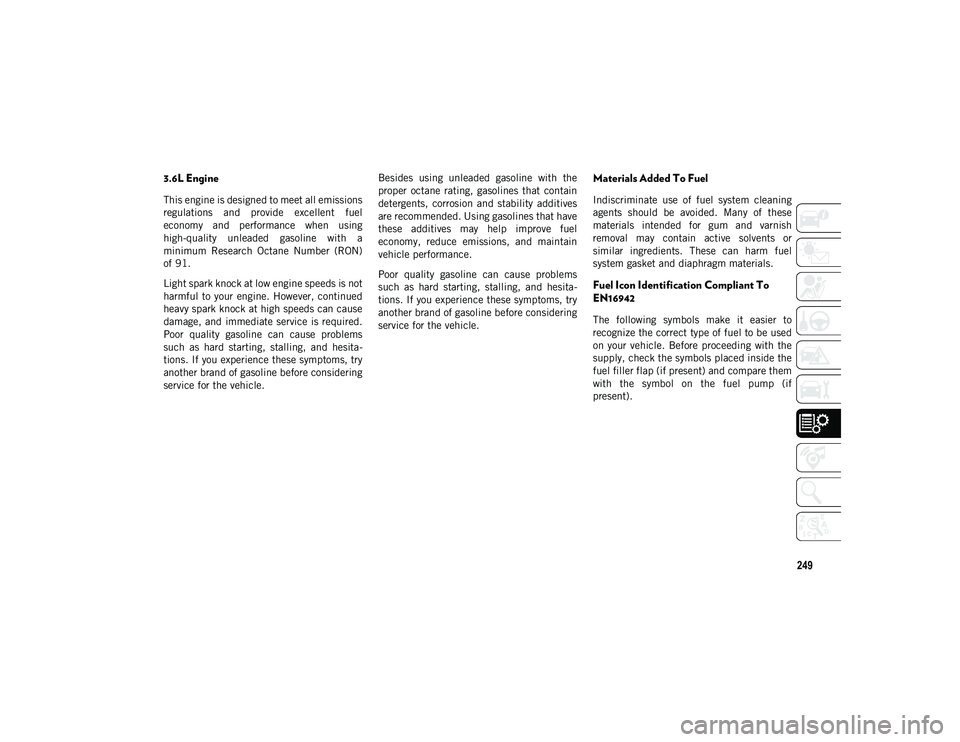

3.6L Engine
This engine is designed to meet all emissions
regulations and provide excellent fuel
economy and performance when using
high-quality unleaded gasoline with a
minimum Research Octane Number (RON)
of 91.
Light spark knock at low engine speeds is not
harmful to your engine. However, continued
heavy spark knock at high speeds can cause
damage, and immediate service is required.
Poor quality gasoline can cause problems
such as hard starting, stalling, and hesita-
tions. If you experience these symptoms, try
another brand of gasoline before considering
service for the vehicle. Besides using unleaded gasoline with the
proper octane rating, gasolines that contain
detergents, corrosion and stability additives
are recommended. Using gasolines that have
these additives may help improve fuel
economy, reduce emissions, and maintain
vehicle performance.
Poor quality gasoline can cause problems
such as hard starting, stalling, and hesita
-
tions. If you experience these symptoms, try
another brand of gasoline before considering
service for the vehicle.
Materials Added To Fuel
Indiscriminate use of fuel system cleaning
agents should be avoided. Many of these
materials intended for gum and varnish
removal may contain active solvents or
similar ingredients. These can harm fuel
system gasket and diaphragm materials.
Fuel Icon Identification Compliant To
EN16942
The following symbols make it easier to
recognize the correct type of fuel to be used
on your vehicle. Before proceeding with the
supply, check the symbols placed inside the
fuel filler flap (if present) and compare them
with the symbol on the fuel pump (if
present).
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 249

TECHNICAL SPECIFICATIONS
250Fuel Icons
What It Means
Unleaded fuel containing up to 2,7% (m/m) oxygen and a maximum ethanol content of 5,0% (V/V) EN228 compliant
fuel
Unleaded fuel containing up to 3,7% (m/m) oxygen and a maximum ethanol content of 10,0% (V/V) EN228
compliant fuel
Compressed Natural Gas and biomethane for automotive applications EN16723 compliant fuel
Liquefied Petroleum Gas for automotive applications EN589 compliant fuel
Diesel fuel containing up to 7% (V/V) Fatty Acid Methyl Esters (FAME) EN590 compliant fuel
Diesel fuel containing up to 10% (V/V) Fatty Acid Methyl Esters (FAME) EN16734 compliant fuel
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 250

251

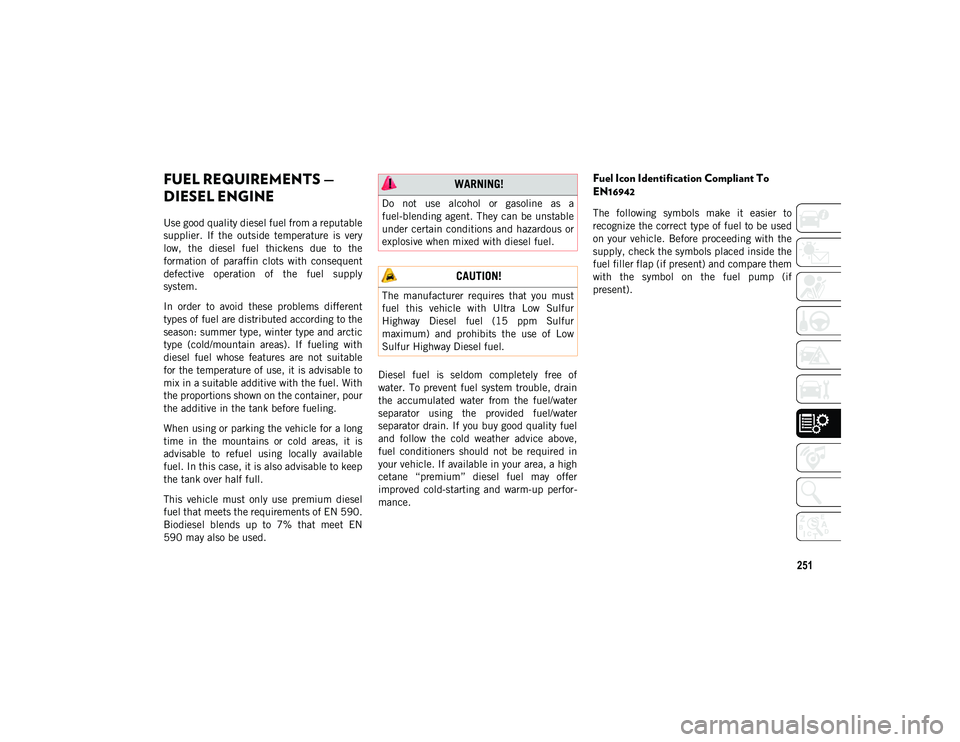

FUEL REQUIREMENTS —
DIESEL ENGINE
Use good quality diesel fuel from a reputable
supplier. If the outside temperature is very
low, the diesel fuel thickens due to the
formation of paraffin clots with consequent
defective operation of the fuel supply
system.
In order to avoid these problems different
types of fuel are distributed according to the
season: summer type, winter type and arctic
type (cold/mountain areas). If fueling with
diesel fuel whose features are not suitable
for the temperature of use, it is advisable to
mix in a suitable additive with the fuel. With
the proportions shown on the container, pour
the additive in the tank before fueling.
When using or parking the vehicle for a long
time in the mountains or cold areas, it is
advisable to refuel using locally available
fuel. In this case, it is also advisable to keep
the tank over half full.
This vehicle must only use premium diesel
fuel that meets the requirements of EN 590.
Biodiesel blends up to 7% that meet EN
590 may also be used.Diesel fuel is seldom completely free of
water. To prevent fuel system trouble, drain
the accumulated water from the fuel/water
separator using the provided fuel/water
separator drain. If you buy good quality fuel
and follow the cold weather advice above,
fuel conditioners should not be required in
your vehicle. If available in your area, a high
cetane “premium” diesel fuel may offer
improved cold-starting and warm-up perfor
-
mance.
Fuel Icon Identification Compliant To
EN16942
The following symbols make it easier to
recognize the correct type of fuel to be used
on your vehicle. Before proceeding with the
supply, check the symbols placed inside the
fuel filler flap (if present) and compare them
with the symbol on the fuel pump (if
present).
WARNING!
Do not use alcohol or gasoline as a
fuel-blending agent. They can be unstable
under certain conditions and hazardous or
explosive when mixed with diesel fuel.
CAUTION!
The manufacturer requires that you must
fuel this vehicle with Ultra Low Sulfur
Highway Diesel fuel (15 ppm Sulfur
maximum) and prohibits the use of Low
Sulfur Highway Diesel fuel.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 251

TECHNICAL SPECIFICATIONS

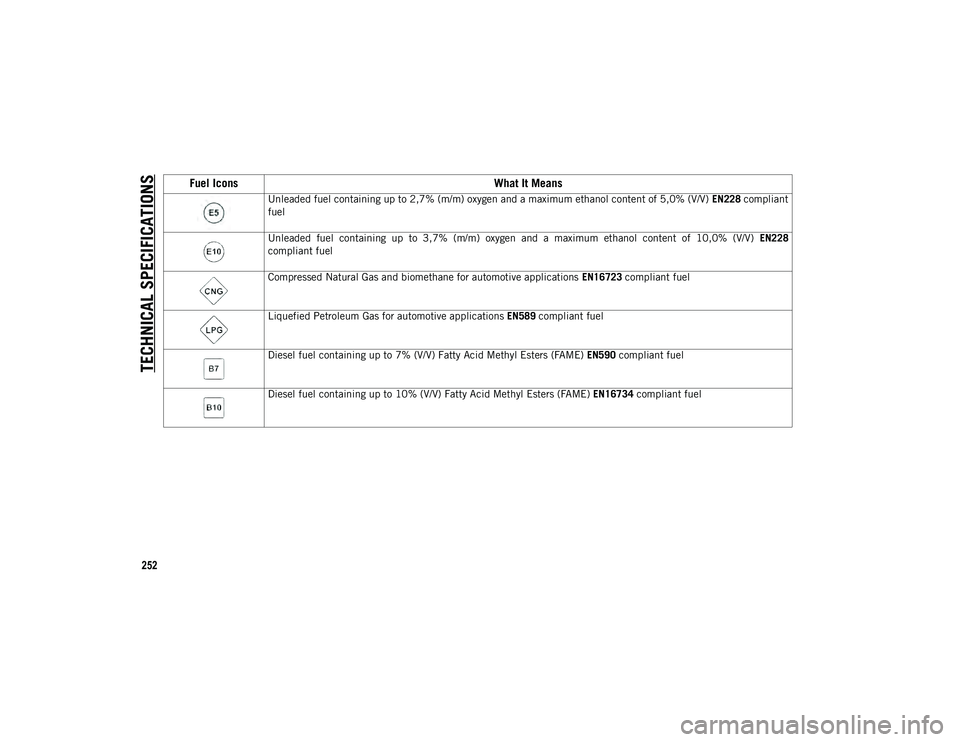

252Fuel Icons
What It Means
Unleaded fuel containing up to 2,7% (m/m) oxygen and a maximum ethanol content of 5,0% (V/V) EN228 compliant
fuel
Unleaded fuel containing up to 3,7% (m/m) oxygen and a maximum ethanol content of 10,0% (V/V) EN228
compliant fuel
Compressed Natural Gas and biomethane for automotive applications EN16723 compliant fuel
Liquefied Petroleum Gas for automotive applications EN589 compliant fuel
Diesel fuel containing up to 7% (V/V) Fatty Acid Methyl Esters (FAME) EN590 compliant fuel
Diesel fuel containing up to 10% (V/V) Fatty Acid Methyl Esters (FAME) EN16734 compliant fuel
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 252

253

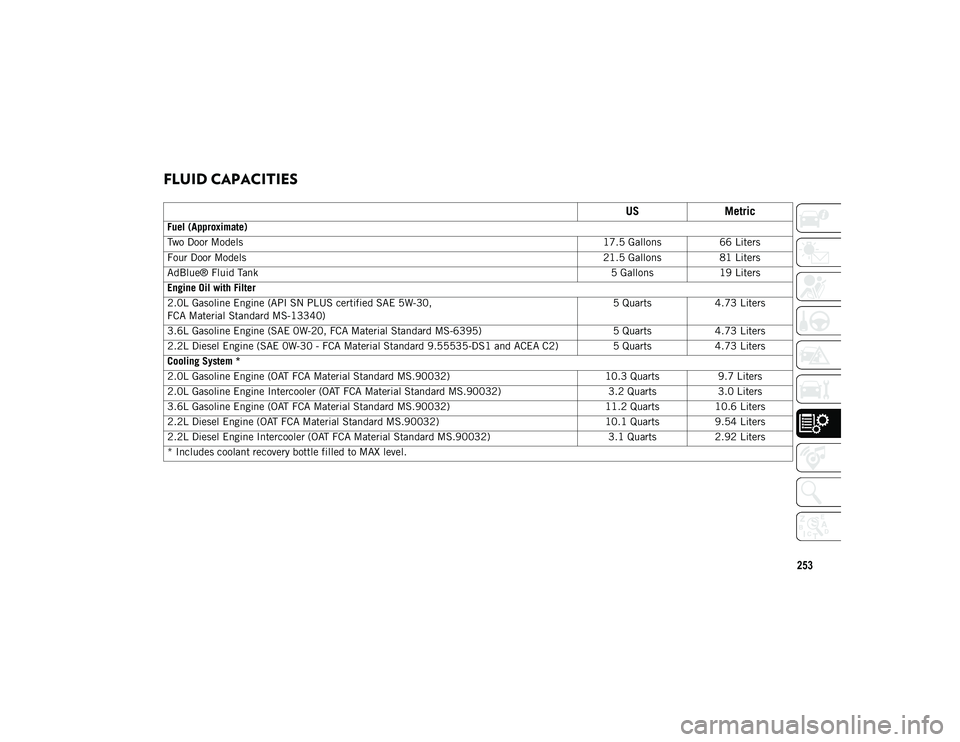

FLUID CAPACITIES
USMetric
Fuel (Approximate)
Two Door Models 17.5 Gallons66 Liters
Four Door Models 21.5 Gallons81 Liters
AdBlue® Fluid Tank 5 Gallons19 Liters
Engine Oil with Filter
2.0L Gasoline Engine (API SN PLUS certified SAE 5W-30,
FCA Material Standard MS-13340) 5 Quarts
4.73 Liters
3.6L Gasoline Engine (SAE 0W-20, FCA Material Standard MS-6395) 5 Quarts4.73 Liters
2.2L Diesel Engine (SAE 0W-30 - FCA Material Standard 9.55535-DS1 and ACEA C2) 5 Quarts4.73 Liters
Cooling System *
2.0L Gasoline Engine (OAT FCA Material Standard MS.90032) 10.3 Quarts9.7 Liters
2.0L Gasoline Engine Intercooler (OAT FCA Material Standard MS.90032) 3.2 Quarts3.0 Liters
3.6L Gasoline Engine (OAT FCA Material Standard MS.90032) 11.2 Quarts10.6 Liters
2.2L Diesel Engine (OAT FCA Material Standard MS.90032) 10.1 Quarts9.54 Liters
2.2L Diesel Engine Intercooler (OAT FCA Material Standard MS.90032) 3.1 Quarts2.92 Liters
* Includes coolant recovery bottle filled to MAX level.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 253

TECHNICAL SPECIFICATIONS
254

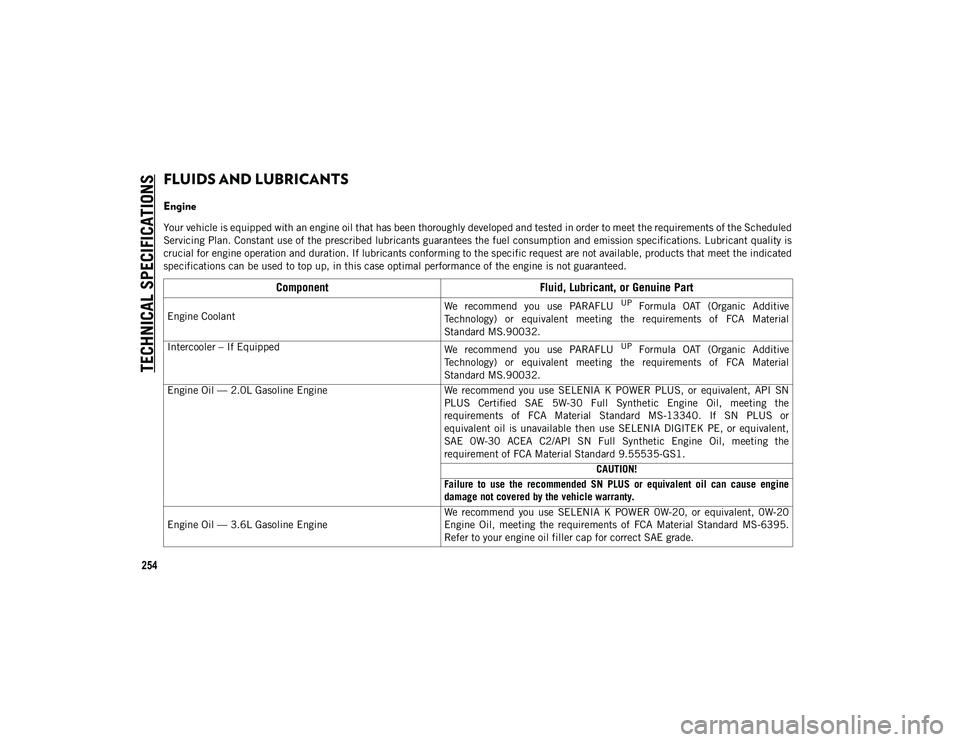

FLUIDS AND LUBRICANTS
Engine
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the Scheduled
Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration. If lubricants conforming to the specific request are not available, products that meet the indicated
specifications can be used to top up, in this case optimal performance of the engine is not guaranteed.
ComponentFluid, Lubricant, or Genuine Part
Eng

ine Coolant We recommend you use PARAFLU UP Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of FCA Material
Standard MS.90032.
Intercooler – If Equipped We recommend you use PARAFLU
UP Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of FCA Material
Standard MS.90032.
Engine Oil — 2.0L Gasoline Engine We recommend you use SELENIA K POWER PLUS, or equivalent, API SN
PLUS Certified SAE 5W-30 Full Synthetic Engine Oil, meeting the
requirements of FCA Material Standard MS-13340. If SN PLUS or
equivalent oil is unavailable then use SELENIA DIGITEK PE, or equivalent,
SAE 0W-30 ACEA C2/API SN Full Synthetic Engine Oil, meeting the
requirement of FCA Material Standard 9.55535-GS1.
CAUTION!
Failure to use the recommended SN PLUS or equivalent oil can cause engine
damage not covered by the vehicle warranty.
Engine Oil — 3.6L Gasoline Engine We recommend you use SELENIA K POWER 0W-20, or equivalent, 0W-20
Engine Oil, meeting the requirements of FCA Material Standard MS-6395.
Refer to your engine oil filler cap for correct SAE grade.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 254

255

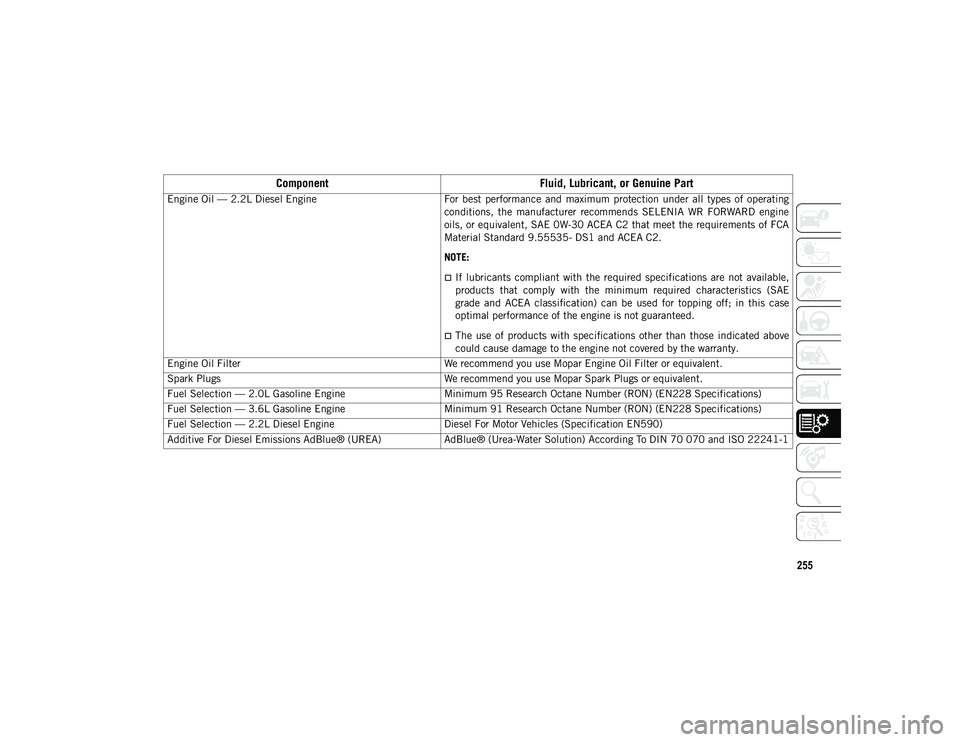

Engine Oil — 2.2L Diesel EngineFor best performance and maximum protection under all types of operating
conditions, the manufacturer recommends SELENIA WR FORWARD engine
oils, or equivalent, SAE 0W-30 ACEA C2 that meet the requirements of FCA
Material Standard 9.55535- DS1 and ACEA C2.
NOTE:
If lubricants compliant with the required specifications are not available,
products that comply with the minimum required characteristics (SAE
grade and ACEA classification) can be used for topping off; in this case
optimal performance of the engine is not guaranteed.
The use of products with specifications other than those indicated above
could cause damage to the engine not covered by the warranty.
Engine Oil Filter We recommend you use Mopar Engine Oil Filter or equivalent.
Spark Plugs We recommend you use Mopar Spark Plugs or equivalent.
Fuel Selection — 2.0L Gasoline Engine Minimum 95 Research Octane Number (RON) (EN228 Specifications)
Fuel Selection — 3.6L Gasoline Engine Minimum 91 Research Octane Number (RON) (EN228 Specifications)
Fuel Selection — 2.2L Diesel Engine Diesel For Motor Vehicles (Specification EN590)
Additive For Diesel Emissions AdBlue® (UREA) AdBlue® (Urea-Water Solution) According To DIN 70 070 and ISO 22241-1
ComponentFluid, Lubricant, or Genuine Part
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 255

TECHNICAL SPECIFICATIONS
256
(Continued)
(Continued)

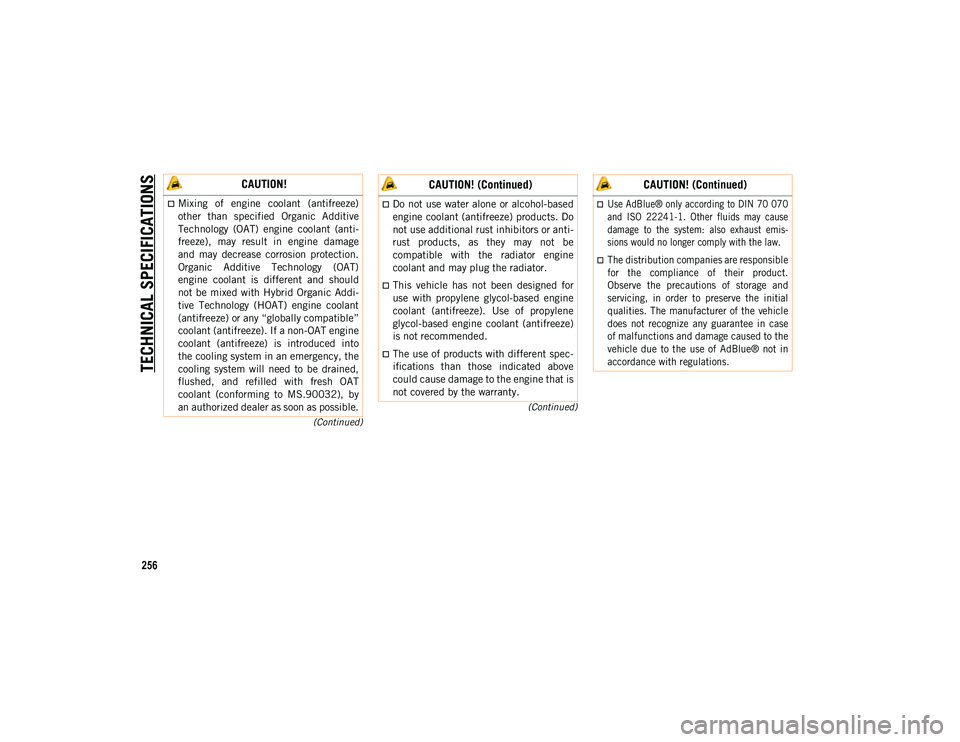

CAUTION!
Mixing of engine coolant (antifreeze)
other than specified Organic Additive
Technology (OAT) engine coolant (anti -
freeze), may result in engine damage
and may decrease corrosion protection.
Organic Additive Technology (OAT)
engine coolant is different and should
not be mixed with Hybrid Organic Addi -
tive Technology (HOAT) engine coolant
(antifreeze) or any “globally compatible”
coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into
the cooling system in an emergency, the
cooling system will need to be drained,
flushed, and refilled with fresh OAT
coolant (conforming to MS.90032), by
an authorized dealer as soon as possible.Do not use water alone or alcohol-based
engine coolant (antifreeze) products. Do
not use additional rust inhibitors or anti -
rust products, as they may not be
compatible with the radiator engine
coolant and may plug the radiator.
This vehicle has not been designed for
use with propylene glycol-based engine
coolant (antifreeze). Use of propylene
glycol-based engine coolant (antifreeze)
is not recommended.
The use of products with different spec-
ifications than those indicated above
could cause damage to the engine that is
not covered by the warranty.
CAUTION! (Continued)

Use AdBlue® only according to DIN 70 070
and ISO 22241-1. Other fluids may cause
damage to the system: also exhaust emis -
sions would no longer comply with the law.

The distribution companies are responsible
for the compliance of their product.
Observe the precautions of storage and
servicing, in order to preserve the initial
qualities. The manufacturer of the vehicle
does not recognize any guarantee in case
of malfunctions and damage caused to the
vehicle due to the use of AdBlue® not in
accordance with regulations.

CAUTION! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 256

257

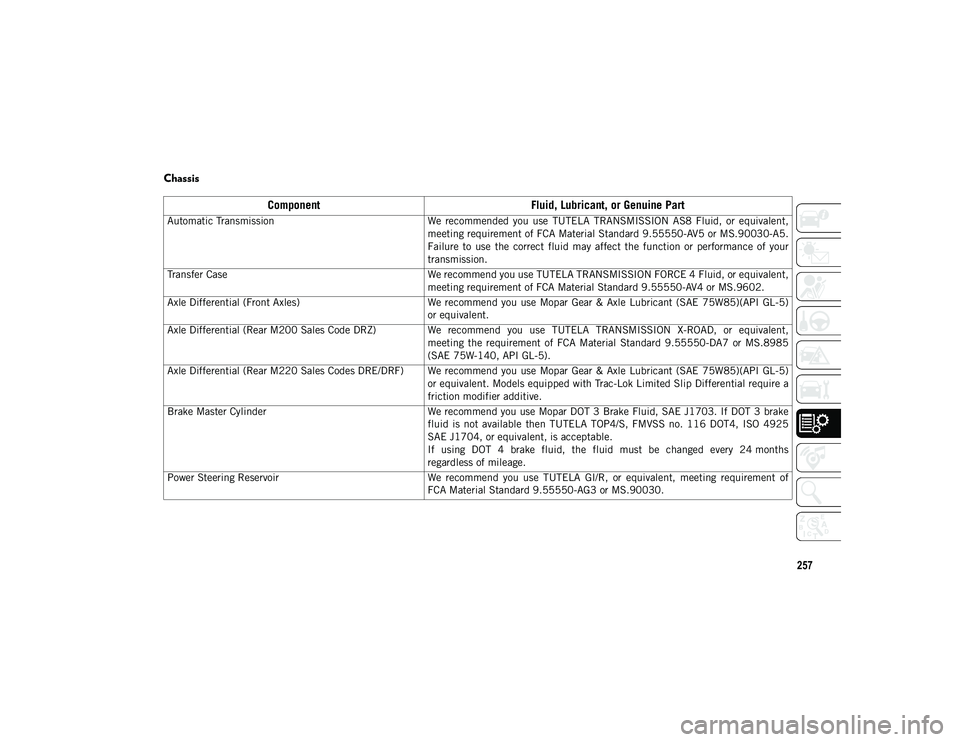

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission We recommended you use TUTELA TRANSMISSION AS8 Fluid, or equivalent,
meeting requirement of FCA Material Standard 9.55550-AV5 or MS.90030-A5.
Failure to use the correct fluid may affect the function or performance of your
transmission.
Transfer Case We recommend you use TUTELA TRANSMISSION FORCE 4 Fluid, or equivalent,
meeting requirement of FCA Material Standard 9.55550-AV4 or MS.9602.
Axle Differential (Front Axles) We recommend you use Mopar Gear & Axle Lubricant (SAE 75W85)(API GL-5)
or equivalent.
Axle Differential (Rear M200 Sales Code DRZ) We recommend you use TUTELA TRANSMISSION X-ROAD, or equivalent,
meeting the requirement of FCA Material Standard 9.55550-DA7 or MS.8985
(SAE 75W-140, API GL-5).
Axle Differential (Rear M220 Sales Codes DRE/DRF) We recommend you use Mopar Gear & Axle Lubricant (SAE 75W85)(API GL-5) or equivalent. Models equipped with Trac-Lok Limited Slip Differential require a
friction modifier additive.
Brake Master Cylinder We recommend you use Mopar DOT 3 Brake Fluid, SAE J1703. If DOT 3 brake
fluid is not available then TUTELA TOP4/S, FMVSS no. 116 DOT4, ISO 4925
SAE J1704, or equivalent, is acceptable.
If using DOT 4 brake fluid, the fluid must be changed every 24 months
regardless of mileage.
Power Steering Reservoir We recommend you use TUTELA GI/R, or equivalent, meeting requirement of
FCA Material Standard 9.55550-AG3 or MS.90030.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 257

TECHNICAL SPECIFICATIONS
258

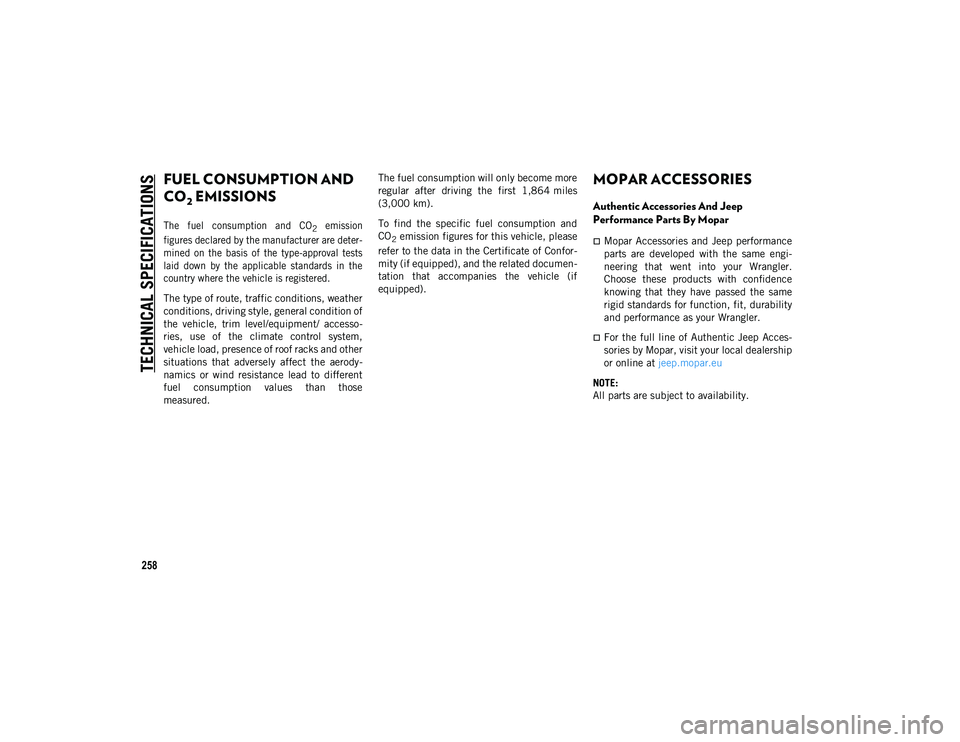

FUEL CONSUMPTION AND
CO
2 EMISSIONS

The fuel consumption and CO2 emission
figures declared by the manufacturer are deter -
mined on the basis of the type-approval tests
laid down by the applicable standards in the
country where the vehicle is registered.

The type of route, traffic conditions, weather
conditions, driving style, general condition of
the vehicle, trim level/equipment/ accesso -
ries, use of the climate control system,
vehicle load, presence of roof racks and other
situations that adversely affect the aerody -
namics or wind resistance lead to different
fuel consumption values than those
measured. The fuel consumption will only become more
regular after driving the first 1,864 miles
(3,000 km).
To find the specific fuel consumption and
CO
2 emission figures for this vehicle, please
refer to the data in the Certificate of Confor -
mity (if equipped), and the related documen -
tation that accompanies the vehicle (if
equipped).
MOPAR ACCESSORIES
Authentic Accessories And Jeep
Performance Parts By Mopar
Mopar Accessories and Jeep performance
parts are developed with the same engi -
neering that went into your Wrangler.
Choose these products with confidence
knowing that they have passed the same
rigid standards for function, fit, durability
and performance as your Wrangler.
For the full line of Authentic Jeep Acces-
sories by Mopar, visit your local dealership
or online at jeep.mopar.eu
NOTE:
All parts are subject to availability.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 258
