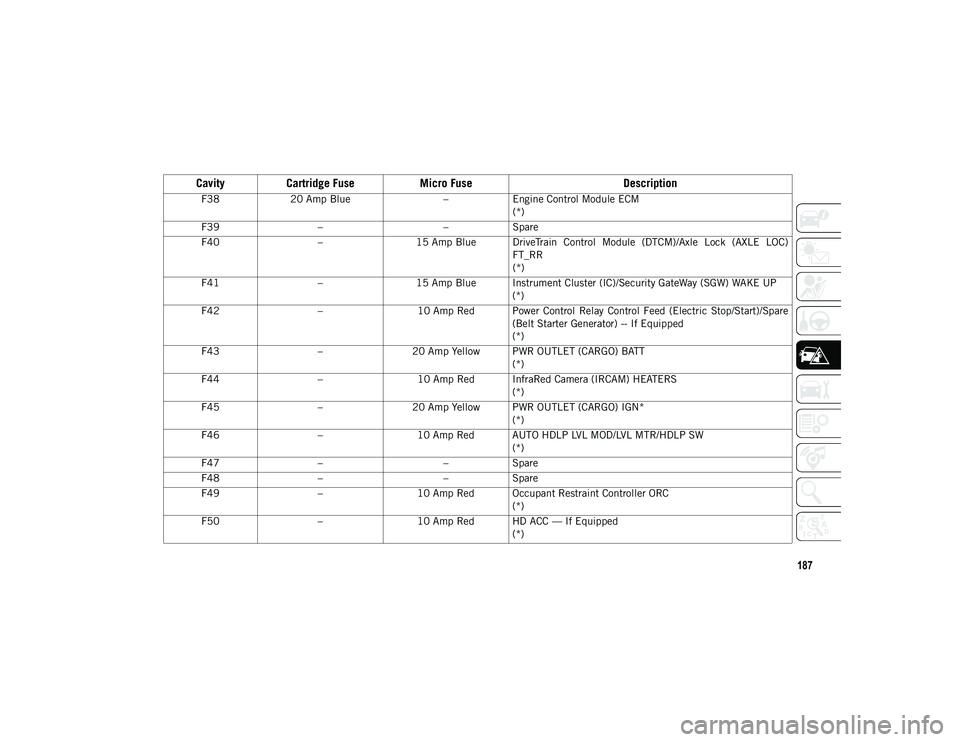

187
F38 20 Amp Blue
–Engine Control Module ECM
(*)
F39 – –Spare
F40 –15 Amp Blue DriveTrain Control Module (DTCM)/Axle Lock (AXLE LOC)
FT_RR
(*)
F41 –15 Amp Blue Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP
(*)
F42 –10 Amp Red Power Control Relay Control Feed (Electric Stop/Start)/Spare
(Belt Starter Generator) -- If Equipped
(*)
F43 –20 Amp Yellow PWR OUTLET (CARGO) BATT
(*)
F44 –10 Amp Red InfraRed Camera (IRCAM) HEATERS
(*)
F45 –20 Amp Yellow PWR OUTLET (CARGO) IGN*
(*)
F46 –10 Amp Red AUTO HDLP LVL MOD/LVL MTR/HDLP SW
(*)
F47 – –Spare
F48 – –Spare
F49 –10 Amp Red Occupant Restraint Controller ORC
(*)
F50 –10 Amp Red HD ACC — If Equipped
(*)
CavityCartridge Fuse Micro Fuse Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 187

IN CASE OF EMERGENCY

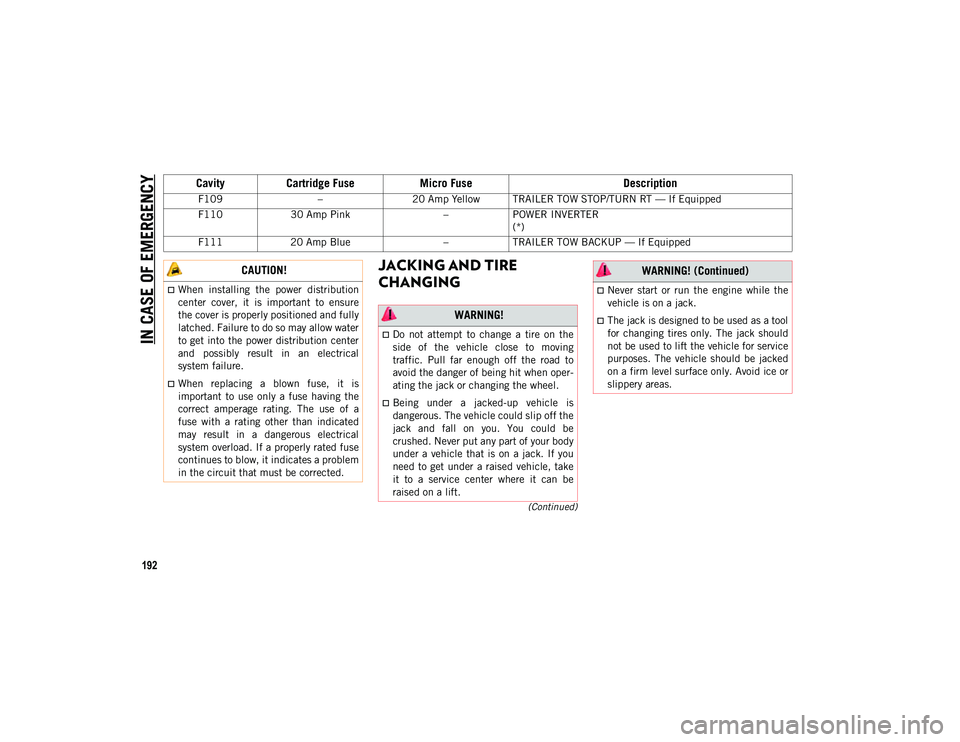

192
(Continued)
JACKING AND TIRE
CHANGING
F109–20 Amp Yellow TRAILER TOW STOP/TURN RT — If Equipped
F110 30 Amp Pink –POWER INVERTER
(*)
F111 20 Amp Blue –TRAILER TOW BACKUP — If Equipped
Cavity Cartridge Fuse Micro Fuse Description
CAUTION!
When installing the power distribution
center cover, it is important to ensure
the cover is properly positioned and fully
latched. Failure to do so may allow water
to get into the power distribution center
and possibly result in an electrical
system failure.
When replacing a blown fuse, it is
important to use only a fuse having the
correct amperage rating. The use of a
fuse with a rating other than indicated
may result in a dangerous electrical
system overload. If a properly rated fuse
continues to blow, it indicates a problem
in the circuit that must be corrected.
WARNING!
Do not attempt to change a tire on the
side of the vehicle close to moving
traffic. Pull far enough off the road to
avoid the danger of being hit when oper-
ating the jack or changing the wheel.
Being under a jacked-up vehicle is
dangerous. The vehicle could slip off the
jack and fall on you. You could be
crushed. Never put any part of your body
under a vehicle that is on a jack. If you
need to get under a raised vehicle, take
it to a service center where it can be
raised on a lift.
Never start or run the engine while the
vehicle is on a jack.
The jack is designed to be used as a tool
for changing tires only. The jack should
not be used to lift the vehicle for service
purposes. The vehicle should be jacked
on a firm level surface only. Avoid ice or
slippery areas.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 192

225
(Continued)
(Continued)
Maintenance-Free Battery
Your vehicle is equipped with a mainte
-
nance-free battery. You will never have to
add water, nor is periodic maintenance
required.
Pressure Washing
WARNING!
Battery fluid is a corrosive acid solution
and can burn or even blind you. Do not
allow battery fluid to contact your eyes,
skin, or clothing. Do not lean over a
battery when attaching clamps. If acid
splashes in eyes or on skin, flush the
area immediately with large amounts of
water. Refer to “Jump Starting Proce-
dure” in “In Case Of Emergency” for
further information.
Battery gas is flammable and explosive.
Keep flame or sparks away from the
battery. Do not use a booster battery or
any other booster source with an output
greater than 12 Volts. Do not allow cable
clamps to touch each other.
Battery posts, terminals, and related
accessories contain lead and lead
compounds. Wash hands after handling.

Vehicles with the Stop/Start system will be
equipped with two batteries. Bot the main
and the supplemental batteries must be
disconnected to completely de-energize the
12 volt electrical system.

Serious injury or death could result if you
do not disconnect both batteries. To
learn how to properly disconnect, see
your authorized dealer.
CAUTION!
It is essential when replacing the cables
on the battery that the positive cable is
attached to the positive post and the
negative cable is attached to the nega-
tive post. Battery posts are marked posi -
tive (+) and negative (-) and are
identified on the battery case. Cable
clamps should be tight on the terminal
posts and free of corrosion.

If a “fast charger” is used while the battery is
in the vehicle, disconnect both vehicle
battery cables before connecting the charger
to the battery. Do not use a “fast charger” to
provide starting voltage.

WARNING! (Continued)
Vehicles with the Stop/Start system will
be equipped with two batteries. Both the
main and the supplemental batteries
must be disconnected to completely
de-energize the 12 volt electrical
system.
If the negative battery cables are not
isolated properly it can cause a potential
power spike or surge in the system,
resulting in damage to essential elec-
trical components.
CAUTION!
Cleaning the engine compartment with a
high pressure washer is not recommended.
Precautions have been taken to safeguard
all parts and connections however, the
pressures generated by these machines is
such that complete protection against
water ingress cannot be guaranteed.
CAUTION! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 225

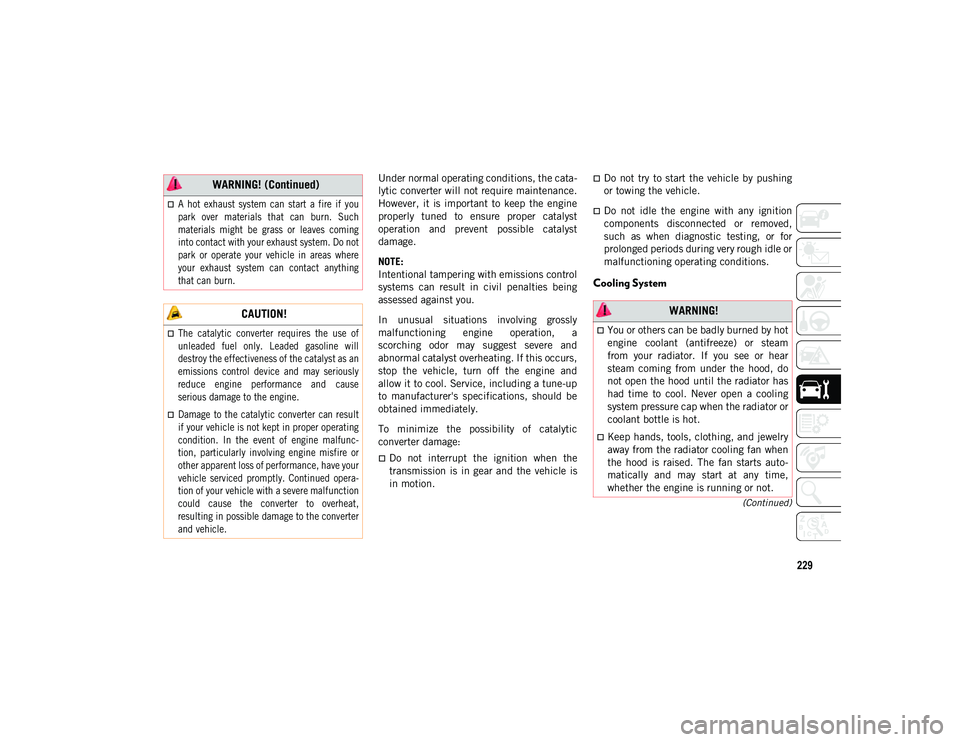

229
(Continued)
Under normal operating conditions, the cata-
lytic converter will not require maintenance.
However, it is important to keep the engine
properly tuned to ensure proper catalyst
operation and prevent possible catalyst
damage.
NOTE:
Intentional tampering with emissions control
systems can result in civil penalties being
assessed against you.
In unusual situations involving grossly
malfunctioning engine operation, a
scorching odor may suggest severe and
abnormal catalyst overheating. If this occurs,
stop the vehicle, turn off the engine and
allow it to cool. Service, including a tune-up
to manufacturer's specifications, should be
obtained immediately.
To minimize the possibility of catalytic
converter damage:
Do not interrupt the ignition when the
transmission is in gear and the vehicle is
in motion.
Do not try to start the vehicle by pushing
or towing the vehicle.
Do not idle the engine with any ignition
components disconnected or removed,
such as when diagnostic testing, or for
prolonged periods during very rough idle or
malfunctioning operating conditions.
Cooling System

A hot exhaust system can start a fire if you
park over materials that can burn. Such
materials might be grass or leaves coming
into contact with your exhaust system. Do not
park or operate your vehicle in areas where
your exhaust system can contact anything
that can burn.

CAUTION!

The catalytic converter requires the use of
unleaded fuel only. Leaded gasoline will
destroy the effectiveness of the catalyst as an
emissions control device and may seriously
reduce engine performance and cause
serious damage to the engine.
Damage to the catalytic converter can result
if your vehicle is not kept in proper operating
condition. In the event of engine malfunc -
tion, particularly involving engine misfire or
other apparent loss of performance, have your
vehicle serviced promptly. Continued opera-
tion of your vehicle with a severe malfunction
could cause the converter to overheat,
resulting in possible damage to the converter
and vehicle.

WARNING! (Continued)
WARNING!
You or others can be badly burned by hot
engine coolant (antifreeze) or steam
from your radiator. If you see or hear
steam coming from under the hood, do
not open the hood until the radiator has
had time to cool. Never open a cooling
system pressure cap when the radiator or
coolant bottle is hot.
Keep hands, tools, clothing, and jewelry
away from the radiator cooling fan when
the hood is raised. The fan starts auto-
matically and may start at any time,
whether the engine is running or not.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 229

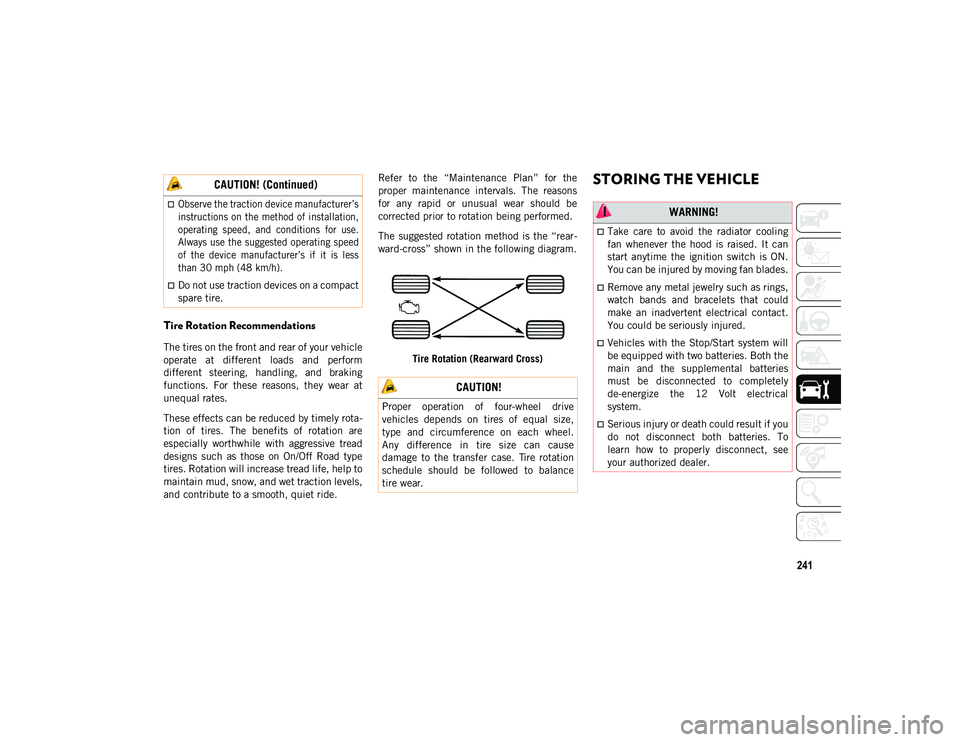

241
Tire Rotation Recommendations
The tires on the front and rear of your vehicle
operate at different loads and perform
different steering, handling, and braking
functions. For these reasons, they wear at
unequal rates.
These effects can be reduced by timely rota-
tion of tires. The benefits of rotation are
especially worthwhile with aggressive tread
designs such as those on On/Off Road type
tires. Rotation will increase tread life, help to
maintain mud, snow, and wet traction levels,
and contribute to a smooth, quiet ride. Refer to the “Maintenance Plan” for the
proper maintenance intervals. The reasons
for any rapid or unusual wear should be
corrected prior to rotation being performed.
The suggested rotation method is the “rear
-
ward-cross” shown in the following diagram.
Tire Rotation (Rearward Cross)
STORING THE VEHICLE

Observe the traction device manufacturer’s
instructions on the method of installation,
operating speed, and conditions for use.
Always use the suggested operating speed
of the device manufacturer’s if it is less
than 30 mph (48 km/h).

Do not use traction devices on a compact
spare tire.
CAUTION! (Continued)
CAUTION!
Proper operation of four-wheel drive
vehicles depends on tires of equal size,
type and circumference on each wheel.
Any difference in tire size can cause
damage to the transfer case. Tire rotation
schedule should be followed to balance
tire wear.
WARNING!
Take care to avoid the radiator cooling
fan whenever the hood is raised. It can
start anytime the ignition switch is ON.
You can be injured by moving fan blades.
Remove any metal jewelry such as rings,
watch bands and bracelets that could
make an inadvertent electrical contact.
You could be seriously injured.
Vehicles with the Stop/Start system will
be equipped with two batteries. Both the
main and the supplemental batteries
must be disconnected to completely
de-energize the 12 Volt electrical
system.
Serious injury or death could result if you
do not disconnect both batteries. To
learn how to properly disconnect, see
your authorized dealer.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 241

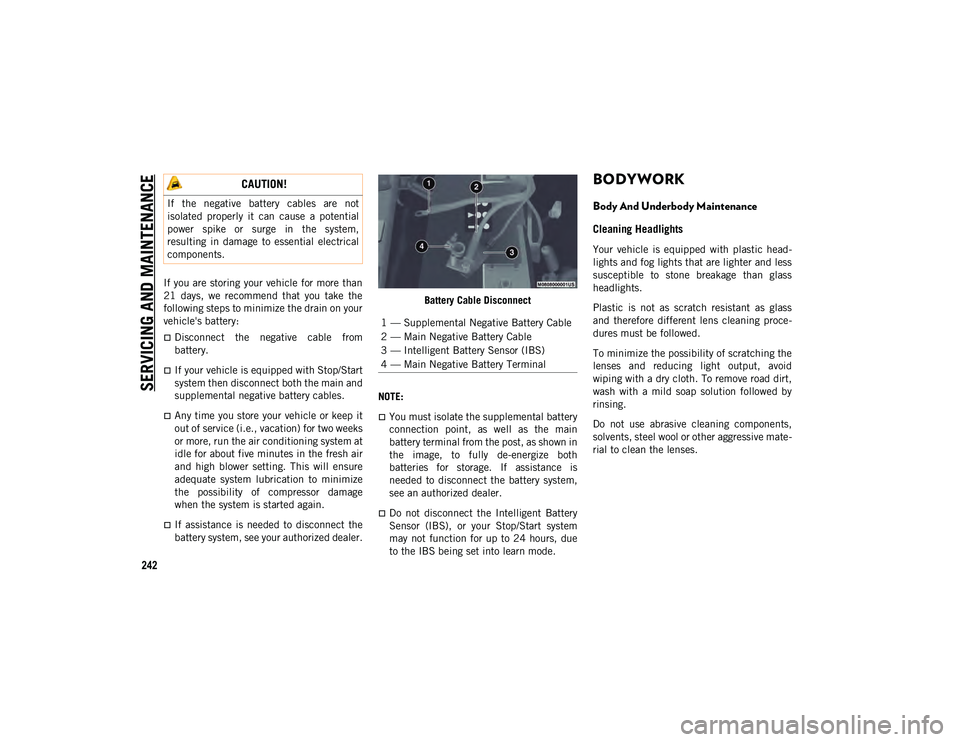

SERVICING AND MAINTENANCE
242
If you are storing your vehicle for more than
21 days, we recommend that you take the
following steps to minimize the drain on your
vehicle's battery:
Disconnect the negative cable from
battery.
If your vehicle is equipped with Stop/Start
system then disconnect both the main and
supplemental negative battery cables.
Any time you store your vehicle or keep it
out of service (i.e., vacation) for two weeks
or more, run the air conditioning system at
idle for about five minutes in the fresh air
and high blower setting. This will ensure
adequate system lubrication to minimize
the possibility of compressor damage
when the system is started again.
If assistance is needed to disconnect the
battery system, see your authorized dealer.Battery Cable Disconnect
NOTE:
You must isolate the supplemental battery
connection point, as well as the main
battery terminal from the post, as shown in
the image, to fully de-energize both
batteries for storage. If assistance is
needed to disconnect the battery system,
see an authorized dealer.
Do not disconnect the Intelligent Battery
Sensor (IBS), or your Stop/Start system
may not function for up to 24 hours, due
to the IBS being set into learn mode.
BODYWORK
Body And Underbody Maintenance
Cleaning Headlights
Your vehicle is equipped with plastic head -
lights and fog lights that are lighter and less
susceptible to stone breakage than glass
headlights.
Plastic is not as scratch resistant as glass
and therefore different lens cleaning proce -
dures must be followed.
To minimize the possibility of scratching the
lenses and reducing light output, avoid
wiping with a dry cloth. To remove road dirt,
wash with a mild soap solution followed by
rinsing.
Do not use abrasive cleaning components,
solvents, steel wool or other aggressive mate -
rial to clean the lenses.
CAUTION!
If the negative battery cables are not
isolated properly it can cause a potential
power spike or surge in the system,
resulting in damage to essential electrical
components.
1 — Supplemental Negative Battery Cable
2 — Main Negative Battery Cable
3 — Intelligent Battery Sensor (IBS)
4 — Main Negative Battery Terminal
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 242

320
INDEX
C
Camera, Rear .................................... 167
Capacities, Fluid................................ 253
Caps, FillerFuel ...................................... 169 , 170
Oil (Engine) ................................... 221
Car Washes ....................................... 243
Carbon Monoxide Warning .................. 135
Center High Mounted Stop Light ......... 183
Certification Label ............................. 174
Chains, Tire ...................................... 240
Change Oil Indicator ............................ 61
Changing A Flat Tire .......................... 232
Checking Your Vehicle For Safety ........ 135
Checks, Safety .................................. 135
Cleaning Wheels .......................................... 239
Climate Control Automatic........................................ 37
Clock Settings ................................... 261
Compact Spare Tire ........................... 238
Connector UCI ............................................... 280
Universal Consumer Interface (UCI) ........................... 280
Cooling System .................................. 229 Cooling Capacity ............................ 253Inspection ..................................... 230
Selection Of Coolant (Antifreeze) ........................ 253 , 254 Cruise Control (Speed Control) ............ 158
Cruise Light ...................................74
, 76
Customer Assistance .......................... 304
Cybersecurity .................................... 260
D
Daytime Running Lights ....................... 32
Dealer Service ................................... 226
Defroster, Windshield......................... 136
Delay (Intermittent) Wipers .................. 35
Diagnostic System, Onboard ................. 77
Diesel Display Messages ............................. 62
Dimmer Switch Headlight ........................................ 32
Dipsticks Oil (Engine) ................................... 224
Disabled Vehicle Towing .................... 207
Do Not Disturb ...........................292 , 301
Door Ajar .......................................66 , 68
Door Ajar Light ...............................66 , 68
Doors ................................................. 18 Removal.....................................21 , 23
Removal, Front ................................ 21
Removal, Rear ................................. 23
Drag And Drop Menu ..................264 , 269
Driver’s Seat Back Tilt ......................... 24
Dual Top .......................................47 , 53 E
Electric Brake Control System ...............79
Anti-Lock Brake System ....................78
Electronic Roll Mitigation ............ 80 , 87

Electrical Outlet, Auxiliary (Power Outlet) .. 56

Electrical Power Outlets ........................56
Electronic Speed Control
(Cruise Control) ..................................157
Electronic Stability Control (ESC) ..........80
Electronic Throttle Control Warning
Light ...................................................66
Emergency, In Case Of Jacking .................................. 192 , 232
Jump Starting ................................201
Emissions..........................................258
Engine ..............................................221 Break-In Recommendations .............143Compartment ................. 221 , 222 , 223
Compartment Identification .............. 221 , 222 , 223
Coolant (Antifreeze) ........................254
Cooling ..........................................229 Exhaust Gas Caution .......................135
Fuel Requirements ................. 248 , 253
Jump Starting ................................201
Oil ........................................ 253 , 254
Oil Filler Cap ..................................221
Oil Selection ..................................253
Overheating....................................204
Starting .........................................138
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 320

322
INDEX
I
Ignition ............................................... 12Switch ............................................ 12
Installation.......................................... 51
Installing ............................................ 53
Instrument Cluster ............................... 61 Descriptions .................................... 74
Display ............................................ 60
Menu Items ..................................... 61
Instrument Panel Lens Cleaning .......... 246
Integrated Power Module (Fuses)......... 184
Interior Appearance Care .................... 245
Intermittent Wipers (Delay Wipers) ........ 35
Introduction .......................................... 1
Inverter Power.............................................. 57
J
Jack Location .................................... 193
Jack Operation .......................... 195 , 232
Jacking Instructions ........................... 195
Jump Starting ................................... 201 K
Key Fob
Arm The System .............................. 15
Disarm The System .......................... 15
Keyless Enter-N-Go.............................. 18 Passive Entry ................................... 18
Keys................................................... 11 Replacement ................................... 12
L
Lap/Shoulder Belts ............................ 100
Latches ............................................ 137 Hood .............................................. 55
Leaks, Fluid ...................................... 137
Leveling Headlights....................................... 34
Life Of Tires...................................... 235
Light Bulbs ................................137 , 179
Lights............................................... 137 Air Bag ............................ 65 , 105 , 136
Automatic Headlights ....................... 33
Brake Assist Warning........................ 82
Brake Warning ................................. 65
Bulb Replacement ..................179 , 181
Center Mounted Stop ..................... 183 Cruise ........................................74 , 76 Daytime Running ..............................32
Dimmer Switch, Headlight.................32
Electronic Stability Program (ESP)
Indicator ......................................67
Engine Temperature Warning .............67 Exterior.................................... 32 , 137
Fog ......................................... 72 , 182
Hazard Warning Flasher ..................179
Headlight Leveling ............................34
Headlights .....................................181
High Beam.......................................32
High Beam/Low Beam Select .............32 Hill Descent Control Indicator ............83Lights On Reminder ..........................34
Malfunction Indicator (Check Engine) .............................69
Park ................................................74
Passing............................................33 Rear Servicing ................................182
Rear Tail Lamps .............................182
Seat Belt Reminder .............. 67 , 74 , 75
Security Alarm .................................68
Service .................................. 179 , 181
Side Marker ...................................182
Tire Pressure Monitoring (TPMS) ........92
Traction Control................................82
Turn Signal ....................................137
Turn Signals..................... 74 , 181 , 182
Warning Instrument Cluster Descriptions ........................... 67 , 74
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 322

325
Speed ControlAccel/Decel (ACC Only) ................... 159
Cancel .......................................... 158
Resume......................................... 158
Speed Control (Cruise Control) .... 157 , 158
Speed Limiter, Active ......................... 156
Starting ............................................ 138 Button ............................................ 12
Remote ........................................... 14
Starting And Operating ....................... 138
Starting Procedures ........................... 138
Steering .............................................. 31 Tilt Column ..................................... 31
Wheel, Heated ................................. 31
Wheel, Tilt....................................... 31
Steering Wheel Audio Controls ............ 279
Steering Wheel Mounted Sound System
Controls ............................................ 279
Stop/Start ......................................... 153
Storage, Vehicle .......................... 45 , 241
Storing Your Vehicle........................... 241
Stuck, Freeing ................................... 206
Sun Roof ............................................ 53
Sway Bar Disconnect Electronic ...................................... 152
Sway Control, Trailer ............................ 86
Swing Gate, Rear ................................. 55
System, Remote Starting ...................... 14 T
Telescoping Steering Column................ 31
Temperature Control, Automatic (ATC) .. 44
Text Messages ................................... 292
Tilt Steering Column ............................ 31
Tip Start ........................................... 141
Tires ......................... 137
, 232 , 237 , 238
Aging (Life Of Tires) ....................... 235
Air Pressure................................... 232
Chains .......................................... 240
Changing................................192 , 232
Compact Spare .............................. 238
General Information ........ 232 , 237 , 238
High Speed ................................... 234
Inflation Pressure........................... 233
Jacking ......................................... 232
Life Of Tires .................................. 235
Pressure Monitoring System (TPMS) .......................70 , 92
Radial........................................... 234
Replacement ................................. 236
Rotation ........................................ 241
Safety ........................................... 232
Snow Tires .................................... 237
Spare Tires..................... 193 , 237 , 238
Spinning ....................................... 235
Tread Wear Indicators .................... 235 Wheel Nut Torque .......................... 247 To Open Hood......................................55
Top
Dual .......................................... 47 , 53
Freedom ..........................................51
Hard................................................51
Power Sliding ...................................53
Removable ........................... 47 , 51 , 53
Soft ........................................... 47 , 53
Towing ...................................... 175 , 207
Disabled Vehicle .............................207
Recreational...................................176
Weight...........................................175
Towing Behind A Motorhome ...............176
Towing Eyes ......................................208
Trac-Lok Rear Axle .......................................151
Traction Control ...................................87
Traction Control Switch ........................87
Trailer Sway Control (TSC) ....................86
Trailer Towing ....................................175 Trailer And Tongue Weight...............175
Trailer Towing Guide ..........................175
Trailer Weight ....................................175
Transfer Case Fluid .............................................257Four-Wheel-Drive-Operation ..... 146 , 148
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 325
