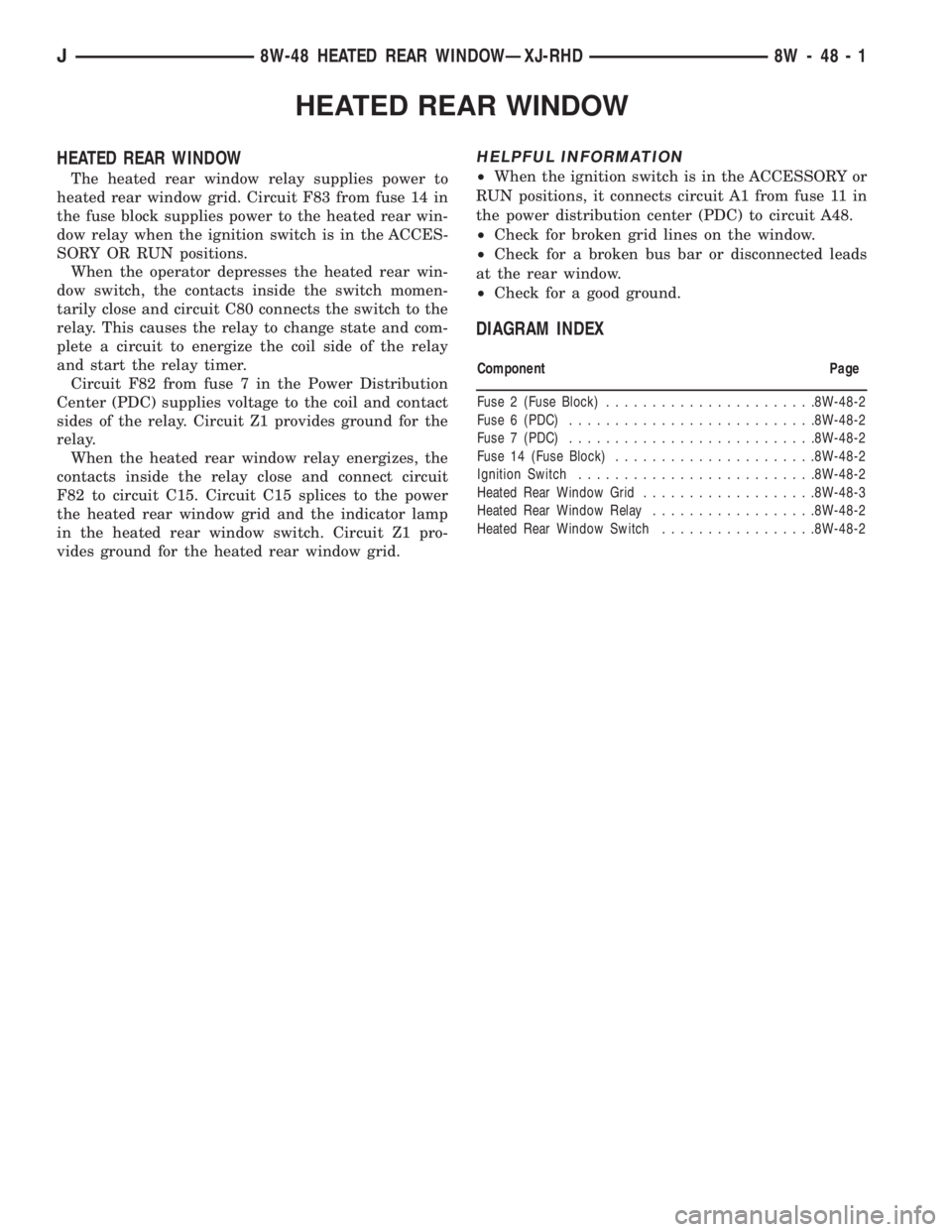

JEEP YJ 1995  Service And Repair Manual HEATED REAR WINDOW
HEATED REAR WINDOW
The heated rear window relay supplies power to
heated rear window grid. Circuit F83 from fuse 14 in
the fuse block supplies power to the heated rear win-
dow rela

Page 932 of 2158

JEEP YJ 1995  Service And Repair Manual

Page 933 of 2158

JEEP YJ 1995  Service And Repair Manual

Page 934 of 2158

JEEP YJ 1995  Service And Repair Manual

Page 935 of 2158

JEEP YJ 1995  Service And Repair Manual OVERHEAD CONSOLE
OVERHEAD CONSOLE
When the ignition switch is in the START or RUN
position, it connects circuit A1 from fuse 6 in the
Power Distribution Center (PDC) to circuit A21. Cir-
cuit A21 supp

Page 936 of 2158

JEEP YJ 1995  Service And Repair Manual

Page 937 of 2158

JEEP YJ 1995  Service And Repair Manual

Page 938 of 2158

JEEP YJ 1995  Service And Repair Manual

Page 939 of 2158

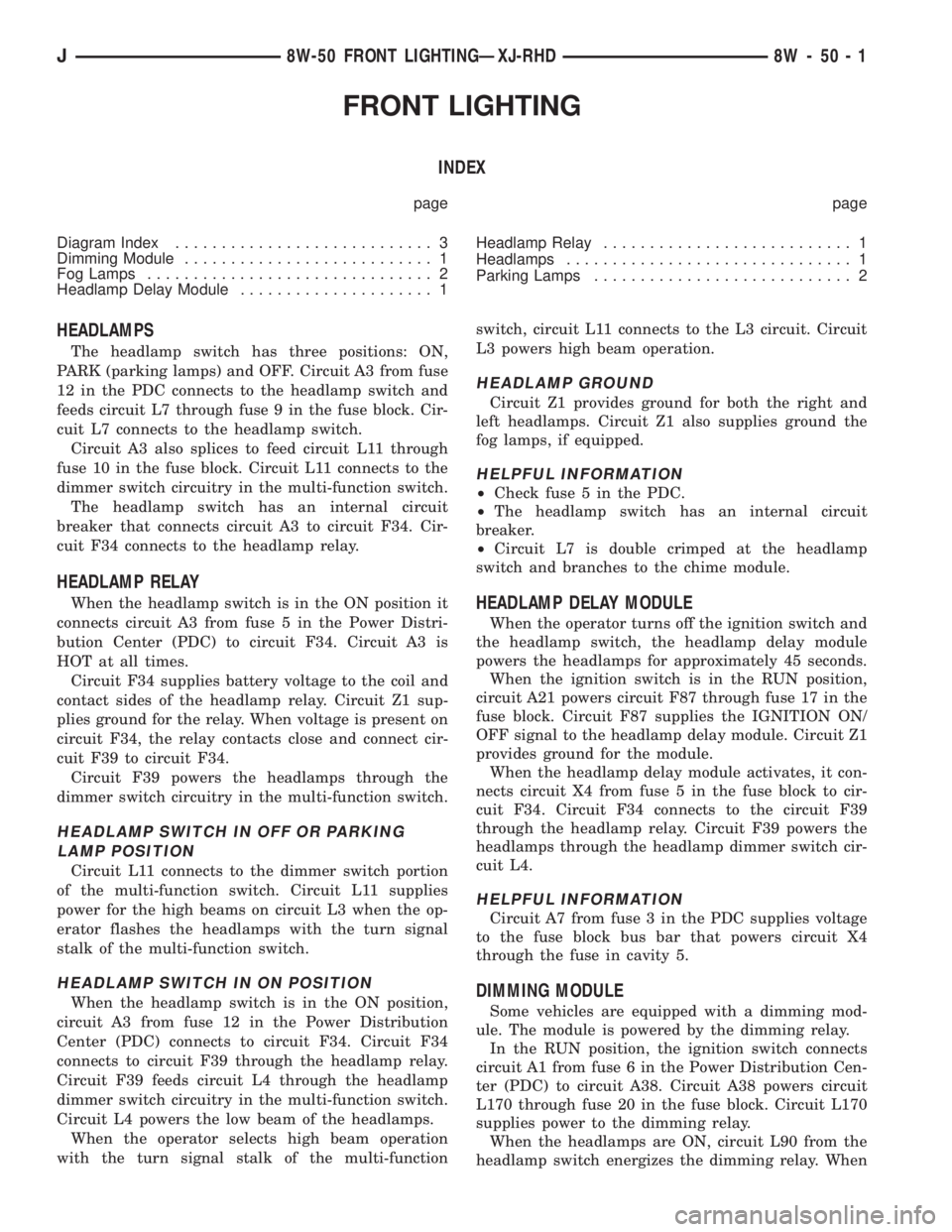

JEEP YJ 1995  Service And Repair Manual FRONT LIGHTING
INDEX
page page
Diagram Index............................ 3
Dimming Module........................... 1
Fog Lamps............................... 2
Headlamp Delay Module.................

Page 940 of 2158

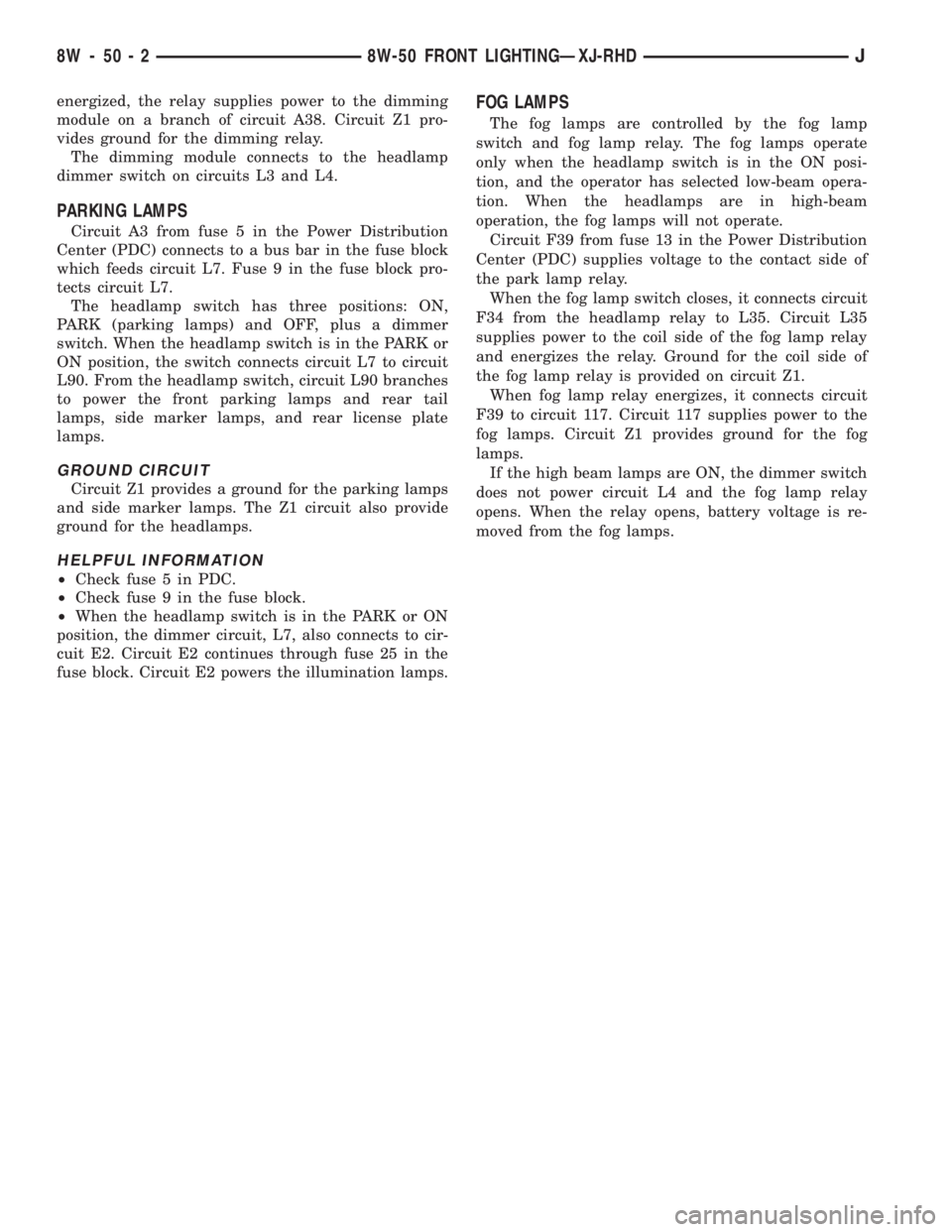

JEEP YJ 1995  Service And Repair Manual energized, the relay supplies power to the dimming
module on a branch of circuit A38. Circuit Z1 pro-
vides ground for the dimming relay.
The dimming module connects to the headlamp
dimmer switch on c
