Features of your vehicle
122
4

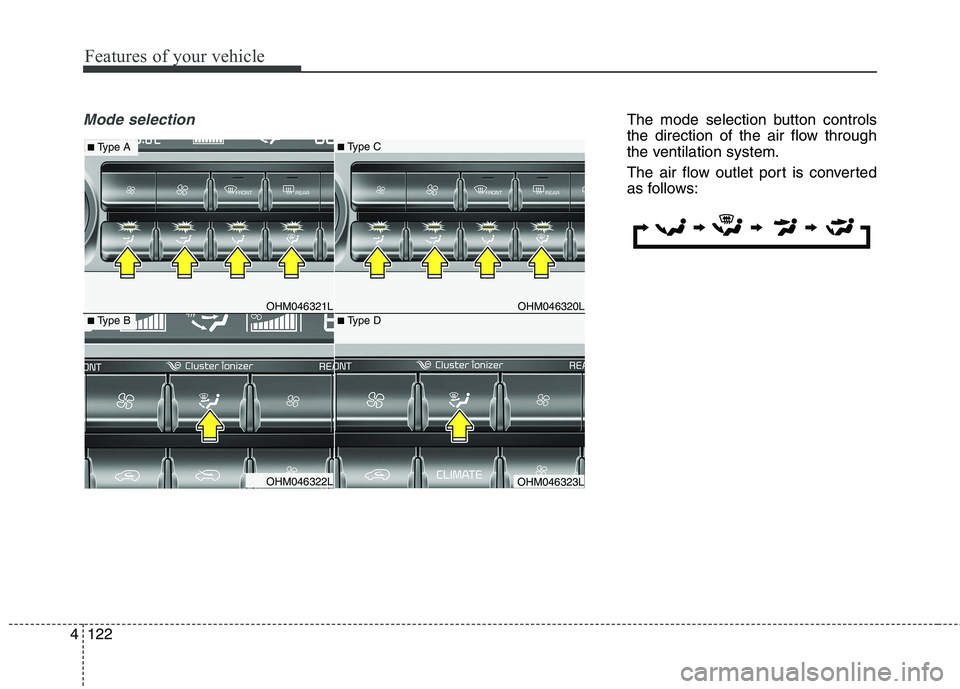

Mode selectionThe mode selection button controls
the direction of the air flow through
the ventilation system.
The air flow outlet port is converted
as follows:
OHM046320LOHM046321L
■ Type C■Type A
OHM046323L
■ Type D■Type B
OHM046322L

4123
Features of your vehicle

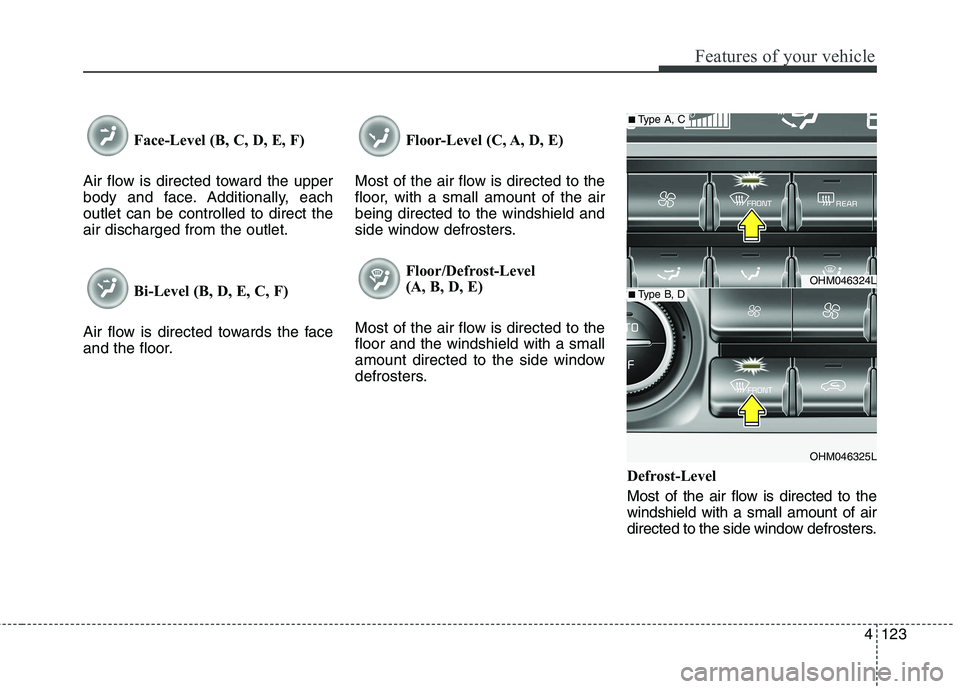

Face-Level (B, C, D, E, F)
Air flow is directed toward the upper
body and face. Additionally, eachoutlet can be controlled to direct theair discharged from the outlet.
Bi-Level (B, D, E, C, F)
Air flow is directed towards the face
and the floor. Floor-Level (C, A, D, E)
Most of the air flow is directed to the
floor, with a small amount of the airbeing directed to the windshield and
side window defrosters. Floor/Defrost-Level
(A, B, D, E)
Most of the air flow is directed to thefloor and the windshield with a small
amount directed to the side window
defrosters.
Defrost-Level
Most of the air flow is directed to the windshield with a small amount of air
directed to the side window defrosters.
OHM046324L
OHM046325L
■Type A, C
■Type B, D

Features of your vehicle
124
4
Instrument panel vents
The outlet vents can be opened or
closed separately using the thumb-wheel.
Also, you can adjust the direction of
air delivery from these vents using
the vent control lever as shown.
Temperature control
The temperature will increase to the
maximum (HI) by turning the knob to
the extreme right.
The temperature will decrease to the
minimum (Lo) by turning the knob to
the extreme left.
When turning the knob, the tempera-
ture will increase or decrease by
0.5°C/1°F. When set to the lowest
temperature setting, the air condi-
tioning will operate continuously. Adjusting the driver and passenger
side temperature equally
Press the “SYNC” button to adjust
the driver and passenger side tem-
perature equally.
The passenger side temperature
will be set to the same temperature
as the driver side temperature.
Turn the driver side temperature control knob. The driver and pas-
senger side temperature will be
adjusted equally.
When the third row’s seat heater button is turned ON, the third row’s
climate and fan speed setting will
automatically follow the first row
settings.
OHM046092L
■Driver’s side■Passenger’s side
OHM046585L
OHM046586L/OHM046587L

4125
Features of your vehicle
Adjusting the driver and passenger
side temperature individually
Press the “SYNC” button again toadjust the driver and passenger
side temperature individually. The
illumination of button turns off.
Operate the driver side tempera- ture control knob to adjust the driv-
er side temperature.
Operate the passenger side tem- perature control knob to adjust the

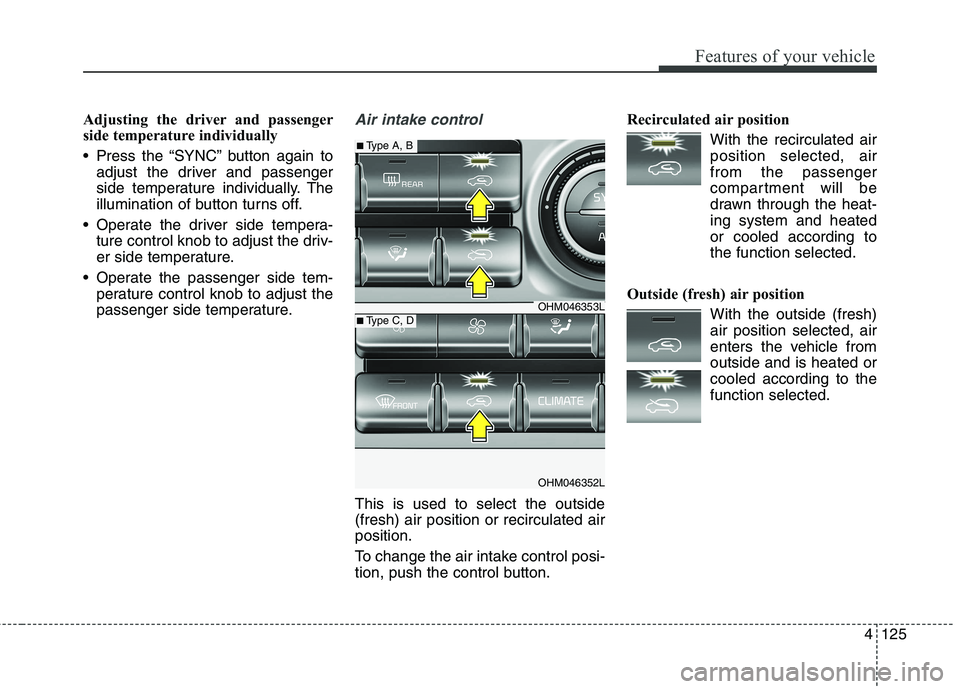

passenger side temperature.Air intake control
This is used to select the outside (fresh) air position or recirculated airposition.
To change the air intake control posi-
tion, push the control button. Recirculated air position
With the recirculated airposition selected, airfrom the passenger
compartment will be
drawn through the heat-ing system and heated
or cooled according tothe function selected.
Outside (fresh) air position With the outside (fresh)air position selected, air
enters the vehicle fromoutside and is heated orcooled according to thefunction selected.
OHM046353L
OHM046352L
■Type A, B
■Type C, D

Features of your vehicle
126
4
✽✽
NOTICE
Prolonged operation of the heater in
the recirculated air position (with-
out air conditioning selected) may
cause fogging of the windshield and
side windows and the air within the
passenger compartment may
become stale.
In addition, prolonged use of the air
conditioning with the recirculated
air position selected will result in
excessively dry air in the passenger
compartment.Fan speed control
The fan speed can be set to the
desired speed by pushing the fan
speed control button.
The higher the fan speed is, the
more air is delivered. Pressing the
OFF button turns off the fan.
WARNING
Continue using the climate control system in the recircu-
lated air position may allowhumidity to increase inside
the vehicle which may fog the
glass and obscure visibility.
Do not sleep in a vehicle with the air conditioning or heating
system on. It may cause seri-ous harm or death due to a
drop in the oxygen level
and/or body temperature.
Continue using the climate control system in the recircu-lated air position can cause
drowsiness or sleepiness,
and loss of vehicle control.
Set the air intake control tothe outside (fresh) air position
as much as possible whiledriving.
OHM046328L
OHM046327L
■Type A, B
■Type C, D

4127
Features of your vehicle
Air conditioning
Press the A/C button to turn the air conditioning system on (indicatorlight will illuminate).
Press the button again to turn the air
conditioning system off.
OFF mode
Press the front blower OFF button to
turn off the front air climate control
system. However, you can still oper-
ate the mode and air intake buttons
as long as the ignition switch is in theON position.
Climate information screen selec-tion (if equipped)
Press the climate information screen
selection button to display climate
information on the screen.
OHM046333L
OHM046334L
■
Type C
■Type DOHM046330LOHM046331L

Features of your vehicle
128
4
Rear heating and air condi- tioning (if equipped) To turn on the rear climate control system
1. Press the rear blower ON/OFF
button located on the front and rear climate control panel (indica-tor light will illuminate).
Operating the fan speed switch will
also turn on the rear climate con-trol system.
2. Set the fan speed to the desired speed with the front or rear fan
speed switch.
3. The rear temperature and mode is controlled automatically by thefront climate control system.
same as the front temperature
- Front mode control is : Rear mode control is
- Front mode control is : Rear mode control is
- Front mode control is , , : Rear mode con-
trol is 4. To turn off the rear climate control
system, press the rear blower
ON/OFF button located on thefront and rear climate controlpanel once more (indicator light isnot illuminated).
If you operate the rear temperature or mode on the rear climate controlpanel, the corresponding rear tem-
perature or mode will operate inde-pendently regardless of the front
climate control system operation.
If the ignition switch is turned OFF and ON again, the rear tempera-ture and mode will be controlled
automatically by the front climatecontrol system.
To activate the rear air condition- ing, press the A/C button on thefront climate control system.
OHM046335L
OHM046336
■Front

■ Rear

4129
Features of your vehicle
Rear mode selection

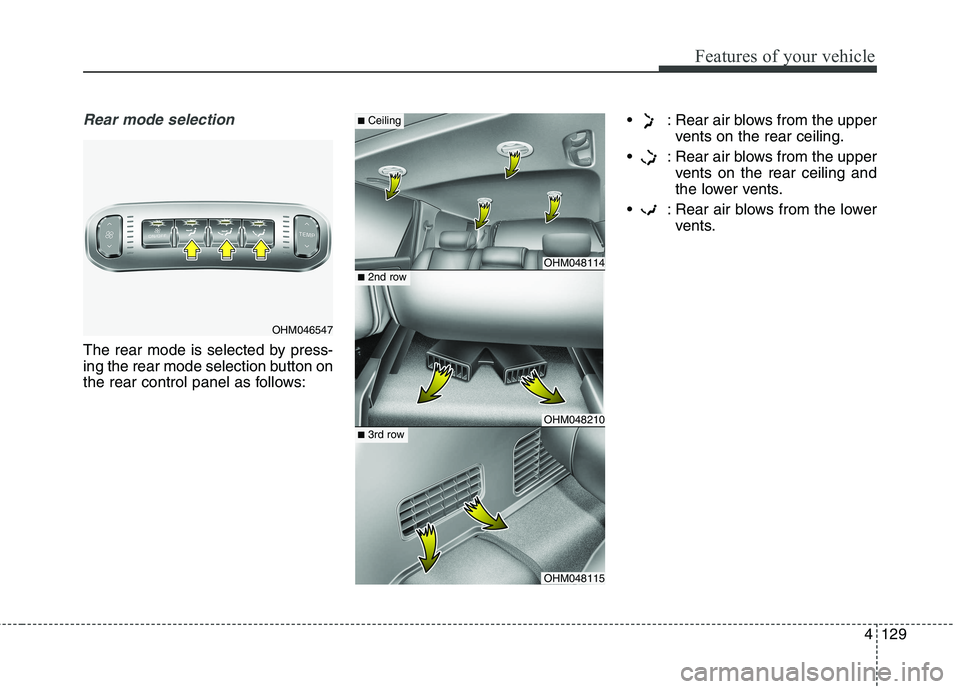

The rear mode is selected by press-
ing the rear mode selection button on
the rear control panel as follows: : Rear air blows from the upper
vents on the rear ceiling.
: Rear air blows from the upper vents on the rear ceiling and
the lower vents.
: Rear air blows from the lower vents.
OHM046547
OHM048114
OHM048210
OHM048115
■2nd row
■Ceiling
■3rd row

Features of your vehicle
130
4
Rear vents

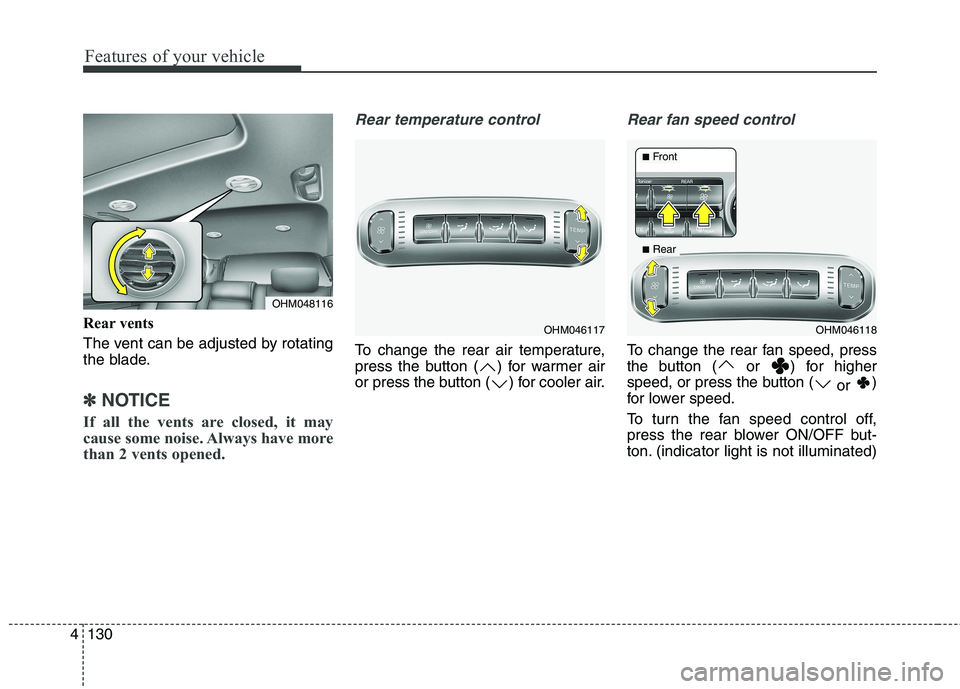

The vent can be adjusted by rotating
the blade.
✽✽
NOTICE
If all the vents are closed, it may
cause some noise. Always have more
than 2 vents opened.
Rear temperature control
To change the rear air temperature,
press the button ( ) for warmer air
or press the button ( ) for cooler air.
Rear fan speed control
To change the rear fan speed, press
the button ( or ) for higher
speed, or press the button ( or )
for lower speed.
To turn the fan speed control off,
press the rear blower ON/OFF but-
ton. (indicator light is not illuminated)
OHM046117
OHM048116
OHM046118
■ Front
■Rear

4131
Features of your vehicle
System operation
Ventilation
1. Set the mode to the position.
2. Set the air intake control to theoutside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Set the mode to the position.
2. Set the air intake control to theoutside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If dehumidified heating is desired, turn the air conditioning system (if equipped) on.
Operation Tips
To keep dust or unpleasant fumesfrom entering the vehicle through
the ventilation system, temporarily
set the air intake control to the
recirculated air position. Be sure to
return the control to the fresh air
position when the irritation has
passed to keep fresh air in the
vehicle. This will help keep the driv-
er alert and comfortable.
Air for the heating/cooling system is drawn in through the grilles just
ahead of the windshield. Care
should be taken that these are not
blocked by leaves, snow, ice or
other obstructions.
To prevent interior fog on the wind- shield, set the air intake control to
the fresh air position and fan speed
to the desired position, turn on theair conditioning system, and adjust
the temperature control to desired
temperature.
If the windshield fogs up, set the mode to the or position.CAUTION
Operating the blower when the
ignition switch is in the ON posi-tion could cause the battery to discharge. Operate the blowerwhen the engine is running.
