KIA BORREGO 2017 Owners Manual

Features of your vehicle
112
4
INTERIOR LIGHT
Map lamp
Push the lens to turn the map lamp
on or off. This light produces a spot
beam for convenient use as a maplamp at night or as a personal lamp
for the driver and the front passen-
ger. Room lamp
DOOR: The light comes on when
any door (or tailgate) is opened regardless of the
ignition switch position.
When doors are unlocked
by the transmitter (or smart
key), the light comes on for
approximately 30 seconds
as long as any door is not
opened. The light goes out
gradually after approximate-ly 30 seconds if the door is
closed. However, if the igni-
tion switch is ON or all doors
are locked, the light will turn
off immediately.
CAUTION
Do not use the interior lights for
extended periods when theengine is not running.
It may cause battery discharge.
OHM046077NOHM046079N
WARNING
Do not use the interior lights when driving in the dark.Accidents could happen because
the view may be ob scured by
interior lights.

4113
Features of your vehicle

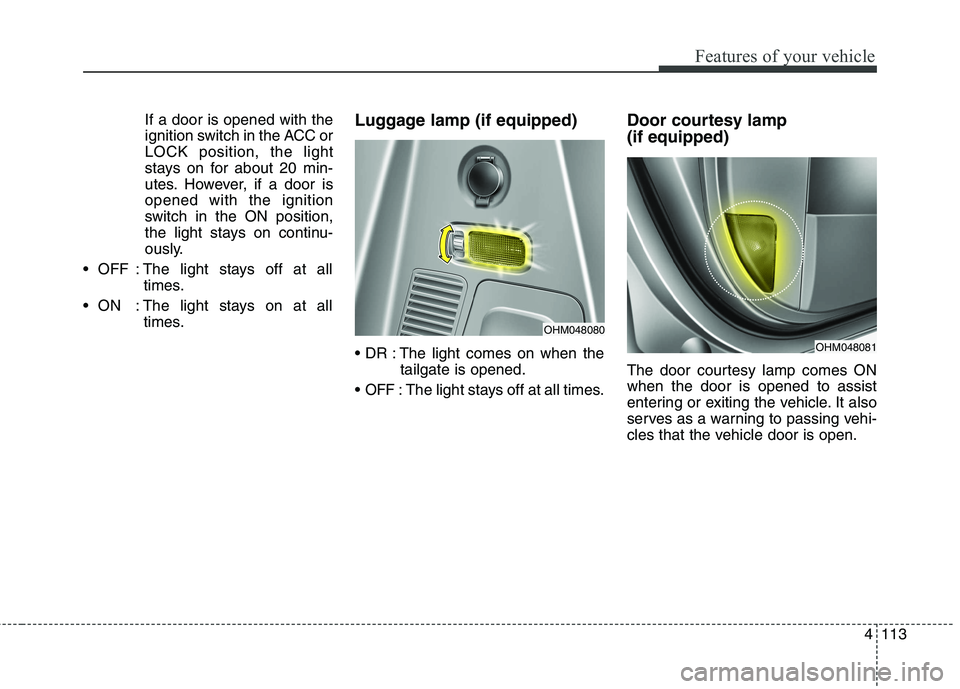

If a door is opened with the
ignition switch in the ACC orLOCK position, the light
stays on for about 20 min-
utes. However, if a door isopened with the ignition
switch in the ON position,
the light stays on continu-
ously.
: The light stays off at all times.
: The light stays on at all times. Luggage lamp (if equipped)
The light comes on when the
tailgate is opened.

OFF : The light stays off at all times. Door courtesy lamp (if equipped)
The door courtesy lamp comes ON when the door is opened to assist
entering or exiting the vehicle. It also
serves as a warning to passing vehi-
cles that the vehicle door is open.
OHM048080
OHM048081

Features of your vehicle
114
4

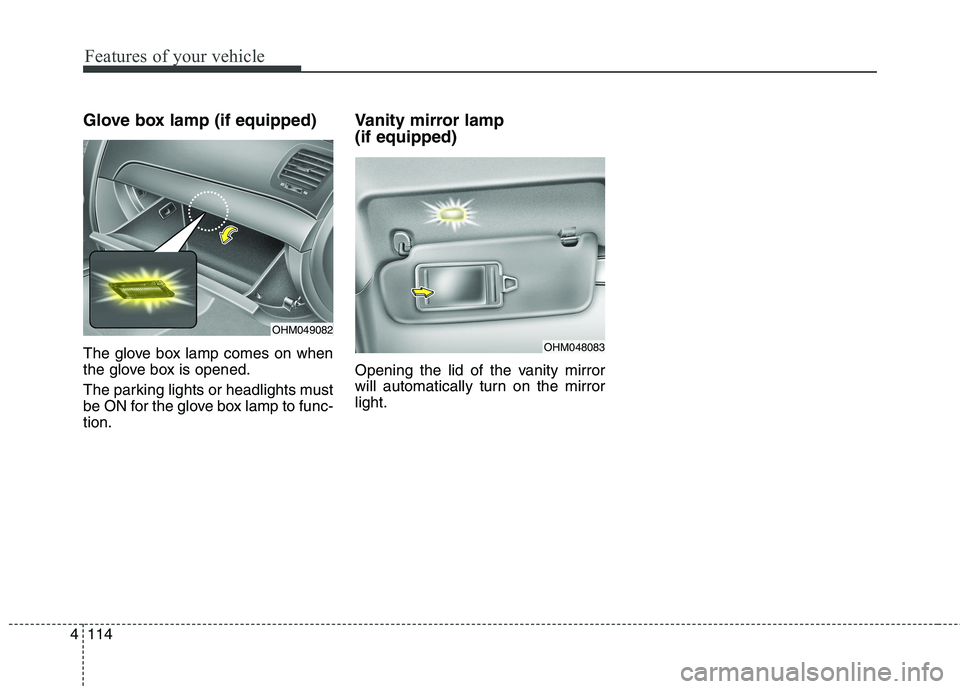

Glove box lamp (if equipped)
The glove box lamp comes on when
the glove box is opened.
The parking lights or headlights must
be ON for the glove box lamp to func-tion. Vanity mirror lamp (if equipped)
Opening the lid of the vanity mirror
will automatically turn on the mirrorlight.
OHM049082
OHM048083

4115
Features of your vehicle
WELCOME SYSTEM (IF EQUIPPED)
Puddle lamp When all the doors (and tailgate) are
locked and closed, the puddle lamp
will come on for about 15 seconds if
any of the below is performed.
- When the door unlock button is pressed on the smart key.
- When you put your hand into the door handle while carrying the
smart key.
- When the vehicle is approached with the smart key in possession. Interior light
When the interior light switch is in the DOOR position and all doors (and
tailgate) are locked and closed, the
room lamp will come on for 15 sec-
onds if any of the below is performed.
- When the door unlock button is
pressed on the smart key.
- When the button of the outside door handle is pressed.
At this time, if you press the door lock
button, the lamps will turn off imme-
diately.
OHM073100

Features of your vehicle
116
4
DEFROSTER
✽✽
NOTICE
If you want to defrost and defog the
front windshield, refer to
“Windshield defrosting and defog-
ging” in this section.
Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from
the rear window, while the engine is
running. To activate the rear window
defroster, press the rear window
defroster button located in the center
facia switch panel. The indicator on
the rear window defroster button illu-minates when the defroster is ON.
If there is heavy accumulation of
snow on the rear window, brush it off
before operating the rear defroster.
The rear window defroster automati-
cally turns off after approximately 20
minutes or when the ignition switch is
turned off. To turn off the defroster,
press the rear window defroster but-ton again.
Outside rearview mirror defroster
(if equipped)
If your vehicle is equipped with the
outside rearview mirror defrosters,
they will operate at the same time you
turn on the rear window defroster.
Wiper deicer (if equipped)
If your vehicle is equipped with the
wiper deicer, it will operate at the
same time you turn on the rear win-
dow defroster.
CAUTION
To prevent damage to the con-ductors bonded to the insidesurface of the rear window, never use sharp instruments orwindow cleaners containingabrasives to clean the window.
OHM046316L
OHM046319L
■ Type A
■Type B

4117
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OHM046310L/OHM046311L
1. Driver`s temperature control knob
2. Air conditioning button
3. Blower OFF button
4. Front windshield defroster button
5. Rear window defroster button
6. Fan speed control button
7. Mode selection button
8. Air intake control button
9. Passenger`s temperature control knob
10. Dual temperature control selection button
11. A/C display
12. 3
rd
row air conditioning ON/OFF button*
13. 3 rd
row air conditioning fan speed con-
trol knob*
14. AUTO (automatic control) button* if equipped
■■ Front climate control (Type B)
■■Front climate control (Type A)
CAUTION
Operating the blower when the
ignition switch is in the ON posi- tion could cause the battery todischarge. Operate the blowerwhen the engine is running.

Features of your vehicle
118
4
OHM046312L/OHM046313L/OHM046315L
1. Driver`s temperature control knob
2. Air conditioning button
3. Blower OFF button
4. Front windshield defroster button
5. Rear window defroster button
6. Fan speed control button
7. Mode selection button
8. Air intake control button
9. Passenger`s temperature control knob
10. Dual temperature control selection button
11. A/C display
12. 3
rd
row air conditioning ON/OFF button*
13. 3 rd
row air conditioning fan speed control
knob*
14. AUTO (automatic control) button
15. Climate information screen selection button
16. 3 rd
row air conditioning temperature con-
trol knob*
* if equipped
■■ Front climate control (Type C)
■■Front climate control (Type D)
■■3rd
row air conditioning control (if equipped)

4119
Features of your vehicle
Automatic heating and air con- ditioning
1. Press the AUTO button. Themodes, fan speeds, air intake and air-conditioning will be controlledautomatically according to the
temperature setting. 2. Turn the temperature control knob
to the desired temperature.✽✽ NOTICE
 To turn the automatic operation off, select any button or switch of
the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation display once again.)
- Air intake control button
- Fan speed control button
The selected function will be con-
trolled manually while other func-
tions operate automatically.
 For your convenience and to improve the effectiveness of the
climate control, use the AUTO
button and set the temperature to
22°C/71°F (23°C/73°F- Except
Europe).
OHM046584L
■Driver’s side■Passenger’s side
OHM046586L/OHM046587L

Features of your vehicle
120
4
✽✽

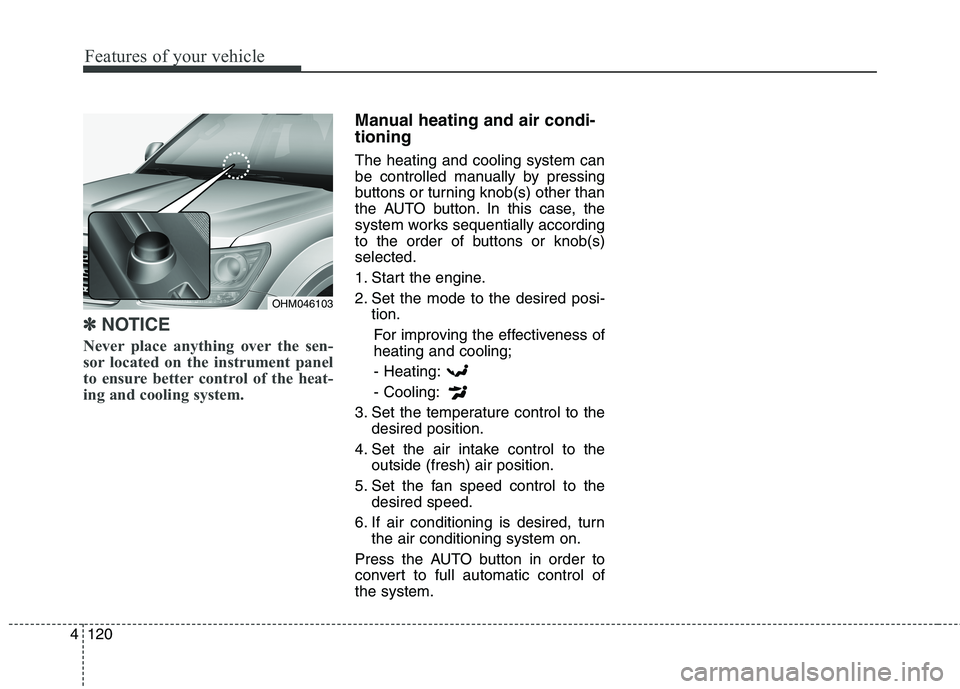

NOTICE
Never place anything over the sen-
sor located on the instrument panel
to ensure better control of the heat-
ing and cooling system.
Manual heating and air condi- tioning The heating and cooling system can
be controlled manually by pressing
buttons or turning knob(s) other than
the AUTO button. In this case, the
system works sequentially according
to the order of buttons or knob(s)selected.
1. Start the engine.
2. Set the mode to the desired posi- tion.
For improving the effectiveness of heating and cooling;
- Heating: - Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.
Press the AUTO button in order to
convert to full automatic control ofthe system.
OHM046103

4121
Features of your vehicle

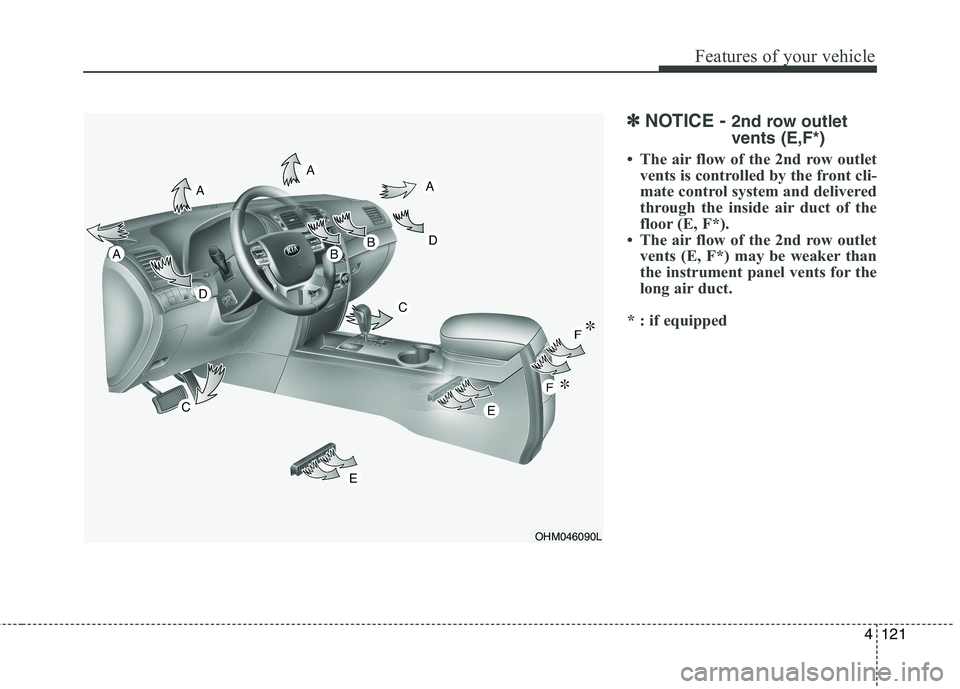

✽✽NOTICE - 2nd row outlet vents (E,F*)
 The air flow of the 2nd row outlet vents is controlled by the front cli-
mate control system and delivered
through the inside air duct of the
floor (E, F*).
 The air flow of the 2nd row outlet vents (E, F*) may be weaker than
the instrument panel vents for the
long air duct.
* : if equipped
OHM046090L
