Maintenance
Inner panel fuse replacement
1. Turn the ignition switch and allother switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight
out. Use the removal tool provided
in the main fuse box in the engine
compartment.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in the
instrument panel fuse panel (or inthe engine compartment fuse panel).
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, we recommend that
you consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit youmay not need for operating the vehi-cle, such as the cigarette lighter fuse.
If the headlights or taillights, stop-
lights, courtesy lamp, day time run-
ning lights (D.R.L) do not work and
the fuses are OK, check the fuse
panel in the engine compartment. If a
fuse is blown, it must be replaced.
OHM078022OHM078021
OHM078057
■ Front
■ Rear

Maintenance
56
8
Memory fuse (SHUNT connector)
Your vehicle is equipped with a mem-
ory fuse (SHUNT connector) to pre-
vent battery discharge if your vehicle
is parked without being operated for
prolonged periods. Use the following
procedures before parking the vehi-
cle for prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail
lights.
3. Open the driver’s side panel cover and pull out the memory fuse (SHUNT connector).
✽✽ NOTICE
 If the memory fuse is pulled out from the fuse panel, the warning
chime, audio, clock and interior
lamps, etc., will not operate. Some
items must be reset after replace-
ment. Refer to “Battery” in this
section.
 Even though the memory fuse is pulled out, the battery can still be
discharged by operation of the
headlights or other electrical
devices.Engine compartment fuse replacement
1. Turn the ignition switch and all other switches off.
OHM078023OHM078024N
OHM078025N

857
Maintenance
2. Remove the fuse panel cover bypressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-ing fuses located in the engine
room fuse box. Upon removal,
securely insert reserve fuse of
equal quantity.
3. Check the removed fuse; replace it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorized Kia dealer.Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative batterycable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal
✽✽ NOTICE
If the main fuse is blown, consult an
authorized Kia dealer.
CAUTION
Visually inspect the battery cap for secure closing. If the batterycap is not securely latched, theelectrical system may be dam- aged to due influx of moistureinto the system.
OHM078026L
CAUTION
After checking the fuse panel inthe engine compartment, secure-ly install the fuse panel. If not, cover through the audible click-ing sound. Electrical failures mayoccur from water contact.

Maintenance
58
8
Fuse/relay panel description
Inner fuse panel (Instrument panel)
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OHM076027L
OHM076072L

859
Maintenance
Inner fuse panel (Instrument panel)
DescriptionFuse ratingProtected component
AUDIO15AAudio, A/V & Navigation Head Unit, MTS E-Call Module
MEMORY7.5A
Front/Rear A/C Control Module, Instrument Cluster(IND.), FAM, RAM,
Driver/Passenger Door Module, IMS Control Module, Tilt & Telescopic Module,
RF Receiver
IG2-17.5A
Front A/C Control Module, Multifunction Switch, Driver/Passenger Seat Warmer Module,
Rain Sensor, Around View Monitor, Smart Key Control Module,
Relay Block(Front/Rear Blower Relay), E/R Sub Block (COOLING FAN2 Relay,
Fuel Heater Relay), Driver/Passenger CCS Control Module
HEATED S/WHEEL15ASteering Wheel Heated
IG2-27.5ARear A/C Control Module, Driver/Passenger Door Module, FAM
OBD-II7.5AStart Stop Button Switch
ROOM7.5AHazard Switch, Map Lamp, Vanity Lamp Switch LH/RH,
Front/Rear A/C Control Module, Center Room Lamp, Rear Room Lamp
K/LOCK7.5ASport Mode Switch, Driver/Passenger Door Module, Ignition Key Interlock
ILLUMI7.5AIPM
RR S/WARMER20ARear Seat Warmer Relay
SEAT WARMER20ADriver Seat Warmer Module, Passenger Seat Warmer Module,
Driver / Passenger CCS Control Module
SUNROOF25ASunroof Module
TPMS7.5ATire Pressure Monitoring Module
S/TILT20ATilt & Telescopic Module

Maintenance
60
8
DescriptionFuse ratingProtected component
PASS P/SEAT20APassenger Power Seat Switch
DRIVER P/SEAT30ADriver Power Seat Switch, Driver Lumbar Support Switch, IMS Control Module
ACC7.5AAudio, A/V & Navigation Head Unit, MTS E-Call Module, Smart Key Control Module,
Around View Monitor, JBL AMP
FRT CIGAR15ACigarette Lighter
START7.5ABurglar Alarm Relay, Start Relay
AIR BAG IND.7.5AInstrument Cluster(Air Bag IND.)
ABS7.5AABS Control Module, ESC Control Module, DBC Relay, Steering Angle Sensor,
Crash Pad Switch
IGN 17.5A
Rheostat, Air Suspention Control Module, Electro Chromic Mirror, Front Wiper Motor,
Smart Key Control Module, Multipurpose Check Connector, MTS E-Call Module,
Rear Parking Assist Buzzer, Rear Parking Assist Switch, Sport Mode Switch,
Audio, A/V & Navigation Head Unit, Stop Lamp Switch, Auto Head Lamp Leveling
Device Sensor, Alternator, Multifunction Switch, Tire Pressure Monitoring Module,
Blind Spot Detection Radar LH/RH, Tilt & Telescopic Module, Front A/C Control Module,
Instrument Cluster, Fuel Filter Warning Switch, Lane Departure Warning Control Module,
Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor Center LH/RH
ENG7.5AECM, TCM, 4WD ECM, Air Flow Sensor, Smart Key Control Module, Inhibitor Switch,
Multipurpose Check Connector
AIR BAG15ASRS Control Module
DDM30ADriver Door Module, Driver Safety Power Window Motor
ADM30APassenger Door Sensor, Passenger Safety Power Window Motor

861
Maintenance

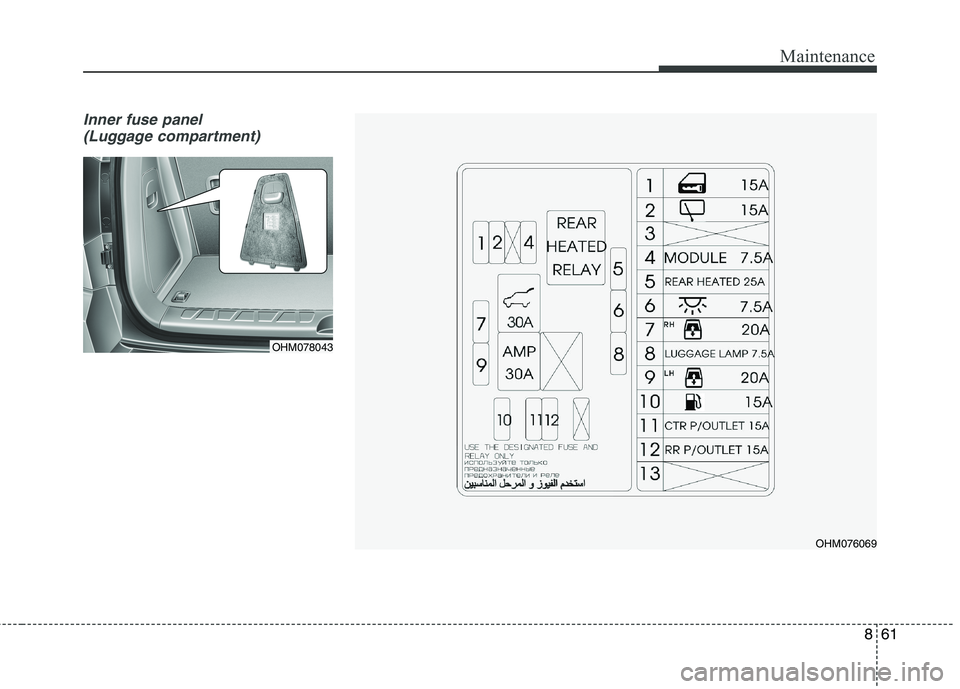

Inner fuse panel (Luggage compartment)
OHM078043
OHM076069

Maintenance
62
8
Inner fuse panel (Luggage compartment)
Fuse NameFuse ratingCircuit Protected
D/LOCK15ARear Door Lock/Unlock Relay
RR WIPER15ARear Wiper Motor Relay
MODULE 17.5AConsole Switch LH/RH
RR DEFOG25ARR Defog Relay
RR P/WIN-RH20ARear Power Window Relay RH(UP/DN)
LUGGAGE7.5ALuggage Lamp
RR P/WIN-LH20ARear Power Window Relay LH(UP/DN)
FUEL DR15AFuel Door Relay
CONSOL P/OUT15AConsole Power Outlet
RR P/OUT15ARear Power Outlet
T/G POWER LATCH30ATail Gate Control Module
AMP30AJBL AMP

863
Maintenance

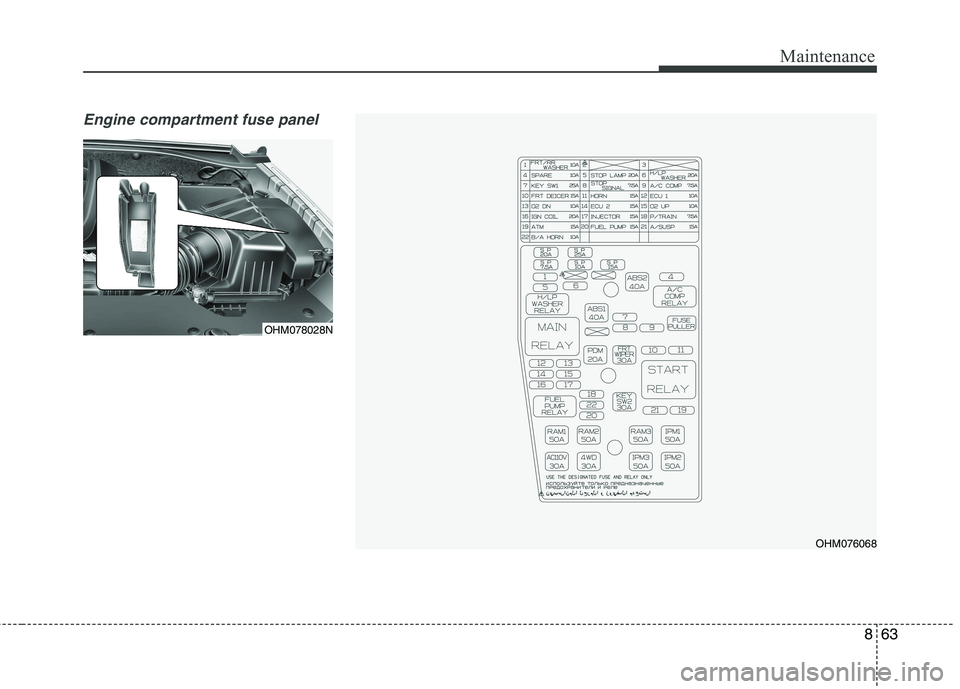

Engine compartment fuse panel
OHM078028N
OHM076068

Maintenance
64
8
Engine compartment main fuse panel
Fuse NameFuse ratingCircuit Protected
FRT/RR WASHER10AFront/Rear Washer Motor Relay
STOP LAMP20AFAM(STOP SIGNAL 7.5A), DBC Relay, Stop Signal Relay
KEY SW 125AIgnition Switch, PDM Relay Box(IG1 Relay , ACC Relay )
STOP SIGNAL7.5AStop Lamp Switch, Smart Key Control Module
A/C COMP7.5AA/C Comp Relay
FRT DEICER15AFront Deicer Relay
HORN15AHorn Relay
ECU 110A
DIESEL - Immobilizer Module, A/C Comp Relay, Stop Lamp Switch,
E/R Sub Block (Glow Relay, PTC 1~3 Relay), Lambda Sensor
GASOLINE - ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN10AGASOLINE - Oxygen Sensor #3/ #4
ECU 215A
DIESEL - EGR Cooling Valve, Electric VGT Actuator /
GASOLINE - Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve
O2 UP10ADIESEL - Rail Pressure Regulator Valve, Fuel Meter Unit /
GASOLINE : Oxygen Sensor #1/ #2
IGN COIL20AGASOLINE - Ignition Coil #1~#6, Condenser #1,#2
INJECTOR15AECM, Injector #1~#6(GASOLINE)
P/TRAIN7.5AECM, Main Relay
FUEL PUMP15AFuel Pump Relay
