start stop button KIA BORREGO 2017 Owners Manual

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s front air bag ............................3-59
2. Horn.....................................................4-41
3. Instrument cluster ................................4-47
4. Wiper and washer control lever .........4-107
5. Ignition switch or Engine start/stop button ...............6-6, 6-10
6. Cruise control ......................................6-52
7. Hazard warning flasher .........................7-2
8. Auto Climate control system .............4-117
9. Shift lever.............................................6-16
10. Rear fog lamp On/Off button ...........4-105
11. Heated steering wheel button ...........4-40
12. Front seat warmer ...........................4-145 Front Seat ventilation.......................4-146
13. Parking assist system On/Off button .4-91
14. Surround view monitoring system On/Off button .....................................4-97
15. AUX, USB port ....................................5-4
16. Center console storage box ............4-138
17. Glove box ........................................4-139
18. Passenger’s front air bag ..................3-59
19. Steering wheel audio controls .............5-3
OHM016002L
❈The actual shape may differ from the illustration.

Safety features of your vehicle
10
3
Storing positions into memory
using the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P (Park) while the engine start/stop button
is ON or ignition switch ON.
2. Adjust the driver’s seat and out- side rearview mirror and steering
wheel to position comfortable for
the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 4 seconds after
pressing the SET button. The sys-
tem will beep twice when memoryhas been successfully stored. Recalling positions from memory
1. Shift the transmission shift lever
into P (Park).
2. To recall the position in memory, press the desired memory button
(1 or 2). The system will beep
once, then the driver seat, outside
rearview mirror and steeringwheel will automatically adjust to
the stored positions.
Adjusting one of the control switches
for the driver seat, outside rearview
mirror and steering wheel while thesystem is recalling the stored posi-
tions will cause the movement for
that component to stop and move in
the direction that the control switch is
moved. Other components will con-
tinue to the recalled position.
WARNING
Never attempt to operate the
driver position memory system
while the vehicle is moving. This could result in loss of con-
trol, and an accident causing
death, serious injury, or property
damage.

311
Safety features of your vehicle
Easy access function (if equipped)
With the shift lever in P (Park) posi-
tion, the system will move the driver’s
seat and the steering wheel forward
or rearward automatically so you can
comfortably enter and exit the vehicle.
Without smart key system- The steering wheel will moveaway from the driver and the seat
will move rearward, when the
ignition key is removed.
- The steering wheel will move toward the driver and the seat will
move forward, when the ignition
key is inserted.
With smart key system
- For driver's comfort when gettingon and off the vehicle, turn off the
engine when the shift lever is in P
(Park). Then, the driver seat will
move rearward when the driver'sdoor is opened.
- The steering wheel will move away from the driver and the seat
will move rearward, when the
ENGINE START/ STOP button isin the OFF position. - The steering wheel will move
toward the driver and the seat will
move forward, when the ENGINE
START/ STOP button is in the
ACC position.
The amount of distance the driver
seat can move rearward can be setthrough the user settings on LCD
mode of instrument cluster.
For more details, please refer to
‘User settings mode’ in chapter 4.WARNING
Use caution when recalling the
adjustment memory while sit-
ting in the vehicle. Push the seat
position control switch to the
desired position immediately if
the seat moves too far in anydirection.

45
Features of your vehicle
Immobilizer system (if equipped)
Your vehicle may be equipped with
an electronic engine immobilizer sys-
tem to reduce the risk of unautho-
rized vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
ignition key and electronic devices
inside the vehicle.With the immobilizer system, when-
ever you insert your ignition key into
the ignition switch and turn it to ON
or Whenever the engine start/stop
button is changed to the ON position,
it checks and determines and verifies
if the ignition key is valid or not.
If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.WARNING
We recommend that you use
parts for replacement from an
authorized Kia dealer. If an
aftermarket key is used, the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in thewiring.
OHM048231N

Features of your vehicle
6
4

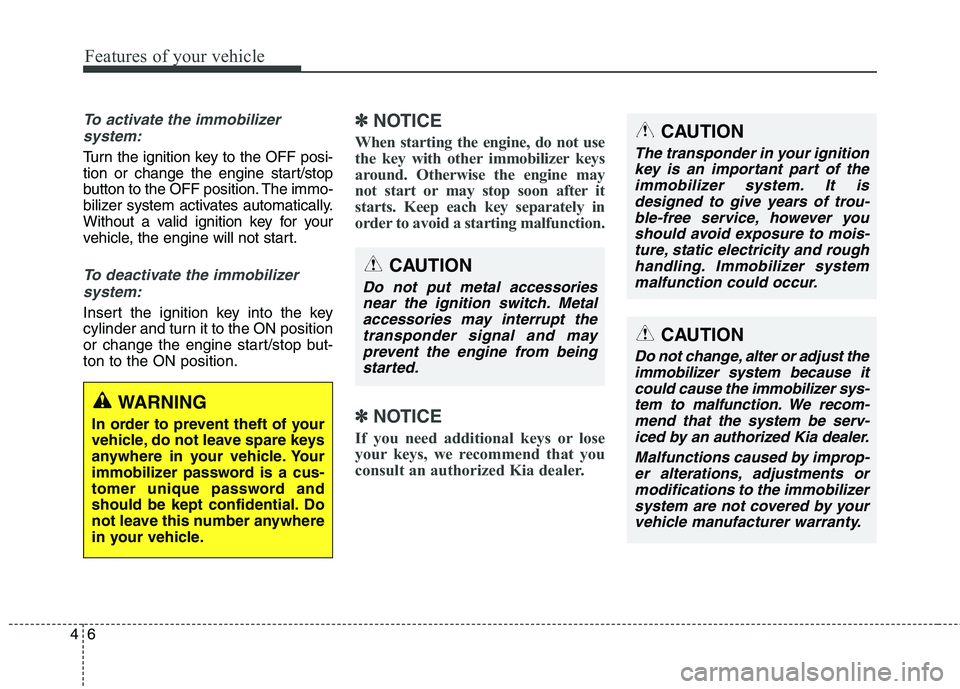

To activate the immobilizer
system:
Turn the ignition key to the OFF posi-
tion or change the engine start/stop
button to the OFF position. The immo-
bilizer system activates automatically.
Without a valid ignition key for your
vehicle, the engine will not start.
To deactivate the immobilizersystem:
Insert the ignition key into the key
cylinder and turn it to the ON position
or change the engine start/stop but-ton to the ON position.
✽✽ NOTICE
When starting the engine, do not use
the key with other immobilizer keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separately in
order to avoid a starting malfunction.
✽
✽ NOTICE
If you need additional keys or lose
your keys, we recommend that you
consult an authorized Kia dealer.
CAUTION
The transponder in your ignition key is an important part of theimmobilizer system. It is designed to give years of trou-ble-free service, however youshould avoid exposure to mois-ture, static electricity and rough handling. Immobilizer systemmalfunction could occur.
CAUTION
Do not put metal accessoriesnear the ignition switch. Metalaccessories may interrupt the transponder signal and mayprevent the engine from beingstarted.
CAUTION
Do not change, alter or adjust theimmobilizer system because itcould cause the immobilizer sys- tem to malfunction. We recom-mend that the system be serv-iced by an authorized Kia dealer.
Malfunctions caused by improp-er alterations, adjustments or modifications to the immobilizersystem are not covered by yourvehicle manufacturer warranty.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a cus-
tomer unique password and
should be kept confidential. Do
not leave this number anywhere
in your vehicle.

Features of your vehicle
8
4
Even though you press the button,
the doors will not lock and the chime
sounds if any of the following occurs:
The smart key is in the vehicle.
The ENGINE START/STOP button
is in the ACC or ON position.
Any door except the tailgate is opened.Unlocking
Pressing the button of the front out- side door handles with all doors (and
tailgate) closed and locked, unlocks
all the doors (and tailgate). The haz-
ard warning lights will blink twice toindicate that all doors (and tailgate)
are unlocked. The button will only
operate when the smart key is within0.7 ~ 1m (28 ~ 39.3 in) from the out-
side door handle.
When the smart key is recognized in the area of 0.7 ~ 1m (28 ~ 39.3 in)
from the front outside door handle,other people can also open a door
without possession of the smart key.
Tailgate unlocking
If you are within 0.7 ~ 1m (28 ~ 39.3
in) from the outside tailgate handle,
with your smart key in possession, the
tailgate will unlock and open when
you press the tailgate handle switch.
The hazard warning lights will blink twice to indicate that the tailgate is
unlocked.
Also, once the tailgate is opened and
then closed, the tailgate will lock
automatically.
Start-up
You can start the engine without
inserting the key. For detailed infor-
mation refer to “Starting the engine
with a smart key” in chapter 6.

Features of your vehicle
20
4
Door lock/unlock features
Impact sensing door unlock system
All doors will automatically unlock when an impact causes the air bags
to deploy.
However, automatic door unlock will
not operate if the side airbag is notequipped.
✽✽
NOTICE
An authorized Kia dealer can acti-
vate or deactivate some auto door
lock/unlock features as follows;
 Auto door unlock by using the dri- ver's door lock button
 Speed sensing auto door lock
 Auto door lock/unlock by shifting the transmission shift lever out of
P (Park) or into P (Park
 Auto door unlock when the igni- tion key is removed from the igni-
tion switch (for smart key, when
the ENGINE START/STOP button
is changed to the OFF position)
If you want to activate or deactivate
some door lock/unlock feature, we
recommend that you consult an
authorized Kia dealer.
Child-protector rear door lock
The child safety lock is provided to
help prevent children from acciden-tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1. Open the rear door.
2. Push the child safety lock located on the rear edge of the door to the
lock ( ) position. When the child
safety lock is in the lock position,
the rear door will not open eventhough the inner door handle ispulled. 3. Close the rear door.
To open the rear door, pull the out- side door handle (1) .
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle (2)
until the rear door child safety lock is
unlocked ( ).
OHM048011
WARNING
- Rear door
locks
If children accidentally open the
rear doors while the vehicle is
in motion, they could fall out
and be severely injured or
killed. To prevent children from
opening the rear doors from the
inside, the rear door safety
locks should be used whenever
children are in the vehicle.

449
Features of your vehicle

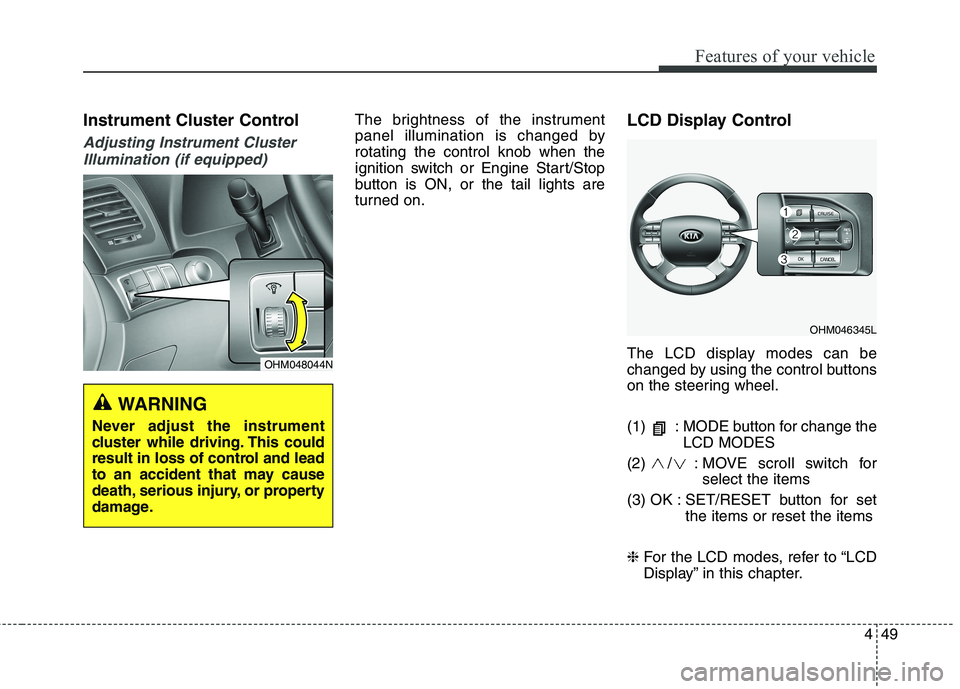

Instrument Cluster Control
Adjusting Instrument ClusterIllumination (if equipped)
The brightness of the instrument
panel illumination is changed byrotating the control knob when the
ignition switch or Engine Start/Stop
button is ON, or the tail lights are
turned on. LCD Display Control
The LCD display modes can be
changed by using the control buttons
on the steering wheel.
(1) : MODE button for change the
LCD MODES
(2) / : MOVE scroll switch for select the items
(3) OK : SET/RESET button for set the items or reset the items
❈ For the LCD modes, refer to “LCD
Display” in this chapter.
OHM048044N
WARNING
Never adjust the instrument
cluster while driving. This could
result in loss of control and lead
to an accident that may cause
death, serious injury, or property
damage.
OHM046345L

451
Features of your vehicle

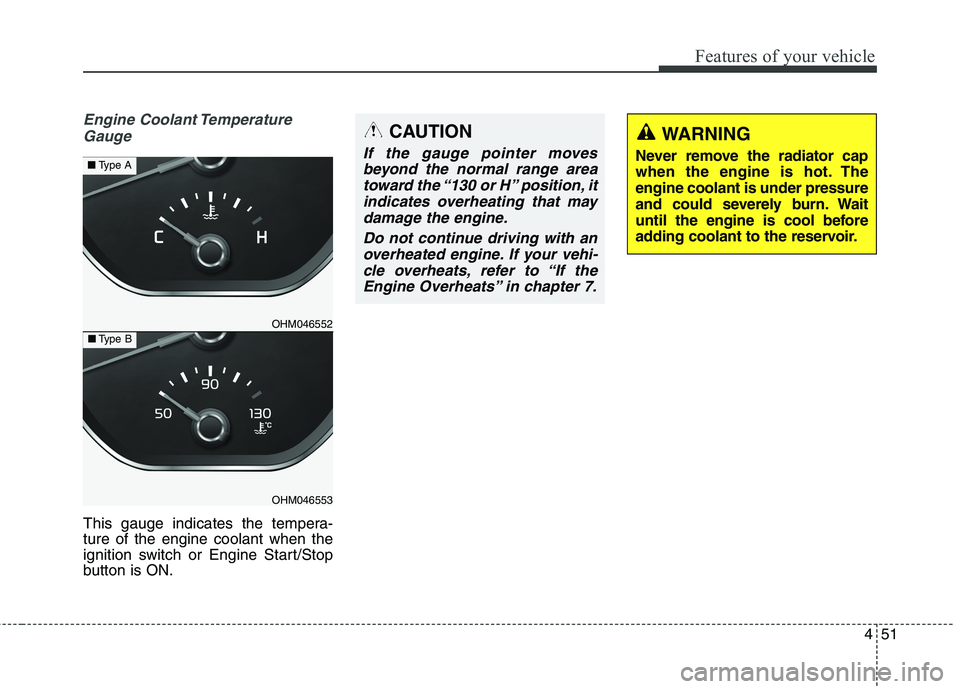

Engine Coolant TemperatureGauge
This gauge indicates the tempera- ture of the engine coolant when the
ignition switch or Engine Start/Stop
button is ON.
CAUTION
If the gauge pointer movesbeyond the normal range areatoward the “130 or H” position, it indicates overheating that maydamage the engine.
Do not continue driving with anoverheated engine. If your vehi-cle overheats, refer to “If the Engine Overheats” in chapter 7.
WARNING
Never remove the radiator cap
when the engine is hot. Theengine coolant is under pressure
and could severely burn. Wait
until the engine is cool before
adding coolant to the reservoir.
OHM046552
OHM046553
■ Type B
■Type A

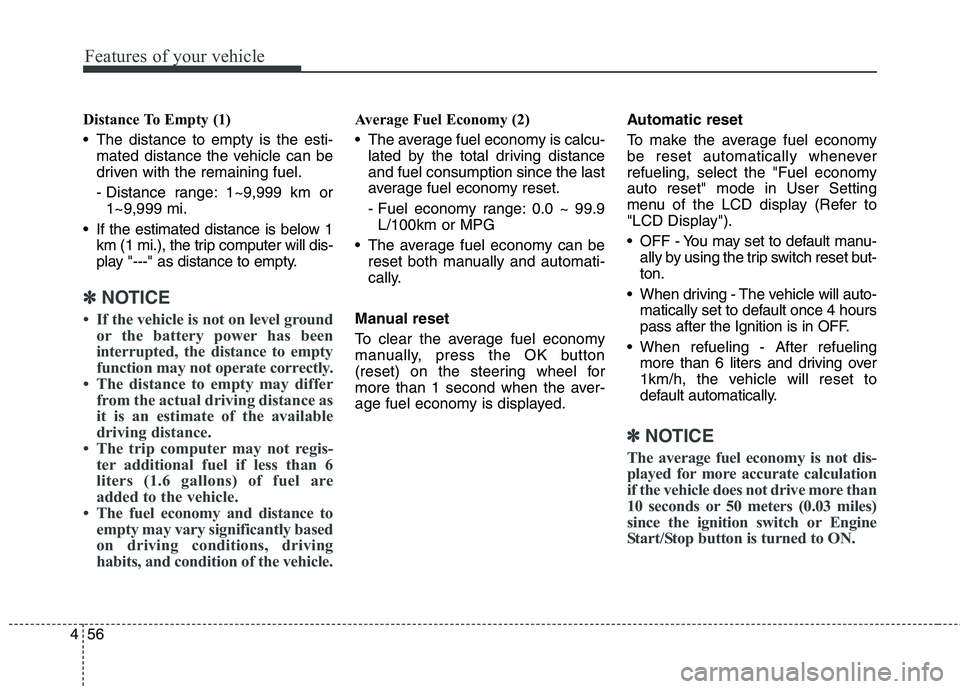

Features of your vehicle
56
4
Distance To Empty (1)
The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
- Distance range: 1~9,999 km or1~9,999 mi.
If the estimated distance is below 1 km (1 mi.), the trip computer will dis-
play "---" as distance to empty.
✽✽ NOTICE
 If the vehicle is not on level ground or the battery power has been
interrupted, the distance to empty
function may not operate correctly.
 The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
 The trip computer may not regis- ter additional fuel if less than 6
liters (1.6 gallons) of fuel are
added to the vehicle.
 The fuel economy and distance to empty may vary significantly based
on driving conditions, driving
habits, and condition of the vehicle.
Average Fuel Economy (2)
The average fuel economy is calcu-lated by the total driving distance and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9L/100km or MPG
The average fuel economy can be reset both manually and automati-
cally.
Manual reset
To clear the average fuel economy
manually, press the OK button
(reset) on the steering wheel for
more than 1 second when the aver-
age fuel economy is displayed. Automatic reset
To make the average fuel economy
be reset automatically whenever
refueling, select the "Fuel economyauto reset" mode in User Setting
menu of the LCD display (Refer to
"LCD Display").
OFF - You may set to default manu-
ally by using the trip switch reset but- ton.
When driving - The vehicle will auto- matically set to default once 4 hours
pass after the Ignition is in OFF.
When refueling - After refueling more than 6 liters and driving over
1km/h, the vehicle will reset to
default automatically.
✽✽ NOTICE
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 50 meters (0.03 miles)
since the ignition switch or Engine
Start/Stop button is turned to ON.
