KIA Cadenza 2014 1.G Owner's Manual

Specifications & Consumer information
48

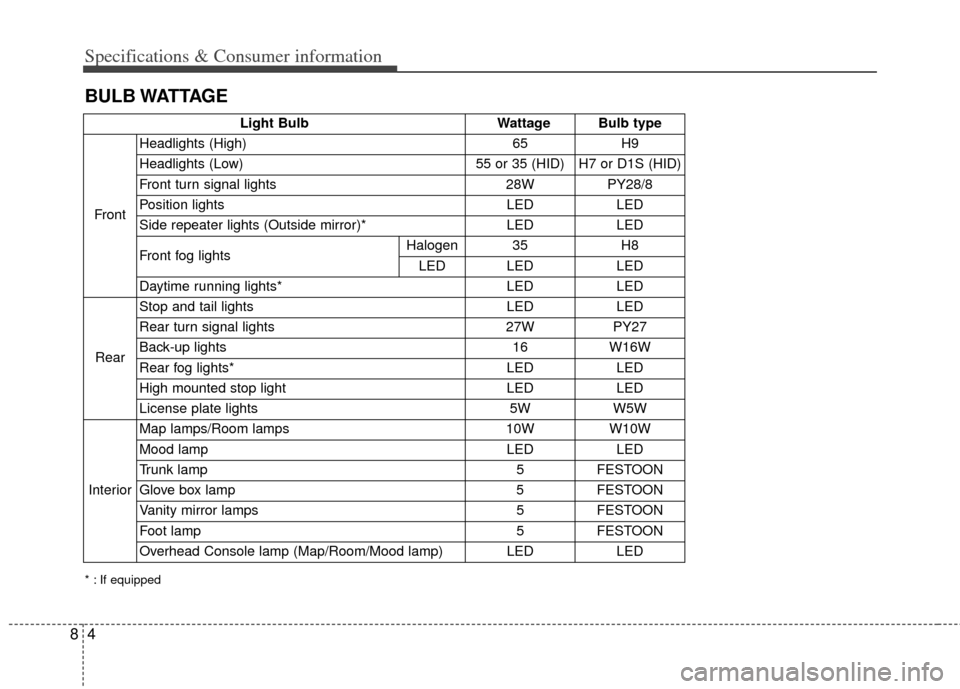

BULB WATTAGE
* : If equipped
Light BulbWattage Bulb type
Front Headlights (High)
65H9
Headlights (Low) 55 or 35 (HID) H7 or D1S (HID)
Front turn signal lights 28WPY28/8
Position lights LEDLED
Side repeater lights (Outside mirror)* LEDLED
Front fog lights Halogen 35
H8
LED LED LED
Daytime running lights*LEDLED
Rear Stop and tail lights LED LED
Rear turn signal lights
27WPY27
Back-up lights 16W16W
Rear fog lights* LEDLED
High mounted stop light LEDLED
License plate lights 5WW5W
Interior Map lamps/Room lamps
10WW10W
Mood lamp LEDLED
Trunk lamp 5FESTOON
Glove box lamp 5FESTOON
Vanity mirror lamps 5FESTOON
Foot lamp 5FESTOON
Overhead Console lamp (Map/Room/Mood lamp) LED LED

85
Specifications & Consumer information

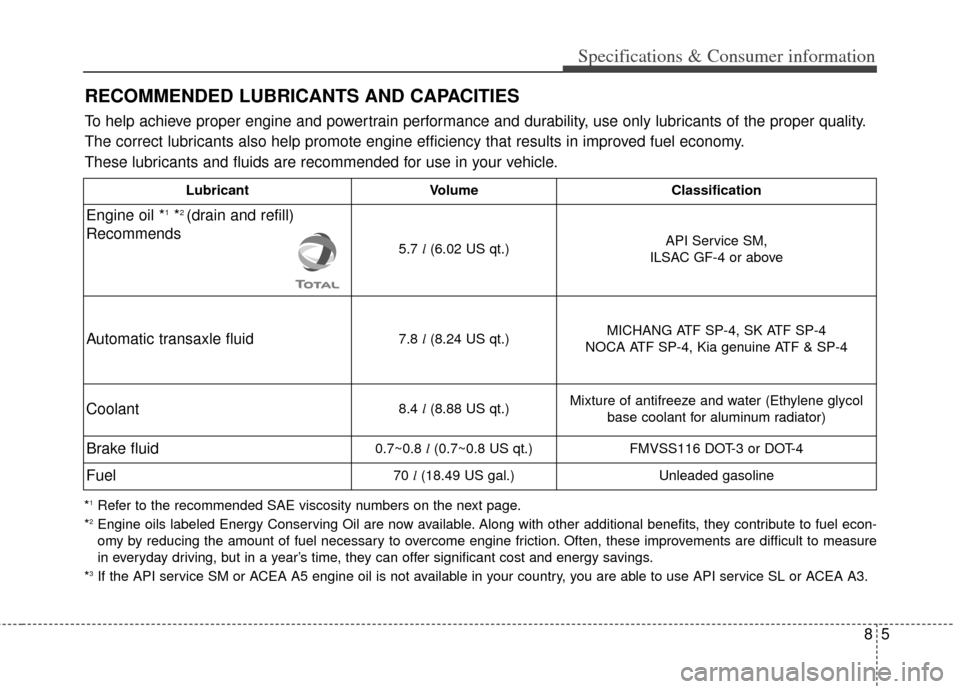

RECOMMENDED LUBRICANTS AND CAPACITIES
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1*2 (drain and refill)
Recommends
5.7 l(6.02 US qt.) API Service SM,
ILSAC GF-4 or above
Automatic transaxle fluid7.8 l(8.24 US qt.) MICHANG ATF SP-4, SK ATF SP-4
NOCA ATF SP-4, Kia genuine ATF & SP-4
Coolant8.4 l(8.88 US qt.) Mixture of antifreeze and water (Ethylene glycol
base coolant for aluminum radiator)
Brake fluid0.7~0.8 l(0.7~0.8 US qt.)
FMVSS116 DOT-3 or DOT-4
Fuel70 l(18.49 US gal.)
Unleaded gasoline

Specifications & Consumer information
68
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
*1. For better fuel economy, it is recommended to use the engine oil of a vis-cosity grade SAE 5W-30 (API Service SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
10W-30
5W-30, 5W-40

87
Specifications & Consumer information
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OVG089001OBH088005N
VIN label (if equipped)Frame number
OVG089002
VEHICLE CERTIFICATION
LABEL

Specifications & Consumer information
88
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-

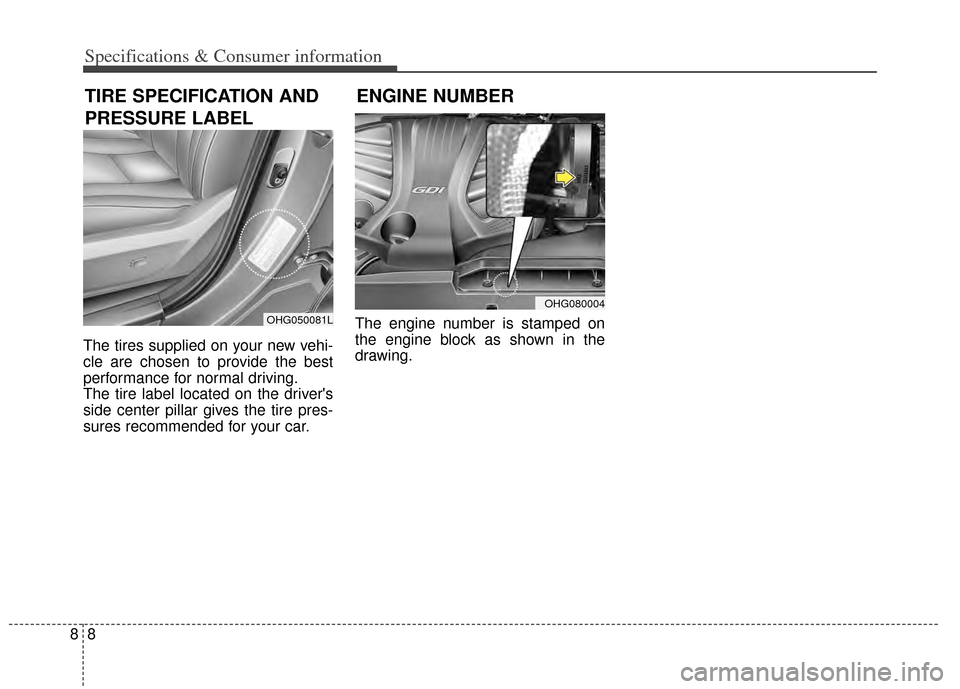

sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
OHG050081L
OHG080004
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
