Page 63 of 500
347
Safety features of your vehicle

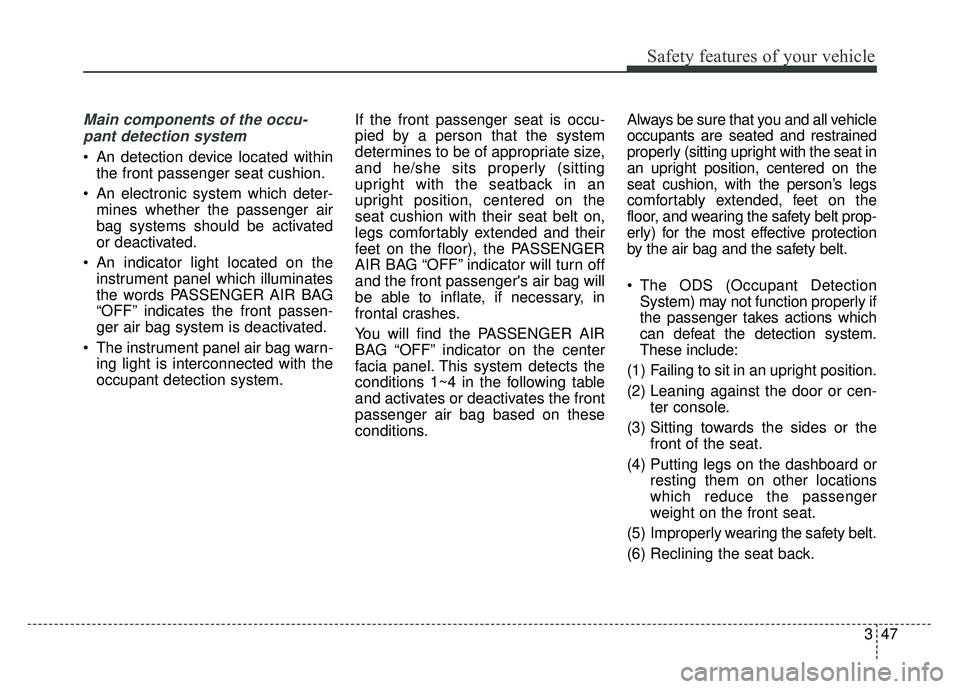

Main components of the occu-pant detection system
An detection device located within the front passenger seat cushion.
An electronic system which deter- mines whether the passenger air
bag systems should be activated
or deactivated.
An indicator light located on the instrument panel which illuminates
the words PASSENGER AIR BAG
“OFF” indicates the front passen-
ger air bag system is deactivated.
The instrument panel air bag warn- ing light is interconnected with the
occupant detection system. If the front passenger seat is occu-
pied by a person that the system
determines to be of appropriate size,
and he/she sits properly (sitting
upright with the seatback in an
upright position, centered on the
seat cushion with their seat belt on,
legs comfortably extended and their
feet on the floor), the PASSENGER
AIR BAG “OFF” indicator will turn off
and the front passenger's air bag will
be able to inflate, if necessary, in
frontal crashes.
You will find the PASSENGER AIR
BAG “OFF” indicator on the center
facia panel. This system detects the
conditions 1~4 in the following table
and activates or deactivates the front
passenger air bag based on these
conditions. Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the
seat cushion, with the person’s legs
comfortably extended, feet on the
floor, and wearing the safety belt prop-
erly) for the most effective protection
by the air bag and the safety belt.
The ODS (Occupant Detection
System) may not function properly if
the passenger takes actions which
can defeat the detection system.
These include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or cen- ter console.
(3) Sitting towards the sides or the front of the seat.
(4) Putting legs on the dashboard or resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back.
Page 307 of 500
Driving your vehicle
70
5

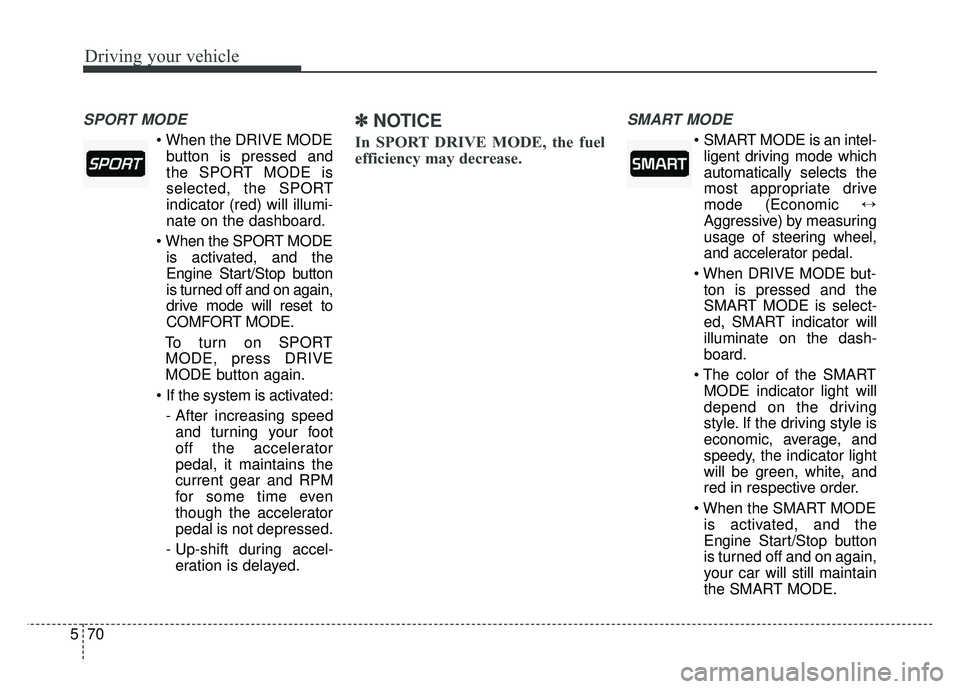

SPORT MODE
button is pressed and
the SPORT MODE is
selected, the SPORT
indicator (red) will illumi-
nate on the dashboard.
is activated, and the
Engine Start/Stop button
is turned off and on again,
drive mode will reset to
COMFORT MODE.
To turn on SPORT MODE, press DRIVE
MODE button again.
- After increasing speed and turning your foot
off the accelerator
pedal, it maintains the
current gear and RPM
for some time even
though the accelerator
pedal is not depressed.
- Up-shift during accel- eration is delayed.
✽ ✽ NOTICE
In SPORT DRIVE MODE, the fuel
efficiency may decrease.
SMART MODE
SMART MODE is an intel-
ligent driving mode which
automatically selects the
most appropriate drive
mode (Economic \b
Aggressive) by measuring
usage of steering wheel,
and accelerator pedal.
ton is pressed and the
SMART MODE is select-
ed, SMART indicator will
illuminate on the dash-
board.
MODE indicator light will
depend on the driving
style. If the driving style is
economic, average, and
speedy, the indicator light
will be green, white, and
red in respective order.
is activated, and the
Engine Start/Stop button
is turned off and on again,
your car will still maintain
the SMART MODE.
Page 328 of 500
591
Driving your vehicle
Conditions that cause missed
warnings and false warnings:
The lane is not visible due to snow,rain, debris, puddles or other envi-
ronmental conditions.
The brightness outside changes suddenly such as when
entering/exiting a tunnel.
The headlights are off at night or in a tunnel.
The color of the lane marking from the road is difficult to distinguish.
Driving on a steep grade or a curve.
Light such as street lights, sunlight or oncoming vehicle lights reflect
off of water on the road.
The lens or windshield is obscured by debris.
The sensor cannot detect the lane because of fog, heavy rain or
heavy snow.
The rear view mirror housing has overheated from exposure to direct
sunlight.
The lane is very wide or narrow. The lane line is damaged or indis-
tinct.
The windshield is fogged up by humidity.
Objects in the median or along the side of the road cast shadows over
the lane markings
The sensor cannot distinguish the lane from the road due to the
dust/dirt.
There are other markings similar to lane lines.
There are lane boundaries instead of markings.
The vehicle ahead is very close, obscuring the view of the lane
markings, or the vehicle ahead is
driving over the lane markings.
The vehicle vibrates heavily due to poor road conditions.
The lanes are merging, expanding, or otherwise overlapping
Something reflective is placed on the dashboard. Driving with the sun in front of you.
Driving in areas under construc-
tion.
Lanes are marked by more than two sets of lines.
The windshield is fogged by humid air in the vehicle.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
two conditions:
1. This device may not cause harm- ful interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
Page 351 of 500
What to do in an emergency
86

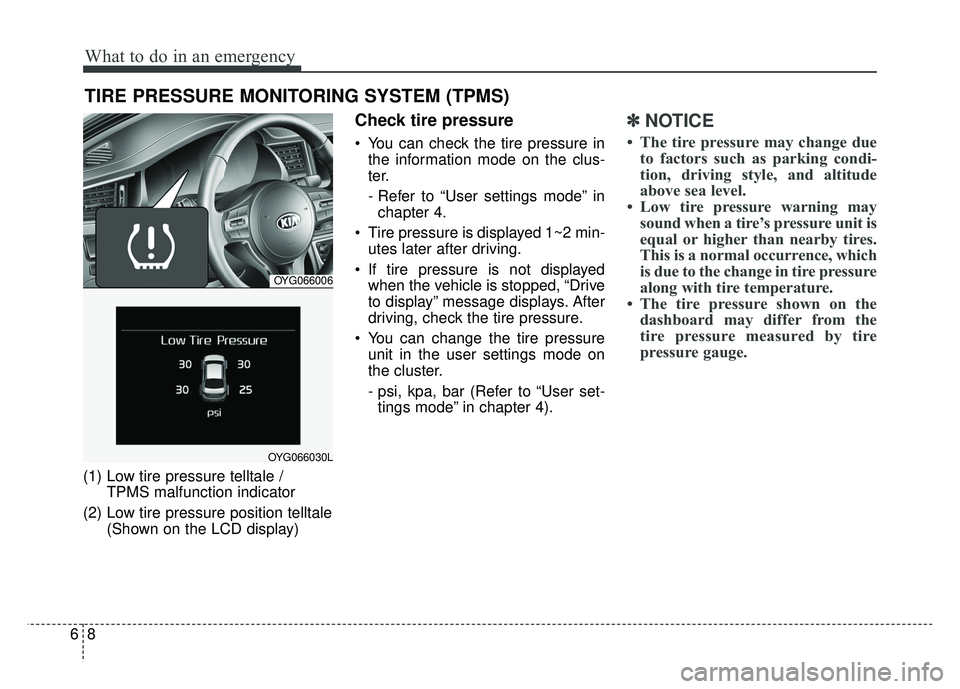

TIRE PRESSURE MONITORING SYSTEM (TPMS)
(1) Low tire pressure telltale / TPMS malfunction indicator
(2) Low tire pressure position telltale (Shown on the LCD display)
Check tire pressure
You can check the tire pressure inthe information mode on the clus-
ter.
- Refer to “User settings mode” inchapter 4.
Tire pressure is displayed 1~2 min- utes later after driving.
If tire pressure is not displayed when the vehicle is stopped, “Drive
to display” message displays. After
driving, check the tire pressure.
You can change the tire pressure unit in the user settings mode on
the cluster.
- psi, kpa, bar (Refer to “User set-tings mode” in chapter 4).
✽ ✽ NOTICE
• The tire pressure may change due
to factors such as parking condi-
tion, driving style, and altitude
above sea level.
• Low tire pressure warning may sound when a tire’s pressure unit is
equal or higher than nearby tires.
This is a normal occurrence, which
is due to the change in tire pressure
along with tire temperature.
• The tire pressure shown on the dashboard may differ from the
tire pressure measured by tire
pressure gauge.
OYG066006
OYG066030L
Page 479 of 500
Specifications, Consumer information, Reporting safety defects
88

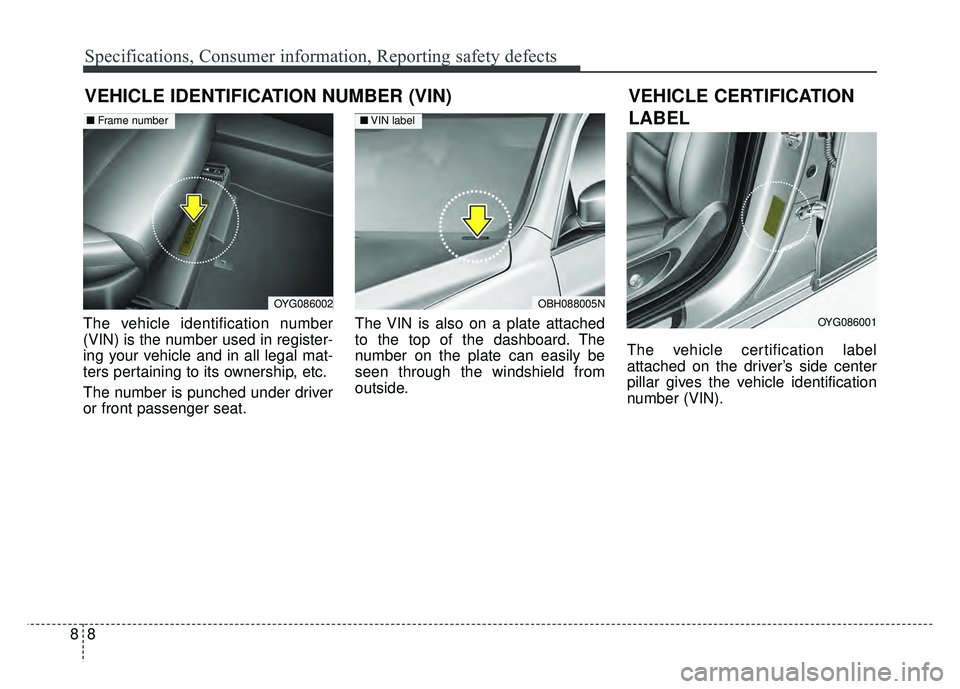

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OYG086002
■
Frame number
OBH088005N
■VIN label
OYG086001
Page 489 of 500
Index
4I
Checking the amount of air conditioner refrigerantand compressor lubricant . . . . . . . . . . . . . . . . . . . . 4-134
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-44
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28 Selecting a Child Restraint System (CRS) . . . . . . . 3-29
Securing a child restraint with the LATCHanchors system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Securing a child restraint seat with "Tether Anchor" system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
35
Securing a child restraint with a lap belt or lap/shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-19
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
139
Climate control air filter . . . . . . . . . . . . . . . . . . . 4-133,7-34 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-152
Closing the sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Combined instrument, see instrument cluster . . . . . . . 4-64
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Consumer assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-26
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-26
Crankcase emission control system . . . . . . . . . . . . . . . 7-97
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-49 To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-50
To increase cruise control set speed . . . . . . . . . . . . . 5-50
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-51 To temporarily accelerate with the cruise control on. .
5-51
To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-51
To resume cruising speed at more than approximately 20mph (30 km/h) . . . . . . . . . . . . . . 5-52
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 5-52
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-58
Dashboard illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-64
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-52
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-135
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-121
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-135
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
16 From outside the vehicle . . . . . . . . . . . . . . . . . . . . . 4-16
From inside the vehicle . . . . . . . . . . . . . . . . . . . . . . 4-17
Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-18
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-19
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-142
DRIVE mode (Drive mode integrated control system) . . 5-68
Drive mode integrated control system . . . . . . . . . . . . . 5-68 DRIVE mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-68
