Safety features of your vehicle
Front seat adjustment - power
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so you can easily con-
trol the steering wheel, pedals and
switches on the instrument panel.When in operation, the power seat-
consumes a large amount of electri-
cal power. To prevent unnecessary
system drain, don’t adjust the power
seat longer than necessary while the
engine is not running.WARNING- Seat adjustment
Do not adjust the seat while wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNING- Small
Objects
Use extreme caution when pick-
ing up small objects trapped
under the seats or between the
seat and the center console.
Your hands might be cut or
injured by the sharp edges of
the seats mechanism.
WARNING- Unattended children
Do not leave children unattend-
ed in the vehicle. Children might
operate features of the vehicle
that could injure them.
CAUTION- Power seat adjustments
The power seating controlsfunction by electronic motor.
Excessive operation may causedamage to the electrical equip-ment.
CAUTION- Power Seating
Do not operate two or morepower seat control switches atthe same time. Doing so maydamage the power seat motor orelectrical components.

311
Safety features of your vehicle
Storing positions into memoryusing the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P while the engine start/stop button is ON.
2. Adjust the driver’s seat and out- side rearview mirror comfortable
for the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after
pressing the SET button. The sys-
tem will beep twice when memory
has been successfully stored.
When recalling an adjustment mem-
ory button while sitting in the vehicle,
you can be surprised by the setting
chosen if the memory has been
adjusted by someone else. If that
occurs, immediately push the seat
position control knob in the direction
of the desired position to stop further
undesired movement. Recalling positions from memory
1. Shift the shift lever into P while the
engine start/stop button is ON.
2. To recall the position in the memo- ry, press the desired memory but-
ton (1 or 2). The system will beep
once, then the driver’s seat will
automatically adjust to the stored
position.
Adjusting the control switch for the
driver’s seat while the system is
recalling the stored position will
cause the movement to stop and
move in the direction that the control
switch is moved.
Easy access function (if equipped)
The system will move the driver's
seat automatically as follows:
With smart key system - It will move the driver’s seat rear-ward when the engine start/stop
button is changed to the OFF
position.
- It will move the driver’s seat for- ward when the engine start/stop
button is changed to the ACC or
START position.
- It will move the driver's seat for- ward when you get in your vehicle
with the smart key after closing
the driver's door.
You can activate or deactivate this
feature. Refer to "User settings" in
chapter 4.

Safety features of your vehicle
12
3
Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passenger,
but also helps protect the head and
neck in the event of a rear collision.
For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes. Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
WARNING- Headrest
removal/adjustment
Do not operate the vehicle with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
OMG038400
CAUTION
Excessive pulling or pushingmay damage the headrest.
OYG036013

Safety features of your vehicle
14
3
Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
Rear seat adjustment
Headrest
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision. For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's heads is similar with
the height as the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
OYG036019
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
OMG038401

Safety features of your vehicle
20
3
Front passenger's seat belt warning
As a reminder to the front passenger,
the front passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time when
the Engine Start/Stop button is in ON
position regardless of belt fastening.
If the vehicle is moving at or faster
than 6 mph (9 km/h) without the driv-
er seatbelt fastened, the warning
light will stay on.
If you continue not to fasten the seat
belt and you drive over 12mph
(20km/h) the seat belt warning light
and chime will activate for approxi-
mately 100 seconds and the corre-
sponding warning light will blink. When the seatbelt is unfastened
after it has been fastened, if the vehi-
cle is going at less than 12 mph
(20km/h), the warning light will illumi-
nate, and if the vehicle is moving at
or faster than 12mph(20km/h), the
warning light will flash and warning
chime will sound for more than 100
seconds.
Lap/shoulder belt
Height adjustment
You can adjust the height of the shoul-
der belt anchor to one of 4 positions
for maximum comfort and safety.
The height of the adjusting seat belt
should not be too close to your neck.
You will not be getting the most effec-
tive protection. The shoulder portion
should be adjusted so that it lies
across your chest and midway over
your shoulder near the door and not
your neck.
OYG036028
OJF035092L

Features of your vehicle
52
4
MIRRORS
Inside rearview mirror
Adjust the rearview mirror so that the
center view through the rear window
is seen. Make this adjustment before
you start driving.
Do not place objects in the rear seat
or cargo area which would interfere
with your vision through the rear win-
dow.
Day/night rearview mirror
(if equipped)
Make this adjustment before you
start driving and while the day/night
lever (3) is in the day position.
Pull the day/night lever (3) toward
you to reduce the glare from the
headlights of the vehicles behind you
during night driving.
Remember that you lose somerearview clarity in the night position.
❈ (1) : Day, (2) : Night
WARNING- Mirror adjust-
ment
Do not adjust the rearview mir-
ror while the vehicle is moving.
This could result in loss of con-
trol.
WARNING
Do not modify the inside mirror
and don’t install a wide mirror. It
could result in injury during an
accident or deployment of the
air bag.
OYG046054L

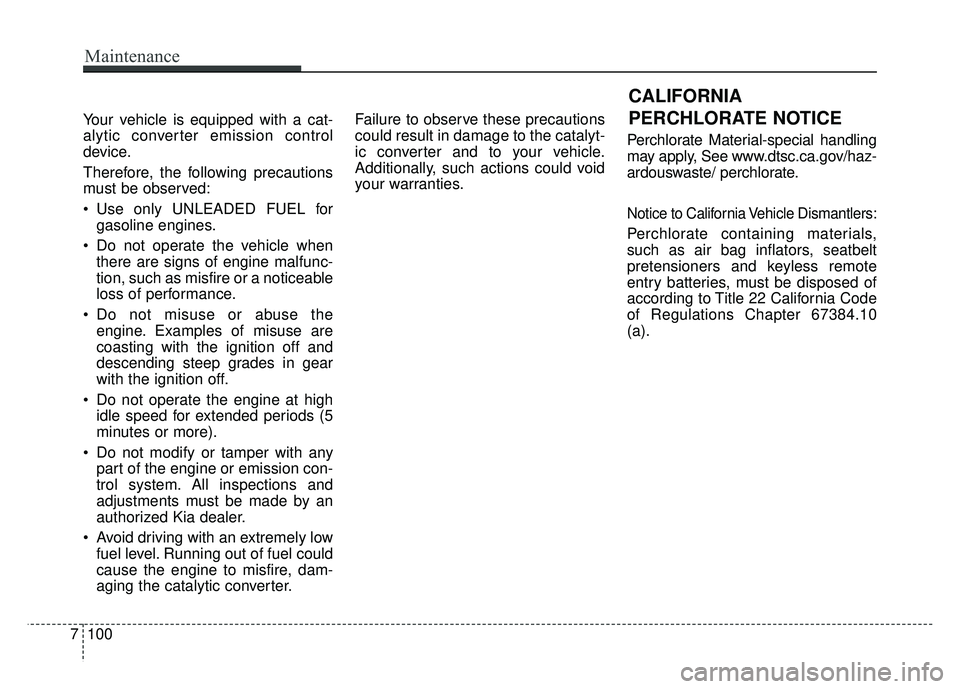

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE
7100
Maintenance

Index
6I
Vacuum crankcase ventilation hoses . . . . . . . . . . . . 7-21
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Valve clearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21\
Automatic transaxle fluid . . . . . . . . . . . . . . . . . . . . . 7-21
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . 7-22
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Brake discs, pads, calipers and rotors . . . . . . . . . . . 7-23
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . 7-23
Suspension mounting bolts . . . . . . . . . . . . . . . . . . . 7-23
Steering gear box, linkage &boots/lower arm ball joint . . . . . . . . . . . . . . . . . . . 7-23
Drive shafts and boots . . . . . . . . . . . . . . . . . . . . . . . 7-23
Air conditioning refrigerant . . . . . . . . . . . . . . . . . . 7-23
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89
Exterior overview (Front) . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (Rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Flat tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-15 Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Removing and storing the spare tire . . . . . . . . . . . . 6-16
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21 Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Fluid
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Fog light (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-63
Front fog lamp (LED type) bulb replacement . . . . . . . 7-81
Front seat adjustment (power) . . . . . . . . . . . . . . . . . . . . 3-7
Front turn signal lamp bulb replacement . . . . . . . . . . . 7-80
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-38
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67\
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-58 Inner panel fuse replacement . . . . . . . . . . . . . . . . . 7-59
Engine compartment fuse replacement . . . . . . . . . . 7-61
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-64
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-66
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
0
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Glove box lamp bulb replacement . . . . . . . . . . . . . . . . 7-87
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
F
G

Index
10I
Occupant Detection System (ODS) . . . . . . . . . . . . . . . 3-46
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
68
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Online factory authorized manuals . . . . . . . . . . . . . . . . 8-14
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Outside Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-6
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41 Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-42
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-31
Personal lamp bulb replacement . . . . . . . . . . . . . . . . . . 7-87
Position lamp + DRL (LED type) bulb replacement . 7-81
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145 Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-34
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Rear curtain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-100
Type of warning sound . . . . . . . . . . . . . . . . . . . . . . 4-101
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear turn signal lamp bulb replacement . . . . . . . . . . . . 7-82
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-7
Record your key number . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Remote control (outside rear view mirror) . . . . . . . . . . 4-62
Remote keyless entry system operations . . . . . . . . . . . . 4-8
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . . . . 8-14
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Restrictions in Handling Keys(Smart key) . . . . . . . . . . 4-12
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Room lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 7-86
Rotation (Tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
O
P
R

I11
Index
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-8Normal Maintenance Schedule . . . . . . . . . . . . . . . . . 7-9
Maintenance Under Severe Usage Conditions. . . . . 7-19
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-18
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-18 Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-18
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Lap/shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-23
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-4 Front seat adjustment (power) . . . . . . . . . . . . . . . . . . 3-7
Driver position memory system . . . . . . . . . . . . . . . . 3-10
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Securing a child restraint seat with "Tether Anchor" system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-35
Securing a child restraint with a lap belt or lap/ shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36 Securing a child restraint with the LATCH anchors
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-34
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Shift-lock override - Automatic transaxle . . . . . . . . . . 5-15
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56\
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Side repeater lamp bulb replacement . . . . . . . . . . . . . . 7-82
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Smart Blind Spot Detection System . . . . . . . . . . . . . . . 5-84 Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-85
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-5 Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry system operations . . . . . . . . . . 4-8
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-9
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Mechanical key operations. . . . . . . . . . . . . . . . . . . . 4-11
Restrictions in Handling Keys . . . . . . . . . . . . . . . . . 4-12
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
SMART mode (Drive mode integrated control system) . . 5-70
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27\
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-95
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
98
Spare tire Removing the spare tire . . . . . . . . . . . . . . . . . . . . . . 6-16
Storing the spare tire . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
S
