Page 411 of 518

KIA CADENZA 2019  Owners Manual 711
Maintenance

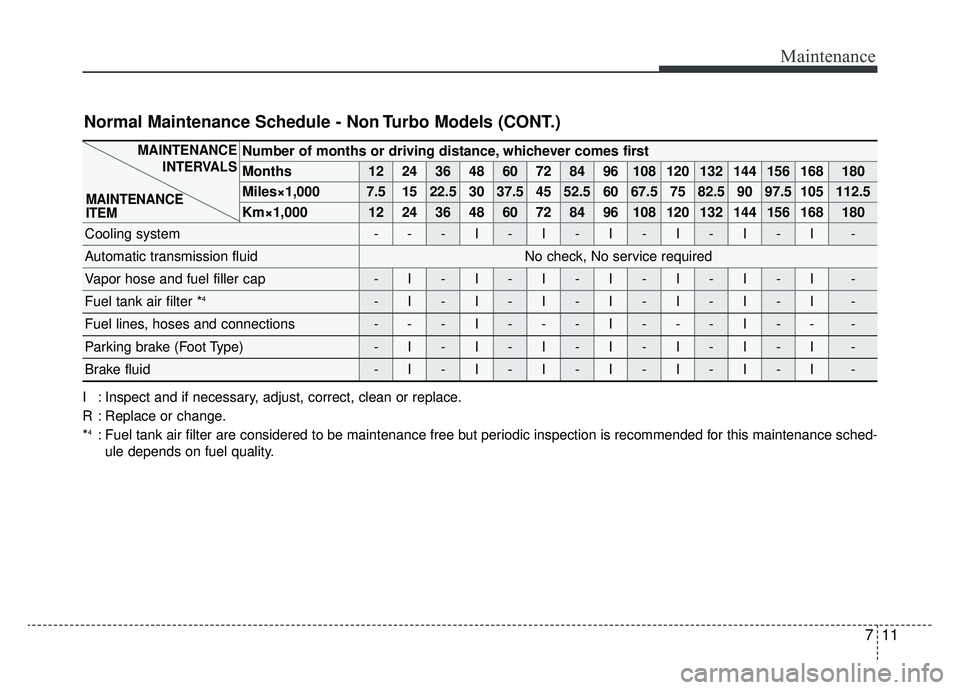

Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,0007.51522.530 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5
Km×1,00

Page 412 of 518

KIA CADENZA 2019  Owners Manual Maintenance
12
7
Maintenance Under Severe Usage Conditions - Non Turbo Models
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer
to the c

Page 413 of 518

KIA CADENZA 2019  Owners Manual 713
Maintenance

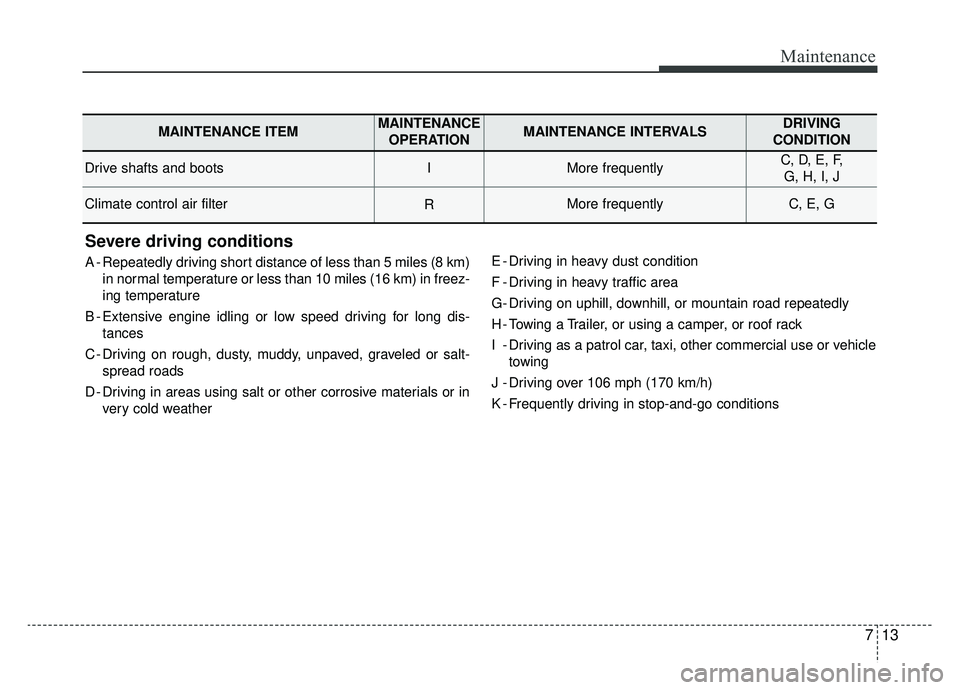

Severe driving conditions
A - Repeatedly driving short distance of less than 5 miles (8 km)in normal temperature or less than 10 miles (16 km) in freez-
ing temperature
B - Extensive e

Page 414 of 518

KIA CADENZA 2019  Owners Manual Maintenance
14
7

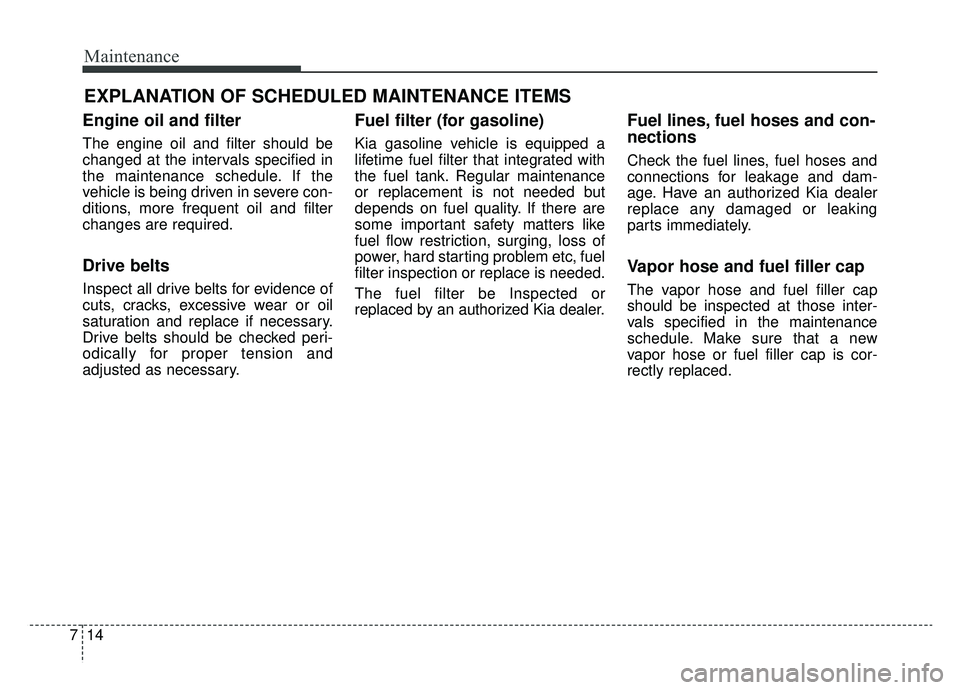

EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
Engine oil and filter
The engine oil and filter should be
changed at the intervals specified in
the maintenance schedule. If the
vehicle is

Page 415 of 518

KIA CADENZA 2019  Owners Manual 715
Maintenance

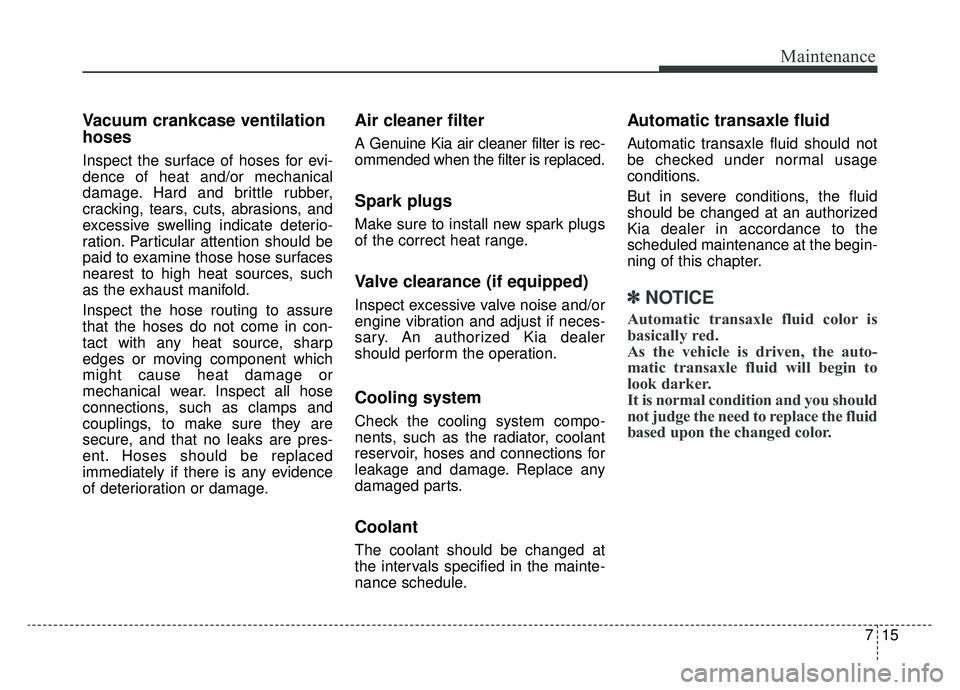

Vacuum crankcase ventilation
hoses
Inspect the surface of hoses for evi-
dence of heat and/or mechanical
damage. Hard and brittle rubber,
cracking, tears, cuts, abrasions, and
excessiv

Page 416 of 518

KIA CADENZA 2019  Owners Manual Maintenance
16
7

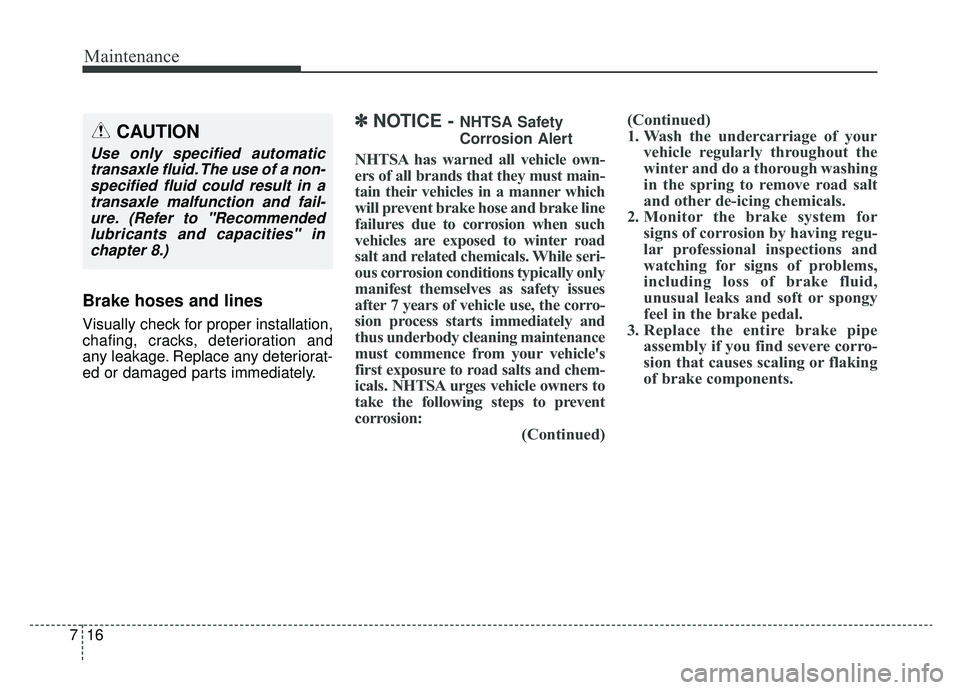

Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and
any leakage. Replace any deteriorat-
ed or damaged parts immediately.
✽ ✽
NOTICE -

Page 417 of 518

KIA CADENZA 2019  Owners Manual 717
Maintenance
Brake fluid
Check the brake fluid level in the
brake fluid reservoir. The level should
be between “MIN” and “MAX” marks
on the side of the reservoir. Use only
hydraulic brake f

Page 418 of 518

KIA CADENZA 2019  Owners Manual Maintenance
18
7

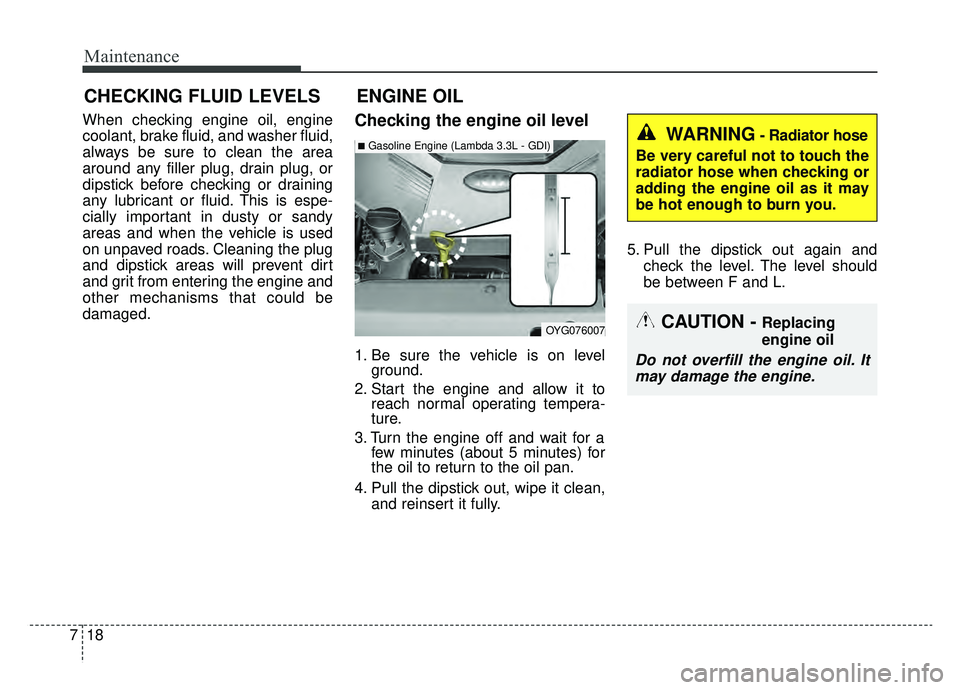

CHECKING FLUID LEVELS
When checking engine oil, engine
coolant, brake fluid, and washer fluid,
always be sure to clean the area
around any filler plug, drain plug, or
dipstick before

Page 419 of 518

KIA CADENZA 2019  Owners Manual 719
Maintenance

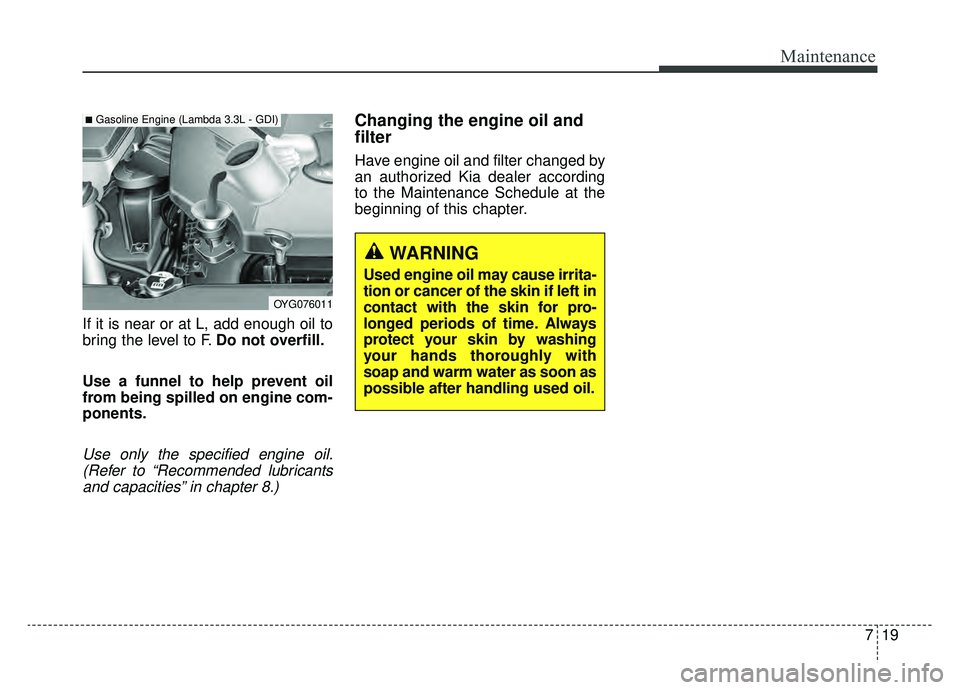

If it is near or at L, add enough oil to
bring the level to F.Do not overfill.
Use a funnel to help prevent oil
from being spilled on engine com-
ponents.
Use only the specified engine

Page 420 of 518

KIA CADENZA 2019  Owners Manual Maintenance
20
7

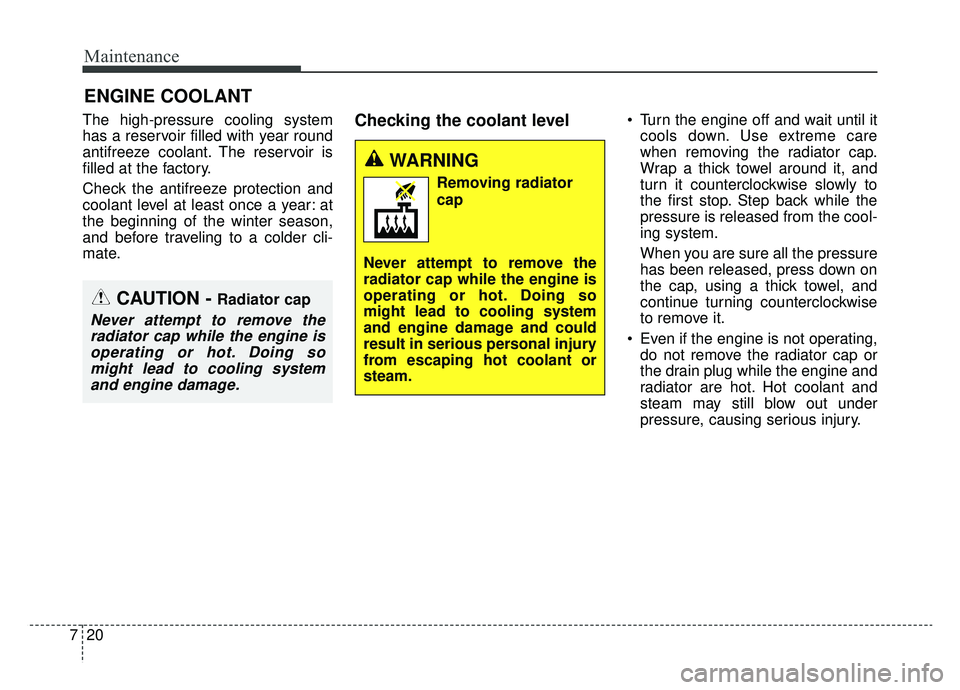

ENGINE COOLANT
The high-pressure cooling system
has a reservoir filled with year round
antifreeze coolant. The reservoir is
filled at the factory.
Check the antifreeze protection and
