Features of your vehicle
Safe Exit Assist (SEA)
(if equipped)
Once the system decides it is dan-
gerous for a passenger to open a
vehicle door by sensing the
approaching of a vehicle from
behind when the person is opening
the door, the warning message
“Watch for traffic” appears and the
alarming sound will continue for
seconds. (❈This system is only a
supplemental system.)
System setting and activation
System setting
Safe Exit Assist is activated when
you select ‘Settings →Vehicle →
Driver Assistance →Blind-Spot
Safety →Safe Exit Assist’ from the
Settings menu in the Infotainment
System screen.
For detailed information, scan the
QR code in a separately supplied
Car Infotainment System Quick
Reference Guide.WARNING
The system does not detect
every obstacle approaching
the vehicle exit.
The driver and passenger are
responsible for any accident
that occurs while exiting the
vehicle. Always check the sur-
rounding before you exit the
vehicle.
Playing the vehicle audio sys-
tem at high volume may offset
the system warning sounds.
The warning of Safe Exit
Assist may not sound while
other system's warning
sounds.
OYG049599L

Features of your vehicle
20 4
Operating Conditions
The system enters the ready status,
when Safe Exit Assist is selected
from the Settings menu in the
Infotainment system and when the
following conditions are satisfied:
The vehicle is stopped or the vehi-
cle speed is lower than 2 mph (3
km/h).
The system detects when the
approaching vehicle move over 3
mph (5 km/h) speed within detec-
tion range. Because the detection
range and speed may changes by
the system operation condition,
always pay attention to nearby traf-
fic condition.
This system works for ten minutes
even after the ignition is turned off.
The system will be released as
soon as the vehicle doors are
locked with the smart key.
WARNING
Safe Exit Assist may not oper-
ate normally if there is any
vehicle or obstacle at the rear
area of your vehicle.
Safe Exit Assist may not oper-
ate normally when a vehicle
two lanes next is coming rap-
idly to lane next to your vehi-
cle or a vehicle is approaching
at a fast speed from the rear in
the lane next to your vehicle.
Safe Exit Assist may be acti-
vated later than normal or
may not operate normally if a
vehicle is approaching fast
from the rear of your vehicle.
(Continued)
(Continued)
Safe Exit Assist will not oper-
ate if there is a malfunction
with Blind-Spot Collision
Warning as follows:
- When Blind-Spot Collision
Warning message appears
- When Blind-Spot Collision
Warning sensor or the sen-
sor surrounding is polluted
or covered
- When Blind-Spot Collision
Warning does not warn or
warns wrongly
For more details, refer to cau-
tions and limitations in “Blind-
Spot Collision Warning (BCW) /
Blind-Spot Collision-Avoidance
Assist (BCA) “ in chapter 5.

421
Features of your vehicle
Opening the trunk
Make sure the vehicle is in P (Park)
and set the parking brake.
Press the switch on the trunk after
unlocking the door by smart key.
Press the trunk unlock button of
smart key for more than 1 second.
Press the switch on the trunk itself
with the smart key in your posses-
sion.
✽ ✽
NOTICE
The trunk switch is made of rubber.
Do not press it using a sharp object
such as a nail, key, screwdriver, or
drill.
To open the trunk from inside the vehi-
cle, press the trunk lid release switch.
✽ ✽
NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
TRUNK
OYG049178
CAUTION
If the switch on the trunk can-
not be pushed due to freezing,
do not press the switch with
excessive power. Press the
switch on the trunk after
removing the ice around the
switch. You may also open the
trunk by using the trunk open
button on smart key or inside
of the vehicle.
When using automatic car
wash, be sure to lock the cen-
tral door lock switch after the
trunk is fully closed.
During high pressure car
wash, be careful as the switch
on the trunk can be pressed
by the water injection pres-
sure and the trunk can be
open.
OYG040013N
■ Inside

Features of your vehicle
22 4
✽
✽
NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not
work properly due to freezing condi-
tions.
Closing the trunk
To close, lower the trunk lid, then
press down on it until it locks. To be
sure the trunk lid is securely fas-
tened, always check by trying to pull
it up again.
Emergency trunk safety
release
Inside the trunk
Your vehicle is equipped with an
emergency trunk safety release lever
located inside the trunk. When some-
one is inadvertently locked in the
trunk, the trunk can be opened by
moving the lever in the direction of
the arrow and pushing the trunk
open.
WARNING
The trunk swings upward. Make
sure no objects or people are
near the rear of the vehicle
when opening the trunk.
WARNING- Exhaust
Fumes
The trunk lid should always be
kept completely closed while
the vehicle is in motion. If it is
left open or ajar, poisonous
exhaust gases may enter the
car and serious illness or death
may result.
WARNING
Make sure your hands, feet and
other parts of your body are
safely out of the way before
closing the trunk.
OYG049020

423
Features of your vehicle
Inside the vehicle
When you can not unlock the trunk
due to battery discharge or other
reasons, you can unlock the trunk
inside the vehicle.
Open the cable cover (1) under the
rear seat with a mechanical key and
pull the cable (2) for unlocking the
trunk. The cable is fixed firmly so it
may hard to pull. Therefore, please
put auxiliary equipment such as a
screwdriver to the loop and pull it
comfortably. You and your passengers must be
aware of the location of the emer-
gency trunk safety release lever in
this vehicle and how to open the
trunk in case you are accidentally
locked in the trunk.
Your vehicle should be kept locked
and the smart key should be kept
out of the reach of children.
Parents should teach their children
about the dangers of playing in
trunks.
Use the release lever for emergen-
cies only.
WARNING
NEVER allow anyone to occupy
the trunk of the vehicle at any
time. If the trunk is partially or
totally latched and the person is
unable to get out, serious injury
or death could occur due to lack
of ventilation, exhaust fumes
and rapid heat build-up, or
because of exposure to cold
weather conditions. The trunk is
also a highly dangerous loca-
tion in the event of a crash
because it is not a protected
occupant space but is a part of
the vehicle’s crush zone.
OYGH049591

Features of your vehicle
24 4
WARNING
Make sure that there are no peo-
ple or objects in the path of the
trunk (or smart trunk) prior to
use. Serious injury, damage to
the vehicle or damage to sur-
rounding objects may result if
contact with the trunk (or smart
trunk) occurs.

425
Features of your vehicle
On a vehicle equipped with a smart
key, the trunk can be opened with
no-touch activation using the Smart
Trunk system.
How to use the Smart Trunk
The trunk can be opened with no-
touch activation if all the conditions
below are met.
15 seconds has elapsed and all
doors are closed and locked
The smart key is positioned in the
detecting area for more than 3 sec-
onds.
✽ ✽
NOTICE
• The Smart Trunk does not operate
when:
- The smart key is detected within
15 seconds after the doors are
closed and locked, and is contin-
uously detected.
- The smart key is detected within
15 seconds after the doors are
closed and locked, and 60 inches
(1.5 m) from the front door han-
dles. (for vehicles equipped with
Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
SMART TRUNK
OYG049021

Features of your vehicle
26 4

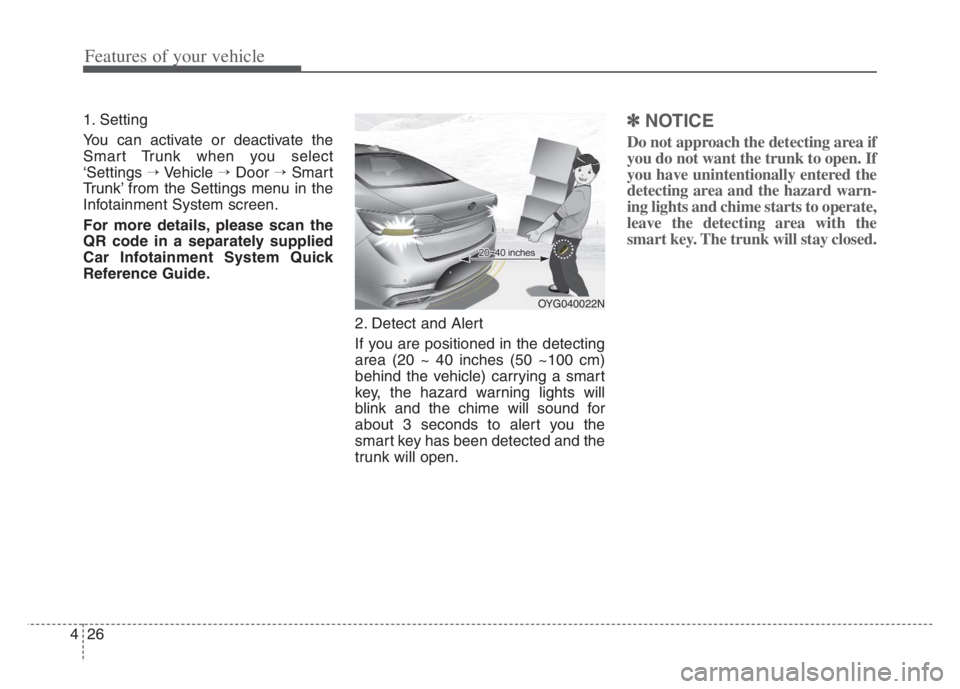

1. Setting
You can activate or deactivate the
Smart Trunk when you select
‘Settings →Vehicle →Door →Smart
Trunk’ from the Settings menu in the
Infotainment System screen.
For more details, please scan the
QR code in a separately supplied
Car Infotainment System Quick
Reference Guide.
2. Detect and Alert
If you are positioned in the detecting
area (20 ~ 40 inches (50 ~100 cm)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and the chime will sound for
about 3 seconds to alert you the
smart key has been detected and the
trunk will open.✽ ✽
NOTICE
Do not approach the detecting area if
you do not want the trunk to open. If
you have unintentionally entered the
detecting area and the hazard warn-
ing lights and chime starts to operate,
leave the detecting area with the
smart key. The trunk will stay closed.
OYG040022N

427
Features of your vehicle
3. Automatic opening
The hazard warning lights will blink
and the chime will sound 2 times and
then the trunk will slowly open.
Make certain that you close the trunk
before driving your vehicle.
Make sure there are no people or
objects around the trunk before
opening or closing the trunk.
Make sure to deactivate the Smart
trunk function when washing your
vehicle.
Otherwise, the trunk may open inad-
vertently.
✽ ✽
NOTICE
The key should be kept out of reach
of children. Children may inadver-
tently open the Smart Trunk while
playing around the rear area of the
vehicle.
How to deactivate the Smart
Trunk function using the smart
key
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
5. Remote start
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Trunk function will
be deactivated.
Make sure to be aware of how to
deactivate the Smart Trunk function
for emergency situations.
OYG049023
WARNING
Make sure objects in the rear
cargo area do not come out
when opening the trunk as this
could cause serious injury.
OYG049177

Features of your vehicle
28 4
✽
✽
NOTICE
• If you press the door unlock but-
ton (2), the Smart Trunk function
will be deactivated temporarily.
But, if you do not open any door
for 30 seconds, the smart trunk
function will be activated again.
• If you press the trunk open button
(3) for more than 1 second, the
trunk opens.
• If you press the door lock button
(1) or trunk open button (3) when
the Smart Trunk function is not in
the Detect and Alert stage, the
smart trunk function will not be
deactivated.
• In case you have deactivated the
Smart Trunk function by pressing
the smart key button and opened a
door, the smart trunk function can
be activated again by closing and
locking all doors.
Detecting area
The Smart Trunk operates a wel-
come alert if the smart key is
detected within 20 ~ 40 inches (50
~ 100 cm) from the trunk.
The alert stops if the smart key is
positioned outside the detecting
area during the Detect and Alert
stage.
✽ ✽
NOTICE
• The Smart Trunk function will not
work if any of the following
occurs:
- The smart key is close to a radio
transmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the transmitter.
- The smart key is near a mobile
two way radio system or a cellu-
lar phone.
- Another vehicle's smart key is
being operated close to your
vehicle.
• The detecting range may decrease
or increase when :
- One side of the vehicle is raised
to replace a tire or to inspect the
vehicle.
- The vehicle is parked on a slope
or unpaved road, etc.
OYG040179N
