Maintenance
64
8
✽✽

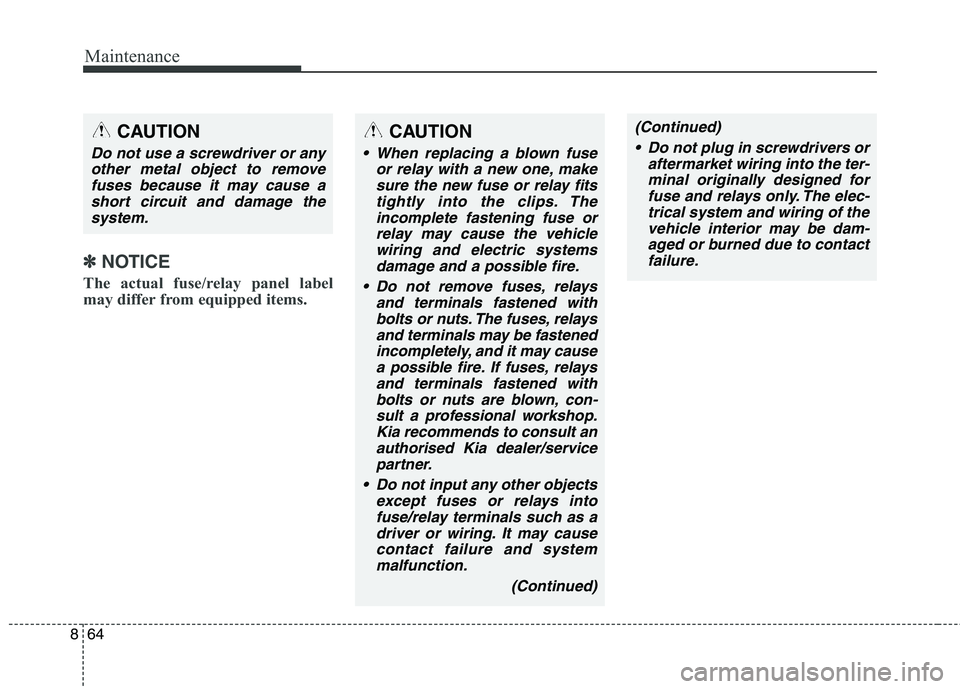

NOTICE
The actual fuse/relay panel label
may differ from equipped items.
CAUTION
When replacing a blown fuse or relay with a new one, makesure the new fuse or relay fitstightly into the clips. Theincomplete fastening fuse or relay may cause the vehiclewiring and electric systemsdamage and a possible fire.
Do not remove fuses, relays and terminals fastened withbolts or nuts. The fuses, relays and terminals may be fastenedincompletely, and it may causea possible fire. If fuses, relays and terminals fastened withbolts or nuts are blown, con-sult a professional workshop. Kia recommends to consult anauthorised Kia dealer/servicepartner.
Do not input any other objects except fuses or relays intofuse/relay terminals such as adriver or wiring. It may causecontact failure and systemmalfunction.
(Continued)
(Continued)
Do not plug in screwdrivers or aftermarket wiring into the ter-minal originally designed forfuse and relays only. The elec- trical system and wiring of thevehicle interior may be dam-aged or burned due to contact failure.CAUTION
Do not use a screwdriver or anyother metal object to removefuses because it may cause a short circuit and damage thesystem.

865
Maintenance

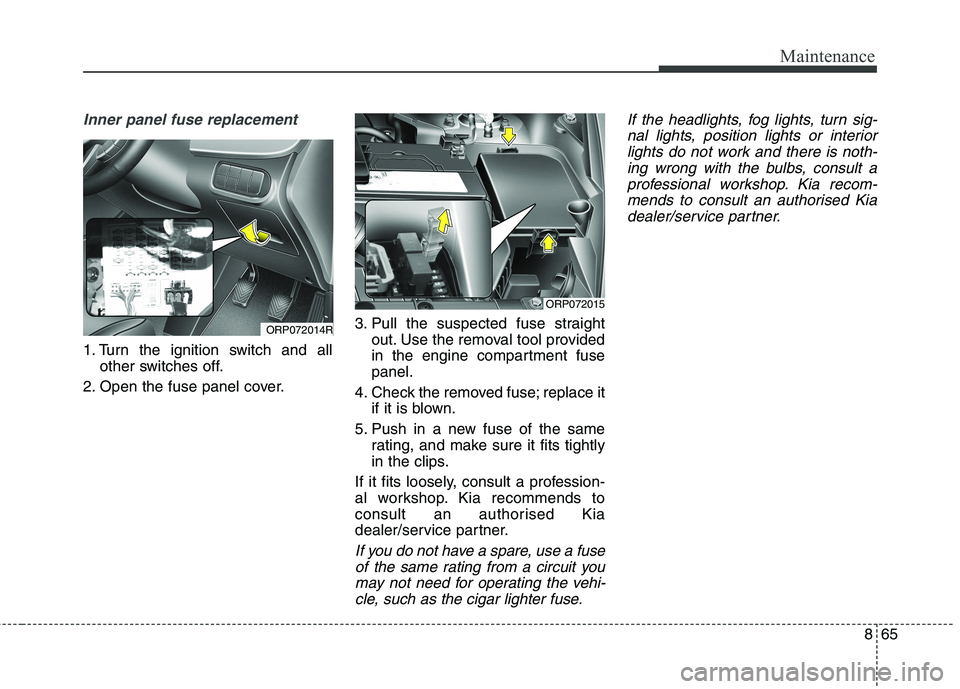

Inner panel fuse replacement
1. Turn the ignition switch and allother switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight
out. Use the removal tool provided
in the engine compartment fusepanel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, consult a profession-
al workshop. Kia recommends to
consult an authorised Kia
dealer/service partner.
If you do not have a spare, use a fuse of the same rating from a circuit youmay not need for operating the vehi- cle, such as the cigar lighter fuse. If the headlights, fog lights, turn sig-
nal lights, position lights or interiorlights do not work and there is noth-ing wrong with the bulbs, consult a professional workshop. Kia recom-mends to consult an authorised Kiadealer/service partner.
ORP072014R
ORP072015

Maintenance
66
8

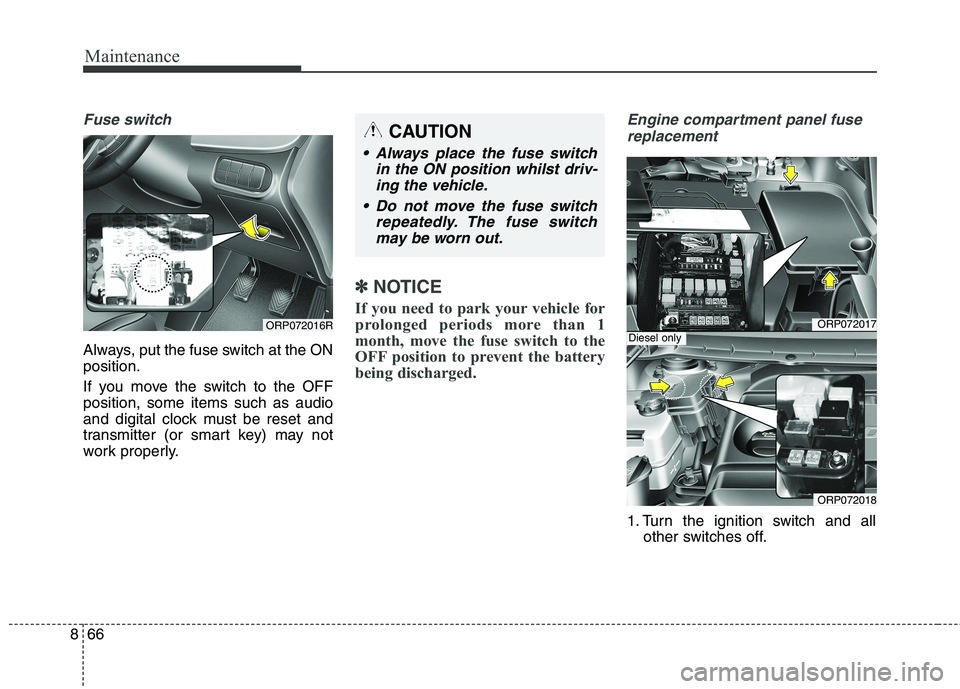

Fuse switch
Always, put the fuse switch at the ON position.
If you move the switch to the OFF position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly.
✽✽
NOTICE
If you need to park your vehicle for
prolonged periods more than 1
month, move the fuse switch to the
OFF position to prevent the battery
being discharged.
Engine compartment panel fuse replacement
1. Turn the ignition switch and all other switches off.
CAUTION
Always place the fuse switch
in the ON position whilst driv-ing the vehicle.
Do not move the fuse switch repeatedly. The fuse switchmay be worn out.
ORP072017
ORP072018
Diesel onlyORP072016R

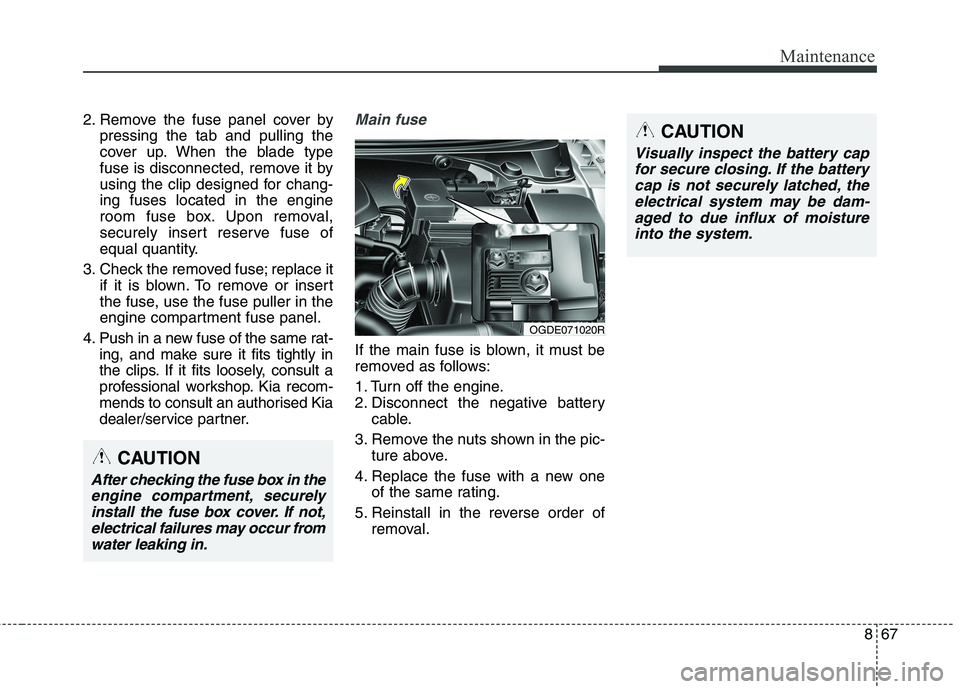

867
Maintenance
2. Remove the fuse panel cover bypressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-ing fuses located in the engine
room fuse box. Upon removal,
securely insert reserve fuse of
equal quantity.
3. Check the removed fuse; replace it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rat- ing, and make sure it fits tightly in
the clips. If it fits loosely, consult a
professional workshop. Kia recom-
mends to consult an authorised Kia
dealer/service partner.Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
OGDE071020R
CAUTION
After checking the fuse box in the
engine compartment, securelyinstall the fuse box cover. If not, electrical failures may occur fromwater leaking in.
CAUTION
Visually inspect the battery capfor secure closing. If the batterycap is not securely latched, the electrical system may be dam-aged to due influx of moistureinto the system.

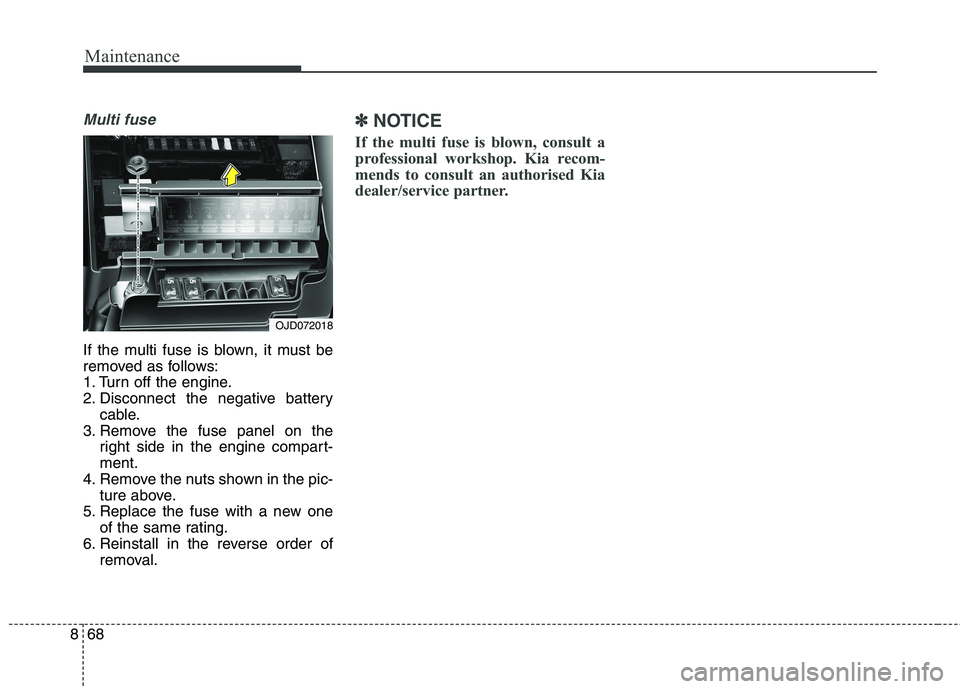

Maintenance
68
8
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the fuse panel on the right side in the engine compart-ment.
4. Remove the nuts shown in the pic- ture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
✽✽ NOTICE
If the multi fuse is blown, consult a
professional workshop. Kia recom-
mends to consult an authorised Kia
dealer/service partner.
OJD072018

869
Maintenance

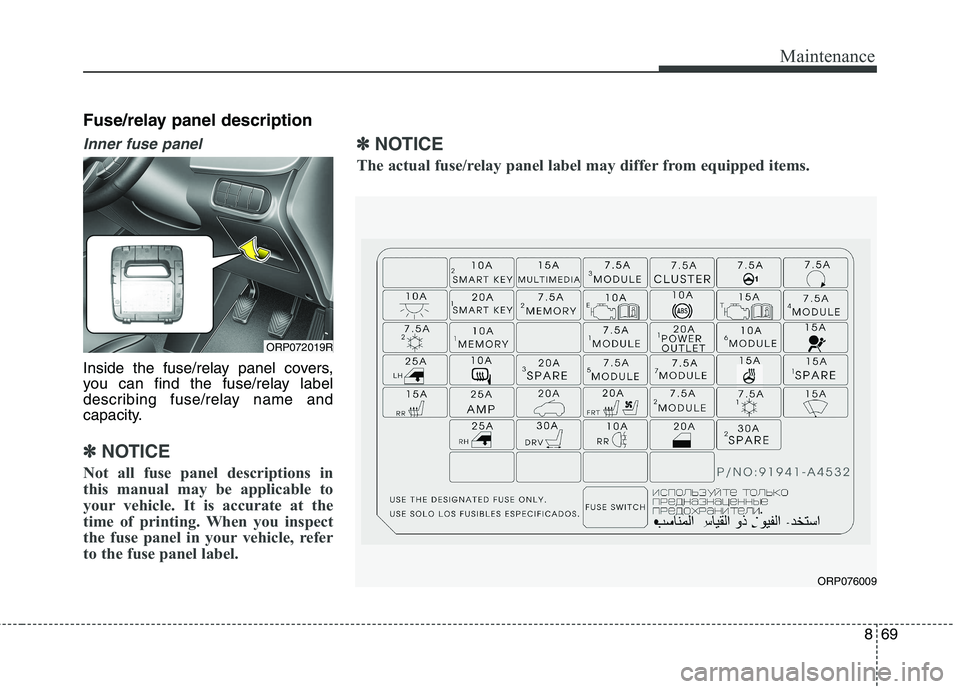

Fuse/relay panel description
Inner fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
ORP072019R
ORP076009
✽✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.

Maintenance
70
8

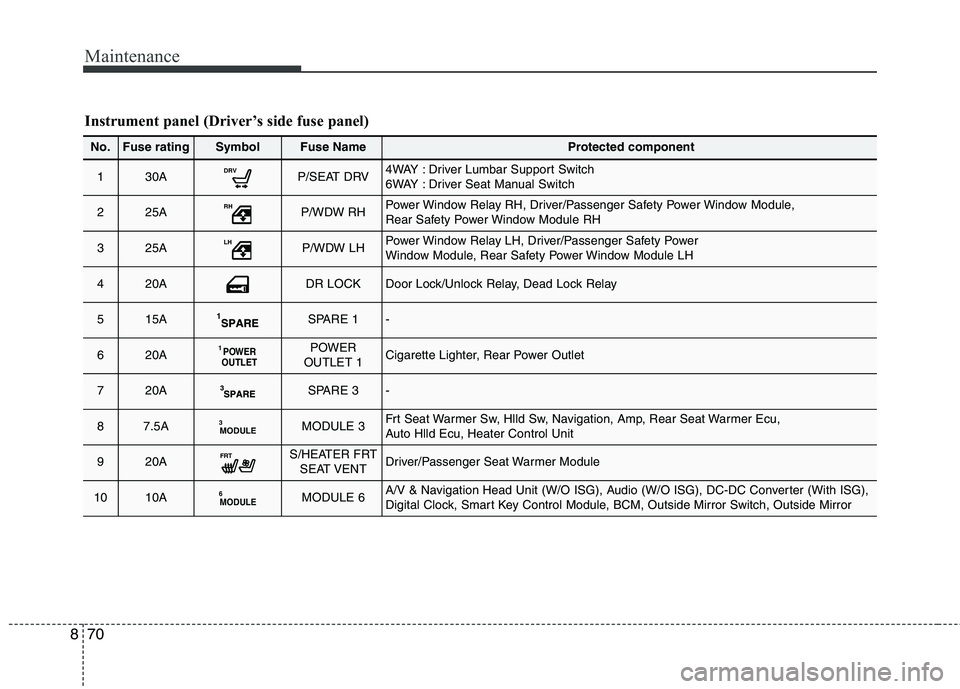

Instrument panel (Driver’s side fuse panel)
No.Fuse ratingSymbolFuse NameProtected component
130ADRVP/SEAT DRV4WAY : Driver Lumbar Support Switch
6WAY : Driver Seat Manual Switch
225ARHP/WDW RHPower Window Relay RH, Driver/Passenger Safety Power Window Module,
Rear Safety Power Window Module RH
325ALHP/WDW LHPower Window Relay LH, Driver/Passenger Safety Power
Window Module, Rear Safety Power Window Module LH
420ADR LOCKDoor Lock/Unlock Relay, Dead Lock Relay
515ASPARE 1-
620APOWER
OUTLET1POWER
OUTLET 1Cigarette Lighter, Rear Power Outlet
720ASPARE 3-
87.5AMODULE3MODULE 3Frt Seat Warmer Sw, Hlld Sw, Navigation, Amp, Rear Seat Warmer Ecu,
Auto Hlld Ecu, Heater Control Unit
920AFRTS/HEATER FRT SEAT VENTDriver/Passenger Seat Warmer Module
1010AMODULE6MODULE 6A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Converter (With ISG),
Digital Clock, Smart Key Control Module, BCM, Outside Mirror Switch, Outside Mirror

871
Maintenance

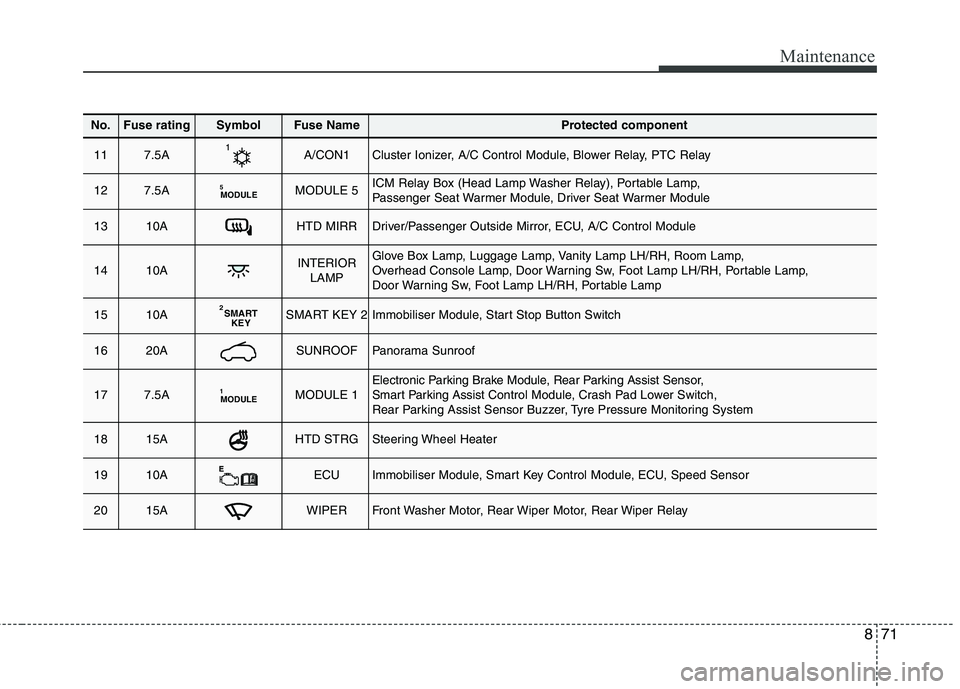

No.Fuse ratingSymbolFuse NameProtected component
117.5AA/CON1Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay
127.5AMODULE
5MODULE 5ICM Relay Box (Head Lamp Washer Relay), Portable Lamp,
Passenger Seat Warmer Module, Driver Seat Warmer Module
1310AHTD MIRRDriver/Passenger Outside Mirror, ECU, A/C Control Module
1410AINTERIOR
LAMPGlove Box Lamp, Luggage Lamp, Vanity Lamp LH/RH, Room Lamp,
Overhead Console Lamp, Door Warning Sw, Foot Lamp LH/RH, Portable Lamp,
Door Warning Sw, Foot Lamp LH/RH, Portable Lamp
1510ASMARTKEY
2SMART KEY 2Immobiliser Module, Start Stop Button Switch
1620ASUNROOFPanorama Sunroof
177.5AMODULE1MODULE 1Electronic Parking Brake Module, Rear Parking Assist Sensor,
Smart Parking Assist
Control Module, Crash Pad Lower Switch,
Rear Parking Assist Sensor Buzzer, Tyre Pressure Monitoring System
1815AHTD STRGSteering Wheel Heater
1910AECUImmobiliser Module, Smart Key Control Module, ECU, Speed Sensor
2015AWIPERFront Washer Motor, Rear Wiper Motor, Rear Wiper Relay

Maintenance
72
8

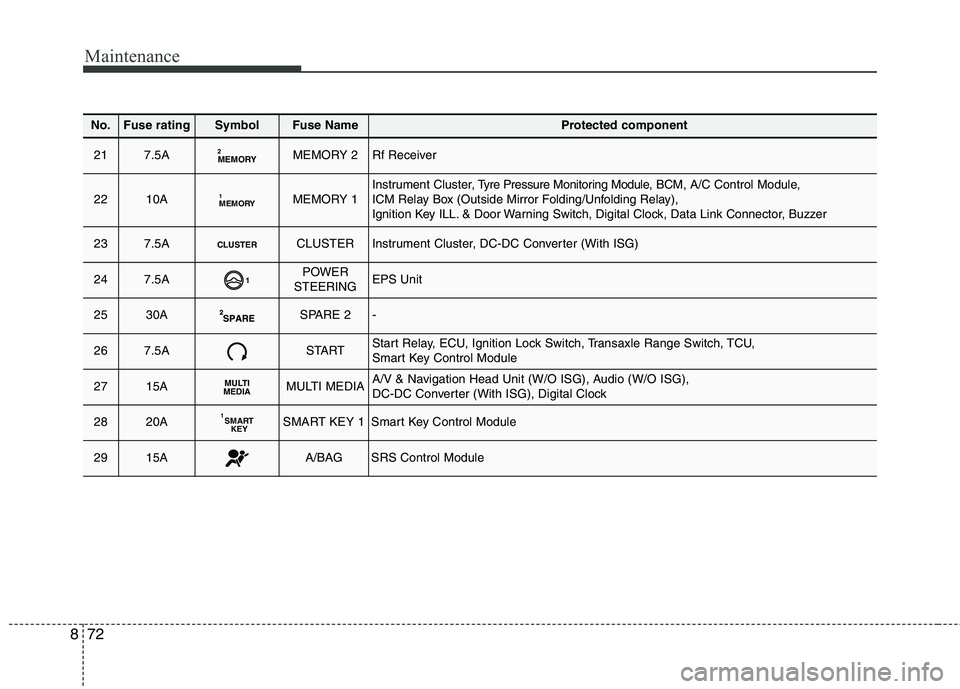

No.Fuse ratingSymbolFuse NameProtected component
217.5AMEMORY2MEMORY 2Rf Receiver
2210AMEMORY
1MEMORY 1Instrument Cluster, T
yre Pressure Monitoring Module, BCM, A/C Control Module,
ICM Relay Box (Outside Mirror Folding/Unfolding Relay),
Ignition Key ILL. & Door Warning Switch, Digital Clock, Data Link Connector, Buzzer
237.5ACLUSTERCLUSTERInstrument Cluster, DC-DC Converter (With ISG)
247.5A1POWER
STEERINGEPS Unit
2530ASPARE 2-
267.5ASTARTStart Relay, ECU, Ignition Lock Switch, Transaxle Range Switch, TCU,
Smart Key Control Module
2715AMULTI
MEDIAMULTI MEDIAA/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG),
DC-DC Converter (With ISG), Digital Clock
2820ASMART KEY
1SMART KEY 1Smart Key Control Module
2915AA/BAGSRS Control Module

873
Maintenance

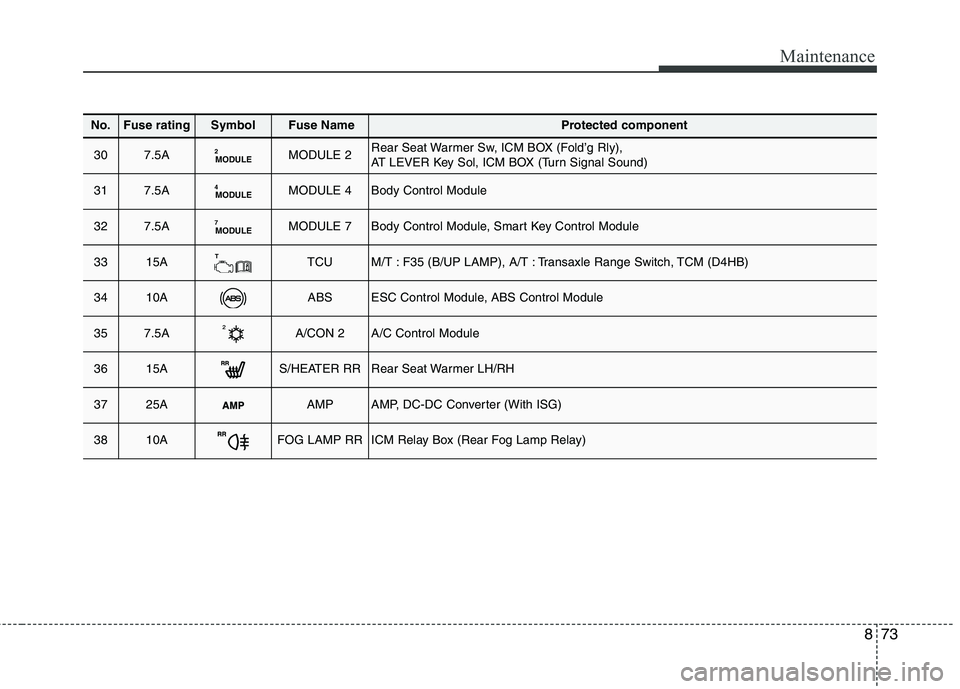

No.Fuse ratingSymbolFuse NameProtected component
307.5AMODULE2MODULE 2Rear Seat Warmer Sw, ICM BOX (Fold’g Rly),
AT LEVER Key Sol, ICM BOX (Turn Signal Sound)
317.5AMODULE4MODULE 4Body Control Module
327.5AMODULE7MODULE 7Body Control Module, Smart Key Control Module
3315ATTCUM/T : F35 (B/UP LAMP), A/T : Transaxle Range Switch, TCM (D4HB)
3410AABSESC Control Module, ABS Control Module
357.5AA/CON 2A/C Control Module
3615AS/HEATER RRRear Seat Warmer LH/RH
3725AAMPAMP, DC-DC Converter (With ISG)
3810AFOG LAMP RRICM Relay Box (Rear Fog Lamp Relay)
