KIA CARENS RHD 2018 Owners Manual

Maintenance
74
8

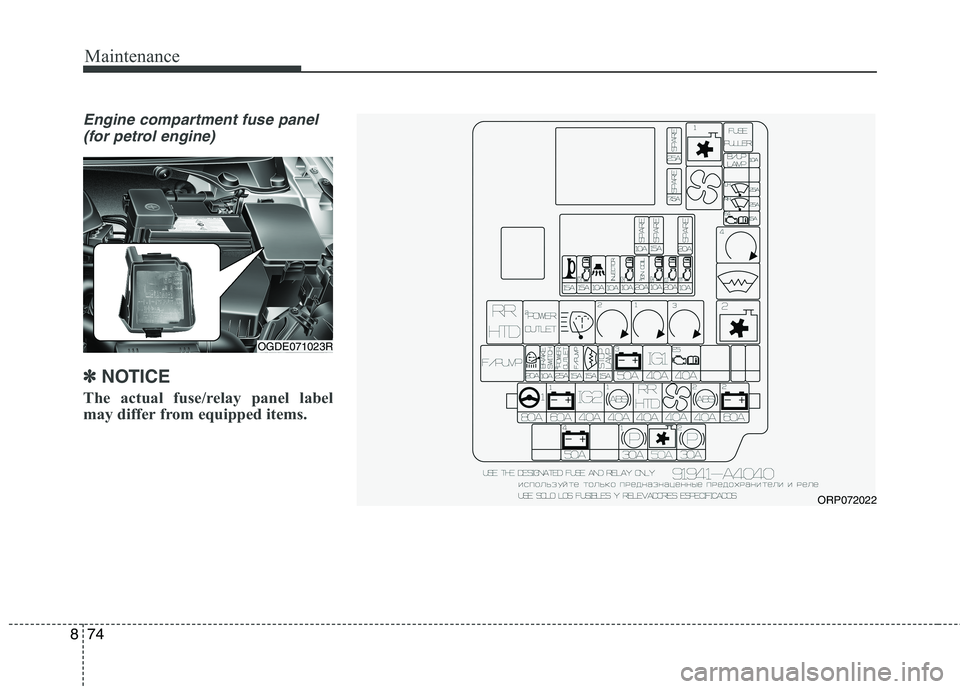

Engine compartment fuse panel
(for petrol engine)
✽✽ NOTICE
The actual fuse/relay panel label
may differ from equipped items.
OGDE071023R
ORP072022

875
Maintenance

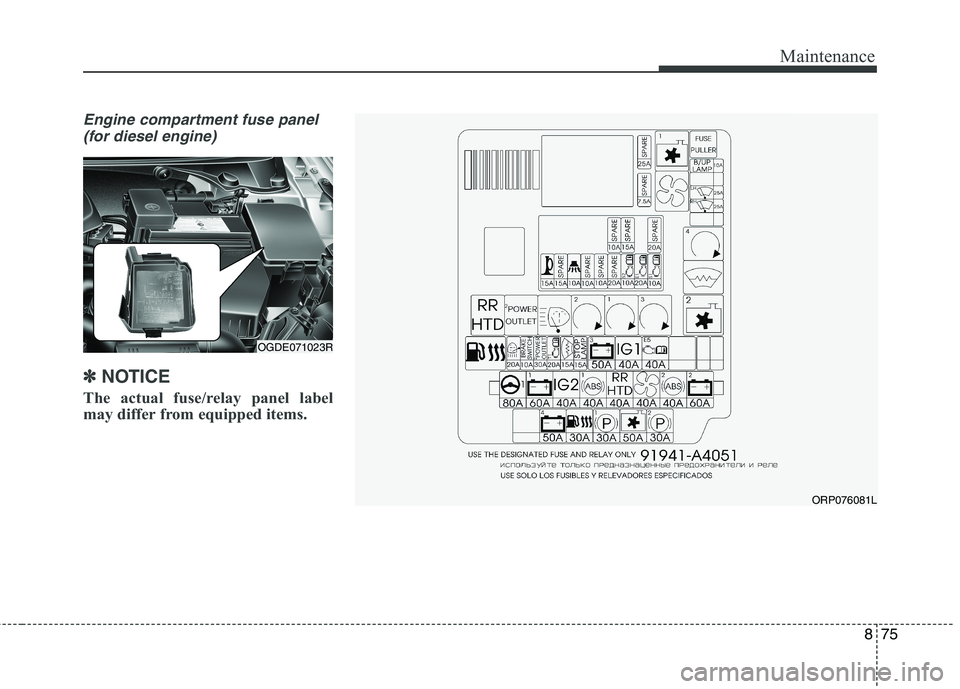

Engine compartment fuse panel (for diesel engine)
✽✽ NOTICE
The actual fuse/relay panel label
may differ from equipped items.
OGDE071023R
ORP076081L

Maintenance
76
8

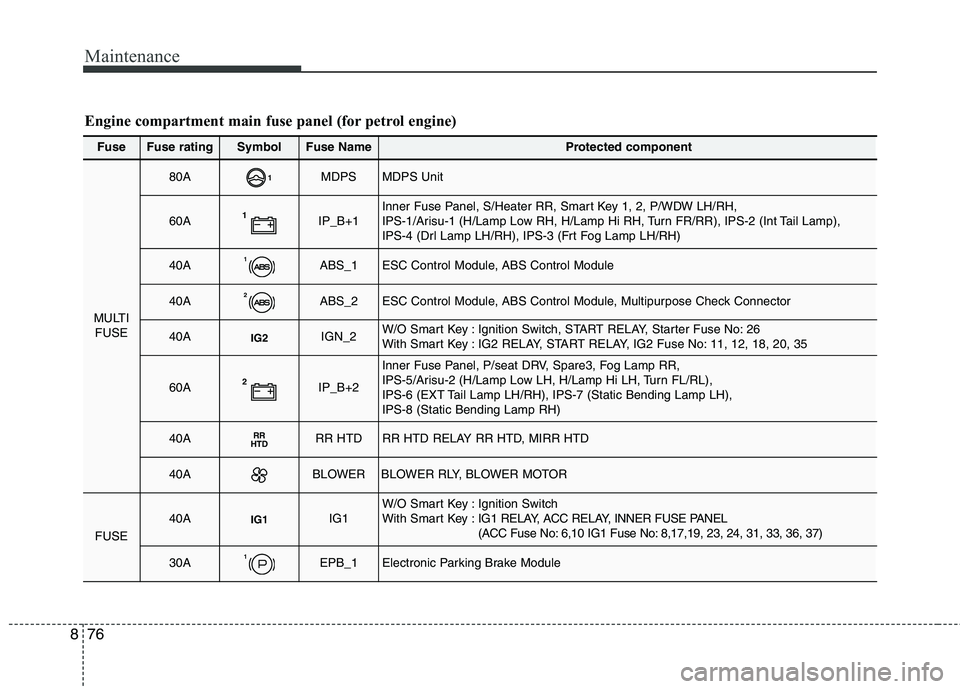

Engine compartment main fuse panel (for petrol engine)
Fuse Fuse ratingSymbolFuse NameProtected component
MULTI
FUSE
80A1MDPSMDPS Unit
60A1IP_B+1Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH,
IPS-1/Arisu-1 (H/Lamp Low RH, H/Lamp Hi RH, Turn FR/RR), IPS-2 (Int Tail Lamp),
IPS-4 (Drl Lamp LH/RH), IPS-3 (Frt Fog Lamp LH/RH)
40A1ABS_1ESC Control Module, ABS Control Module
40A2ABS_2ESC Control Module, ABS Control Module, Multipurpose Check Connector
40AIG2IGN_2W/O Smart Key : Ignition Switch, START RELAY, Starter Fuse No: 26
With Smart Key : IG2 RELAY, START RELAY, IG2 Fuse No: 11, 12, 18, 20, 35
60A2IP_B+2
Inner Fuse Panel, P/seat DRV, Spare3, Fog Lamp RR,
IPS-5/Arisu-2 (H/Lamp Low LH, H/Lamp Hi LH, Turn FL/RL),
IPS-6 (EXT Tail Lamp LH/RH), IPS-7 (Static Bending Lamp LH), IPS-8 (Static Bending Lamp RH)
40ARR
HTDRR HTDRR HTD RELAY RR HTD, MIRR HTD
40ABLOWERBLOWER RLY, BLOWER MOTOR
FUSE
40AIG1IG1W/O Smart Key : Ignition Switch
With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL
(ACC Fuse No: 6,10 IG1 Fuse No: 8,17,19, 23, 24, 31, 33, 36, 37)
30A1EPB_1Electronic Parking Brake Module

877
Maintenance

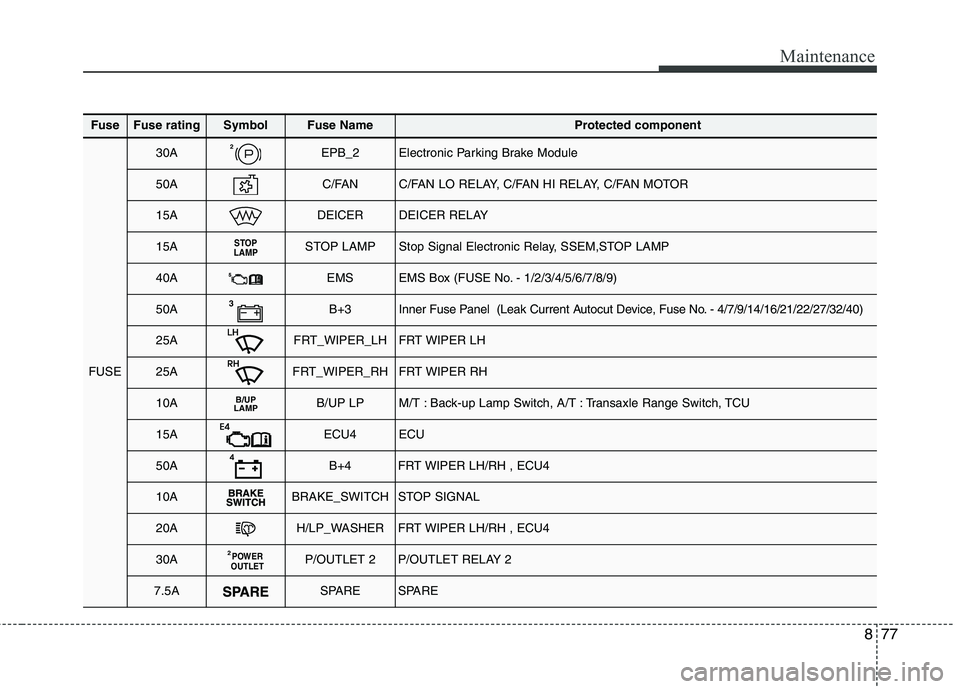

FuseFuse ratingSymbolFuse NameProtected component
FUSE
30A2EPB_2Electronic Parking Brake Module
50AC/FANC/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15ADEICERDEICER RELAY
15ASTOP
LAMPSTOP LAMPStop Signal Electronic Relay, SSEM,STOP LAMP
40AEMSEMS Box (FUSE No. - 1/2/3/4/5/6/7/8/9)
50A3B+3Inner Fuse Panel (Leak Current Autocut Device, Fuse No. - 4/7/9/14/16/21/22/27/32/40)
25AFRT_WIPER_LHFRT WIPER LH
25AFRT_WIPER_RHFRT WIPER RH
10AB/UP
LAMPB/UP LPM/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
15AECU4ECU
50AB+4FRT WIPER LH/RH , ECU4
10ABRAKE_SWITCHSTOP SIGNAL
20AH/LP_WASHERFRT WIPER LH/RH , ECU4
30APOWER
OUTLET2P/OUTLET 2P/OUTLET RELAY 2
7.5ASPARESPARE

Maintenance
78
8

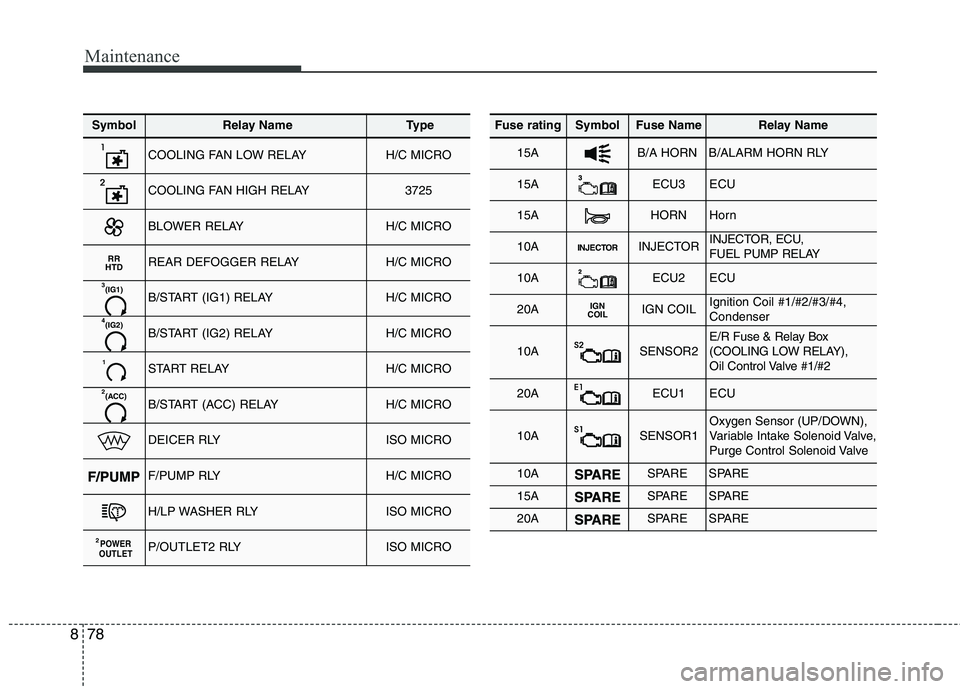

SymbolRelay NameType
COOLING FAN LOW RELAYH/C MICRO
COOLING FAN HIGH RELAY3725
BLOWER RELAYH/C MICRO
RR
HTDREAR DEFOGGER RELAYH/C MICRO
(IG1)
3B/START (IG1) RELAYH/C MICRO
(IG2)
4B/START (IG2) RELAYH/C MICRO
1START RELAYH/C MICRO
(ACC)2B/START (ACC) RELAYH/C MICRO
DEICER RLYISO MICRO
F/PUMP RLYH/C MICRO
H/LP WASHER RLYISO MICRO
POWER
OUTLET2P/OUTLET2 RLYISO MICRO
Fuse ratingSymbolFuse NameRelay Name
15AB/A HORNB/ALARM HORN RLY
15AECU3ECU
15AHORNHorn
10AINJECTORINJECTORINJECTOR, ECU,
FUEL PUMP RELAY
10AECU2ECU
20AIGN
COILIGN COILIgnition Coil #1/#2/#3/#4, Condenser
10ASENSOR2E/R Fuse & Relay Box
(COOLING LOW RELAY),
Oil Control Valve #1/#2
20AECU1ECU
10ASENSOR1Oxygen Sensor (UP/DOWN),
Variable Intake Solenoid Valve,
Purge Control Solenoid Valve
10ASPARESPARE
15ASPARESPARE
20ASPARESPARE

879
Maintenance

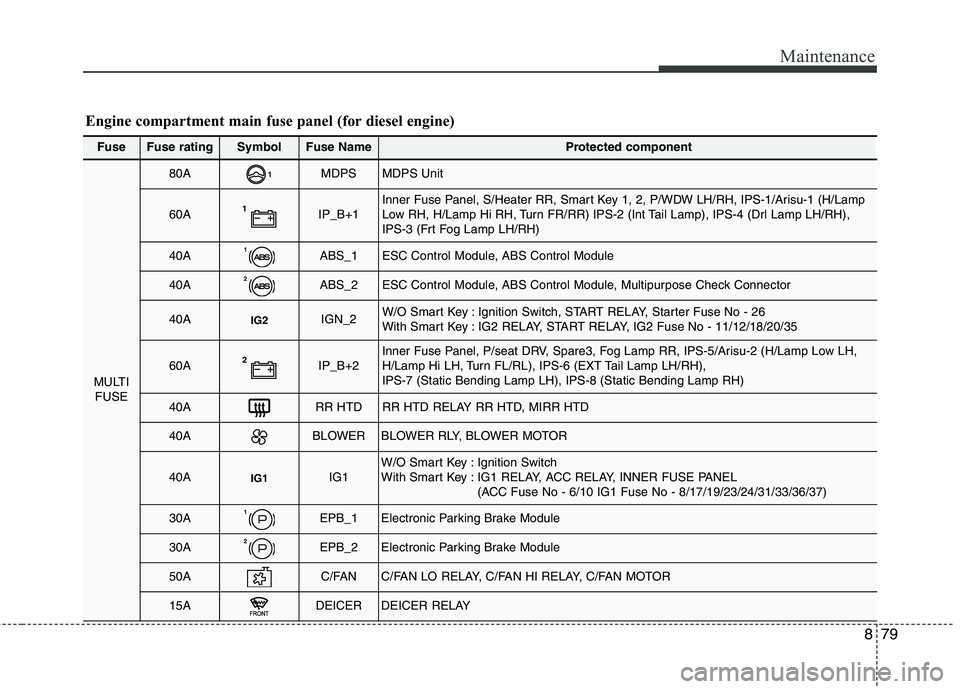

Engine compartment main fuse panel (for diesel engine)
Fuse Fuse ratingSymbolFuse NameProtected component
MULTIFUSE
80A1MDPSMDPS Unit
60A1IP_B+1Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH, IPS-1/Arisu-1 (H/Lamp
Low RH, H/Lamp Hi RH, Turn FR/RR) IPS-2 (Int Tail Lamp), IPS-4 (Drl Lamp LH/RH),
IPS-3 (Frt Fog Lamp LH/RH)
40A1ABS_1ESC Control Module, ABS Control Module
40A2ABS_2ESC Control Module, ABS Control Module, Multipurpose Check Connector
40AIG2IGN_2W/O Smart Key : Ignition Switch, START RELAY, Starter Fuse No - 26
With Smart Key : IG2 RELAY, START RELAY, IG2 Fuse No - 11/12/18/20/35
60A2IP_B+2Inner Fuse Panel, P/seat DRV, Spare3, Fog Lamp RR, IPS-5/Arisu-2 (H/Lamp Low LH,
H/Lamp Hi LH, Turn FL/RL), IPS-6 (EXT Tail Lamp LH/RH), IPS-7 (Static Bending Lamp LH), IPS-8 (Static Bending Lamp RH)
40ARR HTDRR HTD RELAY RR HTD, MIRR HTD
40ABLOWERBLOWER RLY, BLOWER MOTOR
40AIG1IG1W/O Smart Key : Ignition Switch
With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL (ACC Fuse No - 6/10 IG1 Fuse No - 8/17/19/23/24/31/33/36/37)
30A1EPB_1Electronic Parking Brake Module
30A2EPB_2Electronic Parking Brake Module
50AC/FANC/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15ADEICERDEICER RELAY

Maintenance
80
8

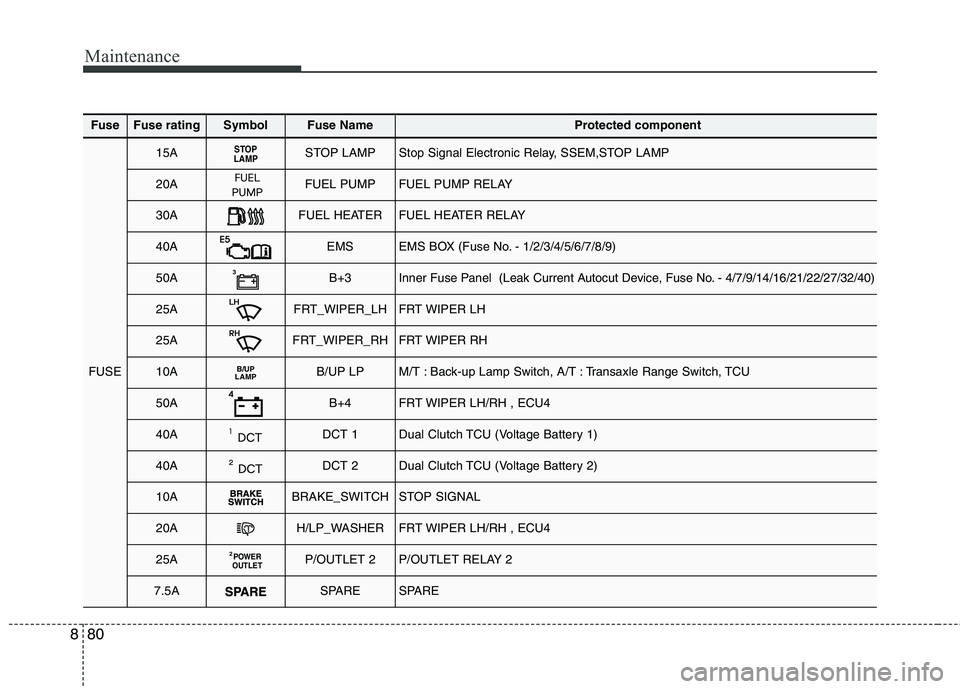

FuseFuse ratingSymbolFuse NameProtected component
FUSE
15ASTOP
LAMPSTOP LAMPStop Signal Electronic Relay, SSEM,STOP LAMP
20AFUEL PUMPFUEL PUMP RELAY
30AFUEL HEATERFUEL HEATER RELAY
40AEMSEMS BOX (Fuse No. - 1/2/3/4/5/6/7/8/9)
50A3B+3Inner Fuse Panel (Leak Current Autocut Device, Fuse No. - 4/7/9/14/16/21/22/27/32/40)
25AFRT_WIPER_LHFRT WIPER LH
25AFRT_WIPER_RHFRT WIPER RH
10AB/UP
LAMPB/UP LPM/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
50AB+4FRT WIPER LH/RH , ECU4
40ADCT 1Dual Clutch TCU (Voltage Battery 1)
40ADCT 2Dual Clutch TCU (Voltage Battery 2)
10ABRAKE_SWITCHSTOP SIGNAL
20AH/LP_WASHERFRT WIPER LH/RH , ECU4
25APOWER
OUTLET2P/OUTLET 2P/OUTLET RELAY 2
7.5ASPARESPARE

881
Maintenance

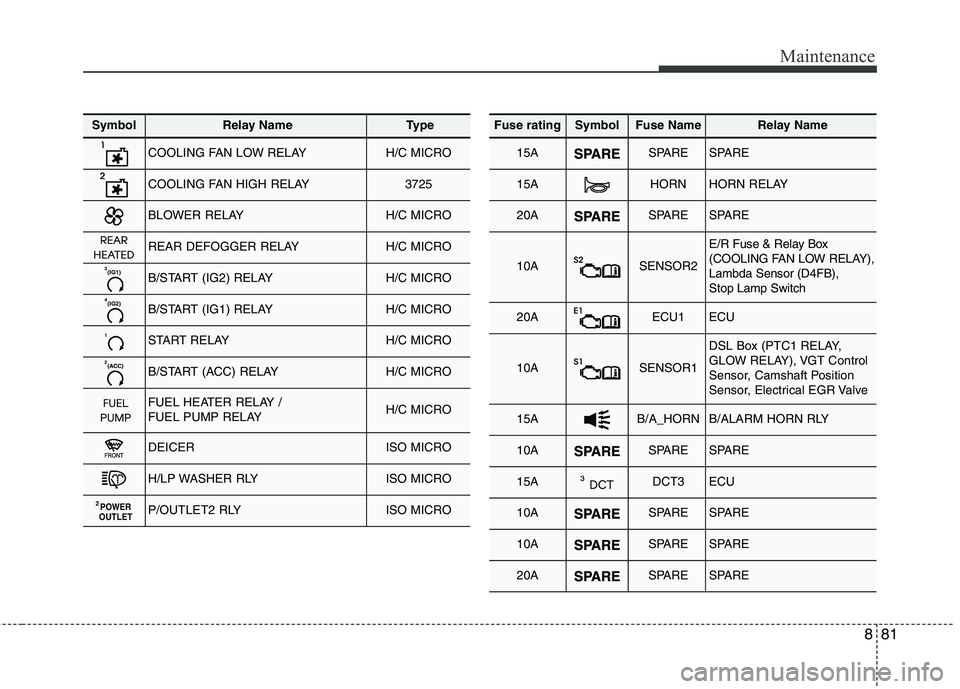

SymbolRelay NameType
COOLING FAN LOW RELAYH/C MICRO
COOLING FAN HIGH RELAY3725
BLOWER RELAYH/C MICRO
REAR DEFOGGER RELAYH/C MICRO
(IG1)
3B/START (IG2) RELAYH/C MICRO
(IG2)
4B/START (IG1) RELAYH/C MICRO
1START RELAYH/C MICRO
(ACC)2B/START (ACC) RELAYH/C MICRO
FUEL HEATER RELAY /
FUEL PUMP RELAYH/C MICRO
DEICERISO MICRO
H/LP WASHER RLYISO MICRO
POWER
OUTLET2P/OUTLET2 RLYISO MICRO
Fuse ratingSymbolFuse NameRelay Name
15ASPARESPARE
15AHORNHORN RELAY
20ASPARESPARE
10ASENSOR2
E/R Fuse & Relay Box
(COOLING FAN LOW RELAY),Lambda Sensor (D4FB), Stop Lamp Switch
20AECU1ECU
10ASENSOR1
DSL Box (PTC1 RELAY,
GLOW RELAY), VGT Control
Sensor, Camshaft Position
Sensor, Electrical EGR Valve
15AB/A_HORNB/ALARM HORN RLY
10ASPARESPARE
15ADCT3ECU
10ASPARESPARE
10ASPARESPARE
20ASPARESPARE

Maintenance
82
8

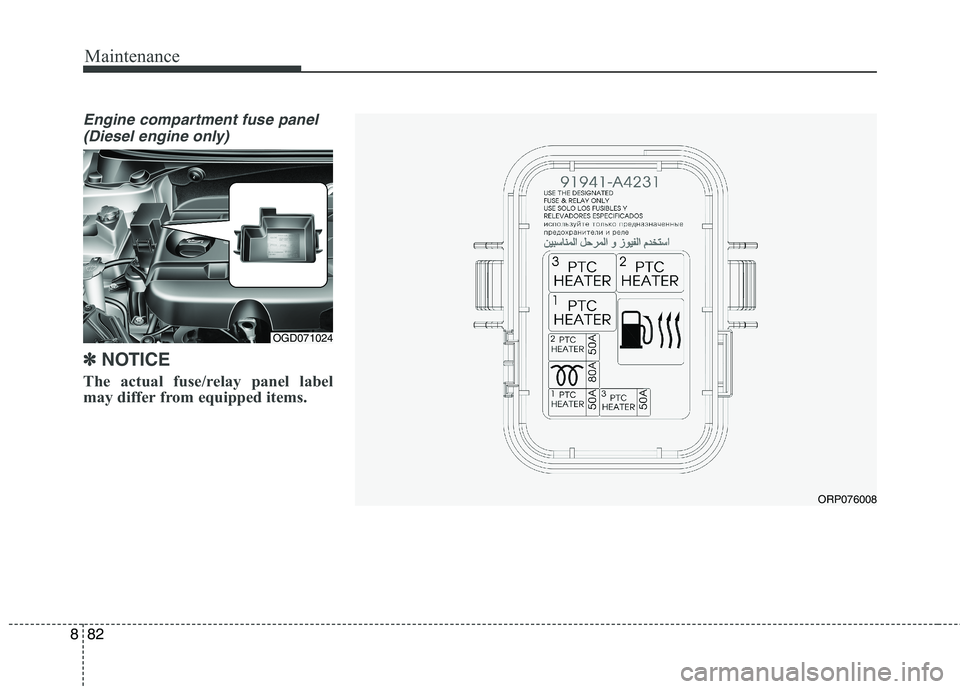

Engine compartment fuse panel
(Diesel engine only)
✽✽ NOTICE
The actual fuse/relay panel label
may differ from equipped items.
OGD071024
ORP076008

883
Maintenance

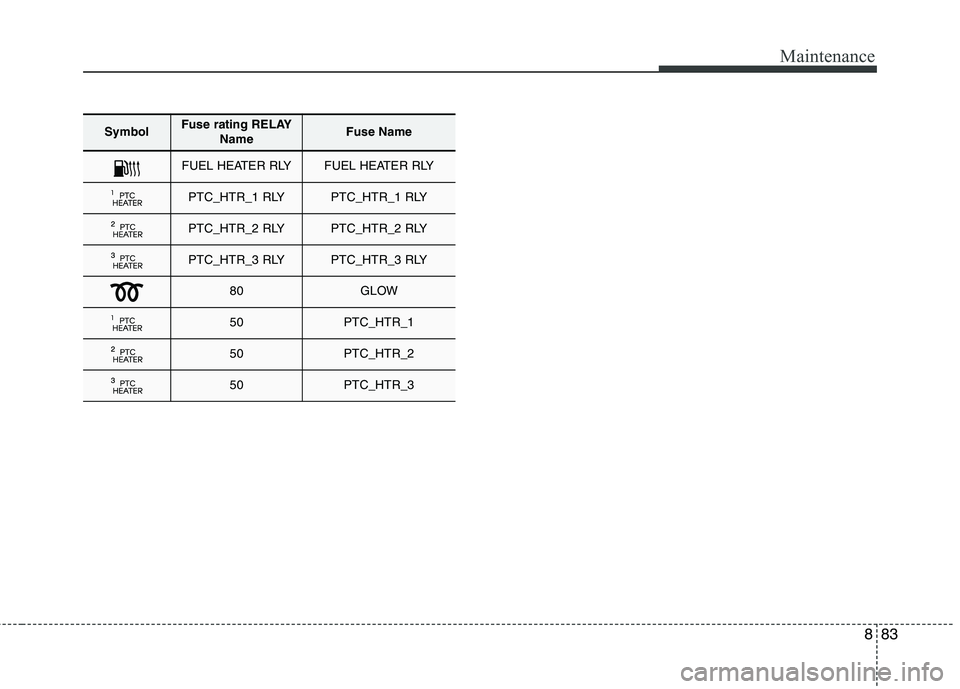

SymbolFuse rating RELAYNameFuse Name
FUEL HEATER RLYFUEL HEATER RLY
PTC_HTR_1 RLYPTC_HTR_1 RLY
PTC_HTR_2 RLYPTC_HTR_2 RLY
PTC_HTR_3 RLYPTC_HTR_3 RLY
80GLOW
50PTC_HTR_1
50PTC_HTR_2
50PTC_HTR_3
