KIA CARENS RHD 2018 Owners Manual

Specifications & Consumer information
2
9

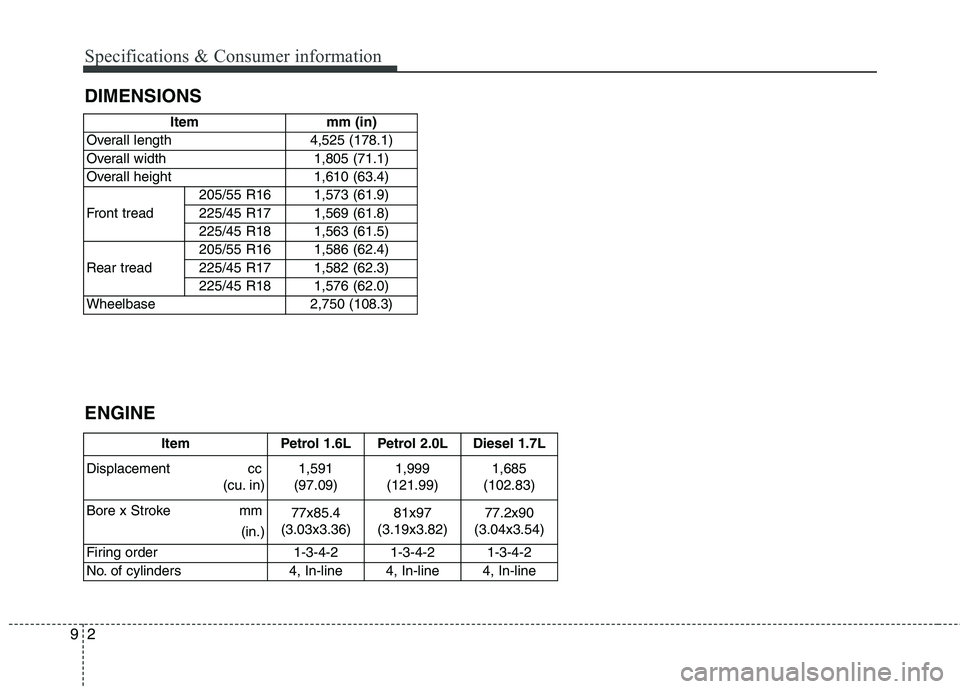

DIMENSIONS ENGINE
Item Petrol 1.6L Petrol 2.0L Diesel 1.7L
Displacement cc (cu. in) 1,591
(97.09) 1,999
(121.99) 1,685
(102.83)
Bore x Stroke mm (in.)77x85.4
(3.03x3.36) 81x97
(3.19x3.82) 77.2x90
(3.04x3.54)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-line
Item mm (in)
Overall length 4,525 (178.1)
Overall width 1,805 (71.1)
Overall height 1,610 (63.4)
Front tread 205/55 R16 1,573 (61.9)
225/45 R17 1,569 (61.8)
225/45 R18 1,563 (61.5)
Rear tread 205/55 R16 1,586 (62.4)
225/45 R17 1,582 (62.3)
225/45 R18 1,576 (62.0)
Wheelbase 2,750 (108.3)

93
Specifications & Consumer information

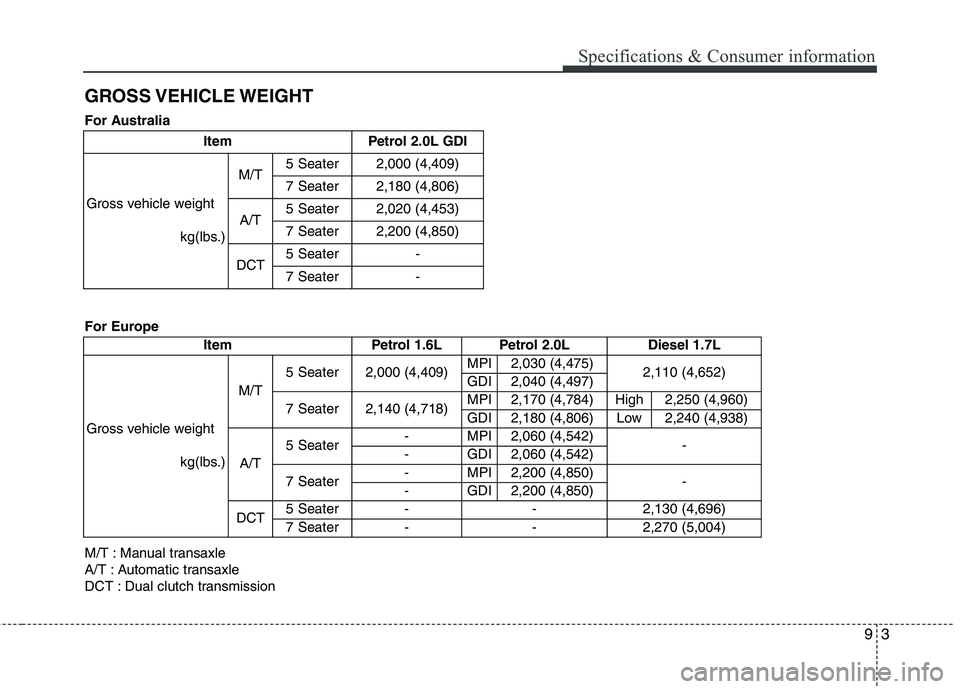

GROSS VEHICLE WEIGHT
Item Petrol 2.0L GDI
Gross vehicle weight kg(lbs.)M/T
5 Seater 2,000 (4,409)
7 Seater 2,180 (4,806)
A/T 5 Seater 2,020 (4,453)
7 Seater 2,200 (4,850)
DCT 5 Seater -
7 Seater -
For Australia
Item Petrol 1.6L Petrol 2.0L
Diesel 1.7L
Gross vehicle weight kg(lbs.)M/T
5 Seater 2,000 (4,409)
MPI 2,030 (4,475)
2,110 (4,652)
GDI 2,040 (4,497)
7 Seater 2,140 (4,718) MPI 2,170 (4,784)
High 2,250 (4,960)
GDI 2,180 (4,806)
Low 2,240 (4,938)
A/T 5 Seater
- MPI 2,060 (4,542)
-
- GDI 2,060 (4,542)
7 Seater - MPI 2,200 (4,850)
-
- GDI 2,200 (4,850)
DCT 5 Seater - -
2,130 (4,696)
7 Seater - -
2,270 (5,004)
For Europe
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Dual clutch transmission

Specifications & Consumer information
4
9

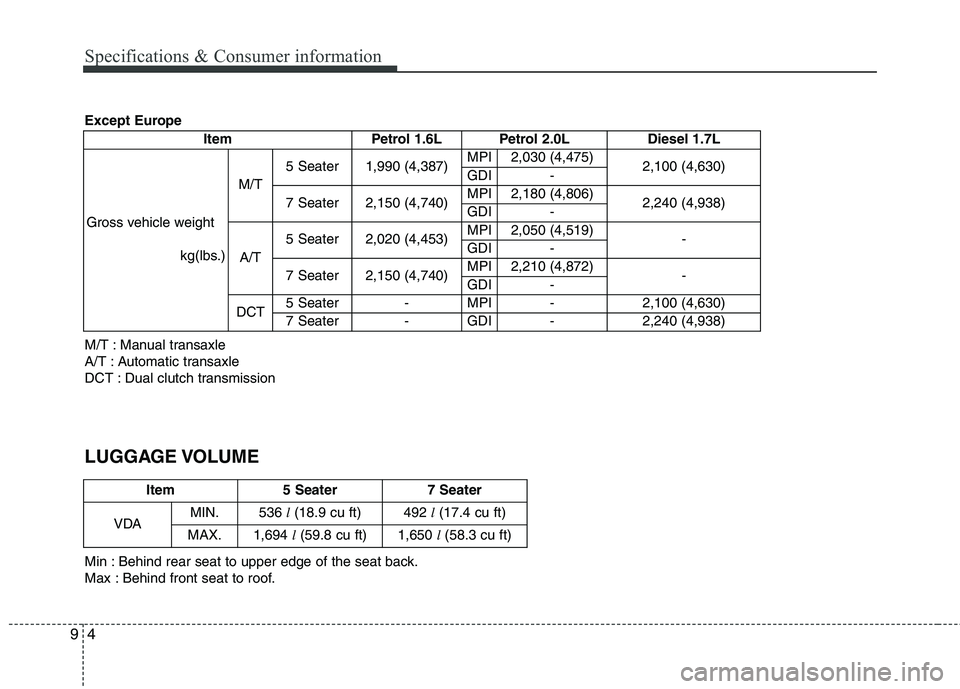

ltem 5 Seater 7 Seater
VDA MIN.
536
l(18.9 cu ft) 492 l(17.4 cu ft)
MAX. 1,694
l(59.8 cu ft) 1,650 l(58.3 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof. Item Petrol 1.6L Petrol 2.0L Diesel 1.7L
Gross vehicle weight kg(lbs.)M/T
5 Seater 1,990 (4,387)
MPI 2,030 (4,475)
2,100 (4,630)
GDI -
7 Seater 2,150 (4,740) MPI 2,180 (4,806)
2,240 (4,938)
GDI -
A/T 5 Seater 2,020 (4,453)
MPI 2,050 (4,519)
-
GDI -
7 Seater 2,150 (4,740) MPI 2,210 (4,872)
-
GDI -
DCT 5 Seater - MPI - 2,100 (4,630)
7 Seater - GDI - 2,240 (4,938)
Except Europe
LUGGAGE VOLUME
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Dual clutch transmission

95
Specifications & Consumer information

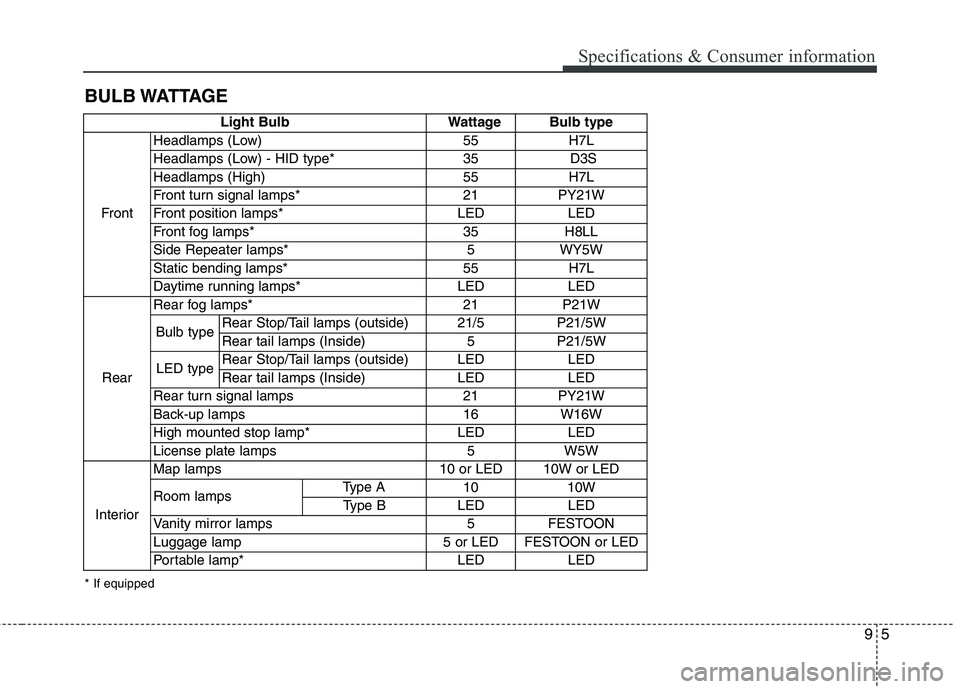

BULB WATTAGELight Bulb Wattage Bulb type
Front Headlamps (Low) 55 H7L
Headlamps (Low) - HID type* 35 D3S
Headlamps (High) 55 H7L
Front turn signal lamps* 21 PY21W
Front position lamps* LED LED
Front fog lamps* 35 H8LL
Side Repeater lamps* 5 WY5W
Static bending lamps* 55 H7L
Daytime running lamps* LED LED
Rear Rear fog lamps* 21 P21W
Bulb type Rear Stop/Tail lamps (outside) 21/5 P21/5W
Rear tail lamps (Inside) 5 P21/5W
LED type Rear Stop/Tail lamps (outside) LED LED
Rear tail lamps (Inside) LED LED
Rear turn signal lamps 21 PY21W
Back-up lamps 16 W16W
High mounted stop lamp* LED LED
License plate lamps 5 W5W
Interior Map lamps 10 or LED 10W or LED Room lamps
10 10W
LEDLED
Vanity mirror lamps5FESTOON
Luggage lamp 5 or LED FESTOON or LED
Portable lamp* LED LED
* If equipped
Type A Type B

Specifications & Consumer information
6
9

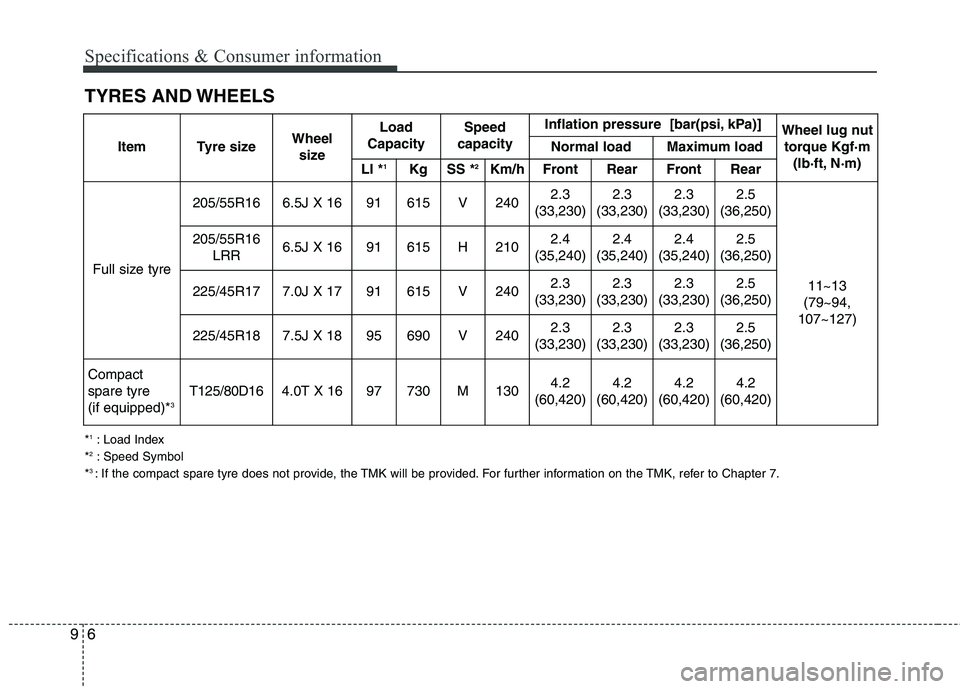

TYRES AND WHEELS * 1
: Load Index
* 2
: Speed Symbol
* 3
: If the compact spare tyre does not provide, the TMK will be provided. For further information on the TMK, refer to Chapter 7.
ItemTyre sizeWheel
sizeLoad
CapacitySpeed
capacityInflation pressure [bar(psi, kPa)] Wheel lug nut torque Kgf·m (lb·ft, N·m)
Normal loadMaximum load
LI * 1KgSS * 2Km/hFront RearFront Rear
Full size tyre
205/55R166.5J X 1691615V2402.3
(33,230)2.3
(33,230)2.3
(33,230)2.5
(36,250)
11~13
(79~94,
107~127)
205/55R16 LRR6.5J X 1691615H2102.4
(35,240)2.4
(35,240)2.4
(35,240)2.5
(36,250)
225/45R177.0J X 1791615V2402.3
(33,230)2.3
(33,230)2.3
(33,230)2.5
(36,250)
225/45R187.5J X 1895690V2402.3
(33,230)2.3
(33,230)2.3
(33,230)2.5
(36,250)
Compact spare tyre (if equipped)* 3
T125/80D164.0T X 1697730M1304.2
(60,420)4.2
(60,420)4.2
(60,420)4.2
(60,420)

97
Specifications & Consumer information

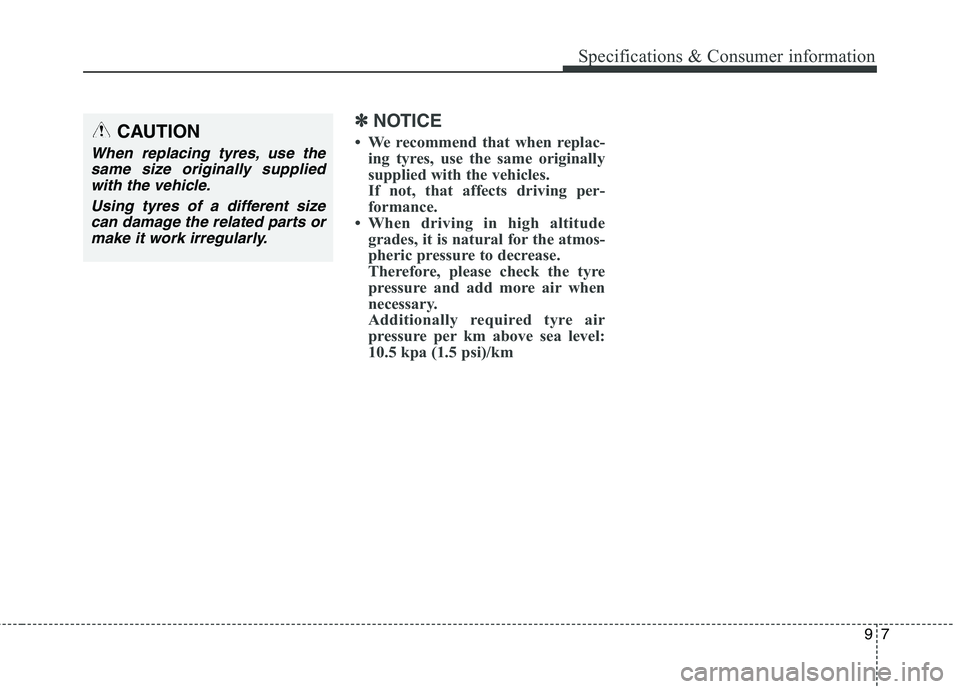

✽✽NOTICE
 We recommend that when replac- ing tyres, use the same originally
supplied with the vehicles.
If not, that affects driving per-
formance.
 When driving in high altitude grades, it is natural for the atmos-
pheric pressure to decrease.
Therefore, please check the tyre
pressure and add more air when
necessary.
Additionally required tyre air
pressure per km above sea level:
10.5 kpa (1.5 psi)/km CAUTION
When replacing tyres, use the
same size originally suppliedwith the vehicle.
Using tyres of a different sizecan damage the related parts or make it work irregularly.

Specifications & Consumer information
8
9

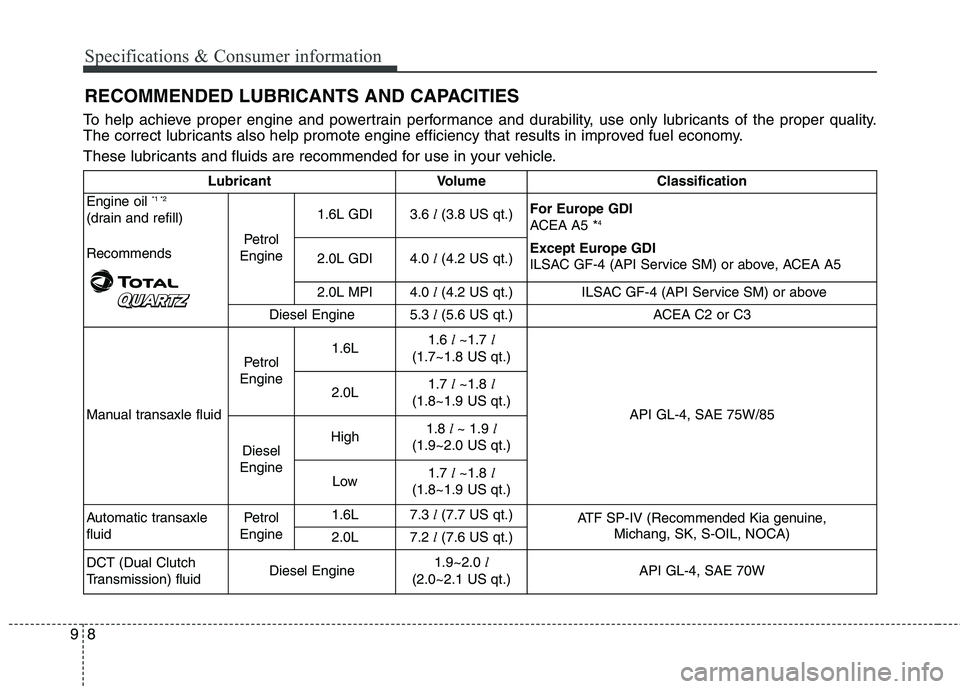

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill) Recommends Petrol
Engine 1.6L GDI
3.6
l(3.8 US qt.) For Europe GDI
ACEA A5 *
4
Except Europe GDI
ILSAC GF-4 (API Service SM) or above, ACEA A5
2.0L GDI
4.0
l(4.2 US qt.)
2.0L MPI4.0 l(4.2 US qt.)ILSAC GF-4 (API Service SM) or above
Diesel Engine 5.3
l(5.6 US qt.)
ACEA C2 or C3
Manual transaxle fluid Petrol
Engine 1.6L
1.6
l~1.7 l
(1.7~1.8 US qt.)
API GL-4, SAE 75W/85
2.0L1.7 l~1.8 l
(1.8~1.9 US qt.)
Diesel
Engine High
1.8
l ~ 1.9 l
(1.9~2.0 US qt.)
Low 1.7
l~1.8 l
(1.8~1.9 US qt.)
Automatic transaxle fluid Petrol
Engine 1.6L
7.3
l(7.7 US qt.)
ATF SP-IV (Recommended Kia genuine,
Michang, SK, S-OIL, NOCA)
2.0L 7.2
l(7.6 US qt.)
DCT (Dual Clutch
Transmission) fluid Diesel Engine1.9~2.0
l
(2.0~2.1 US qt.) API GL-4, SAE 70W

99
Specifications & Consumer information

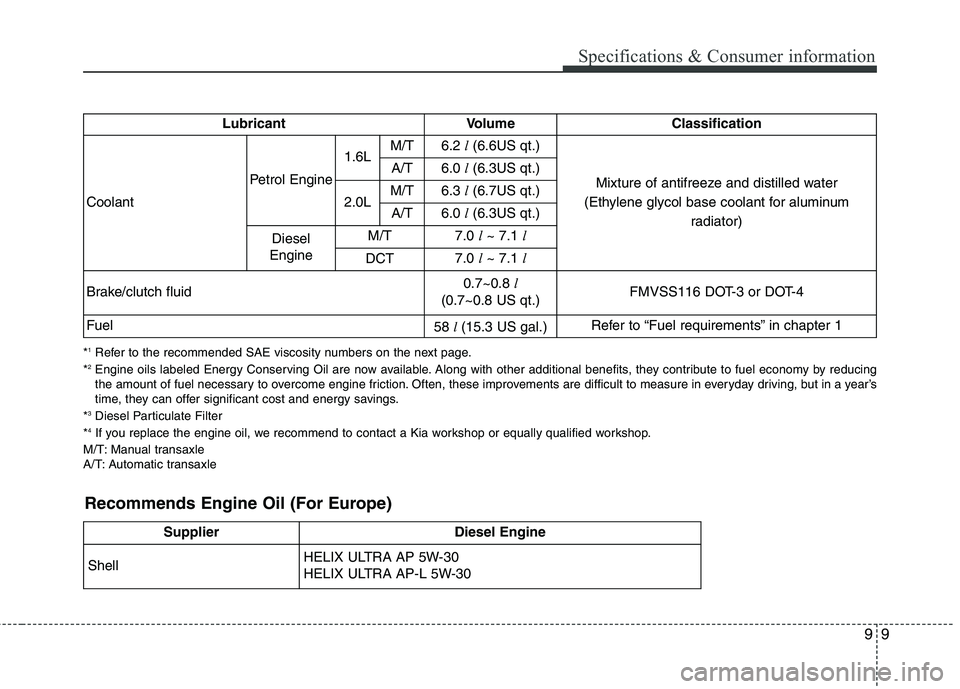

Lubricant Volume Classification
Coolant
Petrol Engine
1.6LM/T6.2l(6.6US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)A/T6.0l(6.3US qt.)
2.0LM/T6.3 l(6.7US qt.)
A/T6.0 l(6.3US qt.)
Diesel
EngineM/T7.0 l~ 7.1 l
DCT7.0l~ 7.1 l
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel 58 l (15.3 US gal.) Refer to “Fuel requirements” in chapter 1
*1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
Diesel Particulate Filter
* 4
If you replace the engine oil, we recommend to contact a Kia workshop or equally qualified workshop.
M/T: Manual transaxle
A/T: Automatic transaxle
Recommends Engine Oil (For Europe)
SupplierDiesel Engine
ShellHELIX ULTRA AP 5W-30
HELIX ULTRA AP-L 5W-30

Specifications & Consumer information
10
9

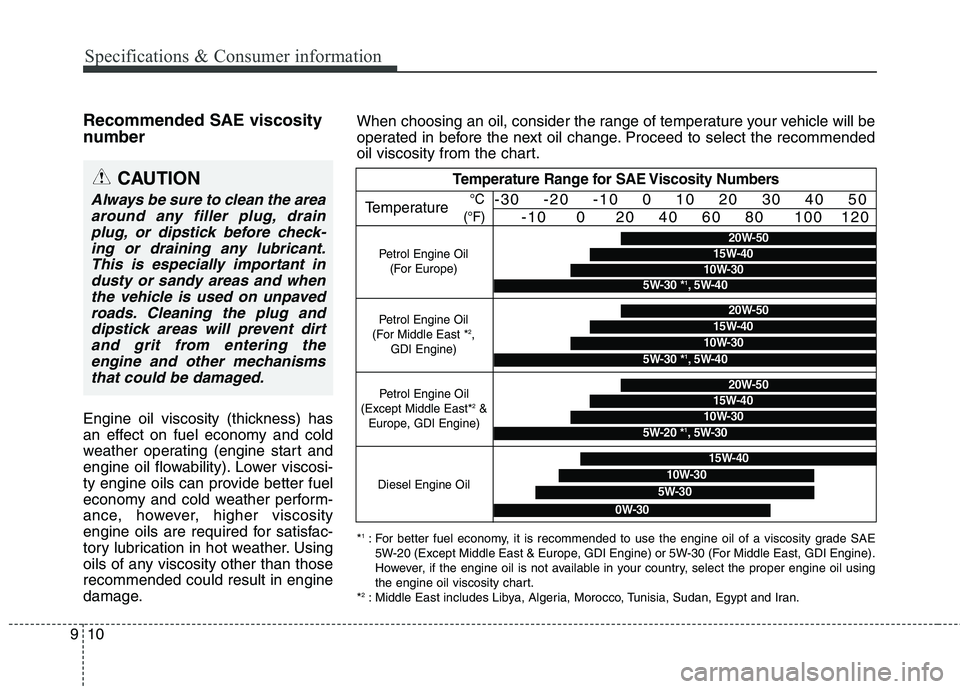

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than thoserecommended could result in engine
damage. *
1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20 (Except Middle East & Europe, GDI Engine) or 5W-30 (For Middle East, GDI Engine).
However, if the engine oil is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
* 2
: Middle East includes Libya, Algeria, Morocco, Tunisia, Sudan, Egypt and Iran.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check- ing or draining any lubricant.This is especially important industy or sandy areas and when the vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering the engine and other mechanismsthat could be damaged.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Petrol Engine Oil (For Europe)
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Petrol Engine Oil
(For Middle East * 2
,
GDI Engine)20W-50
10W-30
15W-40
5W-30 * 1
, 5W-40
20W-50
10W-30
15W-40
5W-30 * 1
, 5W-40
Diesel Engine Oil 5W-30
15W-40
10W-30
0W-30
Petrol Engine Oil
(Except Middle East* 2
&
Europe, GDI Engine)20W-50
10W-30
15W-40
5W-20 * 1
, 5W-30

911
Specifications & Consumer information

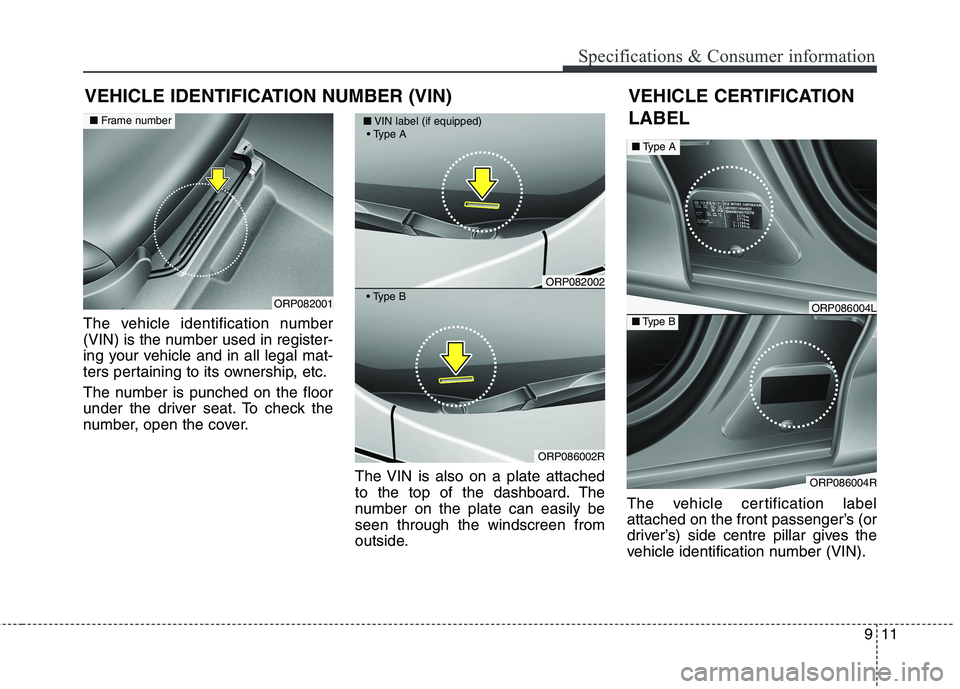

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the driver seat. To check the
number, open the cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windscreen from
outside.The vehicle certification label
attached on the front passenger’s (or
driver’s) side centre pillar gives the
vehicle identification number (VIN).
ORP082001
■
Frame number VEHICLE CERTIFICATION LABEL
ORP086002R

ORP082002
■
VIN label (if equipped)

ORP086004R
■ Type BORP086004L
■Type A
