Page 221 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >

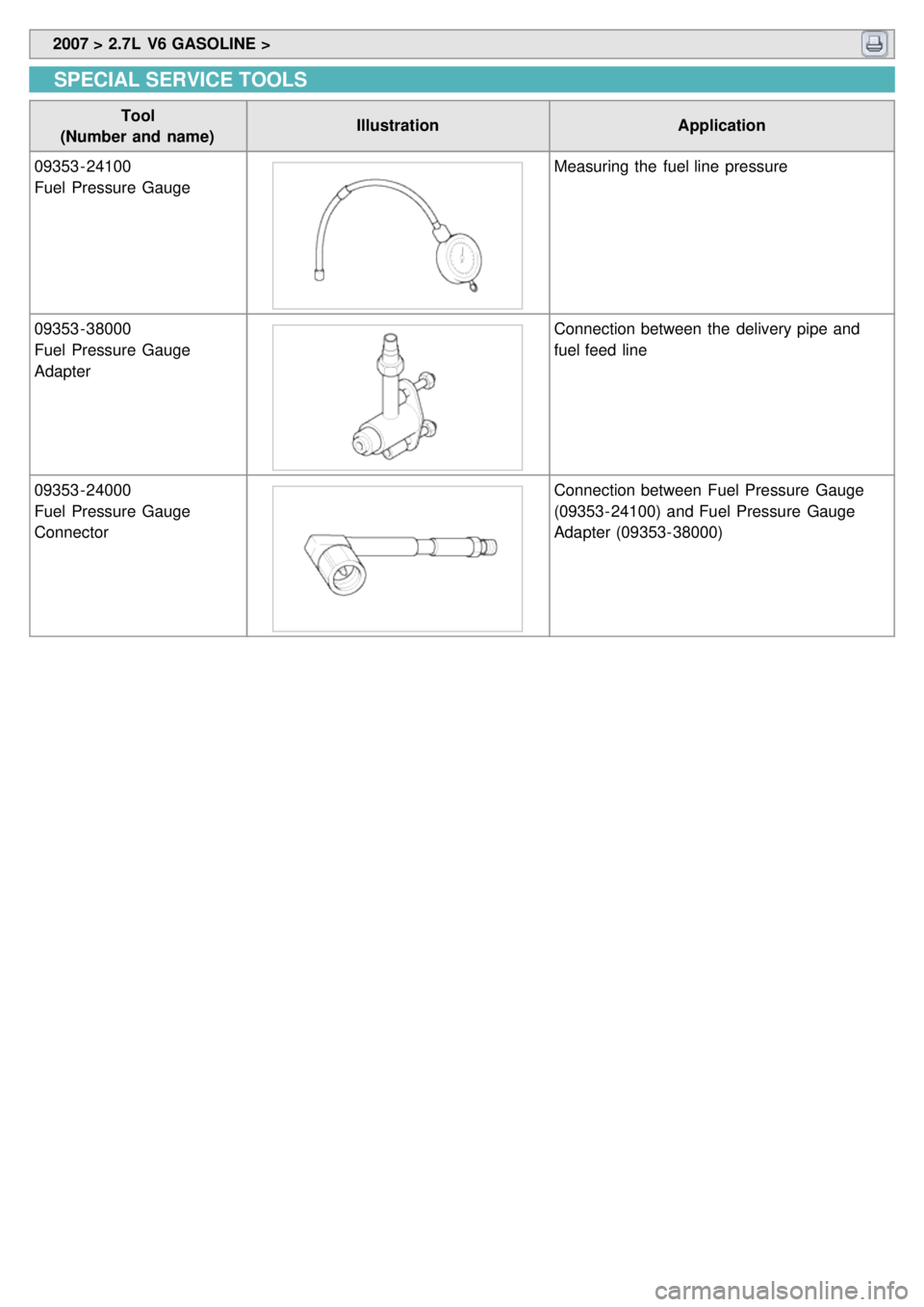

SPECIAL SERVICE TOOLS
Tool
(Number and  name) Illustration
Application
09353 - 24100
Fuel  Pressure  Gauge
Measuring the  fuel line  pressure
09353 - 38000
Fuel  Pressure

Page 222 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >

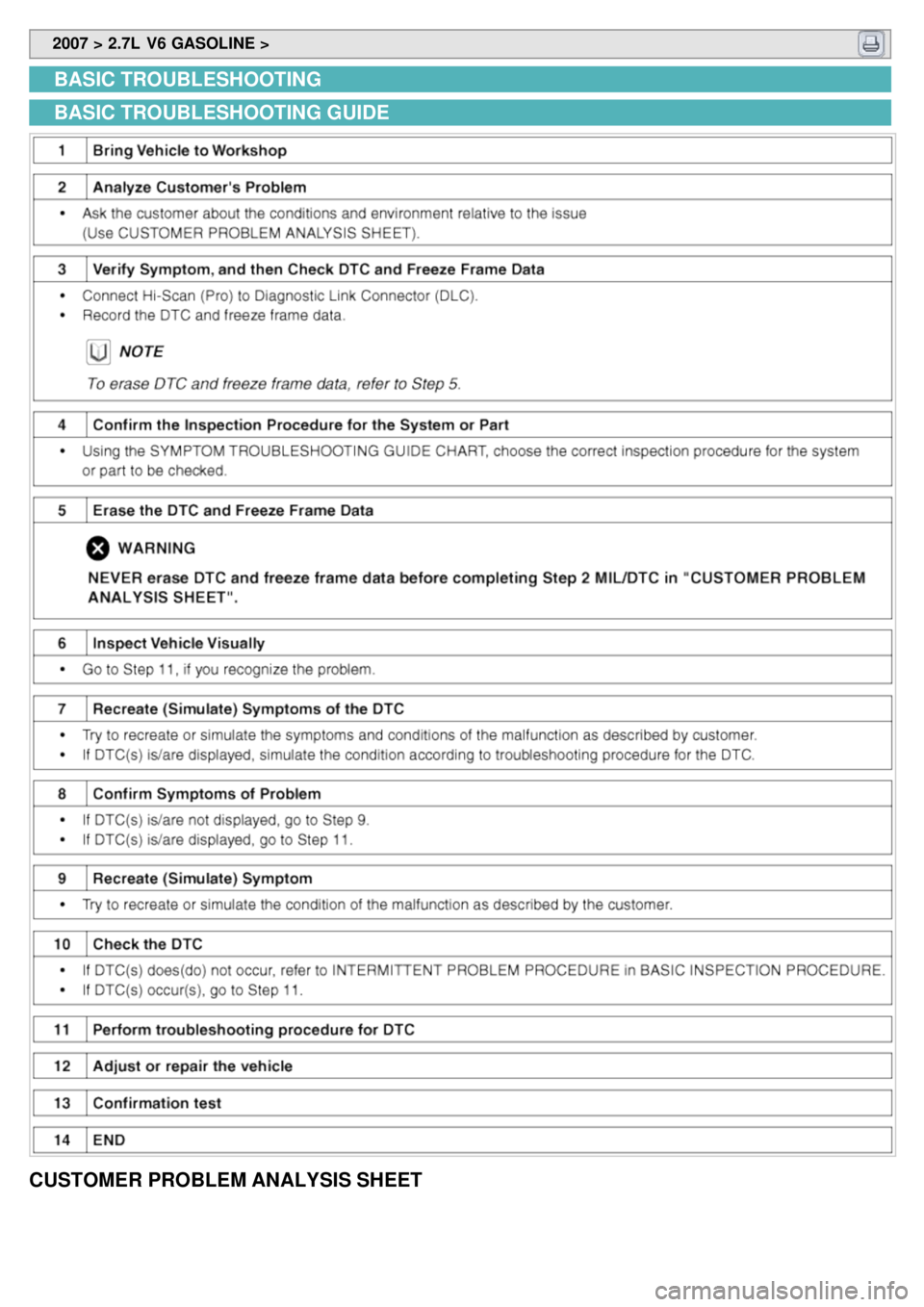

BASIC TROUBLESHOOTING
BASIC TROUBLESHOOTING GUIDE
CUSTOMER PROBLEM ANALYSIS SHEET

Page 223 of 1575

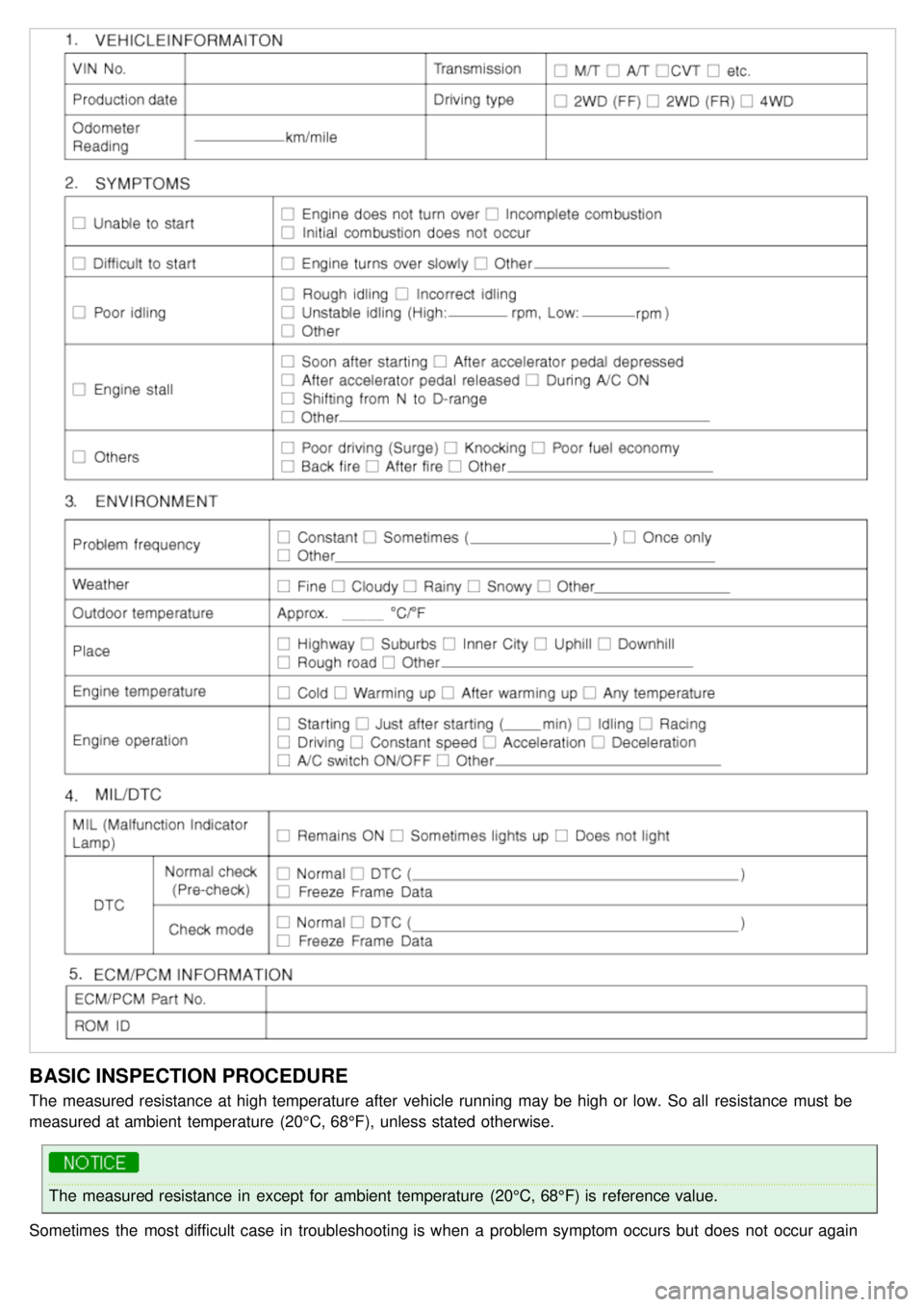

KIA CARNIVAL 2007  Workshop Manual BASIC INSPECTION PROCEDURE
The measured resistance  at high temperature  after  vehicle running may be high or low.  So all  resistance  must  be
measured at ambient  temperature  (20°C, 68°F), unle

Page 224 of 1575

KIA CARNIVAL 2007  Workshop Manual during  testing. An example  would be if a  problem appears only when  the  vehicle is cold but  has not  appeared when
warm. In this  case,  the  technician should  thoroughly make out  a  "CUSTOMER

Page 225 of 1575

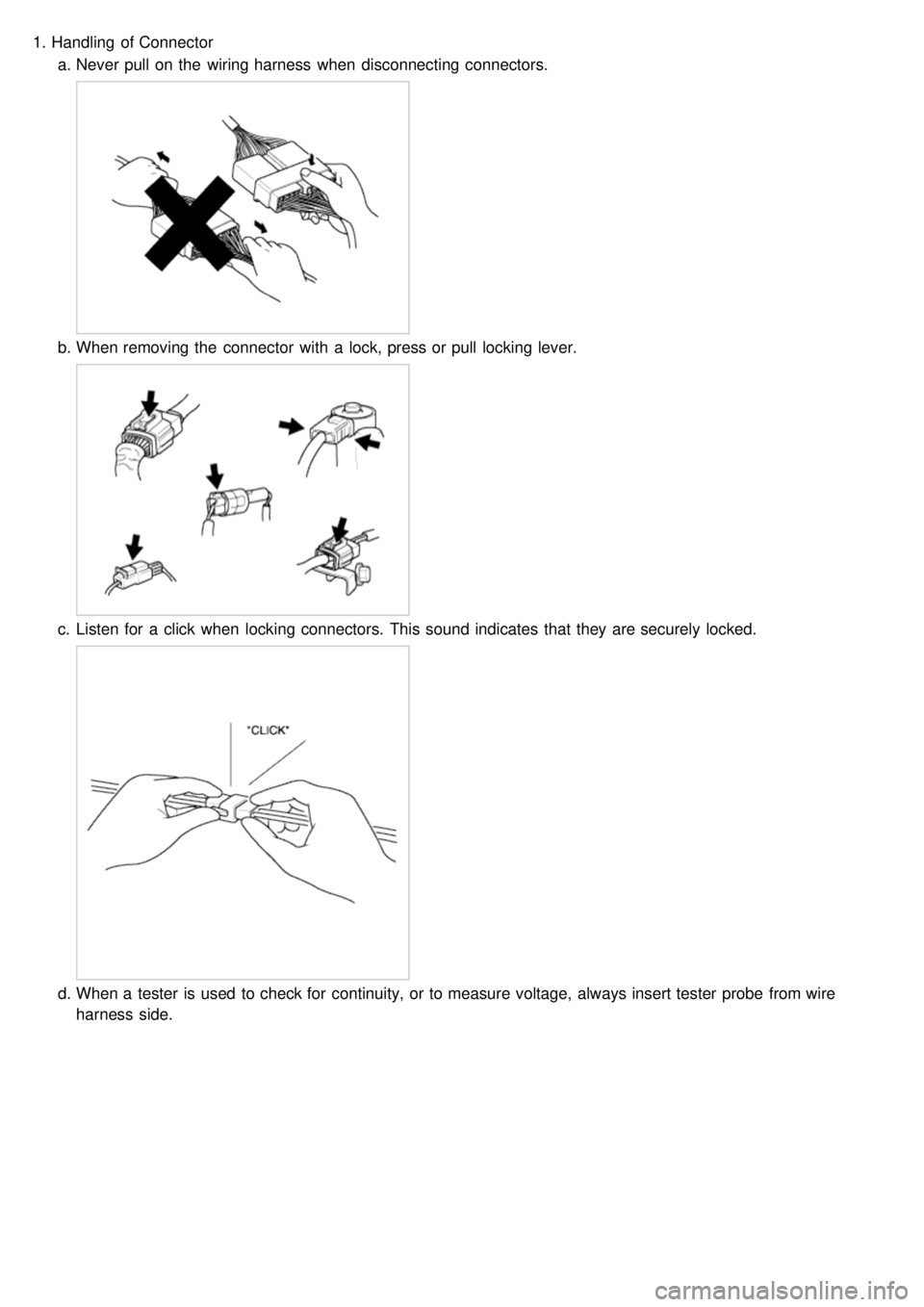

KIA CARNIVAL 2007  Workshop Manual 1.Handling  of Connector
a. Never pull  on the  wiring harness  when  disconnecting connectors.
b.When removing the  connector  with  a  lock, press or pull  locking lever.
c.Listen for  a  click  whe

Page 226 of 1575

KIA CARNIVAL 2007  Workshop Manual e.Check waterproof connector  terminals from the  connector  side. Waterproof  connectors cannot  be accessed from
harness  side.
a.Use  a  fine wire to prevent damage to the  terminal.
b. Do not  dam

Page 227 of 1575

KIA CARNIVAL 2007  Workshop Manual Never use sand  paper  when  polishing  the  contact points,  otherwise the  contact point  may be damaged.
b. In case of abnormal  contact pressure,  replace the  female  terminal.
WIRE HARNESS INSPE

Page 228 of 1575

KIA CARNIVAL 2007  Workshop Manual b.Disconnect  connector  (B), and measure for  resistance  between  connector  (C)  and (B1) and between  (B2) and
(A)  as shown in  [FIG. 3].
In this  case the  measured resistance  between  connecto

Page 229 of 1575

KIA CARNIVAL 2007  Workshop Manual 2.Continuity Check Method (with Chassis  Ground)
Lightly shake the  wire harness  above and below, or from side to side when  measuring the  resistance.
Specification (Resistance)
1Ω  or less   →

Page 230 of 1575

KIA CARNIVAL 2007  Workshop Manual MAIN  SYMPTOMDIAGNOSTIC PROCEDURE ALSO  CHECK  FOR
Unable  to start
(Engine does  not  turn
over) a.
Test  the  battery
b. Test  the  starter
c. Inhibitor  switch  (A/T) or clutch start  switch  (M/T)
