KIA CARNIVAL 2007 Workshop Manual

General Information

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
Components FunctionRemarks
Crankcase Emission System a. Positive Crankcase Ventilation (PCV)
valve HC reduction
Variable flow rate type
Evaporative Emission System a. Evaporative emission canister
b. Purge Control Solenoid Valve (PCSV) HC reduction
HC reduction
Duty control solenoid valve
Exhaust Emission System a. MFI system (air- fuel mixture control
device)
b. Three- way catalytic converter CO, HC, NOx reduction
CO, HC, NOx reduction
Heated oxygen sensor feedback type
Monolithic type

2007 > 2.7L V6 GASOLINE >

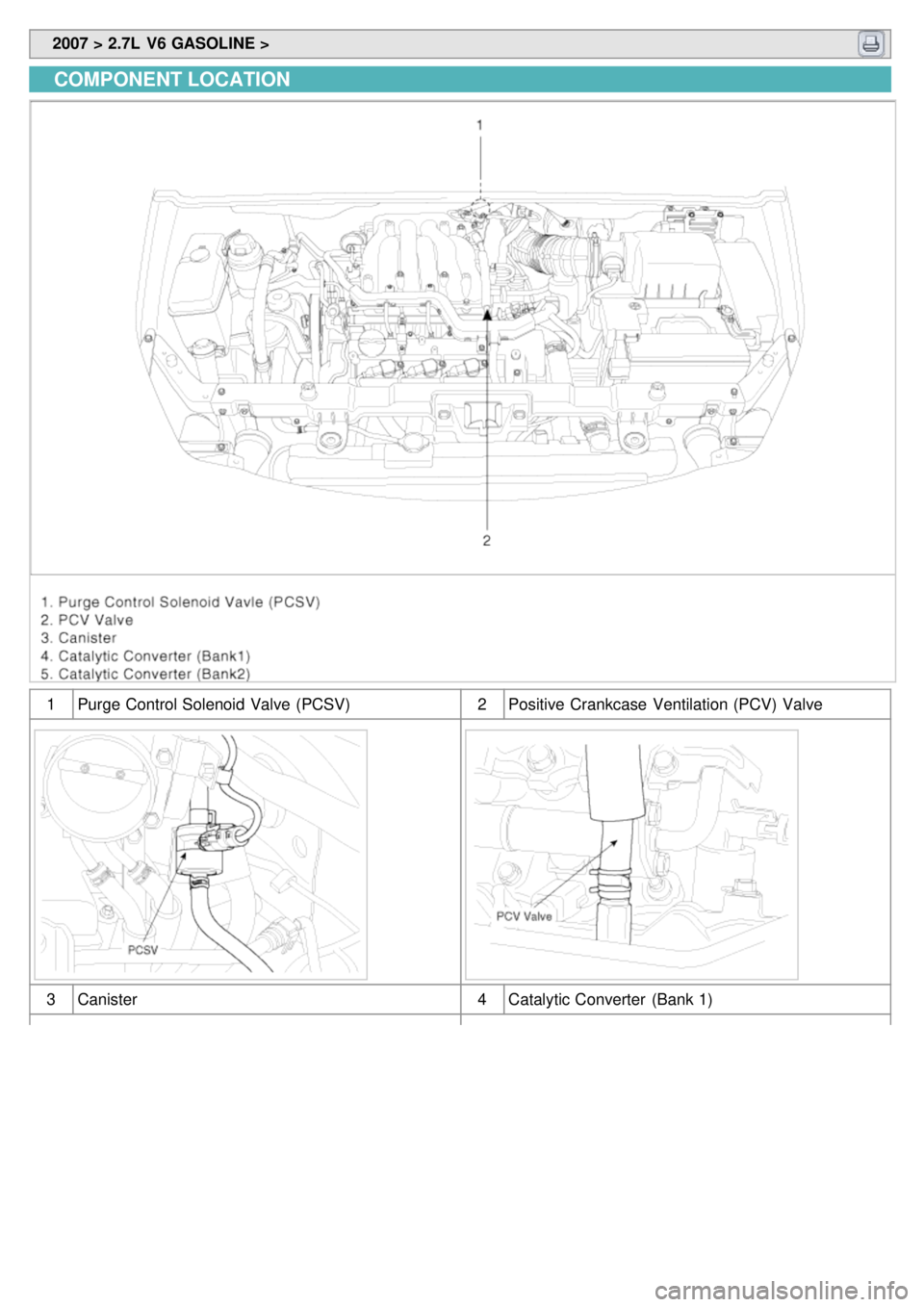

COMPONENT LOCATION
1 Purge Control Solenoid Valve (PCSV) 2Positive Crankcase Ventilation (PCV) Valve

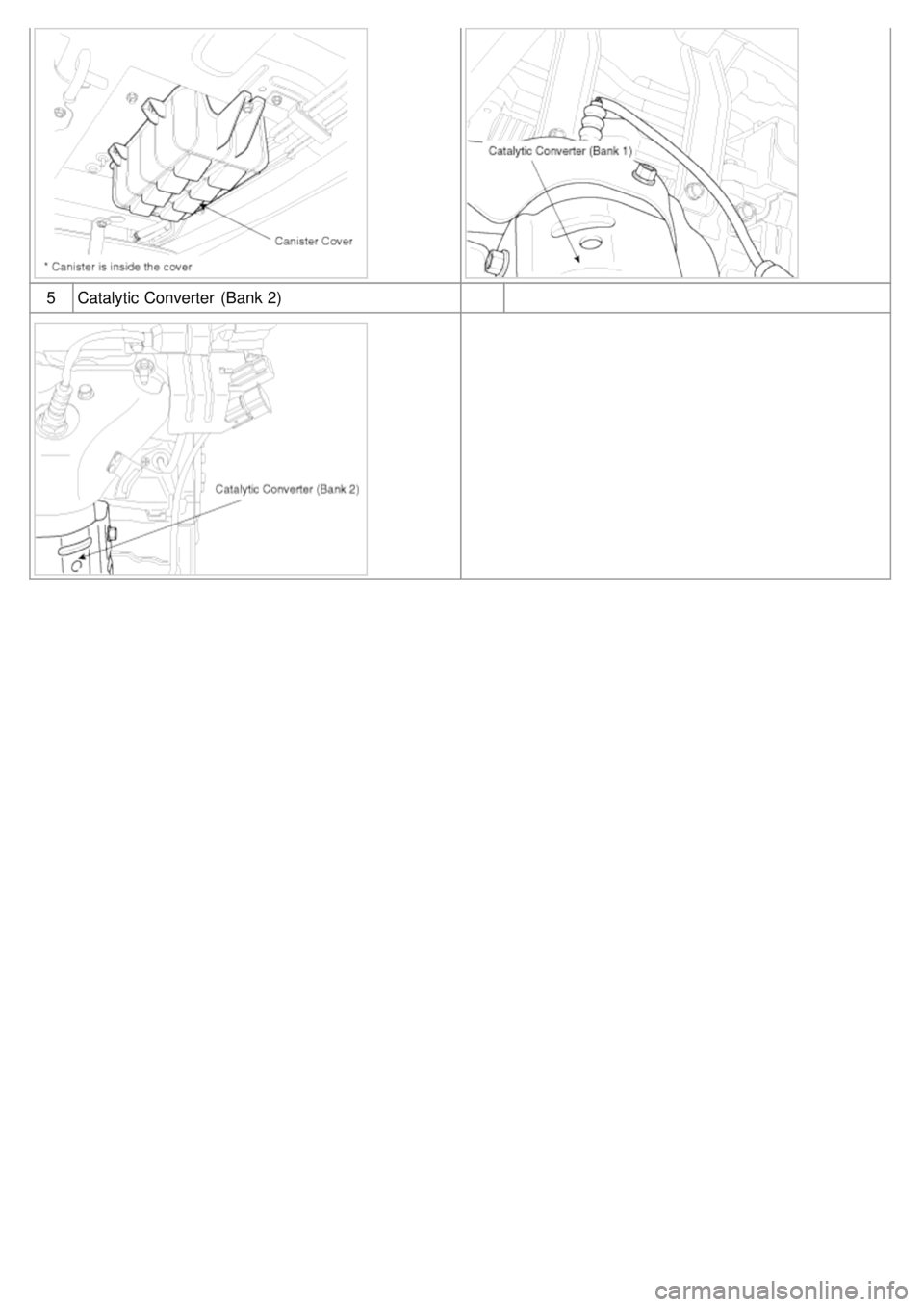

3Canister 4Catalytic Converter (Bank 1)

5Catalytic Converter (Bank 2)

2007 > 2.7L V6 GASOLINE >

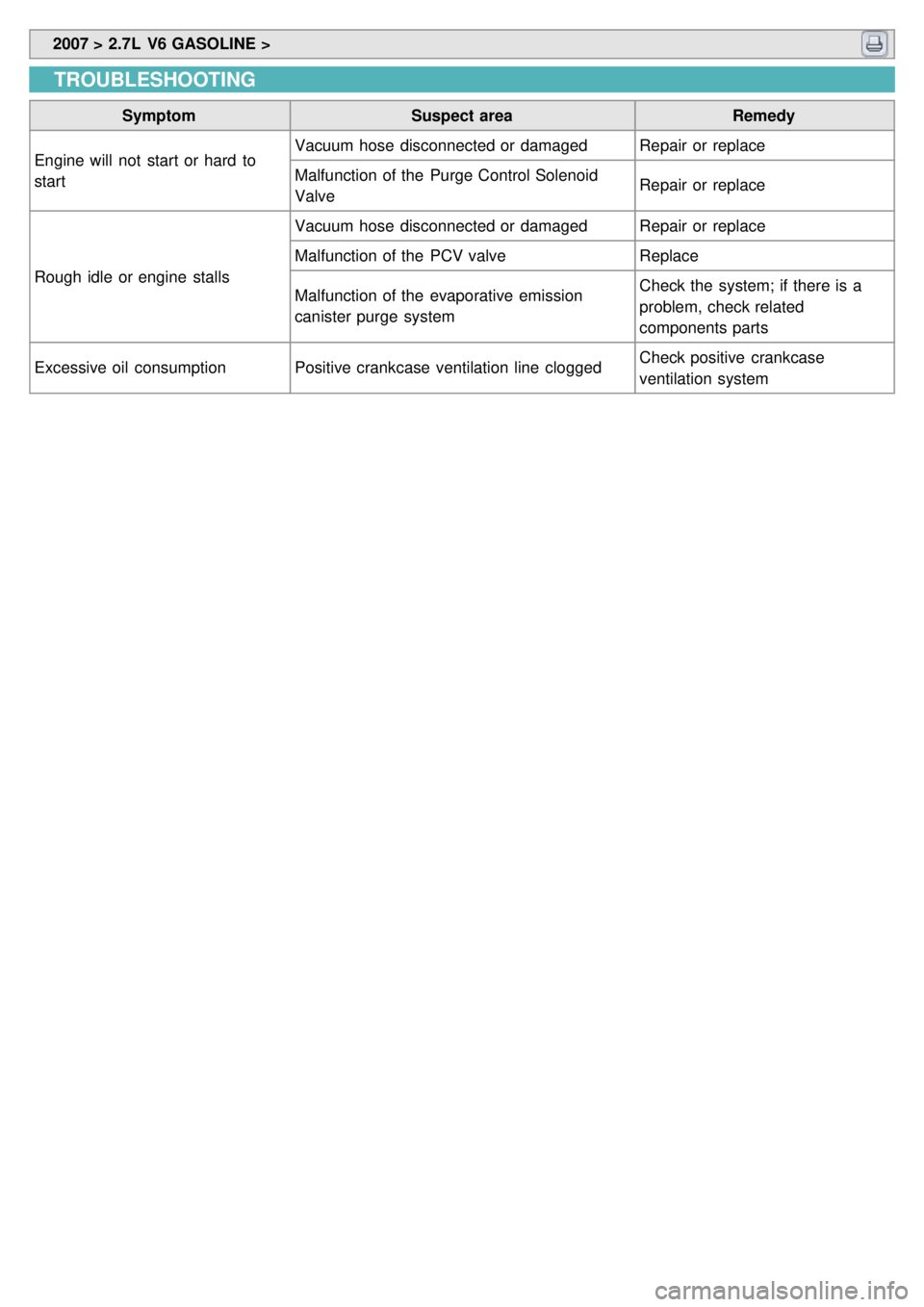

TROUBLESHOOTING
Symptom Suspect area Remedy
Engine will not start or hard to
start Vacuum hose disconnected or damaged
Repair or replace
Malfunction of the Purge Control Solenoid
Valve Repair or replace
Rough idle or engine stalls Vacuum hose disconnected or damaged
Repair or replace
Malfunction of the PCV valve Replace
Malfunction of the evaporative emission
canister purge system Check the system; if there is a
problem, check related
components parts
Excessive oil consumption Positive crankcase ventilation line clogged Check positive crankcase
ventilation system

2007 > 2.7L V6 GASOLINE >

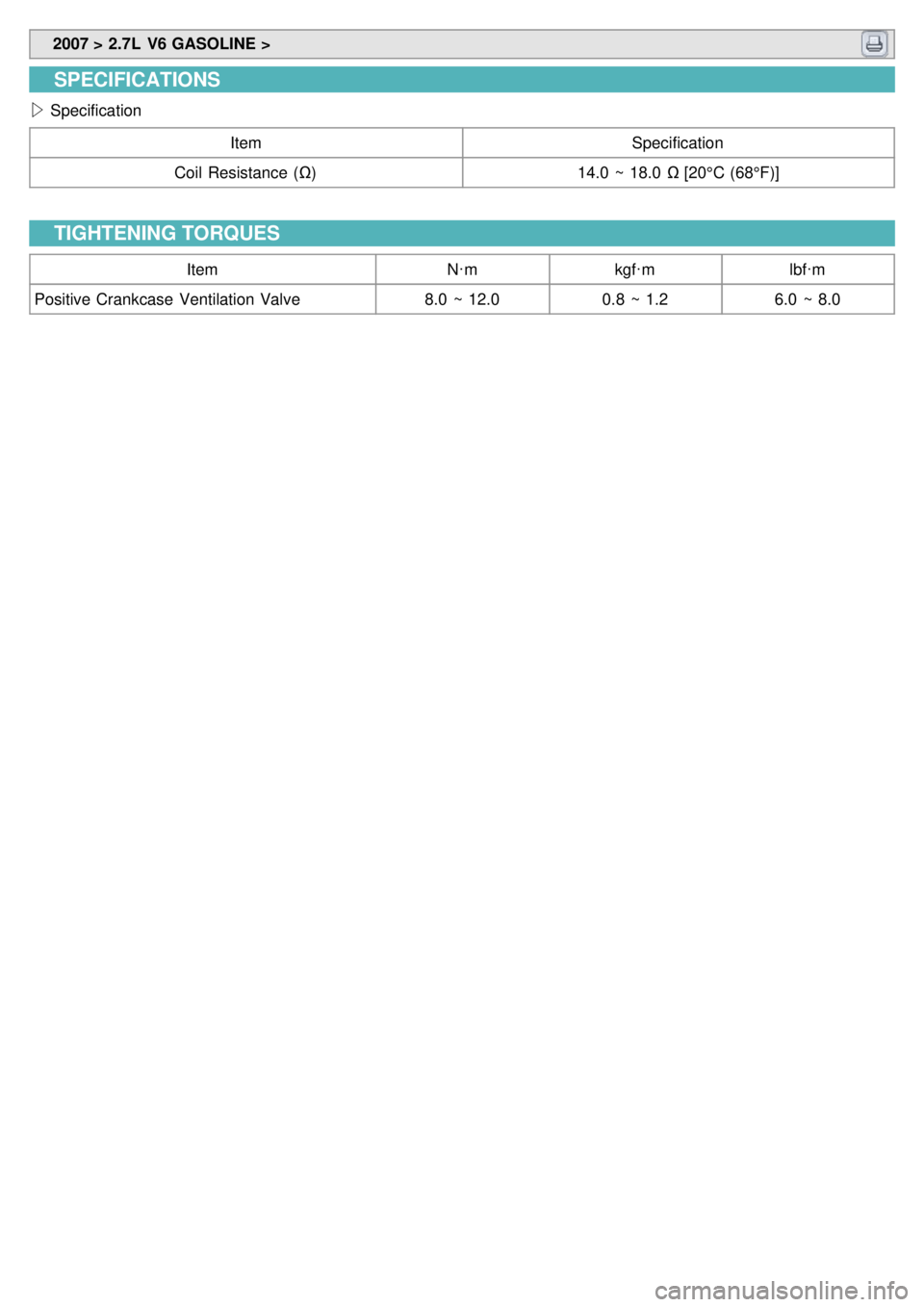

SPECIFICATIONS
J Specification
Item Specification
Coil Resistance (Ω) 14.0 ~ 18.0 Ω [20°C (68°F)]
TIGHTENING TORQUES
Item N·mkgf·m lbf·m
Positive Crankcase Ventilation Valve 8.0 ~ 12.00.8 ~ 1.26.0 ~ 8.0

Crankcase Emission Control System

2007 > 2.7L V6 GASOLINE >

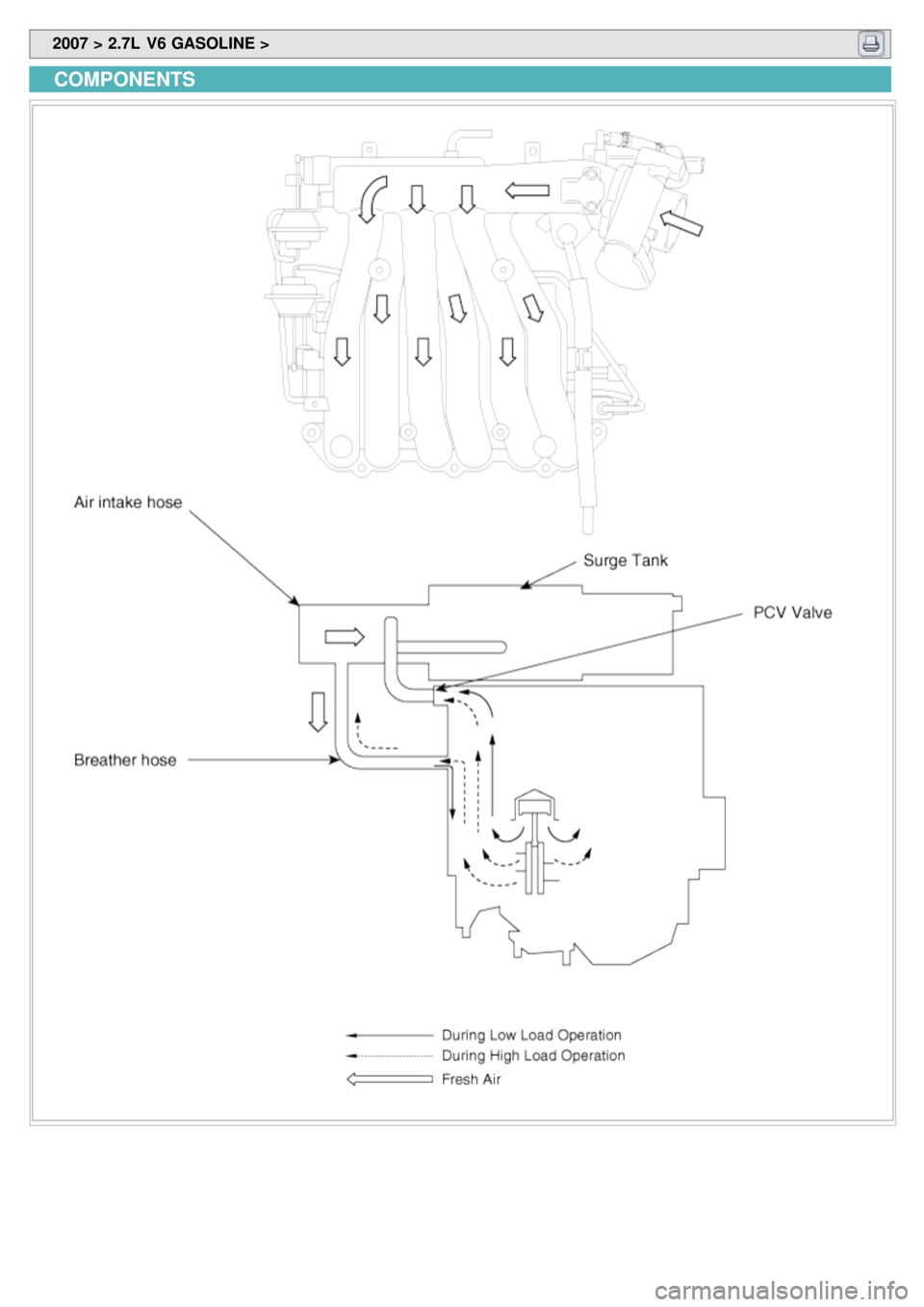

COMPONENTS

2007 > 2.7L V6 GASOLINE >

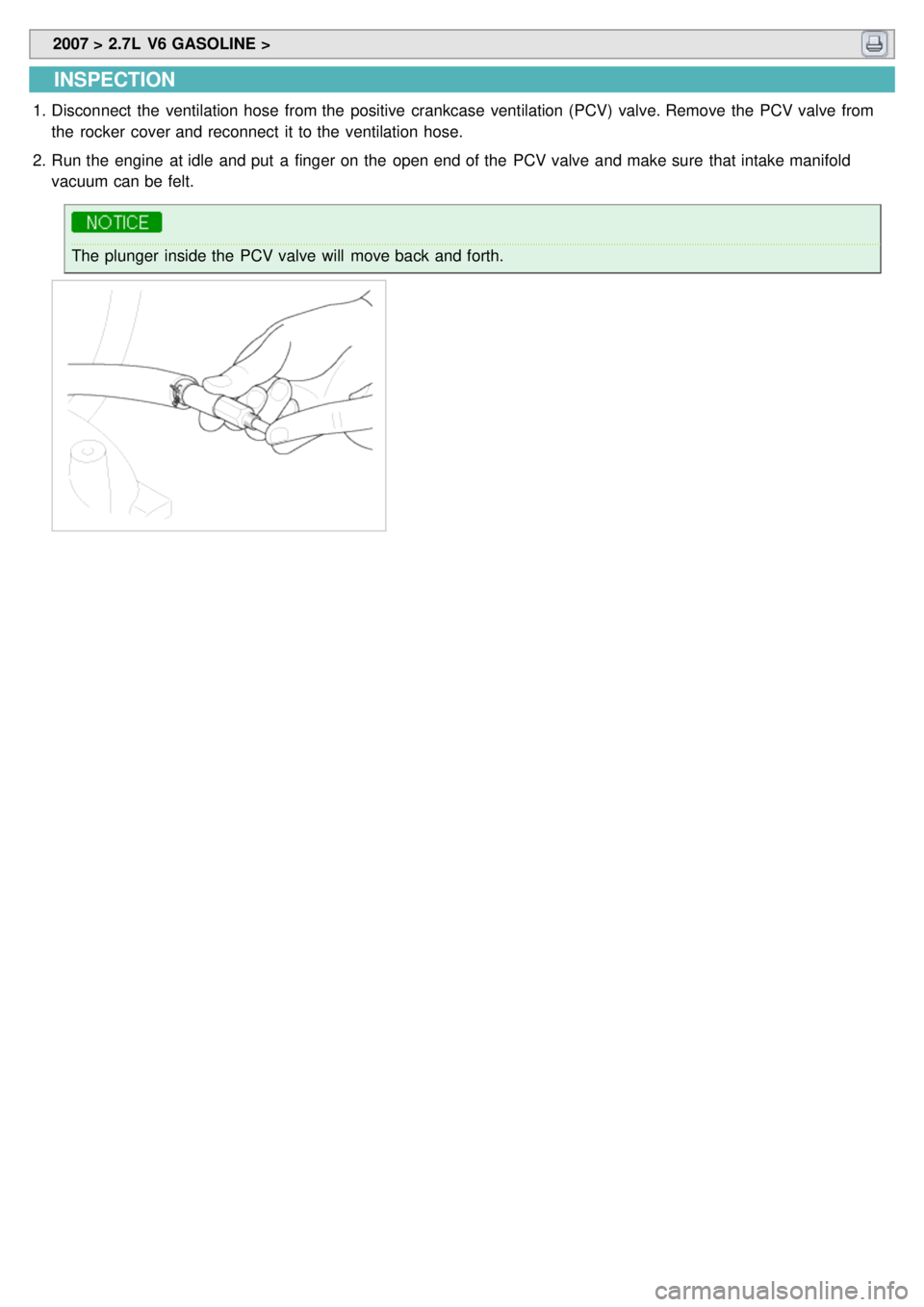

INSPECTION
1.Disconnect the ventilation hose from the positive crankcase ventilation (PCV) valve. Remove the PCV valve from
the rocker cover and reconnect it to the ventilation hose.
2. Run the engine at idle and put a finger on the open end of the PCV valve and make sure that intake manifold
vacuum can be felt.
The plunger inside the PCV valve will move back and forth.

Positive CrankcaseVentilation (PVC) Valve
