KIA CARNIVAL 2007 Workshop Manual

8Manifold Absolute Pressure
Sensor signal input IG ON
Analog 3.9 ~ 4.1V
3.96V
Idle 0.8 ~ 1.6V1.31V
9 - yy y y
10 - yy y y
11 Reference voltage (+5V) IG OFF
DCMax. 0.5V
4.91V
IG ON 4.9 ~ 5.1V- 50mV
12 Battery voltage supply after
ignition switch IG OFF
DCMax. 0.5 V
13.87V
IG ON Battery Voltage- 125mV
13 Reference voltage (+5V) IG OFF
DCMax. 0.5V
4.89V
IG ON 4.9 ~ 5.1V- 70mV
14 Sensor ground IdleDCMax. 50 mV 19.77mV
15 Reference voltage (+5V) IG OFF
DCMax. 0.5V
4.91V
IG ON 4.9 ~ 5.1V- 50mV
16 Reference voltage (+5V) IG OFF
DCMax. 0.5V
4.91V
IG ON 4.9 ~ 5.1V- 50mV
17 Sensor ground IdleDCMax. 50 mV 21.1mV
18 Sensor ground IdleDCMax. 50 mV 20.87mV
19 Ignition Coil (Cylinder #6) control
output Idle
Pulse 1st Voltage:
200~400V 278V
ON Voltage: Max. 2V 1.97V
20 - yy y y
21 Crankshaft Position Sensor
[High] signal input Idle
SINE
WAVE Vp_p : Min.1.0V
41.6V
22 - yy y y
23 Sensor Shield IdleDCMax. 50 mV 21.41mV
24 Camshaft Position Sensor [Bank
2] signal input
Idle
Pulse Hi: Vcc
4.95V
Lo: Max . 0.5V - 10mV
25 Camshaft Position Sensor [Bank
1] signal input
Idle
Pulse Hi: Vcc
4.95V
Lo: Max . 0.5V - 10mV
26 - yy y y
27 - yy y y
28 Sensor ground IdleDCMax. 50 mV 20.73mV
29 Sensor ground IdleDCMax. 50 mV 21.9mV
30 Sensor ground IdleDCMax. 50 mV 20.16mV
31 Sensor ground IdleDCMax. 50 mV 20.63mV
32 Reference voltage (+5V) IG OFF
DCMax. 0.5V
4.91V
IG ON 4.9 ~ 5.1V- 50mV
33 Sensor ground IdleDCMax. 50 mV 22.52mV
34 Sensor ground IdleDCMax. 50 mV 20.99mV
35 Power ground IdleDCMax. 50 mV y
36 Power ground IdleDCMax. 50 mV y
37 Power ground IdleDCMax. 50 mV y

38Power ground IdleDCMax. 50 mV y
39 Power ground IdleDCMax. 50 mV y
40 Ignition Coil (Cylinder #4) control
output Idle
Pulse 1st Voltage:
2300~400V 294V
ON Voltage: Max. 2V 1.93V
41 Crankshaft Position Sensor [Low]
signal input Idle
SINE
WAVE Vp_p: Min.1.0V
8.24V
42 - yy y y
43 - yy y y
44 - yy y y
45 - yy y
46 - yy y y
47 - yy y y
48 Throttle Position Sensor #1
signal input C.T
Analog 0.25 ~ 0.9V
0.68V
W.O.T Min. 4.0V4.27V
49 Heated Oxygen Sensor [Bank 1 /
Sensor 1] signal input
Racing
DCRich: 0.6 ~ 1.0V
774mV
Lean: 0 ~ 0.4V 137mV
50 Heated Oxygen Sensor [Bank 1 /
Sensor 2] signal input
Racing
DCRich: 0.6 ~ 1.0V
y
Lean: 0 ~ 0.4V y
51 Heated Oxygen Sensor [Bank 2 /
Sensor 1] signal input
Racing
DCRich: 0.6 ~ 1.0V
705.2mV
Lean: 0 ~ 0.4V 82mV
52 Heated Oxygen Sensor [Bank 2 /
Sensor 2] signal input
Racing
DCRich: 0.6 ~ 1.0V
y
Lean: 0 ~ 0.4V y
53 Knock Sensor (KS) [Bank 2]
[High] signal input Knocking
Variable
Frequency - 0.3 ~ 0.3 V
y
Normal 0 Vy
54 Knock Sensor (KS) [Bank 2]
[Low] signal input Knocking
Variable
Frequency - 0.3 ~ 0.3 V
y
Normal 0 Vy
55 Knock Sensor (KS) [Bank 1]
[Low] signal input Knocking
Variable
Frequency - 0.3 ~ 0.3 V
y
Normal 0 Vy
56 Knock Sensor (KS) [Bank 1]
[High] signal input Knocking
Variable
Frequency - 0.3 ~ 0.3 V
y
Normal 0 Vy
57 Throttle Position Sensor #2
signal input C.T
Analog Min. 4.0V
4.23V
W.O.T 0.25 ~ 0.9V703mV
58 Sensor ground IdleDCMax. 50 mV 21.64mV
59 - yy y y
60 Ignition Coil (Cylinder #2) control
output Idle
Pulse 1st Voltage:
200~400V 305V
ON Voltage: Max. 2V 1.85V
61 CVVT Oil Control Valve [Bank 2]
control output
Idle
PulseBattery Voltage
14.45V
Max. 1.0V 50mV
62 CVVT Oil Control Valve [Bank 1]
control output
Idle
PulseBattery Voltage
14.47V
Max. 1.0V 75mV
Injector (Cylinder #2) control Battery Voltage
14.06V

63Injector (Cylinder #2) control
output
Idle
PulseBattery Voltage
14.06V
Max. 1.0V 44.2mV
64 Injector (Cylinder #3) control
output
Idle
PulseBattery Voltage
14V
Max. 1.0V 38.31mV
65 - yy y y
66 - yy y y
67 Heated Oxygen Sensor [Bank 2 /
Sensor 1] Heater control output
Engine Run
PulseHi: Battery Voltage
14.07V
Lo: Max. 1.0V 275mV
68 Injector (Cylinder #4) control
output
Idle
PulseHi: Battery Voltage
13.96V
Lo: Max. 1.0V 55.71mV
69 Injector (Cylinder #5) control
output
Idle
PulseHi: Battery Voltage
14V
Lo: Max. 1.0V 40.82mV
70 Heated Oxygen Sensor [Bank 1 /
Sensor 1] Heater control output
Engine Run
PulseHi: Battery Voltage
14.07V
Lo: Max. 1.0V 275mV
71 Injector (Cylinder #6) control
output
Idle
PulseHi: Battery Voltage
13.95mV
Lo: Max. 1.0V 55.77mV
72 Injector (Cylinder #1) control
output
Idle
PulseHi: Battery Voltage
14.07V
Lo: Max. 1.0V 56.7mV
73 Heated Oxygen Sensor [Bank 2 /
Sensor 2] Heater control output
Engine Run
PulseHi: Battery Voltage
13.87V
Lo: Max. 1.0V 275mV
74 Heated Oxygen Sensor [Bank 1 /
Sensor 2] Heater control output
Engine Run
PulseHi: Battery Voltage
14.07V
Lo: Max. 1.0V 275mV
75 - yy y y
76 Battery Power AlwaysDCBattery Voltage
12.39V
1.0 mA or below 1.5 mA 0.34mA
77 Ignition Coil (Cylinder #3) control
output Idle
Pulse 1st Voltage:
200~400V 289V
ON Voltage: Max. 2V 1.87V
78 Ignition Coil (Cylinder #5) control
output Idle
Pulse 1st Voltage:
200~400V 279V
ON Voltage: Max. 2V 1.93V
79 Ignition Coil (Cylinder #1) control
output Idle
Pulse 1st Voltage:
200~400V 269V
ON Voltage: Max. 2V 1.91V
80 - yy y y

Mass Air Flow Sensor(MAFS)

2007 > 2.7L V6 GASOLINE >
INSPECTION
FUNCTION AND OPERATION PRINCIPLE
Mass Air Flow Sensor (MAFS) is a hot - film type sensor and is located in between the air cleaner and the throttle
body. It consists of a tube, a sensor assembly and honeycomb cell and detects intake air quantity flowing into the
intake manifold. Air flows from the air cleaner assembly through the honeycomb cell and over the hot film element. At
this time, heat transfer is generated by convection and this sensor loses its energy. This sensor detects the mass air
flow by using the energy loss and transfers the information to the PCM by frequency. The PCM calculates fuel quantity
and ignition timing.
SPECIFICATION
Air Flow (kg/h) Output Frequency (Hz)
12.6 kg/h 2,617Hz
18.0 kg/h 2,958Hz
23.4 kg/h 3,241Hz
32.4 kg/h 3,653Hz
43.2 kg/h 4,024Hz
57.6 kg/h 4,399Hz
72.0 kg/h 4,704Hz
108.0 kg/h 5,329Hz
144.0 kg/h 5,897Hz
198.0 kg/h 6,553Hz
270.0 kg/h 7,240Hz
360.0 kg/h 7,957Hz
486.0 kg/h 8,738Hz
666.0 kg/h 9,644Hz
900.0 kg/h 10,590Hz

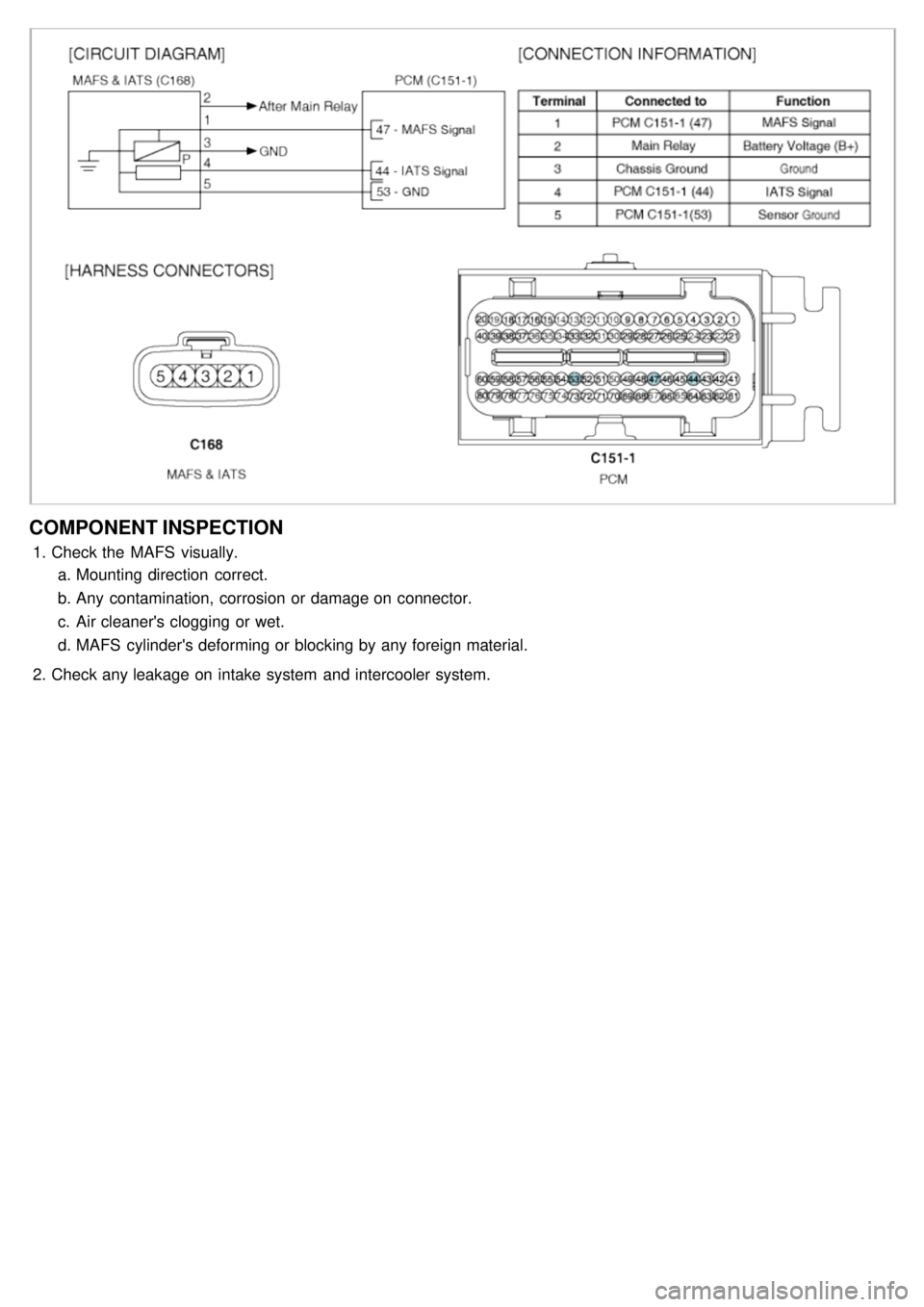

CIRCUIT DIAGRAM

COMPONENT INSPECTION
1.Check the MAFS visually.
a. Mounting direction correct.
b. Any contamination, corrosion or damage on connector.
c. Air cleaner's clogging or wet.
d. MAFS cylinder's deforming or blocking by any foreign material.
2. Check any leakage on intake system and intercooler system.

Manifold Absolute Pressure Sensor (MAPS)

2007 > 2.7L V6 GASOLINE >
INSPECTION
FUNCTION AND OPERATION PRICIPLE
Manifold Absolute Pressure Sensor (MAPS) is speed- density type sensor and is installed on the surge tank. This
MAPS senses absolute pressure in surge tank and transfers this analog signal proportional to the pressure to the
PCM. The PCM calculates the intake air quantity and engine speed based on this signal. This MAPS consists of
piezo - electric element and hybrid IC that amplifies the element output signal. The element is silicon diaphragm type
and adapts pressure sensitive variable resistor effect of semi- conductor. 100% vacuum and the manifold pressure
applies to both sides of it respectively. That is, this sensor outputs the silicon variation proportional to pressure change
by voltage.
SPECIFICATION
Pressure(kPa) Output Voltage (V)
20.0 0.79
46.66 1.84
101.32 4.0

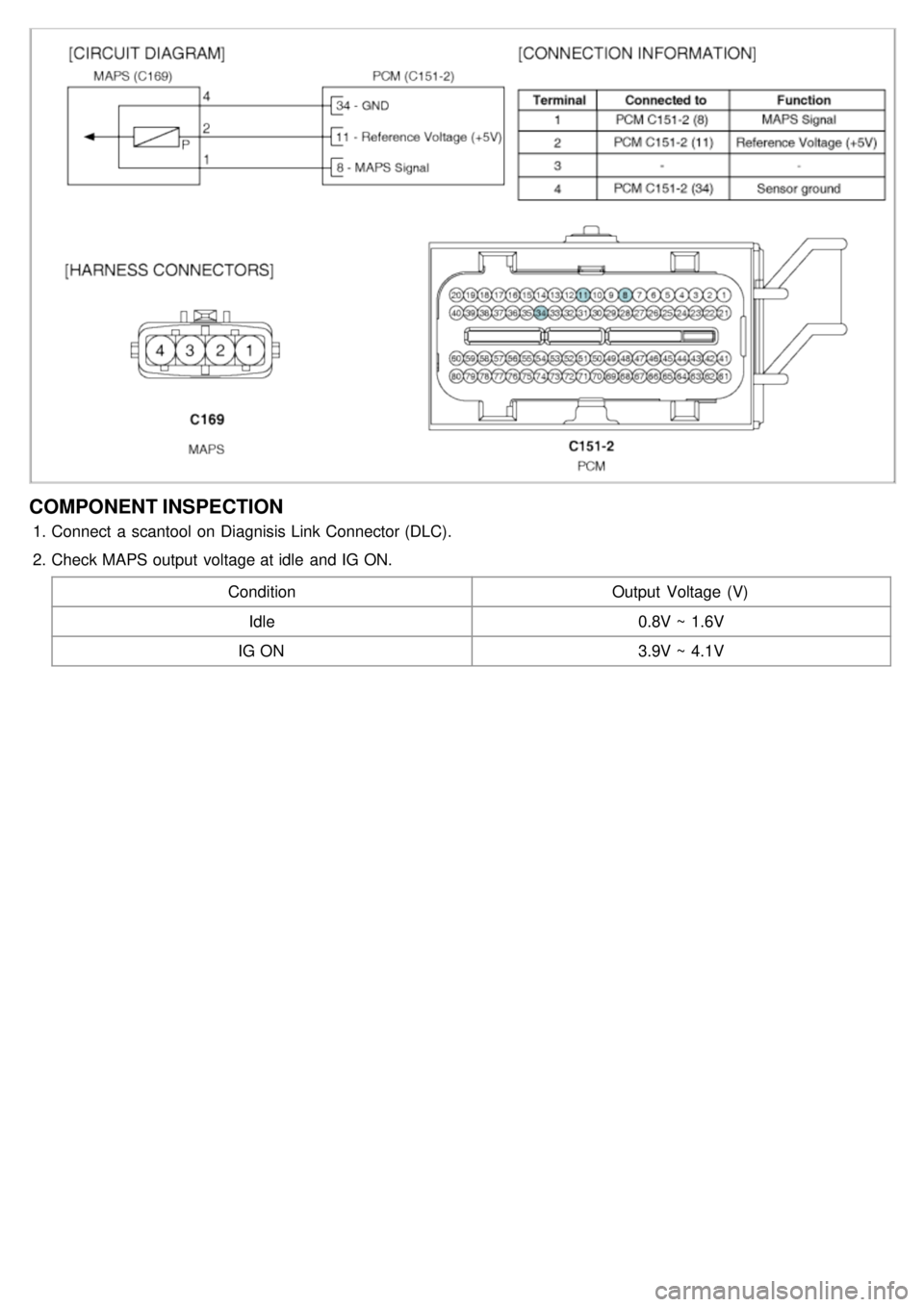

CIRCUIT DIAGRAM

COMPONENT INSPECTION
1.Connect a scantool on Diagnisis Link Connector (DLC).
2. Check MAPS output voltage at idle and IG ON.
Condition Output Voltage (V)
Idle 0.8V ~ 1.6V
IG ON 3.9V ~ 4.1V

Intake Air Temperature Sensor(IATS)
