2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Replace the bulb after removing the lens with a flat- tip screwdriver.
3.Remove the bulb and replace it with a new one
Take care that holding clip (A) is not to be damaged

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Replace the bulb (A) after removing the lens with a flat- tip screwdriver.
3.Remove the bulb and replace it with a new one.
Take care that holding clip (A) is not to be damaged.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the front lamp assembly.
3. Remove connector and the socket in a counterclockwise direction.
4.Remove the bulb (A) and replace it with a new one.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the license plate lamp cover mounting screw with a flat- tip screwdriver.
3.Pull the bulb (B) down and replace it with a new one.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

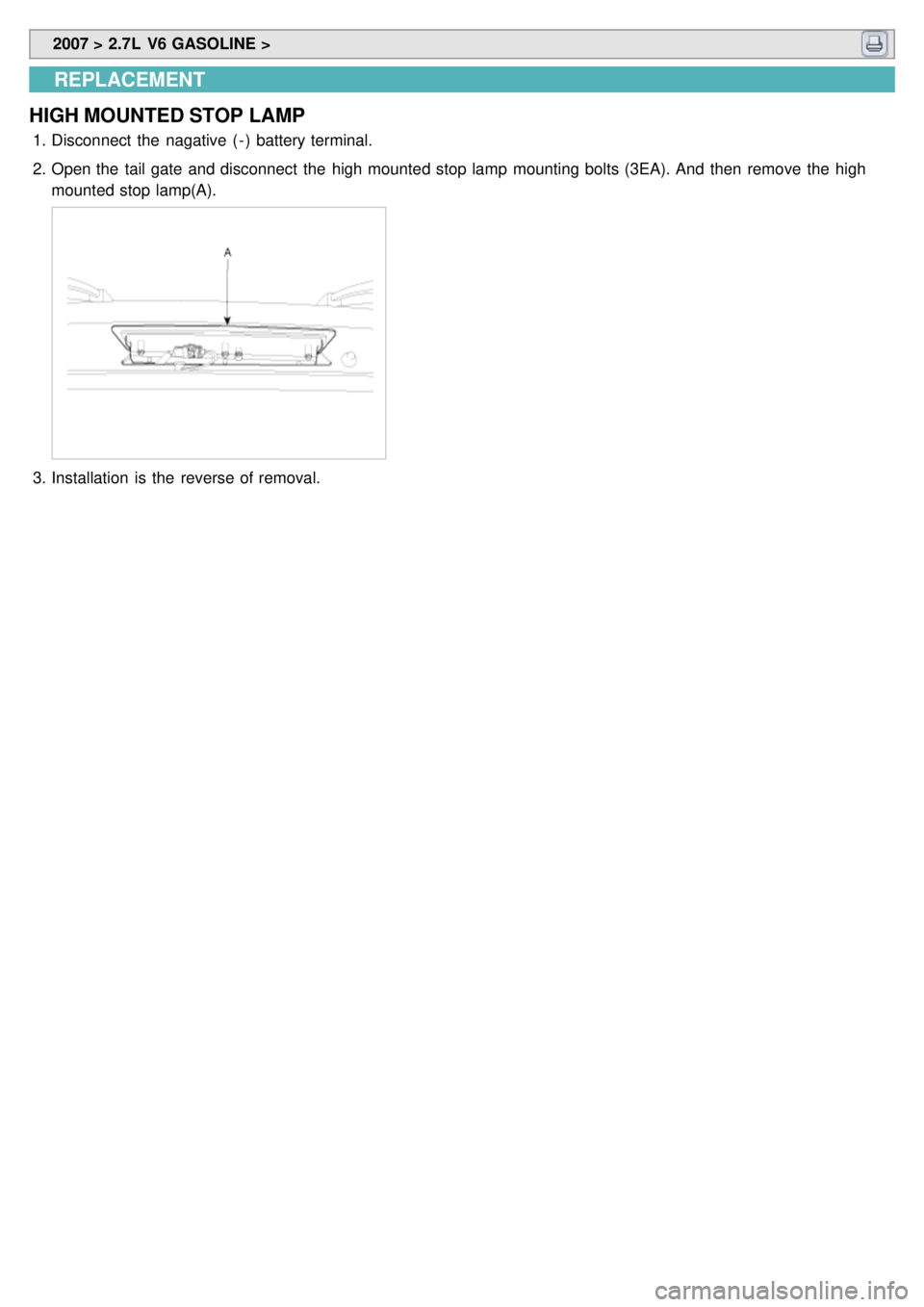

HIGH MOUNTED STOP LAMP
1. Disconnect the nagative ( - ) battery terminal.
2. Open the tail gate and disconnect the high mounted stop lamp mounting bolts (3EA). And then remove the high
mounted stop lamp(A).
3.Installation is the reverse of removal.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (A).
3.Remove the steering column shaft (Refer to the ST group).
4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the
screw.
5.Installation is the reverse of removal procedure.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (A).
3.Remove the cluster facia panel (B) after removing the screws (A) (2EA) and trip switch connector.
4.Disconnect the 6P connector of the coil antenna and then remove the coil antenna (A) after loosening the screw.
5.Installation is the reverse of removal procedure.

2007 > 2.7L V6 GASOLINE >
INSPECTION
Test the buzzer by connecting battery voltage to terminal 1, and ground terminal 2.
The buzzer should make a sound. If the buzzer fails to make a sound, replace it.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (Refer to the Body group - crash pad).
3.Remove the buzzer (A) after loosening the bolt and disconnecting the connector from the left side of IPM.
4.Installation is the reverse of removal procedure.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crash pad lower panel (Refer to the Body group - crash pad).
3.Remove the screws (2EA) and trip switch connector. Then remove the crash facia panel (B).
4.Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.
5.Remove the door warning switch and key illumination lamp (A) after loosening the screws (B) and disconnecting
the 6P connector.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the front door lower panel (Refer to the Body group - front door)
3. Remove the door module (A) mounting screws (5EA) after disconnecting module connector (3EA)
4.Remove the door module (DDM/ADM) (A) from the front door trim panel.
