KIA CARNIVAL 2007 Workshop Manual

2007 > 2.7L V6 GASOLINE >
Precautions
General Precautions
Please read the following precautions carefully before performing the airbag system service. Observe the instructions
described in this manual, or the airbags could accidentally deploy and cause damage or injuries. a. Except when performing electrical inspections, always turn the ignition switch OFF and disconnect the negative
cable from the battery, and wait at least three minutes before beginning work.
The contents in the memory are not erased even if the ignition switch is turned OFF or the battery cables are
disconnected from the battery.
b. Use the replacement parts which are manufactured to the same standards as the original parts and quality.
Do not install used SRS parts from another vehicle.
Use only new parts when making SRS repairs.
c. Carefully inspect any SRS part before you install it.
Do not install any part that shows signs of being dropped or improperly handled, such as dents, cracks or
deformation.
d.Before removing any of the SRS parts (including the disconnection of the connectors), always disconnect the SRS
connector.
Airbag Handling and Storage
Do not disassemble the airbags; it has no serviceable parts. Once an airbag has been deployed, it cannot be repaired
or reused.
For temporary storage of the air bag during service, please observe the following precautions.
a. Store the removed airbag with the pad surface up.
b. Keep free from any oil, grease, detergent, or water to prevent damage to the airbag assembly.

c.Store the removed airbag on secure, flat surface away from any high heat source (exceeding 85°C/185°F).
d. Never perform electrical inspections to the airbags, such as measuring resistance.
e. Do not position yourself in front of the airbag assembly during removal, inspection, or replacement.
f. Refer to the scrapping procedures for disposal of the damaged airbag.
g. Be careful not to bump or impact the SRS unit or the side impact sensors whenever the ignition switch is ON, wait
at least three minutes after the ignition switch is turned OFF before begin work.
h. During installation or replacement, be careful not to bump (by impact wrench, hammer, etc.) the area around the
SRS unit and the side impact sensor. The airbags could accidentally deploy and cause damage or injury.
i. After a collision in which the airbags were deployed, replace the front airbags and the SRS unit. After a collision in
which the side airbag was deployed, replace the side airbag, the front impact sensor and side impact sensor on
the side where the side airbag deployed and the SRS unit. After a collision in which the airbags or the side air
bags did not deploy, inspect for any damage or any deformation on the SRS unit and the side impact sensors. If
there is any damage, replace the SRS unit, the front impact sensor and/or the side impact sensors.
j. Do not disassemble the SRS unit, the front impact sensor or the side impact sensors
k. Turn the ignition switch OFF, disconnect the battery negative cable and wait at least three minutes before
beginning installation or replacement of the SRS unit.
l. Be sure the SRS unit, the front impact sensor and side impact sensors are installed securely with the mounting
bolts.
m. Do not spill water or oil on the SRS unit,or the front impact sensor or the side impact sensors and keep them
away from dust.
n. Store the SRS unit, the front impact sensor and the side impact sensors in a cool (less than 40°C/104°F) and dry
(less than 80% relative humidity, no moisture) area.
Wiring Precautions
SRS wiring can be identified by special yellow outer covering (except the SRS circuits under the front seats).
Observe the instructions described in this section.
a. Never attempt to modify, splice, or repair SRS wiring.
If there is an open or damage in SRS wiring, replace the harness.

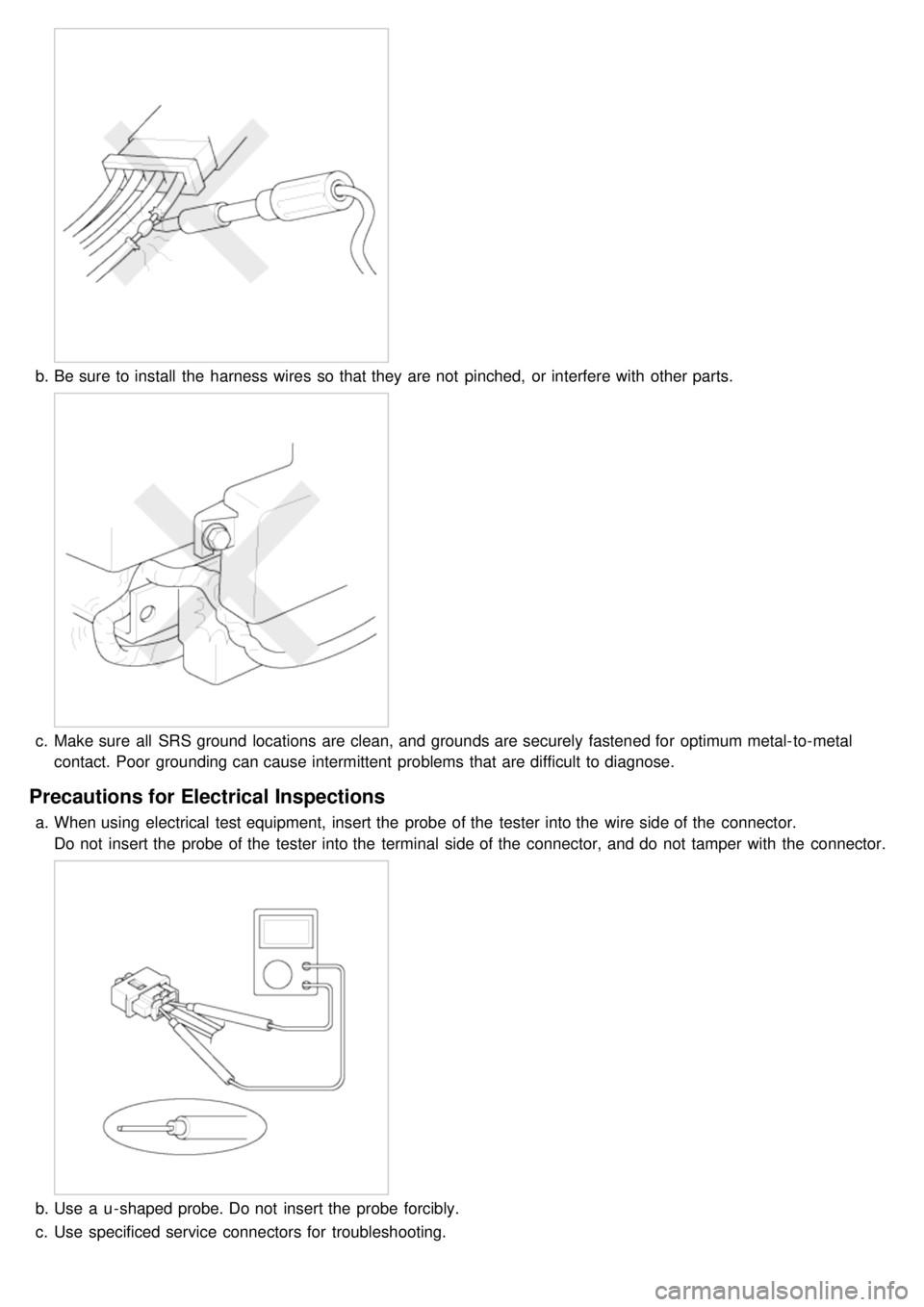

b.Be sure to install the harness wires so that they are not pinched, or interfere with other parts.
c.Make sure all SRS ground locations are clean, and grounds are securely fastened for optimum metal- to- metal
contact. Poor grounding can cause intermittent problems that are difficult to diagnose.
Precautions for Electrical Inspections
a.When using electrical test equipment, insert the probe of the tester into the wire side of the connector.
Do not insert the probe of the tester into the terminal side of the connector, and do not tamper with the connector.
b.Use a u - shaped probe. Do not insert the probe forcibly.
c. Use specificed service connectors for troubleshooting.

Using improper tools could cause an error in inspection due to poor metal contact.

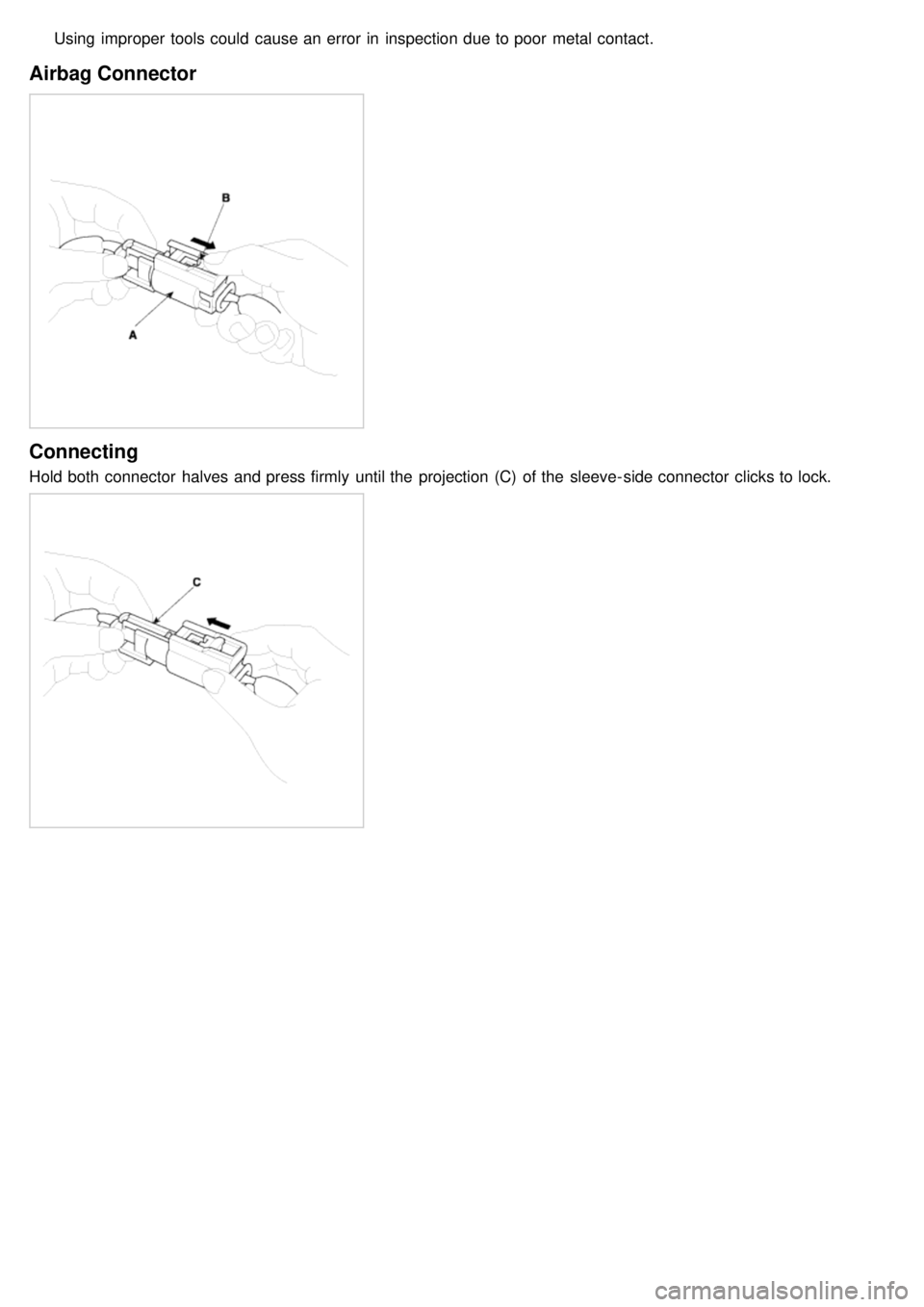

Airbag Connector
Connecting
Hold both connector halves and press firmly until the projection (C) of the sleeve- side connector clicks to lock.

2007 > 2.7L V6 GASOLINE >
General
The supplemental restraint system (SRS) is designed to supplement the seat belt to help reduce the risk or severity of
injury to the driver and passenger by activating and deploying the driver, passenger, side airbag and belt pretensioner
in certain frontal or side collisions.
The SRS (Airbag) consists of : a driver side airbag module located in the center of the steering wheel, which contains
the folded cushion and an inflator unit ; a passenger side airbag module located in the passenger side crash pad
contains the folded cushion assembled with inflator unit ; side airbag modules located in the driver and passenger seat
contain the folded cushion and an inflator unit ; curtain airbag modules located inside of the headliner which contains
folded cushions and inflator units. The impact sensing function of the SRSCM is carried out by electronic
accelerometer that continuously measure the vehicle's acceleration and delivers a corresponding signal through
amplifying and filtering circuitry to the microprocessor.
SRSCM (SRS Control Module)
SRSCM will detect front impact with front impact sensor, and side impact with side impact sensor, and determine
airbag module deployment.
1. DC/DC converter: DC/DC converter in power supply unit includes up/down transformer converter, and provide
ignition voltage for 2 front airbag ignition circuits and the internal operation voltage of the SRSCM. If the internal
operation voltage is below critical value setting, it will perform resetting.
2. Safety sensor: Safety sensor is located in airbag ignition circuit. Safety sensor will operate airbag circuit at any
deployment condition and release airbag circuit safely at normal driving condition. Safety sensor is a double contact
electro - mechanical switch that will close detecting deceleration above certain criteria.
3. Back up power supply: SRSCM has separate back up power supply, that will supply deployment energy instantly in
low voltage condition or upon power failure by front crash.
4. Self diagnosis: SRSCM will constantly monitor current SRS operation status and detect system failure while vehicle
power supply is on, system failure may be checked with trouble codes using scan tool. (Hi- Scan)
5. Airbag warning lamp on: Upon detecting error, the module will transmit signal to SRSCM indicator lamp located at
cluster. MIL lamp will indicate driver SRS error. Upon ignition key on, SRS lamp will turn on for about six seconds.
6. Trouble code registration: Upon error occurrence in system, SRSCM will store DTC corresponding to the error.
DTC can be cleared only by Hi - Scan. However, if an internal fault code is logged or if a crash is recorded the fault
clearing should not happen.
7. Self diagnostic connector: Data stored in SRSCM memory will be output to Hi - Scan or other external output
devices through connector located below driver side crash pad.
8. Once airbag is deployed, SRSCM should not be used again but replaced.
9. SRSCM will determine whether passenger put on seat belt by the signal from built- in switch in seat belt buckle, and
deploy front seat airbag at each set crash speed.
10. Side airbag deployment will be determined by SRSCM that will detect satellite sensor impact signal upon side
crash, irrespective to seat belt condition.

2007 > 2.7L V6 GASOLINE >

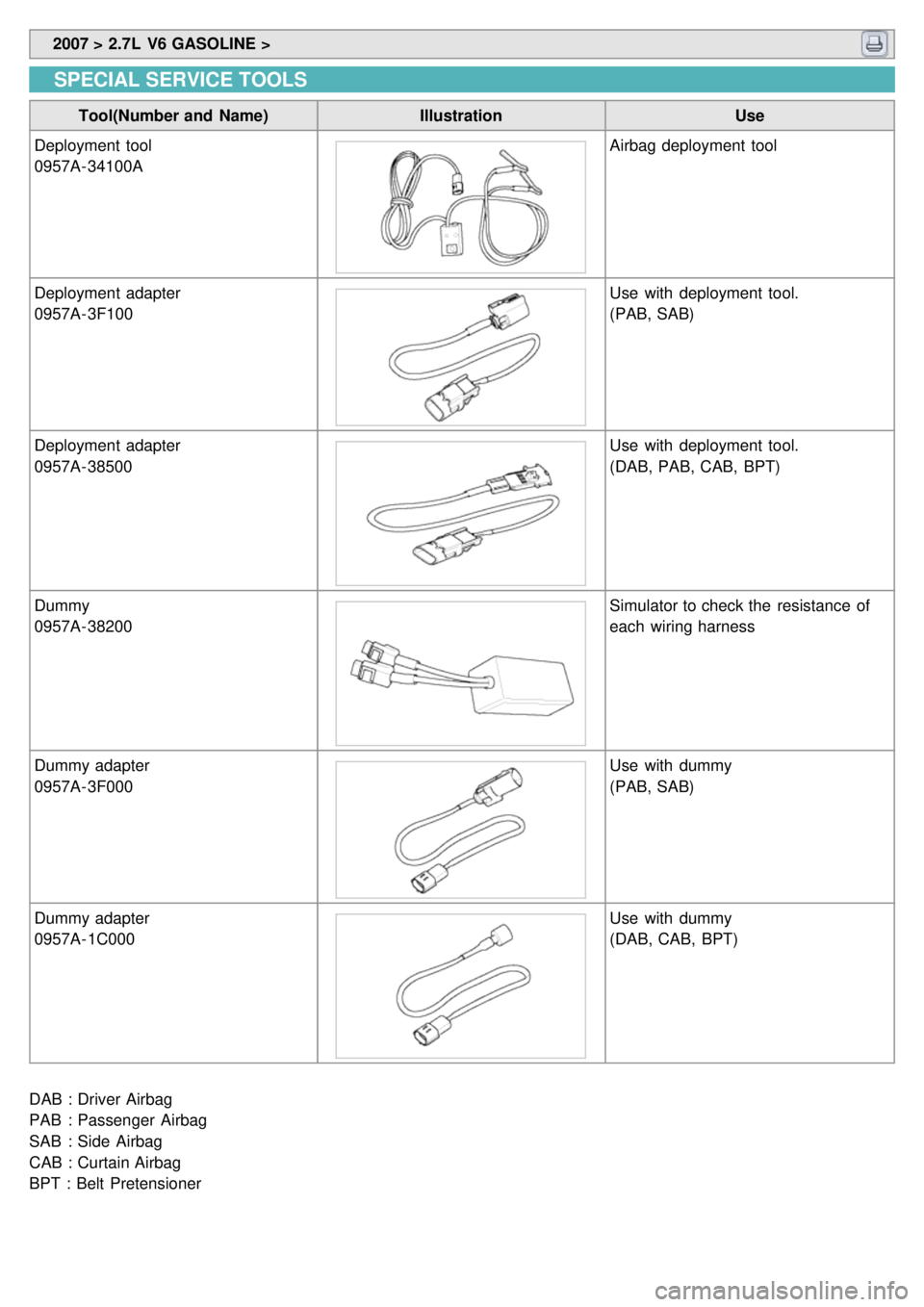

SPECIAL SERVICE TOOLS
Tool(Number and Name) IllustrationUse
Deployment tool
0957A- 34100A
Airbag deployment tool
Deployment adapter
0957A- 3F100
Use with deployment tool.
(PAB, SAB)
Deployment adapter
0957A- 38500
Use with deployment tool.
(DAB, PAB, CAB, BPT)
Dummy
0957A- 38200
Simulator to check the resistance of
each wiring harness
Dummy adapter
0957A- 3F000
Use with dummy
(PAB, SAB)
Dummy adapter
0957A- 1C000
Use with dummy
(DAB, CAB, BPT)
DAB : Driver Airbag
PAB : Passenger Airbag
SAB : Side Airbag
CAB : Curtain Airbag
BPT : Belt Pretensioner

2007 > 2.7L V6 GASOLINE >
WARNING LAMP ACTIVATION
WARNING LAMP BEHAVIOR AFTER IGNITION ON
As soon as the operating voltage is applied to the SRSCM ignition input, the SRSCM activates the warning lamp for a
bulb check.
The lamp shall turn on for 6 seconds during the initialization phase and be turned off afterward. However, in order to
indicate the driver, the warning lamp shall turn on for 6 seconds and off for one second then on continuously after the
operating voltage is applied if any active fault exists. 1. Active fault or historical fault counter is greater or equal to 10
2.Normal or historical fault counter is less than 10
SRSCM INDEPENDENT WARNING LAMP ACTIVATION
There are certain fault conditions in which the SRSCM cannot function and thus cannot control the operation of the
standard warning lamp. In these cases, the standard warning lamp is directly activated by appropriate circuitry that
operates independently of the SRSCM. These cases are:
1. Loss of battery supply to the SRSCM : warning lamp turned on continuously.
2. Loss of internal operating voltage : warning lamp turned on continuously.
3. Loss of Microprocessor operation : warning lamp turned on continuously.
4. SRSCM not connected : warning lamp turned on continuously through the shorting bar.
PASSENGER AIRBAG DEACTIVATION (PAD) LAMP OPERATION
The SRSCM is designed with circuitry and software to drive a PAD lamp, which is used for depowered airbag system.
For the PAD indicator circuitry to function properly, both the SRSCM and PAD indicator are sourced from the same
ignition line. After ignition on, the PAD indicator will be turned on for 4 seconds and off for 3 seconds during the
initialization phase. Thereafter the lamp will be turned on as long as the PAD switch is in the disabled position.
PASSENGER RESTRAINTS ACTIVATION WITH PAD SWITCH
The PAD switch affects the activation of the front passenger airbag only and the switch is controlled manually. The
PAD switch will be functioned as follows:
PAD Switch status PAD LampPAB
Phase- up ON → OFF Enable
Enabled position OFFEnable
Disabled position ONDisable
Fault Based on PABEnable

2007 > 2.7L V6 GASOLINE >

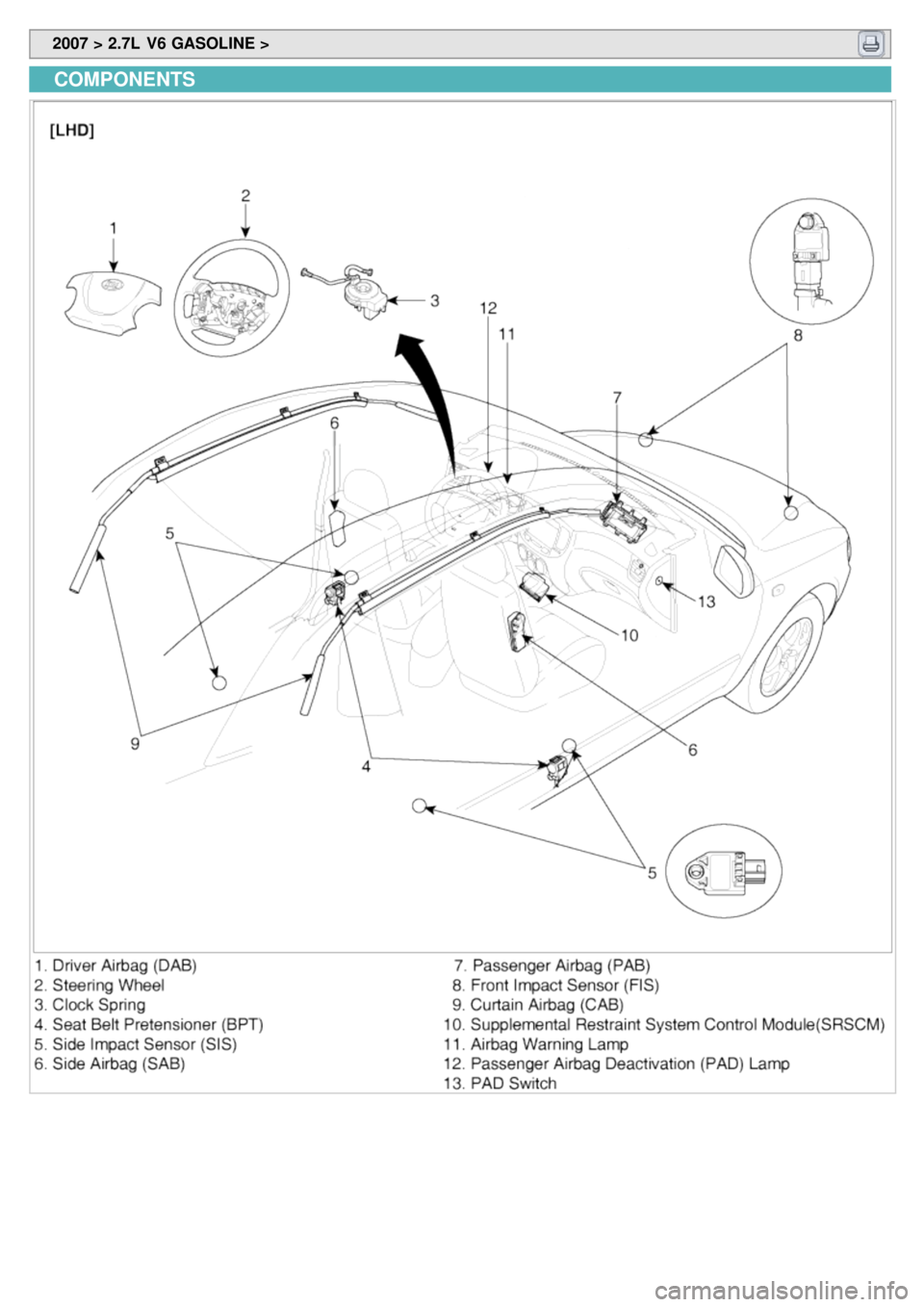

COMPONENTS

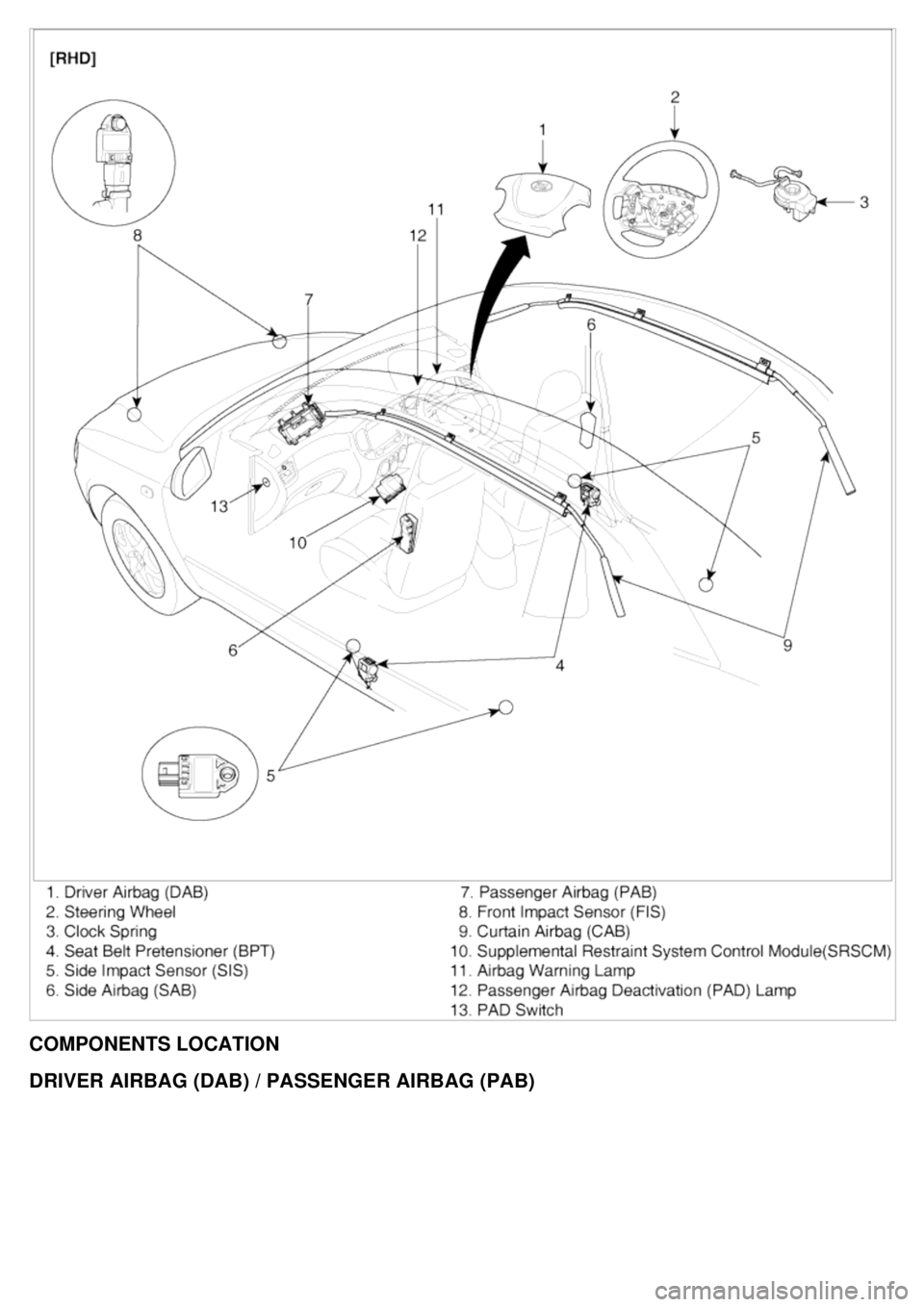

COMPONENTS LOCATION

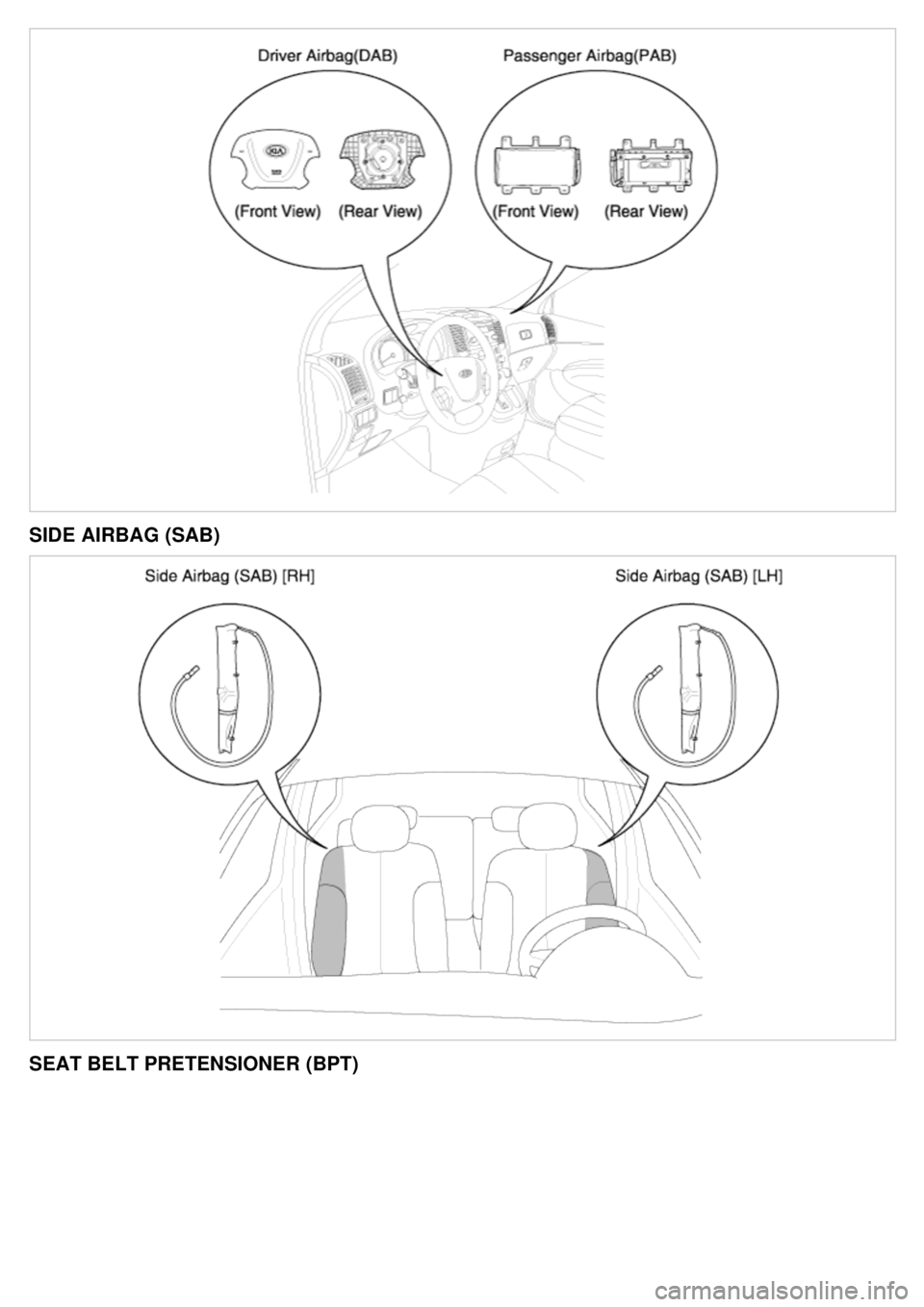

DRIVER AIRBAG (DAB) / PASSENGER AIRBAG (PAB)

SIDE AIRBAG (SAB)
SEAT BELT PRETENSIONER (BPT)
