KIA CARNIVAL 2007 Workshop Manual

Tighterning torque
HECU mounting nut :
6~10 Nm (0.6~1.0 kgf·m, 4.34~7.23 Ib- ft)
HECU bracket mounting bolt:
17~26 Nm (1.7~2.6 kgf·m, 12.3~18.8 Ib- ft)

Front Wheel Speed Sensor

2007 > 2.7L V6 GASOLINE >

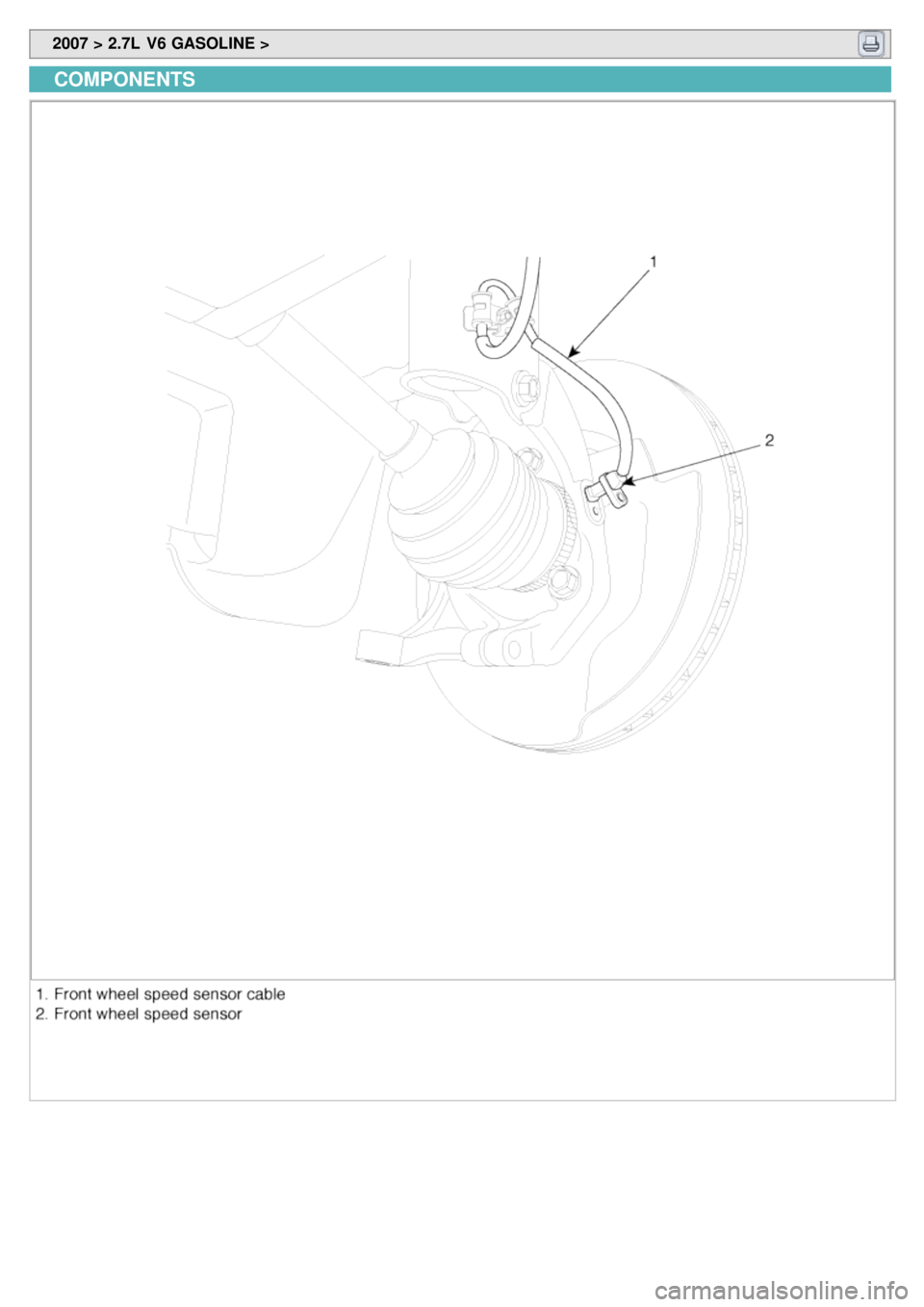

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B)..
2.Remove the wire bracket bolt (A).
3.Remove the front wheel guard.
4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
INSPECTION
1.Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
In order to protect the wheel speed sensor, when measuring output voltage, a 75Ω resistor must be used as
shown.

2.Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage
as shown below.
a.V_low : 0.44 V ~ 0.63 V
b. V_high : 0.885 V ~ 1.26 V
c. Frequency range : 1~2,500 Hz

Rear Wheel Speed Sensor

2007 > 2.7L V6 GASOLINE >

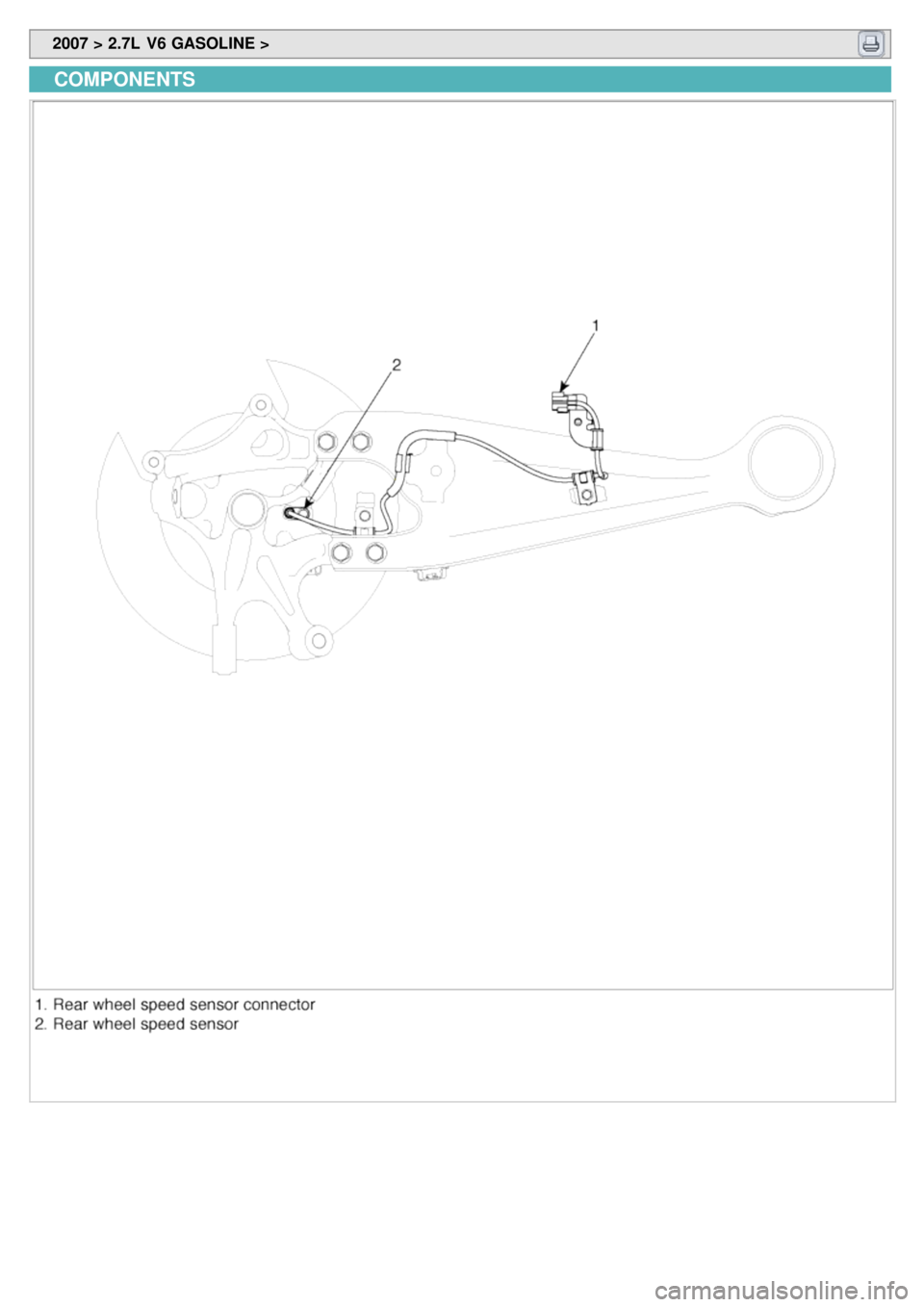

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Remove the rear wheel speed sensor mounting bolt (A).
2.Remove the rear seat side pad then disconnect the rear wheel speed sensor connector (A).
INSPECTION
1.Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
In order to protect the wheel speed sensor, when measuring output voltage, a 75Ω resistor must be used as
shown.
2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage
as shown below.

a.V_low : 0.44 V ~ 0.63 V
b. V_high : 0.885 V ~ 1.26 V
c. Frequency range : 1~2,500 Hz

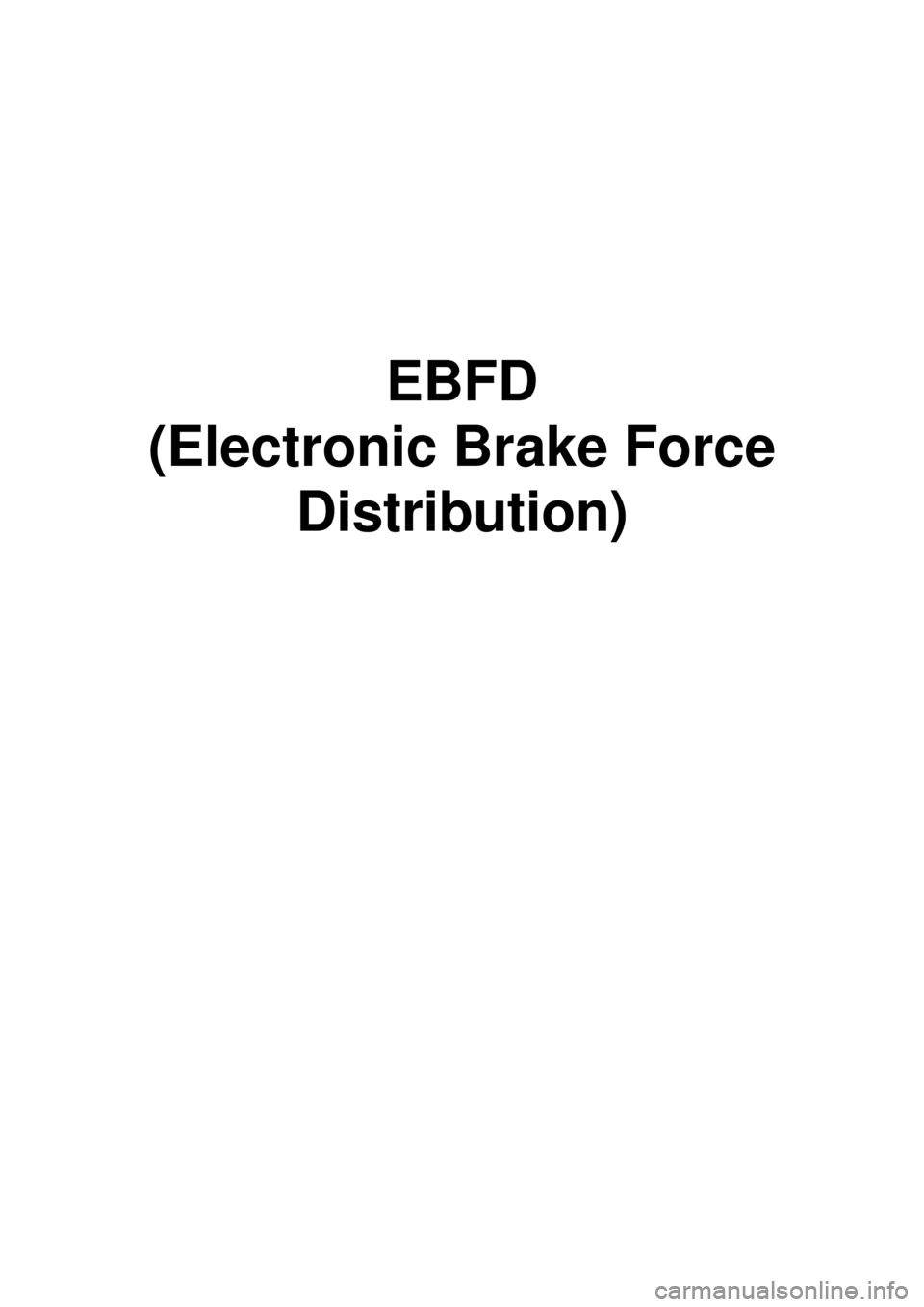

EBFD
(Electronic Brake Force Distribution)
