KIA CEED 2011 Owner's Manual

Safety features of your vehicle
8
3
Seat warmer (if equipped)
The seat warmer is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
either of the switches to warm the driver'sseat or the front passenger's seat.
 Each time you push the button, the
temperature setting of the seat is
changed as follows :
 The seat warmer defaults to the OFF position whenever the ignition switch is
turned on. During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the"OFF" position.
✽✽
NOTICE

39
Safety features of your vehicle
Seatback pocket (if equipped)
Rear seat adjustment
Folding the rear seat
The rear seatbacks (or cushions) may be
folded to facilitate carrying long items orto increase the luggage capacity of the
vehicle.To fold the rear seat cushion and back - 5 Door/wagon
1. Set the front seatback to the uprightposition and if necessary, slide the
front seat forward.
2. Lift the front side of the seat cushion up.
WARNING - Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-pants.
WARNING
The purpose of the fold-down rear
seatbacks (or cushions) is to allow
you to carry longer objects thancould not otherwise be accommo-dated.
Never allow passengers to sit on
top of the folded down seatback
while the car is moving as this is
not a proper seating position and
no seat belts are available for use.
This could result in serious injuryor death in case of an accident or
sudden stop. Objects carried on the
folded down seatback should not
extend higher than the top of the
front seats. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.
OUN028040/HOED036023A
ED(FL) ENG 3.QXP 6/28/2010 10:28 AM Page 9

Safety features of your vehicle
10
3
3. Lift the rear portion of the seat cush-
ion. Stand the rear seat cushion verti-
cally. 4. Remove the headrest from the rear
seatback.
5. Pull the lock release lever (red visible) and fold the rear seatback forward and
down firmly. 6. Stow the headrest by inserting the
headrest poles into the holder on thebottom of the seat cushion.
OED036028AOED036026A
OED036027A
OED036024A
OED036025A
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 10

311
Safety features of your vehicle
7. To use the rear seat, remove the head-rest from the seat cushion.
8. Lift and push the seatback backward firmly until it clicks into place. Make
sure the seatback is locked in place
(red invisible).
9. Reposition the headrest on the seat- back and adjust it to the desired posi-tion.
10. Return the seat cushion to the origi- nal position by pushing down the rear
side of the seat cushion first. Make
sure the seat cushion is locked in
place.
11. Return the rear seat belt to the prop- er position. 3 Door
1. Lower the headrest to the lowest posi-
tion.
2. Pull the lock release lever located on the top of the seatback.
3. Fold the seatback forward and down firmly.
4. To use the rear seat, lift and push the seatback backward firmly until it clicks
into place. Make sure the seatback is
locked in place (red invisible).
5. Return the rear seat belt to the proper position.
WARNING
When you return the rear seatback to its upright position after being
folded down:
Be careful not to damage the seat
belt webbing or buckle. Do not
allow the seat belt webbing or
buckle to get caught or pinched in
the rear seat. Ensure that the seat-
back is completely locked into its
upright position by pushing on the
top of the seatback. Otherwise, in
an accident or sudden stop, the
seat could fold down and allow
cargo to enter the passenger com-
partment, which could result in
serious injury or death.
CAUTION - 3 Door rear
seat
Do not fold the rear seatback for along time.
The friction between the seatbackand seat cushion may deform the
rear seat cover.
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 11

Safety features of your vehicle
12
3
Headrest
The rear seat(s) is equipped with head-
rests in all the seating positions for the
occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a colli-sion.WARNING - Cargo loading
Make sure the engine is off, the
automatic transaxle is in P (Park)and the parking brake is applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move if
shift lever is inadvertently moved toanother position.
WARNING - Cargo
Cargo should always be secured to
prevent it from being thrown about
the vehicle in a collision and caus-
ing injury to the vehicle occupants.Special care of objects should betaken when placing them in the rear
seats, since those may hit the front
seat occupants in a frontal colli-sion.
CAUTION - Rear seat belts
When returning the rear seatbacks
to the upright position, remember to return the rear shoulder belts totheir proper position.
CAUTION - Damaging rear
seat belt buckles
When you fold the rear seatback or put luggage on the rear seat cush-
ion, insert the buckle in the pocketbetween the rear seatback andcushion. Doing so can prevent the buckle from being damaged by the
rear seatback or luggage.
OPA039053
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 12

313
Safety features of your vehicle
Adjusting the height up and down
To raise the headrest, pull it up to the
highest position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the lowest position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
To reinstall the headrest, put the head- rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
OED036030
WARNING
 For maximum effectiveness in case of an accident, the headrest
should be adjusted so the middleof the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-ple's head is similar with the
height of the top of their eyes.
Also adjust the headrest as close
to your head as possible. The use
of a cushion that holds the body
away from the seatback is notrecommended.
 Do not operate the vehicle with the headrests removed as severe
injury to an occupant may occur
in the event of an accident.
Headrests may provide protec-
tion against severe neck injuries
when properly adjusted.
OED030031
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protects the occupants.
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 13

Safety features of your vehicle
14
3
Armrest (if equipped)
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback.
Entering the rear seat
(3 Door, if equipped)
Before entering the rear seat
1. Lift up the lever and fold the seatback down.
2. Push the entire seat forward.
After entering the rear seat
3. Push the front seat back to the upright position until you hear a click noise.
4. Adjust the front seat to the desired position.
OED038015-1OED030089OED038015-2
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 14

315
Safety features of your vehicle
Seat belt restraint systemSEAT BELTS
WARNING
 For maximum restraint system protection, the seat belts must
always be used whenever the car
is moving.
 Seat belts are most effective when seatbacks are in theupright position.
 Children age 12 and under must always be properly restrained in
the rear seat. Never allow chil-
dren to ride in the front passen-
ger seat. If a child over 12 must
be seated in the front seat, he/she
must be properly belted and the
seat should be moved as far back
as possible.
 Never wear the shoulder belt under your arm or behind your
back. An improperly positionedshoulder belt can cause serious
injuries in a crash. The shoulder
belt should be positioned midway
over your shoulder across your
collarbone.
(Continued)
WARNING
Seat belts are designed to bear
upon the bony structure of the
body, and should be worn low
across the front of the pelvis or the
pelvis, chest and shoulders, as
applicable; wearing the lap section
of the belt across the abdominal
area must be avoided. Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection
for which they have been designed.
A slack belt will greatly reduce the
protection afforded to the wearer.
(Continued)
(Continued)
 Avoid wearing twisted seat belts.A twisted belt can't do its job as
well. In a collision, it could even
cut into you. Be sure the beltwebbing is straight and not twist-ed.
 Be careful not to damage the belt webbing or hardware. If the belt
webbing or hardware is dam-
aged, replace it.
WARNING
No modifications or additions
should be made by the user which
will either prevent the seat belt
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted
to remove slack.
(Continued)
Care should be taken to avoid con- tamination of the webbing with pol-
ishes, oils and chemicals, and par-
ticularly battery acid. Cleaning may
safely be carried out using mild
soap and water. The belt should bereplaced if webbing becomes
frayed, contaminated or damaged. It is essential to replace the entire
assembly after it has been worn in
a severe impact even if damage to
the assembly is not obvious. Belts
should not be worn with straps
twisted. Each belt assembly must
only be used by one occupant; it is
dangerous to put a belt around a
child being carried on the occu-pant's lap.
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 15

Safety features of your vehicle
16
3

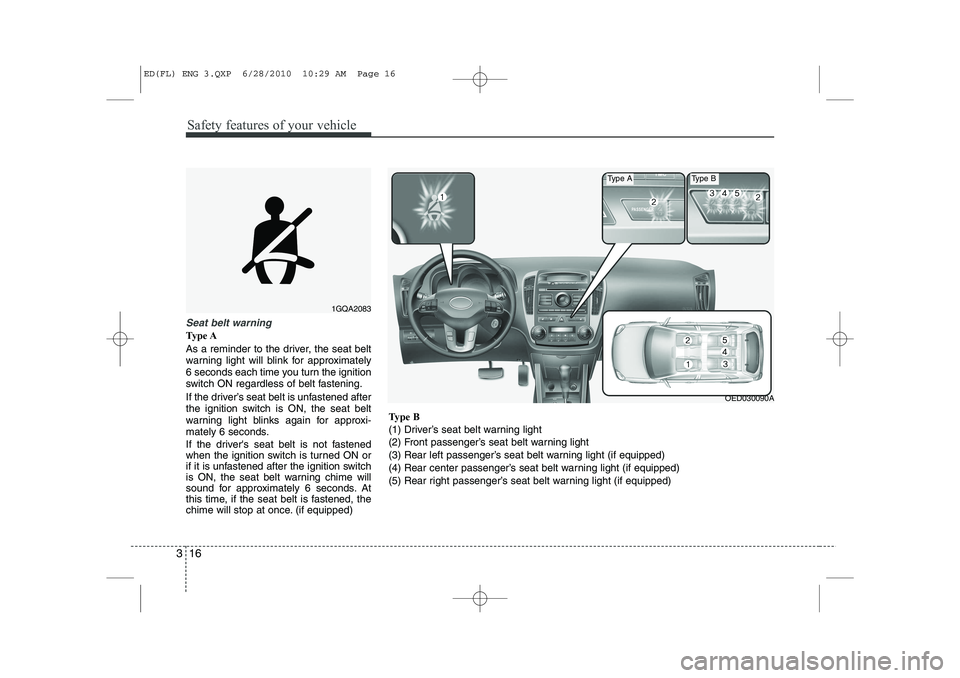

Seat belt warning
Type A
As a reminder to the driver, the seat belt
warning light will blink for approximately
6 seconds each time you turn the ignition
switch ON regardless of belt fastening.
If the driver’s seat belt is unfastened after
the ignition switch is ON, the seat belt
warning light blinks again for approxi-
mately 6 seconds.
If the driver's seat belt is not fastened
when the ignition switch is turned ON or
if it is unfastened after the ignition switch
is ON, the seat belt warning chime will
sound for approximately 6 seconds. At
this time, if the seat belt is fastened, the
chime will stop at once. (if equipped)
1GQA2083
OED030090A
Type B
(1) Driver’s seat belt warning light
(2) Front passenger’s seat belt warning light
(3) Rear left passenger’s seat belt warning light (if equipped)
(4) Rear center passenger’s seat belt warning light (if equipped)
(5) Rear right passenger’s seat belt warning light (if equipped)
Type AType B
ED(FL) ENG 3.QXP 6/28/2010 10:29 AM Page 16

317
Safety features of your vehicle
Front
As a reminder to the driver and front pas-
senger, the driver’s and front passenger’s
seat belt warning lights will illuminate for
approximately 6 seconds each time you
turn the ignition switch ON regardless of
belt fastening.
If the driver’s or front passenger’s seat
belt is not fastened when the ignition
switch is turned ON or if it is disconnect-
ed after the ignition switch is turned ON,
the corresponding seat belt warning light
will illuminate until the belt is fastened.
If you continue not to fasten the seat belt
and you drive over 9km/h, the illuminated
warning light will start to blink until you
drive under 6km/h.
If you continue not to fasten the seat belt
and you drive over 20km/h the seat belt
warning chime will sound for approxi-mately 100 seconds and the correspon-
ding warning light will blink.
Also, when you unfasten your seat belt
again and drive over 9 km/h for the first
time, the warning chime will sound for
approximately 100 seconds and the cor-
responding warning light will blink or illu-
minate according to above described
vehicle speed.✽✽NOTICE
