Page 431 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
10
6

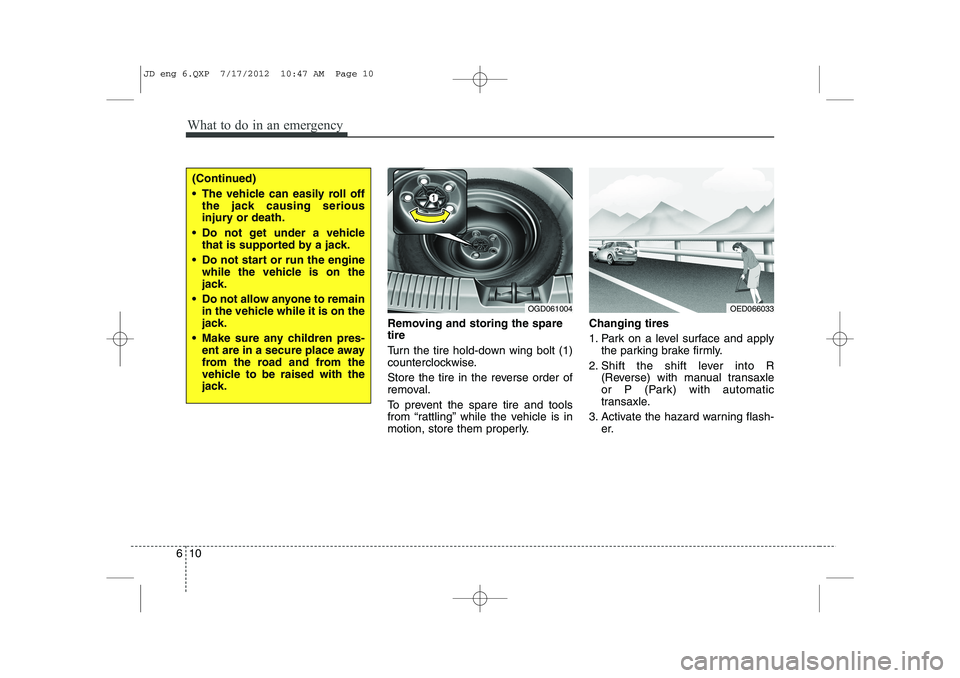

Removing and storing the spare tire
Turn the tire hold-down wing bolt (1)
counterclockwise.
Store the tire in the reverse order of
removal.
To prevent the spare

Page 432 of 1168

KIA CEED 2013  Owners Manual 611
What to do in an emergency

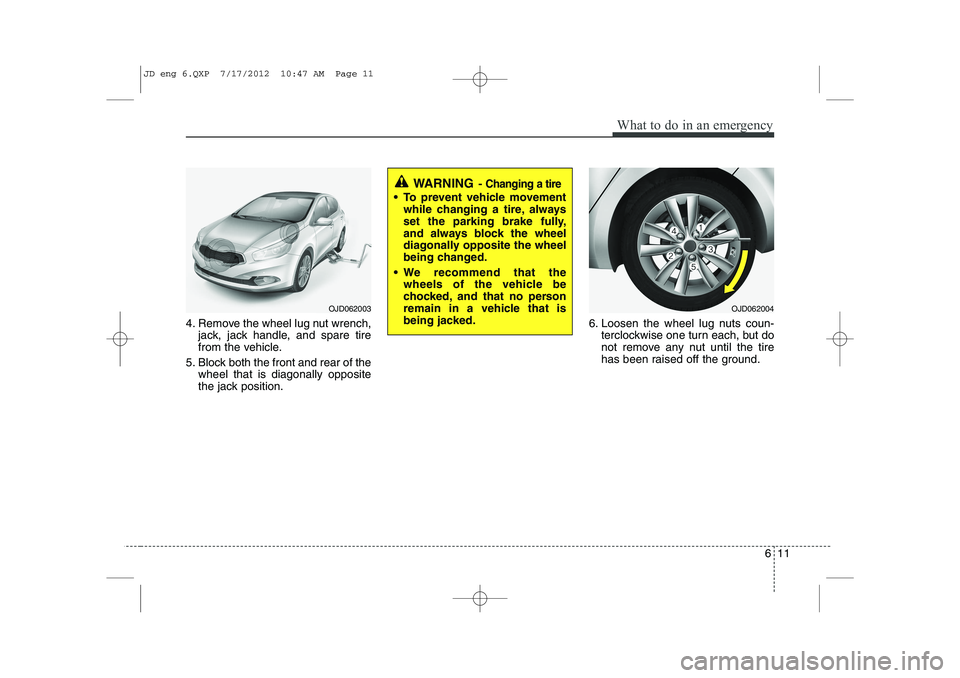

4. Remove the wheel lug nut wrench,jack, jack handle, and spare tire
from the vehicle.
5. Block both the front and rear of the wheel that is diagonally opposite
the jac

Page 433 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
12
6

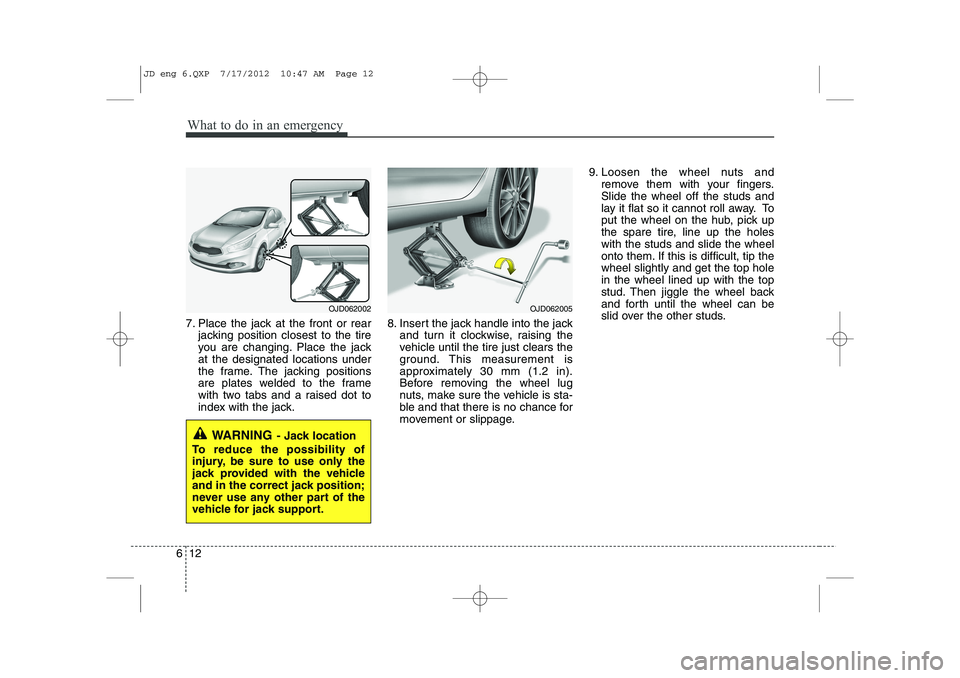

7. Place the jack at the front or rear
jacking position closest to the tire
you are changing. Place the jackat the designated locations under
the frame. The jacking po

Page 434 of 1168

KIA CEED 2013  Owners Manual 613
What to do in an emergency

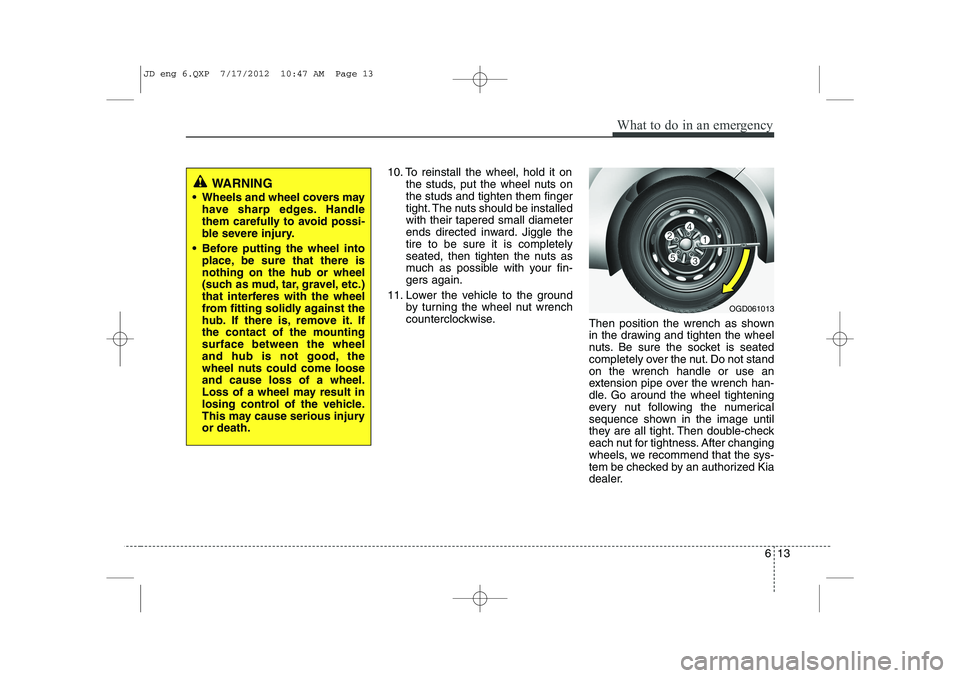

10. To reinstall the wheel, hold it onthe studs, put the wheel nuts on the studs and tighten them finger
tight. The nuts should be installedwith their tapered small diam

Page 435 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
14
6

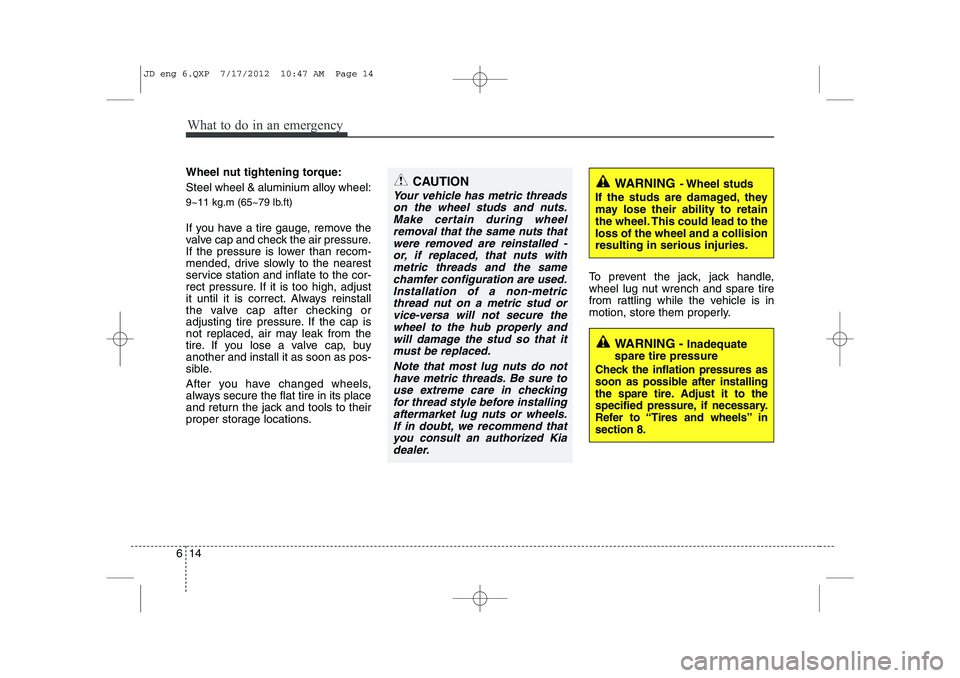

Wheel nut tightening torque:
Steel wheel & aluminium alloy wheel:
9~11 kg.m (65~79 lb.ft)
If you have a tire gauge, remove the
valve cap and check the air pressure.

Page 436 of 1168

KIA CEED 2013  Owners Manual 615
What to do in an emergency

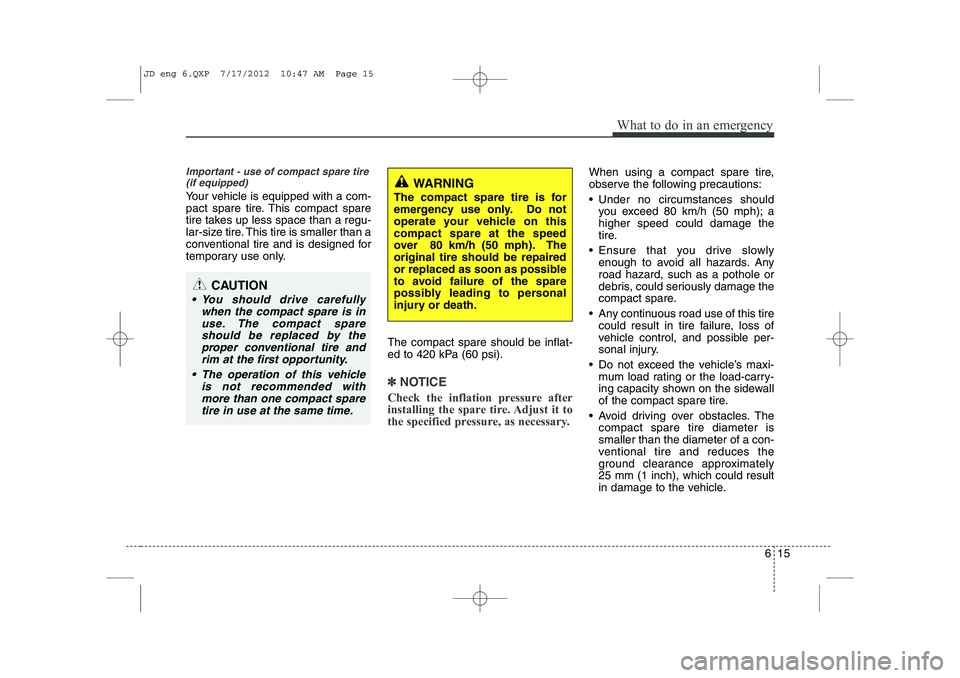

Important - use of compact spare tire(if equipped)
Your vehicle is equipped with a com-
pact spare tire. This compact spare
tire takes up less space than a regu-
lar-si

Page 437 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
16
6

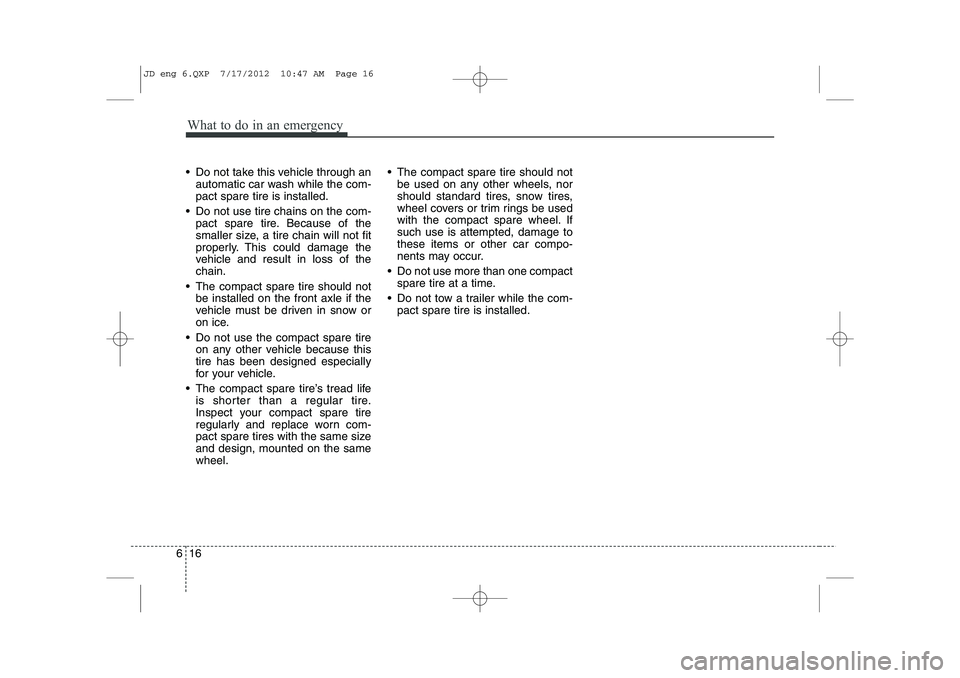

 Do not take this vehicle through an
automatic car wash while the com- pact spare tire is installed.
 Do not use tire chains on the com- pact spare tire. Because of t

Page 438 of 1168

KIA CEED 2013  Owners Manual 617
What to do in an emergency

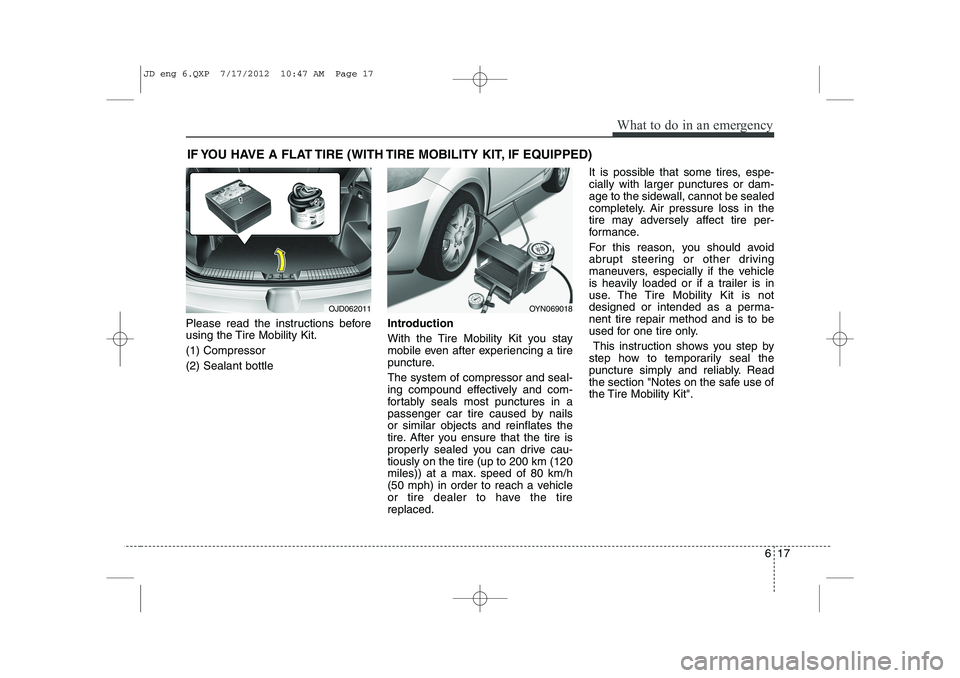

IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED)
Please read the instructions before
using the Tire Mobility Kit. (1) Compressor(2) Sealant bottle Introduc

Page 439 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
18
6

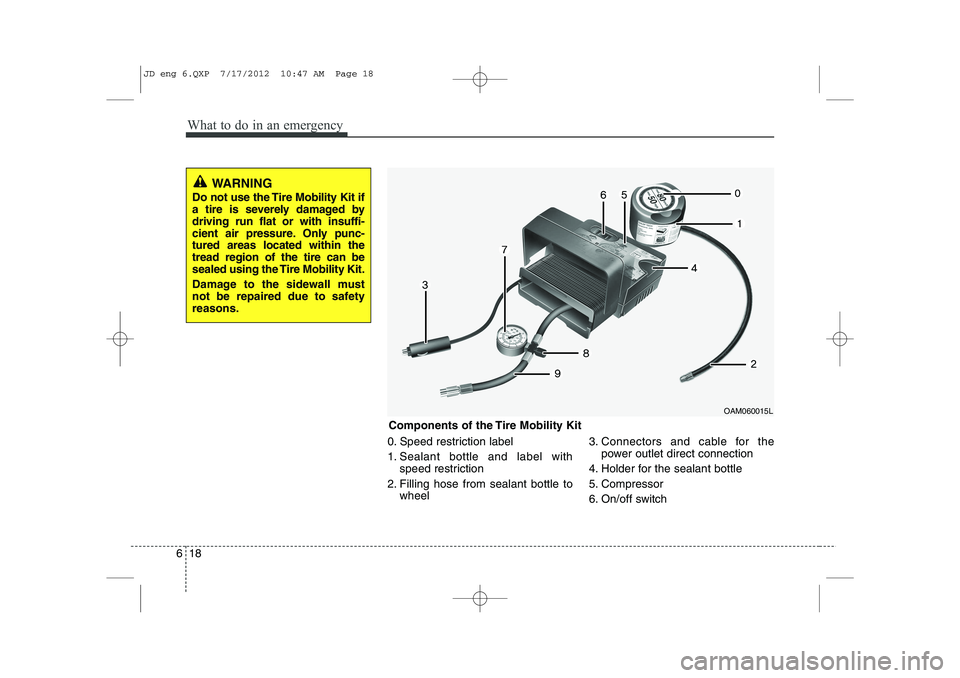

0. Speed restriction label
1. Sealant bottle and label with
speed restriction
2. Filling hose from sealant bottle to wheel 3. Connectors and cable for the
power outlet

Page 440 of 1168

KIA CEED 2013  Owners Manual 619
What to do in an emergency

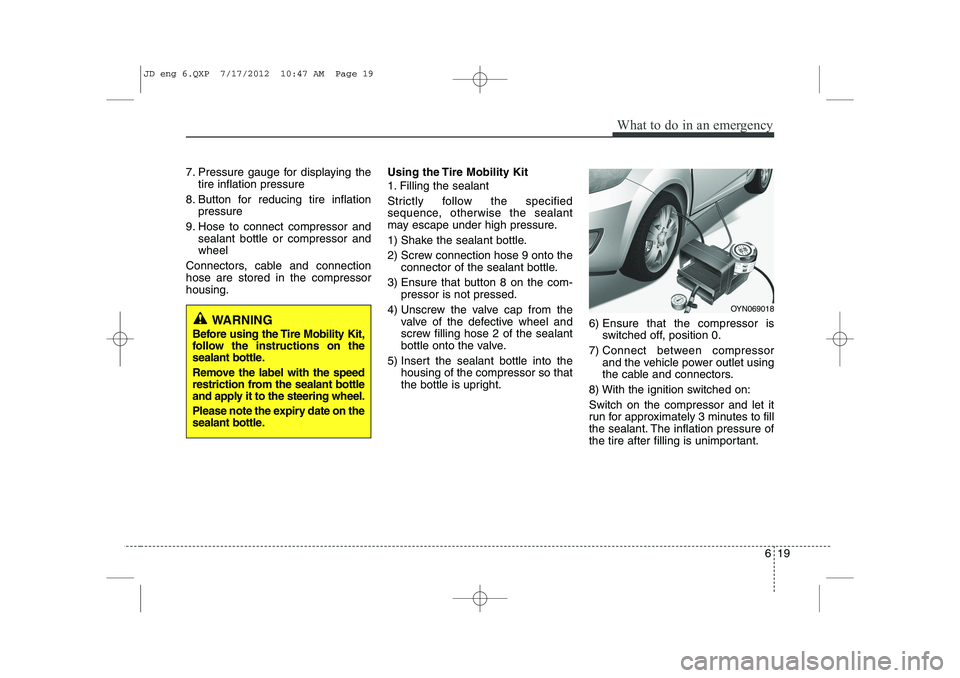

7. Pressure gauge for displaying thetire inflation pressure
8. Button for reducing tire inflation pressure
9. Hose to connect compressor and sealant bottle or compressor
