Page 441 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
20
6
9) Switch off the compressor. 10)  Detach the hoses from the sealant bottle connector and
from the tire valve.
Return the Tire Mobility Kit to its stor-
age location in

Page 442 of 1168

KIA CEED 2013  Owners Manual 621
What to do in an emergency

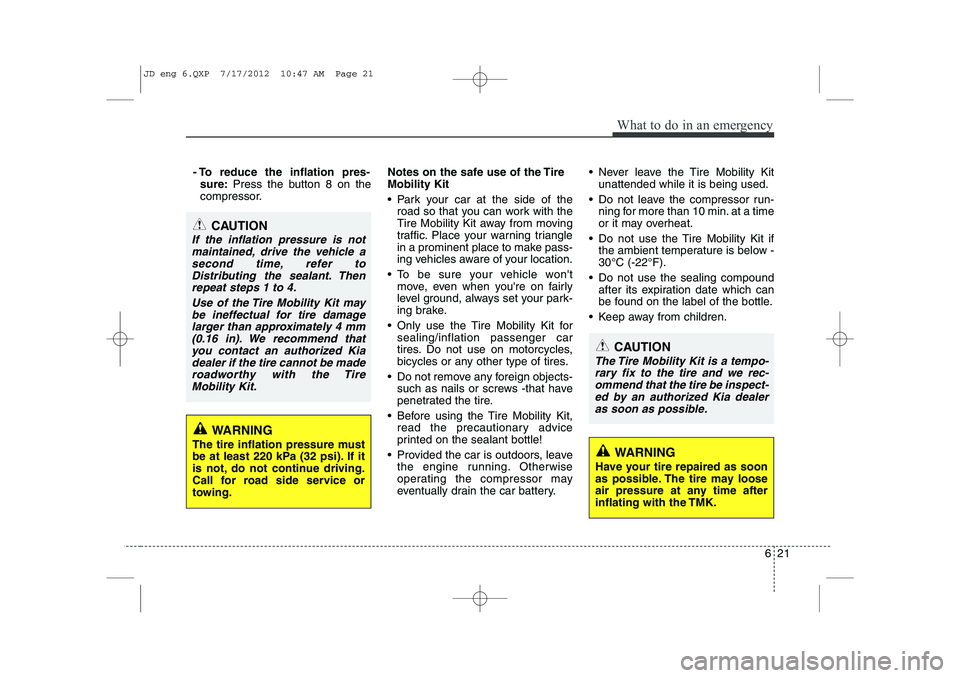

- To reduce the inflation pres-sure: Press the button 8 on the
compressor. Notes on the safe use of the Tire Mobility Kit
 Park your car at the side of the
road so tha

Page 443 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
22
6
Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C (-22 ~ +158°F)
Max. wo

Page 444 of 1168

KIA CEED 2013  Owners Manual 623
What to do in an emergency

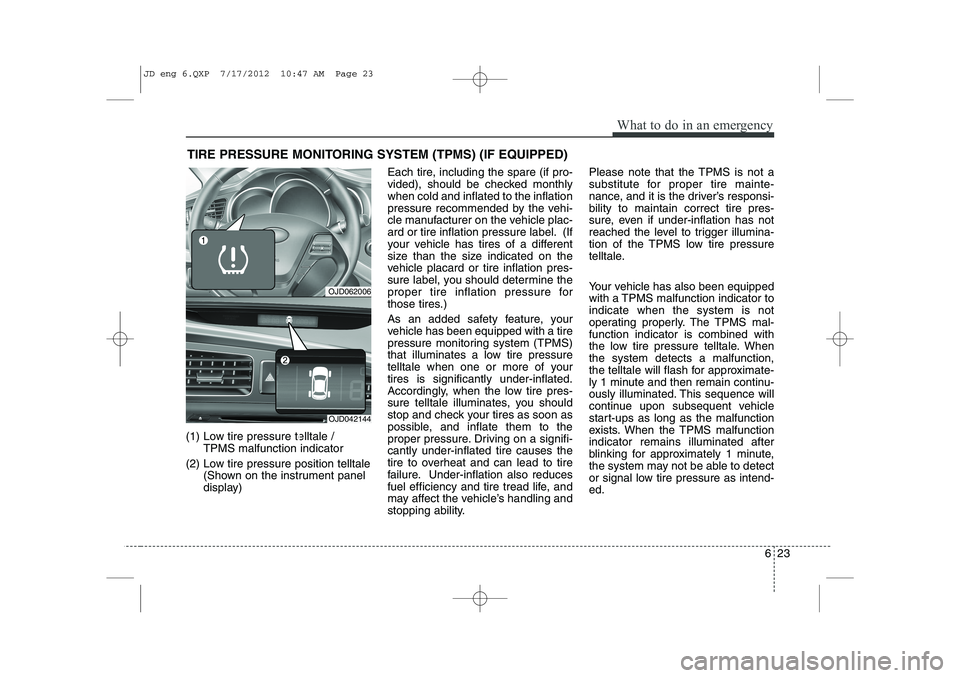

TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED)
(1) Low tire pressure telltale /  TPMS malfunction indicator
(2) Low tire pressure position telltale (Shown on the i

Page 445 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
24
6
TPMS malfunctions may occur for a
variety of reasons, including theinstallation of replacement or alter-
nate tires or wheels on the vehicle
that prevent the TPMS from

Page 446 of 1168

KIA CEED 2013  Owners Manual 625
What to do in an emergency

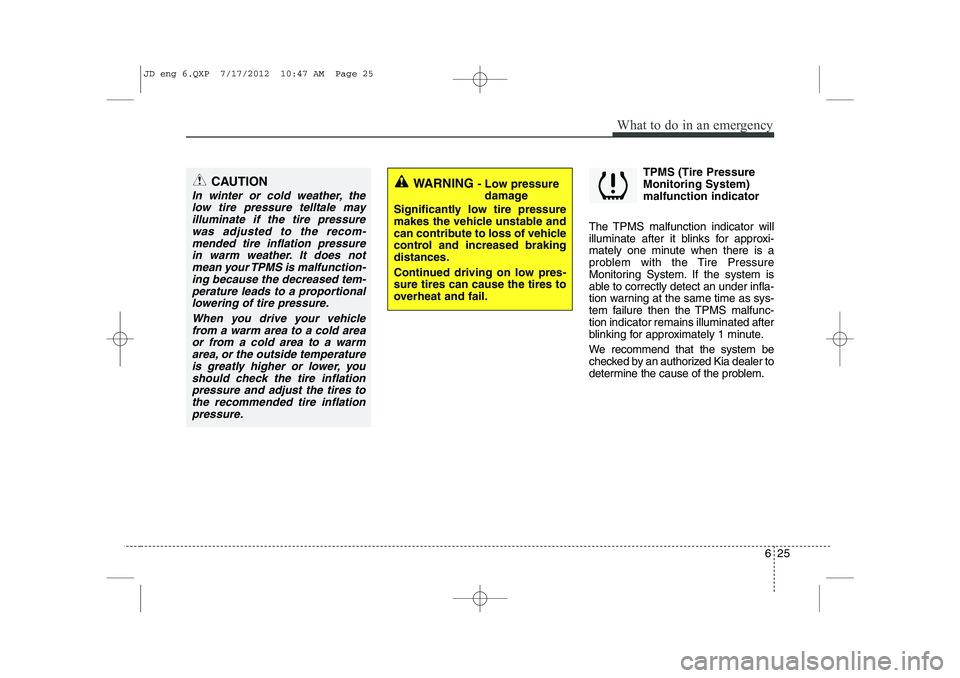

TPMS (Tire Pressure Monitoring System)malfunction indicator
The TPMS malfunction indicator will
illuminate after it blinks for approxi-
mately one minute when there is a

Page 447 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
26
6
Changing a tire with TPMS
If you have a flat tire, the low Tire
Pressure and Position telltales will
come on. We recommend that the
system be checked by an authorized

Page 448 of 1168

KIA CEED 2013  Owners Manual 627
What to do in an emergency
You may not be able identify a low
tire by simply looking at it. Alwaysuse a good quality tire pressuregauge to measure the tires inflation
pressure. Please note that

Page 449 of 1168

KIA CEED 2013  Owners Manual What to do in an emergency
28
6

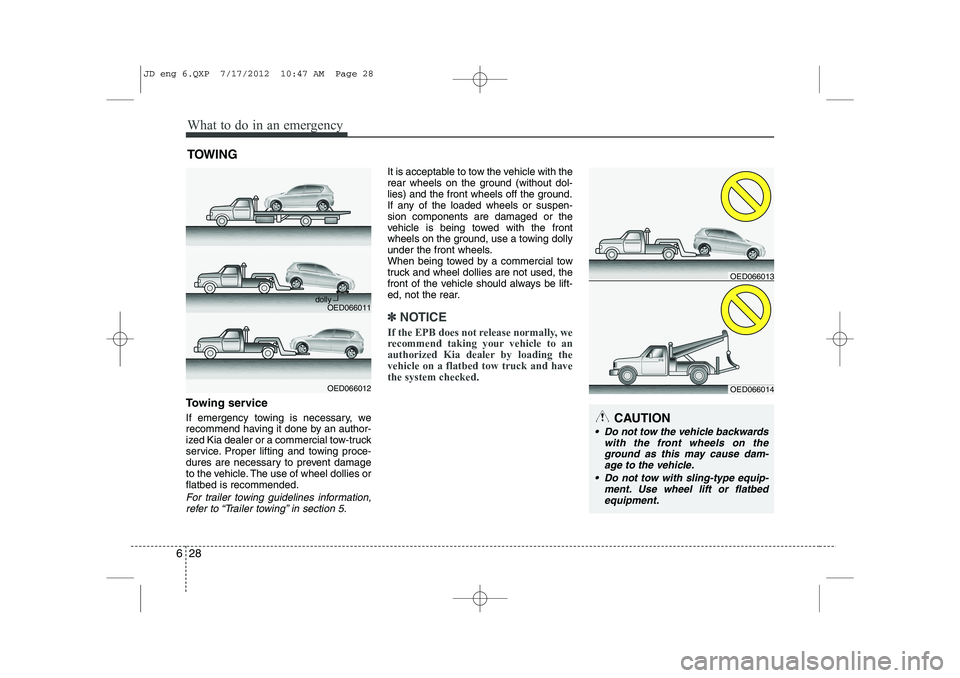

TOWING
Towing service
If emergency towing is necessary, we
recommend having it done by an author-
ized Kia dealer or a commercial tow-truck
service. Proper lifting an

Page 450 of 1168

KIA CEED 2013  Owners Manual 629
What to do in an emergency

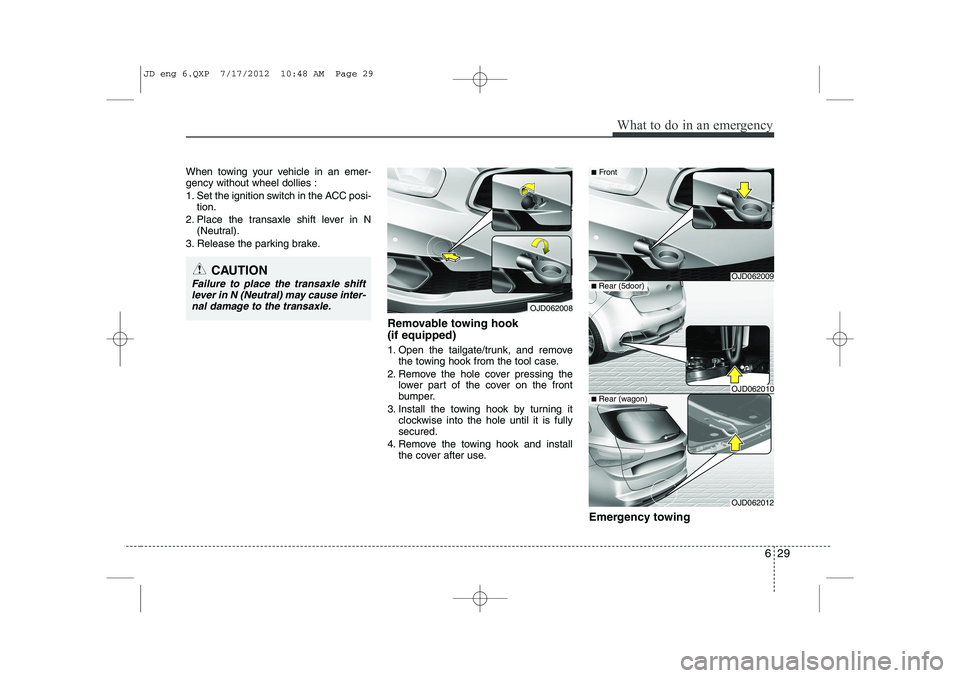

When towing your vehicle in an emer- gency without wheel dollies :
1. Set the ignition switch in the ACC posi-tion.
2. Place the transaxle shift lever in N (Neutral).
3
