flat tire KIA CEED 2016 Owner's Guide

747
Maintenance
Checking tire inflation pressure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.
How to check
Use a good quality gauge to check
tire pressure. You can not tell if your
tires are properly inflated simply by
looking at them. Radial tires may
look properly inflated even when
they're underinflated.
Check the tire's inflation pressure
when the tires are cold. - "Cold"
means your vehicle has been sitting
for at least three hours or driven nomore than 1.6 km (1 mile).Remove the valve cap from the tire
valve stem. Press the tire gauge firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflationpressure matches the recommendedpressure on the tire and loading
information label, no further adjust-
ment is necessary. If the pressure is
low, add air until you reach the rec-ommended amount.
If you overfill the tire, release air by pushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gauge. Be
sure to put the valve caps back on
the valve stems. They help prevent
leaks by keeping out dirt and mois-
ture.
WARNING
Inspect your tires frequently for proper inflation as well as
wear and damage. Always use
a tire pressure gauge.
Tires with too much or too little pressure wear unevenly caus-
ing poor handling, loss of vehi-
cle control, and sudden tirefailure leading to accidents,
injuries, and even death. Therecommended cold tire pres-
sure for your vehicle can be
found in this manual and onthe tire label located on the dri-
ver's side center pillar.
Worn tires can cause acci- dents. Replace tires that are
worn, show uneven wear, or
are damaged.
Remember to check the pres- sure of your spare tire. Kia
recommends that you check
the spare every time you
check the pressure of the
other tires on your vehicle.
JD PE eng 7.QXP 1/28/2016 5:37 PM Page 47

751
Maintenance
Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim widthand offset.Tire traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. To reduce the possibility of
losing control, slow down whenever
there is rain, snow or ice on the road. Tire maintenance In addition to proper inflation, correct wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check thewheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removedfrom the wheel.Tire sidewall labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. TheTIN can be used to identify the tire incase of a recall.
1. Manufacturer or brand name
Manufacturer or Brand name is
shown.
I030B04JM
1
1
2
34
5,6
7
WARNING
A wheel that is not the correct
size may adversely affect wheel
and bearing life, braking and
stopping abilities, handling char-
acteristics, ground clearance,
body-to-tire clearance, snow
chain clearance, speedometer
and odometer calibration, head-
light aim and bumper height.
JD PE eng 7.QXP 1/28/2016 5:37 PM Page 51

753
Maintenance

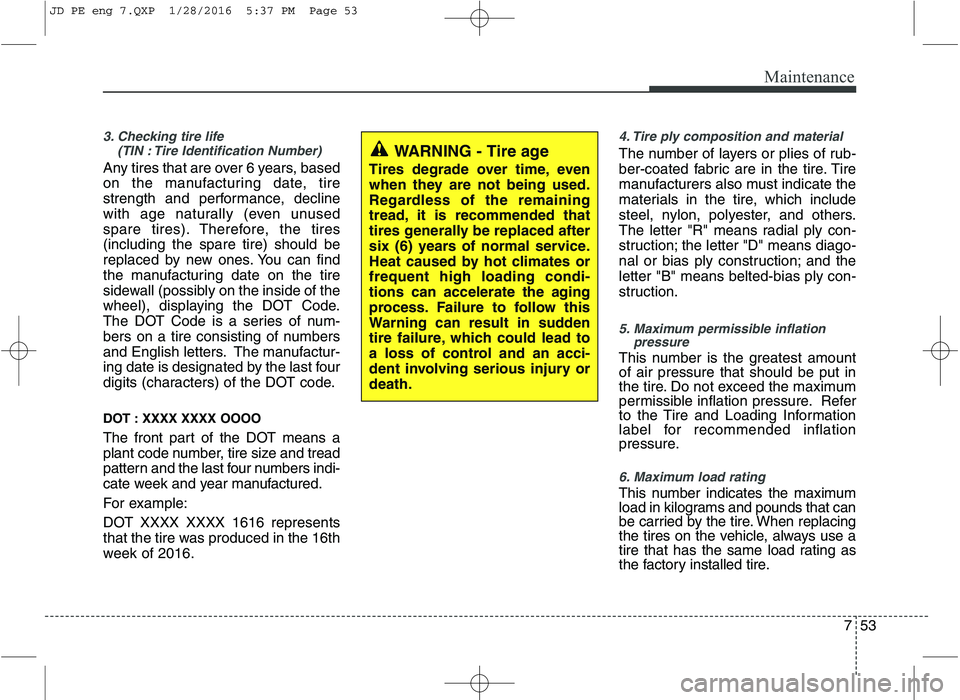

3. Checking tire life (TIN : Tire Identification Number)
Any tires that are over 6 years, based
on the manufacturing date, tire
strength and performance, decline
with age naturally (even unused
spare tires). Therefore, the tires(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and tread
pattern and the last four numbers indi-
cate week and year manufactured.
For example:
DOT XXXX XXXX 1616 represents
that the tire was produced in the 16th
week of 2016.
4. Tire ply composition and material
The number of layers or plies of rub-
ber-coated fabric are in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and theletter "B" means belted-bias ply con-
struction.
5. Maximum permissible inflationpressure
This number is the greatest amount of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.
WARNING - Tire age
Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, it is recommended that
tires generally be replaced after
six (6) years of normal service.
Heat caused by hot climates orfrequent high loading condi-
tions can accelerate the aging
process. Failure to follow this
Warning can result in sudden
tire failure, which could lead to
a loss of control and an acci-
dent involving serious injury ordeath.
JD PE eng 7.QXP 1/28/2016 5:37 PM Page 53

Maintenance
54
7
7. Uniform tire quality grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and maxi-
mum chapter width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A
Tread wear
The tread wear grade is a compara-
tive rating based on the wear rate ofthe tire when tested under controlled
conditions on a specified govern-
ment test course. For example, a tire
graded 150 would wear one-and-a-
half times (1½) as well on the gov-
ernment course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use, however, and may depart
significantly from the norm because
of variations in driving habits, service
practices and differences in road
characteristics and climate. These grades are molded on the
side-walls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicles
may vary with respect to grade.
Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tires ability to
stop on wet pavement as measuredunder controlled conditions on speci-
fied government test surfaces of
asphalt and concrete. A tire marked C
may have poor traction performance.
Temperature -A, B & C
The temperature grades are A (the highest), B and C representing the
tire’s resistance to the generation ofheat and its ability to dissipate heatwhen tested under controlled condi-
tions on a specified indoor laboratorytest wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. Grades B and A
represent higher levels of perform-
ance on the laboratory test wheel
than the minimum required by the law.
WARNING
The traction grade assigned to this tire is based on straight-ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning,
or peak traction characteristics.WARNING - Tire temperature
The temperature grade for this
tire is established for a tire that is
properly inflated and not over-
loaded. Excessive speed, under-
inflation, or excessive loading,
either separately or in combina-
tion, can cause heat build-up and
possible sudden tire failure. This
can cause loss of vehicle control
and serious injury or death.
JD PE eng 7.QXP 1/28/2016 5:37 PM Page 54

785
Maintenance
4. Remove the bulb-socket from thehousing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
5. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the socket. Headlight and front fog light aim-
ing (for Europe)
Headlight aiming
Without AFLS
1. Inflate the tires to the specified pres-
sure and remove any loads from the
vehicle except the driver, spare tire,
and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines pass- ing through respective head lamp cen-
ters) and a horizontal line (Horizontalline passing through center of headlamps) on the screen. 4. With the head lamp and battery in nor-
mal condition, aim the head lamps so
the brightest portion falls on the hori-
zontal and vertical lines.
5. To aim the low beam left or right, turn the driver (1) clockwise or counter-
clockwise. To aim the low beam up or
down, turn the driver (2) clockwise or
counterclockwise.
To aim the high beam up or down, turnthe driver (3) clockwise or counter-
clockwise.
OJD072027
■ Fog light
■Fog light+DRL (Bulb type) ■
DRL
OJD073067/OJD073068/OJD073069
JD PE eng 7.QXP 1/28/2016 5:40 PM Page 85

Maintenance
86
7
With AFLS
1. Turn off the engine
2. Turn the light switch to the low beam
position.
3. Position the tires straight ahead with
the steering wheel.
4. Turn on the engine.
5. Inflate the tires to the specified pres-
sure and remove any loads from the
vehicle except the driver, spare tire,
and tools.
6. The vehicle should be placed on a flat
floor.
7. Draw vertical lines (Vertical lines pass- ing through respective head lamp cen-
ters) and a horizontal line (Horizontalline passing through center of headlamps) on the screen.
8. With the head lamp and battery in nor- mal condition, aim the head lamps so
the brightest portion falls on the hori-
zontal and vertical lines.
9. To aim the low beam left or right, turn the driver (1) clockwise or counter-
clockwise. To aim the low beam up or
down, turn the driver (2) clockwise or
counterclockwise. To aim the high
beam up or down, turn the driver (3)
clockwise or counterclockwise.Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery nor-
mal condition, aim the front fog lamps. To
aim the front fog lamp up or down, turn the
driver (1) clockwise or counterclockwise.
OJD075028
OJD075070
OJD073082
■Type A
■Type B
■Type C
JD PE eng 7.QXP 1/28/2016 5:40 PM Page 86

Specifications & Consumer information
8
8

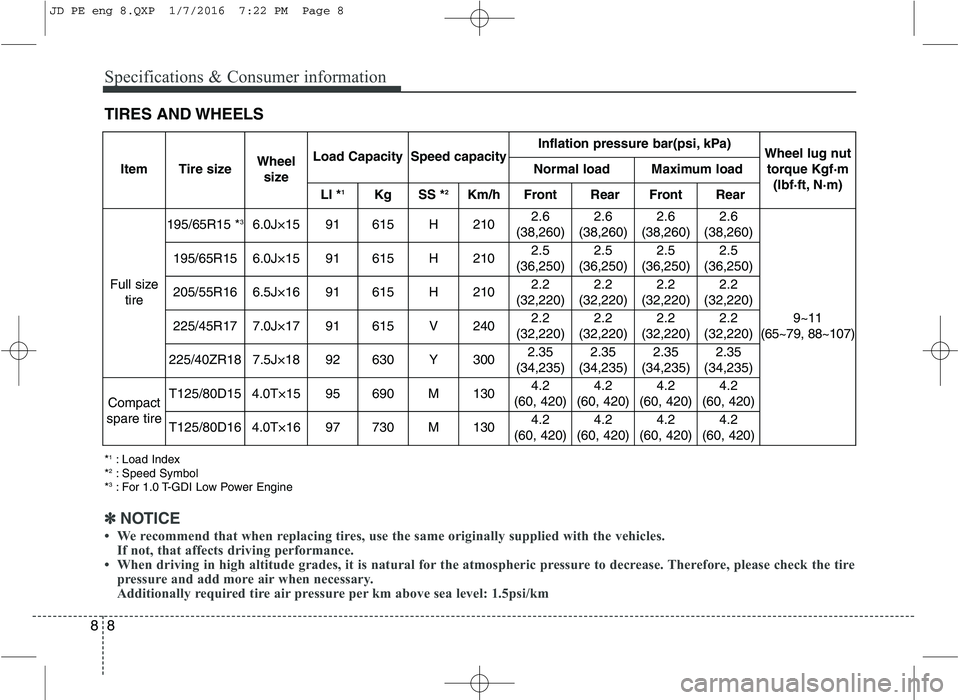

TIRES AND WHEELS * 1
: Load Index
* 2
: Speed Symbol
* 3
: For 1.0 T-GDI Low Power Engine
ItemTire sizeWheel
sizeLoad CapacitySpeed capacityInflation pressure bar(psi, kPa)Wheel lug nuttorque Kgf·m (lbf·ft, N·m)
Normal loadMaximum load
LI * 1KgSS * 2Km/hFrontRear FrontRear
Full size
tire
195/65R15 * 36.0J×15 91615H2102.6
(38,260)2.6
(38,260)2.6
(38,260)2.6
(38,260)
9~11
(65~79, 88~107)
195/65R156.0J×1591615H2102.5
(36,250)2.5
(36,250)2.5
(36,250)2.5
(36,250)
205/55R166.5J×16 91615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/45R177.0J×1791615V2402.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/40ZR187.5J×1892630Y3002.35
(34,235)2.35
(34,235)2.35
(34,235)2.35
(34,235)
Compact
spare tireT125/80D154.0T×1595690M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
T125/80D164.0T×1697730M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
✽✽ NOTICE
 We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.
 When driving in high altitude grades, it is natural for the atmospheric pressure to dec rease. Therefore, please check the tire
pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 8

I3
Index
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-166
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 5-48
Electric parking brake (EPB) . . . . . . . . . . . . . . . . . 5-44
Electronic stability control (ESC) . . . . . . . . . . . . . . 5-51
Emergency Stop Signal (ESS) . . . . . . . . . . . . . . . . . 5-56
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . 5-55
Power brakes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
Parking brakes (Hand type) . . . . . . . . . . . . . . . . . . 5-42
Vehicle stability management (VSM) . . . . . . . . . . . 5-54
Brakes/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Button start/stop, see engine start/stop button . . . . . 5-9
Calender. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Care
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-100
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-105
Tire care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
Cargo area cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . . 4-174
Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-160 Central door lock switch . . . . . . . . . . . . . . . . . . . . . . 4-19
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Chains
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-87
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-47
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . 3-32 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . 3-37
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-21
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Climate control air filter . . . . . . . . . . . 4-143, 4-155, 7-37
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-169
Combined instrument, see instrument cluster (Normal vision) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Combined instrument, see instrument cluster (Super vision) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Compact spare tire replacement . . . . . . . . . . . . . . . . 7-50
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . 7-29
Crankcase emission control system. . . . . . . . . . . . . 7-106
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . 5-58
C
JD PE eng Index.QXP 9/9/2015 6:31 PM Page 3

I5
Index
Push starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Emergency Stop Signal (ESS) . . . . . . . . . . . . . . . . . . 5-56
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . 6-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . 7-106 Crankcase emission control system . . . . . . . . . . . 7-106
Evaporative emission control System . . . . . . . . . . 7-106
Exhaust emission control system . . . . . . . . . . . . . 7-107
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . 2-6, 7-3
Engine compartment panel fuse . . . . . . . . . . . . . . . . 7-68
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Engine coolant temperature gauge (Normal vision) . . 4-48
Engine coolant temperature gauge (Super vision) . . 4-64
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27
Engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Engine start/stop button. . . . . . . . . . . . . . . . . . . . . . . . 5-9
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Evaporative emission control System . . . . . . . . . . . 7-106
Exhaust emission control system . . . . . . . . . . . . . . . 7-107
Explanation of scheduled maintenance items . . . . . 7-24
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-100
Exterior features
Mounting bracket for roof carrier . . . . . . . . . . . . 4-178
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-179
Exterior overview(front) . . . . . . . . . . . . . . . . . . . . . . . 2-2 Exterior overview(rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Flat tire (with spare tire) . . . . . . . . . . . . . . . . . . . . . . . 6-9
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Removing and storing the spare tire . . . . . . . . . . . 6-10
Flat tire (with Tire Mobility Kit). . . . . . . . . . . . . . . . 6-19
Flex steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
Fluid Brakes/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-33
Fog light (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Fog light (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Front seat adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Fuel filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
Fuel gauge (Normal vision) . . . . . . . . . . . . . . . . . . . . 4-48
Fuel gauge (Super vision) . . . . . . . . . . . . . . . . . . . . . . 4-62
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Gasoline engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Diesel engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58
F
JD PE eng Index.QXP 9/9/2015 6:31 PM Page 5

Index
10
I
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
Power window lock button. . . . . . . . . . . . . . . . . . . . . 4-26
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Push starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Rear combination light bulb replacement . . . . . . . . 7-93
Rear parking assist system. . . . . . . . . . . . . . . . . . . . . 4-93
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Recommended cold tire inflation pressures . . . . . . . 7-45
Recommended lubricants and capacities . . . . . . . . . . 8-9
Recommended SAE viscosity number . . . . . . . . . . 8-12
Recommends Engine oil . . . . . . . . . . . . . . . . . . . . . . 8-11
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Remote keyless entry Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Replacement light bulb . . . . . . . . . . . . . . . . . . . . . . . 7-79
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-83
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-179 Scheduled maintenance service . . . . . . . . . . . . . . . . . 7-11
Maintenance under severe usage conditions (except Europe, including Russia) . . . . . . . . . . . . 7-22
Maintenance under severe usage conditions (for Europe, except Russia) . . . . . . . . . . . . . . . . . . 7-16
Normal maintenance schedule (except Europe, including Russia) . . . . . . . . . . . . 7-18
Normal maintenance schedule (for Europe, except Russia) . . . . . . . . . . . . . . . . . . 7-12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20 Hight adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Lap/shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-26
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Seat warmer(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Driver position memory system . . . . . . . . . . . . . . . . 3-8
Folding the rear seat. . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Front seat adjustment (Manual seat) . . . . . . . . . . . . 3-4
Front seat adjustment (Automatic seat) . . . . . . . . . . 3-6
Headrest (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Lumbar support (Automatic Seat) . . . . . . . . . . . . . . 3-7
R
S
JD PE eng Index.QXP 9/9/2015 6:31 PM Page 10
