Page 601 of 653

KIA CEED 2017  Owners Manual 783
Maintenance
Headlight (Low, HID type),Position light/DRL (LED type)
If the light does not operate, we recom-
mend that the system be checked by an
authorized Kia dealer.
✽✽ NOTICE
HID lamps h

Page 602 of 653

KIA CEED 2017  Owners Manual Maintenance
84
7

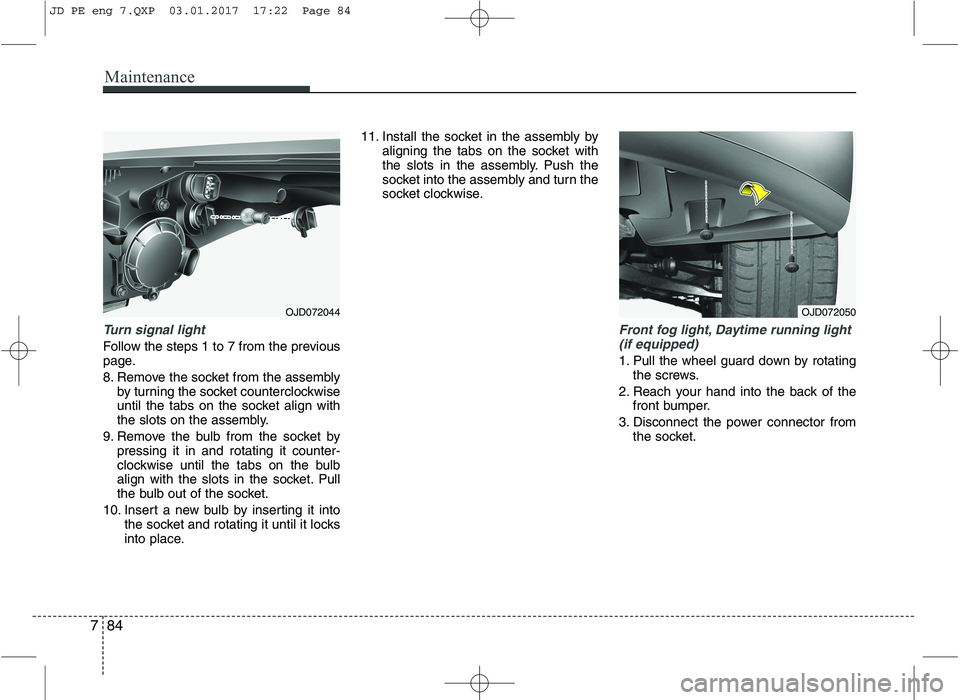

Turn signal light
Follow the steps 1 to 7 from the previous
page.
8. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align w

Page 603 of 653

KIA CEED 2017  Owners Manual 785
Maintenance
4. Remove the bulb-socket from thehousing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
5. Install the new bulb-socket into

Page 604 of 653

KIA CEED 2017  Owners Manual Maintenance
86
7
With AFLS
1. Turn off the engine
2. Turn the light switch to the low beam
position.
3. Position the tires straight ahead with
the steering wheel.
4. Turn on the engine.
5. Inflate t

Page 605 of 653

KIA CEED 2017  Owners Manual 787
Maintenance

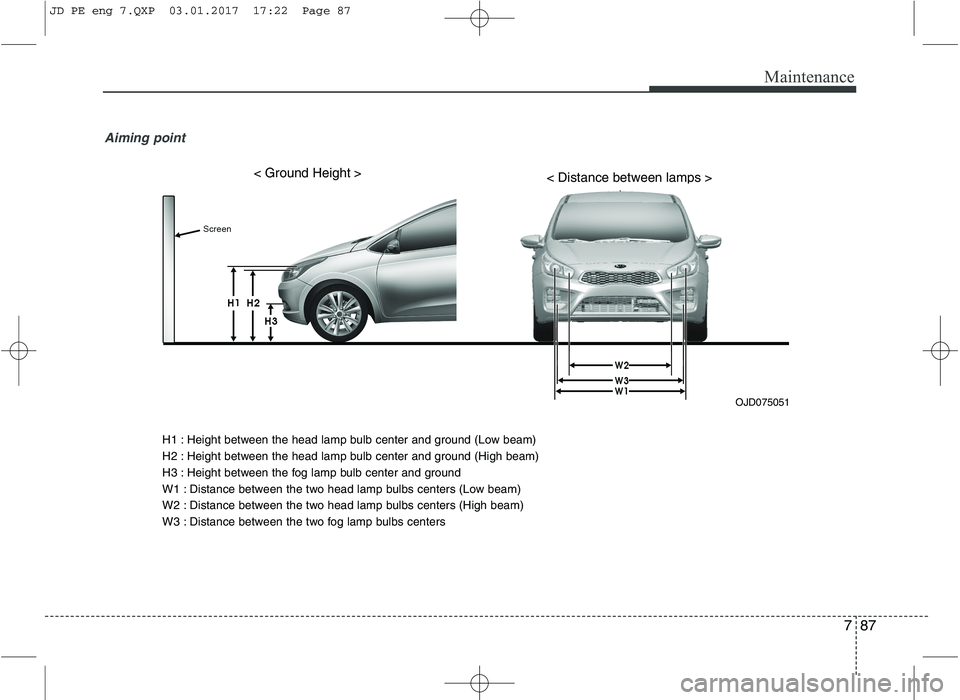

Aiming point
OJD075051
< Ground Height >< Distance between lamps >
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center a

Page 606 of 653

KIA CEED 2017  Owners Manual Maintenance
88
7

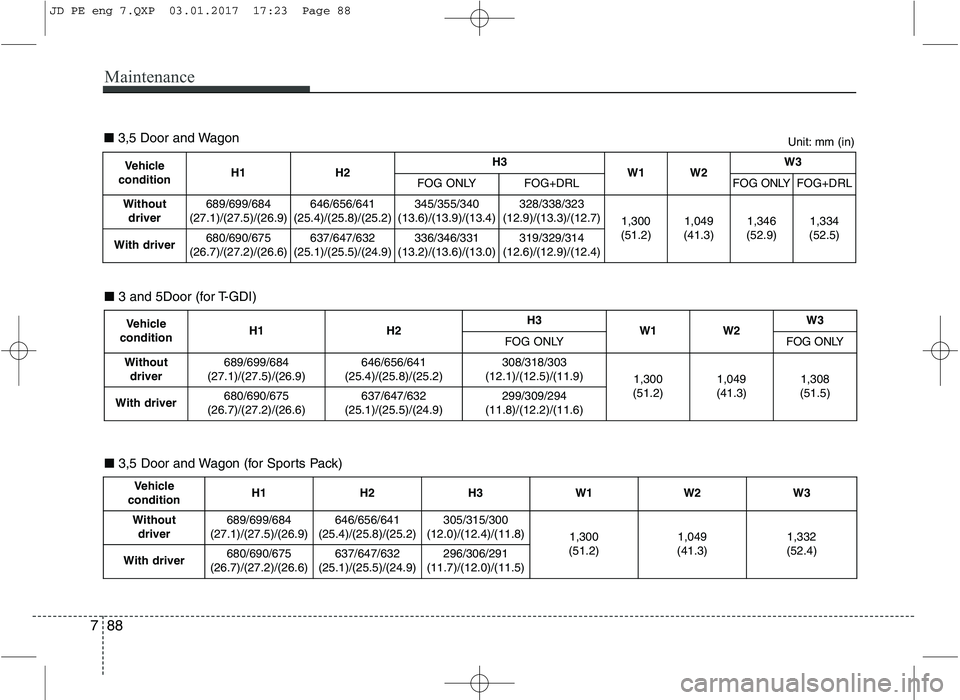

Vehicle
condition H1H2 H3W1W2W3
FOG ONLYFOG+DRL FOG ONLYFOG+DRL
Without  driver 689/699/684
(27.1)/(27.5)/(26.9)
646/656/641
(25.4)/(25.8)/(25.2) 345/355/340
(13.6)/(13.9)/(13.4)328/

Page 607 of 653

KIA CEED 2017  Owners Manual 789
Maintenance

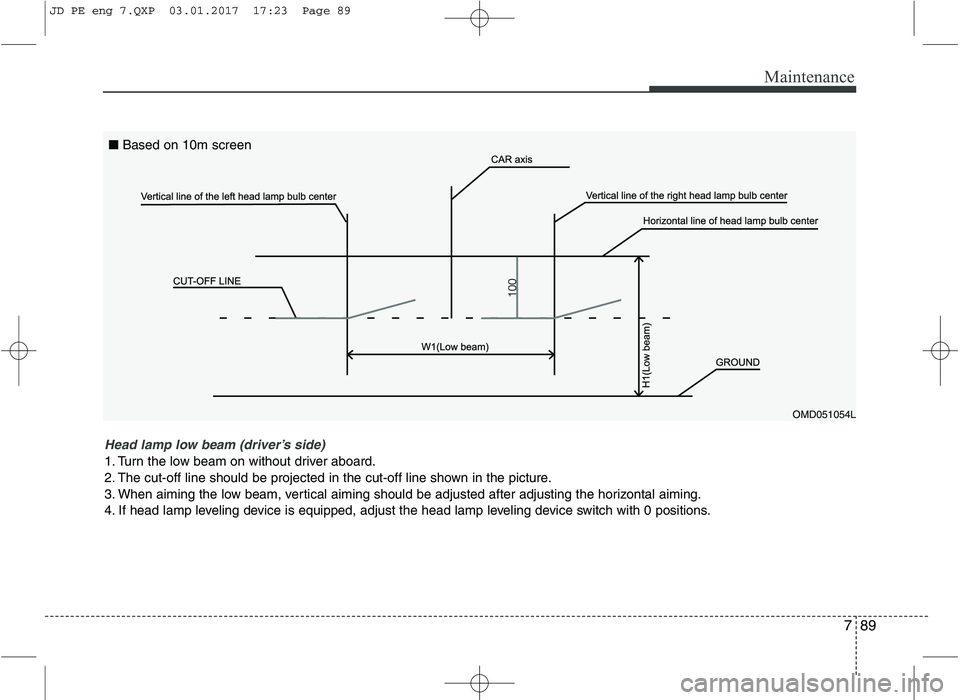

OMD051054L
Head lamp low beam (driver’s side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. Wh

Page 608 of 653

KIA CEED 2017  Owners Manual Maintenance
90
7

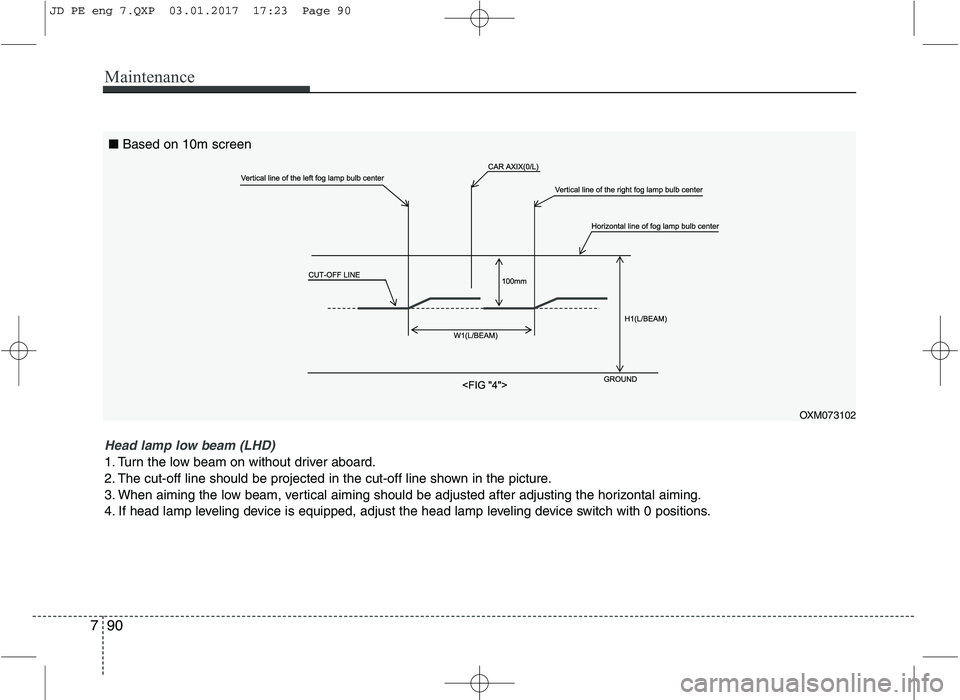

OXM073102
Head lamp low beam (LHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the

Page 609 of 653

KIA CEED 2017  Owners Manual 791
Maintenance

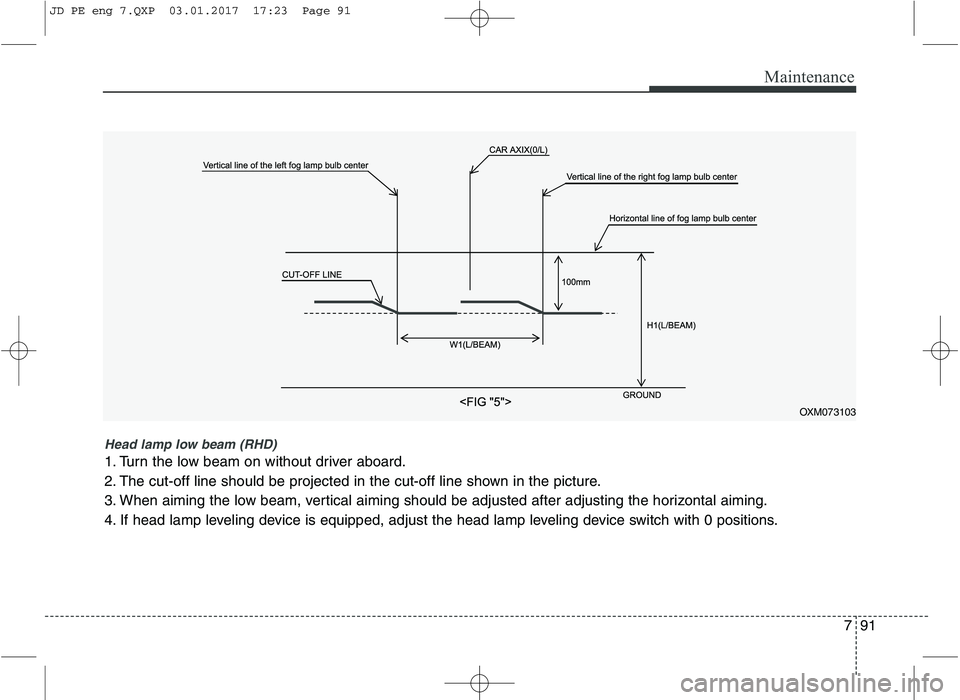

OXM073103
Head lamp low beam (RHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the

Page 610 of 653

KIA CEED 2017  Owners Manual Maintenance
92
7

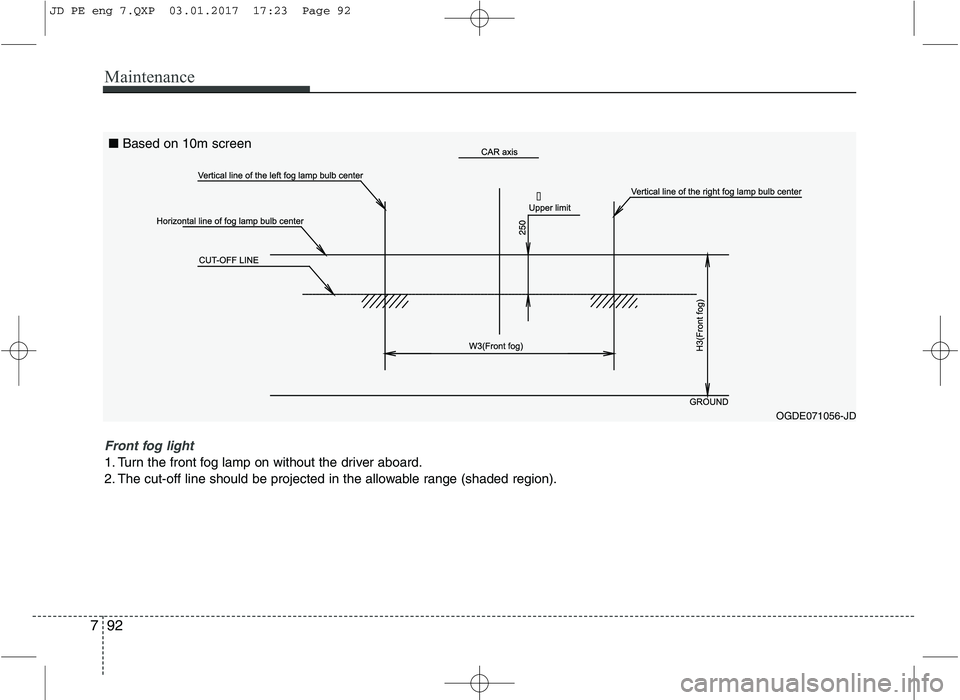

OGDE071056-JD
Front fog light
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region). ■
Based on
