Specifications & Consumer information
The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OJD082002
■
Frame number VEHICLE CERTIFICATION LABEL
OBH088005N
■
VIN label (if equipped)
OJD082003

Specifications & Consumer information
14
8
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle. TIRE SPECIFICATION AND PRESSURE LABEL
ENGINE NUMBER
OJD082005
■
Gasoline engine (Kappa)
■Gasoline engine (Gamma)OTA080004L
■Diesel engine
OGD081005
OGDE081006 The engine number is stamped on the
engine block as shown in the drawing.

815
Specifications & Consumer information

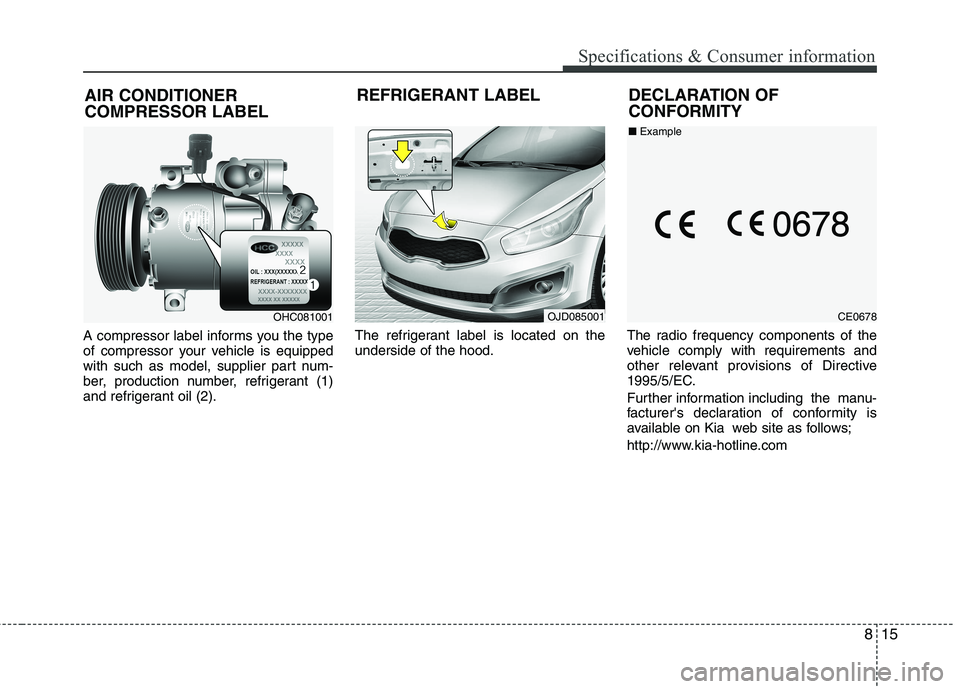

A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).The refrigerant label is located on theunderside of the hood.
The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on Kia web site as follows;
http://www.kia-hotline.comDECLARATION OF CONFORMITY
REFRIGERANT LABEL
AIR CONDITIONER COMPRESSOR LABEL
OHC081001OJD085001CE0678
■
Example
