KIA CERATO 2008 Owners Manual

3111
Knowing your vehicle
1 23456789
✽✽NOTICE

Knowing your vehicle
112
3
1 23456789
1. POWER ON-OFF, VOLUME Control Knob
2. AUDIO Select Button
3. BAND Select Button
4. CD SCAN (BSM) Button
5. EQ Button
6. AUTO SEEK Select Button
7. TUNE Select/AUDIO Control knob
8. PRESET STATION Select Buttons
LD445MP3 UR

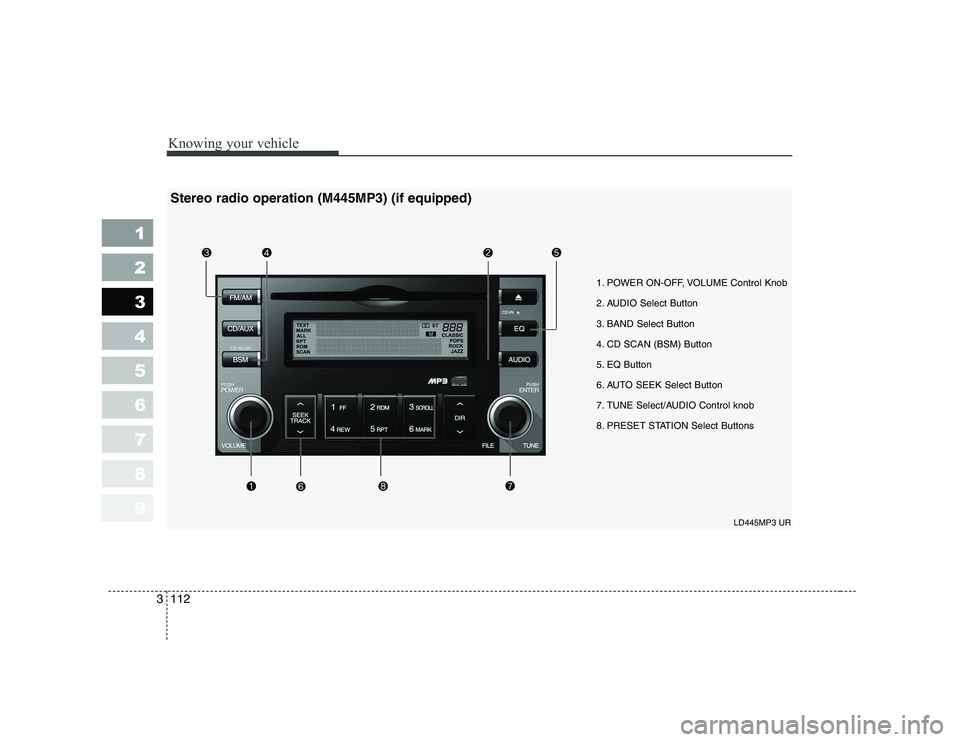

Stereo radio operation (M445MP3) (if equipped)

3113
Knowing your vehicle
1 23456789

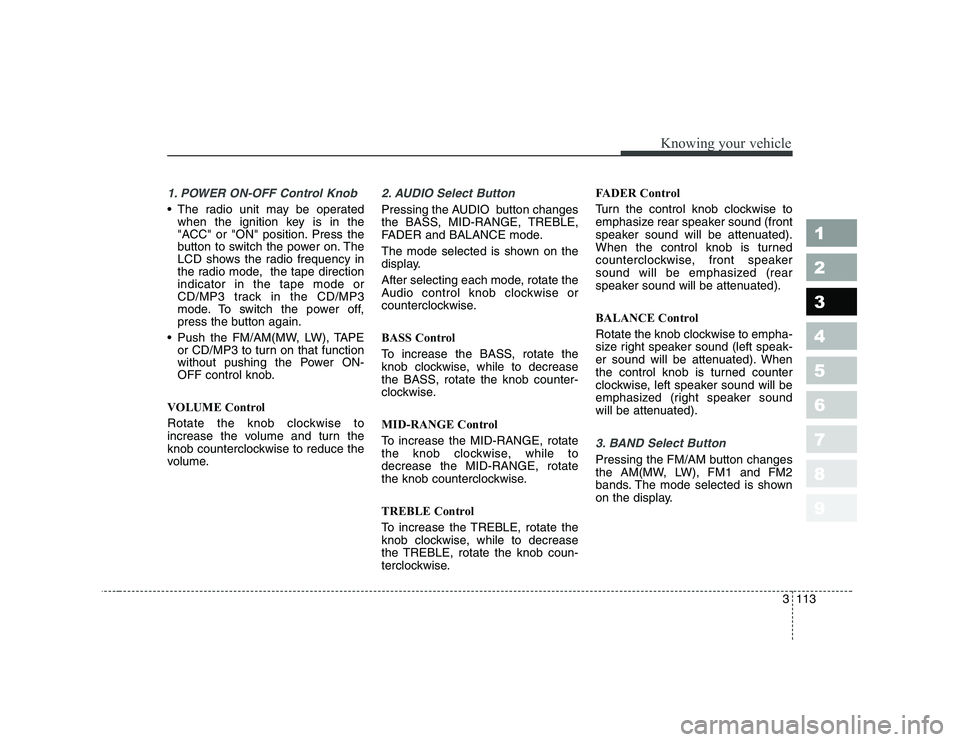

1. POWER ON-OFF Control Knob
The radio unit may be operatedwhen the ignition key is in the
"ACC" or "ON" position. Press the
button to switch the power on. The
LCD shows the radio frequency in
the radio mode, the tape directionindicator in the tape mode or
CD/MP3 track in the CD/MP3
mode. To switch the power off,
press the button again.
Push the FM/AM(MW, LW), TAPE or CD/MP3 to turn on that function
without pushing the Power ON-
OFF control knob.
VOLUME Control
Rotate the knob clockwise to
increase the volume and turn the
knob counterclockwise to reduce the
volume.
2. AUDIO Select Button
Pressing the AUDIO button changes
the BASS, MID-RANGE, TREBLE,
FADER and BALANCE mode.
The mode selected is shown on the
display.
After selecting each mode, rotate the
Audio control knob clockwise or
counterclockwise.
BASS Control
To increase the BASS, rotate the
knob clockwise, while to decreasethe BASS, rotate the knob counter-
clockwise.
MID-RANGE Control
To increase the MID-RANGE, rotate
the knob clockwise, while todecrease the MID-RANGE, rotate
the knob counterclockwise.
TREBLE Control
To increase the TREBLE, rotate the
knob clockwise, while to decrease
the TREBLE, rotate the knob coun-
terclockwise. FADER Control
Turn the control knob clockwise to
emphasize rear speaker sound (front
speaker sound will be attenuated).
When the control knob is turned
counterclockwise, front speaker
sound will be emphasized (rear
speaker sound will be attenuated).
BALANCE Control
Rotate the knob clockwise to empha-
size right speaker sound (left speak-
er sound will be attenuated). When
the control knob is turned counter
clockwise, left speaker sound will be
emphasized (right speaker sound
will be attenuated).
3. BAND Select Button
Pressing the FM/AM button changes
the AM(MW, LW), FM1 and FM2
bands. The mode selected is shown
on the display.

Knowing your vehicle
114
3
1 23456789

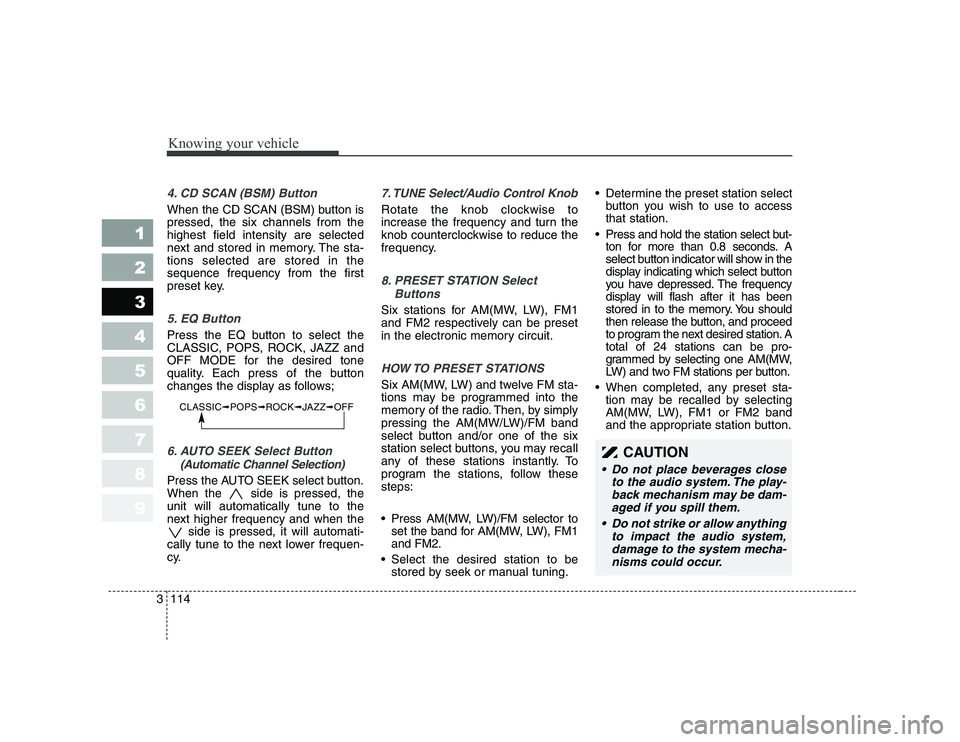

4. CD SCAN (BSM) Button
When the CD SCAN (BSM) button is pressed, the six channels from thehighest field intensity are selected
next and stored in memory. The sta-tions selected are stored in thesequence frequency from the first
preset key.
5. EQ Button
Press the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;
6. AUTO SEEK Select Button
(Automatic Channel Selection)
Press the AUTO SEEK select button.
When the side is pressed, theunit will automatically tune to the
next higher frequency and when the side is pressed, it will automati-
cally tune to the next lower frequen-
cy.
7. TUNE Select/Audio Control Knob
Rotate the knob clockwise to
increase the frequency and turn the
knob counterclockwise to reduce the
frequency.
8. PRESET STATION Select
Buttons
Six stations for AM(MW, LW), FM1
and FM2 respectively can be preset
in the electronic memory circuit.
HOW TO PRESET STATIONS
Six AM(MW, LW) and twelve FM sta-
tions may be programmed into the
memory of the radio. Then, by simply
pressing the AM(MW/LW)/FM band
select button and/or one of the six
station select buttons, you may recall
any of these stations instantly. To
program the stations, follow thesesteps:
Press AM(MW, LW)/FM selector toset the band for AM(MW, LW), FM1 and FM2.
Select the desired station to be stored by seek or manual tuning. Determine the preset station select
button you wish to use to accessthat station.
Press and hold the station select but- ton for more than 0.8 seconds. A
select button indicator will show in the
display indicating which select button
you have depressed. The frequency
display will flash after it has been
stored in to the memory. You should
then release the button, and proceed
to program the next desired station. Atotal of 24 stations can be pro-
grammed by selecting one AM(MW,
LW) and two FM stations per button.
When completed, any preset sta- tion may be recalled by selecting
AM(MW, LW), FM1 or FM2 band
and the appropriate station button.
CLASSIC ➟POPS ➟ROCK ➟JAZZ ➟OFF
CAUTION
Do not place beverages close
to the audio system. The play-back mechanism may be dam-aged if you spill them.
Do not strike or allow anything to impact the audio system,damage to the system mecha-nisms could occur.

3115
Knowing your vehicle
1 23456789
LD 445MP3 UR

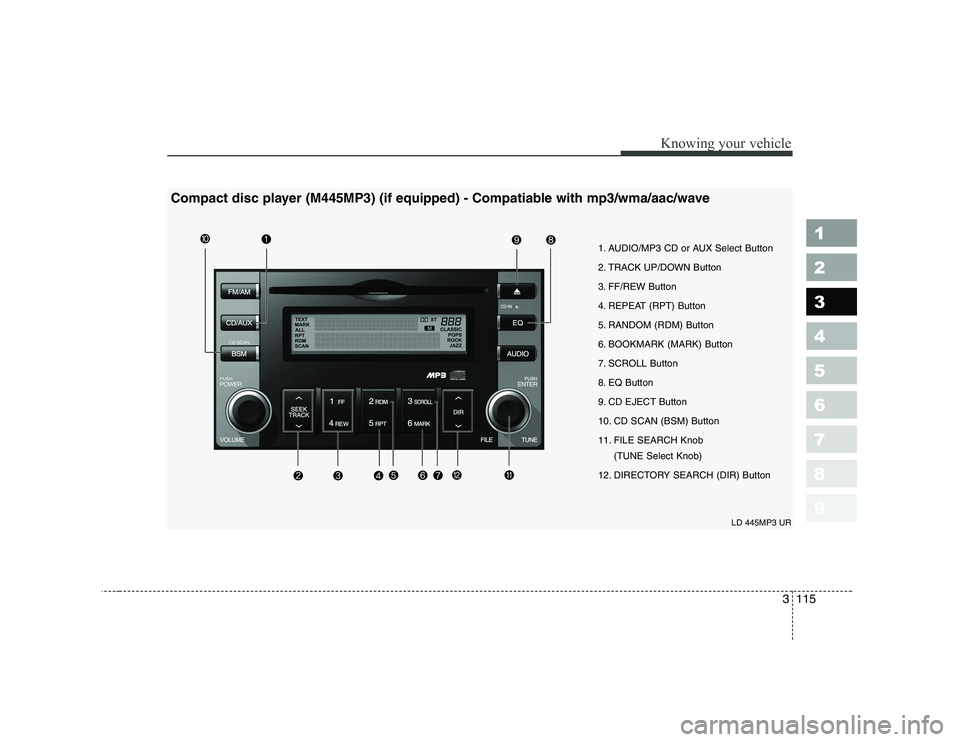

Compact disc player (M445MP3) (if equipped) - Compatiable with mp3/wma/aac/wave
1. AUDIO/MP3 CD or AUX Select Button
2. TRACK UP/DOWN Button
3. FF/REW Button
4. REPEAT (RPT) Button
5. RANDOM (RDM) Button
6. BOOKMARK (MARK) Button
7. SCROLL Button
8. EQ Button
9. CD EJECT Button
10. CD SCAN (BSM) Button
11. FILE SEARCH Knob
(TUNE Select Knob)
12. DIRECTORY SEARCH (DIR) Button

Knowing your vehicle
116
3
1 23456789

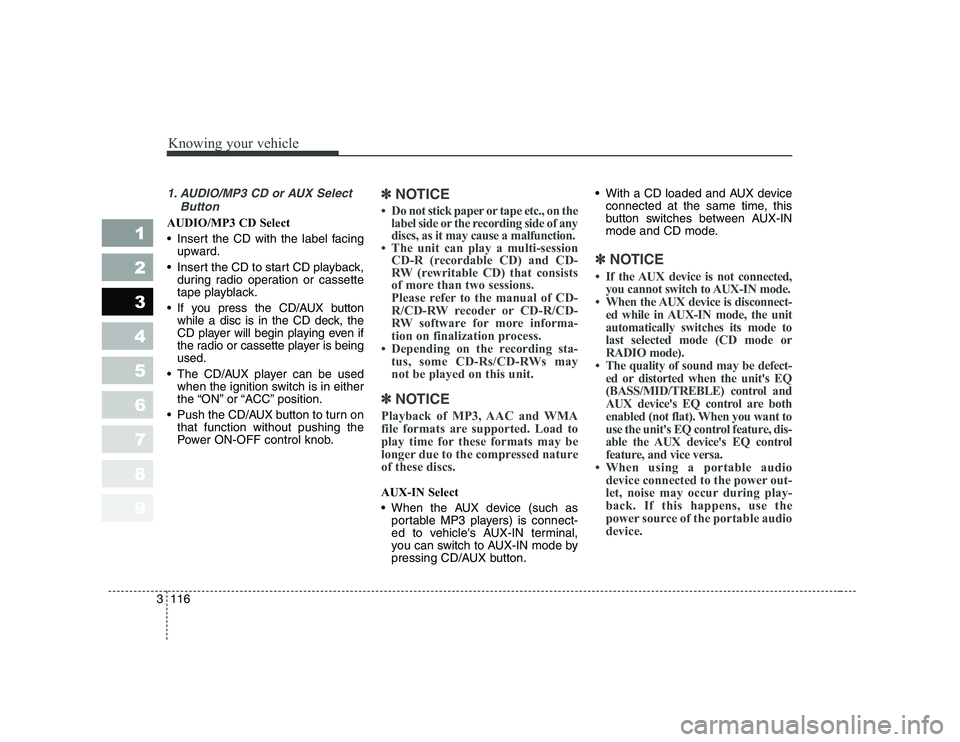

1. AUDIO/MP3 CD or AUX Select
Button
AUDIO/MP3 CD Select
Insert the CD with the label facingupward.
Insert the CD to start CD playback, during radio operation or cassette
tape playblack.
If you press the CD/AUX button while a disc is in the CD deck, the
CD player will begin playing even if
the radio or cassette player is beingused.
The CD/AUX player can be used
when the ignition switch is in either
the “ON” or “ACC” position.
Push the CD/AUX button to turn on
that function without pushing the
Power ON-OFF control knob.
✽✽ NOTICE

3117
Knowing your vehicle
1 23456789

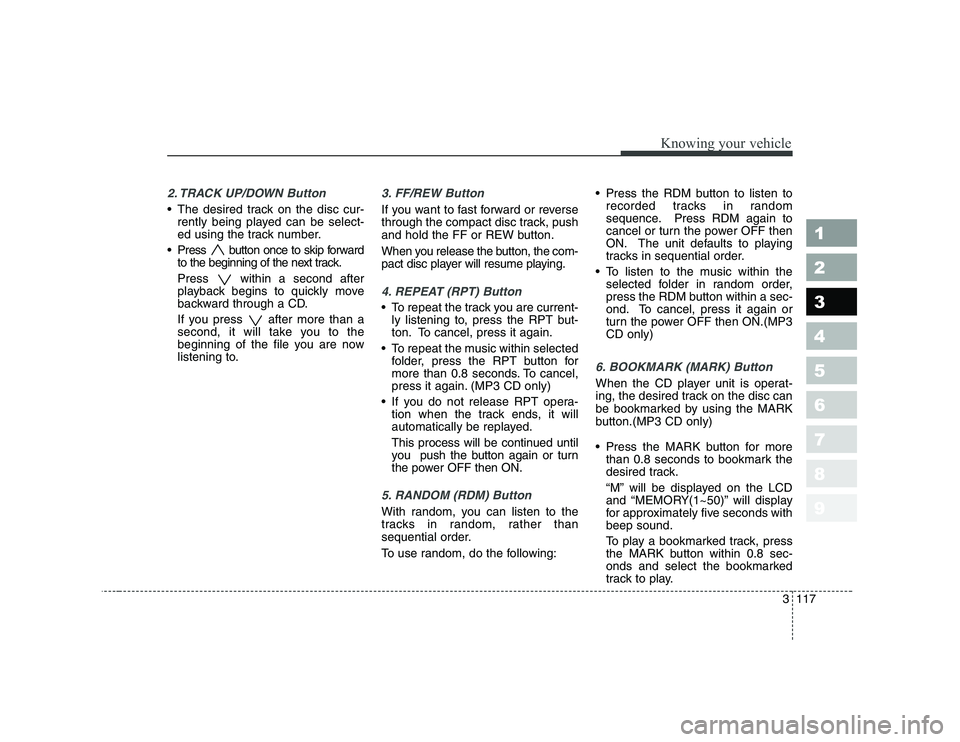

2. TRACK UP/DOWN Button
The desired track on the disc cur-rently being played can be select-
ed using the track number.
Press button once to skip forward to the beginning of the next track.
Press within a second after
playback begins to quickly move
backward through a CD.
If you press after more than a
second, it will take you to the
beginning of the file you are now
listening to.
3. FF/REW Button
If you want to fast forward or reverse
through the compact disc track, push
and hold the FF or REW button.
When you release the button, the com-
pact disc player will resume playing.
4. REPEAT (RPT) Button
To repeat the track you are current-ly listening to, press the RPT but-
ton. To cancel, press it again.
To repeat the music within selected folder, press the RPT button for
more than 0.8 seconds. To cancel,
press it again. (MP3 CD only)
If you do not release RPT opera- tion when the track ends, it will
automatically be replayed.
This process will be continued until
you push the button again or turn
the power OFF then ON.
5. RANDOM (RDM) Button
With random, you can listen to the
tracks in random, rather than
sequential order.
To use random, do the following: Press the RDM button to listen to
recorded tracks in random
sequence. Press RDM again to
cancel or turn the power OFF then
ON. The unit defaults to playing
tracks in sequential order.
To listen to the music within the selected folder in random order,
press the RDM button within a sec-
ond. To cancel, press it again or
turn the power OFF then ON.(MP3CD only)
6. BOOKMARK (MARK) Button
When the CD player unit is operat-
ing, the desired track on the disc can
be bookmarked by using the MARK
button.(MP3 CD only)
Press the MARK button for morethan 0.8 seconds to bookmark the
desired track.
“M” will be displayed on the LCD
and “MEMORY(1~50)” will display
for approximately five seconds withbeep sound.
To play a bookmarked track, press
the MARK button within 0.8 sec-
onds and select the bookmarked
track to play.

Knowing your vehicle
118
3
1 23456789

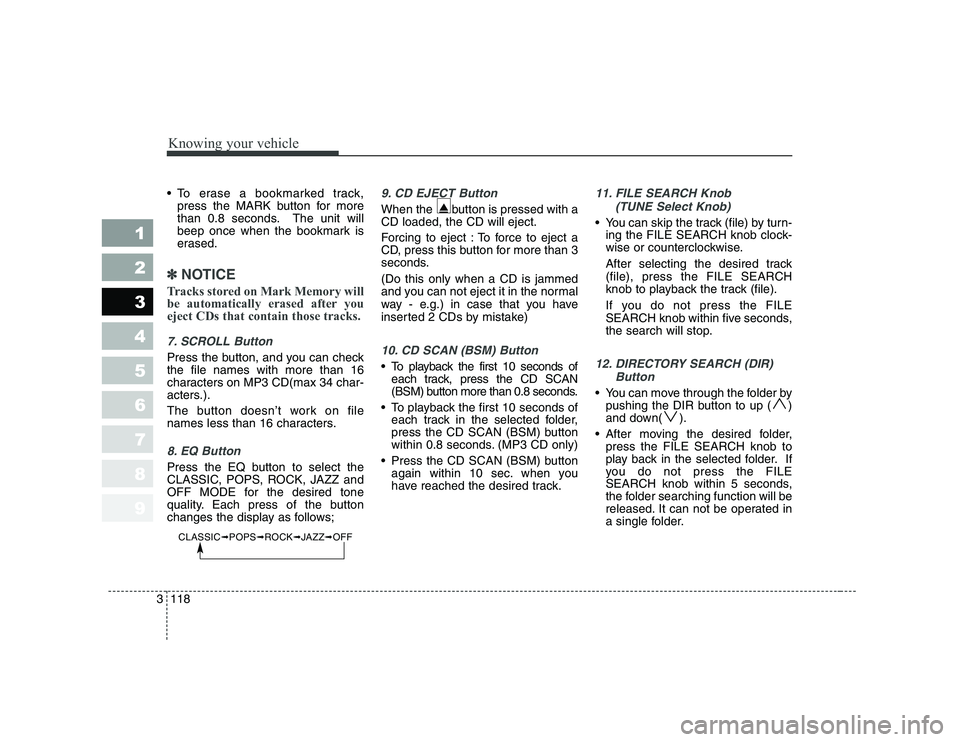

To erase a bookmarked track,
press the MARK button for more
than 0.8 seconds. The unit will
beep once when the bookmark is
erased.
✽✽ NOTICE
Tracks stored on Mark Memory will
be automatically erased after youeject CDs that contain those tracks.
7. SCROLL Button
Press the button, and you can check the file names with more than 16
characters on MP3 CD(max 34 char-
acters.).
The button doesn’t work on file
names less than 16 characters.
8. EQ Button
Press the EQ button to select the
CLASSIC, POPS, ROCK, JAZZ and
OFF MODE for the desired tone
quality. Each press of the button
changes the display as follows;
9. CD EJECT Button
When the button is pressed with a CD loaded, the CD will eject.
Forcing to eject : To force to eject a
CD, press this button for more than 3
seconds. (Do this only when a CD is jammed
and you can not eject it in the normal
way - e.g.) in case that you have
inserted 2 CDs by mistake)
10. CD SCAN (BSM) Button
To playback the first 10 seconds of each track, press the CD SCAN
(BSM) button more than 0.8 seconds.
To playback the first 10 seconds of each track in the selected folder,
press the CD SCAN (BSM) button
within 0.8 seconds. (MP3 CD only)
Press the CD SCAN (BSM) button again within 10 sec. when you
have reached the desired track.
11. FILE SEARCH Knob
(TUNE Select Knob)
You can skip the track (file) by turn-ing the FILE SEARCH knob clock-
wise or counterclockwise.
After selecting the desired track (file), press the FILE SEARCH
knob to playback the track (file).
If you do not press the FILE
SEARCH knob within five seconds,
the search will stop.
12. DIRECTORY SEARCH (DIR)
Button
You can move through the folder bypushing the DIR button to up ( )
and down( ).
After moving the desired folder, press the FILE SEARCH knob to
play back in the selected folder. If
you do not press the FILE
SEARCH knob within 5 seconds,
the folder searching function will be
released. It can not be operated in
a single folder.
CLASSIC ➟POPS ➟ROCK ➟JAZZ ➟OFF

3119
Knowing your vehicle
1 23456789

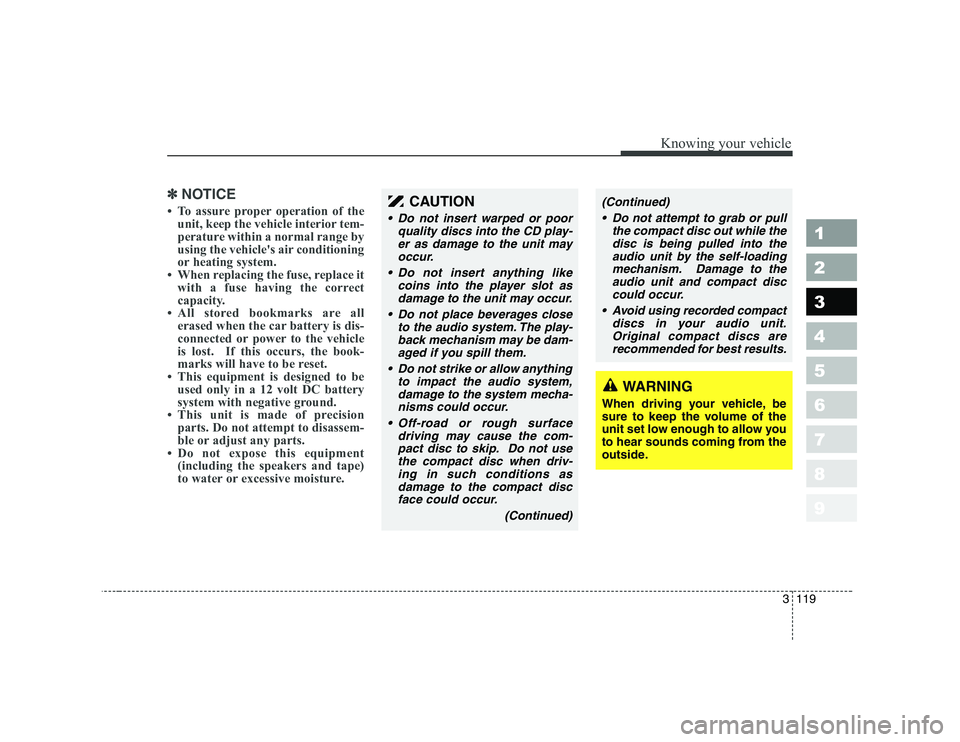

✽✽NOTICE

Knowing your vehicle
120
3
1 23456789
LD 600 UR
1,2. Power on /off and volume control button
3. Radio selection button
4. Scan Button
5. Automatic station selection button (Seek)
6. Manual station selection button (Tune)
7. Pre-set button
8. LCD Display
9. Bass control/ left, right audio control

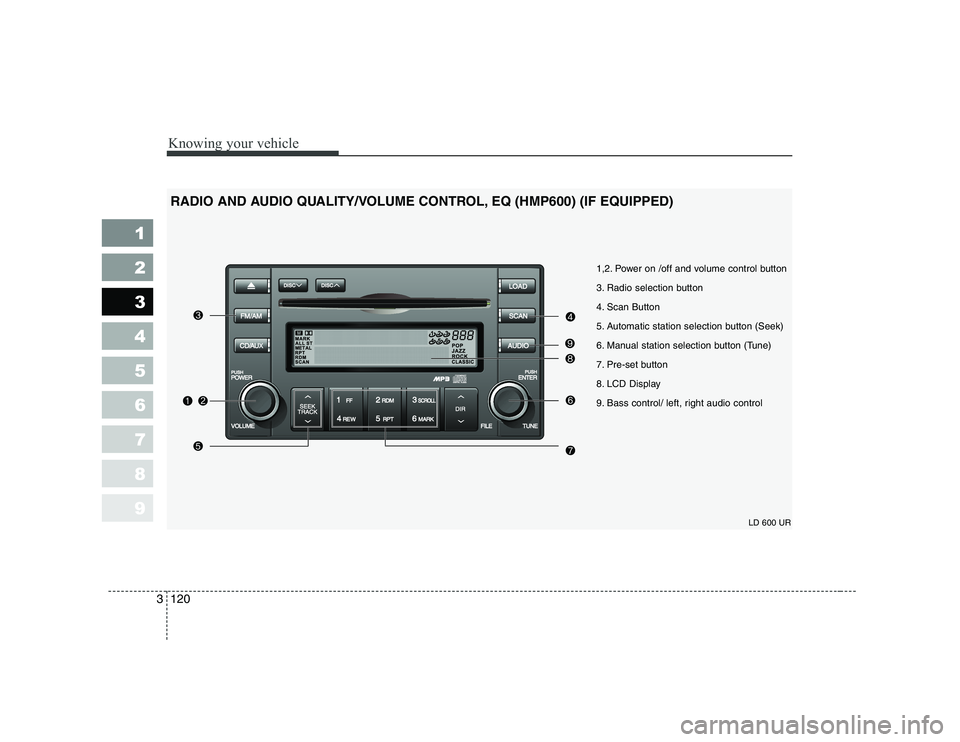

RADIO AND AUDIO QUALITY/VOLUME CONTROL, EQ (HMP600) (IF EQUIPPED)
