instrument cluster KIA FORTE 2023 Features and Functions Guide

As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key with Remote Start* 46
2 Fuel Filler Door Release 50
3 Power Adjustable Driver’s Seat* / Front Seat Headrest Adjustment 42-43
4 Seat Warmers / Ventilated Seats* 42
5 Folding Rear Seats 44
6 Lifting Wipers (Wiper Service Mode) 26
7 Windshield Wipers & Washers 26
8 Smart Cruise Control (SCC)* / Navigation-based SCC (NSCC)* 16-17
9 Smart Power Trunk* 48
10 Normal Maintenance Schedules 52, Back Cover
11 User Settings – Instrument Cluster* 09
12 Vehicle Settings - Infotainment System* 09
13 Bluetooth® Wireless Technology 28-29
14 Kia Connect Activation* 32
15 Kia Connect with Navigation* 34
16 Android Auto™ / Apple CarPlay® Setup 30
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injur y and death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle
www kia com Consumer Affairs – Roadside Assistance†1 3: 1-800-333-4KIA (800-333-4542)
Always check the Owner ’s Manual for complete operating information and safet y warnings
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
GETTING STARTED
1
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Navigation System Important Tips Video
Your New Kia Important Care Tips Video
Vehicle Cameras Important Tips Video
QR CODES

2†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Indicators & Warning Lights 04Fuel Economy / Tips for Economical Driving 05Tire Pressure Monitoring System (TPMS) 05Drive Mode Integrated Control System* 06
VEHICLE SETTINGSInstrument Cluster LCD Modes 07Trip Modes / Trip Computer 07Service Interval Mode 08User Set tings - Instrument Cluster* 09Vehicle Set tings - Infotainment System* 09
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) 10Blind-spot Collision-Avoidance Assist (BCA)* 11Lane Keeping Assist (LK A) 12Safe Exit Warning (SEW)* 13Driver At tention Warning (DAW) 14Leading Vehicle Depar ture Aler t (LVDA)* 15Smar t Cruise Control (SCC)* 16Navigation-based Smar t Cruise Control (NSCC)* 17Cruise Control (CC)* 17Lane Following Assist (LFA) 18Highway Driving Assist (HDA)* 19Rear View Monitor (RVM) 20Reverse Parking Distance Warning (PDW)* 20Rear Cross-traffic Collision-Avoidance Assist (RCCA)* 21
DRIVER’S PANELElectronic Stability Control (ESC) 22Instrument Cluster Control 22Hill-star t Assist Control (HAC) 22Engine Star t/Stop But ton* 23
DRIVER’S PANEL CONTINUEDPower Windows, Window Lock & Central Door Lock 24Power Folding Outside Mirrors* 24Automatic Door Lock/Unlock 24Heated Outside Mirrors* 24Manual Folding Mirrors* 24
STEERING WHEEL CONTROLSHeadlights & High Beams 25High Beam Assist (HBA) 25Turn Signals & Fog Lights* 25Windshield Wipers & Washers 26Lifting Wipers (Wiper Service Mode) 26Tilt/Telescoping Steering Wheel 27
INFOTAINMENT SYSTEMSBluetooth® Wireless Technology 2 8 -2 9Audio Controls 29Android Auto™ / Apple CarPlay® S et up* 30Standard Audio System* 31Kia Connect Activation* 32Kia Connect Assistance* 32Kia Access App Download 33 Kia Access App Features Guide 33 Kia Connect with Navigation* 34
CENTER PANELMultimedia USB Por t, Power Outlets & USB Charger Por ts* 35Digital Clock (Navigation System)* 35 Automatic Climate Control* 36Manual Climate Control* 37Automatic Gear Shift with Spor tmatic® Shifting* (Manual Mode) 38Paddle Shifters* 38Manual Gear Shift* 39Dual Clutch Transmission (DCT)* 39
CENTER PANEL CONTINUEDElectronic Parking Brake (EPB)* 40Auto Hold* 40Wireless Smar tphone Charging System* 41
SEATING6-Way Manual Adjustable Driver ’s Seat* 42Seat Warmers* / Ventilated Seats* 4210-way Power Adjustable Driver ’s Seat* 43Front Seat Headrest Adjustment 43Folding Rear Seats* 44Rear Occupant Aler t (ROA) with Door Monitoring 44
OTHER KEY FEATURESMap/Room Lamps 45Sunroof Operation* 45Smar t Key with Remote Star t* 46Remote Keyless Entry (Folding Key)* 47Double-turn Lock/Unlock All 47Smar t Power Trunk* 48Trunk Release Lever and But ton* 49Hood Release Lever and Latch 49Sunvisor 49Fuel Filler Door Release Lever 50Fuel Cap / Malfunction Indicator (Check Engine Light) 50Tire Mobility Kit* 50
SAFETY FEATURESSeat Belts 51Child-Protector Rear Door Locks 51 Occupant Detection System (ODS) / Passenger Airbag Off Indicator 51
MAINTENANCE - TURBO 52
LEGAL DISCLAIMERS Inside Back Cover
MAINTENANCE - NON-TURBO Back Cover

3*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
MPH
87
6
5
4
3
2
1
0
H
C EF
x1000rpm100
80
60
40 120
20 14 0
0 160
20
40
60
80
100
120
140
160
180
200
220
240
260
0
km/h
AUTO
Instrument Cluster Overview
A Tachometer
B Speedometer
C Turn Signal Indicators
D LCD Gear Shift Position, Odometer, Trip Modes / Trip Computer, Exterior Temperature
E Engine Coolant Temperature Gauge
F
Fuel Gauge
Arrow direction indicates the side of the vehicle the fuel door is located
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 2 in the Owner ’s Manual
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in illustration On the vehicle, they may appear in the LCD
AB
CC
D
EF
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE

4*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE

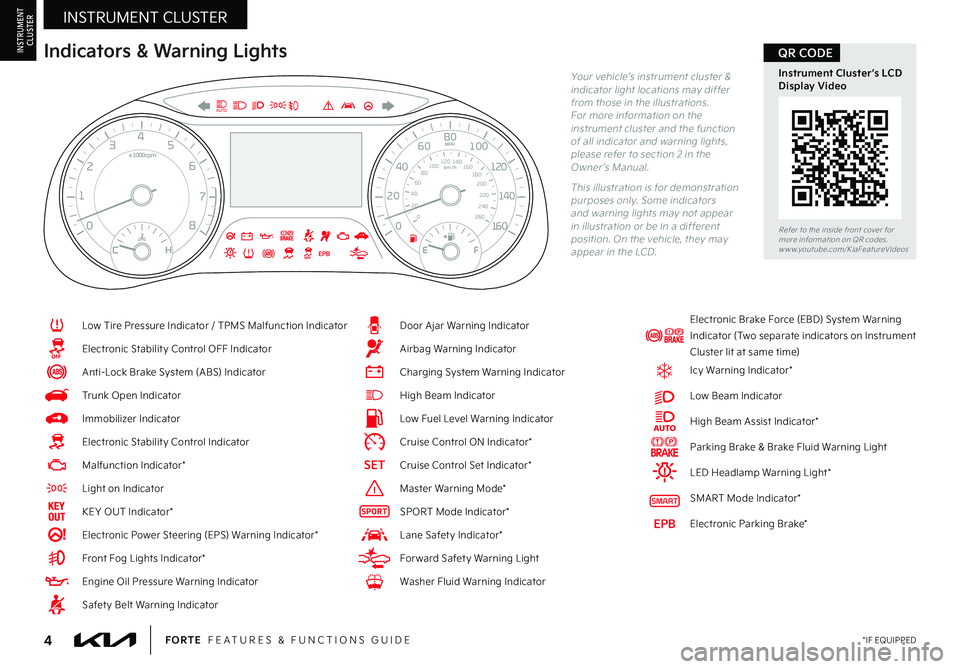

Indicators & Warning Lights
Low Tire Pressure Indicator / TPMS Malfunction Indicator
Electronic Stabilit y Control OFF Indicator
Anti-Lock Brake System (ABS) Indicator

Trunk Open Indicator
Immobilizer Indicator
Electronic Stability Control Indicator

Malfunction Indicator*
Light on Indicator
KEY OUT Indicator*
Electronic Power Steering (EPS) Warning Indicator*
Front Fog Lights Indicator*
Engine Oil Pressure Warning Indicator

Safet y Belt Warning Indicator
Door Ajar Warning Indicator

Airbag Warning Indicator

Charging System Warning Indicator

High Beam Indicator

Low Fuel Level Warning Indicator
Cruise Control ON Indicator*
SETCruise Control Set Indicator*
Master Warning Mode*
SPORT Mode Indicator*
Lane Safet y Indicator*
For ward Safet y Warning Light
Washer Fluid Warning Indicator
Electronic Brake Force (EBD) System Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
❄Icy Warning Indicator*
Low Beam Indicator
High Beam Assist Indicator*
Parking Brake & Brake Fluid Warning Light
LED Headlamp Warning Light*
SMARTSMART Mode Indicator*
EPBElectronic Parking Brake*
MPH
87
6
5
4
3
2
1
0
H
C EF
x1000rpm100
80
60
40 120
20 14 0
0 160
20
40
60
80
100
120
140
160
180
200
220
240
260
0
km/h
AUTO
&1#
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations For more information on the instrument cluster and the function of all indicator and warning lights, please refer to section 2 in the Owner ’s Manual
This illustration is for demonstration purposes only Some indicators and warning lights may not appear in illustration or be in a different position On the vehicle, they may appear in the LCD
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE

5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Fuel Economy / Tips for Economical Driving
Several factors contribute to your vehicle's fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics Below are some tips on how to improve fuel economy:
•Use the climate control system less often Use the Driver Only* setting as much as possible
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicle
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
Refer to section 6 in the Owner ’s Manual for more information or snap the QR Code above to view a video
Refer to section 4 in the Owner ’s Manual for more information
Tire Pressure Monitoring System (TPMS)†21
The indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator
The TPMS indicator is designed to illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated
•Inflate tire(s) to specifications to turn off the Low Tire Pressure Light using an accurate tire pressure gauge See front driver ’s door jamb for PSI specifications
•When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate - See dealer for service
Low Tire Pressure
25
33 33
33
REMINDERS:
•
Consult your dealer for ser vice if the Low Tire Pressure Light remains illuminated after inflating your tire(s)
•
Check the recommended tire pressure label located on the left side of the driver's door jamb, visible when the door is opened
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc ) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
Electronic Brake Force (EBD) System Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
❄Icy Warning Indicator*
Low Beam Indicator
High Beam Assist Indicator*
Parking Brake & Brake Fluid Warning Light
LED Headlamp Warning Light*
SMARTSMART Mode Indicator*
EPBElectronic Parking Brake*
A
•Even with TPMS, tire pressure should be checked manually at least once a month Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•A significant drop in temperature can cause tire inflation pressures to drop, which may activate the TMPS light Manually confirm tire pressures after significant changes in temperature or altitude
QUICK TIPS
INSTRUMENT CLUSTERINSTRUMENTCLUSTER
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tips for Economical Driving Video
Tire Pressure MonitoringSystem Video
QR CODES

6*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
A
(Appears on LCD in Instrument Cluster)
NORMAL
SMART*
SPORT
SMART, NORMAL and SPORT drive modes A may be changed according to the driver ’s preference or road conditions To cycle through drive modes, press the DRIVE MODE button B
SMART Mode* – When SMART mode is activated, the system automatically selects the drive mode best suited to the current driving style (economic, average, aggressive) A SMART indicator will illuminate on the instrument cluster The color of the SMART indicator (green, blue, red) depends on the current driving style To deactivate, press the DRIVE MODE button B again to change the selection to another setting
NORMAL Mode – The system’s default mode is NORMAL mode and is not displayed on the instrument cluster nor the audio system’s screen
SPORT Mode – A red SPORT indicator will illuminate on the instrument cluster To deactivate, press the DRIVE MODE button B again to change the selection to another setting DRIVE
MODE
SHIFT LOCK
RELEASE
P
R
ND
DRIVE
MODE
SHIFT LOCK
RELEASE
P
RND
P R
N
D
S
Drive Mode Integrated Control System*
(Located on Center Panel next to Gear Shift)* REMINDERS:
•When SPORT mode is selected, fuel economy may decrease
•Steering effor t may be slightly increased in Spor t mode
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 5 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Drive Mode IntegratedControl System Video
QR CODE
In Spor t mode, when engine is turned off, the system will default to NORMAL mode and SPORT mode will need to be selected again when the vehicle restar ts
QUICK TIP
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER
B

8*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
An “Engine Oil Change Due Soon” message appears on the Instrument Cluster LCD when the engine oil needs to be changed After oil change, reset the oil change reminder in User Set tings* Go to Convenience, then Oil Change Reminder, then press and hold the OK but ton B for more than 1 second
QUICK TIP
Service in
10
days
Service in Service required
OFFUser Settings
Door
Lamp
Settings
Service Interval
Service in
10
days
Service in Service required
OFFUser Settings
Door
Lamp
Settings
Service Interval
Service in
10
days
Service in Service required
OFFUser Settings
Door
Lamp
Settings
Service Interval
4FSWJDF
*OUFSWBM
.PEF (Type B/C Cluster set tings)
To enter Service Interval Mode, press the Mode/Menu button A, scroll to the User Settings Mode Press Move button B to scroll to the Service Interval menu and press OK button B to enter System will display number of miles remaining until next service is due, and type of service
When service is required, the following screen will be displayed: Service Required
To reset the Service Interval Mode system, press and hold the Set/Reset (OK) button B for more than 1 second
To turn the Service In reminder OFF, go to User Settings
Service Interval Setting:
To set the service interval when in User Settings mode:
•
Press the Move button B up/down and scroll to Service Interval Press the OK button B to enter
•
Press the Move button B and toggle to ON, then press the Select/Reset button B Then press the Move button B up/down to scroll and select the desired miles or months for your next service
•Press the Select/Reset button B to enter
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 4 in the Owner ’s Manual for more information
Driving while distracted is dangerous and should be avoided Do not at tempt to change vehicle system set tings while driving
A
B
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Vehicle & User Settings Video
Kia Full Synthetic Oil Video
QR CODES
VEHICLE SETTINGS
VEHICLESETTINGS

9*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
User Settings* - Instrument Cluster (Type B/C Cluster set tings)
To enter the User Settings mode on the instrument Cluster LCD screen, ensure vehicle is at a stand still, shift lever is in Park, and Engine Start/Stop button or Key in the ON position Then select User Settings by pressing the Mode/Menu button A
You can navigate the selections on the display by pressing the OK button B up or down, and then entering the item by pressing the OK button B
User Settings Modes
Driver Assistance*: •SCC Reaction •Driving Convenience •Warning Timing •Warning Volume •Driver At tention Warning •For ward Safet y •Lane Safet y •Blind-spot Safet y* •Parking Safet yCluster: •Theme Selection •Wiper/Lights Display •Traf fic Signs* •Icy Road Warning •Welcome Sound*Doors: •Automatically Lock •Automatically Unlock •Smar t Trunk* •Two Press Unlock* •Remote Window* •Smar t Trunk*Lights: •One-Touch Turn Signal* •Headlamp Delay* •Ambient Light Brightness* •Ambient Light Color* •High Beam Assist
Sound: •Parking Distance Warning* Volume •Welcome Sound*Service Interval: •Enable Ser vice Inter val •Adjust Interval •ResetConvenience: •Welcome Mirror/Light* •Wireless Charging System* •Seat Easy Access* •Rear Occupant Aler t* •Service Interval •Icy Road Warning*Units: •Speed Unit •Fuel Economy Unit •Temperature Unit •Tire Pressure Unit*Reset: •Reset MenusLanguage*: •Choose Language
A
B
Driving while distracted is dangerous and should be avoided Do not at tempt to change vehicle system set tings while driving
Refer to section 4 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
Vehicle Settings* -
Infotainment System
To enter the Vehicle Settings mode in the Infotainment System, press the SETUP key on the Infotainment System Then press Vehicle , which will take you to Vehicle Settings Use the touchscreen to navigate through the menus
Vehicle Settings modes:
Driver Assistance*: •SCC Reaction* •Driving Convenience* •Warning Time* •Warning Volume* •Driver At tention Warning* •For ward Safet y* •Lane Safet y* •Blind-spot Safet y* •Parking Safet y*Climate: •Recirculate Air* •Automatic Ventilation* •Defog/Defrost Options*Lights: •Ambient Light* •One-Touch Turn Signal* •Headlight Display* •High Beam Assist*
Door: •Remote Window Control* •Auto Lock* •Auto Unlock* •Two-Press Unlock* •Smar t Trunk*
Cluster: •Illumination* •Service Interval* •Content Selection* •Welcome Sound*Convenience: •Rear Occupant Aler t* •Wireless Charging System*
QR CODES
VEHICLE SETTINGS
VEHICLESETTINGS

10†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian or a cyclist in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking Initially, FCA provides Forward Collision Warning (FCW) when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and visual alert on the instrument cluster A
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision
FCA Settings:
•FCA is on by default in most Kia models FCA can be turned on/off by going to the User
Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* is in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK button C up/down to toggle to Driver Assistance and select an FCA mode
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance and select an FCA mode
•FCA Modes – Select one of the following:
–Active Assist: Vehicle will provide a warning (audible & visual) and apply the brakes if needed
–Warning Only: Vehicle will provide a warning only (audible & visual)
–Off: System is off, no warnings or braking provided
•Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
– Normal: This setting allows for a nominal amount of distance between the vehicles
before the initial warning occurs
– Late: Reduces the amount of distance between the vehicles before the initial warning occurs
FCA/FCW will become active when the:
•Ignition or the Engine Start/Stop button* is in the on position
•Vehicle is traveling faster than 6 mph
•Electronic Stability Control (ESC) is on
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Forward Collision- Avoidance Assist (FCA)Video
QR CODE

Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the Infotainment System Go to Driver Assistance, then Warning Volume When adjiusted, the Warning Volume for other driver assistance systems may be adjusted
QUICK TIP
Forward Collision-Avoidance Assist (FCA)†4
When engaged, For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle Always drive safely and use caution
Actual User Set tings steps may var y by model Refer to section 5 in the Owner ’s Manual for more information
For illustrative purposes only Your actual display, but tons and/or features may var y
REMINDERS:
•
FCA will be activated by default when the ignition is cycled on, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
•
When FCA is off, the warning indicator is on in the Instrument Cluster
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
Collision Warning
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
Emergency Braking
AB
C

11ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Blind-spot Collision-Avoidance Assist (BCA)*†4
BCA uses rear corner radar sensors in the rear bumper to monitor and warn the driver in certain situations if it detects an approaching vehicle in the driver ’s blind spot area and before changing lanes Initially, BCA provides Blind-spot Collision Warning (BCW) when it detects a potential collision with a vehicle, emitting an audible warning and visual alert on the outside rearview mirrors If the system detects that the collision risk has increased, Blind-spot Collision-Avoidance Assist (BCA) automatically applies the opposite side front brake to try and mitigate a potential collision
Vehicle detection warning: When another vehicle is detected within collision warning boundary A, an indicator will illuminate on the outside rearview mirrors B
Collision warning: When vehicle detection warning is on and the driver activates a turn signal, a flashing indicator will illuminate on the outside rearview mirrors and the system will sound a warning
Collision-Avoidance Assist: When collision warning has already occurred, and the collision risk has increased, braking is applied to the opposite side front wheel and a visual warning occurs
BCA Settings:
•BCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is turned on or the Engine Start/Stop button* is in the ON position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings Press the OK button D up/down to toggle to Driver Assistance, then Blind-spot Safety and select a BCA mode
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Blind-spot Safety and select a BCA mode
•BCA Modes – Select one of the following:
- Active Assist: BCA will provide a warning (audible & visual) and braking assist depending on the collision risk levels
- Warning Only: Vehicle will provide a warning only (audible & visual)
- Off: System is off, no warnings provided
•BCA Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Late: Reduces the amount of distance between the vehicles before the initial warning occurs
•Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the infotainment system Go to Driver Assistance, then Warning Volume When adjusted, the Warning Volume for other driver assistance systems may be adjusted •BCA will activate when: – The system is turned on – Other vehicles are detected on the rear sides of the vehicle – A Collision Warning can be issued when the vehicle speed is above approximately 12 mph – A Collision-Avoidance Assist can be issued when the vehicle speed is above approximately 40 mph
QUICK TIPS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Blind-spot Collision- Avoidance Assist Video
QR CODE
BC
D
When engaged, BCA is not a substitute for safe and proper driving Always drive safely and use caution Refer to section 5 in the Owner ’s Manual for more information Images on this page are for illustrative purposes only and may not reflect actual feature or operation
REMINDERS:
•
BCA may sound when making a left turn Maintain a proper distance from oncoming vehicles
•
BCA will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
•
When BCA is ON and the ignition is cycled, BCA returns to its previous state
BCA is a supplemental system Do not rely solely on this system Always pay at tention to the road and drive safely
A
