Page 4 of 56
2†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE

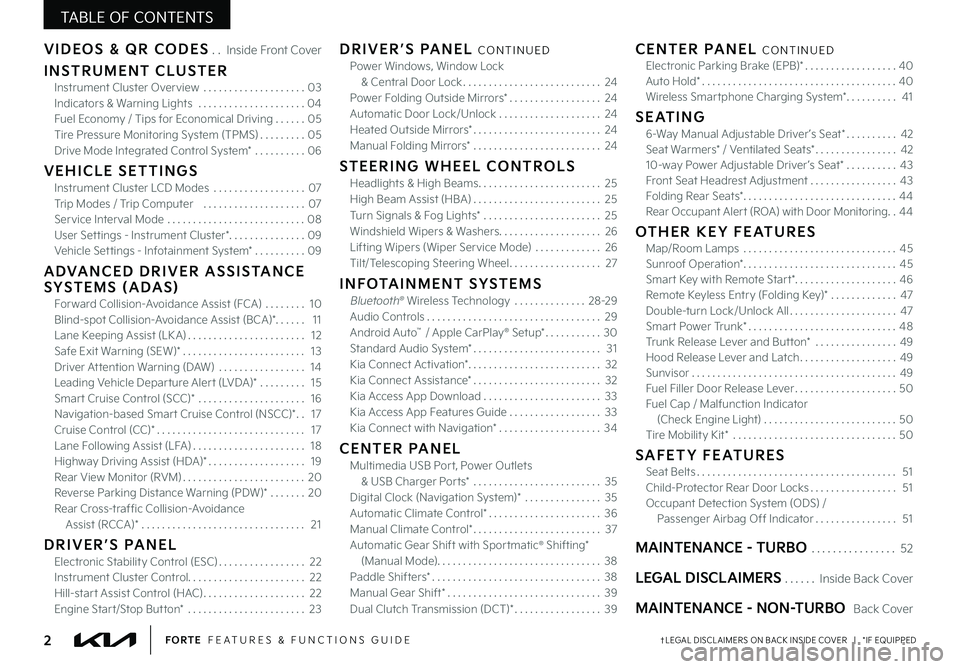

TABLE OF CONTENTS
VIDEOS & QR CODES Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Indicators & Warning Lights 04Fuel Economy / Tips for Economical Driving 05Tire Pressure Monitoring System (TPMS) 05Drive Mode Integrated Control System* 06
VEHICLE SETTINGSInstrument Cluster LCD Modes 07Trip Modes / Trip Computer 07Service Interval Mode 08User Set tings - Instrument Cluster* 09Vehicle Set tings - Infotainment System* 09
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) 10Blind-spot Collision-Avoidance Assist (BCA)* 11Lane Keeping Assist (LK A) 12Safe Exit Warning (SEW)* 13Driver At tention Warning (DAW) 14Leading Vehicle Depar ture Aler t (LVDA)* 15Smar t Cruise Control (SCC)* 16Navigation-based Smar t Cruise Control (NSCC)* 17Cruise Control (CC)* 17Lane Following Assist (LFA) 18Highway Driving Assist (HDA)* 19Rear View Monitor (RVM) 20Reverse Parking Distance Warning (PDW)* 20Rear Cross-traffic Collision-Avoidance Assist (RCCA)* 21
DRIVER’S PANELElectronic Stability Control (ESC) 22Instrument Cluster Control 22Hill-star t Assist Control (HAC) 22Engine Star t/Stop But ton* 23
DRIVER’S PANEL CONTINUEDPower Windows, Window Lock & Central Door Lock 24Power Folding Outside Mirrors* 24Automatic Door Lock/Unlock 24Heated Outside Mirrors* 24Manual Folding Mirrors* 24
STEERING WHEEL CONTROLSHeadlights & High Beams 25High Beam Assist (HBA) 25Turn Signals & Fog Lights* 25Windshield Wipers & Washers 26Lifting Wipers (Wiper Service Mode) 26Tilt/Telescoping Steering Wheel 27
INFOTAINMENT SYSTEMSBluetooth® Wireless Technology 2 8 -2 9Audio Controls 29Android Auto™ / Apple CarPlay® S et up* 30Standard Audio System* 31Kia Connect Activation* 32Kia Connect Assistance* 32Kia Access App Download 33 Kia Access App Features Guide 33 Kia Connect with Navigation* 34
CENTER PANELMultimedia USB Por t, Power Outlets & USB Charger Por ts* 35Digital Clock (Navigation System)* 35 Automatic Climate Control* 36Manual Climate Control* 37Automatic Gear Shift with Spor tmatic® Shifting* (Manual Mode) 38Paddle Shifters* 38Manual Gear Shift* 39Dual Clutch Transmission (DCT)* 39
CENTER PANEL CONTINUEDElectronic Parking Brake (EPB)* 40Auto Hold* 40Wireless Smar tphone Charging System* 41
SEATING6-Way Manual Adjustable Driver ’s Seat* 42Seat Warmers* / Ventilated Seats* 4210-way Power Adjustable Driver ’s Seat* 43Front Seat Headrest Adjustment 43Folding Rear Seats* 44Rear Occupant Aler t (ROA) with Door Monitoring 44
OTHER KEY FEATURESMap/Room Lamps 45Sunroof Operation* 45Smar t Key with Remote Star t* 46Remote Keyless Entry (Folding Key)* 47Double-turn Lock/Unlock All 47Smar t Power Trunk* 48Trunk Release Lever and But ton* 49Hood Release Lever and Latch 49Sunvisor 49Fuel Filler Door Release Lever 50Fuel Cap / Malfunction Indicator (Check Engine Light) 50Tire Mobility Kit* 50
SAFETY FEATURESSeat Belts 51Child-Protector Rear Door Locks 51 Occupant Detection System (ODS) / Passenger Airbag Off Indicator 51
MAINTENANCE - TURBO 52
LEGAL DISCLAIMERS Inside Back Cover
MAINTENANCE - NON-TURBO Back Cover
Page 30 of 56
28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
—
+
MODE
Bluetooth® Wireless Technology†3 , 1 8
A
Volume button: Press up/down to raise/lower speaker volume
Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
B
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system Press and hold to exit voice recognition Kia Connect with Navigation system* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Voice Assist to use navigation guidance and search destinations
C
Receive/Place/End Call button: Press to receive/place/end calls, reject an incoming call or cancel a function If no phone is paired, press button to pair a phone
D Custom Button (Steering Wheel): Press and hold to set the button to bring up certain menus on the infotainment/audio system screen Press briefly to go that menu
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
For more information, refer to the Car Infotainment System Quick Reference Guide For Bluetooth® Wireless Technology FAQs, go to w w w kia com, Owners section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions
Pairing a Phone
For instructions on how to pair a phone, refer to the audio system’s user ’s guide or your vehicle’s Quick Star t Guide
How to Place a Call
When using the voice command feature, waiting for the system BEEP before speaking the command
There are two options for placing a call using the Steering Wheel controls:
•Option 1: Press the Receive/Place Call button C (displays the call history)
•Option 2: Press the Talk button B Then say the command “Call {name}” or Dial {number}
Your vehicle’s steering wheel but tons may differ from those in the illustrations See your Owner ’s Manual for more details
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
(Type B)
During the pairing process, be sure to accept the connection requests on the phone for phonebook download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP
•The system can register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•When using the voice command feature, wait for the system BEEP before speaking the command
•
Phonebook transfer upload time varies by phone model and with number of phonebook entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
QUICK TIPS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Steering Wheel Controls Video
Star, Favorite & Radio Presets Buttons Video
QR CODE
INFOTAINMENT SYSTEMS
INFOTAINMENTSYSTEMS
A
B
CD
Page 31 of 56
29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Bluetooth® Wireless Technology†3 , 1 8 (continued)
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names Improve the per formance by making a few simple changes to your phone contacts, listed below To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips
•Use full names (first and last names) vs short or single-syllable names (“John Smith” vs “Dad," “Smith Residence” vs “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc )
•Avoid using acronyms (“In Case of Emergency” vs “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs “Dr Smith”)
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
•
The system may register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
• Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•
When placing a call, speak in a natural, moderate tone, with clear pronunciation The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•
Close windows and sunroof and turn off A /C - Open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
E
Audio MODE button: Press to cycle through the FM/AM/SiriusXM®†1 8/Media modes Audio System ON/OFF: Press to turn power on; Press and hold to turn power off Press and hold to go to Advanced Setting / Steering Wheel mode (Kia Connect with Navigation)
F
Seek/Preset button: Radio Mode (FM/AM/SiriusXM®*†1 8) - Press to advance through the Preset Stations Press and hold to Auto Seek Media Mode - Press to move track forward/back Press & hold to fast forward/rewind (except for Bluetooth® Audio)
G Volume button: Press up/down to raise/lower volume Mute button: Press to mute all audio (in some Media modes the media pauses when pressed)
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
For illustrative purposes only Your actual display, but tons and/or features may var y
Audio Controls†1 8
CANCEL
OK
RES
SET
—
+
—
+
MODE
Your vehicle’s steering wheel but tons may differ from those in the illustrations Refer to section 4 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Voice RecognitionTips Video
QR CODE
INFOTAINMENT SYSTEMS
INFOTAINMENTSYSTEMS
E
FG
Page 32 of 56
30†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE

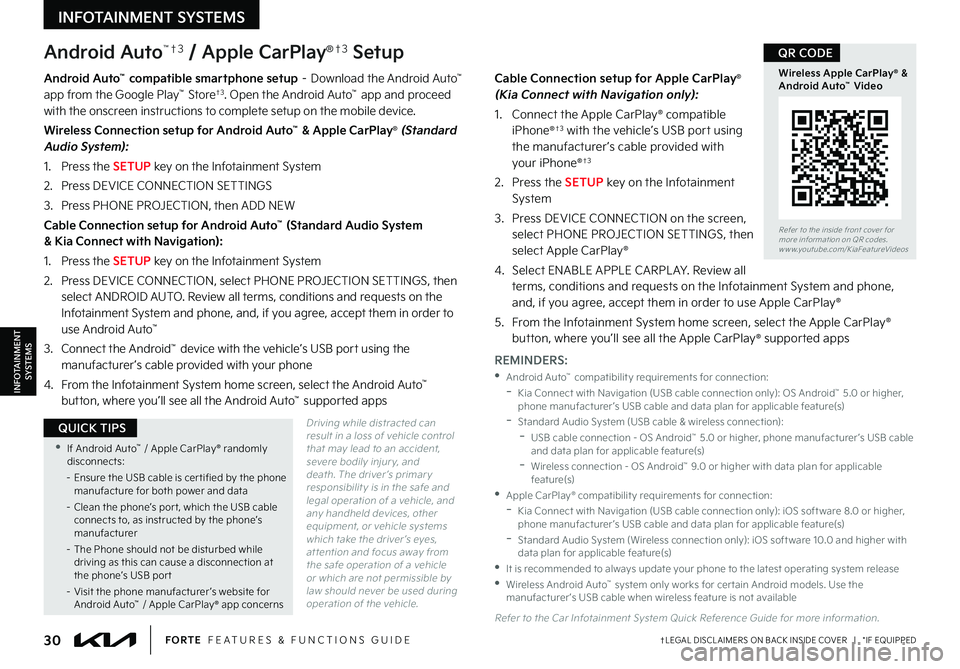

Android Auto™†3 / Apple CarPlay®†3 Setup
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle
Android Auto™ compatible smartphone setup – Download the Android Auto™ app from the Google Play™ Store†3 Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System):
1 Press the SETUP key on the Infotainment System
2 Press DEVICE CONNECTION SETTINGS
3 Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System & Kia Connect with Navigation):
1 Press the SETUP key on the Infotainment System
2 Press DEVICE CONNECTION, select PHONE PROJECTION SETTINGS, then select ANDROID AUTO Review all terms, conditions and requests on the Infotainment System and phone, and, if you agree, accept them in order to use Android Auto™
3 Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4 From the Infotainment System home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Cable Connection setup for Apple CarPlay® (Kia Connect with Navigation only):
1 Connect the Apple CarPlay® compatible iPhone®†3 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®†3
2 Press the SETUP key on the Infotainment System
3 Press DEVICE CONNECTION on the screen, select PHONE PROJECTION SETTINGS, then select Apple CarPlay®
4 Select ENABLE APPLE CARPL AY Review all terms, conditions and requests on the Infotainment System and phone, and, if you agree, accept them in order to use Apple CarPlay®
5 From the Infotainment System home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
•Android Auto™ compatibilit y requirements for connection: -Kia Connect with Navigation (USB cable connection only): OS Android™ 5 0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s) -Standard Audio System (USB cable & wireless connection): -
USB cable connection - OS Android™ 5 0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s) -
Wireless connection - OS Android™ 9 0 or higher with data plan for applicable feature(s) •Apple CarPlay® compatibilit y requirements for connection: -Kia Connect with Navigation (USB cable connection only): iOS soft ware 8 0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s) -
Standard Audio System (Wireless connection only): iOS soft ware 10 0 and higher with data plan for applicable feature(s) •
It is recommended to always update your phone to the latest operating system release •
Wireless Android Auto™ system only works for cer tain Android models Use the manufacturer ’s USB cable when wireless feature is not available
Refer to the Car Infotainment System Quick Reference Guide for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wireless Apple CarPlay® & Android Auto™ Video
QR CODE
•If Android Auto™ / Apple CarPlay® randomly disconnects:
– Ensure the USB cable is cer tified by the phone manufacture for both power and data
– Clean the phone’s por t, which the USB cable connects to, as instructed by the phone’s manufacturer
– The Phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
– Visit the phone manufacturer ’s website for Android Auto™ / Apple CarPlay® app concerns
QUICK TIPS
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Page 33 of 56
31†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Standard Audio System* – FM/AM/Media (USB, Bluetooth®†3 Audio)*
RADIOMEDIA SEEKTRACK SETUP
Sound Settings: To adjust the audio system sound settings:
1
Press the SETUP key on the audio head unit or the on-screen MENU button, when in MEDIA mode
2 Select the on-screen SOUND button
3 Select the menu item (Position, Volume, Tone, Priority, Advanced, Default)
4
Use the onscreen buttons to adjust settings Press the return button to save settings
Radio Presets: Press the Custom H C V U U P O O F Y U U P P S C F M P X U I F 3 B E J P 4 U B U J P O E J T Q M B Z 5 I J T T B W F T U I F D V S S F O U T U B U J P O B T B Q S F T F U
Custom Key H: A programmable key to provide quick access to one of several available system features To program the Custom Key, press and hold the Custom Key Select one of the available features you would like the Custom Key to open
Software updates - To keep your software up to date, free of charge, visit the official Kia update webpage at https://update kia com/US/EN/Main Note, visiting a dealer for software update may include an additional charge
Your vehicle’s Infotainment System may differ from that in the illustration For fur ther audio system operation, refer to pages 28-34 or see your Car Infotainment System Quick Reference Guide
REMINDER: Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving To help minimize driver distraction, some audio system functionalit y has been modified while the vehicle is in Drive, Reverse or moved out of Park
Press to enter R ADIO modePress to enter MEDIA mode
Press to Power ON/OFF Rotate to adjust Volume
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or title Press and hold to do the following (over 0 8 seconds):• FM/AM mode: Move quickly through all of the frequencies When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
In Radio/Media modes, rotate knob to search for stations/channels/tracks/ songs/files Press the knob to receive the selected channel/track/song/file
Press to enter Custom mode
Press to enter Setup mode
•Volume level bet ween different audio modes:
– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc ), the audio system saves the previous volume level you were listening to For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume If the volume is
turned down low on your device it will remain low even if the system volume is turned up
•
When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•
A warning screen may appear periodically to remind users that the audio system should be operated when the engine is running to prevent bat ter y discharge
•Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y
QUICK TIPS
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Standard Audio SystemVideo
Standard Audio System Updates Video
QR CODE
Page 34 of 56
32†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Kia Connect Activation*†1 (Systems equipped with Kia Connect only)
Follow these steps to activate your Kia Connect system:
1 Enter the activation screen on your vehicle’s head unit:
a Press SETUP key b Press Kia Connect icon c Press Activate
2 Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3 Enter smartphone number or email address to receive a verification code, then press SUBMIT
4 Follow these steps to receive your verification code using your phone text message or email:
a Check your phone text message or email for verification codeb Open the link in your text message or email A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
REMINDER: This vehicle is not equipped with over-the-air system updates
c Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT A page will open displaying your verification code
d Enter the code in the head unit and press ACTIVATE
e Go back to the page with your verification code and press “I have entered my verification code ” A link will be provided to download the Kia Access app from your app store After installing the app, log in and enjoy
(But tons on overhead console*; In some models, the but tons are located in the Rear View Mirror)
PASSENGEROFFAIR BAG
BCA
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Kia Access App Video
Kia Connect Activation Video
Kia Connect may be unavailable for model year 2022 and newer vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle
Virtual Assistant A – Press to connect to a virtual assistant to hear information about the Kia Connect features
Kia Connect Voice Local Search B (systems with navigation) - Press to connect to the search function to find points of interest or other locations, like “cafe”
Kia Connect Voice Local Search B (non-navigation systems) - Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable — see previous page for availability and setup)
Roadside Assist†1 4 C – Press to connect to a Roadside Assistant where you can request vehicle towing services
Kia Connect Assistance*†1
Kia Connect Assistance Video
QR CODES
REMINDER: These but tons may be located in the rear view mirror or the overhead console
For more information, refer to the Car Infotainment System Quick Reference Guide On cer tain models, Kia Connect Assistance but tons are located on the Rear view Mirror
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Page 35 of 56
33*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Kia Access App Download
Go to an app marketplace to download the Kia Access App Once you download the app, make sure you register your vehicle and start an account (refer to Kia Connect Activation page) Get to know your new Kia and the available convenient features on the app
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
•The smar tphone and vehicle need to be connected to a cellular net work with a good wireless signal strength in order to use Kia Connect If these conditions are not met, remote command may not execute or may take a long time It will also affect voice commands such as navigation POI or address search
•
To use Remote Star t* or Remote Star t* with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
When Remote Star t* is activated, if the driver does not enter the vehicle within 10 minutes, the Remote Star t* will turn the engine off
•When using Remote Star t* with Climate Control, turn on for at least a few minutes before get ting into the vehicle, allowing the vehicle interior to reach your desired temperature
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, Kia Connect will not turn on seven days after the last ignition was on You will need to restar t the vehicle with a key fob in order to use Kia Connect again
QUICK TIPS
The Kia Access App Features Guide is a guide helping you utilize the app to its full potential by detailing how to use each feature and adjust various settings Below are some of the topics included:
•Remote Commands
•Set Climate*
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia Access App Features Guide
Kia App Screen for illustrative purposes only Actual App screen and functionalit y may var y
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide
Kia Connect may be unavailable for model year 2022 and newer vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Do not use remote climate control or remote star t if vehicle is in an enclosed area (e g , closed garage) or a par tially enclosed area without ventilation Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote star t command
Kia Access Features Guide. Click this dynamic QR code to access the guide Some phone’s operating systems may need to be updated to scan dynamic QR codes
Download the Kia Access App by clicking this dynamic QR code Some phone’s operating systems may need to be updated to scan dynamic QR codes
QR CODES
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Page 36 of 56
34†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Kia Connect with Navigation*†1 , 9–FM/AM/SiriusXM®†1 7/Media (USB, Bluetooth®†3 Audio)
Sound Settings: To adjust the infotainment system sound settings, press the SETUP key on the Infotainment System or the on-screen MENU button, when in MEDIA mode Select the on-screen SOUND button, then select the menu item (Premium Sound, Position, Tone, Guidance, Radio Noise, Driver Assistance, Connected Devices) Use the onscreen buttons to adjust settings
Radio Presets: To save a preset, press the Custom H C V U U P O O F Y U U P P S C F M P X U I F 3 B E J P 4 U B U J P O E J T Q M B Z 5 I J T T B W F T U I F D V S S F O U T U B U J P O B T B Q S F T F U
SiriusXM® Smart Favorites: In Radio mode, choose SiriusXM®, then select any of the first six
favorites During song or program play, tap the Skip Backward icon to start from the beginning of the song or program Tap the Play Live icon to return to the live broadcast
Custom Key H To program the Custom Key, press and hold the Custom Key, then select one of the available features you would like the Custom Key to open
REMINDERS: •
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park •
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y •
Map/software updates: To keep your map and soft ware up to date, free of charge, visit the of ficial Kia update webpage at ht tps://update kia com/US/EN/Main Note, visiting a dealer for soft ware update may include an additional charge
MAP RADIO
NAV SEEKTRACK SETUP
MEDIA
Press to Power ON/OFF Rotate to adjust VolumePress to enter MAP screenPress to enter NAVIGATION mode
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• SiriusXM™ mode: Change the channel• MEDIA mode: Change the track, file or titlePress and hold to do the following (over 0 8 seconds):• FM/AM mode: Move quickly through all of the frequencies When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to enter SETUP mode
Press to enter MEDIA mode
Rotate to change Radio/SiriusXM™ Station/Media tracks/files
Press to enter Custom modePress to enter R ADIO mode
•Volume level bet ween different audio modes: – When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc ), the audio system saves the previous volume level you were listening to For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume If the volume is turned down low on your device it will remain low even if the system volume is turned up •When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the device’s navigation system may also be available •At any time, you can interrupt the Voice Command Feedback: Press the TALK but ton on the steering wheel •Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge •When using the voice command feature, wait for the system BEEP before speaking the command
QUICK TIPS
For further Kia Connect with Navigation operations, refer to the Car Infotainment System Quick Reference Guide For other audio system information, see pages 28-33
Yo u r vehicle’s audio system may differ from that in the illustration
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Kia Connect may be currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Kia Connect with Navigation Video
Navigation System Important Tips Video
Navigation System Updates Video
QR CODE
Page 37 of 56
35*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTERPANEL
Press the SETUP key on the Infotainment System, then General Press the onscreen Date/Time button to enter the clock settings Then use the onscreen buttons to navigate through setup and return to exit
Digital Clock (Navigation System)*
Multimedia USB Port, Power Outlets* & USB Charger Ports*
Multimedia USB Port* A
Use the Multimedia USB port to connect USB audio devices and smartphones
Power Outlets* B
Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max) power outlet
USB Charger Ports* C
Devices can be recharged using a USB cable The Engine Start/Stop button needs to be in the ACC/ON/START position to operate the USB Charger Port
REMINDERS: •
Using the power outlets (accessor y plugs) for prolonged periods of time, with the Engine Star t/Stop but ton in the ACC position (Engine off) may cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied Third par t y cables may cause damage to your device
For more information on the Multimedia USB Por t, Power Outlets & USB Charger Por ts, refer to section 4 in the Owner's Manual
For illustrative purposes only Your actual display, but tons and/or features may var y
For more information, refer to the Car Infotainment System Quick Reference Guide
(Por ts and power outlets are located on lower par t of Center Panel in front of gear shift and also in the back of the center console; power por ts may be configured differently on your vehicle)
•When needed, Daylight Savings must be enabled in the Clock Set tings screen
•To access the manual date and time set ting, turn GPS Time off in the Clock Set tings
QUICK TIPS
•The power outlets are inactive when ignition is in the off position
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets The USB Charger Por ts do not suppor t data transfer
•
The Multimedia USB Por t in the center panel charges slower than the USB Charger Por ts throughout the vehicle
QUICK TIPS
12V 180W
12V 180W
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Multimedia/Charger USB Ports & Power Outlets Video
QR CODE
CENTER PANEL
A
BC
Page 43 of 56
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 4 in the Owner ’s Manual for more information
Charge a compatible Qi Certified smartphone wirelessly by placing it on the tray A at the front of the console, near the Multimedia USB ports and the charging indicator, while the ignition is on
1 Enable Wireless Charging in the User Settings mode in the Instrument Cluster* or Vehicle Settings* in the Infotainment System, select Convenience then Wireless Charging System
2 Place compatible smartphone on the center of the charging pad A
3 All doors must be closed
4 Indicator light B may change to amber once the wireless charging begins
5 Once charging is complete, the amber light may change to green
REMINDERS:
•If driver door is opened, charging will be disabled
•The smar tphone must be compatible with Qi charging in order to wirelessly charge
•
Avoid placing other metal items in the bin while charging as to not impede the charging area
•
Wireless charging technology allows for a device to be charged using inductive charging See your Owner ’s Manual for more detailed information
•
Inductive charging systems are less ef ficient than conventional charging through a cable As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance: Device position on the wireless charging system can affect charging per formance Other factors that may affect the charging rate include foreign objects, such as coins or pens, and phone case thickness
41ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Wireless Smartphone Charging System*†2 2
•The smar tphone must be a compatible Qi cer tified phone with Qi function available Some smar tphone models are not QI cer tified, which may affect the availabilit y, speed or per formance of the wireless charging
•
For wireless charging to occur, all doors (excluding trunk) must be closed & the Smar t Key Fob must be detected inside the vehicle
•For best results, place smar tphone on the center of the charging pad
•If wireless charging does not work, move smar tphone around the pad until the charging indicator turns amber Avoid placing other metal items in the bin while charging as to not impede the charging area
QUICK TIPSA
CENTERPANEL
CENTER PANEL
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wireless Smartphone Charging Video
QR CODE
(Located in front of gear shifter)
B
