relay KIA FORTE 5 2017 User Guide

783
Maintenance
EMS Block (NU 2.0L GDI)
Fuse Name Fuse rating Circuit Protected
F/PUMP 20A F/Pump Relay
ECU 4 15A PCM/ECM
A/CON 15A A/CON COMP Relay
INJECTOR 10A EMS Block (F/Pump Relay)
ECU 2 10A PCM/ECM
IGN COIL 20A Ignition Coil #1/#2/#3/#4, Condenser
ECU 1 20A PCM/ECM
SENSOR 2 10AOxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON
COMP Relay)
Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay)Oil Control
Valve #1 (Intake), Oil Control Valve #2 (Exhaust)
SPARE 10A -
SPARE 10A -
SPARE 15A -
SPARE 20A -
Relay Name Type
ENGINE CONTROL RELAY PCB
A/CON COMP RELAY PCB
F/PUMP RELAY PCB

Maintenance
84 7

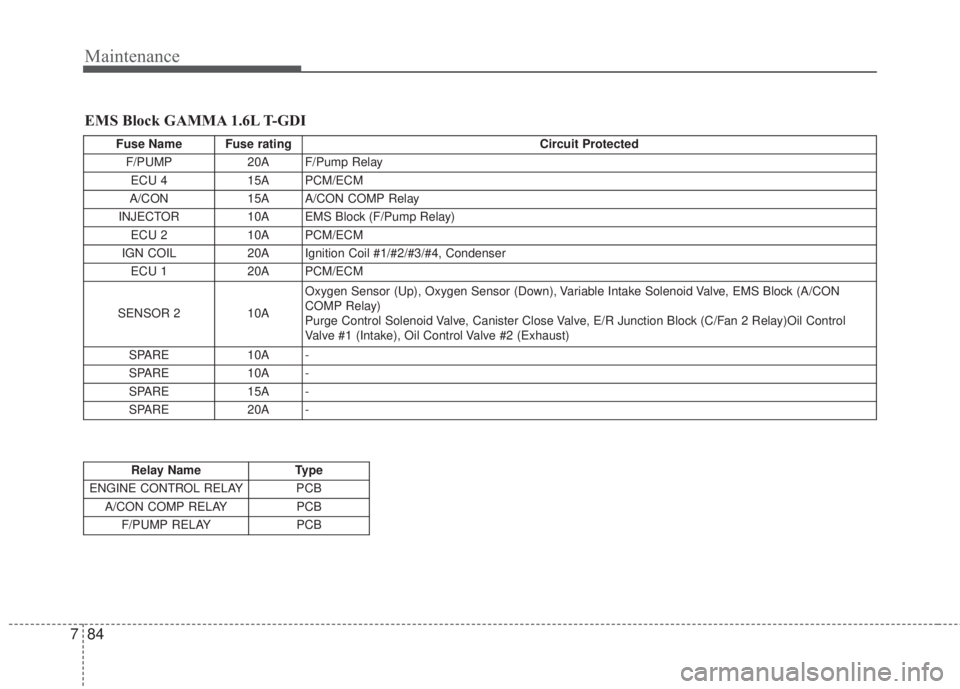

EMS Block GAMMA 1.6L T-GDI
Fuse Name Fuse rating Circuit Protected
F/PUMP 20A F/Pump Relay
ECU 4 15A PCM/ECM
A/CON 15A A/CON COMP Relay
INJECTOR 10A EMS Block (F/Pump Relay)
ECU 2 10A PCM/ECM
IGN COIL 20A Ignition Coil #1/#2/#3/#4, Condenser
ECU 1 20A PCM/ECM
SENSOR 2 10AOxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON
COMP Relay)
Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay)Oil Control
Valve #1 (Intake), Oil Control Valve #2 (Exhaust)
SPARE 10A -
SPARE 10A -
SPARE 15A -
SPARE 20A -
Relay Name Type
ENGINE CONTROL RELAY PCB
A/CON COMP RELAY PCB
F/PUMP RELAY PCB

Index
4I
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Emission control system . . . . . . . . . . . . . . . . . . . . . . . 7-108
Crankcase emission control system . . . . . . . . . . . . 7-108
Evaporative emission control (including ORVR :
Onboard Refueling Vapor Recovery) system. . . . 7-108
Exhaust emission control system . . . . . . . . . . . . . . 7-109
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6, 7-3
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Checking the coolant level . . . . . . . . . . . . . . . . . . . 7-38
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Changing the engine oil and filter . . . . . . . . . . . . . . 7-37
Checking the engine oil level . . . . . . . . . . . . . . . . . . 7-36
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Engine start/stop button position . . . . . . . . . . . . . . . . 5-8
Illuminated Engine start/stop button . . . . . . . . . . . . . 5-8
Explanation of scheduled maintenance items . . . . . . . 7-32
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-37
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-37
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Gasoline containing alcohol and methanol . . . . . . . . 1-3
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-69
Engine compartment fuse panel . . . . . . . . . . . . . . . . 7-75
Engine compartment fuse replacement . . . . . . . . . . 7-72
Engine room (Battery terminal cover) . . . . . . . . . . . 7-76
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-74
Instrument panel fuse replacement . . . . . . . . . . . . . 7-70
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
If the engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
If the engine will not start . . . . . . . . . . . . . . . . . . . . . . . 6-4
If engine turns over normally but does not start . . . . 6-4
If the engine doesn't turn over or turns over slowly . . 6-4
If you have a flat tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
