KIA K5 2023 Features and Functions Guide
Manufacturer: KIA, Model Year: 2023, Model line: K5, Model: KIA K5 2023Pages: 56, PDF Size: 4.98 MB
Page 31 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 29
Audio Controls†1 7
A
Audio System MODE button: Press to cycle through FM/AM/SiriusXM®*†1 8/Media modes
Audio System ON/OFF: Press to turn power on; Press and hold to turn power off
B Seek/Preset button:
FM/AM/SiriusXM® Modes: Press to advance through Preset Stations. Press and hold
to auto seek
Media Modes: Press to move track up/down. Press & hold to forward/rewind (except for
Bluetooth® Audio)
C Volume button: Press up/down to raise/lower volume
Mute button: Press to mute all audio (Media pauses in some Media modes when pressed)
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
Your vehicle’s steering wheel but tons may differ from those in the illustrations.
For more information, refer to the Owner ’s Manual or the Car Infotainment System Quick Reference Guide, depending your audio system. For other audio system information, refer to pages 30-36.
INFOTAINMENT SYSTEM
A
BC
INFOTAINMENT
SYSTEM
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Steering Wheel Controls Video
Star, Favorite & Radio Presets Buttons Video
QR CODE
Page 32 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED30K5 FEATURES & FUNCTIONS GUIDE
B
CD
Pairing a Phone
For instructions on how to pair a phone, refer to the Car Infotainment System Quick Reference Guide or your vehicle’s Quick Start Guide.
How to Place a Call Using Steering Wheel Controls
When using the voice command feature, wait for the system beep before speaking the command.
There are two options for placing a call:
•Option 1: Press the Receive/Place Call button C (displays the phone screen with call history)
•Option 2: Press the Talk button A. Then say the command “Call {name}” or “Dial {number}” followed by contact name or number
REMINDER: Bluetooth® Wireless Technology audio and calling functions are supported when connected to a Bluetooth® enabled device.
Your vehicle’s steering wheel but tons may differ from those in the illustrations. For more information, refer to the Car Infotainment System Quick Reference Guide.
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
For more information on the audio system, if equipped, refer to the Car Multimedia System User ’s Manual or the Car Infotainment System Quick Reference Guide. For Bluetooth® Wireless Technology FAQs, go to w w w.kia.com, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA . Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions.
Bluetooth® Wireless Technology†2 , 1 7
A
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system. Press and hold to exit voice recognition
Kia Connect with Navigation system* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Assist to use navigation guidance and search destinations
B
Volume button: Press up/down to raise/lower the speaker volume Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
C
Receive/Place Call button: Press to place/answer calls. If no phone is paired, press button to pair a phone
D End Call button: Press to end a call, reject an incoming call or cancel a function
A •The system can register or pair multiple Bluetooth® devices. See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•Phone book transfer upload time varies by phone model and with number of phone book entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
QUICK TIPS
During the pairing process, be sure to accept the connection requests on the phone for phone book download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP
When using the voice command feature, wait for the system BEEP before speaking the command.
QUICK TIP
INFOTAINMENT
SYSTEM
INFOTAINMENT SYSTEM
Page 33 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 31
Bluetooth® Wireless Technology*†2 , 1 7 (continued)
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names. Improve the per formance by making a few simple changes to your phone contacts, listed below. To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips.
•Use full names (first and last names) vs. short or single-syllable names (“John Smith” vs. “Dad,” “Smith Residence” vs. “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc.)
•Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs. “Dr. Smith”)
•The system may register or pair multiple Bluetooth® devices. See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•Close windows and sunroof and turn off A /C – open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODE
REMINDER: Bluetooth® Wireless Technology audio and calling functions are supported when connected to a Bluetooth® enabled device.
For more information, refer to the Car Infotainment System Quick Reference Guide or the Owner ’s Manual.
INFOTAINMENT SYSTEM
INFOTAINMENT
SYSTEM

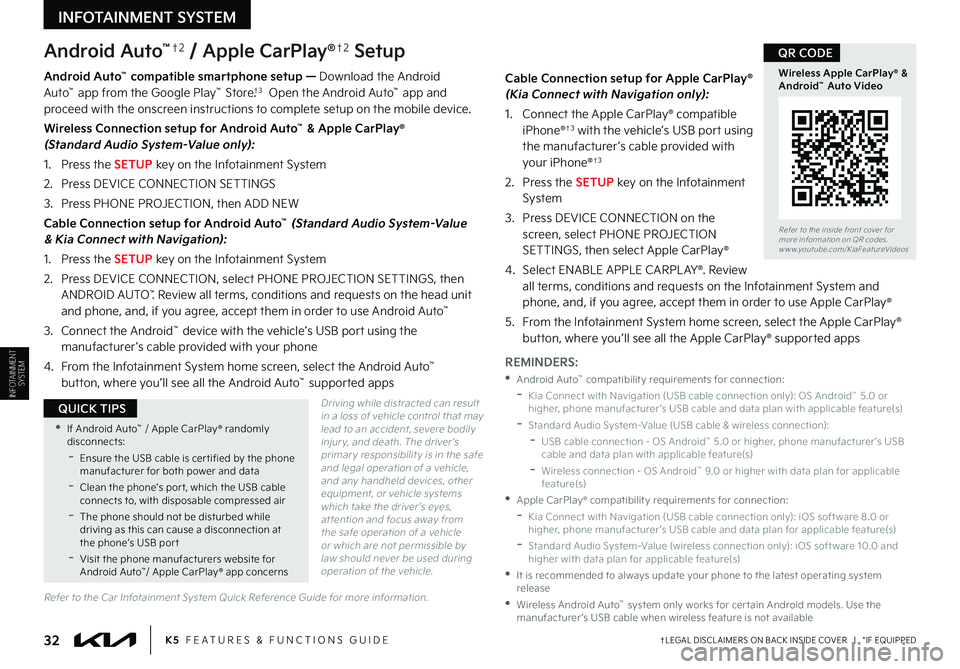

Page 34 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED32K5 FEATURES & FUNCTIONS GUIDE
Android Auto™†2 / Apple CarPlay®†2 Setup
Android Auto™ compatible smartphone setup — Download the Android Auto™ app from the Google Play™ Store.†3 Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device.
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System-Value only):
1. Press the SETUP key on the Infotainment System
2. Press DEVICE CONNECTION SETTINGS
3. Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System-Value & Kia Connect with Navigation):
1. Press the SETUP key on the Infotainment System
2. Press DEVICE CONNECTION, select PHONE PROJECTION SETTINGS, then ANDROID AUTO™. Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Android Auto™
3. Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4. From the Infotainment System home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
Cable Connection setup for Apple CarPlay® (Kia Connect with Navigation only):
1. Connect the Apple CarPlay® compatible iPhone®†3 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®†3
2. Press the SETUP key on the Infotainment System
3. Press DEVICE CONNECTION on the screen, select PHONE PROJECTION SETTINGS, then select Apple CarPlay®
4. Select ENABLE APPLE CARPL AY®. Review all terms, conditions and requests on the Infotainment System and phone, and, if you agree, accept them in order to use Apple CarPlay®
5. From the Infotainment System home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
•Android Auto™ compatibilit y requirements for connection:
-Kia Connect with Navigation (USB cable connection only): OS Android™ 5.0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-Standard Audio System-Value (USB cable & wireless connection):
-
USB cable connection - OS Android™ 5.0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-
Wireless connection - OS Android™ 9.0 or higher with data plan for applicable feature(s)
•Apple CarPlay® compatibilit y requirements for connection:
-Kia Connect with Navigation (USB cable connection only): iOS soft ware 8.0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
-
Standard Audio System-Value (wireless connection only): iOS soft ware 10.0 and higher with data plan for applicable feature(s)
•
It is recommended to always update your phone to the latest operating system release
•
Wireless Android Auto™ system only works for cer tain Android models. Use the manufacturer ’s USB cable when wireless feature is not available
Refer to the Car Infotainment System Quick Reference Guide for more information.
•If Android Auto™ / Apple CarPlay® randomly disconnects:
-Ensure the USB cable is cer tified by the phone manufacturer for both power and data
-
Clean the phone’s por t, which the USB cable connects to, with disposable compressed air
-
The phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
-
Visit the phone manufacturers website for Android Auto™/ Apple CarPlay® app concerns
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Wireless Apple CarPlay® & Android™ Auto Video
QR CODE
INFOTAINMENT
SYSTEM
INFOTAINMENT SYSTEM
Page 35 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 33
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
Standard Audio System - Value* — FM/AM/SiriusXM®†1 6/Media (USB, Bluetooth®†2 Audio, My Music)
Sound Settings: To adjust the sound settings:
1. Press the SETUP key on the Infotainment System or the onscreen MENU button, when in MEDIA mode.
2. Select the onscreen SOUND button, or SOUND SETTINGS
3.
Select the menu item (Position, Volume, Tone, Priority, Advanced, Default)
4.
Use the onscreen buttons to adjust settings. Press the return button to save settings
Presets: To Save a Preset, press and hold the desired slot. This saves the current station in the selected slot.
SiriusXM® Smart Favorites – In Radio mode, choose SiriusXM®, then select any of the first ten favorites, and during song or program play, tap the Skip Backward icon to start from the beginning of the song or
program. Tap the Play Live icon to return to the live broadcast.
Custom Key H: To program the Custom Key, press the SETUP button, then press the Custom Key H 4 F M F D U P O F P G U I F B W B J M B C M F G F B U V S F T Z P V X P V M E M J L F U I F $ V T U P N , F Z U P P Q F O
To Program the Custom Key: Press and hold the Custom key. Select one of the available features you would like the Custom key to open.
Software updates - To keep your software up to date, free of charge, visit the official Kia update webpage at https://update.kia.com. Note, visiting a dealer for software update may include an additional charge.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Standard Audio System – Value Video
Standard Audio System Updates Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•
Navigation may be available when connected to Android Auto™ or Apple CarPlay® suppor ted smartphones
•Prolonged use of the Infotainment System in ACC mode may drain the vehicle’s bat ter y
•This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
QUICK TIPS
RADIO< SEEK
MEDIATRACK >
SETUP
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or titlePress and hold to do the following:• FM/AM mode: Move quickly through all of the frequencies. When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to Power ON/OFF. Rotate to adjust Volume
Press to select FM/AM/SiriusXM® modes
Press to select MEDIA mode
A programmable key to provide quick access to one of several available system featuresPress to display SETUP/Set tings modeRotate to change Radio Station/Media tracks/ files. Press to select(System display)
Yo u r audio system may differ from those in the illustrations.
For fur ther system information, refer to the Car Infotainment System Quick Reference Guide. Fo r other audio system information, refer to pages 29-36.
INFOTAINMENT SYSTEM
INFOTAINMENT
SYSTEM
Page 36 of 56

Kia Connect Activation*†1 (Systems equipped with Kia Connect only):
Follow these steps to activate your Kia Connect system:
1. Enter the activation screen on your vehicle’s head unit:
a. Press SETUP key
b. Press Kia Connect icon
c. Press Activate Kia Connect
2. Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3. Enter number or email address to receive a verification code, then press SUBMIT
4. Follow these steps to receive your verification code using your phone text message or email:
a. Check your phone text message or email for verification code
b. Open the link in your text message or email. A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
c. Enter your first name, last name, email, phone number, and account password, and click CREATE ACCOUNT. A page will open displaying your verification code
d. Enter the code in the head unit and press ACTIVATE
e. Go back to the page with your verification code and press “I have entered my PIN.” A link will be provided to download the Kia Access app from your app store. After installing the app, log in and enjoy
REMINDER: This vehicle is not equipped with over-the-air system updates. Yo u can also download map updates for the navigation system by going to update.kia.com. Check for updates that are generally available t wice a year.
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts. See Kia Connect Terms of Ser vice at owners.kia.com for more information.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide.
Kia Connect Assistance*
Virtual Assistant A — Press to connect to a virtual assistant to hear information about the Kia Connect features
Kia Connect B (non-navigation systems) — Connect to the Kia Connect Call Center
Kia Connect Local Search B (systems with navigation) — Press to connect to the search function to find points of interest or other locations, like “cafe”
Roadside Assist C — Press to connect to a roadside assistant where you can request vehicle towing services(But tons on rear view mirror*. Kia Connect but ton may be located on the overhead console area)
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED34K5 FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Access app Video
Kia Connect Activation Video
Kia Connect Assistance Video
QR CODE
BCA
For more information, refer to the Car Infotainment System Quick Reference Guide.
INFOTAINMENT
SYSTEM
INFOTAINMENT SYSTEM
Page 37 of 56

ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 35
Kia Access App Download
Go to an app marketplace to download the new Kia Access App. Once you download, make sure you register your vehicle and start an account (refer to Kia Connect Activation page). Get to know your new Kia and the available convenient features on the app.
Kia Access App Features Guide. Click this dynamic QR code to access the guide. Some phone’s operating systems may need to be updated to scan dynamic QR codes.
Download the Kia Access App by clicking this dynamic QR code. Some phone’s operating systems may need to be updated to scan dynamic QR codes.
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
Kia Access App Features Guide
The Kia Access App Features Guide helps you utilize the app to its full potential by detailing each feature and how to adjust various settings. Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Climate
•Schedule Charge
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia Access App Screen for illustrative purposes only. Actual App screen and functionalit y may var y.
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide.
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts.
See Kia Connect Terms of Ser vice at owners.kia.com for more information.
Do not use remote climate control or remote star t if vehicle is in an enclosed area (e.g., closed garage) or a par tially enclosed area without ventilation. Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote star t command.
QR CODES
•The smar tphone and vehicle need to be connected to a cellular net work with good wireless signal strength in order to use Kia Connect. If these conditions are not met, remote command may not execute or takes a long time. It will also effect voice commands
•
To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
Activate Remote Star t or Remote Star t with Climate Control feature at least 10 minutes before get ting into the vehicle, which will allow vehicle interior to reach a desired temperature. If the driver does not enter the vehicle within the 10 minutes, the Remote Star t will turn off the engine
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, Kia Connect will not turn on seven days after the last ignition was on. You will need to restar t the vehicle with a key fob in order to use Kia Connect again
QUICK TIPS
INFOTAINMENT SYSTEM
INFOTAINMENT
SYSTEM
Page 38 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED36K5 FEATURES & FUNCTIONS GUIDE
Kia Connect†1 with Navigation*†8 - FM/AM/SiriusXM®†1 6/Media (USB, Aux, Bluetooth®†2 Au d io)
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
Your vehicle’s audio system may differ from that in the illustration.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Connect with Navigation Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•At any time, you can interrupt Kia Connect Command Feedback by pressing the TALK but ton on the steering wheel
•Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y. A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
QUICK TIPS
Press to display the MAP screen for the current position mode
Press to select navigation mode
MAP< SEEKMEDIARADIO
N AVTRACK >
SETUP
Press briefly to do the following: • FM/AM mode: Play the previous/next frequency • SiriusXM™ mode: Change the channel • MEDIA mode: Change the track, file or title Press and hold to the do the following (over 0.8 seconds): • FM/AM mode: Move quickly through all of the frequencies. W h e n r e l e a s e d , t h e s y s t e m s e e k s t h e n e x t a v a i l a b l e f r e q u e n c y• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to toggle bet ween AM, FM, and SiriusXM® modes
Press to display the media selection window
Press to Power ON/OFF. Rotate to adjust Volume
A programmable key to provide quick access to one of several available system features
• Displays the Set tings screen. Press & hold to show SW Info/Update screenSound Settings: To adjust the audio system sound settings:
1. Press the SETUP key on the Infotainment System or the on-screen MENU button, when in MEDIA mode. Select the on-screen SOUND button
2.
Select the menu item (Position, Volume, Tone, Priority, Navigation Volume, Advanced, Reset)
3. Use the on-screen buttons to adjust settings
Radio Presets: To save a preset, press and hold the desired slot. This saves the current station in the selected slot.
SiriusXM™ Smart Favorites: In Radio mode, choose SiriusXM™, then select any of the first ten favorites, and during song or program play, tap the Skip Backward icon to start from the beginning of the song or program. Tap the Play Live icon to return to the live broadcast.
Custom Key H To program the Custom Key, press and hold the Custom Key, then select one of the available features you would like the Custom Key to open.
Map/software updates - To keep your map and software up to date, visit the official Kia update webpage at https://update.kia.com. Note, visiting a dealer for software update may include an additional charge.
System reset
Navigation System Important Tips Video
Navigation System Updates Video
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts. See Kia Connect Terms of Ser vice at owners.kia.com for more information.
INFOTAINMENT
SYSTEM
INFOTAINMENT SYSTEM
Page 39 of 56

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 37
CENTER PANEL
REMINDERS:
•
Using the power outlet (accessor y plug) for prolonged periods of time with the Engine Star t/Stop but ton in the ACC position (Engine OFF) and AC Inver ter for prolonged periods of time with the Engine Star t/Stop but ton in the IGN Position (Engine OFF) could cause the bat ter y to discharge
•
Kia recommends that you only use USB cables made by your device’s manufacturer. Third-par t y USB cables may cause damage to your device
•
The USB data por t (Multimedia USB por t) is located near the Power Outlets. The USB Charger por ts do not suppor t data transfer
•
The Multimedia USB Por t in the center panel charges slower than the USB Charger Por ts throughout the vehicle
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: When needed, Daylight Savings must be enabled in the Clock Set tings screen.
For more information, refer to the Car Infotainment System Quick Reference Guide.
The power outlets are inactive when ignition is in the OFF position.
QUICK TIP
REMINDER: The USB Charger Por ts do not suppor t data transfer.
Refer to section 4 in the Owner ’s Manual for more information.
For illustrative purposes only. Your actual display, but tons and/or features may var y.
A Multimedia USB Port: Use the Multimedia USB Port to connect USB audio and smartphone devices
B Power Outlet: Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max) power outlet
Digital Clock (Infotainment System)
Press the SETUP key, then select General. Press the onscreen Date/Time button to enter the clock settings. Then use the onscreen buttons to navigate through setup. To access the manual date and time setting, turn GPS time OFF in the Clock Settings (Kia Connect with Navigation*).
Multimedia USB Port & Power OutletsUSB Charger Ports*
The USB Charger Ports are located on the Center Panel and inside the Center Console C and on the rear of the Center Console D.
12VUSB180W
AUTO
OFF SYNC
FRONT
REAR
180W12V
180W12V
C
C
BA
D
CENTERPANEL
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Multimedia USB Port, Power Outlets & USB Charger Port Video
QR CODE
Page 40 of 56

*IF EQUIPPED38K5 FEATURES & FUNCTIONS GUIDE
•If the AUTO STOP indicator A is solid yellow, the system is functional, but just has not met all its enabling criteria to activate ISG at that time.
•
The ISG system is disabled when:
•A seat belt is unfastened
•The hood or a door is opened
•Bat ter y condition is poor
•
The front or rear defroster is turned on
•
Engine coolant temperature is low
•
The outside ambient temperature is too low/high
•
Emission control devices activate
•
The vehicle is on a steep slope
QUICK TIPS
CENTER PANEL
Idle, Stop & Go (ISG) System*
The ISG system is designed to reduce fuel consumption by automatically shutting down the engine when the vehicle is at a standstill.
When the ISG system is ON and the vehicle is at a standstill, the engine will stop, and the green AUTO STOP indicator A on the instrument cluster will illuminate.
The engine will restart when the brake pedal is released or the shift lever is moved from D (Drive) to the R (Reverse) position or to Manual Shift mode. When engine restarts, the green AUTO STOP indicator on the instrument cluster will turn off.
To deactivate the ISG System, press the ISG OFF button B. If you press again, the system will be activated.
REMINDERS:
•ISG is active by default at vehicle star tup. When ignition is cycled, ISG will turn ON again
•
Under cer tain conditions, the engine will restar t automatically even if the brake pedal is still depressed
•
If the AUTO STOP indicator is continuously blinking yellow and the ISG but ton LED is on, please contact an authorized Kia dealer
Images are for illustrative purposes only and may not reflect actual feature or operation.
Refer to section 5 in the Owner ’s Manual for more information.
0
20
40 60
80
100
120
140
160
180
200
220
240
260
0
1 2
3
4
5
6
7
8km/h
EPB
C H
x1000rpm
0
20 40
60
80
100
120
1 40
1 60
E
F
MPH
AUTO
HOLD
DRIVE
MODE
OFF
SHIFT
LOCK
RELEASE
P
R
N D
+
_
(But ton on center console below gear shift)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Idle, Stop & Go Video
QR CODE
A
B
CENTERPANEL
