KIA K5 2023 Features and Functions Guide
Manufacturer: KIA, Model Year: 2023, Model line: K5, Model: KIA K5 2023Pages: 56, PDF Size: 4.98 MB
Page 51 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 49
OTHER KEY FEATURES
OTHER KEY FEATURES
Trunk Release Buttons
Press the button A to unlock the Trunk (located to the left of the steering wheel).
With the Trunk unlocked, press the exterior Trunk Release button B (located underneath the Trunk lid) and pull the Trunk lid up by the handle to open.
Smart Trunk with Auto Open†1 1
When the Smart Key fob is on your person and you are within close proximity of the back of the vehicle, the hazard warning lights will blink and a chime will sound for about 3 seconds as an alert that the Smart Trunk is about to open.
Then the alert system will blink and chime two additional times before opening the Smart Trunk.
The Smart Trunk feature is OFF by default. To enable the Smart Trunk, go to User Settings in the LCD Instrument Cluster modes or Vehicle Settings* in the Infotainment System (vehicles with Navigation).
HOLD
HOLD
HOLD
A
B
•The Trunk must be unlocked before it can be opened by the Trunk Release But ton
•Smar t Key - The Trunk unlocks automatically, can then be opened manually, (tail lights flash t wo times), and automatically locks when closed (tail lights flash one time), when the Smar t Key fob is within close proximit y to the vehicle
QUICK TIPS
During the Smar t Trunk aler t, the Smar t Power Trunk can be deactivated with the Smar t Key by pressing any but ton on the key fob.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information.
REMINDERS:
•When closing, be mindful of any objects or persons
•
The Smar t Key must be outside of the vehicle for the Smar t Power Trunk to operate
•All doors are closed and locked after about 15 seconds
•
The Smar t Trunk feature will not operate when the doors are recently closed and locked, and the Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed, or the Smar t Key is in the vehicle
•
Press any but ton on the Smar t Key fob during the Detect and Aler t stage to deactivate the Smar t Power Trunk function
•
When the ignition is on, the Smar t Trunk will only operate with the gear shift in the Park (P) position
•Ensure obstacles and people are out of the way of the Smar t Trunk
REMINDER: When closing, be mindful of any objects or persons.OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Liftgate Buttons and Operation Video
Manual Liftgate & Key Fob Controls Video
QR CODE
Refer to section 4 in the Owner ’s Manual for more information.
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Page 52 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED50K5 FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
(Located on Driver side kick panel)(Located inside of Hood’s center)
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press down to securely lock in place.
Sunvisor†1 8
Use the Sunvisor to shield direct light through the front or side windows. Slide the Sunvisor out and adjust as needed.
REMINDERS:
•The Sunvisor may impair visibilit y if not adjusted properly
•Sunvisor may not shield all direct light
•
Do not operate the vehicle if Sunvisor is impairing your visibilit y
•
Be aware of your seating position when adjusting or swinging Sunvisor around from the front or side windows
Refer to section 4 in the Owner ’s Manual for more information.
REMINDERS:
•
While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in the P (Park) position and set ting the parking brake
Refer to section 4 in the Owner ’s Manual for more information.
A
B
OTHER KEY FEATURES
Page 53 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 51
D
The seat belt warning chime operates for driver ’s seat only.
QUICK TIP
PRESS
Occupant Detection System (ODS)†9 /
Passenger Airbag Off Indicator†1 4
ODS is designed to detect the presence and position of the front passenger and adjusts or turns off airbag deployment accordingly.
Depending on the situation and type of accident, the system may:
•Deploy the airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the “PASSENGER AIR BAG OFF” light will illuminate.
Seat Belts†1 4
To properly fasten your safety belts:
1.
Insert the belt tongue plate A into the buckle B until it clicks
2.
Position the lap portion of the belt across your lap as LOW ON THE HIPS as possible C. Adjust the belt to a SNUG FIT by pulling up on the shoulder portion D
Seat Belt Retractor Locks †1 4
Retractor locks allow lap/shoulder safety belts to remain unlocked during normal vehicle operation for freedom of movement and increased comfort.
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat belt retractors will automatically lock the belts to help reduce the risk of injury.
Refer to section 3 in the Owner ’s Manual for more information.
PASSENGER
AIR BAGOFFPASSENGERAIR BAGOFF
C
A
B
REMINDER: For maximum protection, always wear your Seat Belt.
REMINDER: Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash. The driver must instruct the passenger to reposition her/himself in the seat.
For illustrative purposes only. Your actual display, but tons and/or features may var y. Refer to section 3 in the Owner ’s Manual for more information.
Child-Protector Rear Door Locks (Manual)*
Locate these locks on the rear edge of the rear passenger doors. Turn the Child-Protector Rear Door Lock to the LOCK position to disable the inner door handles from opening the rear doors.
REMINDER: Child-Protector Rear Door Locks are located on rear passenger ’s door jamb.
Refer to the Owner ’s Manual for more information. SAFETY FEATURES
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
LATCH Anchors for the Child Restraint System Video
QR CODE
Page 54 of 56

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED52K5 FEATURES & FUNCTIONS GUIDE

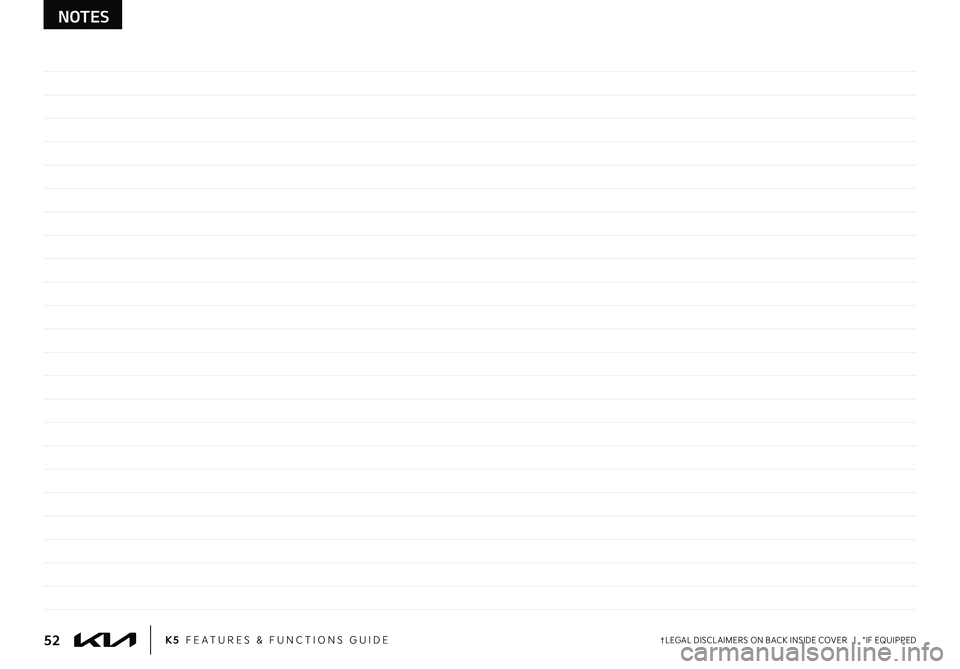

NOTES
Page 55 of 56

LEGAL DISCLAIMERS
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.11. Kia Connect: Purchase/lease of certain 2022 and newer Kia vehicles with Kia Connect includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year Kia Connect subscription expires, continued access to the full suite of Kia Connect services available on your Kia will require a paid subscription at the then-current subscription rate or your use of certain Kia Connect features may immediately terminate. Use of Kia Connect is subject to agreement to the Kia Connect Privacy Policy (available at owners.kia.com/us/en/privacy-policy.html) and Terms of Service (available at owners.kia.com/us/en/terms-of-service.html). Complimentary Kia Connect subscription is transferable to subsequent owner during the original Kia Connect service term. Only use Kia Connect when safe to do so. Kia Connect may currently be unavailable for Model Year 2022 and newer vehicles sold or purchased in Massachusetts; please see the Kia Owners Portal for updates on availability. Kia Access app is available from the Apple® App Store® or Google Play Store™. Kia America, Inc. reserves the right to change or discontinue Kia Connect at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. Kia Connect features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit www.kia.com or your authorized Kia dealer. Apple® and App Store® are registered trademarks of Apple Inc. Google™ and its logos are trademarks of Google LLC.
12. Android Auto™, Apple CarPlay®, Bluetooth® Wireless Technology, Google Play™ Store, iPhone, SiriusXM®, Sportmatic®, HomeLink®: Fair Use of Trademark – The commentary reference to trademarked material is for educational purposes only and not an endorsement by or of the holder of the mark.
13. Driver Assist Features – Highway Driving Assist (HDA), Safe Exit Assist (SEA), Blind-Spot Collision-Avoidance Assist (BCA), Rear Cross-Traffic Collision-Avoidance Assist (RCCA), Forward Collision-Avoidance Assist (FCA), Lane Keeping Assist (LKA), Lane Following Assist (LFA), Surround View Monitor (SVM), Rear View Monitor (RVM), Forward/Reverse Parking Distance Warning (PDW), Smart Cruise Control (SCC), Navigation-based Smart Cruise Control (NSCC), Leading Vehicle Departure Alert (LVDA), Parking Collision-Avoidance Assist-Rear (PCA-R): These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.
14. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
15. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
16. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.
17. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
18. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
19. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
10.
Rear Occupant Alert with Door Monitoring: When engaged, ROA with Door Monitoring is not a substitute for one’s attention. Always check the vehicle interior when exiting the vehicle.
11. Smart Trunk with Auto Open: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.
12. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.
13. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.
14.
Seat belts/Airbags: For maximum protection, always wear your seatbelt.
15. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.
16. SiriusXM®: SiriusXM® Satellite Radio, SiriusXM® Traffic and SiriusXM® Travel Link each require a subscription sold separately, or as a package, by SiriusXM® Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM® Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM®. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM® is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM® satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM® Internet Radio service is available throughout our satellite service area and in AK and HI. ©2022 SiriusXM® Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM® Radio Inc.
17. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.
18. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.
19. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
2 0 . Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.
21. The myQ logo is a registered trademark of The Chamberlain Group, Inc.
Page 56 of 56

(up to 80,000 miles)AMAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS8,00016,00024,00032,00040,00048,00056,00064,00072,00080,000
Add fuel additiveCPPPPPPPPPP
Rotate tiresPPPPPPPPPP
Engine oil and filter (Full Synthetic Oil)DRRRRRRRRRR
Climate control air filterIRIRIRIRIR
Air cleaner filterIIRIIRIIRI
Brake fluidIIIIIRIIII
Brake lines, hoses and connectionsIIIIIIIIII
Brake discs and padsIIIIIIIIII
Vacuum hoseIIIIIIIIII
Steering gear rack, linkage & bootsIIIIIIIIII
Suspension ball jointsIIIIIIIIII
Air conditioner compressor/refrigerantIIIIIIIIII
Exhaust systemIIIIIIIIII
Intercooler, in/out hose, air intake hoseIIIIIIIIII
Driveshaft and bootsIIIII
Propeller shaft AWDIIIII
Fuel tank air filter/fuel tank and cap ‡EIIIII
Cooling SystemIIII
Drive belts (First 48,000 miles, then ever y 15,000 miles)FIIIII
Dual clutch transmission fluidII
Differential oil (rear) (AWD)II
Spark Plugs (Ever y 48,000 miles)R
Transfer case oil (AWD)GI
P=Per form R=Replace I=InspectB
A . See the Owner ’s Manual for complete maintenance schedule. These are approximate estimated inter vals. Refer to vehicle mileage for maintenance item scheduleB. And, if necessar y, adjust, correct, clean or replace C . If TOP TIER detergent gasoline is not available, one bot tle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additivesD. Check the engine oil level and leaks when stopping for fuel or before star ting a long trip. As it is normal for engine oil to be consumed during driving, the engine oil level should be checked on regular basis. The engine oil change inter val for normal operating conditions is based on the use of the recommended engine specification. If the recommended engine oil specification is not used, then replace the engine oil according to the maintenance schedule under severe operating conditions
E. Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel qualit y being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficult y star ting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for ser vice.F. The drive belt should be replaced when cracks occur or tension is reduced excessivelyG. Transfer case oil and rear differential oil should be changed any time they have been submerged in water
See your Owner ’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warrant y may be voided if maintenance schedule is not followed.
K5 NORMAL MAINTENANCE SCHEDULE TURBO
Check your Maintenance Schedule or schedule an appointment with a dealer using your Kia Connect account by logging into your Kia Access or your account on https://owners.kia.com/ (Vehicles equipped with Kia Connect only – See page 34 for setup information)
QUICK TIP
©2022 Kia Motors America, Inc. All rights reserved.
Consumer - Roadside Assistance†12: 1-800-333-4KIA (4542)
Part Number: DL230-PS-004
‡ If equipped
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Full Synthetic Oil Video
QR CODES
†LEGAL DISCL AIMERS ON BACK INSIDE COVER
