KIA K900 2015 1.G Owner's Manual

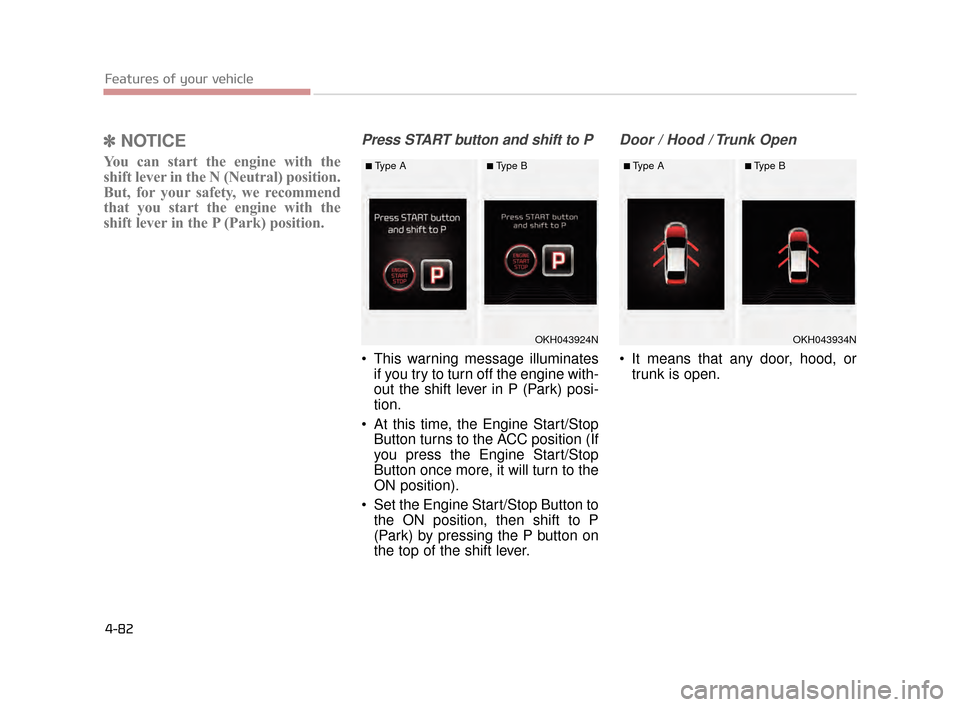

Features of your vehicle
4-82
✽NOTICE
You can start the engine with the
shift lever in the N (Neutral) position.
But, for your safety, we recommend
that you start the engine with the
shift lever in the P (Park) position.
Press START button and shift to P
This warning message illuminates
if you try to turn off the engine with-
out the shift lever in P (Park) posi-
tion.
At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to the
ON position).
Set the Engine Start/Stop Button to the ON position, then shift to P
(Park) by pressing the P button on
the top of the shift lever.
Door / Hood / Trunk Open
It means that any door, hood, ortrunk is open.
OKH043924N
■Type A■Type B
OKH043934N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:40 AM Page 82

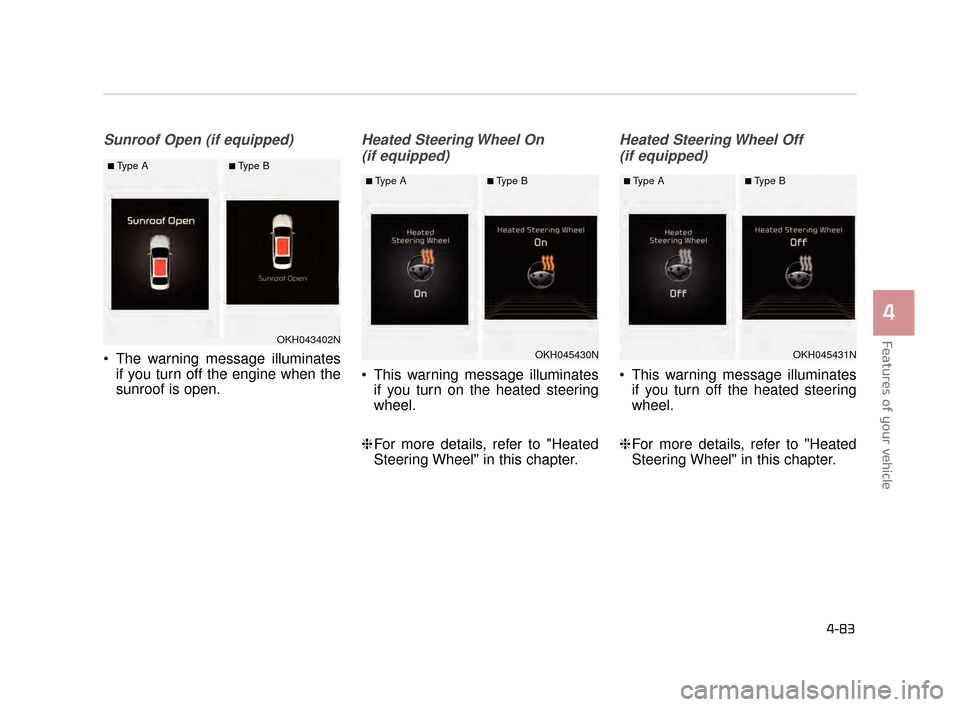

Features of your vehicle
4
4-83
Sunroof Open (if equipped)
The warning message illuminatesif you turn off the engine when the
sunroof is open.
Heated Steering Wheel On
(if equipped)
This warning message illuminates if you turn on the heated steering
wheel.
❈ For more details, refer to "Heated
Steering Wheel" in this chapter.
Heated Steering Wheel Off
(if equipped)
This warning message illuminates if you turn off the heated steering
wheel.
❈ For more details, refer to "Heated
Steering Wheel" in this chapter.
OKH043402N
■Type A■Type B
OKH045430N
■Type A■Type B
OKH045431N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:40 AM Page 83

Features of your vehicle
4-84
Turn on "FUSE SWITCH"
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
❈ For more details, refer to “Fuses” in
chapter 7.
Low Tire Pressure
This warning message illuminates
if the tire pressure is low with the
Engine Start/Stop button in ON
position.
❈ For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
Align steering wheel
This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the steering wheel and make the angle
of the steering wheel be less than
30 degrees.
OKH043937N
■Type A■Type B
OKH043938N
■Type A■Type B
OKH045415N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 84

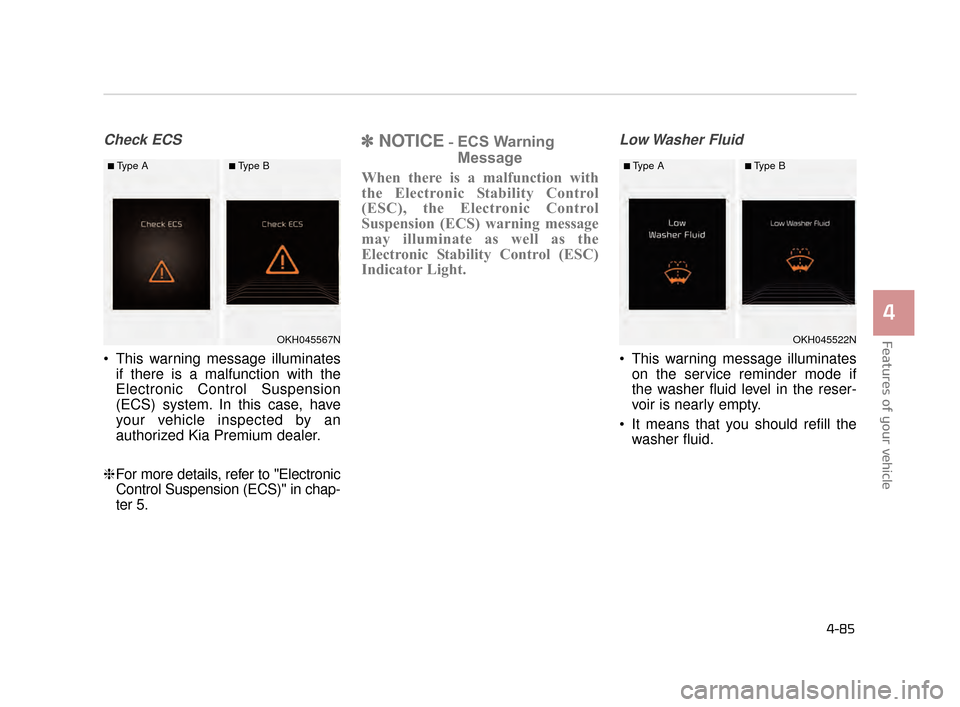

Features of your vehicle
4
4-85
Check ECS
This warning message illuminatesif there is a malfunction with the
Electronic Control Suspension
(ECS) system. In this case, have
your vehicle inspected by an
authorized Kia Premium dealer.
❈ For more details, refer to "Electronic
Control Suspension (ECS)" in chap-
ter 5.
✽ NOTICE- ECS Warning
Message
When there is a malfunction with
the Electronic Stability Control
(ESC), the Electronic Control
Suspension (ECS) warning message
may illuminate as well as the
Electronic Stability Control (ESC)
Indicator Light.Low Washer Fluid
This warning message illuminates on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the washer fluid.
OKH045567N
■Type A■Type B
OKH045522N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 85

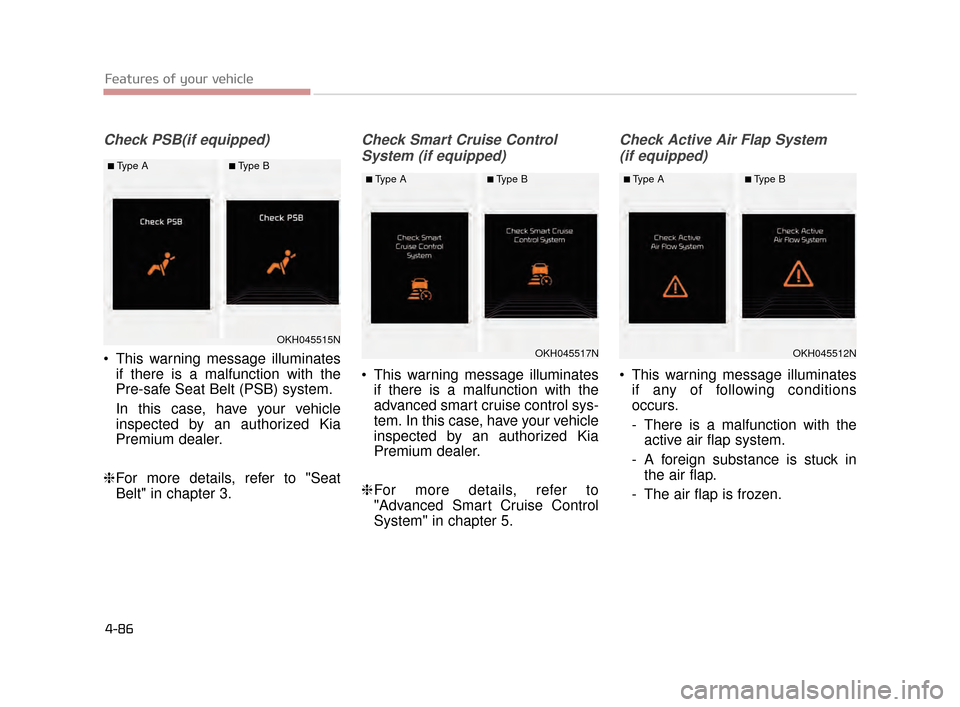

Check PSB(if equipped)
This warning message illuminatesif there is a malfunction with the
Pre-safe Seat Belt (PSB) system.
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
❈ For more details, refer to "Seat
Belt" in chapter 3.
Check Smart Cruise Control
System (if equipped)
This warning message illuminates if there is a malfunction with the
advanced smart cruise control sys-
tem. In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
❈ For more details, refer to
"Advanced Smart Cruise Control
System" in chapter 5.
Check Active Air Flap System
(if equipped)
This warning message illuminates if any of following conditions
occurs.
- There is a malfunction with theactive air flap system.
- A foreign substance is stuck in the air flap.
- The air flap is frozen.
Features of your vehicle
4-86
OKH045515N
■Type A■Type B
OKH045517N
■Type A■Type B
OKH045512N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 86

✽NOTICE
The warning message "Check
Active Air Flap System" may not be
displayed immediately in colder cli-
mates.
Check AEB system
(if equipped)
This warning message illuminates if the sensor or cover is dirty or
obscured with foreign matter such
as snow. Clean the sensor or cover
by using a soft cloth.
This warning message illuminates if there is a malfunction with the
Autonomous Emergency Braking
(AEB) system. In this case, have
your vehicle inspected by an
authorized Kia Premium dealer.
❈ For more details, refer to
"Autonomous Emergency Braking
(AEB) System" in chapter 5.
Low Fuel
This warning message illuminates
if the fuel tank is nearly empty.
- When the low fuel level warninglight is illuminates.
- When the trip computer displays “--- km(or mile)” as distance to
empty.
Add fuel as soon as possible.
Features of your vehicle
4
4-87
OKH045518N
■Type A■Type B
OKH045543N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 87

Check high beam assist system(if equipped)
This warning message illuminates if
there is a malfunction with the head-
lamp. In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
Features of your vehicle
4-88
OKH045520N
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 88

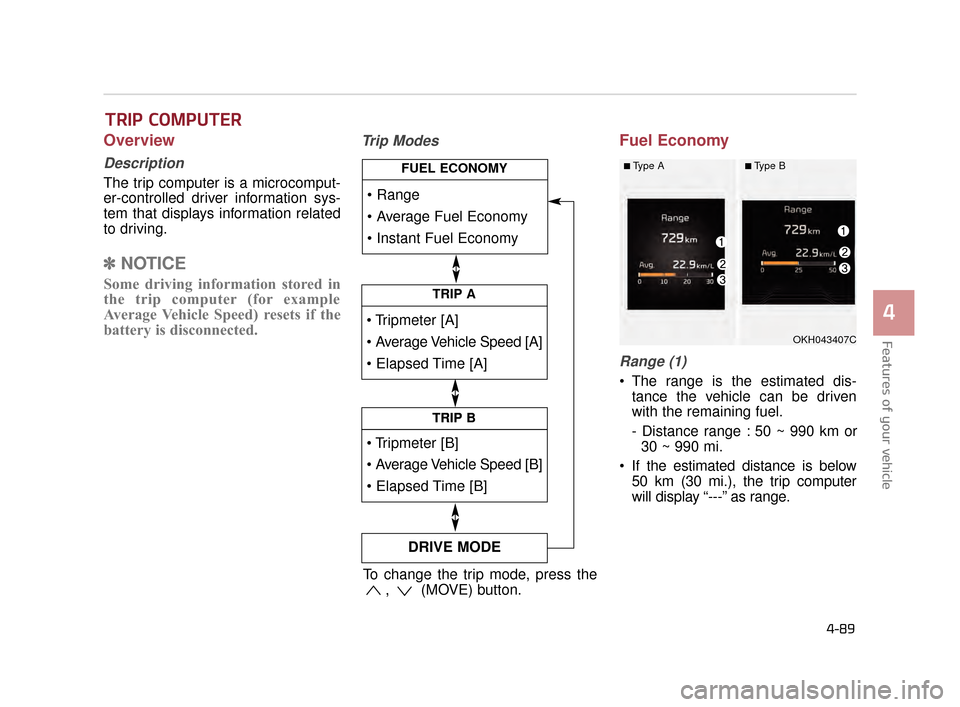

Features of your vehicle
4
4-89
Overview
Description
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
✽NOTICE
Some driving information stored in
the trip computer (for example
Average Vehicle Speed) resets if the
battery is disconnected.
Trip ModesFuel Economy
Range (1)
The range is the estimated dis-
tance the vehicle can be driven
with the remaining fuel.
- Distance range : 50 ~ 990 km or30 ~ 990 mi.
If the estimated distance is below 50 km (30 mi.), the trip computer
will display “---” as range.
TRIP COMPUTER
To change the trip mode, press the , (MOVE) button.
OKH043407C
■Type A■Type B



TRIP A



TRIP B
DRIVE MODE
TRIP B



FUEL ECONOMY
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 89

Features of your vehicle
4-90
✽NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the range function
may not operate correctly.
• The range may differ from the actual driving distance as it is an
estimate of the available driving
distance.
• The trip computer may not register additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
• The fuel economy and range may vary significantly based on driving
conditions, driving habits, and con-
dition of the vehicle.
Average Fuel Economy (2)
The average fuel economy is calcu-
lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9L/100km or MPG
The average fuel economy can be reset both manually and automati-
cally.
Manual reset
To clear the average fuel economy
manually, press the OK (RESET) but-
ton on the steering wheel for more
than 1 second when the average fuel
economy is displayed. Automatic reset
To make the average fuel economy
be reset automatically whenever refu-
eling, select the “Auto Reset” mode in
User Setting menu of the LCD display
(Refer to “LCD Display”).
Under “Auto Reset” mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling more
than 6 liters (1.6 gallons).
✽
NOTICE
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more
than 300 meters (0.19 miles) since
the Engine Start/Stop button is
turned to ON.
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 90

Features of your vehicle
4
4-91
Instant Fuel Economy (3)
This mode displays the instant fueleconomy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range : 0 ~ 20L/100km or 0 ~ 30 MPG
Trip A/B
Tripmeter (1)
The tripmeter is the total driving dis-tance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
To reset the tripmeter, press the OK (RESET) button on the steering
wheel for more than 1 second
when the tripmeter is displayed.
Average Vehicle Speed (2)
The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range: 0 ~ 999 km/h or MPH
To reset the average vehicle speed, press the OK (RESET) button on
the steering wheel for more than 1
second when the average vehicle
speed is displayed.
✽ NOTICE
• The average vehicle speed is not dis-
played if the driving distance is less
than 300 meters (0.19 miles) since
the Engine Start/Stop button is
turned to ON.
• Even if the vehicle is not in motion, the average vehicle speed keeps
going while the engine is running.OKH043408C
■Type A■Type B
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 91
