keyless entry KIA K900 2015 1.G Owner's Manual

Features of your vehicle
4
4-7

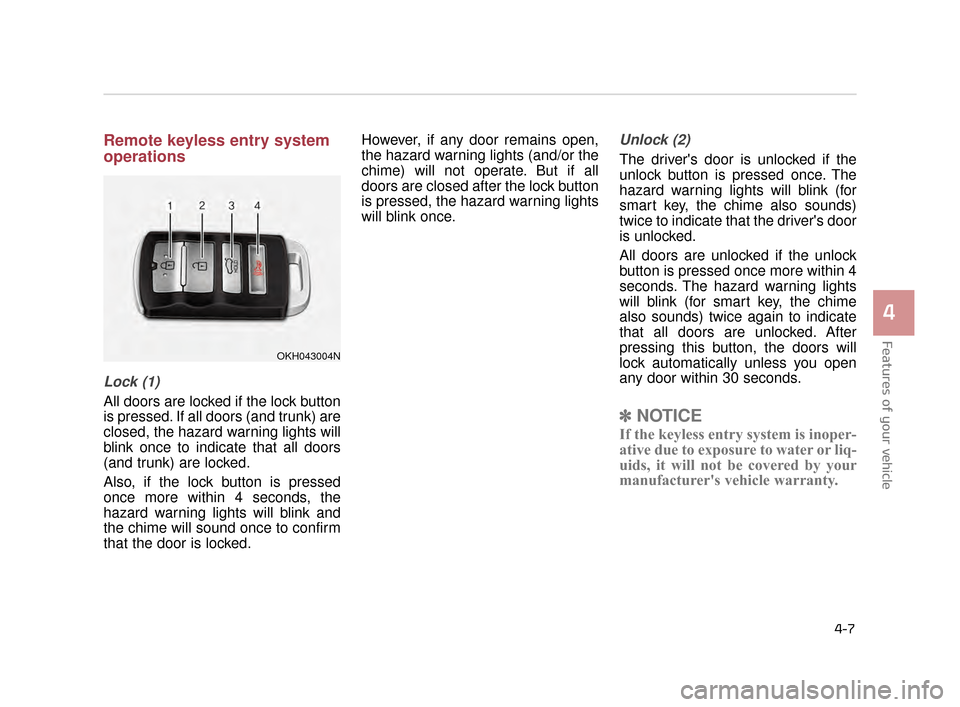

Remote keyless entry system
operations
Lock (1)
All doors are locked if the lock button
is pressed. If all doors (and trunk) are
closed, the hazard warning lights will
blink once to indicate that all doors
(and trunk) are locked.
Also, if the lock button is pressed
once more within 4 seconds, the
hazard warning lights will blink and
the chime will sound once to confirm
that the door is locked.However, if any door remains open,
the hazard warning lights (and/or the
chime) will not operate. But if all
doors are closed after the lock button
is pressed, the hazard warning lights
will blink once.
Unlock (2)
The driver's door is unlocked if the
unlock button is pressed once. The
hazard warning lights will blink (for
smart key, the chime also sounds)
twice to indicate that the driver's door
is unlocked.
All doors are unlocked if the unlock
button is pressed once more within 4
seconds. The hazard warning lights
will blink (for smart key, the chime
also sounds) twice again to indicate
that all doors are unlocked. After
pressing this button, the doors will
lock automatically unless you open
any door within 30 seconds.
✽
NOTICE
If the keyless entry system is inoper-
ative due to exposure to water or liq-
uids, it will not be covered by your
manufacturer's vehicle warranty.
OKH043004N
KH CAN (ENG) 4:2015 3/26/2015 10:36 AM Page 7

Features of your vehicle
4-8

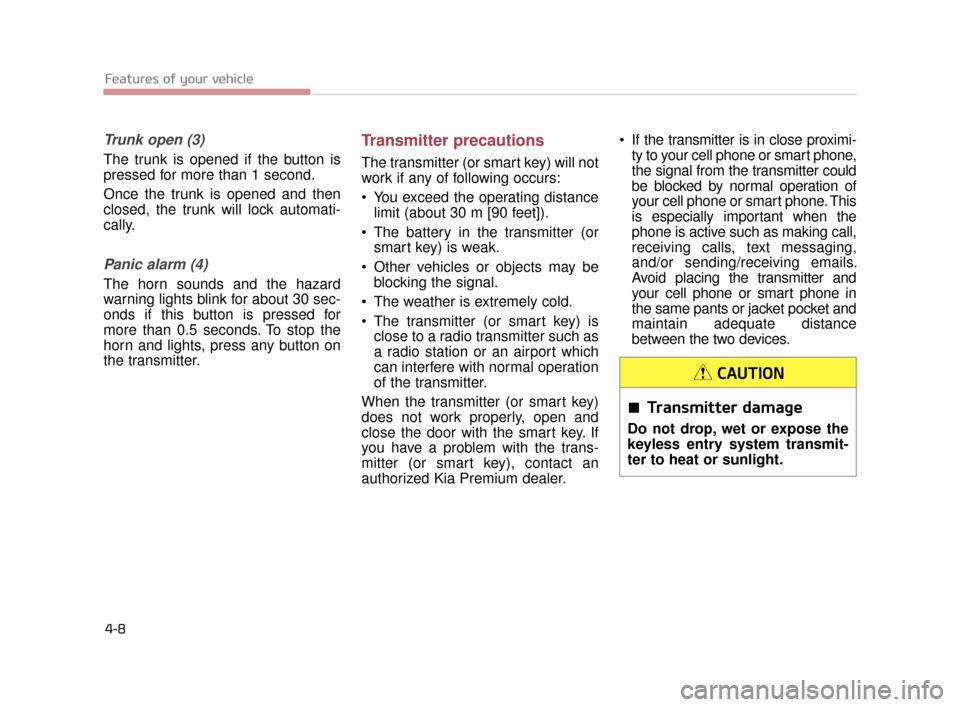

Trunk open (3)
The trunk is opened if the button is
pressed for more than 1 second.
Once the trunk is opened and then
closed, the trunk will lock automati-
cally.
Panic alarm (4)
The horn sounds and the hazard
warning lights blink for about 30 sec-
onds if this button is pressed for
more than 0.5 seconds. To stop the
horn and lights, press any button on
the transmitter.
Transmitter precautions
The transmitter (or smart key) will not
work if any of following occurs:
You exceed the operating distancelimit (about 30 m [90 feet]).
The battery in the transmitter (or smart key) is weak.
Other vehicles or objects may be blocking the signal.
The weather is extremely cold.
The transmitter (or smart key) is close to a radio transmitter such as
a radio station or an airport which
can interfere with normal operation
of the transmitter.
When the transmitter (or smart key)
does not work properly, open and
close the door with the smart key. If
you have a problem with the trans-
mitter (or smart key), contact an
authorized Kia Premium dealer. If the transmitter is in close proximi-
ty to your cell phone or smart phone,
the signal from the transmitter could
be blocked by normal operation of
your cell phone or smart phone. This
is especially important when the
phone is active such as making call,
receiving calls, text messaging,
and/or sending/receiving emails.
Avoid placing the transmitter and
your cell phone or smart phone in
the same pants or jacket pocket and
maintain adequate distance
between the two devices.
Transmitter damage
Do not drop, wet or expose the
keyless entry system transmit-
ter to heat or sunlight.
CAUTION
KH CAN (ENG) 4:2015 3/26/2015 10:36 AM Page 8

Features of your vehicle
4
4-9
This device complies with
Industry Canada Standard
RSS-210.
Operation is subject to the following
two conditions:
1.This device may not cause harmfulinterference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
✽ NOTICE
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to changes
or modifications not expressly
approved by the party responsible
for compliance, it will not be cov-
ered by your manufacturer’s vehicle
warranty.
Battery replacement
Conventional smart key
A battery should last for several
years, but if the smart key is not work-
ing properly, try replacing the battery
with a new one. If you are unsure how
to use or replace the battery, contact
an authorized Kia Premium dealer.
1. Pry open the smart key center cover.
2.Replace the battery with a newbattery (CR2032). When replacing
the battery, make sure the battery
position.
3.Install the battery in the reverse order of removal.
OKH043006N
KH CAN (ENG) 4:2015 3/26/2015 10:36 AM Page 9

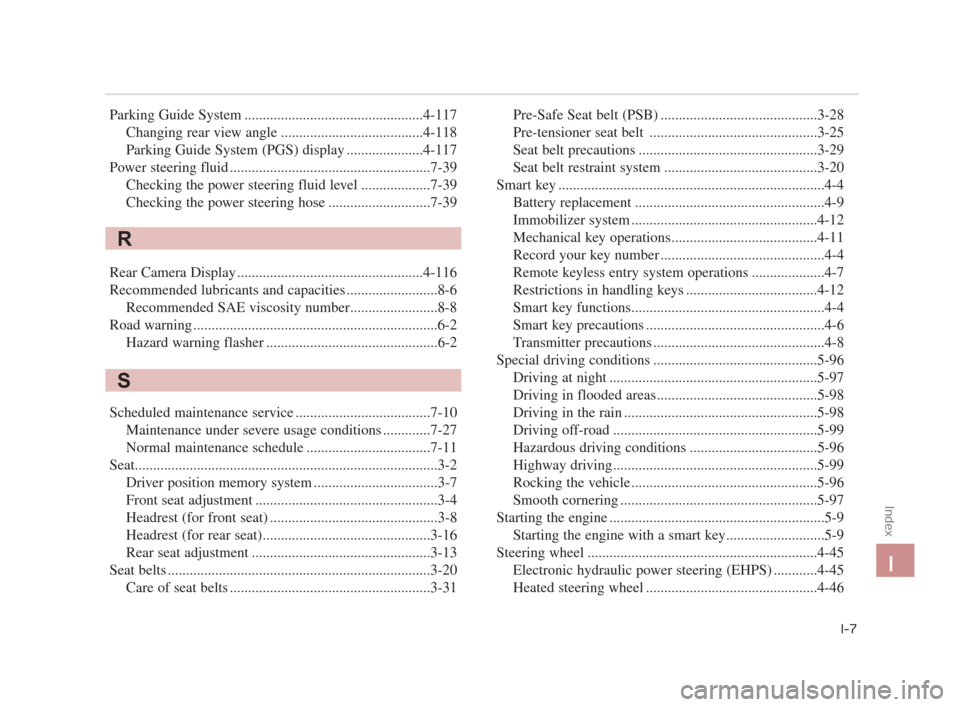

Index
I-7
I
Parking Guide System .................................................4-117Changing rear view angle .......................................4-118
Parking Guide System (PGS) display .....................4-117
Power steering fluid .......................................................7-39 Checking the power steering fluid level ...................7-39
Checking the power steering hose ............................7-39
Rear Camera Display ...................................................4-116
Recommended lubricants and capacities .........................8-6 Recommended SAE viscosity number........................8-8
Road warning ...................................................................6-2 Hazard warning flasher ...............................................6-2
Scheduled maintenance service .....................................7-10 Maintenance under severe usage conditions .............7-27
Normal maintenance schedule ..................................7-11
Seat........................................................................\
...........3-2 Driver position memory system ..................................3-7
Front seat adjustment ..................................................3-4
Headrest (for front seat) ..............................................3-8
Headrest (for rear seat)..............................................3-16
Rear seat adjustment .................................................3-13
Seat belts ........................................................................\
3-20 Care of seat belts .......................................................3-31 Pre-Safe Seat belt (PSB) ...........................................3-28
Pre-tensioner seat belt ..............................................3-25
Seat belt precautions .................................................3-29
Seat belt restraint system ..........................................3-20
Smart key ........................................................................\
.4-4 Battery replacement ....................................................4-9
Immobilizer system ...................................................4-12
Mechanical key operations........................................4-11
Record your key number .............................................4-4
Remote keyless entry system operations ....................4-7
Restrictions in handling keys ....................................4-12
Smart key functions.....................................................4-4
Smart key precautions .................................................4-6
Transmitter precautions ...............................................4-8
Special driving conditions .............................................5-96 Driving at night .........................................................5-97
Driving in flooded areas............................................5-98
Driving in the rain .....................................................5-98
Driving off-road ........................................................5-99
Hazardous driving conditions ...................................5-96
Highway driving ........................................................5-99
Rocking the vehicle ...................................................5-96
Smooth cornering ......................................................5-97
Starting the engine ...........................................................5-9 Starting the engine with a smart key...........................5-9
Steering wheel ...............................................................4-45 Electronic hydraulic power steering (EHPS) ............4-45
Heated steering wheel ...............................................4-46
R
S
KH CAN (ENG) Index:PS USA Index.qxd 3/25/2015 3:33 PM Page 7
