ENGINE COMPARTMENT
Your vehicle at a glance
2
2-7
1. Engine oil dipstick .............................7-32
2. Engine oil filler cap ...........................7-33
3. Engine coolant reservoir ...................7-35
4. Radiator cap .....................................7-36
5. Brake fluid reservoir ..........................7-38
6. Power steering fluid reservoir ...........7-39
7. Windshield washer fluid reservoir .....7-40
8. Air cleaner.........................................7-41
9. Fuse box ...........................................7-70
10. Jumper terminal ................................6-5
OKH015008N
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■3.8L Engine
KH CAN (ENG) 2:2015 3/24/2015 10:38 AM Page 7
Page 17 of 522
2-8
Your vehicle at a glance
OKH013006N
1. Engine coolant reservoir ...................7-35
2. Radiator cap .....................................7-36
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-41
5. Engine oil dipstick .............................7-32
6. Engine oil filler cap ...........................7-33
7. Windshield washer fluid reservoir .....7-40
8. Fuse box ...........................................7-70
9. Power steering fluid reservoir ...........7-39
10. Jumper terminal ................................6-5
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■
5.0L Engine
KH CAN (ENG) 2:2015 3/24/2015 10:38 AM Page 8
Page 172 of 522
Features of your vehicle
4
4-93

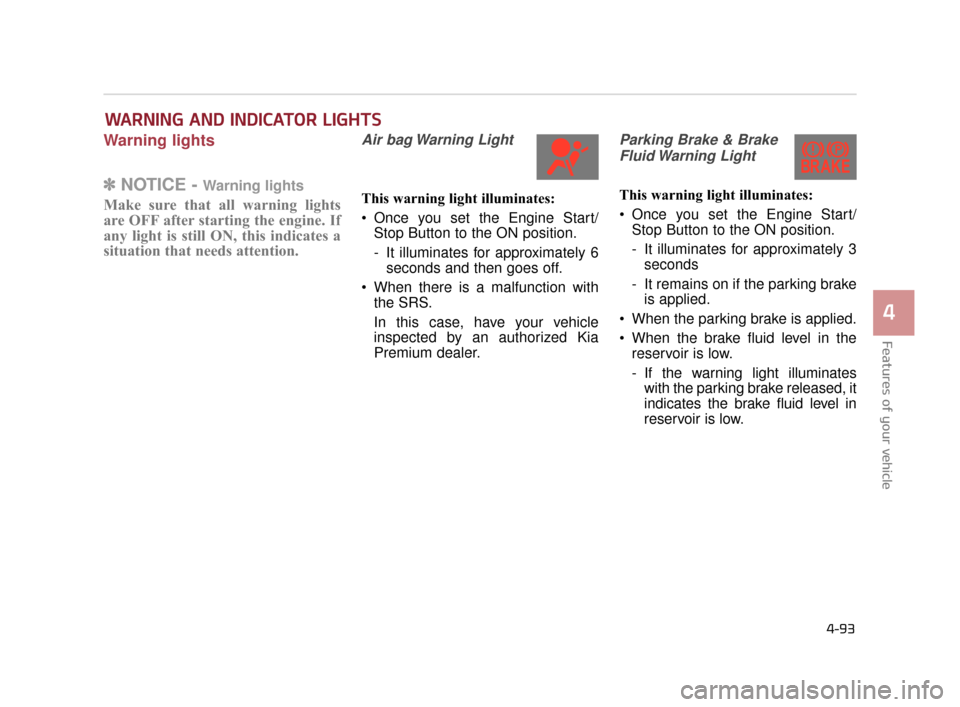

Warning lights
✽NOTICE - Warning lights
Make sure that all warning lights
are OFF after starting the engine. If
any light is still ON, this indicates a
situation that needs attention.
Air bag Warning Light
This warning light illuminates:
Once you set the Engine Start/
Stop Button to the ON position.
- It illuminates for approximately 6seconds and then goes off.
When there is a malfunction with the SRS.
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
Parking Brake & Brake
Fluid Warning Light
This warning light illuminates:
Once you set the Engine Start/ Stop Button to the ON position.
- It illuminates for approximately 3seconds
- It remains on if the parking brake is applied.
When the parking brake is applied.
When the brake fluid level in the reservoir is low.
- If the warning light illuminateswith the parking brake released, it
indicates the brake fluid level in
reservoir is low.
WARNING AND INDICATOR LIGHTS
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 93
Page 173 of 522
If the brake fluid level in the reservoir
is low:
1.Drive carefully to the nearest safelocation and stop your vehicle.
2.With the engine stopped, check the brake fluid level immediately and
add fluid as required (For more
details, refer to “Brake Fluid” in
chapter 7).
Then check all brake components
for fluid leaks. If any leaks in the
brake system is still found, the
warning light remains on, or the
brakes do not operate properly, do
not drive the vehicle.
In this case, have your vehicle
towed to an authorized Kia
Premium dealer and inspected. Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking systems. This
means you still have braking on two
wheels even if one of the dual sys-
tems should fail.
With only one of the dual systems
working, more than normal pedal
travel and greater pedal pressure are
required to stop the vehicle.
Also, the vehicle will not stop in as
short a distance with only a portion
of the brake system working.
If the brakes fail while you are driv-
ing, shift to a lower gear for addition-
al engine braking and stop the vehi-
cle as soon as it is safe to do so.
Driving the vehicle with a warning
light ON is dangerous. If the Parking
Brake & Brake Fluid Warning Light
illuminates with the parking brake
released, it indicates that the brake
fluid level is low.
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
Features of your vehicle
4-94
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 94
Page 174 of 522
Features of your vehicle
4
4-95

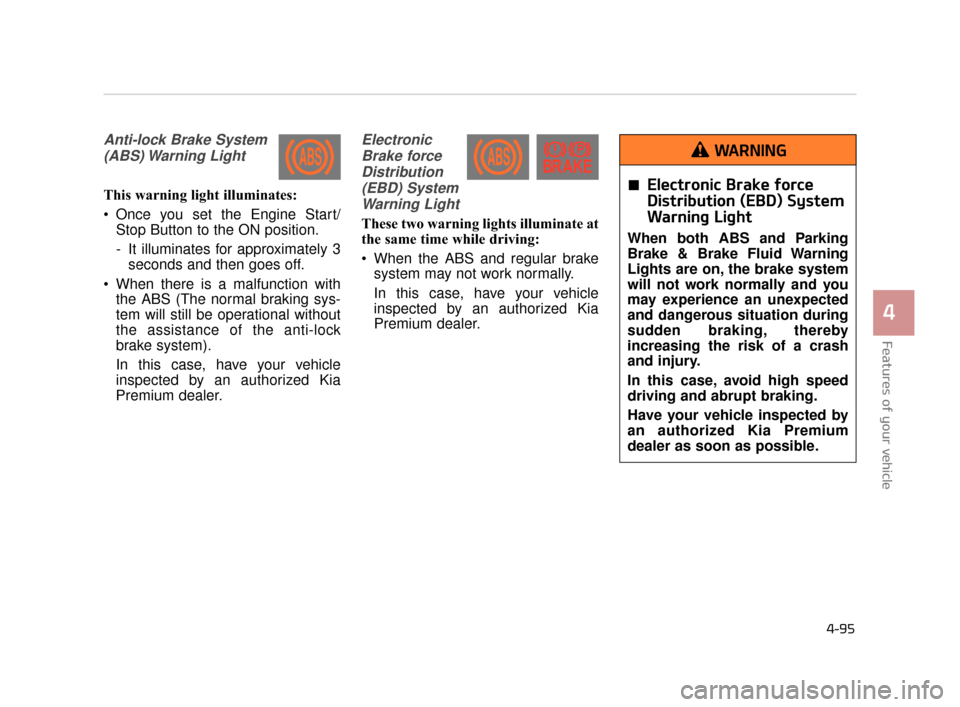

Anti-lock Brake System(ABS) Warning Light
This warning light illuminates:
Once you set the Engine Start/ Stop Button to the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the ABS (The normal braking sys-
tem will still be operational without
the assistance of the anti-lock
brake system).
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
Electronic
Brake forceDistribution(EBD) SystemWarning Light
These two warning lights illuminate at
the same time while driving:
When the ABS and regular brake system may not work normally.
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
Electronic Brake force
Distribution (EBD) System
Warning Light
When both ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking, thereby
increasing the risk of a crash
and injury.
In this case, avoid high speed
driving and abrupt braking.
Have your vehicle inspected by
an authorized Kia Premium
dealer as soon as possible.
WARNING
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 95
Page 175 of 522

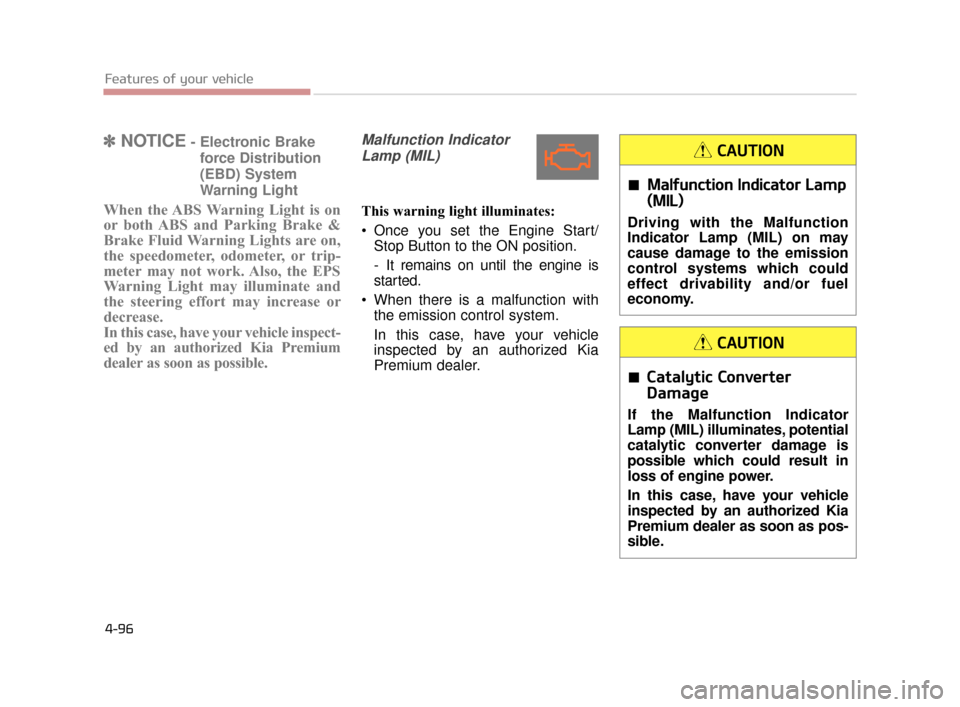

✽NOTICE- Electronic Brake
force Distribution
(EBD) System
Warning Light
When the ABS Warning Light is on
or both ABS and Parking Brake &
Brake Fluid Warning Lights are on,
the speedometer, odometer, or trip-
meter may not work. Also, the EPS
Warning Light may illuminate and
the steering effort may increase or
decrease.
In this case, have your vehicle inspect-
ed by an authorized Kia Premium
dealer as soon as possible.
Malfunction IndicatorLamp (MIL)
This warning light illuminates:
Once you set the Engine Start/ Stop Button to the ON position.
- It remains on until the engine is
started.
When there is a malfunction with the emission control system.
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer.
Features of your vehicle
4-96
Malfunction Indicator Lamp
(MIL)
Driving with the Malfunction
Indicator Lamp (MIL) on may
cause damage to the emission
control systems which could
effect drivability and/or fuel
economy.
CAUTION
Catalytic Converter
Damage
If the Malfunction Indicator
Lamp (MIL) illuminates, potential
catalytic converter damage is
possible which could result in
loss of engine power.
In this case, have your vehicle
inspected by an authorized Kia
Premium dealer as soon as pos-
sible.
CAUTION
KH CAN (ENG) 4:2015 3/26/2015 10:41 AM Page 96
Page 259 of 522
5-4
Driving your vehicle
Before entering vehicle
Be sure that all windows, outsidemirror(s), and outside lights are
clean.
Check the condition of the tires.
Check under the vehicle for any sign of leaks.
Be sure there are no obstacles behind you if you intend to back up.
Necessary inspections
Fluid levels, such as engine oil,
engine coolant, brake fluid, and
washer fluid should be checked on a
regular basis, with the exact interval
depending on the fluid. Further
details are provided in Section 7,
“Maintenance”.
Before starting
Close and lock all doors.
Position the seat so that all con-trols are easily reached.
Buckle your seat belt.
Adjust the inside and outside rearview mirrors.
Be sure that all lights work.
Check all gauges.
Check the operation of warning lights when the Engine Start/Stop
button is turned to the ON position.
Release the parking brake and make sure the brake warning light
goes off.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
BEFORE DRIVING
Distracted driving
Focus on the road while driving.
The driver's primary responsi-
bility is in the safe and legal
operation of the vehicle. Use of
any hand held devices, other
equipment or vehicle systems
that distract the driver should
not be used during vehicle
operation.
WARNING
KH CAN (ENG) 5:2015 3/25/2015 10:50 AM Page 4
Page 397 of 522
7
Maintenance
Engine compartment ..........................................7-3
Maintenance services .........................................7-5
.............................................7-5
............................7-6
Owner maintenance............................................7-8
...............................7-8
Scheduled maintenance service.......................7-10
.............................7-11
Explanation of scheduled maintenance items ..7-29
Engine oil ..........................................................7-32
................................7-32
.........................7-33
Engine coolant ..................................................7-34
....................................7-34
............................................7-37
Brake fluid .........................................................7-38
...............................7-38
Power steering fluid ..........................................7-39
Washer fluid ......................................................7-40
.............................7-40
Air cleaner.........................................................7-41
.................................................7-41
Climate control air filter .....................................7-44
.....................................................7-44
.................................................7-44
Wiper blades .....................................................7-46
....................................................7-46
................................................7-46
Battery ..............................................................7-49
........................................7-49
..................7-52
................................7-52
...........................................................7-53
Tires and wheels...............................................7-54
................................................................7-54
..........7-54
.............................7-55
...........................................................7-56
.........................7-57
...................................................7-58
...............................................7-59
...........................................................7-59
.............................................7-60
..............................................7-64
7
KH CAN (ENG) 7:2015 3/26/2015 6:39 AM Page 1
Page 399 of 522
Maintenance
7
7-3
ENGINE COMPARTMENT
1. Engine oil dipstick
2. Engine oil filler cap
3. Engine coolant reservoir
4. Radiator cap
5. Brake fluid reservoir
6. Power steering fluid reservoir
7. Windshield washer fluid reservoir
8. Air cleaner
9. Fuse box
10. Jumper terminal
OKH015008N
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■3.8L Engine
KH CAN (ENG) 7:2015 3/26/2015 6:39 AM Page 3
Page 400 of 522
7-4
Maintenance
OKH013006N
1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Power steering fluid reservoir
10. Jumper terminal
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■
5.0L Engine
KH CAN (ENG) 7:2015 3/26/2015 6:40 AM Page 4
