KIA K900 2017 Features and Functions Guide

49
A
B

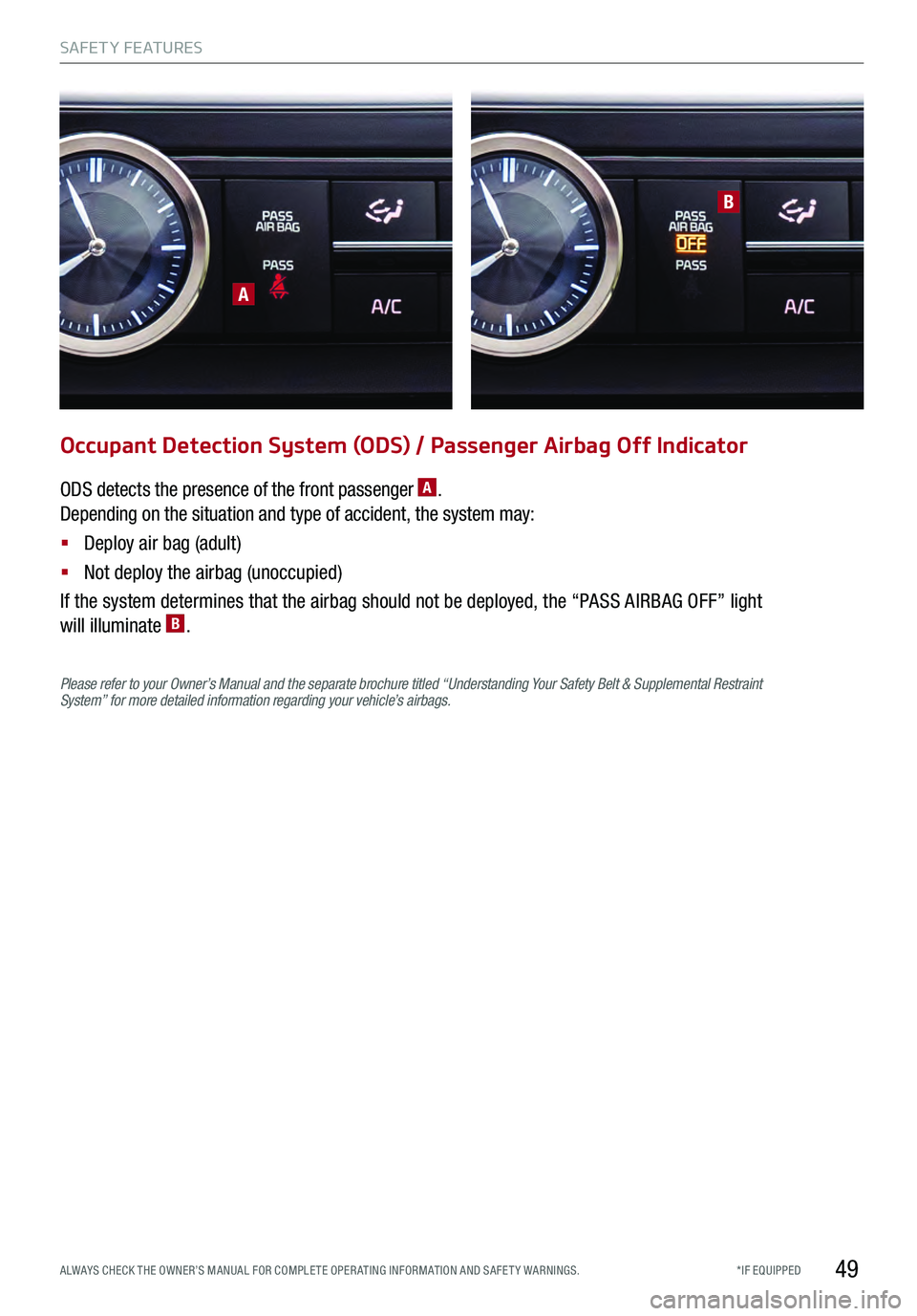

Occupant Detection System (ODS) / Passenger Airbag Off Indicator
ODS detects the presence of the front passenger A.
Depending on the situation and type of accident, the system may:
§
Deploy air bag (adult)
§
Not deploy the airbag (unoccupied)
If the system determines that the airbag should not be deployed, the “PASS AIRBAG OFF” light
will illuminate
B.
Please refer to your Owner’s Manual and the separate brochure titled “Understanding Your Safety Belt & Supplemental Restraint
System” for more detailed information regarding your vehicle’s airbags.
SAFETY FEATURES
*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

50
Normal Maintenance Schedule
When your vehicle requires service, remember that your
dealer knows your vehicle best. Your dealer has factory-
trained technicians, recommended special tools, genuine
Kia replacement parts and is dedicated to your complete
satisfaction. For expert advice and quality service, see your
authorized Kia dealer.
7, 5 0 0 M i l e s
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
INSPECT*:
§
Air cleaner filter
§
Fuel lines, fuel hoses and connections
§
Fuel tank air filter2
§ Power steering fluid
§
Vacuum hose
§
Vapor hose and fuel filler cap
15,000 Miles
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
§
Climate control air filter (for evaporator and
blower unit)
INSPECT*:
§
Air cleaner filter
§
Vacuum hose
§
Air conditioning refrigerant
§
Brake hoses and lines
§
Drive shafts and boots
§
Exhaust pipe and muffler
§
Fuel lines, fuel hoses and connections
§
Fuel tank air filter
§
Front brake disc/pads, calipers
§
Propeller shaft
§
Rear brake disc/pads
§
Steering gear box, linkage and boots/lower
arm ball joint, upper arm ball joint
§
Suspension mounting points
§
Power steering fluid
§
EHPS (Electronic Hydraulic Power Steering)
motor pump and hoses
§
Vapor hose and fuel filler cap
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
2 Fuel filter & fuel tank air filter are considered to be maintenance free
but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like
fuel flow restriction, surging, loss of power, hard starting problem etc.,
replace the fuel filter immediately regardless of maintenance schedule and
consult an authorized Kia dealer for details.
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
Quick Tip
Check your Maintenance Schedule or schedule an
appointment with a dealer using your UVO Luxury
Services account by logging into your UVO App or
your account on MyUVO.com ( Vehicles equipped
with UVO Luxury Services only)
MAINTENANCE
MAINTENANCE

51
22,500 Miles
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
INSPECT*:
§
Air cleaner filter
§
Vacuum hose
§
Power steering fluid
§
Fuel lines, fuel hoses and connections
§
Vapor hose and fuel filler cap
§
Fuel tank air filter2
30,000 Miles
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
§
Fuel tank air filter2
§ Climate control air filter (for evaporator and
blower unit)
§
Air cleaner filter
INSPECT*:
§
Vacuum hose
§
Air conditioning refrigerant
§
Brake hoses and lines
§
Drive shafts and boots
§
Exhaust pipe and muffler
§
Front brake disc/pads, calipers
§
Propeller shaft
§
Rear brake disc/pads
§
Steering gear box, linkage and boots/lower arm
ball joint, upper arm ball joint
§
Suspension mounting bolts
§
Brake fluid
§
Fuel filter
§
Fuel lines, fuel hoses and connections
§
Parking brake
§
Vapor hose, fuel filler cap, fuel tank
§
Power steering fluid
§
EHPS (Electronic Hydraulic Power Steering)
motor pump and hoses
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer along
with information on how to use them. Do not mix other additives.
2 Fuel
filter & fuel tank air filter are considered to be maintenance free but periodic
inspection is recommended for this maintenance schedule depends on fuel
quality. If there are some important safety matters like fuel flow restriction,
surging, loss of power, hard starting problem etc., replace the fuel filter
immediately regardless of maintenance schedule and consult an authorized
Kia dealer for details.
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
2 Fuel filter & fuel tank air filter are considered to be maintenance free
but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like
fuel flow restriction, surging, loss of power, hard starting problem etc.,
replace the fuel filter immediately regardless of maintenance schedule and
consult an authorized Kia dealer for details.
MAINTENANCE
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

52
3 7, 5 0 0 M i l e s
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
INSPECT*:
§
Air cleaner filter
§
Vacuum hose
§
Fuel lines, fuel hoses and connections
§
Vapor hose and fuel filler cap
§
Fuel tank air filter2
§ Rear differential oil
§
Power steering fluid
45,000 Miles
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
§
Climate control air filter (For evaporator and
blower unit)
INSPECT*:
§
Air cleaner filter
§
Vacuum hose
§
Air conditioning refrigerant
§
Brake hoses and lines
§
Drive shafts and boots
§
Exhaust pipe and muffler
§
Front brake disc/pads, calipers
§
Fuel lines, fuel hoses and connections
§
Vapor hose and fuel filler cap
§
Fuel tank air filter
§
Propeller shaft
§
Rear brake disc/pads
§
Steering gear box, linkage and boots/lower
arm ball joint, upper arm ball joint
§
Suspension mounting bolts
§
Power steering fluid
§
EHPS (Electronic Hydraulic Power Steering)
motor pump and hoses
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
2 Fuel filter & fuel tank air filter are considered to be maintenance free
but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like
fuel flow restriction, surging, loss of power, hard starting problem etc.,
replace the fuel filter immediately regardless of maintenance schedule
and consult an authorized Kia dealer for details.
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
MAINTENANCE
MAINTENANCE

53
52,500 Miles
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
INSPECT*:
§
Air cleaner filter
§
Fuel lines, fuel hoses and connections
§
Vapor hose and fuel filler cap
§
Fuel tank air filter2
§ Vacuum hose
§
Power steering fluid
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
2 Fuel filter & fuel tank air filter are considered to be maintenance free
but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like
fuel flow restriction, surging, loss of power, hard starting problem etc.,
replace the fuel filter immediately regardless of maintenance schedule
and consult an authorized Kia dealer for details.
60,000 Miles
PERFORM:
§
Add fuel additives1 (Every 7,500 miles)
§
Rotate tires
REPLACE:
§
Engine oil and filter (Every 7,500 miles)
§
Climate control air filter (for evaporator and
blower unit)
§
Air cleaner filter
§
Fuel tank air filter2
INSPECT*:
§
Vacuum hose
§
Air conditioning
refrigerant
§
Brake hoses
and lines
§
Drive shafts
and boots
§
Exhaust pipe
and muffler
§
Front brake disc/
pads, calipers
§
Fuel lines, fuel hoses
and connections
§
Valve clearance3 (3.8L)
§
Propeller shaft
§
Rear brake disc/pads
§
Steering gear box,
linkage and boots/
lower arm ball joint,
upper arm ball joint §
Suspension
mounting bolts
§
Brake fluid
§
Fuel filter2
§ Parking brake
§
Vapor hose, fuel filler
cap, fuel tank
§
Drive belts4 (First
60,000 miles and
after every 15,000
miles)
§
Power steering fluid
§
EHPS (Electronic
Hydraulic Power
Steering) motor
pump and hoses
*And, if necessary, adjust, correct, clean or replace
1 If TOP TIER detergent gasoline is not available, one bottle of additive is
recommended. Additives are available from your authorized Kia dealer
along with information on how to use them. Do not mix other additives.
2 Fuel filter & fuel tank air filter are considered to be maintenance free
but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like
fuel flow restriction, surging, loss of power, hard starting problem etc.,
replace the fuel filter immediately regardless of maintenance schedule and
consult an authorized Kia dealer for details.
3 Inspect for excessive tappet
noise and/or engine vibration and adjust if necessary. 4 The drive belt
should be replaced when cracks occur or tension is reduced excessively.
MAINTENANCE
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

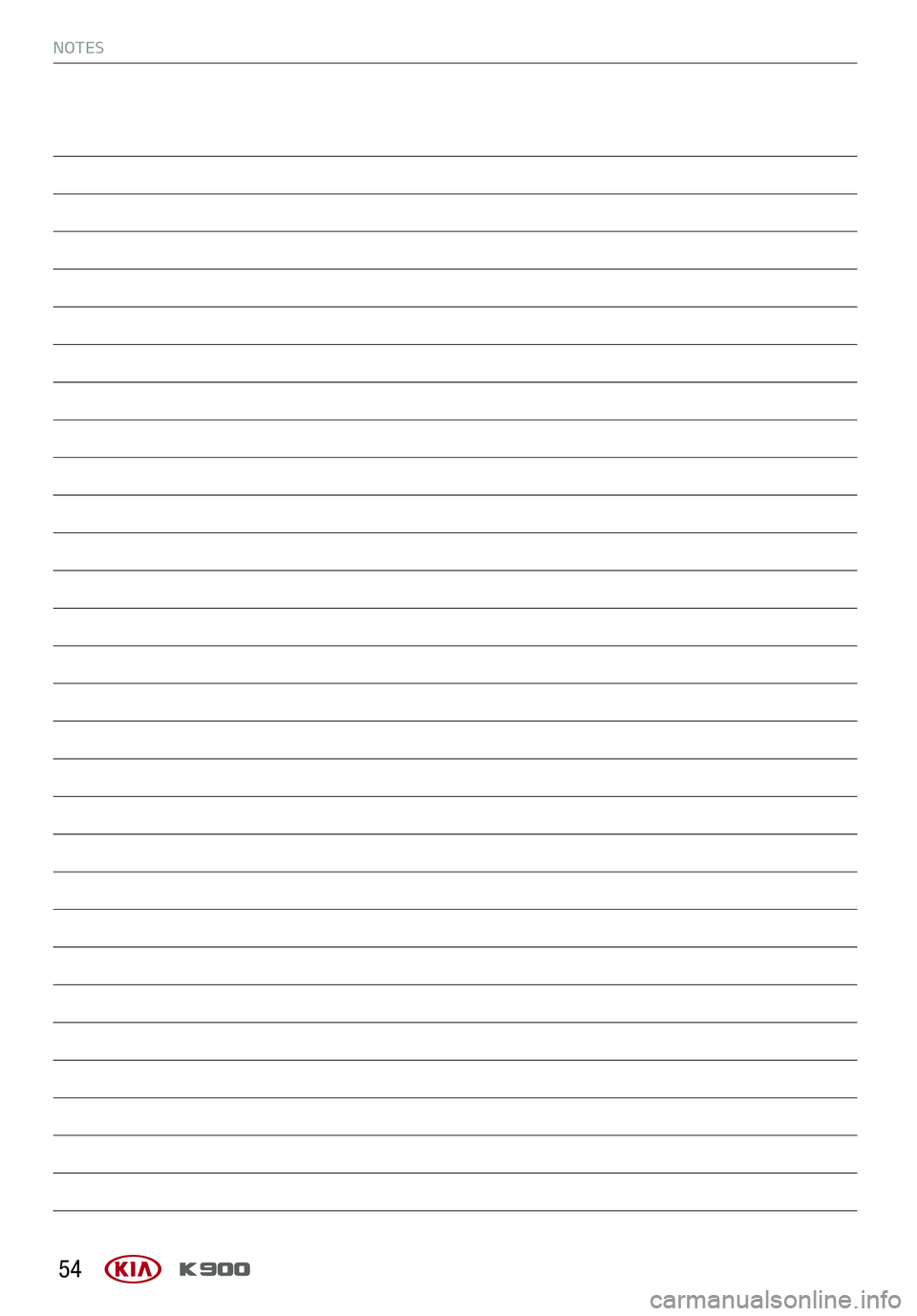

NOTES
54

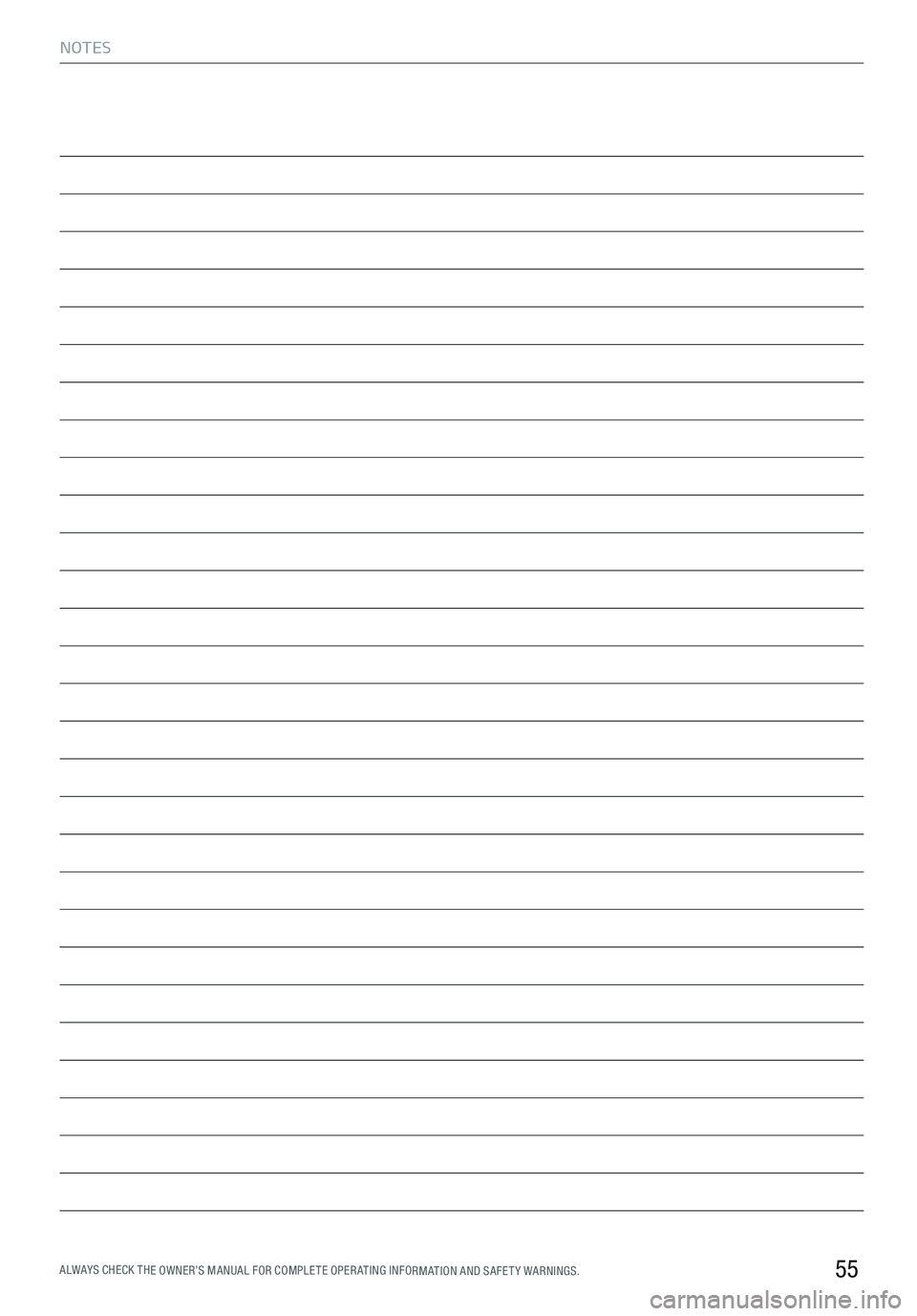

NOTES
55ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.

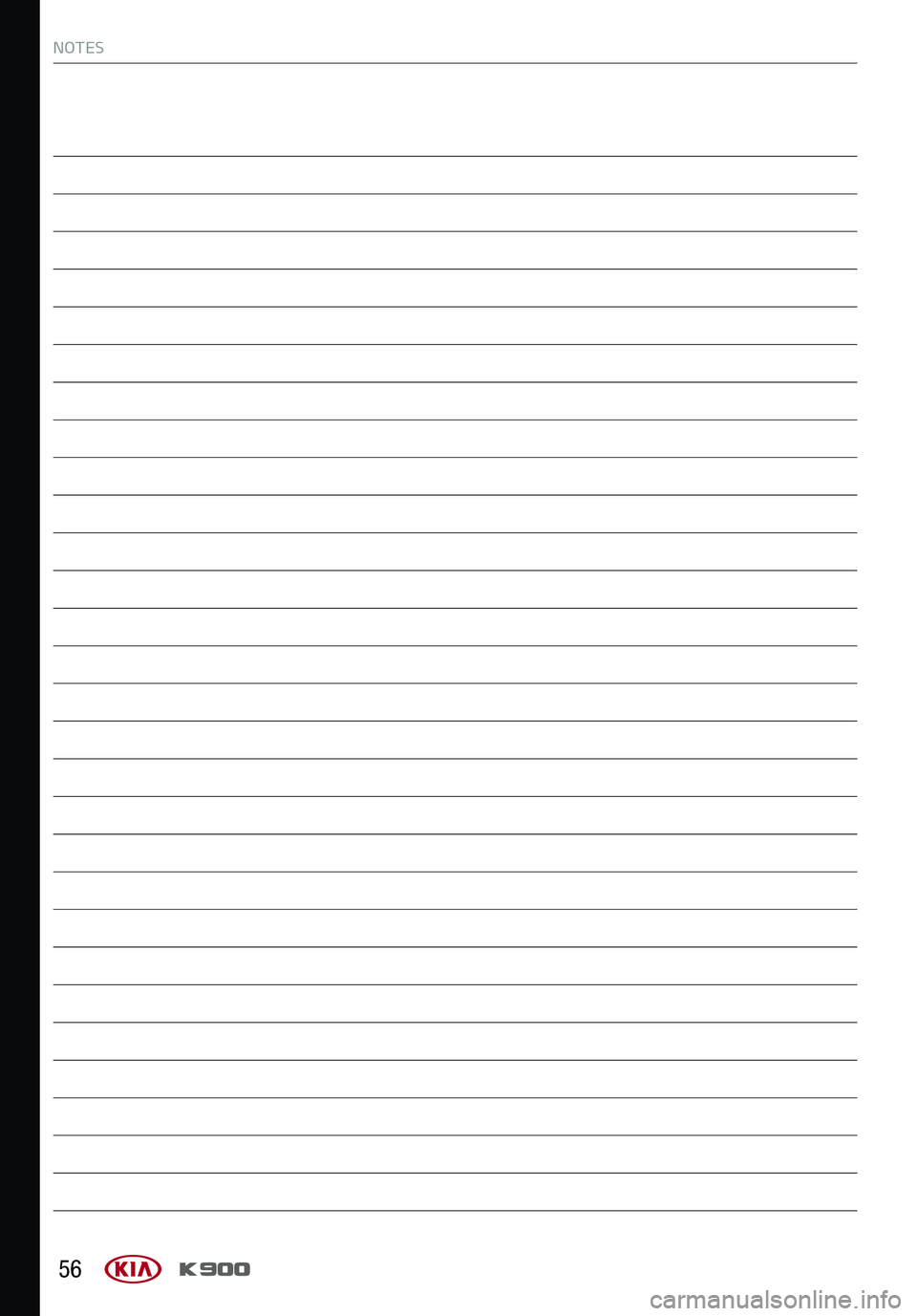

NOTES
56

Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is
in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus
away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Advanced Smart Cruise Control (ASCC): The Advanced Smart Cruise
Control system is not a substitute for safe driving and cruise-control
procedures. This is not an auto-pilot feature. Always drive safely and use
caution. The Advanced Smart Cruise Control system may not detect every
object in front of the vehicle.
Airbag: For maximum protection, always wear your seat belt. Please refer
to your vehicle’s Owner’s Manual for additional important safety information
regarding airbags, including additional cautions and warnings.
Android
™: Android™ is a registered trademark of Google Inc.
Autonomous Emergency Braking System (AEB): No system, no matter
how advanced, can compensate for all driver error and/or driving conditions.
Always drive responsibly.
Blind Spot Detection System (BSD) / Rear Cross Traffic Alert (RCTA):
Blind Spot Detection and Rear Cross Traf fic Alert are not substitutes for safe
driving, and may not detect all objects around or behind vehicle. Always drive
safely and use caution.
Bluetooth
® Wireless Technology: The Bluetooth® word mark and logos
are registered trademarks owned by Bluetooth SIG Inc., and any use of
such marks by Kia is pursuant to license. A Bluetooth
® enabled cell phone is
required to use Bluetooth® wireless technology.
Electronic Stability Control (ESC)/ Traction Control System ( TCS)/Hill-start
Assist Control (HAC): No system, no matter how advanced, can compensate
for all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop
before turning the engine on or off. However, if you have an emergency while
the vehicle is in motion and must turn the engine off, you can turn the engine
off to the ACC position by pressing the Start /Stop button for more than 3
seconds or 3 times in succession. If the vehicle is still moving, you can restart
the engine by pressing the Start /Stop button with the shift lever in Neutral (N).
With the engine off, hydraulic power assist for steering and braking will be
disabled and the vehicle will be more dif ficult to control.
Google
®: Google® is a registered trademark of Google, Inc.
Head-Up Display (HUD): Failure to pay attention to travel conditions and
vehicle operation could result in loss of vehicle control. Always drive safely
and use caution.
HomeLink
®: Homelink® is a registered trademark of Gentex Corporation
iPhone
®/iPod®: iPhone® and iPod® are registered trademarks of Apple, Inc.
Lane Departure Warning System (LDWS): The Lane Departure Warning
System (LDWS) is not a substitute for safe and proper driving. Always drive
safely and use caution. LDWS may not always alert the driver if the vehicle is
driven outside of its lane. Refer to the Owner’s Manual for more information.
Navigation: Distracted driving can result in a loss of vehicle control. When
operating a vehicle, never use a vehicle system that takes your focus away
from safe vehicle operation. Navigation is for information purposes only, and
Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different
ODS types that vary by model. Children age 12 and under should always be
seated in the RE AR seats.
Pandora
® internet radio: Pandora® is a registered trademark of Pandora
Media, Inc.
Parking Assist System: The Parking Assist System is not a substitute for
proper and safe backing-up procedures. The Parking Assist System may not
detect every object behind the vehicle. Always drive safely and use caution
when backing up.
Parking Guide System / Rear-Camera Display: The Parking Guide System /
Rear-Camera Display are not substitutes for proper and safe backing-up
procedures. The Parking Guide System / Rear-Camera Display may not display
every object behind the vehicle. Always drive safely and use caution when
backing up.
Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan
provided by Kia Motors America, Inc. Certain limitations apply. Coverage
details are available in the Kia Warranty and Consumer Information Manual.
For access to Enhanced Roadside Assistance, a connected mobile phone via
Bluetooth
® within the cellular service coverage area is required.
Seat adjustments: Reclining the passenger seats can reduce the
effectiveness of the safety restraint system and may lead to additional injury
in an accident.
Seat belts: For maximum protection, always wear your seatbelt.
Seat warmers: Use extreme caution when using the seat warmers to avoid
burns. Refer to the Owner’s Manual for more information.
Siri
®: Siri® is a registered trademark of Apple, Inc.
SiriusXM
®: SiriusXM®: SiriusXM service requires a subscription, sold
separately, after 3-month trial included with vehicle purchase. If you decide
to continue your SiriusXM service at the end of your trial subscription,
the plan you choose will automatically renew and bill at then-current
rates until you call Sirius XM at 1-866-635-2349 to cancel. See our
Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18
and older in the 48 contiguous USA, D.C., and PR (with coverage limitations).
Traf fic information not available in all markets. See siriusxm.com/traf fic for
details. Sirius, XM and all related marks and logos are trademarks of Sirius
XM Radio Inc.
Smart Trunk /Smart Power Trunk: Driving with the trunk open may be
unlawful and can draw dangerous exhaust fumes into your vehicle; if you
choose to do so, keep air vents and all windows open for proper ventilation.
Steering-wheel-mounted controls: Driving while distracted is dangerous
and should be avoided. Remain attentive to driving and be cautious when
using steering-wheel-mounted controls while driving.
Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle
if sunvisor is impairing your visibility.
Surround View Monitor (SVM): Surround View Monitor is not a substitute for
safe driving, and may not detect all objects around vehicle. Always drive safely
and use caution.
Tire Pressure Monitoring System (TPMS): Even with Tire Pressure
Monitoring System, check tire pressure on regular basis.
UVO Luxury Services: Distracted driving can result in a loss of vehicle
control. Never use a handheld device or vehicle system that takes your focus
away from safe vehicle operation.
Vehicle Diagnostics: Vehicle Diagnostics checks powertrain, chassis and
air bag systems, and is not a substitute for maintenance. See UVO Luxury
Services Maintenance Feature or Owner’s Manual for maintenance schedule.
LEGAL DISCLAIMERS

Sales Consultant:
Sales Manager:
Customer: Date:
Date:
Date:
K900 CUSTOMER DELIVERY CHECKLIST
Surround View Monitoring
(SVM) System* – page 31 Advanced Smart Cruise Control
(ASCC)* – page 18 Demonstrate operation
Key Feature Walkthrough
During Delivery Auto-Dimming Rearview Mirror
with HomeLink® – page 44
Aux/USB/iPod® Port – page 25
Blind Spot Detection (BSD)* – page 9
Clock Setup – page 25
Electric Parking Brake (EPB) /
Auto Hold* - pages 29
Engine S tar t / S top Button – page 14
Head-Up Display (HUD)* – page 7
Panoramic Sunroof Operation –
page 43
Parking Guide System (PGS)* –
page 12
Passenger Air Bag Off Indicator – page 49
Power Front Seat Headrest Adjustment* – page 35
Rear Passenger’s Control System – page 37
Seat Warmers/ Ventilated Seats – page 34
Smart Key – page 40
Sunvisor – page 46
Tire Pressure Monitoring System ( TPMS) – page 5
Explain first service process and schedule first service appointment
Tour Parts & Service departments, introduce staff and explain value of
Kia Parts and Service
Review recommended maintenance schedule and maintenance requirements to validate warranty
Review business hours and Customer 360° Care
Review the Kia 10-year/100,000-mile warranty program
Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle
Confirm time and best contact number for initial dealer follow-up
65mphCRUISE
Bluetooth® Wireless
Technology – pages 20-21
Demonstrate operation
Windshield Wipers &
Washers – page 17
