KIA K900 2018 Owners Manual

Maintenance
7
7-103
Chewing gum - Harden the gum with ice andremove gradually.
Fabric seat cover using precau-
tions (If equipped)
Please clean the fabric seats regu-
larly with a vacuum cleaner in con-
sideration of fabric material charac-
teristics. If they are heavily soiled
with beverage stains, etc., use a suit-
able interior cleaner. To prevent dam-
age to seat covers, wipe off the seat
covers down to the seams with a
large wiping motion and moderate
pressure using a soft sponge or
microfiber cloth.
Velcro closures on clothing or sharp
objects may cause snagging or
scratches on the surface of the
seats. Make sure not to rub such
objects against the surface.
Cleaning the upholstery and inte-rior trim
Vinyl
Remove dust and loose dirt from
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
vinyl cleaner.
Fabric
Remove dust and loose dirt from fab-
ric with a whisk broom or vacuum
cleaner. Clean with a mild soap solu-
tion recommended for upholstery or
carpets. Remove fresh spots imme-
diately with a fabric spot cleaner. If
fresh spots do not receive immediate
attention, the fabric can be stained
and its color can be affected. Also, its
fire-resistant properties can be
reduced if the material is not proper-
ly maintained.
✽ NOTICE
Using anything but recommended
cleaners and procedures may affect
the fabric’s appearance and fire-
resistant properties.
Cleaning the lap/shoulder belt
webbing
Clean the belt webbing with any mild
soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the
soap. Do not bleach or re-dye the
webbing because this may weaken it.
Cleaning the interior windowglass
If the interior glass surfaces of the
vehicle become fogged (that is, cov-
ered with an oily, greasy or waxy
film), they should be cleaned with
glass cleaner. Follow the directions
on the glass cleaner container.
Rear Window
Do not scrape or scratch the
inside of the rear window. This
may result in damage to the rear
window defroster grid.
CAUTION
KH USA 7:2018 4/14/2017 6:41 PM Page 103

7-104
Maintenance
EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the
Warranty & Maintenance booklet in
your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations.
There are three emission control
systems, as follows.
(1) Crankcase emission control sys-tem
(2) Evaporative emission control sys- tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is
recommended that you have your
car inspected and maintained by an
authorized K900 Kia dealer in accor-
dance with the maintenance sched-
ule in this manual. Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch.
After dynamometer testing is completed, turn the ESC system
back on by pressing the ESC
switch again.1. Crankcase emission control system
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative emission con-trol (including ORVR:
Onboard Refueling Vapor
Recovery)
system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
(The ORVR system is designed to
allow the vapors from the fuel tank to
be loaded into a canister while refu-
eling at the gas station, preventing
the escape of fuel vapors into the
atmosphere.)
KH USA 7:2018 4/14/2017 6:41 PM Page 104

Maintenance
7
7-105
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the
engine intake manifold through the
purge control solenoid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modi-
fied. Modification of your vehicle
could affect its performance, safety
or durability and may even violate
governmental safety and emis-
sions regulations.
In addition, damage or perform-
ance problems resulting from any
modification may not be covered
under warranty.
Use of unauthorized electric devices may cause: Abnormal
vehicle operation, Wire damage,
Battery discharge, Fire.
Be careful not to damage your
vehicle by use of unauthorized
electric devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
KH USA 7:2018 4/14/2017 6:41 PM Page 105

7-106
Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.
Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
CALIFORNIA PROPOSITION 65 WARNING
KH USA 7:2018 4/14/2017 6:41 PM Page 106

Maintenance
7
7-107
Operating precautions for catalyt-ic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized K900 Kia dealer.
Avoid driving with a very low fuel level. If you run out of gasoline, it
could cause the engine to misfire
and result in excessive loading of
the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Fire
Do not park, idle or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING
Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING
KH USA 7:2018 4/14/2017 6:41 PM Page 107

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag infla-
tors, seatbelt pretensioners and keyless remote entry
batteries, must be disposed of according to Title 22
California Code of Regulations Section 67384.10 (a).
Maintenance
7-108
KH USA 7:2018 4/14/2017 6:41 PM Page 108

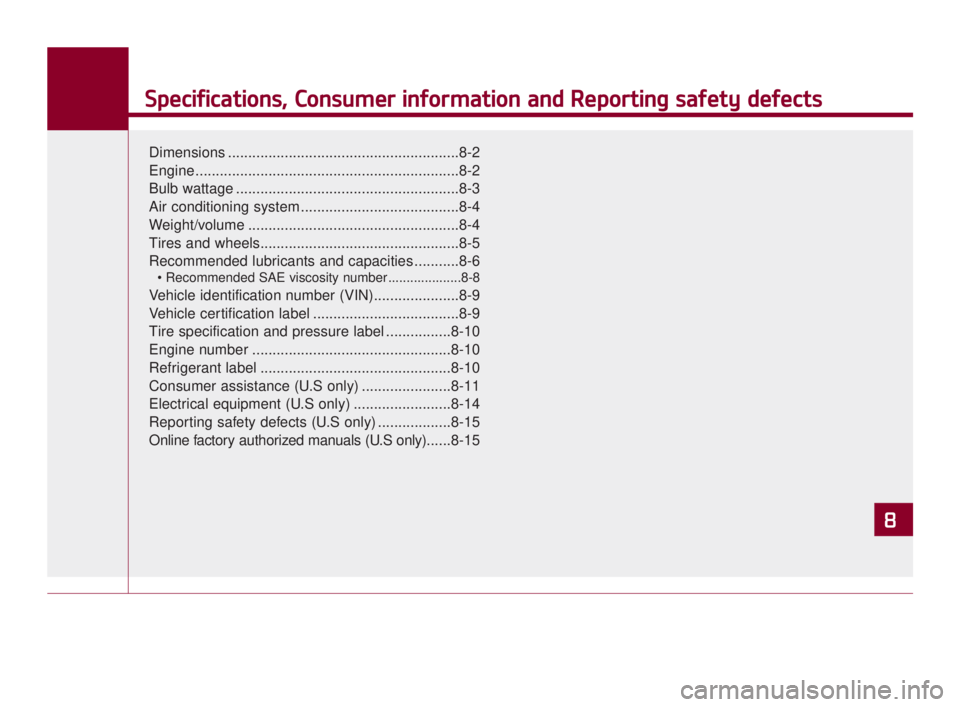

Specifications, Consumer information and Reporting safety defects
Dimensions .........................................................8-2
Engine .................................................................8-2
Bulb wattage .......................................................8-3
Air conditioning system .......................................8-4
Weight/volume ....................................................8-4
Tires and wheels.................................................8-5
Recommended lubricants and capacities ...........8-6
....................8-8
Vehicle identification number (VIN).....................8-9
Vehicle certification label ....................................8-9
Tire specification and pressure label ................8-10
Engine number .................................................8-10
Refrigerant label ...............................................8-10
Consumer assistance (U.S only) ......................8-11
Electrical equipment (U.S only) ........................8-14
Reporting safety defects (U.S only) ..................8-15
Online factory authorized manuals (U.S only)......8-15
8
KH USA 8:2018 4/14/2017 6:44 PM Page 1

8-2
Specifications, Consumer information and Reporting safety defects
DIMENSIONS
Itemin (mm)
Overall length 200.59 (5,095)
Overall width 74.80 (1,900)
Overall height 58.46 (1,485)
Front tread P245/50 R18 63.62 (1,616)
P245/45 R1963.78 (1,620)
Rear tread P245/50 R18 64.33 (1,634)
P275/40 R1964.06 (1,627)
Wheelbase 119.88 (3,045)
Item3.8L5.0L
Displacement cu. in (cc) 230.54 (3,778)
307.3 (5,038)
Bore x Stroke in. (mm)3.78x3.42 (96x87)
3.78x3.42 (96x87)
Firing order 1-2-3-4-5-6
1-2-7-8-4-5-6-3
No. of cylinders 6, V - type
8, V - type
ENGINE
KH USA 8:2018 4/14/2017 6:44 PM Page 2

BULB WATTAGE
Specifications, Consumer information and Reporting safety defects
8
8-3
Light BulbWattage Bulb type
Front LED Type
Headlamps (Low) LED LED
Headlamps (High) LED LED
HID Type Headlamps (Low)
35 D3S
Headlamps (High) 60 9005HL+
Side marker lamps LED LED
Front turn signal lamps LED LED
Front position lamps LED LED
Front fog lamps LED LED
Side Repeater lamps (Outside Mirror) LED LED
Puddle lamps LED LED
Daytime running lamps LED LED
Rear Rear Stop/tail lamps (Inside/outside) LED LED
Rear Stop lamps (Inside/outside)
LED LED
Rear turn signal lamps
(Inside/outside) LED LED
Back-up lamps 16 W16W
High mounted stop lamp LED LED
License plate lamps LED LED
KH USA 8:2018 4/14/2017 6:44 PM Page 3

8-4
Specifications, Consumer information and Reporting safety defectsLight Bulb Wattage Bulb type
Inter iorMap lamps
LED

LED
Room lamps LED LED
Vanity mirror lamps LED LED
Glove box lamp 5 FESTOON
Door courtesy lamps LED LED
Foot lamps LED LED
Mood lamps LED LED
Luggage lamp 5 FESTOON
ItemGasoline 3.8 Gasoline 5.0
Gross vehicle weight lbs. (kg)5,357 (2,430)
5,622 (2,550)
Luggage volume cu ft (l)15.9 (450)
15.9 (450)
WEIGHT/VOLUME
ITEMWeight of volumeClassification
Refrigerant650±25gR-134a
Compressor lubricant120±10gPA G
AIR CONDITIONING SYSTEM
KH USA 8:2018 4/14/2017 6:44 PM Page 4
