KIA K900 2019 Owner's Manual
Manufacturer: KIA, Model Year: 2019, Model line: K900, Model: KIA K900 2019Pages: 580, PDF Size: 15.11 MB
Page 21 of 580
Safety features of your vehicle
43

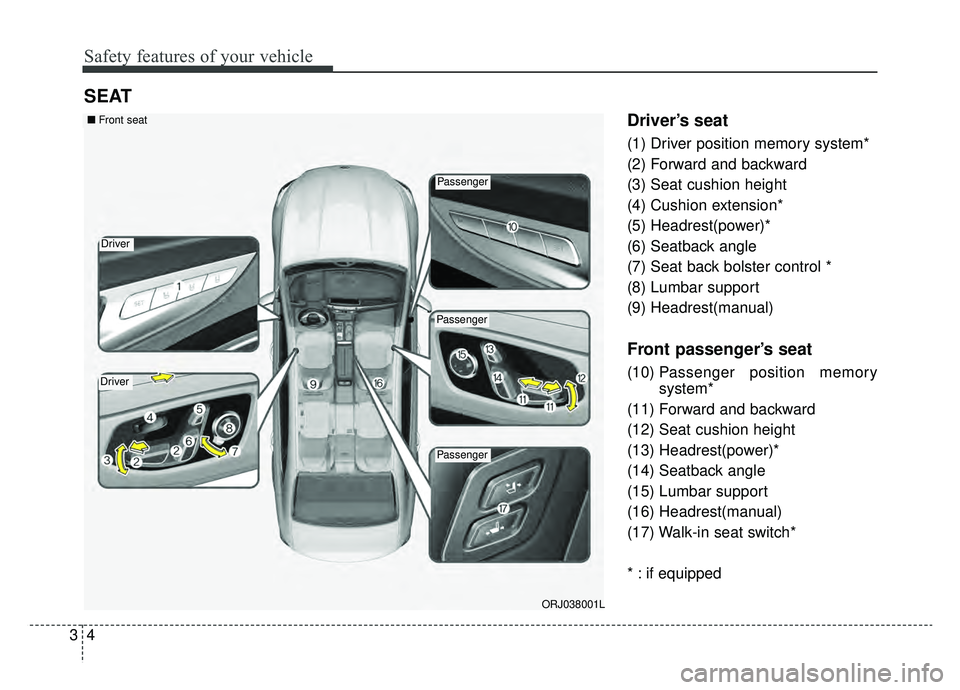

Driver’s seat
(1) Driver position memory system*
(2) Forward and backward
(3) Seat cushion height
(4) Cushion extension*
(5) Headrest(power)*
(6) Seatback angle
(7) Seat back bolster control *
(8) Lumbar support
(9) Headrest(manual)
Front passenger’s seat
(10) Passenger position memory
system*
(11) Forward and backward
(12) Seat cushion height
(13) Headrest(power)*
(14) Seatback angle
(15) Lumbar support
(16) Headrest(manual)
(17) Walk-in seat switch*
* : if equipped
SEAT
ORJ038001L
Driver
■ Front seat
Driver
Passenger
Passenger
Passenger
Page 22 of 580
35
Safety features of your vehicle

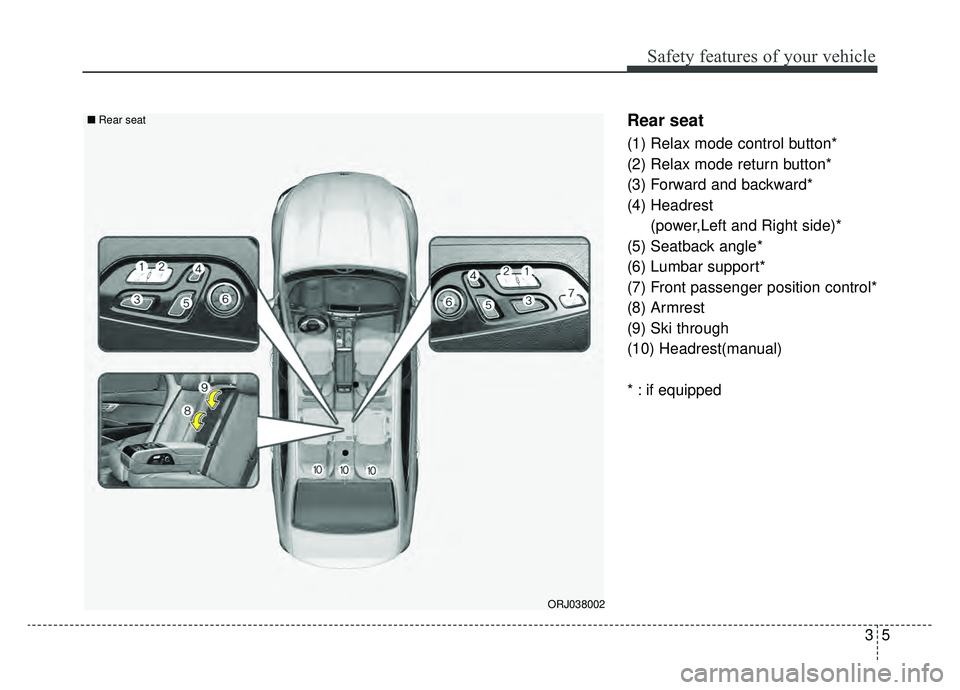

Rear seat
(1) Relax mode control button*
(2) Relax mode return button*
(3) Forward and backward*
(4) Headrest(power,Left and Right side)*
(5) Seatback angle*
(6) Lumbar support*
(7) Front passenger position control*
(8) Armrest
(9) Ski through
(10) Headrest(manual)
* : if equipped
ORJ038002
■ Rear seat
Page 23 of 580
Safety features of your vehicle
63

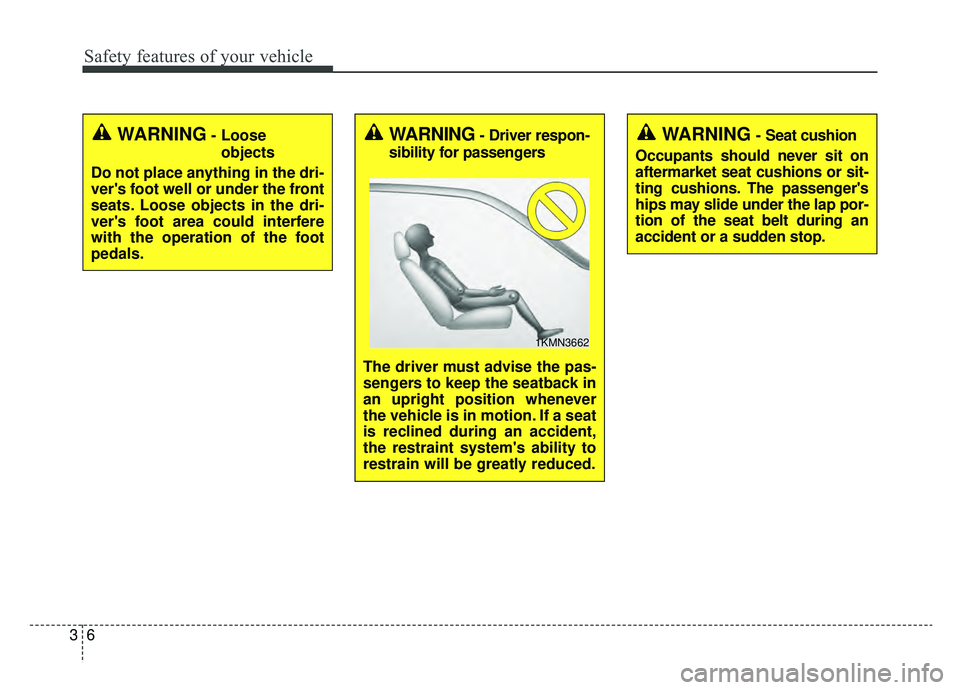

WARNING- Looseobjects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING- Driver respon-
sibility for passengers
The driver must advise the pas-
sengers to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the restraint system's ability to
restrain will be greatly reduced.
1KMN3662
WARNING- Seat cushion
Occupants should never sit on
aftermarket seat cushions or sit-
ting cushions. The passenger's
hips may slide under the lap por-
tion of the seat belt during an
accident or a sudden stop.
Page 24 of 580
37
Safety features of your vehicle

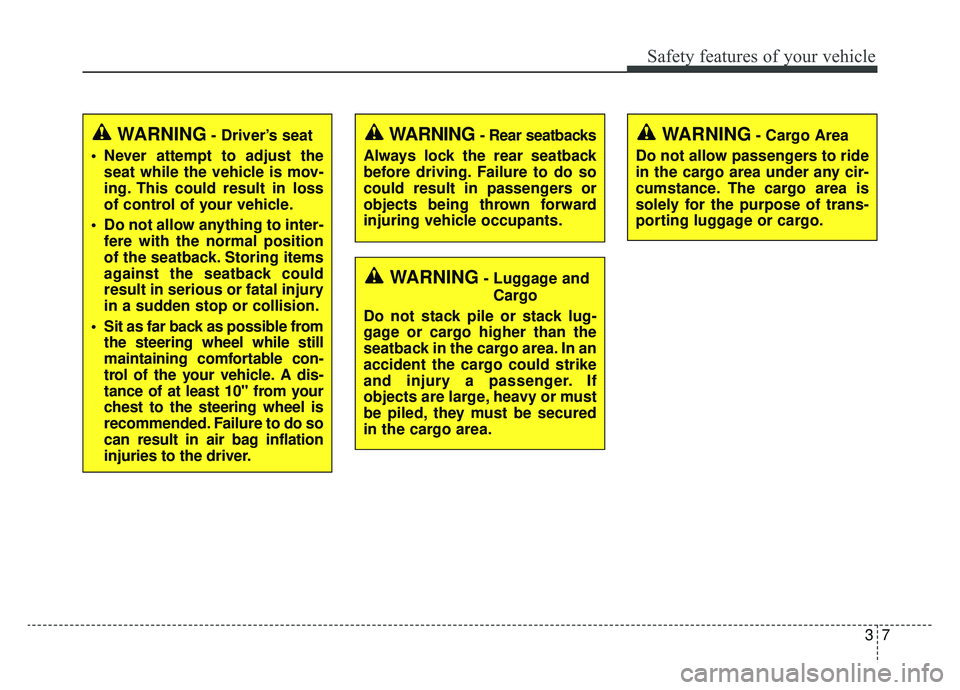

WARNING - Rear seatbacks
Always lock the rear seatback
before driving. Failure to do so
could result in passengers or
objects being thrown forward
injuring vehicle occupants.
WARNING- Luggage and Cargo
Do not stack pile or stack lug-
gage or cargo higher than the
seatback in the cargo area. In an
accident the cargo could strike
and injury a passenger. If
objects are large, heavy or must
be piled, they must be secured
in the cargo area.
WARNING- Cargo Area
Do not allow passengers to ride
in the cargo area under any cir-
cumstance. The cargo area is
solely for the purpose of trans-
porting luggage or cargo.WARNING- Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against the seatback could
result in serious or fatal injury
in a sudden stop or collision.
Sit as far back as possible from the steering wheel while still
maintaining comfortable con-
trol of the your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do so
can result in air bag inflation
injuries to the driver.
Page 25 of 580
Safety features of your vehicle
83

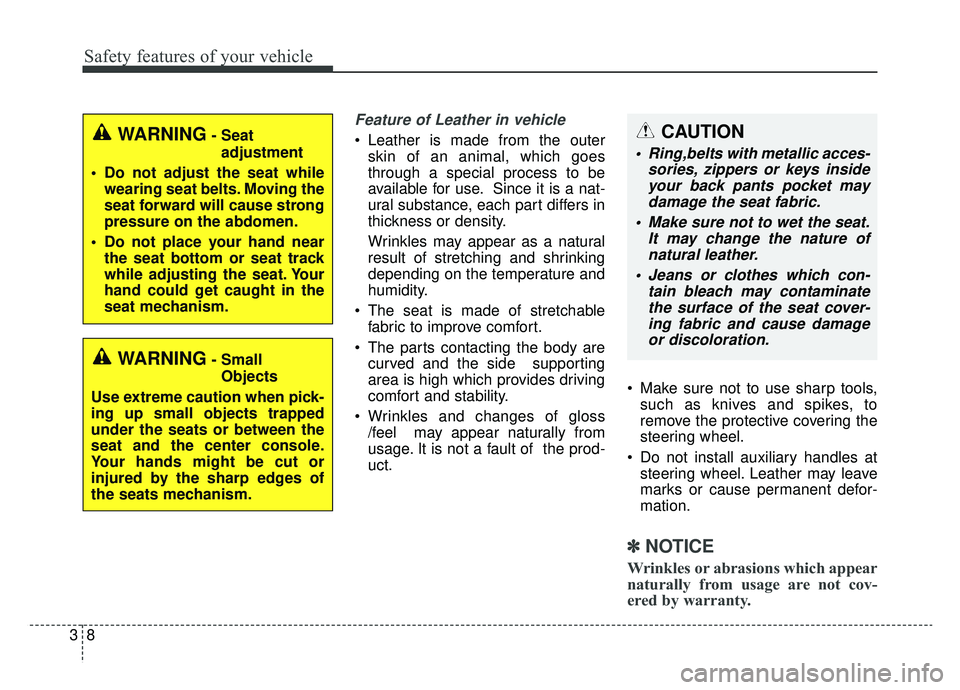

Feature of Leather in vehicle
Leather is made from the outerskin of an animal, which goes
through a special process to be
available for use. Since it is a nat-
ural substance, each part differs in
thickness or density.
Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature and
humidity.
The seat is made of stretchable fabric to improve comfort.
The parts contacting the body are curved and the side supporting
area is high which provides driving
comfort and stability.
Wrinkles and changes of gloss /feel may appear naturally from
usage. It is not a fault of the prod-
uct. Make sure not to use sharp tools,
such as knives and spikes, to
remove the protective covering the
steering wheel.
Do not install auxiliary handles at steering wheel. Leather may leave
marks or cause permanent defor-
mation.
✽ ✽
NOTICE
Wrinkles or abrasions which appear
naturally from usage are not cov-
ered by warranty.
CAUTION
Ring,belts with metallic acces-
sories, zippers or keys insideyour back pants pocket maydamage the seat fabric.
Make sure not to wet the seat. It may change the nature ofnatural leather.
Jeans or clothes which con- tain bleach may contaminatethe surface of the seat cover-ing fabric and cause damageor discoloration.
WARNING- Seat
adjustment
Do not adjust the seat while wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNING- Small
Objects
Use extreme caution when pick-
ing up small objects trapped
under the seats or between the
seat and the center console.
Your hands might be cut or
injured by the sharp edges of
the seats mechanism.
Page 26 of 580
39
Safety features of your vehicle

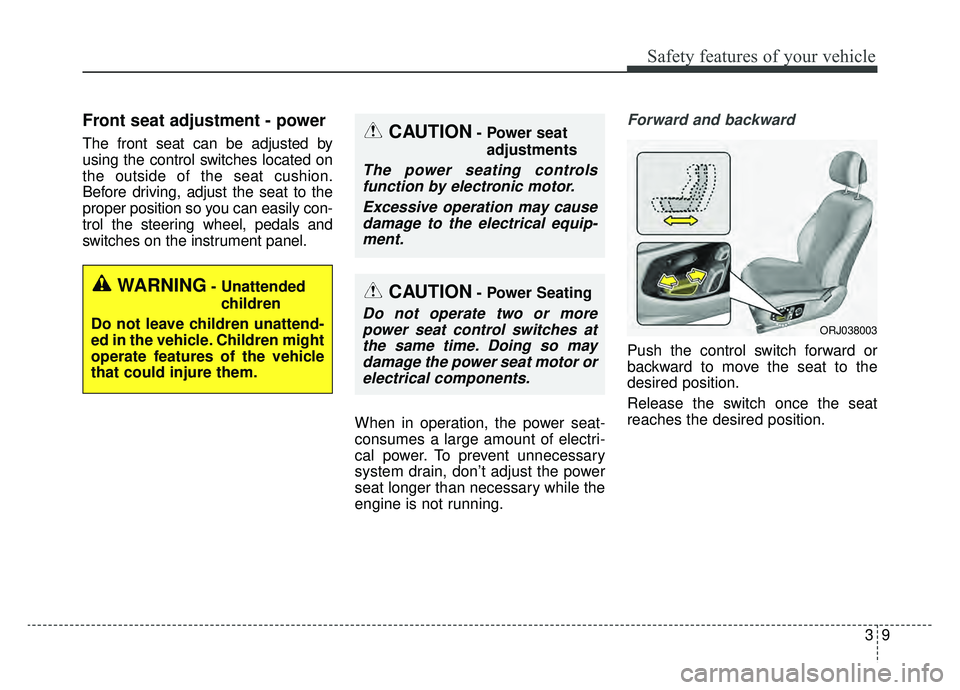

Front seat adjustment - power
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so you can easily con-
trol the steering wheel, pedals and
switches on the instrument panel.When in operation, the power seat-
consumes a large amount of electri-
cal power. To prevent unnecessary
system drain, don’t adjust the power
seat longer than necessary while the
engine is not running.
Forward and backward
Push the control switch forward or
backward to move the seat to the
desired position.
Release the switch once the seat
reaches the desired position.
ORJ038003
CAUTION- Power seatadjustments
The power seating controlsfunction by electronic motor.
Excessive operation may causedamage to the electrical equip-ment.
CAUTION- Power Seating
Do not operate two or morepower seat control switches atthe same time. Doing so maydamage the power seat motor orelectrical components.
WARNING- Unattended
children
Do not leave children unattend-
ed in the vehicle. Children might
operate features of the vehicle
that could injure them.
Page 27 of 580
Safety features of your vehicle
10
3

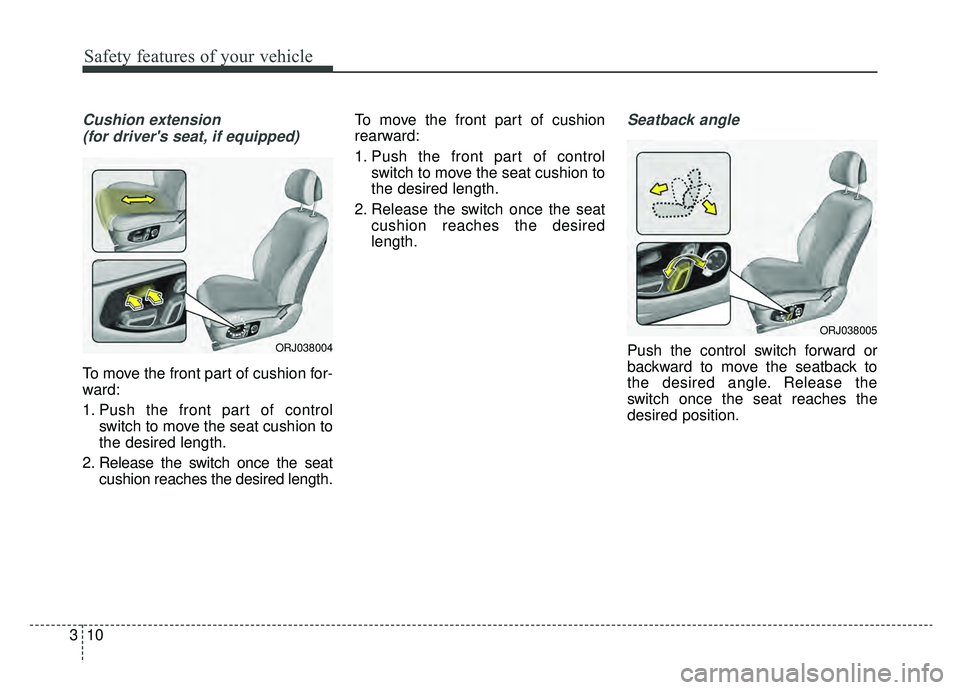

Cushion extension
(for driver's seat, if equipped)
To move the front part of cushion for-
ward:
1. Push the front part of control switch to move the seat cushion to
the desired length.
2. Release the switch once the seat cushion reaches the desired length. To move the front part of cushion
rearward:
1. Push the front part of control
switch to move the seat cushion to
the desired length.
2. Release the switch once the seat cushion reaches the desired
length.
Seatback angle
Push the control switch forward or
backward to move the seatback to
the desired angle. Release the
switch once the seat reaches the
desired position.ORJ038004
ORJ038005
Page 28 of 580
311
Safety features of your vehicle

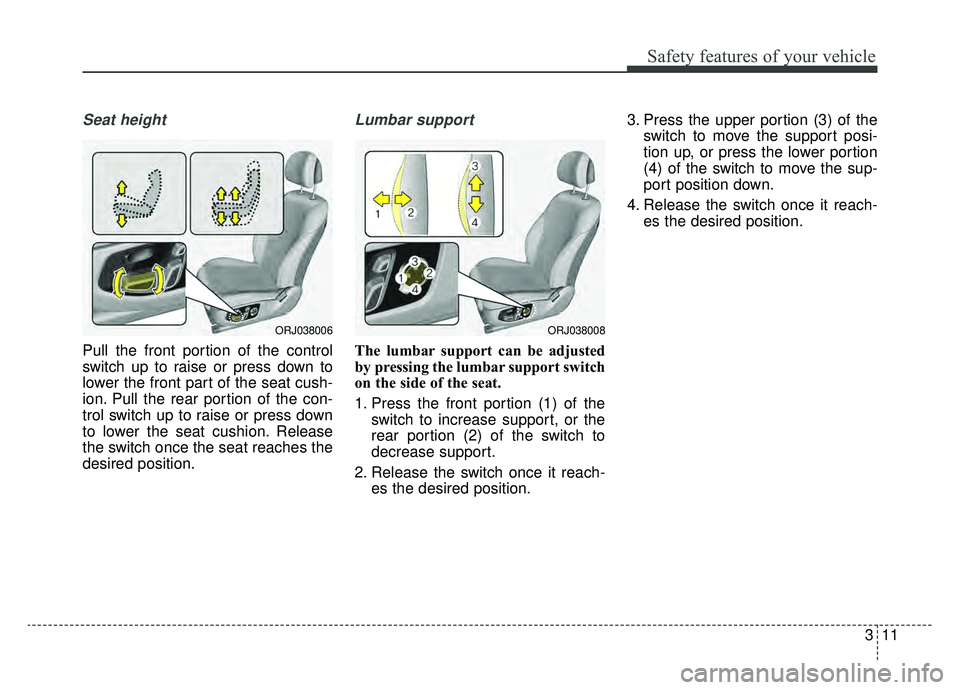

Seat height
Pull the front portion of the control
switch up to raise or press down to
lower the front part of the seat cush-
ion. Pull the rear portion of the con-
trol switch up to raise or press down
to lower the seat cushion. Release
the switch once the seat reaches the
desired position.
Lumbar support
The lumbar support can be adjusted
by pressing the lumbar support switch
on the side of the seat.
1. Press the front portion (1) of theswitch to increase support, or the
rear portion (2) of the switch to
decrease support.
2. Release the switch once it reach- es the desired position. 3. Press the upper portion (3) of the
switch to move the support posi-
tion up, or press the lower portion
(4) of the switch to move the sup-
port position down.
4. Release the switch once it reach- es the desired position.
ORJ038008ORJ038006
Page 29 of 580
Safety features of your vehicle
12
3
Seat back bolster control
(For driver seat, if equipped)
1. Turn the adjustment switch clock- wise, the right/left seatback bol-
sters will be adjusted inward. Turn
the switch counterclockwise, the
seatback bolster will be adjusted
outward. 2. To adjust the bolster height to its
maximum in the default state,
operate the switch for 8 seconds.
After that, release the switch
because there is no change in
height even if you continue to
operate the switch.
3. Once adjustment is done, leave the switch in place.
Walk-in Seat (for front passenger
seat, if equipped)
The adjustment switches are located
on the left side of the front passen-
ger’s seatback.
To adjust the position of front pas-
senger’s seat :
Press the control switch forward (1)
or rearward (2) to move the seat to
the desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the
front passenger seat is occupied.
ORJ038007OUM036096L
Page 30 of 580
313
Safety features of your vehicle

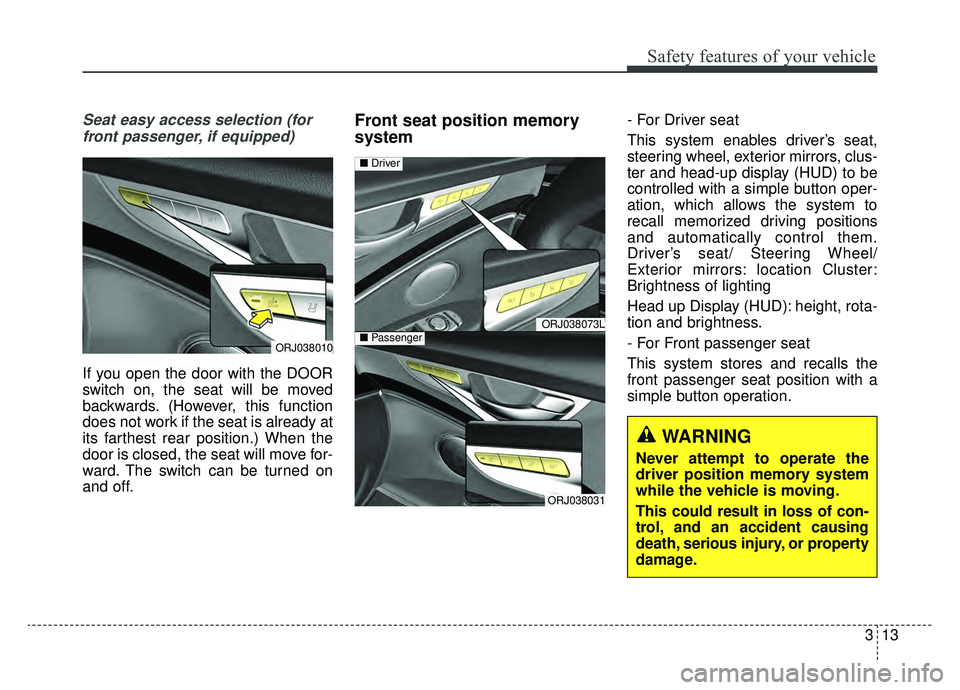

Seat easy access selection (forfront passenger, if equipped)
If you open the door with the DOOR
switch on, the seat will be moved
backwards. (However, this function
does not work if the seat is already at
its farthest rear position.) When the
door is closed, the seat will move for-
ward. The switch can be turned on
and off.
Front seat position memory
system- For Driver seat
This system enables driver’s seat,
steering wheel, exterior mirrors, clus-
ter and head-up display (HUD) to be
controlled with a simple button oper-
ation, which allows the system to
recall memorized driving positions
and automatically control them.
Driver’s seat/ Steering Wheel/
Exterior mirrors: location Cluster:
Brightness of lighting
Head up Display (HUD): height, rota-
tion and brightness.
- For Front passenger seat
This system stores and recalls the
front passenger seat position with a
simple button operation.
ORJ038010
WARNING
Never attempt to operate the
driver position memory system
while the vehicle is moving.
This could result in loss of con-
trol, and an accident causing
death, serious injury, or property
damage.
ORJ038073L
ORJ038031
■ Passenger
■Driver
